WorkPro NEO 5A ES User manual

Rev 17.08.01
User Manual / Manual de Uso

171
153
210 244 166

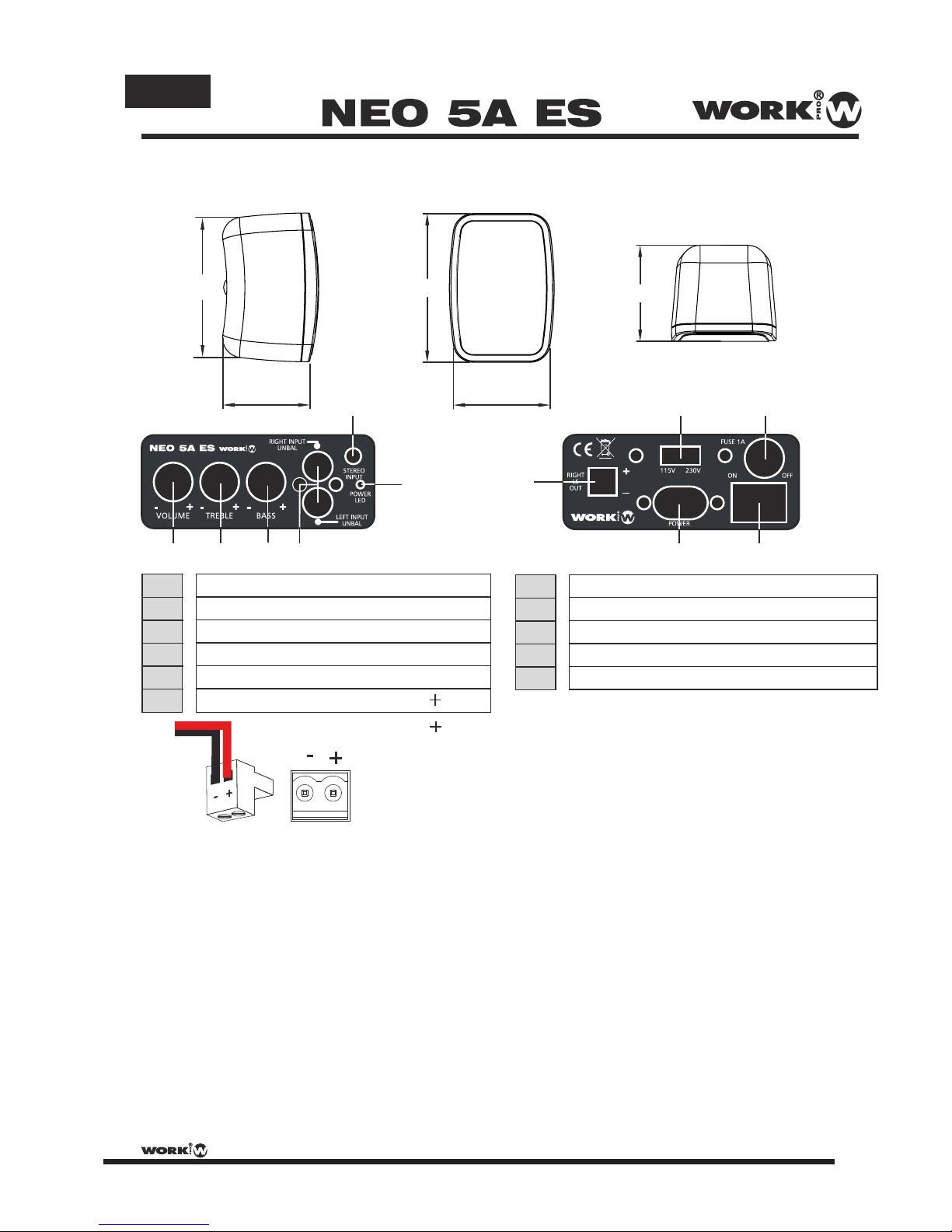

The connection is made through euroblock terminals.
Take it into account the correct polarity.
Use the included twin conductors cable (Red/Black) 3m long to
connect both loudspeakers.
1
1
7
7
Volume Control Link connection (Passive unit) 2-pin euroblock
Treble Control Mains supply input (Use the included cable)
Bass Control Power Switch ON/OFF
L/R Unbalanced Input (RCA connectors) Fuse Holder
LED power AC 115V/230V main power selector
Stereo input (Mini-jack 3.5 mm) (X)
2
2
8
8
3
3
9
9
4
4
10
10
5
5
11
11
6
6
Elements.................................................... 5" Woofer + 0,5" Tweeter
Power Output ........................................... 2 x 25 W RMS
Input Sensitivity........................................ 1V /2.21 dBu
Frequency Response .............................. 60Hz - 20kHz
Dimensions .............................................. 171 x 244 x 166 mm
Material (enclosure) ................................. ABS plastic
IP rating .................................................... IP 54
RAL colour code ...................................... RAL 9003 (W) / RAL 9004 (B)
Material (grille) ......................................... Aluminium
Weight ....................................................... 2,7 Kg
Specifications are subject to change without notice
two metallic wall-mount brackets, and a 3m link cable.
A NEO 5A ES carton contains an active loudspeaker and a passive one (black or white),
1 User Manual/Manual de Uso NEO5 A ES
(X) This connector overrides RCA input
EN

WARNING: In order to avoid undesired noise and hum. Be sure TO CONNECT the audio input although
the audio source will be off
The NEO 5 A ES features a low power consumption in off mode. Therefore, in absence of
input signal, the consumption falls down 1W.
This system has been designed taking into account that its activation/desactivation is not
apreciated by the audience.
This features complies Ecodesign standard EN 62301:2005+1275/2008/EC.
POWER
SUPPLY
AUTOMATIC
STANDBY
CIRCUIT
2 User Manual/Manual de Uso NEO5 A ES
NEO 5A ES, Low consumption in off mode (Explanation)
The NEO Series is rated to IP54 which means there is ingress
protection.
The NEO Series is designed for both indoor and outdoor operation where it is protected
from direct exposure to water (e.g. under a canopy). The use of protection from water and
humidity for the connection terminals is highly recommended (e.g. sealant/mastic).
limited dust and water
IP54 weather proof rating
Plastic Wall-mount bracket
EN
8
1
21Rear wall mounting part
Threaded Ball
M10 nut
Rear threaded insert (a)
(a) Mounted to loudspeaker
2
3
4
5
6
7
Allen Screw 45 mm x M6
M6 nut
67
Screw eyelet for safety cable (a) (b)
345

3 User Manual/Manual de Uso NEO5 A ES
WARNING: The maximum loading of this
bracket (10 kg), must never be
exceeded.
No other items must be
suspended or attached to the
bracket or speaker enclosure.
EN
42 mm
5 mm
45 mm 45 mm
Ø
Mounting Process
Use the wall mounting part (1) to mark the fixing points
on the wall. Take into account the dimensions between
holes and the diameters marked in figure 1.
Drill wall and insert wall fixings. Screw wall mounting part to wall.
Ensure that suitable screws and wall fixings are used.
If in any doubt contact a suitably qualified expert.
Mount (3), (4) & (5) as shown in figure 2. Screw the threaded ball (4)
into the threaded insert on the rear of the loudspeaker (6) (loudspeaker not shown below).
Tighten M10 nut (5) against the loudspeaker with a spanner.
The assembly will now be as shown in figure 3.
figure 1
figure 2 figure 3
figure 4
Slide the hooks of the
front threaded part (2)
down in to the slots of the
wall mount part (1). (figure 4)
Screw on several turns (do not tighten completely).
Now adjust the loudspeaker to the desired position.
Hold the speaker in position and tighten the knurled ring (3) completely.
Use the self tapping screw (7) provided in order to lock parts (1) & (2) together.
the rotary knurled ring (3)
Self-tapping screw
Screw eyelet fixing point for safety cable

171
153
210 244 166
1
7
28
39
4
10
5
11
6
4 User Manual/Manual de Uso NEO5 A ES

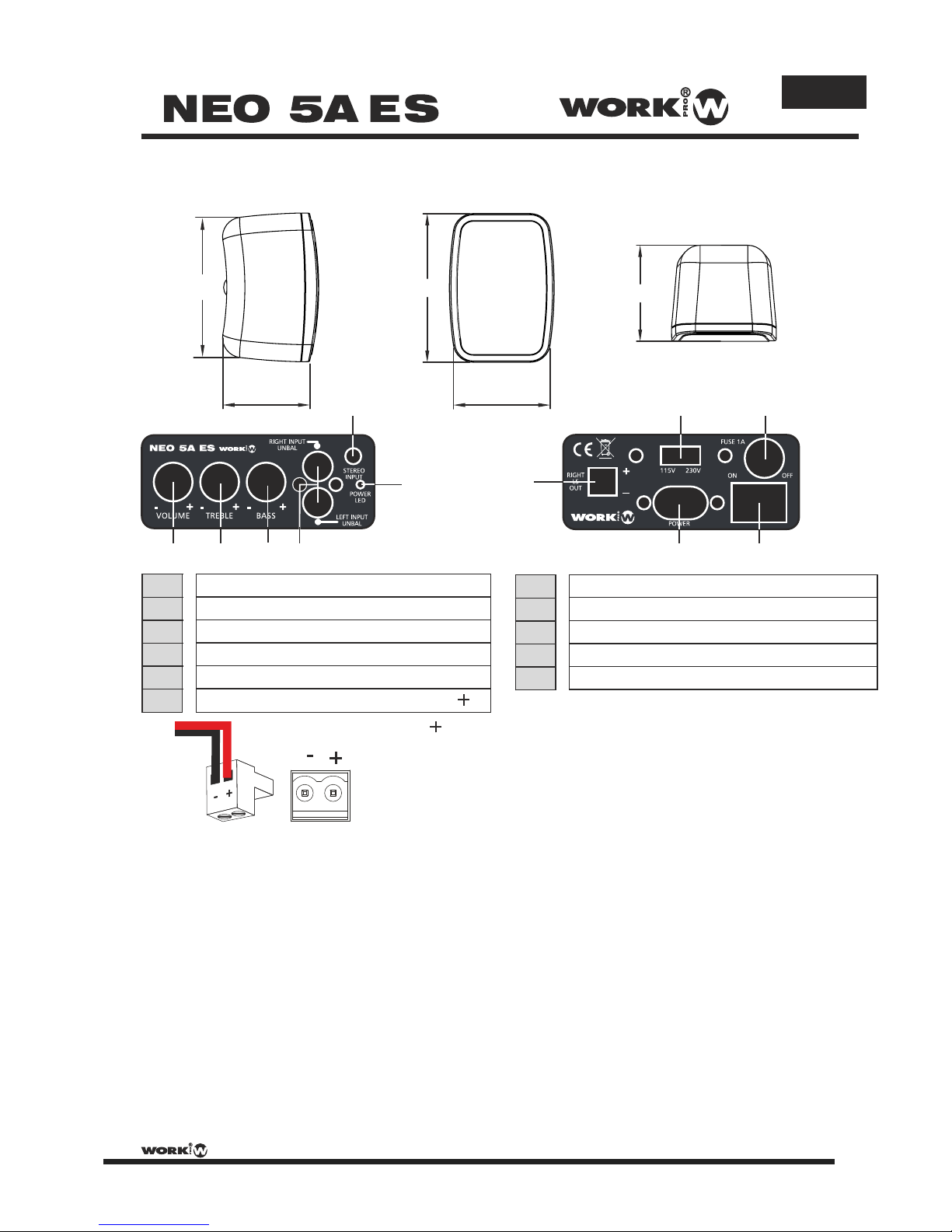

El conexionado LINK se realiza mediante terminales Euroblock
Asegúrese de la correcta polaridad.
Use el cable incluido de 2 conductores (Rojo/Negro) de 3 m
de longitud para conectar ambos altavoces.
17
Control de Volumen Conect. Link (Unidad pasiva) 2-pin euroblock
Control Treble Alimentación (Use el cable incorporado)
Control Bass Interruptor ON/OFF
Entrada desbal. L/R (Conectores RCA) Portafusible
LED power Selector AC 115V/230V
Entrada Estéreo (Mini-jack 3.5 mm) (X)
28
39
410
511
6
Elementos................................................. 5" Woofer + 0,5" Tweeter
Potencia de Salida ................................... 2 x 25 W RMS
Sensibilidad de entrada........................... 1V /2.21 dBu
Respuesta en frecuencia ........................ 60Hz - 20kHz
Dimensiones ............................................ 171 x 244 x 166 mm
Material (recinto) ...................................... Plástico ABS
Rnago IP .................................................... IP 54
Código color RAL ..................................... RAL 9003 (W) / RAL 9004 (B)
Material (rejilla) ........................................ Aluminio
Peso .......................................................... 2,7 Kg
Las especificaciones están sujetas a cambio sin previo aviso.
Un set de
dos soportes de pared metálicos y un cable link de 3m.
NEO 5A ES contiene una caja acústica activa y otra pasiva (color blanco o negro),
(X) Este conector anula la entrada RCA
ES

ADVERTENCIA: Para evitar ruidos y zumbidos no deseados. Asegúrese de CONECTAR la entrada de
audio aunque la fuente de audio esté apagada
1
2
5
1Pieza de montaje trasera pared
Bola roscada
Tuerca M10
Pieza de inserción trasera (a)
(a) Montado en el altavoz
2
3
4
5
6
7
Tornillo Allen 45 mm x M6
Tuerca M6
67
Tornillo fijación cable de seguridad (a) (b)
34
POWER
SUPPLY
AUTOMATIC
STANDBY
CIRCUIT
NEO 5A ES, Bajo consumo en modo “stand-by” (Explicación)
NEO 5 A ES incorpora un sistema de bajo consumo de potencia (modo off). De esta forma,
en ausencia de señal de entrada durante un periodo de tiempo, el consumo cae por debajo
de 1W.
Este sistema se ha diseñado de tal forma que su activación y desactivación se hace
inapreciable para la audiencia.
Esta característica cumple con el standard Ecosdesign EN 62301:2005+1275/2008/EC
5 User Manual/Manual de Uso NEO5 A ES
La serie NEO dispone de un rango de protección IP 45, el cual significa que tiene una
protección limitada al ingreso de agua y polvo.
La serie NEO está diseñada tanto para instalaciones en interior como exterior donde está
protegida de la exposición directa al agua (debajo de un dosel). Es muy recomendable el
uso de protecciones contra el agua o la humedad en los terminales de conexión (p.e.
sellándolos con silicona o masilla).
Rango de protección IP54
Soporte plástico de pared
ES

6 User Manual/Manual de Uso NEO5 A ES
ATENCION: La carga máxima de este
soporte metálico de pared
es de (10 kg), NUNCA debe
excederse.
Ningún otro elementos debe
colgarse de este soporte o de
las sujecciones del altavoz
ES
42 mm
5 mm
45 mm 45 mm
Ø

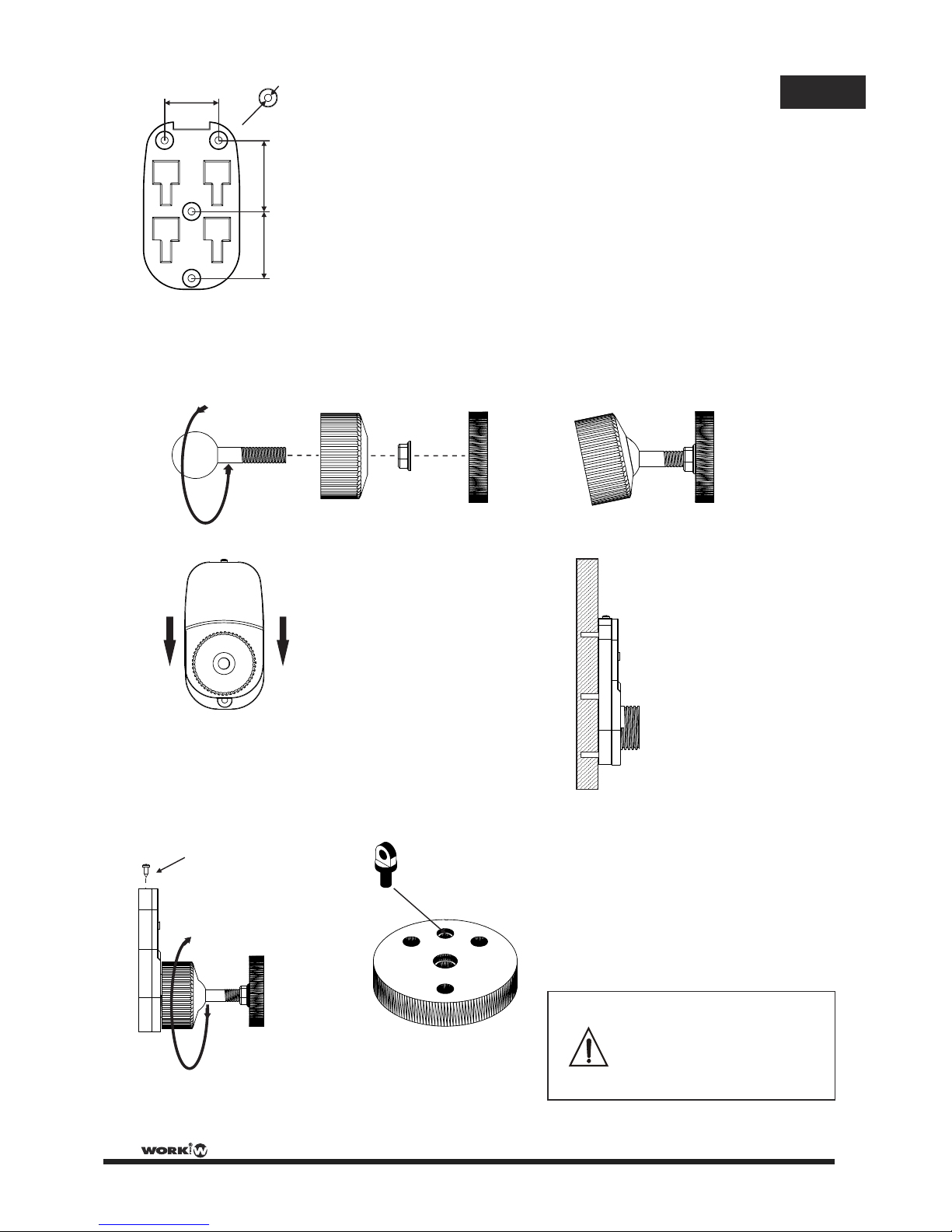

Proceso de Montaje
Use la pieza de montaje (1) para marcar los puntos de fijación a
la pared. Tenga en cuenta las medidas y diámetros marcados en
la figura 1.
Fije la pieza a la pared. Asegúrese de fijarlo con todos los tornillos.
Si tiene cualquier duda, consulte con un técnico.
Monte las piezas (3), (4) y (5) como muestra la figura 2. Atornille la pieza (4)
dentro de la inserción roscada del altavoz (6). Fije la tuerca M10 (5) contra el altavoz.
El montaje se muestra en la figura 3 3.
figura 1
figura 2 figura 3
figura 4
Deslice la pieza frontal
sobre la pieza montada en
la pared (figura 4)
Atornille el aro rotativo (3) varias veces (sin fijarlo totalmente).
Ahora ajuste el altavoz en la posición deseada.
Fije el altavoz y apriete el aro (3) completamente.
Use el tornillo de fijación del cable (7).
Tornillo de fijación
Tornillo de fijación del cable de seguridad

http://www.equipson.es
This symbol on the product or on its packaging indicates that this product
shall not be treated as household waste. Instead it shall be handed over to
the applicable collection point for the recycling of electrical an electronic
equipment. By ensuring this product is disposed of correctly, you will help
prevent potential negative consequences for the environment and human
health, which could otherwise be caused by inappropriate waste handling
of this product. The recycling of materials will help to conserve natural
resources. For more detailed information about recycling of this product,
please contact your local city office, your household waste disposal service
or the shop where you purchased the product.
Manufactured by EQUIPSON, S.A.
