WORKZONE TITANIUM TB-HT04-20 User manual

Xfinity Li-ION 20V
CORDLESS AIR PUMP
Instruction Manual
MODEL NUMBER TB-HT04-20
Version number: 0001
IMPORTANT:
Read carefully before use
Keep for future reference
*Battery not included
YEAR WARRANTY
AUS
AFTER SALES SUPPORT
[email protected] 1300 777 137
MODEL: TB-HT04-20 PRODUCT CODE: 61552 06/2019
CONTENTS
• 1 x Air Pump
• 1 x Flexible Hose with Air Chuck
• 1 x Tapered Universal Adapter
• 1 x Ball Needle Adapter
• 1 x Instruction Manual
• 1 x Warrant Certicate

AFTER SALES SUPPORT:
1300 777 137 [e-mail]
MODEL: TB-HT04-20 PRODUCT CODE: 61552 06/2019
AUS
1
Welcome
Congratulations in choosing to buy a Workzone® Titanium product.
All products bought to you by Workzone® Titanium are manufactured to the highest
standards of performance and safety and, as part of our philosophy of customer service and
satisfaction, are backed by our comprehensive 5 Year Warranty. We hope you will enjoy
your purchase for many years to come.

AFTER SALES SUPPORT:
1300 777 137 [e-mail]
MODEL: TB-HT04-20 PRODUCT CODE: 61552 06/2019
AUS
2
1. APPLICATION …………………………………………………………………………….......... 3
2. PARTS DESCRIPTION ………………………………………………………………….......... 3
3. PACKAGE CONTENT LIST …………………………………………………………........….. 4
4. SYMBOLS …………………………………………………………………………………........… 4
5. GENERAL POWER TOOL SAFETY WARNINGS ……………………………........….. 5
6. OPERATION ………………………………………………………………………………........… 8
7. CLEANING, MAINTENANCE AND STORAGE ……………………………........……. 11
8. DISPOSAL ………………………………………………………………………………........…… 11
9. TROUBLESHOOTING ……………………………………………………………….........… 12
10. TECHNICAL DATA ……………………………………………………………………......….. 12

AFTER SALES SUPPORT:
1300 777 137 [e-mail]
MODEL: TB-HT04-20 PRODUCT CODE: 61552 06/2019
AUS
3
AIR PUMP
TB-HT04-20
1. APPLICATION
This air pump is intended for inflating car and bicycle tyres, sports/gym balls and
the like. It is designed for domestic use and is not designed for commercial, trade
or industrial use.
WARNING! Please read and understand this instruction manual
before use and keep it for your future reference. Your power tool
should only be passed on together with this instruction manual.
2. PARTS DESCRIPTION
Fig.A
1. Air Chuck 9. Air Hose Storage Area
2. Adapter Storage Area 10. Air Hose
3. Battery (not included) 11. Air Chuck Clamp
4. Ball Needle Adapter 12. Digital Pressure Gauge
5. Tapered Universal Adapter 13. Pressure Setting (-)
6. Trigger Switch 14. Pressure Setting (+)
7. LED Worklight 15. Power and Mode Button
8. Air Hose Connector
12
15 14 13
1
7
6
5
4
8
9
11
10
2
3

AFTER SALES SUPPORT:
1300 777 137 [e-mail]
MODEL: TB-HT04-20 PRODUCT CODE: 61552 06/2019
AUS
4
3. PACKAGE CONTENT LIST
1 x Air Pump 1 x Ball Needle Adapter
1 x Flexible Hose with Air Chuck 1 x Warranty Certificate
1 x Tapered Universal Adapter 1 x Instruction Manual
 Remove all packing materials
 Ensure all parts on the contents list are present
 Check the appliance, and all accessories for transportation damages
WARNING! Packaging material are not toys! Children must not play
with plastic bags! Danger of suffocation!
If any parts are missing or damaged, please contact Action Spares
1300 777 137.

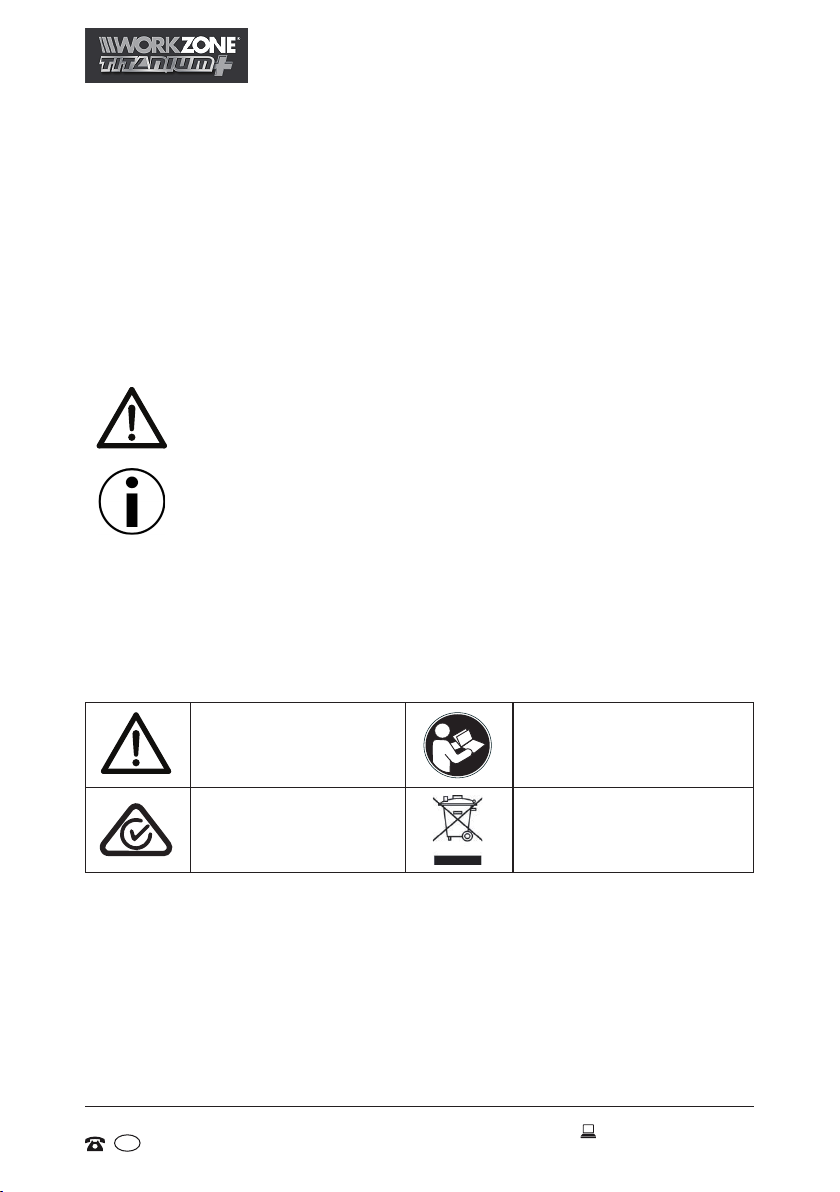

4. SYMBOLS
The following symbols are used in this manual and/or on the air pump.
Denotes risk of personal
injury or damage to the
tool
Read instruction manual
before use
Australian Regulatory
Compliance mark
Dispose appliances according
to the regulation and
requirement of local council

AFTER SALES SUPPORT:
1300 777 137 [e-mail]
MODEL: TB-HT04-20 PRODUCT CODE: 61552 06/2019
AUS
5
5. GENERAL POWER TOOL SAFETY WARNINGS
WARNING! Read all safety warnings and all instructions. Failure to
following the warnings and instructions may result in an electric shock,
fire and/or serious injury.
Save all warnings and instructions for future reference!
The term “power tool” in the warnings refers to your mains-operated (corded)
power tool or battery-operated (cordless) power tool.
5.1 Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the
presence of flammable liquids, gases or dust. Power tools create sparks which
may ignite the dust of fumes.
c) Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.
5.2 Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any
way. Do not use any adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce the risk of an electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes,
radiators, ranges and refrigerators. There is an increased risk of electric shock
if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power
tool will increase the risk of an electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging
the power tool. Keep cord away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for
outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric
shock.
f) If operating a power tool in a damp location is unavoidable, use a residual
current device (RCD) protected supply. Use of an RCD reduces the risk of
electric shock.
5.3 Personal safety
a) Stay alert, watch what you are doing and use common sense when operating
a power tool. Do not use a power tool while you are tired or under influence
of drugs, alcohol or medication. A moment of inattention while operating

AFTER SALES SUPPORT:
1300 777 137 [e-mail]
MODEL: TB-HT04-20 PRODUCT CODE: 61552 06/2019
AUS
6
power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective
equipment such as dust mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before
connecting to power source and/or battery pack, picking up or carrying the
tool. Carrying power tools with your finger on the switch or energising power
tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A
wrench or a key left attached to a rotating part of the power tool may result in
personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables
better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair,
clothing and gloves away from moving parts. Loose clothes, jewellery or long
hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection
facilities, ensure these are connected and properly used. Use of dust
collection can reduce dust-related hazards.
5.4 Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application.
The correct power tool will do the job better and safer at the rate for which it
was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any
power tool that cannot be controlled with the switch is dangerous and must be
repaired.
c) Disconnect the plug from the power source and/or the battery pack from the
power tool before making any adjustments, changing accessories, or storing
power tools. Such preventive safety measures reduce the risk of starting the
power tool accidentally.
d) Store idle power tools out of reach of children and do not allow persons
unfamiliar with the power tool or these instructions to operate the power.
Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the power tools
operation. If damaged, have the power tool repaired before use. Many
accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with
sharp cutting edges are less likely to bind and are easier to control.

AFTER SALES SUPPORT:
1300 777 137 [e-mail]
MODEL: TB-HT04-20 PRODUCT CODE: 61552 06/2019
AUS
7
g) Use the power tool, accessories and tool bits etc. in accordance with these
instructions, taking into account the working conditions and the works to
be performed. Use the power tool for operations different from those intended
could result in hazardous situations.
5.5 Battery tool use and care
a) Recharge only with the charger specified by the manufacturer. A charger
that is suitable for one type of battery pack may create a risk of fire when used
with another battery pack.
b) Use power tools only with specifically designated battery packs. Use of any
other battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects,
like paper clips, coins, keys, nails, screws or other small metal objects, that
can make a connection from one terminal to another. Shorting the battery
terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid
contact. If contact accidentally occurs, flush with water. If liquid contacts
eyes, additionally seek medical help. Liquid ejected from the battery may
cause irritation or burns.
5.6 Service
a) Have your power tool serviced by a qualified repair person using only
identical replacement parts. This will ensure that the safety of the power tool
is maintained.
5.7 Special safety notes for air pump
a) Observe the maximum pressure. Do not inflate any items to excess pressure.
b) The air pump is designed for occasional use. Allow the air pump to cool down
after 5 minutes of use.
c) Never use the air pump near flammable fluids or gases.
d) Never allow anyone to pump air into mouth, ears, nose etc. of people and
animals.
e) Do not direct air stream at body.
f) Do not expose to rain.
5.8 Residual risk
Even if you use the air pump as prescribed, it is not possible to eliminate all residual
risk. The following hazards may arise:
 Damage to the lungs if an effective breathing mask is not worn.
 Damage to hearing if effective ear protection is not worn.
 Damage to the eyes if effective eye protection is not worn.

AFTER SALES SUPPORT:
1300 777 137 [e-mail]
MODEL: TB-HT04-20 PRODUCT CODE: 61552 06/2019
AUS
8

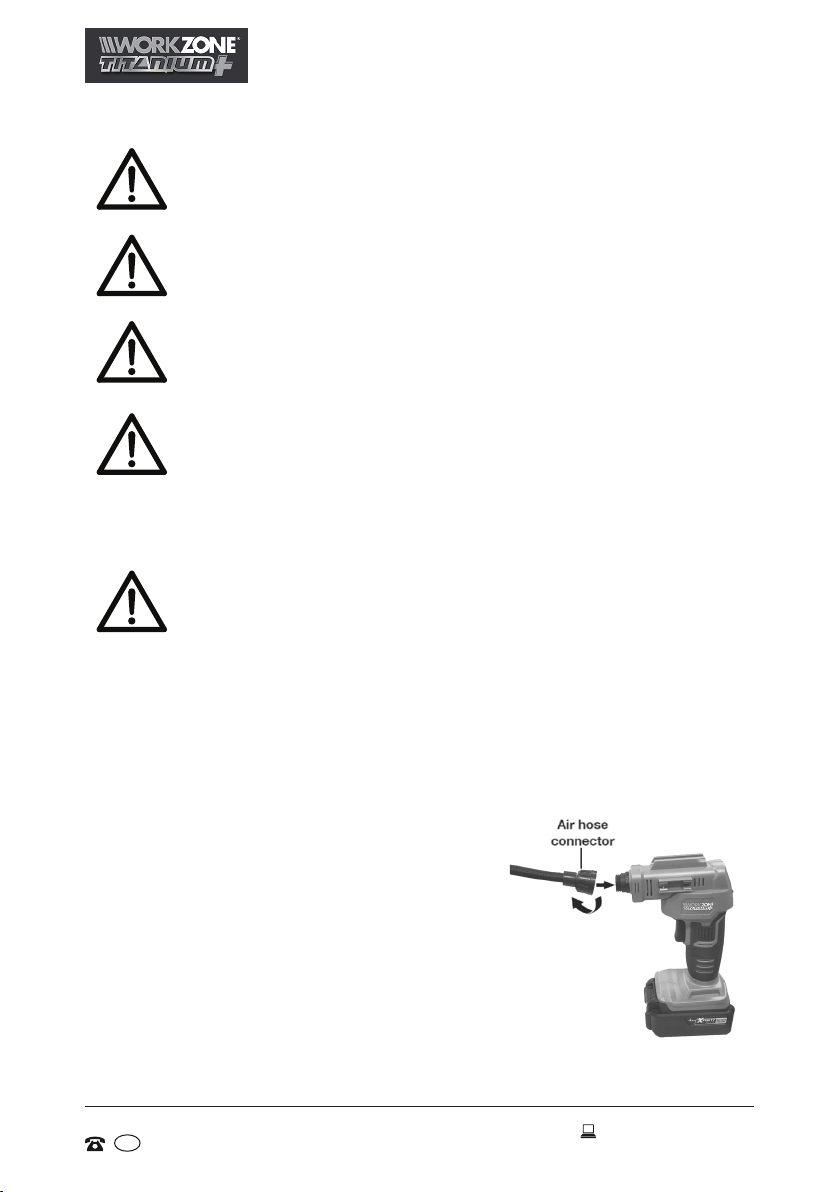

6. OPERATION
WARNING: Always observe the pressure on the pressure gauge.
Never inflate object to a pressure greater than the maximum
pressure specified by the manufacturer of the object.
WARNING: Switch off the air pump immediately should any danger
arise.
WARNING: The metal parts on the adaptor and extension tube can
become very hot. Allow the parts to cool down before touching
these parts.
WARNING: The air pump should not continue operating for more
than 5 minutes. After 5 minutes, it must be switched off and allowed
to cool down for at least 10 minutes before restarting.
6.1 Insert and remove the battery pack (sold separately)
WARNING: Before inserting or removing the battery pack, make sure
the air pump is switched off.
a) To insert the battery pack, align the battery pack with the air pump's base and
slide the battery pack into the air pump, so that the battery pack is locked in
position.
b) To remove the battery pack, press the battery’s release button and pull the
battery pack off at the same time.
6.2 Fitting the air hose (Fig. 1)
a) Remove the battery pack from the air pump.
b) Insert the air hose connector (8) into the open
end of the air pump then tighten it by turning
clockwise.
c) To remove, turn the air hose connector (8)
anti-clockwise and remove the air hose.
Fig. 1

AFTER SALES SUPPORT:
1300 777 137 [e-mail]
MODEL: TB-HT04-20 PRODUCT CODE: 61552 06/2019
AUS
9
6.3 Inflating with the air hose (Fig. 2)
a) The air chuck (1) on the air hose (10) can
be used to inflate tires or any object with
a valve stem that can fit into the air chuck
opening.
b) Place the air chuck (1) on the valve stem.
c) Push the air chuck (1) down so that the
thread section of the valve stem is inside
the air chuck (1).
d) Clamp the end of the air chuck (1) down
onto the valve stem by pressing the air
chuck clamp (11) down until it locks into
place.
e) To remove, lift the air chuck clamp (11) and
remove the air chuck from valve stem.
6.4 Inflating with the air hose and adapters (Fig. 3)
a) The air hose (10) can be used with adapters
to inflate different objects.
b) Insert adapter into the air chuck (1) and it
locks into place.
6.5 Switching on and setting the digital pressure gauge (Fig. 4)
a) The digital pressure gauge can be used to
set the pressure of the inflated objects and
monitor the pressure inside the inflated
object.
Press the power button (15) to switch on
the digital pressure gauge.
b) To switch between PSI, BAR or KPA modes
- Press the digital pressure gauge power
button (15) to select the desired measured
unit.
6.6 Setting digital pressure gauge for automatic shut off
a) With the digital pressure gauge (12) switched on, press and hold down (+) or (-)
button to select desired shutoff pressure.
Note: Numbers will flash while setting pressure. Holding buttons down will
make the pressure number increase or decrease faster.
b) When the desired pressure has been selected, begin inflating. The air pump
will shut off once the set pressure is reached.
Fig. 3
Fig. 4
Fig. 2

AFTER SALES SUPPORT:
1300 777 137 [e-mail]
MODEL: TB-HT04-20 PRODUCT CODE: 61552 06/2019
AUS
10
6.7 LED worklight (Fig. 4)
WARNING: Do not stare directly at the LED worklight . Never aim the
LED worklight at any person or animal.
a) The LED worklight (7) will switch on when
the power button (15) is pressed.
b) The LED worklight (7) will stay on when the
air pump is switched on.
When the air pump is switched off, the LED
worklight will turn off after 30 seconds.
6.8 Starting and stopping (Fig. 5)
a) To switch the air pump on, press and hold
the power and mode button (15) till the
digital pressure gauge (12) is on.
b) Once the digital pressure gauge has
switched on, select the desired shutoff
pressure.
c) Depress and hold the trigger switch (6) to
start pumping air.
d) After a few seconds release the trigger
switch (6) and the air pump will continue
running.
The air pressure will appear on the digital
pressure gauge (12) as the object is being
inflated.
e) To turn the air pump off, press the trigger
switch (6) again.
f) After the pre-set pressure is reached, the
air pump will turn off automatically.
Fig. 5
LED light
Fig. 6
Trigger switch

AFTER SALES SUPPORT:
1300 777 137 [e-mail]
MODEL: TB-HT04-20 PRODUCT CODE: 61552 06/2019
AUS
11
7. CLEANING, MAINTENANCE AND STORAGE
WARNING: Remove the battery from the air pump before cleaning,
maintenance and storage.
7.1 Cleaning
a) Regularly clean the air pump's housing with a soft cloth, preferably after each
use. If the dirt does not come off, use a soft cloth moistened with soapy water.
b) Never use solvents such as petrol, alcohol, ammonia water etc. These solvents may
damage the plastic parts.
7.2 Maintenance
a) The air pump has been designed to operate over a long period of time with a
minimum of maintenance. Continuous satisfactory operation depends upon proper
care and regular cleaning.
b) The air pump should only be repaired by an authorized service centre. There is no
serviceable parts that can be repaired by the user.
7.3 Storage
a) Thoroughly clean the air pump and its accessories before storage.
b) Store the air pump and its accessories out of the reach of children in a stable and
secure place.
8. DISPOSAL
Dispose appliances according to the regulations and requirements
of your local council. If appliances are disposed in landfills or dumps,
hazardous substances may leak into the ground water and get into the
food chain, damaging your health and well-being.

AFTER SALES SUPPORT:
1300 777 137 [e-mail]
MODEL: TB-HT04-20 PRODUCT CODE: 61552 06/2019
AUS
12
9. TROUBLESHOOTING
Problem Possible causes Possible solutions
Air pump cannot
start.
Battery not installed
properly. Insert the battery again.
Battery not charged. Charge the battery.
No pressure.
Adaptor not fitted properly. Fit the adaptor properly.
Pump is not working. Repair by an authorized
service centre.
Pump operates but
object does not
inflate.
Adaptor is not fitted
properly. Fit the adaptor properly.
Adaptor is not clean. Clean the adaptor.
Incorrect adaptor. Use the correct adaptor.
10. TECHNICAL DATA
Model No. TB-HT04-20
Rated voltage 20Vd.c.
Maximum pressure 8 bar/120PSI
Maximum operating time S2: 5 min
Weight 0.8kg
Product dimension 21.5cm X 15cm X 7.5cm
Standard AS/NZS 60745.1:2009

The product is guaranteed to be free from defects in workmanship and parts for a period of 60 months from the
REGISTER YOUR PURCHASE AT www.aldi.com.au/en/about-aldi/product-registration/ TO KEEP UP-TO-DATE WITH IMPORTANT PRODUCT INFORMATION
date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired,
replaced or refunded at our discretion.The benefits conferred by this warranty are in addition to all rights and
remedies in respect of the product that the consumer has under the Competition and Consumer Act 2010 and
similar state and territory laws.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled
to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or
damage.You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality
and the failure does not amount to a major failure.
Warranty Details
AFTER SALES SUPPORT:
1300 777 137 [email protected]
AUS
MODEL: TB-HT04-20 PRODUCT CODE: 61552 06/2019
AIR PUMP 20V

AFTER SALES SUPPORT:
1300 777 137 [email protected]
AUS
Unfortunately, from time to time, faulty products are manufactured which need to be returned to the Supplier
for repair.
Please be aware that if your product is capable of retaining user-generated data (such as files stored on a computer
hard drive, telephone numbers stored on a mobile telephone, songs stored on a portable media player,
games saved on a games console or files stored on a USB memory stick) during the process of repair,
some or all of your stored data may be lost.
We recommend you save this data elsewhere prior to sending the product for repair.
You should also be aware that rather than repairing goods, we may replace them with refurbished goods of
the same type or use refurbished parts in the repair process.
Please be assured though, refurbished parts or replacements are only used where they meet
If at any time you feel your repair is being handled unsatisfactorily, you may escalate your complaint.
Please telephone us on 1300 777 137 or write to us at:
Action Spares
2/24 Anderson Road, Smeaton Grange, NSW 2567
Phone: [phone] (Operating hours: Mon-Fri 9:00am - 4:30pm EST)
E-mail: [email protected]
Repair and Refurbished Goods
or Parts Notice
MODEL: TB-HT04-20 PRODUCT CODE: 61552 06/2019
AIR PUMP 20V

WORKZONE® TITANIUM is a registered trademark of ALDI Stores
DISTRIBUTED BY:
ALDI STORES,
1 SARGENTS ROAD,
MINCHINBURY NSW 2770
www.aldi.com.au
ALDI guarantees that our exclusive brand products are developed to
our stringent quality specications. If you are not entirely satised
with this product, please return it to your nearest ALDI store within
60 days from the date of purchase for a full refund or replacement,
or take advantage of our after sales support by calling the supplier‘s
Customer Service Hotline.
YEAR WARRANTY
AUS
AFTER SALES SUPPORT
[email protected] 1300 777 137
MODEL: TB-HT04-20 PRODUCT CODE: 61552 06/2019
