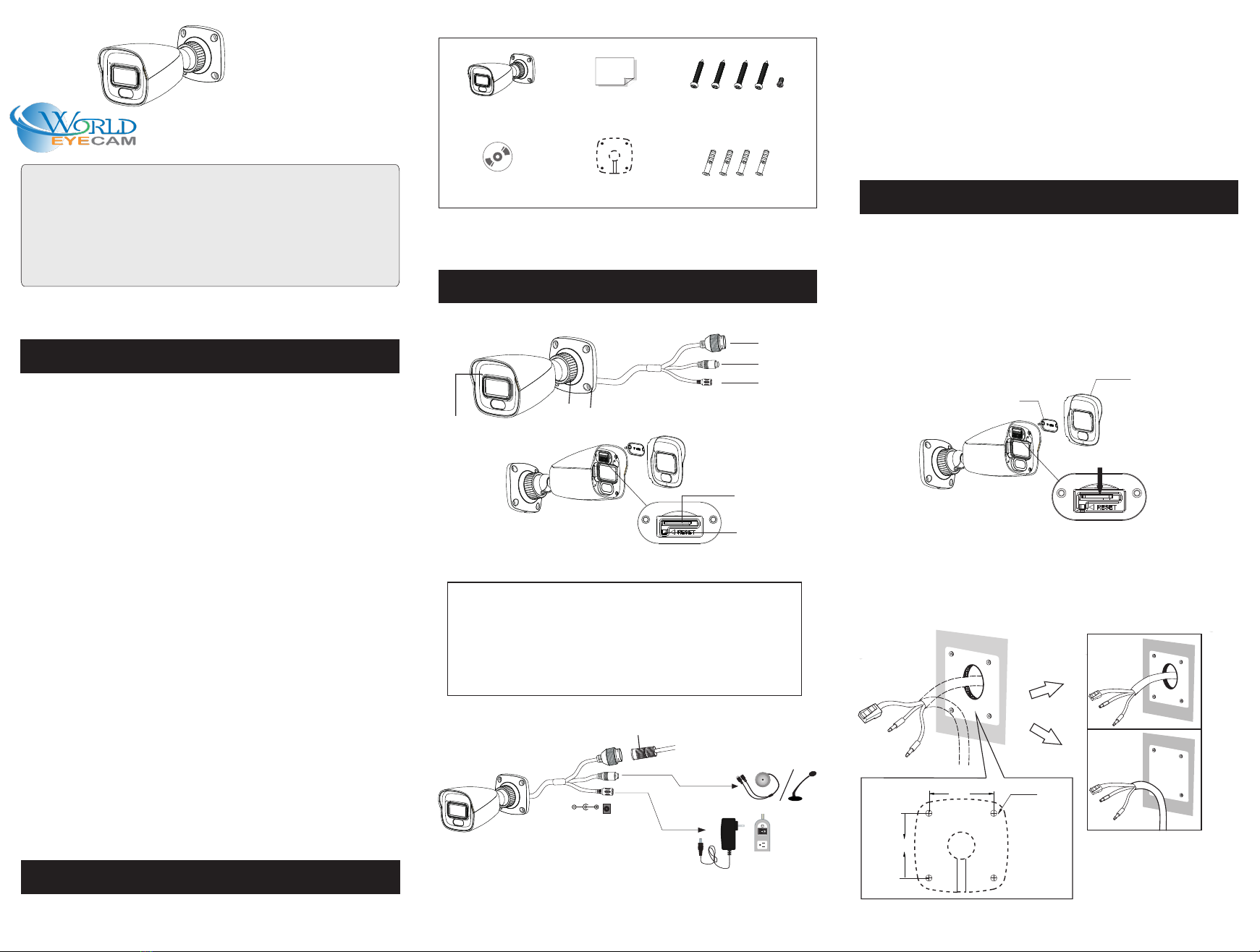

World Eye AMX-4C22-MZ-PA User manual

Package
Overview
Installation
1
2
3
4
Warning and Caution
■If the product does not work properly, please contact your dealer
or the nearest service center. Never attempt to disassemble the
camera yourself. (We shall not be responsible for any problems
caused by unauthorized repair or maintenance.)
■Do not allow water or liquid intrusion into the camera.
■In the use of the product, you must be strict compliance with the
electrical safety regulations of the nation and region. When the
product is mounted on wall or ceiling, the device shall be firmly
fixed.
■Do not use camera beyond specified voltage range.
■Do not drop the camera or subject it to physical shock.
■The product must be grounded to reduce the risk of electric shock.
■ Avoid touching the camera lens.
■If cleaning is necessary, please use clean cloth to wipe it gently.
■Do not aim the camera at the sun or extra bright place.
■Do not place the camera in extremely hot, cold (the operating
temperature shall be -30˚C~60˚C), dusty or damp locations, and do
not expose it to high electromagnetic radiation.
■To avoid heat accumulation, good ventilation is required for
operating environment.
Quick Start Guide
Network Camera
■Please read this instruction carefully before using the product
and keep it for further reference.
■All the examples and pictures used here are for reference only.
■The contents of this manual are subject to change without
notice.
* 1
*2 This series can be powered by DC 12V/PoE power supply. If the PoE switch is
used to power the camera, DC12V power supply is not required.
*3 Press and hold the reset button for more than 10 seconds to restore to the factory
default setting.
It is recommended to install the security cap for outdoor installation.
Camera Quick start guide
CD Plastic plug × 4
4 tapping screws
1 machine screw
1 Fixed ring
2 Mounting base
3
4
Network connector*
Audio input
5 Power connector*
6 Micro SD card slot
7 Reset*
8 Microphone
Security cap
DC12V
12
3
4
5
Drill Template
7
6
8
Please make sure that the wall or ceiling is strong enough to withstand
3 times the weight of the camera. Please install and use the camera in
the dry environment.
① Install a micro SD card. Remove the plastic cover (a) from the
camera and then loosen the two screws of (b). Remove (b) and then
insert a micro SD card. After that, install back (b) and (a).
②Attach the drill template to the place where you want to fix the
camera and then drill the screw holes and the cable hole on the wall
according to the drill template.
Insert a micro SD card
a
b
48mm
48mm ∅4.5

Network Connection
5
MENU
IPC
Network Cable Network Cable
Switch
Router Computer
●Access Through IP-Tool
Here we take accessing IP camera via LAN for example.
③Route the cables and connect the relevant cables.
④Fasten the mounting base to the wall with the screws provided.
(a). Loosen the nut from the main element.
b. Run the network cable (without RJ 45 connector) through the both
elements. Then crimp the cable with RJ 45 connector.
c. Connect the cable to the hermetic connector. Then tighten the nut and the
main cover.
( )
( )
⑤Loosen the fixed ring to adjust the viewing angle of the camera.
Before adjustment, view the image of the camera on a monitor.
(a)(b)(c)
Earth wire
connection
Mounting base
⑥Tighten the fixed ring to finish the installation.
Tilt:0~ 80°
Rotate:0~360°
Pan:0~360°
Fixed ring
Device Network Search
Immediate Refresh
name
name
name
IPC
IPC
IPC
unknown
unknown
unknown
192.168.226.201
192.168.1.2
192.168.1.3
80
80
80
9008
9008
9008
255.255.
255.255.
255.255.
Modify Network Parameter
Mac Address
IP Address
Modify
CE :98 :23 :75 :35 :22
192 . 168 . 226 . 201
255 . 255 . 255 . 0
192 . 168 . 226 . 1
i
Tip: Enter the administrator password, and
then modify the network parameters.
Total Device: 3 Local IP Address:192.168.1.4Subnet Mask:255.255.2 55.0 Gateway: 192.168.1.1 DNS：210.21.196.6
Device Name Device Type IP Address Http Port Data Port Subnet
Product Model
About
Subnet Mask
Gateway
Restore IPC Default Configuration
①Make sure that the camera and the PC are well connected to the
LAN.
②Find the IP-Tool from the CD and then install it in the computer.
After that, run the IP-Tool as shown below.
③
The default IP address of this camera is 192.168.226.201.
Double-click the camera listed in the IP-Tool to
.
open the web
browser
Read the privacy statement and then activate the device. The
default username is admin. You need to self-define the password.
Then set the security questions and answers. It is important for you
to remember these answers, or you will not be able to reset your
password.
Available Web Browser: IE(plug-in required) /Google Chrome/
Firefox/Safari/Edge
It is recommended to use the latest version of the above browsers.
④
⑤Follow directions to download and install the plugin (if prompted).
Note: Please make sure the camera and the computer are in the
same local network.
8002001745 A0
