Worx Nitro WP332 Series User manual

WP332 WP332.X
Cordless 5” Pruning Saw
!"#$%&'()*+*+$%,*-,%.)%&$%/0
Sierra de podar inalámbrica de 5”
EN
F
ES
P09
P22
P37

19
*
20
*
22
*
21
*
23
*
24
*
18
15
17
16
14
15
25
Not all the accessories illustrated or described are included in standard
delivery.
Tous les accessoires illustrés ou décrits ne sont pas inclus dans une
livraison standard.
Tenga en cuenta que todos los accesorios ilustrados o descritos se
encuentran incluidos en una entrega estándar.
21
3
4
5
6
8
9
10
11
7
12
13

1
2
1
Kink/Plis/Torcimiento
C2
C1
B2
B1
A2
A1
1
2

EN: Bar / F: Bar
ES: Barra de guía
0.12-0.2”
F4
F3
1
2
E
D
F2
F1

1
2
3
G1
F5
H1
H2
G2
I
100%
0%

Z
Z
Y
Y
1
2
2
1
2
M
L
K
J
O
N

P2
P1
P4
P3
2
1
P6
P5

Q

Cordless 5” Pruning Saw EN
9
TABLE OF CONTENTS
1. SAFETY INSTRUCTIONS
2. COMPONENT LIST
3. TECHNICAL DATA
4. INTENDED USE
5. ASSEMBLY
6. OPERATION
7. TROUBLESHOOTING TABLE
1. SAFETY INSTRUCTIONS
PRODUCT SAFETY
WARNING: Some dust created by power
sanding, sawing, grinding, drilling and
other construction activities contains chemicals
known to the state of California to cause cancer,
birth defects or other reproductive harm. Some
examples of these chemicals are:
• Lead from lead-based paints;
• Crystalline silica from bricks and cement and
other masonry products;
• Arsenic and chromium from chemically-treated
lumber.
Your risk from these exposures varies, depending
on how often you do this type of work. To reduce
your exposure to these chemical: work in a well
ventilated area, and work with approved safety
equipment, such as those dust masks that are
,1$"#*))2%&$,#+-$&%34%.)3$5%463%7#"54,"41#"%
particles.
WARNING: This product can expose you to
chemicals including lead and Di(2-ethylhexyl)
phthalate (DEHP) which are known to the State
of California to cause cancer and birth defects or
other reproductive harm. For more information go
to www.P65Warnings.ca.gov.
GENERAL POWER TOOL
SAFETY WARNINGS
WARNING Read all safety warnings,
#-,356"3#4-,8%#))6,35*3#4-,%*-&%,1$"#."*3#4-,%
provided with this power tool.
Failure to follow
all instructions listed below may result in electric
!"#$%&'()*'+,-.#)'!*)/#0!'/,10)23
Save all warnings and instructions for future
reference.
The term “power tool” in the warnings refers to your
mains-operated (corded) power tool or battery-
operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit.
Cluttered or
dark areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence of
9*77*:)$%)#;6#&,8%+*,$,%45%&6,3<%
Power tools
create sparks which may ignite the dust or
fumes.
c) Keep children and bystanders away while
operating a power tool.
Distractions can cause
you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools.
4,5#-/(*-'6708!'+,-'5+9$"/,8'#097*9!'
will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges
and refrigerators.
There is an increased risk
of electric shock if your body is earthed or
grounded.
c) Do not expose power tools to rain or wet
conditions.
Water entering a power tool will
increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts.
Damaged or entangled cords
increase the risk of electric shock.
e) When operating a power tool outdoors, use an
extension cord suitable for outdoor use.
Use of
a cord suitable for outdoor use reduces the risk
of electric shock.
f) If operating a power tool in a damp location
is unavoidable, use a residual current device
(RCD) protected supply.
Use of an RCD reduces
the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired
45%6-&$5%3=$%#-96$-"$%4>%&56+,8%*)"4=4)%45%
medication.
A moment of inattention while
operating power tools may result in serious
6*)!#,+7'/,10)23'
b) Use personal protective equipment. Always
wear eye protection.
Protective equipment
such as dust mask, non-skid safety shoes, hard
hat, or hearing protection used for appropriate
$#,-/9/#,!':/77')*-0$*'6*)!#,+7'/,10)/*!3'
c) Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to power source and/or battery pack, picking up
or carrying the tool.
Carrying power tools with
2#0)'(,8*)'#,'9"*'!:/9$"'#)'*,*)8/!/,8'6#:*)'
tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before
turning the power tool on.
A wrench or a key left

Cordless 5” Pruning Saw EN
10
attached to a rotating part of the power tool may
)*!079'/,'6*)!#,+7'/,10)23'
e) Do not overreach. Keep proper footing and
balance at all times.
This enables better control
of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or
jewellery. Keep your hair and clothing away
from moving parts.
;##!*'$7#9"*!&'1*:*77*)2'#)'
long hair can be caught in moving parts.
g) If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used.
Use of
dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use
of tools allow you to become complacent and
ignore tool safety principles.
A careless action
$+,'$+0!*'!*<*)*'/,10)2':/9"/,'+'=)+$9/#,'#='+'
second.
4) Power tool use and care
a) Do not force the power tool. Use the correct
power tool for your application.
The correct
6#:*)'9##7':/77'-#'9"*'1#>'>*99*)'+,-'!+=*)'+9'9"*'
rate for which it was designed.
b) Do not use the power tool if the switch does not
turn it on and off.
Any power tool that cannot
be controlled with the switch is dangerous and
must be repaired.
c) Disconnect the plug from the power source
and/or remove the battery pack, if detachable,
from the power tool before making any
adjustments, changing accessories, or storing
power tools.
Such preventive safety measures
reduce the risk of starting the power tool
accidentally.
d) Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions
to operate the power tool.
Power tools are
dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check
for misalignment or binding of moving parts,
breakage of parts and any other condition
that may affect the power tool’s operation. If
damaged, have the power tool repaired before
use.
Many accidents are caused by poorly
maintained power tools.
f) Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting
edges are less likely to bind and are easier to
control.
g) Use the power tool, accessories and tool bits
etc. in accordance with these instructions,
taking into account the working conditions and
the work to be performed.
Use of the power tool
for operations different from those intended
could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean
and free from oil and grease.
Slippery handles
and grasping surfaces do not allow for safe
handling and control of the tool in unexpected
situations.
5) Battery tool use and care
*?% @$"=*5+$%4-)2%A#3=%3=$%"=*5+$5%,1$"#.$&%:2%
the manufacturer.
A charger that is suitable for
#,*'926*'#='>+99*)2'6+$%'5+2'$)*+9*'+')/!%'#='()*'
when used with another battery pack.
:?% B,$%14A$5%344),%4-)2%A#3=%,1$"#."*))2%
designated battery packs.
Use of any other
>+99*)2'6+$%!'5+2'$)*+9*'+')/!%'#='/,10)2'+,-'()*3'
c) When battery pack is not in use, keep it away
from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal
objects, that can make a connection from
one terminal to another.
Shorting the battery
9*)5/,+7!'9#8*9"*)'5+2'$+0!*'>0),!'#)'+'()*3
d) Under abusive conditions, liquid may be
ejected from the battery; avoid contact. If
"4-3*"3%*""#&$-3*))2%4""65,8%96,=%A#3=%A*3$5<%C>%
liquid contacts eyes, additionally seek medical
help.
;/?0/-'*1*$9*-'=)#5'9"*'>+99*)2'5+2'$+0!*'
irritation or burns.
e) Do not use a battery pack or tool that is
&*7*+$&%45%74&#.$&<
'@+5+8*-'#)'5#-/(*-'
batteries may exhibit unpredictable behaviour
)*!079/,8'/,'()*&'*A67#!/#,'#)')/!%'#='/,10)23'
>?% D4%-43%$E14,$%*%:*33$52%1*"F%45%344)%34%.5$%
or excessive temperature.
'BA6#!0)*'9#'()*'#)'
temperature above 265 °F (130 °C) may cause
explosion.
g) Follow all charging instructions and do not
charge the battery pack or tool outside
3=$%3$71$5*365$%5*-+$%,1$"#.$&%#-%3=$%
instructions.
Charging improperly or at
9*56*)+90)*!'#09!/-*'9"*'!6*$/(*-')+,8*'5+2'
-+5+8*'9"*'>+99*)2'+,-'/,$)*+!*'9"*')/!%'#='()*3'
6) Service
*?% G*H$%2465%14A$5%344)%,$5H#"$&%:2%*%;6*)#.$&%
repair person using only identical replacement
parts.
This will ensure that the safety of the
power tool is maintained.
b) Never service damaged battery packs. Service
of battery packs should only be performed
by the manufacturer or authorized service
providers.

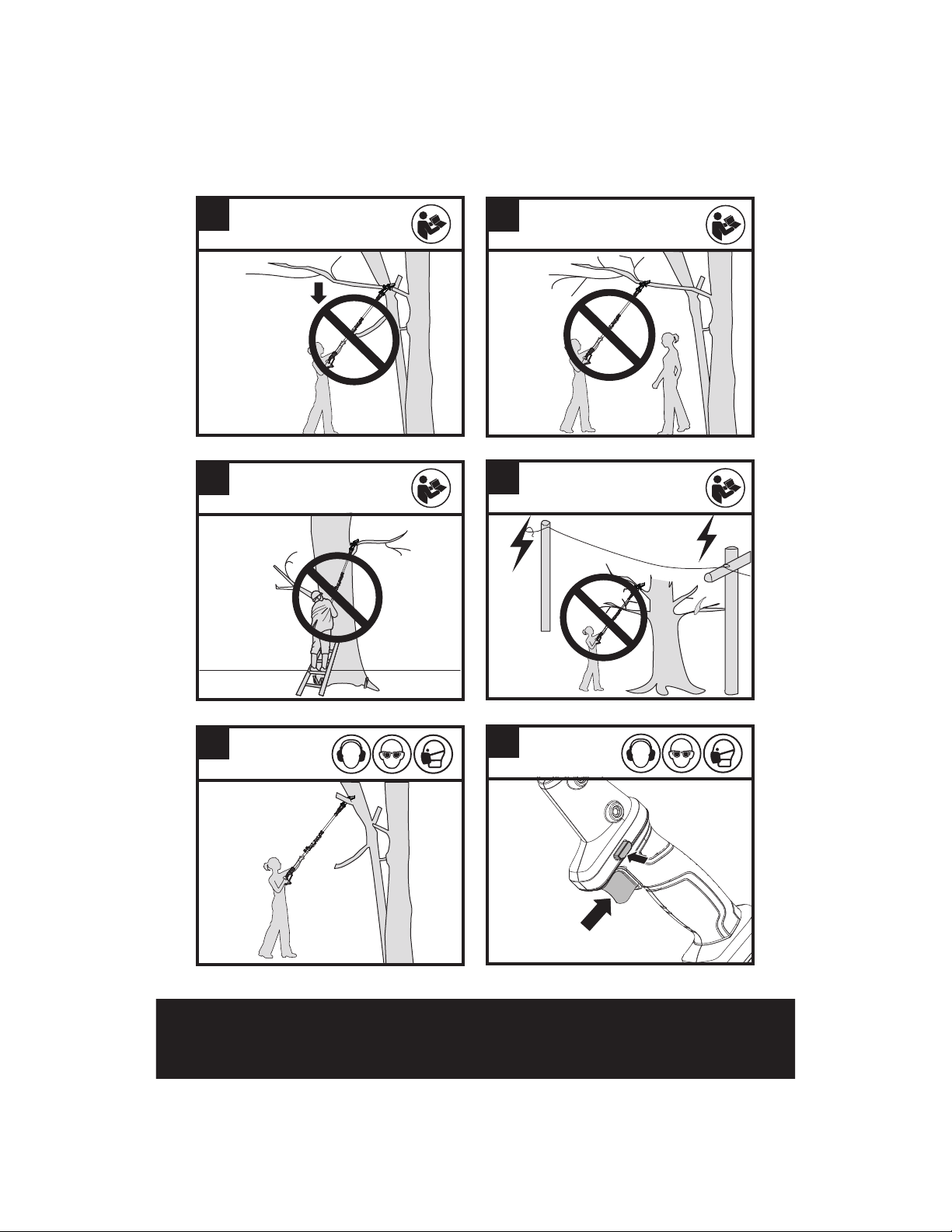

1) General pruning saw safety warnings:
a) Keep all parts of the body away from the saw
chain when the pruning saw is operating.
Before you start the pruning saw, make sure
the saw chain is not contacting anything.
A
moment of inattention while operating pruning
saws may cause entanglement of your clothing
or body with the saw chain.
b) Hold the pruning saw by insulated gripping
surfaces only, because the saw chain may

Cordless 5” Pruning Saw EN
11
contact hidden wiring. Saw chains contacting a
”live” wire may make exposed metal parts of the
pruning saw ”live” and could give the operator
an electric shock.
c) Wear safety glasses protection. Further
protective equipment for hearing, head, hands,
legs and feet is recommended.
Adequate
6)#9*$9/<*'$7#9"/,8':/77')*-0$*'6*)!#,+7'/,10)2'>2'
C2/,8'-*>)/!'#)'+$$/-*,9+7'$#,9+$9':/9"'9"*'!+:'
chain.
d) Do not operate a pruning saw, on a ladder, from
a rooftop, or any unstable support.
Operation
of a pruning saw in this manner could result in
!*)/#0!'6*)!#,+7'/,10)23
e) Always keep proper footing and operate the
156-#-+%,*A%4-)2%A=$-%,3*-&#-+%4-%.E$&8%
secure and level surface.
Slippery or unstable
surfaces may cause a loss of balance or control
of the pruning saw.

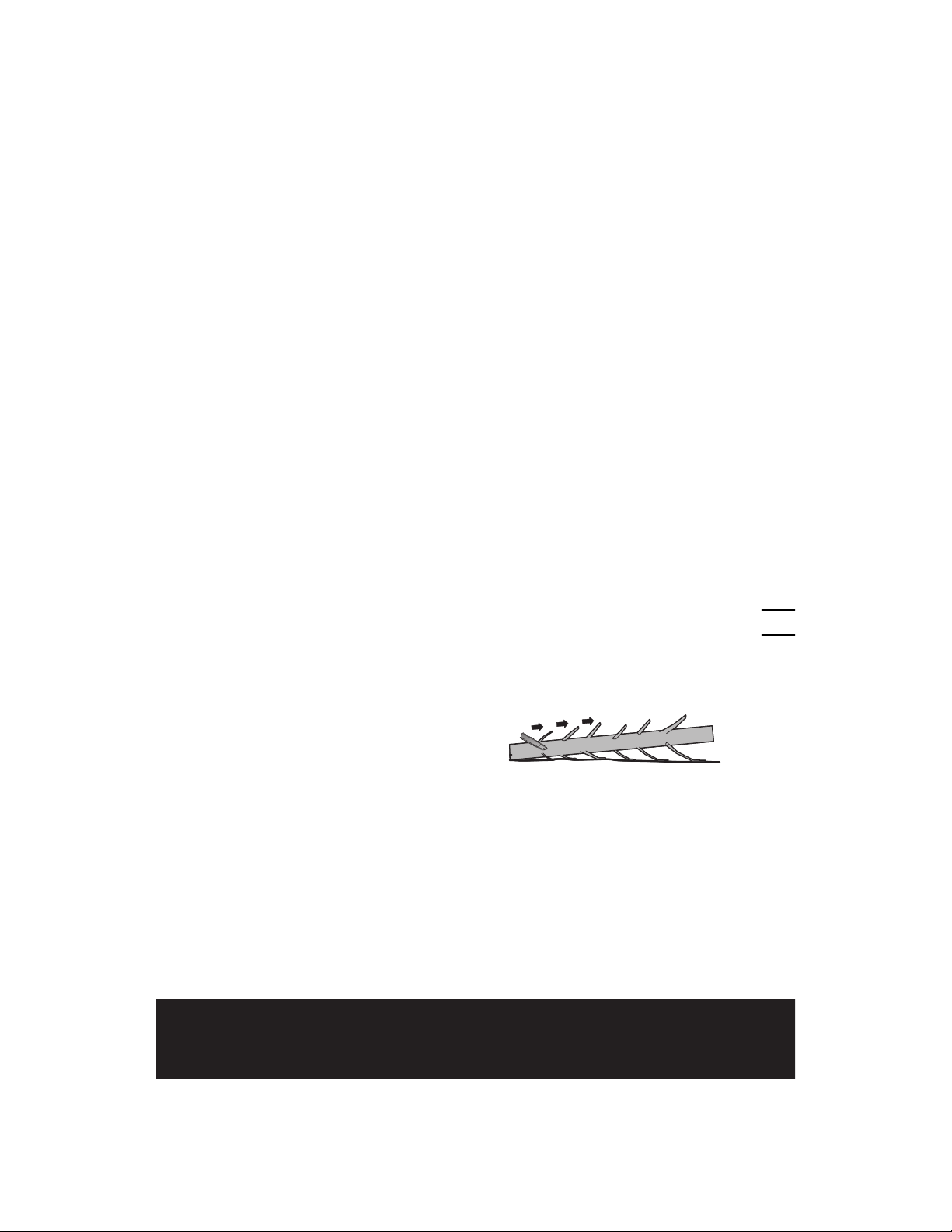

f) When cutting a limb that is under tension ,
be alert for spring back.
When the tension in
9"*':##-'(>)*!'/!')*7*+!*-'&'9"*'!6)/,8'7#+-*-'
7/5>'5+2'!9)/%*'9"*'#6*)+9#)'+,-.#)'9")#:'9"*'
pruning saw out of control.
g) Use extreme caution when cutting brush and
saplings.
The slender material may catch the
saw chain and be whipped toward you or pull
you off balance.
h) Carry the pruning saw by the front handle with
the pruning saw switched off and away from
your body. When transporting or storing the
156-#-+%,*A%8%*)A*2,%.3%3=$%+6#&$%:*5%"4H$5<%
Proper handling of the pruning saw will reduce
the likelihood of accidental contact with the
moving saw chain.
i) Follow instructions for lubricating, chain
tensioning and changing the bar and chain.
Improperly tensioned or lubricated chain
may either break or increase the chance for
kickback.
j) Cut wood only. Do not use pruning saw for
purposes not intended. For example: do not
use pruning saw for cutting metal, plastic,
masonry or non-wood building materials.
Use
of the pruning saw for operations different than
intended could result in a hazardous situation.
k) This pruning saw is not intended for tree
felling.
Use of the pruning saw for operations
different than intended could result in serious
/,10)2'9#'9"*'#6*)+9#)'#)'>2!9+,-*)!3
l) Do not operate a pruning saw in a tree unless
246%=*H$%:$$-%,1$"#."*))2%35*#-$&%34%&4%,4<%
Operation of a pruning saw in a tree without
proper training could increase the risk of
serious personal injury.
m) Follow all instructions when clearing jammed
material, storing or servicing the pruning saw.
Make sure the switch is off and the battery
pack is removed.
Unexpected actuation of the
6)0,/,8'!+:':"/7*'$7*+)/,8'1+55*-'5+9*)/+7'#)'
!*)</$/,8'5+2')*!079'/,'!*)/#0!'6*)!#,+7'/,10)23
-?% @$"477$-&*3#4-%3=*3%3=$%.5,3I3#7$%6,$5%
should, as a minimum, practise cutting logs on
a saw-horse or cradle.
0) Recommendation to have sharpening and
maintenance of the saw chain performed by
authorised service centres.
2) Causes and operator prevention of kickback:
Kickback may occur when the nose or tip of the
80/-*'>+)'9#0$"*!'+,'#>1*$9&'#)':"*,'9"*':##-'
closes in and pinches the saw chain in the cut.
Tip contact in some cases may cause a sudden
reverse reaction, kicking the guide bar up and back
towards the operator.
Pinching the saw chain along the top of the guide
bar may push the guide bar rapidly back towards
the operator.
Either of these reactions may cause you to lose
control of the saw which could result in serious
6*)!#,+7'/,10)23'@#',#9')*72'*A$70!/<*72'06#,'9"*'
safety devices built into your saw. As a pruning saw
user, you should take several steps to keep your
$099/,8'1#>!'=)**'=)#5'+$$/-*,9'#)'/,10)23
D/$%>+$%'/!'9"*')*!079'#='6)0,/,8'!+:'5/!0!*'+,-.
or incorrect operating procedures or conditions
and can be avoided by taking proper precautions as
given below:
*?% J*#-3*#-%*%.57%+5#18%A#3=%3=67:,%*-&%.-+$5,%
encircling the pruning saw handles, and
position your body and arm to allow you to
resist kickback forces.
Kickback forces can be
controlled by the operator, if proper precautions
are taken. Do not let go of the pruning saw.
b) Do not overreach and do not cut above
shoulder height.
This helps prevent unintended
tip contact and enables better control of the
pruning saw in unexpected situations.
c) Only use replacement bars and chains
,1$"#.$&%:2%3=$%7*-6>*"365$5<%
Incorrect
replacement guide bars and saw chains may
$+0!*'$"+/,'>)*+%+8*'+,-.#)'%/$%>+$%3
d) Follow the manufacturer’s sharpening and
maintenance instructions for the saw chain.
Decreasing the depth gauge height can lead to
increased kickback.
FOR PRUNING SAW WITH
THE EXTENDED POLE
SAFETY WARNINGS
Important Safety Instructions
WARNING: Read all safety warnings and
instructions. Failure to follow the
warnings and instructions may result in
$)$"35#"%,=4"F8%.5$%*-&K45%,$5#46,%#-L652<

Cordless 5” Pruning Saw EN
12
FOR ALL PRODUCTS:
1) Avoid Dangerous Environment - Don’t use
products in damp or wet locations.
2) Don’t Use In Rain.
3) Keep Children Away - All visitors should be kept
at a distance from work area.
4) Dress Properly - Do not wear loose clothing or
1*:*7)23'E"*2'$+,'>*'$+08"9'/,'5#</,8'6+)9!3'
Use of rubber gloves and substantial footwear
is recommended when working outdoors. Wear
protective hair covering to contain long hair.
5) Use Safety Glasses - Always use face or dust
mask if operation is dusty.
6) Use Right Product - Do not use product for any
1#>'*A$*69'9"+9'=#)':"/$"'/9'/!'/,9*,-*-3
FG' @#,H9'I#)$*'J)#-0$9'K'L9':/77'-#'9"*'1#>'>*99*)'
+,-':/9"'7*!!'7/%*7/"##-'#='+')/!%'#='/,10)2'+9'9"*'
rate for which it was designed.
8) Don’t Overreach - Keep proper footing and
balance at all times.
9) Stay Alert - Watch what you are doing. Use
common sense. Do not operate product when
you are tired.
10)Store Idle Products Indoors - When not in
use, products should be stored indoors in dry,
and high or locked-up place - out of reach of
children.
11)Maintain Product With Care - Keep cutting edge
sharp and clean for best performance and to
)*-0$*'9"*')/!%'#='/,10)23'I#77#:'/,!9)0$9/#,!'=#)'
lubricating and changing accessories. Keep
handles dry, clean, and free from oil and grease.
12)Check Damaged Parts - Before further use
of the product, a guard or other part that is
damaged should be carefully checked to
determine that it will operate properly and
perform its intended function. Check for
alignment of moving parts, binding of moving
parts, breakage of parts, mounting, and any
other condition that may affect its operation. A
guard or other part that is damaged should be
properly repaired or replaced by an authorized
service center unless indicated elsewhere in
this manual.
FOR ALL BATTERY – OPERATED GARDENING
PRODUCTS
1. Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to battery pack, picking up or carrying the
6)#-0$93'M+))2/,8'9"*'6)#-0$9':/9"'2#0)'(,8*)'
on the switch or energizing product that have
the switch on invites accidents.
2. Disconnect the battery pack from the product
>*=#)*'5+%/,8'+,2'+-10!95*,9!&'$"+,8/,8'
accessories, or storing product. Such
preventive safety measures reduce the risk of
starting the product accidentally.
N3' O*$"+)8*'#,72':/9"'9"*'$"+)8*)'!6*$/(*-'>2'9"*'
manufacturer .A charger that is suitable for one
926*'#='>+99*)2'6+$%'5+2'$)*+9*'+')/!%'#='()*'
when used with another battery pack.
P3' 4!*'6)#-0$9!'#,72':/9"'!6*$/($+772'-*!/8,+9*-'
battery packs. Use of any other battery packs
5+2'$)*+9*'+')/!%'#='/,10)2'+,-'()*3
5. When battery pack is not in use, keep it away
=)#5'#9"*)'5*9+7'#>1*$9!&'7/%*'6+6*)'$7/6!&'$#/,!&'
%*2!&',+/7!&'!$)*:!'#)'#9"*)'!5+77'5*9+7'#>1*$9!&'
that can make a connection from one terminal
to another. Shorting the battery terminals
9#8*9"*)'5+2'$+0!*'>0),!'#)'+'()*3
Q3' 4,-*)'+>0!/<*'$#,-/9/#,!&'7/?0/-'5+2'>*'*1*$9*-'
from the battery; avoid contact. If contact
+$$/-*,9+772'#$$0)!&'C0!"':/9"':+9*)3'L='7/?0/-'
contacts eyes, additionally seek medical help.
;/?0/-'*1*$9*-'=)#5'9"*'>+99*)2'5+2'$+0!*'
irritation or burns.
7. Do not use a battery pack or product that is
-+5+8*-'#)'5#-/(*-3'@+5+8*-'#)'5#-/(*-'
batteries may exhibit unpredictable behavior
)*!079/,8'/,'()*&'*A67#!/#,'#)')/!%'#='/,10)23
R3' @#',#9'*A6#!*'+'>+99*)2'6+$%'#)'6)#-0$9'9#'()*'
#)'*A$*!!/<*'9*56*)+90)*3'BA6#!0)*'9#'()*'#)'
temperature above 130°C ( 265°F) may cause
explosion.
9. Follow all charging instructions and do not
charge the battery pack or product outside
#='9"*'9*56*)+90)*')+,8*'!6*$/(*-'/,'9"*'
instructions. Charging improperly or at
9*56*)+90)*!'#09!/-*'#='9"*'!6*$/(*-')+,8*'
may damage the battery and increase the risk
#='()*3
ST3'U+<*'!*)</$/,8'6*)=#)5*-'>2'+'?0+7/(*-')*6+/)'
person using only identical replacement parts.
This will ensure that the safety of the product is
maintained.
11. Do not modify or attempt to repair the product
or the battery pack (as applicable) except as
indicated in the instructions for use and care.
2. WARNING – Do not operate near electrical
power lines. The unit has not been designed to
provide protection from electric shock in the
event of contact with overhead electric lines,
Consult local regulations for safe distances
from overhead electric power lines and ensure
that the operating position is safe and secure
before operating the saw chain pole pruner.
a) Keep all parts of the body away from the saw
chain. Make sure the switch is off when clearing
1+55*-'5+9*)/+73'V+:'$"+/,'$#,9/,0*!'9#'5#<*'
after the switch is turned off. A moment of
inattention while operating the pole pruner may
)*!079'/,'!*)/#0!'6*)!#,+7'/,10)23
b) Carry the pole pruner by the handle with the saw
chain stopped. When transporting or storing
9"*'6#7*'6)0,*)&'+7:+2!'(9'9"*'!+:'$"+/,'-*</$*'
cover. Proper handling of the pole pruner will

Cordless 5” Pruning Saw EN
13
)*-0$*'6#!!/>7*'6*)!#,+7'/,10)2'=)#5'9"*'!+:'
chain.
c) Hold the pole pruner by insulated gripping
surfaces only, because the saw chain may
contact hidden wiring or its own cord. A
saw chain contacting a “live” wire may make
exposed metal parts of the pole pruner “live”
and could give the operator an electric shock.
d) Keep cable away from cutting area. During
operation the cable may be hidden in shrubs
and can be accidentally cut by the saw chain.
e) Do not use the pole pruner in bad weather
conditions, especially when there is a risk of
lightning. This decreases the risk of being
struck by lightning.
f) To reduce the risk of electrocution, never use
near any electrical power lines. Contact with or
0!*',*+)'6#:*)'7/,*!'5+2'$+0!*'!*)/#0!'/,10)2'
or electric shock resulting in death.
g) Always use two hands when operating the pole
pruner. Hold the pole pruner with both hands to
avoid loss of control.
h) Always use head protection when operating the
pole pruner overhead. Falling debris can result
/,'!*)/#0!'6*)!#,+7'/,10)23
SAFETY WARNINGS FOR
BATTERY PACK
a) Do not dismantle, open or shred cells or battery
pack.
:?% D4%-43%$E14,$%:*33$52%1*"F%34%=$*3%45%.5$<%MH4#&%
storage in direct sunlight.
c) Do not short-circuit a battery pack. Do not store
battery packs haphazardly in a box or drawer
where they may short-circuit each other or be
short-circuited by conductive materials.
When
battery pack is not in use, keep it away from other
5*9+7'#>1*$9!&'7/%*'6+6*)'$7/6!&'$#/,!&'%*2!&',+/7!&'
!$)*:!'#)'#9"*)'!5+77'5*9+7'#>1*$9!&'9"+9'$+,'5+%*'
a connection from one terminal to another. Shorting
the battery terminals together may cause burns or a
()*3
d) Do not subject battery pack to mechanical
shock.
e) In the event of battery leaking, do not allow the
liquid to come into contact with the skin or eyes.
If contact has been made, wash the affected
area with copious amounts of water and seek
medical advice.
f) Do not use any battery pack which is not
designed for use with the equipment.
g) Keep battery pack out of the reach of children.
h) Always purchase the battery pack recommended
by the device manufacturer for the equipment.
l) Keep battery pack clean and dry.
j) Wipe the battery pack terminals with a clean dry
cloth if they become dirty.
k) Battery pack needs to be charged before use.
Always use the correct charger and refer to
the manufacturer’s instructions or equipment
manual for proper charging instructions.
l) Do not leave battery pack on prolonged charge
when not in use.
m) After extended periods of storage, it may
be necessary to charge and discharge the
battery pack several times to obtain maximum
performance.
-?% @$"=*5+$%4-)2%A#3=%3=$%"=*5+$5%,1$"#.$&%:2%
Worx. Do not use any charger other than that
,1$"#."*))2%154H#&$&%>45%6,$%A#3=%3=$%$;6#17$-3<
o) Retain the original product literature for future
reference.
p) Use only the battery pack in the application for
which it was intended.
q) Remove the battery from the equipment when
not in use.
r) Dispose of properly.
s) Do not mix cells of different manufacture,
capacity, size or type within a device.
t) Keep the battery away from microwaves and
high pressure.
SAVE THESE INSTRUCTIONS
Instructions concerning the proper techniques for
limbing and cross-cutting
1. Limbing a tree
Limbing is removing the branches from a fallen
tree. When limbing leave larger lower limbs to
support the log off the ground. Remove the small
limbs in one cut as illustrated in Figure 1. Branches
under tension should be cut from the bottom up to
avoid binding the pruning saw.

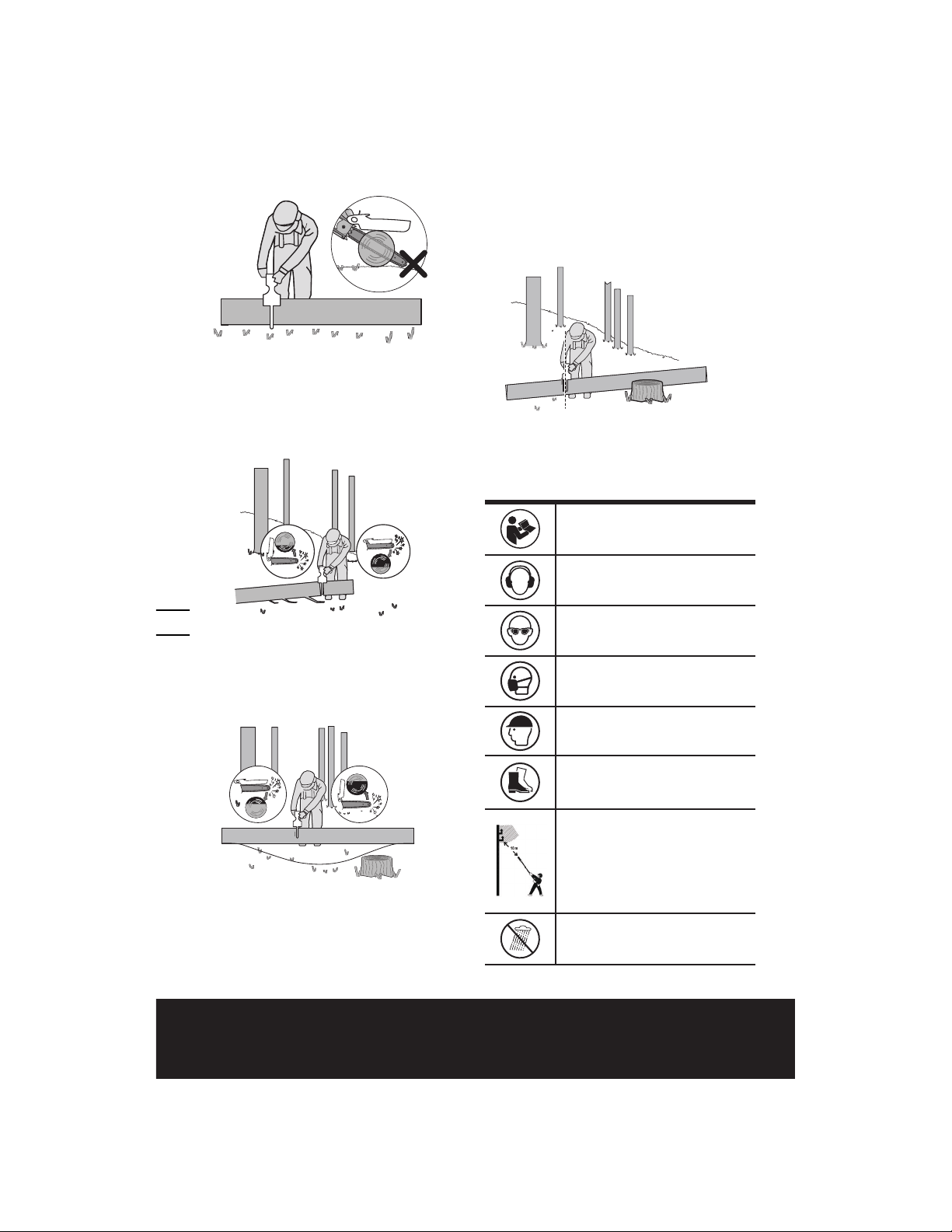

Figure 1
2. Bucking a log
Bucking is cutting a log into lengths. It is important
9#'5+%*'!0)*'2#0)'=##9/,8'/!'()5'+,-'2#0)':*/8"9'/!'
evenly distributed on both feet. When possible, the
log should be raised and supported by the use of
limbs, logs or chocks. Follow the simple directions
for easy cutting.
When the log is supported along its entire length
as illustrated in Figure 2, it is cut from the top
(overbuck), avoid contacting ground as this will
greatly reduce the chain sharpness.

Cordless 5” Pruning Saw EN
14
Figure 2
When the log is supported on one end, as illustrated
/,'I/80)*'N&'$09'S.N'9"*'-/+5*9*)'=)#5'9"*'0,-*)!/-*'
W'0,-*)>0$%G'WSG3'E"*,'5+%*'9"*'(,/!"*-'$09'>2'
#<*)>0$%/,8'WXG'9#'5**9'9"*'()!9'$093
2
2/3
1
1/3
Figure 3
When the log is supported on both ends, as
/770!9)+9*-'/,'I/80)*'P&'$09'S.N'9"*'-/+5*9*)'=)#5'9"*'
9#6'W#<*)>0$%G'WSG3'E"*,'5+%*'9"*'(,/!"*-'$09'>2'
0,-*)>0$%/,8'WXG'9"*'7#:*)'X.N'9#'5**9'9"*'()!9'$093'
12
2/3
1/3
Figure 4
When bucking on a slope always stand on the uphill
side of the log, as illustrated in Figure 5. When
“cutting through”, to maintain complete control
release the cutting pressure near the end of the
cut without relaxing your grip on the pruning saw
handles. Don’t let the chain contact the ground.
After completing the cut, wait for the saw chain to
stop before you move the pruning saw. Always stop
the motor before moving from tree to tree.
Figure 5
SYMBOLS
E#')*-0$*'9"*')/!%'#='/,10)2&'0!*)'
must read instruction manual
Wear ear protection
Wear eye protection
Wear dust mask
Wear head protection
Wear protective footwear
Warning of danger from overhead
electric-power lines
Do not expose to rain

Cordless 5” Pruning Saw EN
15
Do not burn
Batteries may enter water cycle if
disposed improperly, which can
be hazardous for ecosystem. Do
not dispose of waste batteries as
unsorted municipal waste.
Li-Ion battery, battery must be
recycled
Beware of pruning saw kickback
and avoid contact with bar tip
Wear protective gloves
Lock
Unlock
POSITEC Inc. has established
a partnership with the RBRC
Corporation to recycle any
Positec batteries with the
RBRC-call2recycle seal. For
environmental protection, please
do not discard batteries in the
trash. After the batteries’ life cycle
is ended, then please call 1-800-
822-8837 for a free service that
will properly dispose of the battery.

Cordless 5” Pruning Saw EN
16
2. COMPONENT LIST
1. RETRACTABLE GUARD
2. HOUSING COVER KNOB
3. LOCK-OUT BUTTON
4. ON/OFF TRIGGER
5. GRIP AREA
6. BATTERY PACK *
7. BATTERY PACK RELEASE BUTTON *
8. HAND GUARD
9. HOUSING-COVER
10. CHAIN
11. GUIDE BAR
12. BASE PLATE
13. OIL FILLER CAP
14. BAR PAD
15. DRIVE SPROCKET
16. FASTENING BAR BOLT
17. BAR LOCATING TAB
18. BAR AND CHAIN SHEATH/SCABBARD
19 LOCK-OUT BUTTON ON EXTENSION POLE
HANDLE *
20 EXTENSION POLE HANDLE *
21 EXTENSION POLE ON/OFF TRIGGER *
22 EXTENSION POLE LOCKING COLLAR*
23 EXTENSION POLE RELEASE BUTTON *
24 CLAMPING LEVER *
25 OIL OUTLET
* Not all the accessories illustrated or described
are included in standard delivery.
3. TECHNICAL DATA
Type WP332 WP332.X (3 - designation of
machinery, representative of battery-operated
pruning saw)
WP332 WP332.X **
Voltage 20 V Max.***
Bar length 5 inch (12 cm)
Chain speed NX3R'=9.!WST5.!G
Chain pitch 0.3 inch (7.6 mm)
Number of chain drive
links 28
Chain gauge 0.043 inch (1.1 mm)
Adaptive chain type WA0142
Adaptive guide bar type WA0151
Extension pole length 49.2 inch (125 cm)
Maximum cutting
height 108.3 inch (275 cm)
Extension pole weight 2.0 lbs (0.9 kg)
Machine weight (chain
& bar included)
(bare tool)
2.4 lbs(1.1 kg)(bare
tool weight)
**The “X” noted at the end of the model number is a
placeholder that represents a variation to the original
model (kit contents or packaging change). “X” may
be replaced with any number from “1” to “999” or
English letter “A” to “Z” or “M1” to” M9”.”.
*** Voltage measured without workload. Initial bat-
tery voltage reaches maximum of 20 volts. Nominal
voltage is 18 volts.
SUGGESTED BATTERIES AND
CHARGERS
Category Type Capacity
20V Battery WA3669 2.0 Ah
20V Charger WA3881 2.0 A
We recommend that you purchase your accessories
from the same store that sold you the tool. Refer to
the accessory packaging for further details. Store
personnel can assist you and offer advice.

Cordless 5” Pruning Saw EN
17
4. INTENDED USE
• The pruning saw is intended for cutting only wood
and branches up to a diameter corresponding to the
length of the pruning saw guide bar.
• The pruning saw must be used at ground level or
from a suitable platform that is completely stable
and secure.
• The pruning saw is intended for outdoor use only.
• The pruning saw is not intended for any other use.
• Mounting of parts on the pruning saw is authorized
only for original or manufacturer-approved spare
parts (chain guides or saw chains for example)
+!':*77'+!'=#)'+09"#)/Y*-'$"+/,'80/-*'.'!+:'$"+/,'
combinations as indicated in the manual.
• The user is responsible for any accident resulting
=)#5'/56)#6*)'0!*'#)'0,+09"#)/Y*-'5#-/($+9/#,'#='
the pruning saw.
5. ASSEMBLY
WARNING! Do not install the battery pack
before it has been completely assembled.
Always use gloves when handling the chain.
MOUNTING THE SAW CHAIN

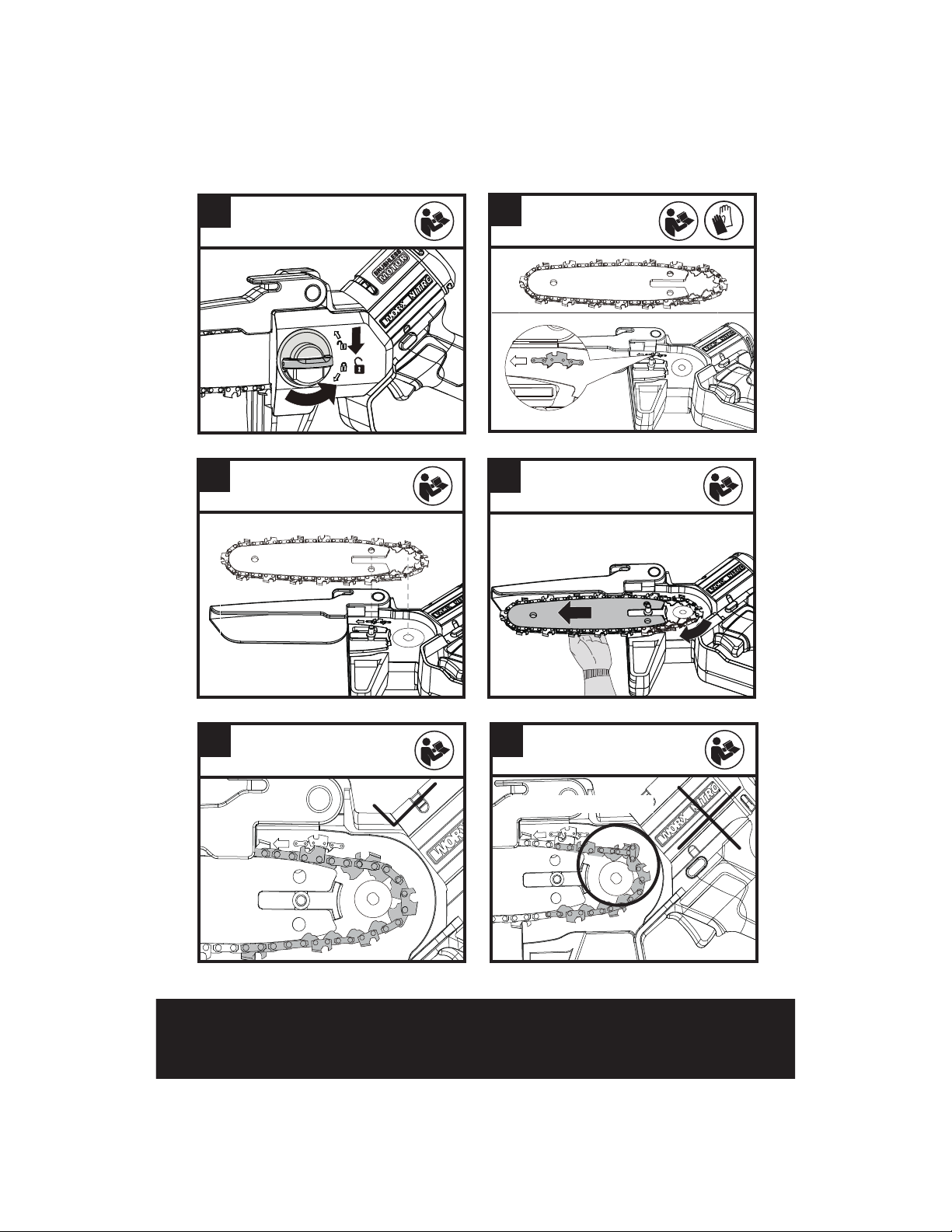

1. Unpack all parts carefully. Remove the Housing-
Cover by turning the Housing-Cover Knob in a
counterclockwise direction. (See Fig. A1)
2. Place the pruning saw on a solid, level surface.
3. Use only genuine Worx Chains or those
recommended for Guide Bar.
4. Slide the Chain in the slot around the Guide Bar.
Ensure the Chain is in correct running direction
by comparing it to the chain icon on the Guide
Bar, or referring to the chain direction symbol
found on the saw body. (See Fig. A2)
5. Fit the Chain onto the Drive Sprocket, so that the
Fastening Bar Bolt and the Bar Locating Tab on
9"*'Z+)'J+-'(9'/,9#'9"*'%*2:+2'#='9"*'#6*,/,8'#,'
the Guide Bar. (See Fig. B1, B2)
6. Assure all parts are seated properly. Make
sure the drive links are fully seated in the Drive
Sprocket (See Fig. C1), avoiding a kink as shown
in Fig. C2. If kink occurs, pick up the Chain at the
[0/-*'Z+)'10!9'+"*+-'#='9"*'%/,%'+,-'9"*,'6077'9"*'
kink out.
NOTE: Chain should rotate freely and be free of
kinks.
7. Fit the Housing Cover. Tilt the guide bar forward
where the guide bar tip is pushed in an vertically
downward direction. This will remove slack from
the chain. The correct chain tension is reached
when the chain can be raised approx. Half the
drivelink depth from the guide bar in the center.
This should be done by using one hand to raise
the chain against the weight of the machine.
Then tighten the Housing Cover by turning the
Housing-Cover Knob clockwise until it is tight.
(See Fig. D)
NOTE: The chain is properly tensioned when
it can be lifted off of the Guide Bar and the
drivelink is within the rail of the Guide Bar. (See
Fig. E)
NOTE: The chain will stretch while cutting and
lose proper tension. When the chain becomes
loose, completely unscrew the Housing-Cover
Knob or turn the knob around three full turns in a
counter-clockwise direction, then retighten the
Housing-Cover Knob to properly reset the chain
tension by repeating Steps 1-7 listed above.
NOTE: New saw chains will stretch. Check the
$"+/,'9*,!/#,'=)*?0*,972':"*,'()!9'0!*-'+,-'
tighten when the Chain becomes loose around
the Guide Bar.
ASSEMBLING THE EXTENSION POLE
Align and insert the handle of extension pole into
the shaft. Rotate the Locking Collar clockwise to
lock. (See Fig. F1, F2)
NOTE: \+%*'!0)*'9"+9'9"*'!"+=9'/!'()572'7#$%*-'/,'
place.
ASSEMBLING THE EXTENSION POLE TO THE
MACHINE (See Fig F3, F4)
Step 1: Align and insert the extension pole into the
saw.
Step 2: Hang the buckle on the hook of the saw.
Press the Clamping Lever to tighten the extension
pole to the machine.
NOTE: Make sure the extension pole is locked into
position securely before operation.
REMOVING THE EXTENSION POLE (See Fig. F5)
Loosen the Clamping Lever to release the buckle.
Press the Extension Pole Release Button to
disconnect the extension pole with the saw.
WARNING! When using this machine with the
Extension Pole, make sure that the battery pack
has been removed.
LUBRICATION (See Fig.G1, G2)
C71453*-3N%O=$%P56-#-+%!*A%#,%-43%.))$&%A#3=%4#)<%
C3%#,%$,,$-3#*)%34%.))%A#3=%4#)%:$>45$%6,$<%Q$H$5%
operate the Pruning Saw without chain oil or at an
empty oil tank level, as this will result in extensive
damage to the product.
NOTE: Chain life and cutting capacity depend on
optimum lubrication. Therefore, the chain should
be oiled before operation.
Filling oil tank (See Fig.G1):
WARNING: Removing the battery pack before
.))#-+%3=$%4#)%3*-F<
1. Set Pruning Saw on any suitable surface with oil
(77*)'$+6'=+$/,8'06:+)-3
X3' M7*+,'+)*+'+)#0,-'9"*'#/7'(77*)'$+6':/9"'$7#9"'+,-'

Cordless 5” Pruning Saw EN
18
unscrew the cap by turning it counter-clockwise.
3. Add bar and chain oil until tank is full.
P3'' ]<#/-'-/)9'#)'-*>)/!'*,9*)/,8'#/7'9+,%&')*(9'#/7'(77*)'
cap and tighten by turning clockwise until hand
tight.
IMPORTANT: To allow venting of the oil tank,
small breather channels are provided
:$3A$$-%3=$%4#)%.))$5%"*1%*-&%3=$%,35*#-$58%34
prevent leakage, and ensure machine is left in a
horizontal position when not in use.
It is important to use bar and chain lubricant (not
provided) that is formulated to perform over a
wide temperature range with no dilution required.
This can be found at the location where you
purchased this saw or your local hardware store.
Do not use dirty, used or otherwise contaminated
oils. Damage may occur to the bar or chain.Use of
non approved oil will void the warranty.
Do not swallow. If swallowed, call a physician
immediately. Keep out of reach of children. Store
*A*2%>547%=$*3%45%41$-%9*7$<
Checking the Automatic Oiler
WARNING:Cutting edges on chain are sharp.
Use protective gloves.
Lift the Retractable Guard to the maximum position
=#)'70>)/$+9/#,'+=9*)'(77/,8'06'9"*'#/7'9+,%3'WV**'
Fig.G2) Proper functioning of the automatic oiler
can be checked by running the Pruning Saw and
pointing the tip of the guide chain bar towards a
piece of cardboard or paper on the ground. If an
increasing oil pattern develops on the cardboard,
9"*'+09#5+9/$'#/7*)'/!'#6*)+9/,8'(,*3'L='9"*)*'/!'
no oil pattern, despite a full oil reservoir, contact
WorxNitro customer service agent or WorxNitro
approved service agent.
Caution: Do not touch the ground with the
chain. Ensure safety clearance of 40cm.
6. OPERATION
1. BEFORE USING YOUR CORDLESS TOOL
WARNING! The charger and battery pack are
specially designed to work together so do not
attempt to use any other devices. Never insert or
+77#:'5*9+77/$'#>1*$9!'/,9#'2#0)'$"+)8*)'#)'>+99*)2'
pack connections because of an electrical failure and
hazard will occur.
NOTE: Your battery pack is UNCHARGED and you
must charge once before use.
The battery charger supplied is matched to the
Li-ion battery installed in the machine. Do not use
another battery charger.
(1) CHARGING YOUR BATTERY PACK (See Fig. H1,
H2)
The Li-ion battery is protected against deep
discharging. When the battery is empty, the
machine is switched off by means of a protective
circuit.
In a warm environment or after heavy use, the
battery pack may become too hot to permit
charging. Allow time for the battery to cool down
before recharging.
(2) TO REMOVE OR INSTALL BATTERY PACK (See
Fig. I)
Depress the Battery Pack Release Button to remove
the Battery Pack from your tool. After recharging,
insert the Battery Pack into the battery port. A
!/567*'60!"'+,-'!7/8"9'6)*!!0)*':/77'>*'!0^$/*,9'
until a click is heard. Check to see if the battery is
fully secured.
NOTE: When removing the battery pack, hold it
.57)2%34%*H4#&%&5411#-+%*-&%#-L652<
(3) HOLDING AND CONTROLLING THE PRUNING
SAW (See Fig. J)
Hold and control the pruning saw with one hand on
the Grip Area – wrap your thumb around the Grip
Area.
2. SWITCHING ON AND OFF (See Fig. K)
ATTENTION: Check the battery pack before
using your cordless tool. Only use the battery
pack listed in the accessories section.
For switching on the tool, press the Lock-Out
Z099#,&'9"*,'=0772'6)*!!'9"*'_,._=='E)/88*)'+,-'"#7-'
in this position. The Lock-Out Button can now be
released.
For switching off&')*7*+!*'9"*'_,._=='E)/88*)3
3. CUTTING
IMPORTANT: Check recent replaced chain
tension about every 10 minutes during
operation.
(1) Installing the battery pack into the machine.
(2) Make sure section of log to be cut is not laying
on the ground. This will keep the chain from
touching the ground as it cuts through the log.
Touching the ground while the Chain is moving
is dangerous and will dull the Chain.
(3) When ready to make a cut, push the Lock-Out
Button completely in with the right thumb
and squeeze the trigger. This will turn saw on.
Releasing the trigger will turn the saw off. Make
sure the saw is running at full speed before
starting a cut.
(4) When starting a cut, slowly place moving chain
against the wood. The wood should be as close
9#'9"*'!+:'>#-2'+!'6#!!/>7*3'U#7-'!+:'()572'
in place to avoid possible bouncing or skating
(sideways movement) of saw.
(5) Guide the saw using light pressure and do not

Cordless 5” Pruning Saw EN
19
put excessive force on the saw, letting the saw
do its work. The motor will overload and can
>0),'#093'L9':/77'-#'9"*'1#>'>*99*)'+,-'!+=*)'+9'9"*'
rate for which it was intended.
(6) Remove the saw from a cut with the saw running
+9'=077'!6**-3'V9#6'9"*'!+:'>2')*7*+!/,8'9"*'_,.
off Trigger. Make sure the chain has stopped
before setting the saw down.
(7) Keep practicing on scrap logs in a secure
working area until you are comfortable, using a
C0/-'5#9/#,'+,-'+'!9*+-2'$099/,8')+9*3
Kickback Safety Devices On This Saw
This saw has a low-kickback chain and reduced
kickback Guide Bar. Both items reduce the chance
of kickback. However, kickback can still occur with
this saw.
The following steps will reduce the risk of kickback.
• Keep all safety items in place on saw. Make sure
they work properly.
• Do not overreach or cut above shoulder height.
• Keep solid footing and balance at all times.
• Stand slightly to the left side of saw. This keeps
your body from being in direct line with chain.
• Do not let Guide Bar nose touch anything when
chain is moving.
• Never try cutting through two logs at same time.
Only cut one log at a time.
• Do not bury the Guide Bar nose or try plunge cut
(boring into wood using Guide Bar nose).
• Watch for shifting of wood or other forces that
may pinch chain.
• Use extreme caution when reentering a previous
cut.
• Use only the low-kickback chain and Guide Bar
that were supplied with this pruning saw or
recommended.
• Never use a dull or loose chain. Keep chain
sharp with proper tension.
How to use Saw Safely
1. Use the pruning saw only with secure footing.
2. Hold the pruning saw at the right-hand side of
your body (See Fig. L).
3. The Chain must be running at full speed before it
makes contact with the wood.
4. Use the Base Plate to secure the saw onto the
wood before starting to cut.
5. Use the Base Plate as a leverage point while
cutting. (See Fig. M)
6. Do not operate the saw with arms fully extended,
+99*569'9#'!+:'+)*+!':"/$"'+)*'-/^$079'9#')*+$"&'
or stand on a ladder while sawing. (See Fig. N)
Never use the pruning saw above shoulder height.

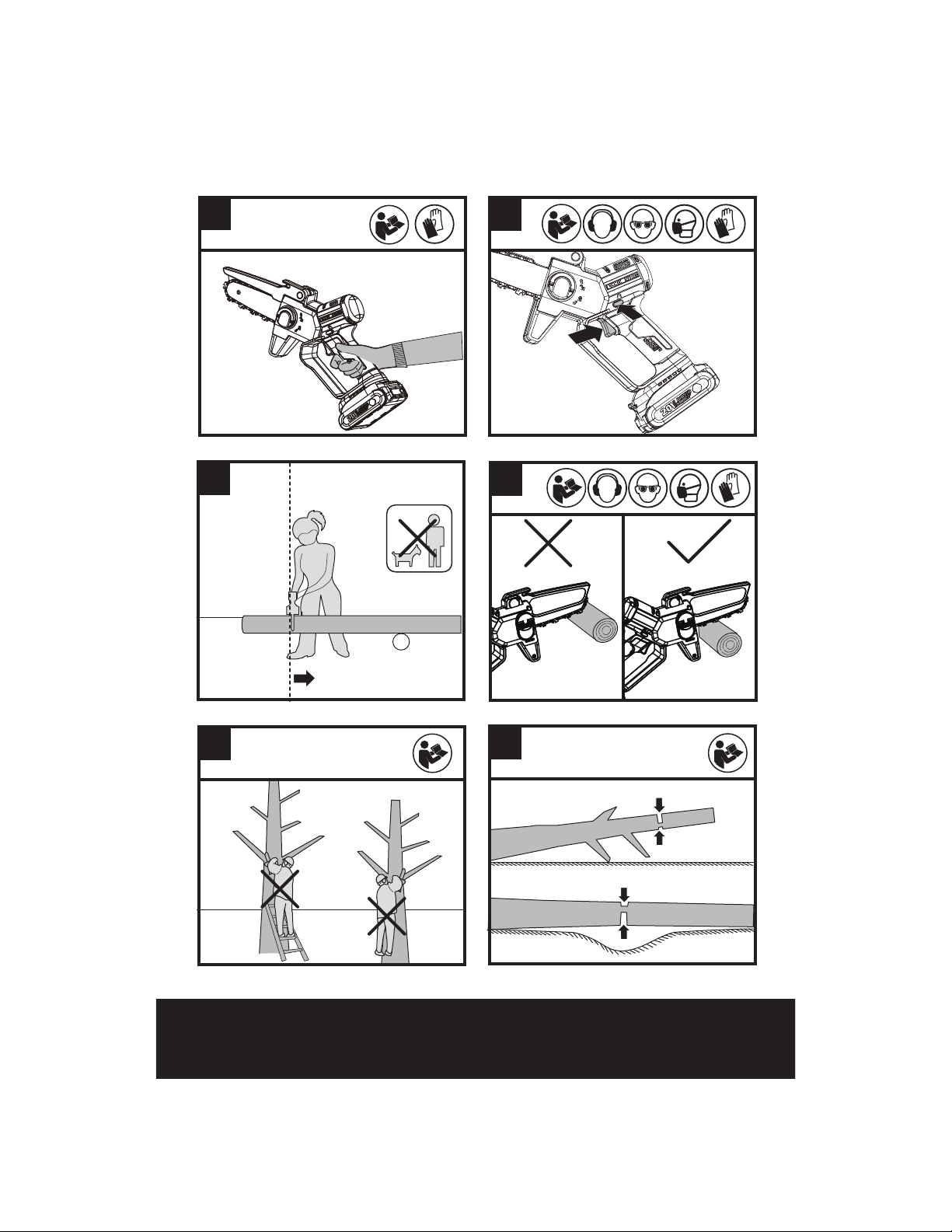

Cutting wood under tension (See Fig. O)
WARNING: When cutting a limb that is under
tension, use extreme caution. Be alert for wood
springing back. When wood tension is released, limb
could spring back and strike operator causing
severe injury or death.
When sawing logs supported on both ends, start the
$09'=)#5'+>#<*W`G'+>#09'S.N'#='9"*'-/+5*9*)'/,9#'
9"*'7#8'W#<*)>0$%G'+,-'9"*,'(,/!"'9"*'$09'WaG'=)#5'
below, in order to avoid contact of the pruning saw
with the ground. When sawing logs supported on
#,72'#,*'*,-&'!9+)9'9"*'$09'=)#5'>*7#:'W`G'+>#09'S.N'
#='9"*'-/+5*9*)'/,9#'9"*'7#8'W0,-*)>0$%G'+,-'(,/!"'
the cut from above (Z) in order to avoid log splitting
#)'1+55/,8'#='9"*'6)0,/,8'!+:3
OPERATION FOR POLE SAW
Cutting with extension pole
1. Install the battery pack into the machine.
2. Before cutting a high branch, consider all the
same points detailed in the previous section
“Trimming Branches” but pay particular
attention to the likely path of the falling branch.
WARNING: Do not stand directly below a branch
being cut. Keep bystanders far away. Do not stand
on a ladder or other type of unstable support while
using the tool. Do not use the tool near cable,
electrical power or telephone lines. Keep 3m away
from all power lines. (See Fig. P1-P4)
3. Use both hands to grip Pole Saw. Use only
designated grip areas when operating Pole Saw
WV**'I/83'JbG3'4!*'()5'8)/63'E"05>!'+,-'(,8*)!'
must wrap around Pole Saw handle and pole.
P3'' \+%*'!0)*'2#0)'=##9/,8'/!'()53'D**6'=**9'+6+)93'
Divide your weight evenly on both feet.
5. When ready to make a cut, press the Lock-out
Z099#,&'9"*,'=0772'6)*!!'9"*'_,.#=='E)/88*)'WV**'
Fig. P6). This will turn Pole Saw on. Releasing
_,.#=='E)/88*)':/77'90),'J#7*'V+:'#==3'\+%*'!0)*'
saw is running at full speed before starting a cut.
6. When starting a cut, place moving chain
+8+/,!9':##-3'U#7-'J#7*'V+:'()572'/,'67+$*'9#'
avoid possible bouncing or skating (sideways
movement) of saw.
7. Guide Pole Saw using light pressure. Do not
force Pole Saw. The motor will overload and can
>0),'#093'L9':/77'-#'9"*'1#>'>*99*)'+,-'!+=*)'+9'9"*'
rate for which it was intended.
8. Remove Pole Saw from a cut with saw running
at full speed. Stop Pole Saw by releasing trigger.
Make sure chain has stopped before setting
Pole Saw down.
CLEAN RESIDUAL OIL AFTER OPERATION
Lift the Retractable Guard to the maximum position
for 3 to 5 times. (See Fig.G2)
NOTE: The Oil Outlet cannot be faced towards
people. The Chain and Guide bar should be faced
down.

Cordless 5” Pruning Saw EN
20
SAW MAINTENANCE
Follow maintenance instructions in this manual.
Proper cleaning of saw and chain and Guide Bar
maintenance can reduce chances of kickback.
Inspect and maintain saw after each use. This will
increase the service life of your saw.
NOTE: Even with proper sharpening, risk of
kickback can increase with each sharpening.
MAINTENANCE AND STORAGE OF PRUNING SAW
1. Remove the battery pack
• When not in use
• Before moving from one place to another
• Before servicing
• Before changing accessories or attachments,
such as saw chain and guard
2. Inspect pruning saw before and after each
use. Check saw closely if guard or other part
has been damaged. Check for any damage
that may affect operator safety or operation of
saw. Check for alignment or binding of moving
parts. Check for broken or damaged parts. Do
not use pruning saw if damage affects safety or
operation. Have damage repaired by authorized
service center. To locate an authorized service
center, visit www.worx.com.
3. Maintain pruning saw with care.
• Never expose saw to rain or direct moisture.
• Keep chain sharp, clean, and lubricated for
better and safer performance.
• Follow steps outlined in this manual to sharpen
chain.
• Keep handles dry, clean, and free of oil and
grease.
• Keep all screws and nuts tight.
4. When servicing, use only identical replacement
parts.
5. When not in use, always store pruning saw
• in a high or locked place, out of children’s reach
• in a dry place
• with Bar and Housing Cover in place
Bar Maintenance
To maximize bar life, the following bar maintenance
is recommended.
The bar rails that carry the chain should be cleaned
before storing the tool or if the bar or chain appear
to be dirty.
The rails should be cleaned every time the chain is
removed.
To clean the Bar rails.
1. Remove Housing-Cover, Bar and Chain. (see
section ASSEMBLY)
2. Using a wire brush, screwdriver or similar tool,
clear the residue from the inner groove of the
bar. (See Fig. Q)
3. Make sure to clean oil passages thoroughly.
Conditions which require Chain and Guide Bar
maintenance:
• Saw cuts to one side or at an angle.
• Saw has to be forced through the cut.
• Inadequate supply of oil to the bar and chain.
Check the condition of the Guide Bar each time the
chain is sharpened. A worn Guide Bar will damage
9"*'$"+/,'+,-'5+%*'$099/,8'-/^$0793
After each use, remove the battery pack, clean all
sawdust from the Guide Bar and sprocket hole.
c"*,')+/7'9#6'/!'0,*<*,&'0!*'+'C+9'(7*'9#')*!9#)*'
square edges and sides.
File Rail Edges
and Sides
Square
Worn Groove Correct Groove
Replace the Guide Bar when the groove is worn,
the Guide Bar is bent or cracked, or when excess
heating or burring of the rails occurs. If replacement
/!',*$*!!+)2&'0!*'#,72'9"*'[0/-*'Z+)'!6*$/(*-'=#)'
your saw in the repair parts list or on the decal
located on the pruning saw.
Replacing Bar & Chain
Replace chain when cutters are too worn to sharpen
or when chain stops. Only use replacement chain
noted in this manual.
Inspect Guide Bar before sharpening chain. A
worn or damaged Guide Bar is unsafe. A worn or
damaged Guide Bar will damage chain. It will also
make cutting harder.
SHARPENING SAW CHAIN
WARNING:
Remove the battery pack before servicing.
Severe injury or death could occur from electrical
shock or body contact with moving chain.
Cutting edges on chain are sharp. Use protective
gloves when handling chain.
V*7*$9'+'-/+5*9*)'#='N55')#0,-'(7*'9#'!0/9'9"*'
$"+/,'6/9$"3'E"*'(7*'/!'"*7-'+9'9"*'$#))*$9'(7/,8'+,87*'
of 30° to the guide bar.
Keep chain sharp. Your saw will cut faster and more
safely. A dull chain will cause undue sprocket, Guide
Bar, chain, and motor wear. If you must force chain
into wood and cutting creates only sawdust with
few large chips, chain is dull.
FOR BATTERY TOOLS
The ambient temperature range for the use and
storage of tool and battery is 32 °F-13 °F (0 oC-45
oC).
The recommended ambient temperature range for
the charging system during charging is 32 °F-104 °F
(0 oC-40 oC ).
