Worx WX876L User manual

20V Battery Powered & Electric Cooler EN
F
ES
P07
P15
P24
WX876L WX876L.X

1
2
3
4
5
6
78
9
10
11
MAX
MAX
ECO
oC oF H M L
L
R
20.5
20.5
12 13
14
15
16

B1
A
B
MAX
MAX
ECO
oC oF H M L
L
R
20.5
20.5
ON/OFF
1
2
C
MAX
MAX
ECO
oC oF H M L
L
R
20.5
20.5
MAX/ECO ON/OFF
E1
2
3
1
D
MAX
MAX
ECO
oC oF H M L
L
R
20.5
20.5
E2 E3

54
B1
A
B
MAX
MAX
ECO
oC oF H M L
L
R
20.5
20.5
ON/OFF
1
2
C
MAX
MAX
ECO
oC oF H M L
L
R
20.5
20.5
MAX/ECO ON/OFF
E1
2
3
1
D
MAX
MAX
ECO
oC oF H M L
L
R
20.5
20.5
E2 E3

20V Battery Powered & Electric Cooler EN
54
TABLE OF CONTENTS
1. SAFETY INSTRUCTIONS

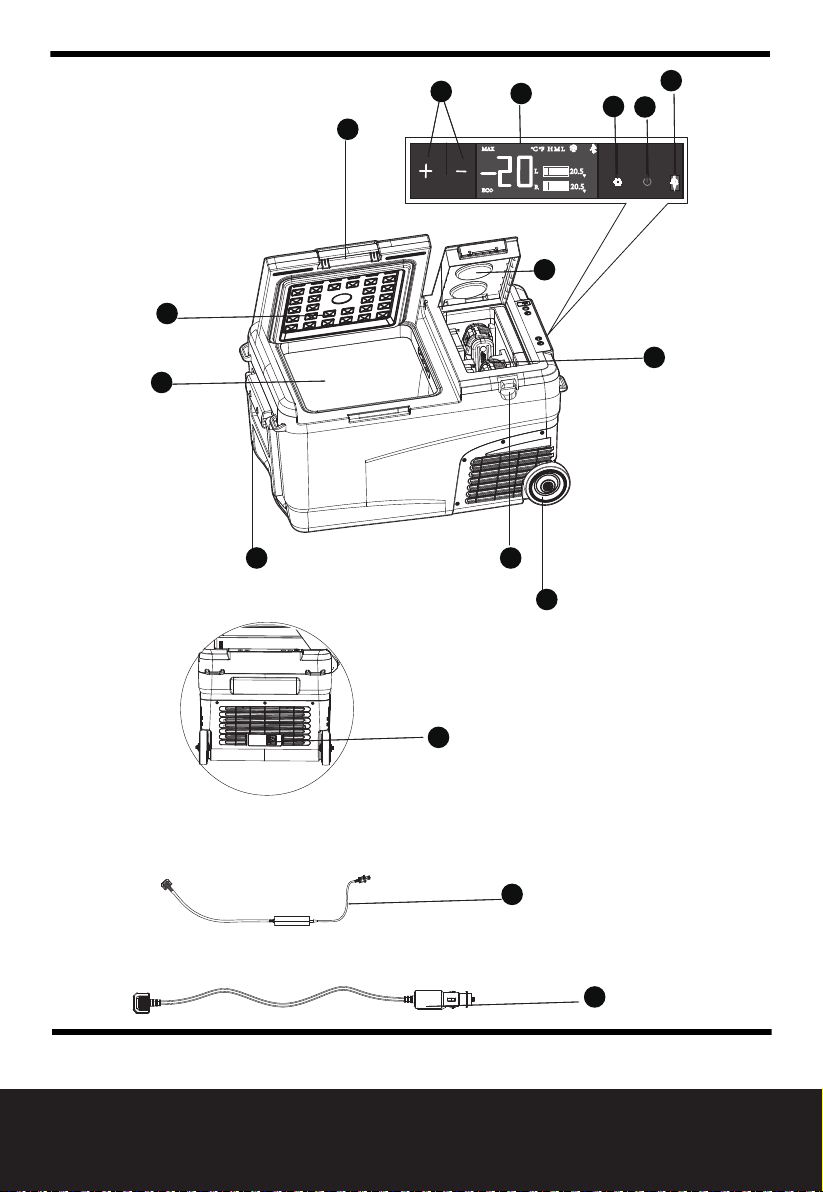

2. COMPONENT LIST
3. TECHINCAL DATA
4. INTENDED USE
5. OPERATION INSTRUCTIONS
6. CLEANING
7. S TO R AG E
8. MAINTENANCE
9. TOUBLESHOOTING
1. PRODUCT SAFETY
WARNING: Some dust created
by power sanding, sawing,
grinding, drilling and other
construction activities con-
tains chemicals known to the
State of California to cause
cancer, birth defects or other
reproductive harm. Some
examples of these chemicals
are:
– Lead from lead-based
paints;
– Crystalline silica from
bricks and cement and
other masonry products;
– Arsenic and chromium
from chemically-treated
lumber.
Your risk from these expo-
sures varies, depending on
how often you do this type of
work. To reduce your expo-
sure to these chemicals: work
in a well ventilated area, and
work with approved safety
equipment, such as those
dust masks that are specially
designed to lter out micro-
scopic particle.
WARNING: This product
can expose you to chem-
icals including lead and Di(2-
ethylhexyl)phthalate (DEHP)
which are known to the
State of California to cause
cancer and birth defects or
other reproductive harm. For
more information go to www.
P65Warnings.ca.gov
GENERAL SAFETY WARN-
INGS
WARNING: Read all safety
warnings and all instructions.
Failure to follow the warnings
and instructions may result in
electric shock, re and/or seri-
ous injury.
Save all warnings and instruc-
tions for future reference.
1.This appliance is not
intended for use by persons
(including children) with
reduced physical, sensory
or mental capabilities,
or lack of experience

20V Battery Powered & Electric Cooler EN
76
and knowledge, unless
they have been given
supervision or instruction
concerning use of the
appliance by a person
responsible for their safety.
2.Children aged from 8 years
and above are allowed
to use the appliances.
Children should be
supervised to ensure that
they do not play with the
appliance. Cleaning and
user maintenance shall
not be made by children
without supervision.
3.The battery must be
removed from the socket-
outlet before cleaning or
maintaining the appliance.
The battery is not
washable.
4.Check the voltage
specication on the type
plate corresponds to that
of the energy supply. The
appliance is only to be used
with the power supply unit
provided with the applianc
SAFETY WARNINGS TO
YOUR CAR REFRIGERATOR
1.Suitable for camping use;
2.The appliance may be
connected to more than
one source of energy;
3.Do not store explosive
substances such as
aerosol cans with a
ammable propellant in
this appliance.
4.WARNING: When
positioning the appliance,
ensure the supply cord is
not trapped or damaged.
5.WARNING: Do not locate
multiple portable socket-
outlets or portable power
supplies at the rear of the
appliance
6.WARNING: To avoid a
hazard due to instability of
the appliance, it must be
xed in accordance with
the instructions.
7.To avoid contamination of
food, please respect the
following instructions:
–Opening the door for long
periods can cause a
signicant increase of
the temperature in the
compartments of the
appliance.
–Clean regularly surfaces
that can come in contact
with food and accessible
drainage systems.
–Store raw meat and sh in
suitable containers in the

20V Battery Powered & Electric Cooler EN
76
refrigerator, so that it is not
in contact with or drip onto
other food.
–If the refrigerating appliance
is left empty for long
periods, switch off, defrost,
clean, dry, and leave the
door open to prevent mould
developing within the
appliance.
8.Only use the accessories
that the manufacturer
recommended.
9.The refrigerator must be
disconnected from the
source of electrical supply
and remove the battery
packs before Repairing and
Maintenance.
10.This appliance is suitable
for camping useonly when
the appliance powered by
battery pack.
11. Keep ventilation openings
in the appliance clear of
obstruction.
12. Do not use mechanical
devices or other means to
accelerate the defrosting
process, other than those
recommended by the
manufacturer.
13. Do not use electrical
appliances inside the food
storage compartments
of the appliance, unless
they are of the type
recommended by the
manufacturer.
When the power cord
or socket is damaged,
or any other electrical
components are faulty, do
not continue to use this
product. Send it to the
dealer or local special
maintenance network for
replacement or repair.
14. Do not place the product
upside down, or tilt it above
15°.
15. Do not immerse the
appliance in water or other
liquid to prevent electric
shock. Do not expose to
rain.
16. When not in use or clean,
remove the battery and
unplug the power plug.
17. When operating the
appliance, the inlet of the
power cord and outlet
should be kept a certain
distance (about 15cm)
from other items, so as
not to affect the heat
dissipation effect of the
machine.
18. Any accessories not
recommended by the
manufacturer may not be
used.

20V Battery Powered & Electric Cooler EN
98
19. Do not allow children or
the persons with physical
disability to operate
without any guidance or
supervision.
20.Do not place the appliance
next to a high-temperature
gas or electric stove to
avoid accidents.
21.Do not start the power
button frequently (at least
5 minutes each time)
to avoid damage to the
compressor.
22.Do not insert metal foil or
other conductive materials
into the appliance to
prevent re or short circuit.
23. Do not use chemical
washing liquids and hard
tools to clean the product.
24. Insert the plug completely
into the “DC IN” inlet.
Failure to do so may
deform the plug or cause a
re.
25.Clean the cigarette lighter
socket before inserting the
plug. Failure to do so may
deform the plug or cause a
re.
26.Do not operate the
appliance while driving.
Doing so may cause an
accident.
27.When the remaining
automobile battery
capacity gets small, use
the appliance with the
engine running. After using
the appliance, unplug the
cigarette lighter socket to
prevent the loading on the
automobile battery.
28.Do not abuse the AC
adaptor and cigarette
lighter adaptor.
29.Clean the plug of the AC
adaptor and cigarette
lighter adaptor. Dirt such
as water or salt adhering
to the plug may cause
rust and result poor
conductivity, deformation
or re.
30.Do not touch the plug
of the AC adaptor and
cigarette lighter adaptor
immediately after
operation. They may be
extremely hot and could
burn your skin.
31Do not disassemble the
appliance.
32.Do not charge the car
battery while using the
appliance.
SAFETY WARNINGS FOR
BATTERY PACK
a) Do not dismantle, open or
shred battery pack.

20V Battery Powered & Electric Cooler EN
98
b) Do not expose battery
pack to heat or re. Avoid
storage in direct sunlight.
c) Do not short-circuit a
battery pack. Do not store
battery packs haphazardly
in a box or drawer where
they may short-circuit
each other or be short-
circuited by other metal
objects. When battery pack
is not in use, keep it away
from other metal objects,
like paper clips, coins, keys,
nails, screws or other small
metal objects, that can
make a connection from
one terminal to another.
Shorting the battery
terminals together may
cause burns or re.
d) Do not subject battery pack
to mechanical shock.
e) In the event of battery
leaking, do not allow the
liquid to come in contact
with the skin or eyes. If
contact has been made,
wash the affected area with
copious amounts of water
and seek medical advice.
f) Do not use any battery pack
which is not designed for
use with the equipment.
g) Keep battery pack out of
the reach of children.
h) Always purchase the
battery pack recommended
by the device manufacturer
for the equipment.
i) Keep battery pack clean and
dry.
j) Wipe the battery pack
terminals with a clean dry
cloth if they become dirty.
k) Battery pack needs to be
charged before use. Always
use the correct charger and
refer to the manufacturer’s
instructions or equipment
manual for proper charging
instructions.
l) Do not leave battery pack
on prolonged charge when
not in use.
m) After extended periods
of storage, it may be
necessary to charge and
discharge the battery pack
several times to obtain
maximum performance.
n) Recharge only with the
charger specied by Worx.
Do not use any charger
other than that specically
provided for use with the
equipment.
o) Retain the original product
literature for future
reference.
p) Use only the battery pack in
the application for which it

20V Battery Powered & Electric Cooler EN
1110
was intended.
q) Remove the battery pack
from the equipment when
not in use.
r) Dispose of properly.
s) Do not mix cells of different
manufacture, capacity, size
or type within a device.
t) Keep the battery away
from microwaves and high
pressure
SYMBOLS
To reduce the risk of injury, user must
read instruction manual
Read operator’s manual
Warning
Plus, positive polarity
Minus, negative polarity
Batteries may enter water cycle if
disposed improperly, which can be
hazardous for ecosystem. Do not
dispose of waste batteries as unsorted
municipal waste.
Do not burn
Waste electrical products must not
be disposed of with household waste.
Please recycle where facilities exist.
Check with your local authorities or
retailer for recycling advice.
Li-I on
Li-Ion battery. This product has been
marked with a symbol relating to
‘separate collection’ for all battery
packs and battery pack. It will then
be recycled or dismantled in order
to reduce the impact on the environ-
ment. Battery packs can be hazardous
for the environment and for human
health since they contain hazardous
substances.
Warning: Risk of re / ammable
materials
Adaptor
POSITEC Inc. has established a partnership with the
RBRC Corporation to recycle any Positec batteries
with the RBRC-call2recycle seal. For environmental
protection, please do not discard batteries in the trash.
After the batteries’ life cycle is ended, please call
1-800-822-8837 for a free service that will properly
dispose of the battery.
2. COMPONENT LIST
1. DOOR LATCH
2. CUP HOLDER
3. USB PORT
4. CONTROL PANEL
5. BATTERY PACK COMPARTMENT*
6. WHEEL
7. BOTTLE OPENER
8. PULL HANDLE
9. STORAGE BOX
10. SEALING STRIP
11. PORT
12. COOLING MODE
13 ON/OFF BUTTON

20V Battery Powered & Electric Cooler EN
1110
14 AC CHARGER
15 CIGARETTE LIGHTER ADAPTOR
16 TEMPERATURE ADJUSTMENT BUTTONS
* Not all the accessories illustrated or described
are included in standard delivery.
3. TECHNICAL DATA
Type Designation WX876L WX876L.X (8- designa-
tion of machinery, representative of Car Refrigera-
tor)
WX876L WX876L.X**
Rated voltage 40 V Max. (2x20 V Max.) ***
Charge output
voltage 12V
Temperature Range -4°F to 68°F (-20°C- 20°C)
Power Supply 60W
Machine Weight
(Bare tool) 29.8lbs (13.5 kg)
** X may be followed by one or two characters. All
models are the same except model number and
trademark.The sux in models may be number from “1”
to “999” or English letter “A” to “Z” or “M1” to” M9” which
means different package or the various of accessories
packed in the package.
*** Voltage measured without workload. Initial battery
voltage reaches maximum of 20 volts. Nominal voltage
is 18 volts
SUGGESTED BATTERIES
AND CHARGERS
Category Type Capacity
20V Battery
WA3525 2.0Ah
WA3575 2.0Ah
WA3012 4.0Ah
20V Charger WA3881 2.0A
We recommend that you purchase your accessories
from the same store that sold you the tool. Choose the
type according to the work you intend to undertake.
Refer to the accessory packaging for further details.
Store personnel can assist you and offer advice.
4. INTENDED USE
The cooler is intended to keep food and beverages
cool and fresh without the use of ice.
5. OPERATION INSTRUCTIONS
NOTE: Before using the tool, read the instruction
book carefully.
ASSEMBLY AND OPERATION
ACTION FIGURE
BEFORE OPERATION
Charging the removable batteries.
To install the batteries, open the battery
compartment. Align the batteries and slip
them into place until they click.
Connect the cooler to the DC/AC power
supply to charge the batteries. You can
also charge the batteries with a Worx Pow-
erShare Charger (sold separately.)
Note:
1.The batteries will charge quicker if the cooler
is OFF.
See
Fig. A
OPERATION
Press ON/OFF Button
Press the ON/OFF button to turn on the
cooler after fully charging the batteries or
when connected to a power supply.
Note:
1. The control panel will turn on for 2 sec-
onds before entering standby mode.
See
Fig. B
Setting the Cooling Mode
Press the Cooling Mode button to
choose the preferred cooling mode.
MAX for fast-cooling or ECO for energy
saving.
Note:
1. The default setting is MAX mode.
See
Fig. C

20V Battery Powered & Electric Cooler EN
1312
Setting the Temperature
Note: Batteries must be installed or
cooler connected to power source to
change settings
Reset Temperature
Turn the cooler OFF, then press the Cool-
ing Mode button for 3 seconds until E1
is displayed. Long press +- at the same
time for 3 seconds to reset.
Note: The minimum temperature set-
ting is -20°C / -4°F
Setting the Temperature
Turn ON the cooler. Use the +- buttons to
select desired temperature.
Note: Temperature setting range is
-20°C-20°C / -4°F-68°F
Setting the Temperature Unit
Turn the cooler OFF. Long press the
Cooling Mode button for 3 seconds
until E1 is displayed. Then press the
Cooling Mode button again until E5 is
shown. Press + or - to select Celsius or
Fahrenheit.
Note: Factory default is Celsius/°C
See
Fig. D
Usage
The cooler can be used without the
batteries if connected to the AC power
supply or the cigarette lighter adaptor.
Note：
1. For best cooling results and extended
runtime, pre-cool the cooler with the
AC power supply or cigarette lighter
adaptor. When the cooler has reached
desired temperature, install the batteries
for portable cooling.
See Fig.
E1,E2,E3
BATTERY PROTECTION MODE
In order to prevent the cooler from running down the
car battery, the cooler is equipped with BATTERY
PROTECTION MODE.
How to select BATTERY PROTECTION MODE:
1. When the cooler is ON, press the Cooling Mode
button for 3 seconds until screen ashes, then
press the Cooling Mode button again to select
protection mode H (high), M (medium, L (low).
Default setting is H (high) mode.
INPUT DC 12V DC 24V
CUT
OUT
CUT IN CUT
OUT
CUT IN
H8.5V 10.9V 21.3V 22.7V
M10.1V 11.4V 22.3V 23.7V
L11.1V 12.4V 24.3V 25.7V
Note:
1. It is suggested to select H when connected to
car power, while, M or L should be set when it is
connected to a portable battery or other back-up
battery.
RECOMMENDED TEMPERATURE
FOR COMMON FOOD
Common Food Recommended Temperature
Fruits 5~8° C/41 ~46° F
Vegetable 3~ l0°C/37~50° F
Meat -l8°C/0° F
Drinks 5oC/41oF
Cold Cuts/
Cheese
4oC/39oF
Wine l0° C/50° F
Ice cream -10°C/14° F
6. CLEANING
Clean the cooler by using a wet cloth to wipe out the
inside after use.
WARNING:
1. Turn the cooler off and unplug the product
before cleaning the cooler.
2. Do not submerge the cooler or rinse it with
water.
3. Do not use any abrasive cleaning agents to clean
the cooler as these agents may cause damages to
the product.
7. S T O R AG E
Short-time storage
Turn the cooler OFF and unplug the product. Use a dry
cloth to clean the inside of the cooler and place it in stor-
age.
Long-time storage
1. Switch off and unplug the device;

20V Battery Powered & Electric Cooler EN
1312
2. Empty the storage box and use a dry cloth to wipe
the excess water from the cooler;
3. Put the cooler in a dry place and keep the lid
sightly open to avoid odors.
4. Recommended storage environment:ambient
temperature: 77°F/ 25°C, ambient humidity:75%.
8. MAINTENANCE
Frost will reduce the cooling capacity. It is sug-
gested to defrost in time to avoid this:
1. Switch off and unplug the device;
2. Empty the storage box;
3. Leave the lid open;
4. Wipe off the defrosted water with a soft cloth.
WARNING: Never use the hard or sharp tools to
break the ice or remove any objects which have
frozen in place.
FOR BATTERY TOOLS
The ambient temperature range for tool and battery
use and storage is 0oC-45oC.
The recommended ambient temperature range for
the charging system during charging is 0oC-40oC.

1514
20V Battery Powered & Electric Cooler EN
1514
9. TOUBLESHOOTING
Problem Reasons/Suggestions
Cooler does not work 1. Check if the ON/OFF switch is on;
2. Check if connected to a power source or batteries
are installed;
3. Check if the fuse is burnt;
4. Ensure power supply is functioning correctly;
5. Do not switch on/off the cooler frequently as it may
cause start delay of the compressor.
Objects are frozen in the cooler The temperature is set too low
Cooler storage box is abnormally warm 1. The cooler has stored a large amount of warm or
hot food recently;
2. The cooler lid is opened frequently;
3. The cooler has been cut off power for a long time
Water ow noise from the cooler inside This is normal and comes from the compressor
inside.
Water drops around the cooler lid It is normal that the moisture will condense to water
when it touches a cold surface of the cooler
The compressor is slightly noisy when running No need to worry because the noise will be reduced
after the compressor is stably running.
Code F1 shown Possible reasons: low voltage
Adjust the battery protection mode from High to
Medium or from Medium to Low
Code F2 shown Possible reasons:condenser fan is overloaded
Cut the power off for ve minutes and re-start
If the code shows again, please contact manufacturer
for help.
Code F3 shown Possible reasons: the compressor is starting too
frequently.
Cut the power off for ve minutes and re-start
If the code shows again, please contact manufacturer
for help.
Code F4 shown Possible reasons: compressor not kicking in
Cut the power off for ve minutes and re-start
If the code shows again, please contact manufacturer
for help.
Code F5 shown Possible reasons: overheating of the compressor &
electronics.
Cut the power off for ve minutes and re-start
If the code shows again, please contact manufacturer
for help.
Code F6 shown Possible reasons: no parameter can be detected by
the controller.
Cut the power off for ve minutes and re-start
If the code shows again, please contact manufacturer
for help.
Code F7 shown Possible reasons: temperature sensor is faulty.
Contact manufacturer for help.

1514
40V Akku-Laubblasgerät D
1514
Code FA shown Possible reasons: Compressor module failure
Contact manufacturer for help.
Code Fb shown Possible reasons: Compressor module failure
Contact manufacturer for help.
Code FC shown Possible reasons:Low battery voltage or faulty battery
pack
Please use the battery pack after charging. If you can-
not solve the problem, please contact manufacturer
for help
Code C1 shown Possible reasons: The ambient temperature is too
high.
Wait for the temperature to drop to recover
Code C2 shown Possible reasons: The ambient temperature is too
high.
Wait for the temperature to drop to recover
Code C3 shown Possible reasons: The ambient temperature is too
low.
If it does not recover after the temperature rises and
restart the machine, please contact manufacturer for
help.
Code C4 shown Possible reasons:Battery pack failure
Contact manufacturer for help
Code C5 shown Possible reasons:Battery pack failure
Contact manufacturer for help
Code C6 shown Possible reasons:Battery pack failure
Contact manufacturer for help
Code C7 shown Possible reasons:Low battery voltage or battery pack
failure.
Please use the battery pack after charging. If you can-
not solve the problem, please contact manufacturer
for help.
Code C8 shown Possible reasons:Battery pack failure
Contact manufacturer for help
Code C9 shown Possible reasons:Battery pack failure
Contact manufacturer for help
