Woxcon TPUH412RA User manual

TPUH412RA
Ultra-thin HDBaseT Receiver
131ft/40m 4K UHD, support audio de-embedding
All Rights Reserved
Version: TPUH412-RA_2017V1.0
User Manual

Ultra-thin HDBaseT Receiver / Audio de-embedding
1
Statement
Read this user manual carefully before using the product. Pictures shown in this manual is for reference
only, different model and specifications are subject to real product. This manual is only for operation
instruction only, not for any maintenance usage. The functions described in this version are updated till
February 13, 2017. In the constant effort to improve our product, we reserve the right to make functions
or parameters changes without notice or obligation. Please refer to the dealers for the latest details.
Safety Precaution
To insure t he b e s t from the pro du c t , p lease read all in s t ructions care fu l l y before using t he d e v i c e . Save
this manual for further reference.
l Follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
l Do not dismantle the housing or modify the module to avoid electrical shock or burn.
l Using supplies or parts not meeting the products’ specifications may cause damage, deterioration or
malfunction.
l Do not expose the unit to rain, moisture or install this product near water.
l Install the device in a place with fine ventilation.
l Do not twist or pull by force ends of the optical cable. It can cause malfunction.
l Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before
cleaning.
l Unplug the power cord when left unused for a long period of time.
l Refer all servicing to qualified service personnel.
After-sales Service
We provide limited warranty for the product within three years counting from the first day you buy this
product (The purchase invoice shall prevail).
For more details, please contact your distributor.

Ultra-thin HDBaseT Receiver / Audio de-embedding
2
Introduction
This product is an Ultra-thin HDBaseT Receiver designed with audio de-embedded outputs. It receives
4K/1080p HDMI signal via CAT5e/CAT6a cable from HDBaseT Transmitter or Matrix Switcher at
40m/70m.
It supports unidirectional PoH function, the receiver can be powered by HDBaseT Transmitter or Matrix
Switcher.
Features
l Supports HDMI1.4 & HDCP2.2, and is backward compatible to the previous version.
l Maximum transmission distance is up to 40m (131ft) at 4Kx2K, and 70m (230ft) at 1080p.
l Supports bi-directional IR and RS232 pass-through for long-distance control.
l Supports bi-directional PoH for simplified wiring, and compatible with 48VDC PoC.
l Supports audio de-embedded outputs.
Package List
l 1 x Ultra-thin HDBaseT Receiver
l 2 x Mounting Ears & 2 x Screws
l 4 x Plastic Cushions
l 1 x 3-Pin Phoenix Connector (Male)
l 1 x User Manual

Ultra-thin HDBaseT Receiver / Audio de-embedding
3
Panel Description
Front Panel
No.
Name
Description
①
RS232 MODE switcher
CTRL: RS232 pass-through control mode;
UPDATE A: Update Valens IC program, connect a PC to the RS232
port, and then double-click the update file (.bat).
UPDATE B: Update the IC program which is used for de-embedding
audio, the upgrade method is the same as the above UPDATE A.
②
Link status LED
OFF: No Link; GREEN:Link successful.
③
HDCP compliant LED
OFF: No HDMI traffic (no picture); GREEN: Traffic with HDCP;
Blinking: Traffic without HDCP.
④
Power LED
OFF: No power; RED: DC power present.
HDCPLINK
UPDATE A
CTRL
UPDATE B
1234

Ultra-thin HDBaseT Receiver / Audio de-embedding
4
Rear Panel
No.
Name
Description
①
RS232 connector
If one is connected with control device (e.g. PC), and the other
should be connected with the third-party that need to be controlled.
②
IR IN
Work with far-end IR OUT port, connect with IR Receiver (with
carrier) to collect IR signal to control far-end display device from
local.
③
IR OUT
Work with far-end IR IN port, connect with IR Emitter to send IR
signal to control input source device.
④
HDMI OUT
HDMI type A connector, connect to display.
⑤
AUDIO OUT
3.5mm stereo audio jack, connect to analog stereo audio device.
⑥
COAX OUT
Coaxial audio connector, connect to digital audio device.
⑦
OPTICAL OUT
Optical audio connector, connect to optical audio devices.
⑧
HDBT IN
Connect to the HDBT OUT socket on HDBaseT Transmitter or
Matrix Switcher via CAT5e/6a/7 cable, support bidirectional PoH
technology.
⑨
DC 12V power port
Connect to 12VDC power adaptor, or it can be powered via the
HDBaseT Transmitter or Matrix Switcher by bidirectional PoH
technology.
Tx Rx
DC 12VAUDIO OPTICALCOAX HDBT INIR IN
RS232 IR OUT HDMI OUT
OUT
123456789

Ultra-thin HDBaseT Receiver / Audio de-embedding
5
Specification
Video
Video Input
(1) HDBT IN
Video Input Connector
(1) RJ45
Video Output
(1) HDMI OUT
Video Output Connector
(1) HDMI type A
Audio
Audio Output
(1) AUDIO OUT; (1) COAX OUT; (1) OPTICAL OUT
Audio Output Connector
(1) 3.5mm stereo audio jack; (1) Coaxial audio connector;
(1) Optical audio connector
Digital Audio Output Format
PCM/Dobly/DTS
Analog Audio Output Format
PCM
Frequency Response
20 Hz to 20 kHz, ±3 dB
Control
Control Ports
(1) IR IN; (1) IR OUT; (1) RS232
Control Connector
(2) 3.5mm mini jack (IR); (1) 3-pin phoenix connector (RS232)
General
Transmission Mode & Distance
HDBaseT (bi-directional PoH); 1080P ≤ 70m; 4K×2K ≤ 40m
Resolution
Up to 4K×2K@60Hz 4:2:0
Bandwidth
10.2Gbps
HDMI Standard
HDMI1.4 & HDCP2.2
Power Consumption
15W (max)
Temperature
-10℃~ 50℃
Humidity
0% ~ 90%
Power Supply
Input: 100VAC~240VAC, 50/60Hz; Output: 12VDC 2A
Dimension (W*H*D)
152mmx16.2mmx100mm
Net Weight (g)
236g

Ultra-thin HDBaseT Receiver / Audio de-embedding
6

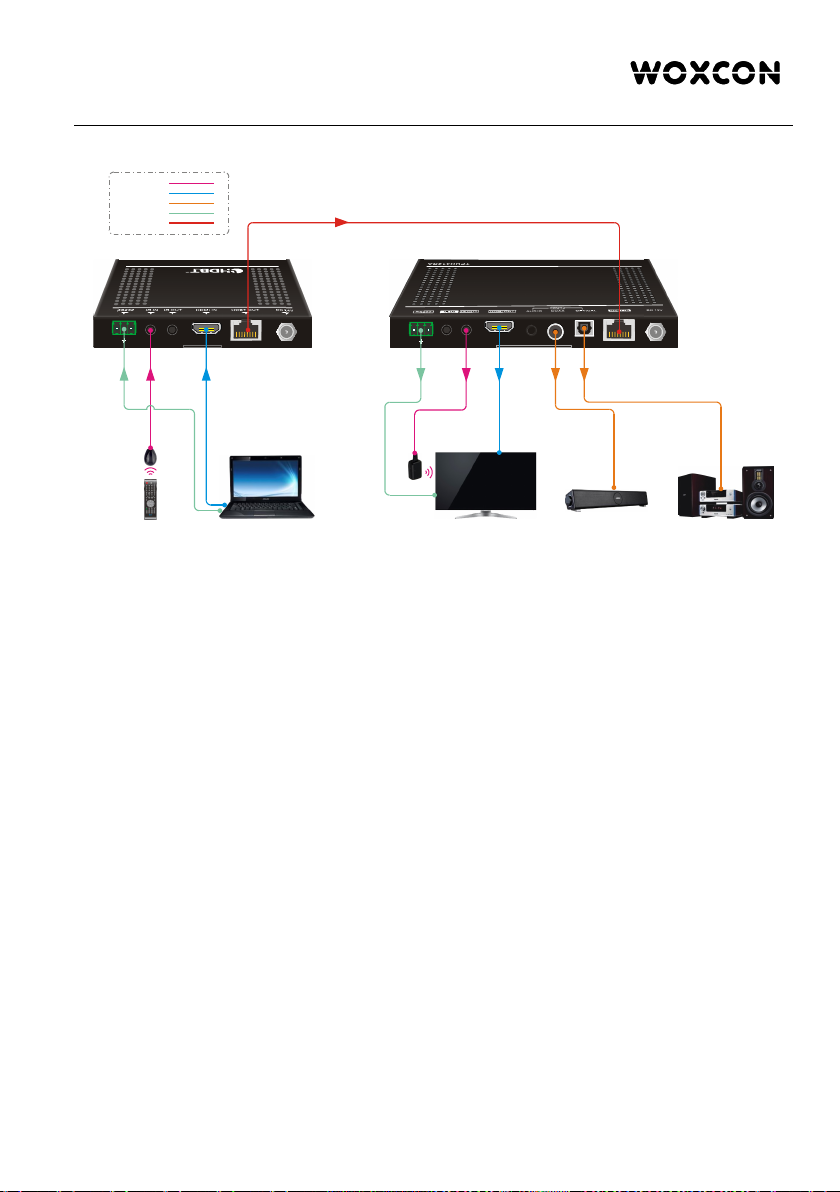

System Diagram
Tx Rx
Tx Rx
IR Receiver
TV Remote
Laptop
IR Emitter
HDTV
4K 40m, 1080P 70m
Soundbar
Transmitter HDBaseT Receiver
Speaker
HDMI:
HDBaseT:
RS232:
IR:
Audio:
