Wren EM101 User manual

EM101, Video Encoder Module
PROPERTY OF WREN Page 1 of 2 7L224 REV-D 9/21/2007
124 WREN PARKWAY • JEFFERSON CITY, MO 65109 • TOLL FREE [phone] • FAX [phone]
www.wrensolutions.com
Overview
The EM101 is utilized to provide an effective method of converting a
previously installed analog solution into a solid IP solution without
the need to replace the camera or its cabling.
Warnings and Safeguards
Prior to installation and use of this product, please observe the
following warnings
1. Installation and servicing should be done by qualified
personnel, and all work done should conform to local
codes.
2. Using replacement parts or accessories other than
Wren may invalidate the warranty.
3. The EM102 is designed to accept 12V DC power.
4. It is recommended that your active network assign an
available IP address through DHCP when connecting
this module for the first time.
Component List
1. EM101 Module
2. Power Adapter
Instructions
1. Connect the Video and Audio (if applicable) feed from
the camera to their respective ports on the EM101.
[Figure 1]
2. Connect a CAT5 cable from the LAN to the Ethernet
jack on the EM101. [Figure 2]
3. If applicable connect the alarm contacts and digital
output to pins 1 through 4 on the I/O terminal
according to the table below. [Figure 2]
IP Solution:
EM101
Video Encoder Module
FIGURE 1
FIGURE 2

PROPERTY OF WREN Page 2 of 2 7L224 REV-D 9/21/2007
124 WREN PARKWAY • JEFFERSON CITY, MO 65109 • TOLL FREE [phone] • FAX [phone]
www.wrensolutions.com
1 DI- INPUT 12V, Max 50mA
2 DI+ INPUT
3 SW_COMMON OUTPUT
4 SW_NOPEN OUTPUT 1A, 24V or 0.5A, 120 VAC
4. Connect power from the included power adapter or other 12V supply to the power connector on the
EM101. [Figure 2]
NOTE Please see the IP camera settings guide for detailed operating instructions.

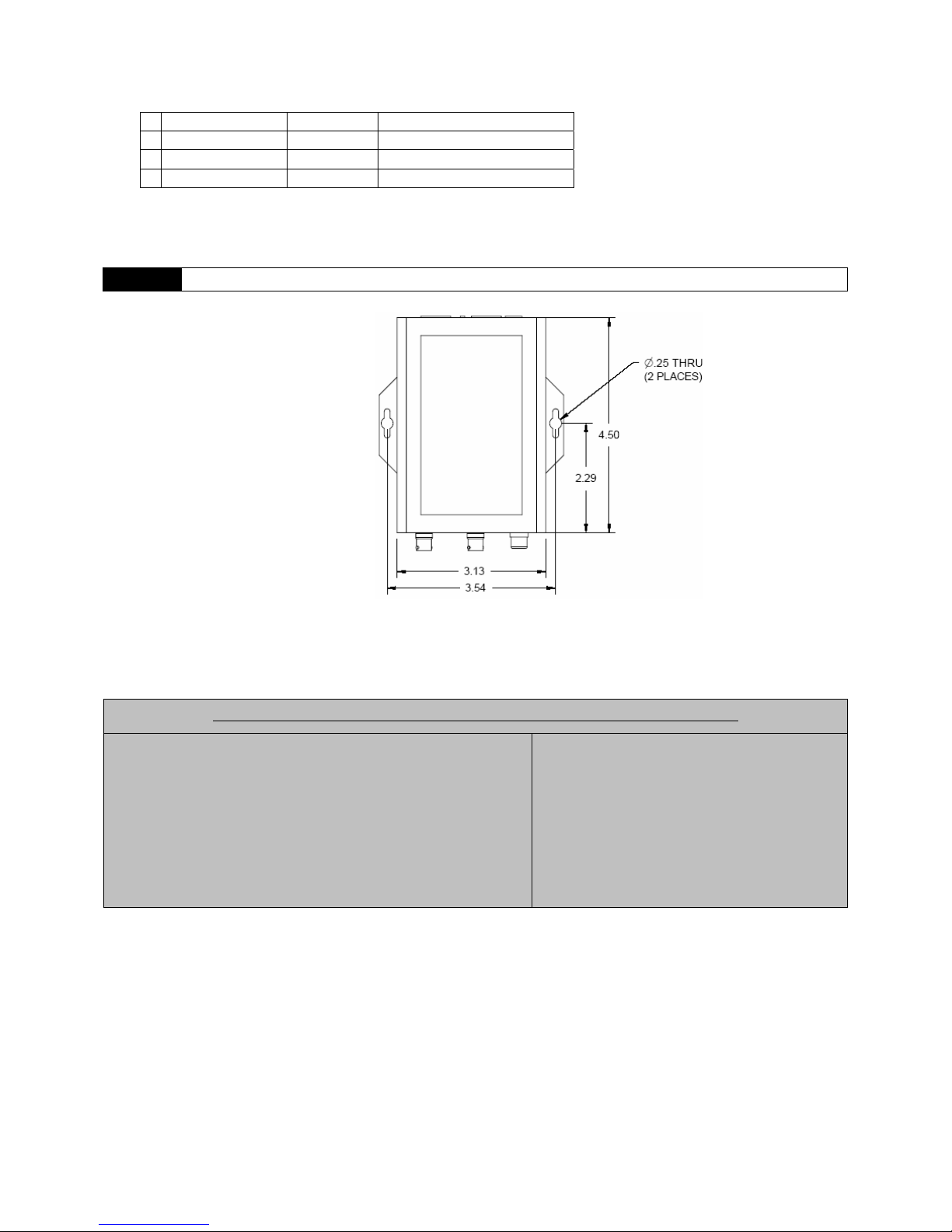

DIMENSIONS
(All dimensions are in inches)
See height in Figure 1.
All Products Are Subject to the Current Version of Wren Terms and Conditions
WARRANTY INFORMATION
Wren warrants EM101 for one (1) years from the purchase date, recorded as
the ship date on Wren’s invoice, against any defects in material or workmanship
as long as the product is used for the purposes for which it was intended. This
warranty shall not apply if the product has been damaged or rendered defective
(a) as a result of accident, misuse or abuse; (b) unauthorized modification or
alteration; (c) as a result of service by anyone other than Wren or its authorized
service providers; or (d) used with parts not provided by Wren as part of the
original product. Warranty claims will be processed only when accompanied by
original order numbers which include: purchase order number, sales order
number, invoice number and serial number (if applicable) or other information
allowing Wren to identify the product and its origins.
RETURNS
In order to return parts to the factory for repair or credit,
please call the factory at [phone] or (573) 893-
2249 to obtain a Return Authorization (RA) number. All
returns are subject to Wren’s RA Policy. Goods returned
for credit should be in their original condition—new and
unused. All merchandise returned by the Customer for
credit, and accepted by Wren, within 90 calendar days
from the purchase date will be subject to a 20% restocking
fee. Products may not be returned more than 91 calendar
days from the purchase date. Custom, special order and
OEM products may not be returned.
