WYBOT WYBOTICS WY200 User manual

1
USER MANUAL
ROBOTIC POOL FLOOR CLEANER
WY200
READ AND KEEP THESE INSTRUCTIONS FOR FUTURE
REFERENCE
Thank you for purchasing WYBOT Robotic Pool Cleaner. If you have any question
or issue, please contact us for customer service.

2
Important tips:
1. It is strictly forbidden to use this machine outsides the use conditions of this machine.
Please read this user manual carefully before use. Please use the product according to
the instructions in the user manual. Our company is not responsible for any loss and
injury caused by improper use.
2. Only accessories recommended or sold by the manufacturer can be used for the
machine.
3. The product shall not be used by children under 8 years old or people with mental
disabilities. If necessary, the product shall be used under the supervision and
guidance of guardian. Please don't let children ride on the product or play with the
product as a toy.
4. To prevent accidents, before charging, the machine must be taken out from the
swimming pool, and the charger and the machine must be placed indoors or in a
splash-resistant facility for charging. Before charging, ensure that the charging port is
dry.
5. Please use the original charger to charge the machine.
6. Please confirm that the charging port is dry after the machine is taken out from
swimming pool, then connect it with the charger, and confirm that the machine has
been turned off (the indicator lights of the machine go off completely), otherwise it
cannot be charged normally.
7. The charger must be plugged into a socket with leakage protection. And ensure that
the ground wire on the socket is grounded in a standard and reliable way.
8. It is strictly forbidden to use other chargers to charge the machine. Please do not
charge this charger to other equipment, avoid damage to the charger or the machine.
9. No one is allowed to enter the swimming pool when the cleaner is working, so as to
avoid danger and injury.

3
10. When the cleaner is placed on the shore, please do not turn it on, otherwise it will
affect the normal use of the cleaner.
11. Clean the filter box in time after each use, so as not to affect the work of the cleaner
due to excessive dirt in the filter box.
12. When the cleaner is not in use, please store the cleaner in a cool and ventilated place
indoors to avoid direct sunlight.
13. It is forbidden for non-professional personnel to disassemble the sealing box of the
main machine body and the sealing box assembly of the sensor, so as to avoid danger
or avoid damage to the cleaner.
14. Charge the machine before the battery is completely exhausted. When the yellow light
of the machine is on, please charge the machine in time.
15. Do not charge the machine when the battery is full. Overcharging will reduce the life
of the battery.
16. Engine oil seal contains grease. If grease leaks, it may cause slight pollution to water
body.
17. Charge the machine under 5°C-35°C environment. When the battery is overheated, it
shall be cooled before charging.
18. When the machine is stored for a long time, it shall be charged every three months.
Please use the original charger to charge the machine, so as to ensure that the power
of the machine is kept at 40%-60%. If the machine is not charged for a long time, the
battery voltage will be lower than the overdischarge protection voltage due to the
self-discharge of the battery, and when the time is too long, fatal damage will be
caused to the battery, so please pay attention to this.
19. It is forbidden to pierce the shell of the machine with nails or other sharp objects, and
it is forbidden to hammer, hit or throw the machine.
20. Do not charge the machine under fire or extremely hot conditions! Do not use or store
the machine near heat sources.

4

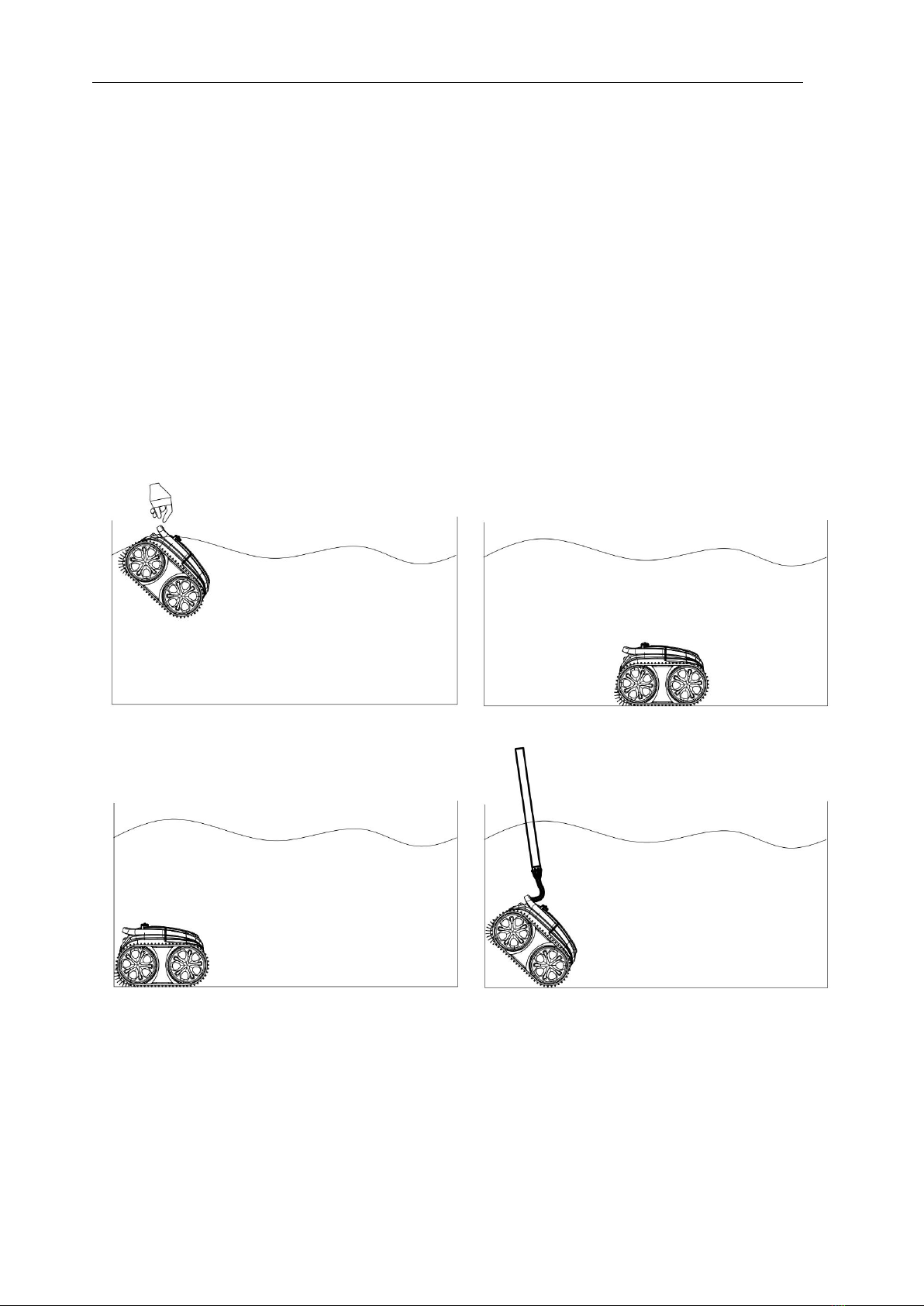

Attention:
1. When putting the cleaner into the swimming pool, the bottom of the cleaner shall face the
pool wall, hold the handle and put the cleaner into the water. At the same time, turn on the
switch, and the cleaner will slowly discharge the gas, and after 20s, it starts to work (The gas in
the cleaner must be completely discharged, otherwise gas will affect the normal work of the
machine). Make the machine naturally sinks to the bottom of the pool.
2. When the cleaner completes the cleaning, it will automatically lean against the pool wall.
And you can fish out the machine with hook.

5
Contents
I. Brief introduction to product .....................................................................................6
II. Safety ........................................................................................................................6
III. Specifications and parameters ................................................................................ 7
IV. Instructions for use ..................................................................................................8
4.1 Description of buttons and indicator lights ..................................................8
4.2 Battery charging method .............................................................................. 9
4.2.2 Function description of charger indicator lights ....................................... 9
4.3 Cleaning of filter box ................................................................................... 9
V. Acquisition of mobile App and connection: ...........................................................11
VI. Installation of top floating blocks (standby) ........................................................ 12
VII. Packing details .....................................................................................................13

6
I. Brief introduction to product
WY200 series robotic pool floor cleaner is a new and efficient robotic pool floor
cleaning equipment. It can automatically clean the swimming pool without discharge of the
pool water. At the same time, through the filtration system, it collects the suspended solids
and sediments in the water.
The main machine body is powered by 25.2V/6.4AH lithium ion battery pack, so it has
high safety.
Before using this product, please read the user manual carefully so that you can
use this machine correctly.
II. Safety
1. Requirements for machine position during charging: See Article 4 of "Important
Tips" on page 1.
2. Please do not use other chargers to charge this machine, please do not use this
charger to charge other equipment!
3. Make sure that the switch is placed in the OFF position before charging the
machine.
4. Do not start up the machine for cleaning when charging!
5. The cleaning machine shall carry out cleaning under 10 °C-35°C environment!
6. Charge the machine before the battery is completely exhausted. When the yellow
light of the machine is on, please charge the machine in time.
7. Do not charge the machine when the battery is full. Overcharging will reduce
the life of the battery.
8. Charge the machine under 5°C-35°C environment. When the battery is
overheated, it shall be cooled before charging.
9. If the battery will not be used for a long time (more than 3 months), it shall be
charged.
10. Make sure the charging port is dry before charging.

7
III. Specifications and parameters
1. Input voltage of lithium battery charger: 100Vac-240Vac
2. Rated frequency: 47-63Hz.
3. Nominal voltage: 25.2 V, nominal capacity: 6.4AH
4. Power of the whole machine: 65W
5. Rated output current of charger: 3A
6. Rated output voltage of charger: 29.4V
7. Battery Runtime: Max 165min
8. Flow rate: max 10.5m³/h
9. Filtration capacity: 180μm
10. Creeping speed: max 11m/min
11. Waterproof rating: IPX8
12. Use temperature (water temperature) range: 10 ℃-35 ℃
13. Net weight: 8.3kg
14. Product dimensions: 385 (length) * 355 (width) * 245 (height)
15. Storage temperature: 5 ℃-35 ℃
16. Charging time: 3-3.5H

8
IV. Instructions for use

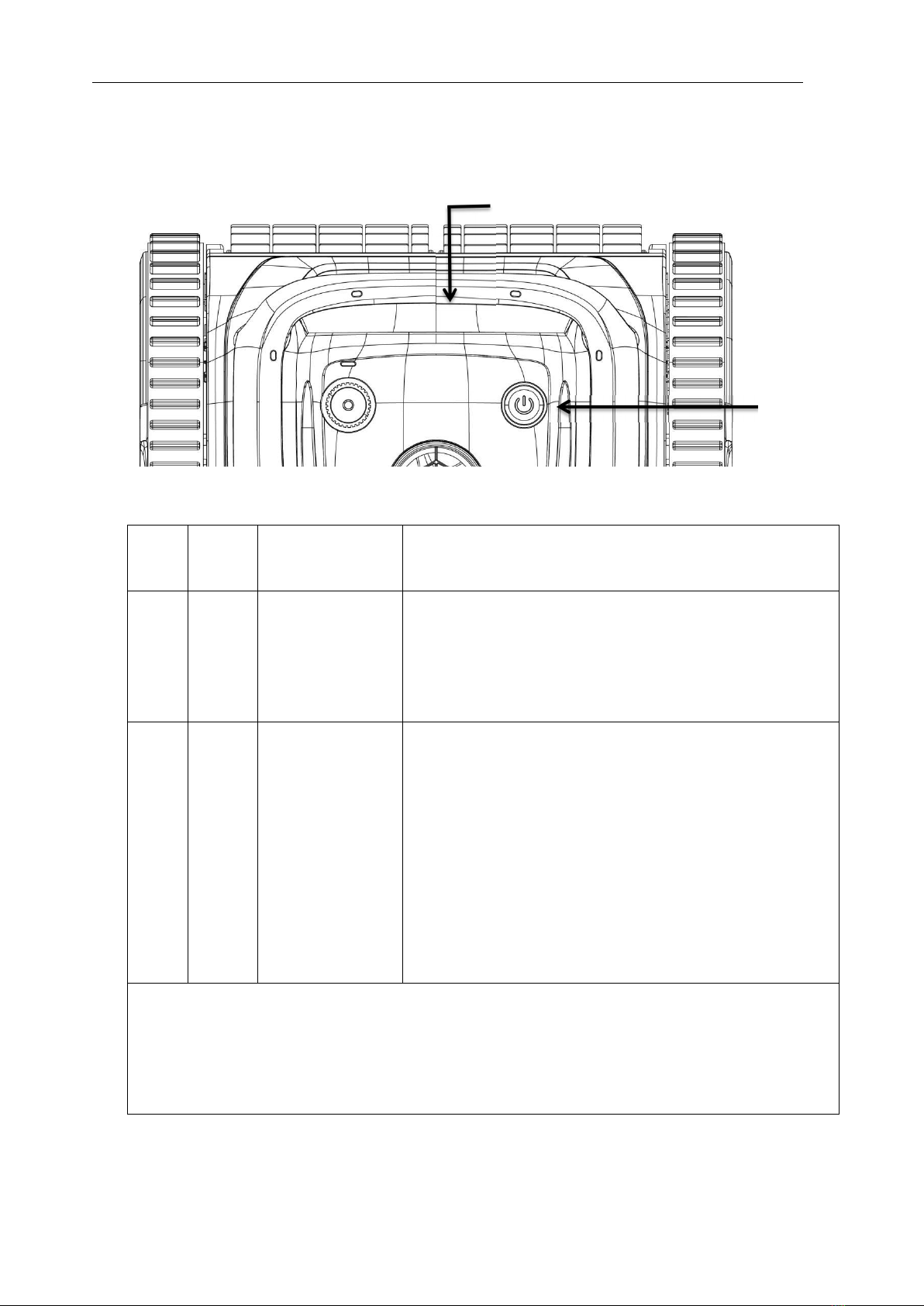

4.1 Description of buttons and indicator lights
No.
Symb
ol
Description
Description of functions
1
ON/OFF button
of the machine
Press the ON/OFF button in the shutdown state, the
blue light goes on, it indicates startup, press the button
again, the red light goes on, it indicates shutdown, and
after shutdown, the red light goes off.
2
Status indicator
light of the
machine
1. Blue light is always on: startup
2. Blue light flashes: normal operation
3. Yellow light flashes: the machine has low power, it
leans against the wall
4. Yellow light is always on: the machine has low
power, it leans against the wall and stops running
5. Red light flashes and always lights up: the machine
has failure
Troubleshooting:
1. When the red light of the machine flashes and is always on, shut down and restart the
machine. If it cannot return to normal running, please contact the after-sales service
personnel.
Status indicator lights
Switch button

9
4.2 Battery charging method
4.2.1 The operation steps of charging
Make sure that the machine is turned off (the indicator lights are completely off). When
charging, please take the machine out from the swimming pool, and place the charger and
the machine indoors or in a splash-resistant facility for charging. Unscrew the waterproof
cap on the machine (ensure that the charging port is dry) and connect the charging port with
the charging connector. When the battery charger lamp, it means that charging is in progress,
when it turns green, it means that charging is completed.
4.2.2 Function description of charger indicator lights
Color and status of
indicator lights
Charging state
Green light is always
on
Waiting for charging, or the battery is not
plugged or the charging is complete
Red light is always
on
Normal charging
4.3 Cleaning of filter box

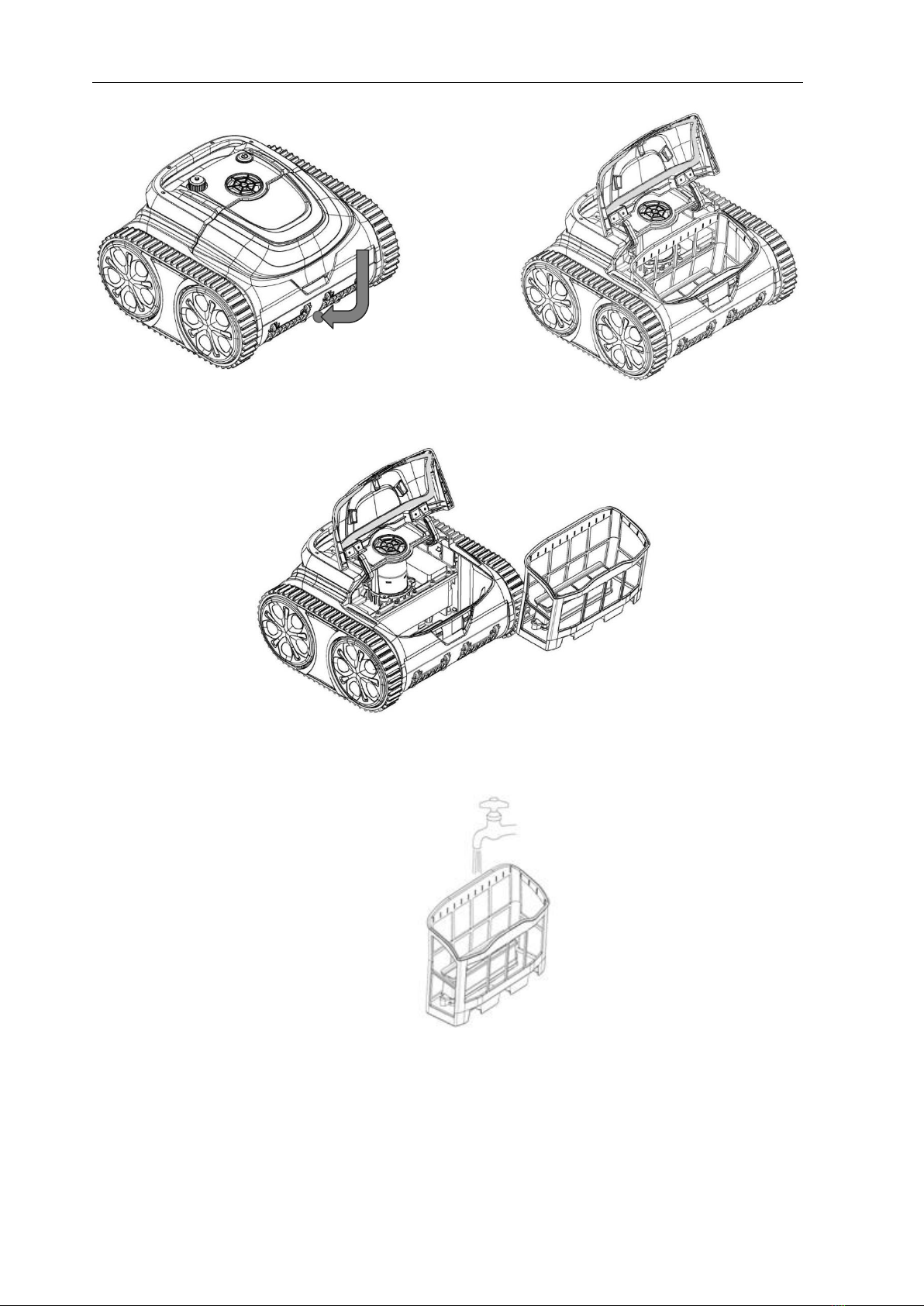

4.3.1 Take out the filter box: Place the cleaner on the shore, open the cover plate by hand
according to the position indicated in the figure (Figure 4-1), and the filter box is shown in the
figure (Figure 4-2).

10
Figure 4-1 Figure 4-2
4.2.2 Take out the filter box from the machine (Figure 4-3).
Figure 4-3
4.2.3 Cleaning of the filter box Rinse the dirt of the filter screen with clear water (Figure 4-4),
Figure 4-4
4.2.4 Installation of the filter box
Reinstall the filter box to the machine. The filter box is aligned with the water inlet and put
into the cleaning machine. Put the cover plate on, make the filter box fit with the cover plate
Figure

11
perfectly.
V. Acquisition of mobile App and connection:
1. Download the App:
1) In case of Android phones, search google play for winnygo, and download it
2) In case of iPhone, searches the app store for winnygo, download it
2. Turn on the machine, the machine light is blue and always on
3. Connect the APP with the machine within 20s the machine starting.
4. After the connection is successful, the APP will give a "Success" prompt
5. After entering the APP interface, the parameters of the current machine will be displayed,
and users can modify the parameters according to their own demands in cleaning
6. After selecting the parameters, click Confirm
7. After restarting, the machine will execute the corresponding cleaning program according to
the preset parameters
Note:
1. When using App, it needs to obtain Bluetooth use permission and location permission of
the mobile phone
2. App is suitable for ios14 and above, and Android 8.0 and above.
3. To obtain weather information in APP, you need to turn on Location service.

12
VI. Installation of top floating blocks (standby)
When it is difficult for the machine climb the wall, it cannot clean the waterline, and it tilts
seriously when climbing the wall, solve the problems according to the figure. If the machine
climbs the wall normally, the following operations are not required. After removing the adhesive,
two top floating blocks are attached to the machine. Carry out installation according to (Figure
6-1).
Attention: 1. Before installation, ensure that there is no water in the bonding position.
2. There is adhesive on the back of the top floating block. When installing the top
floating block to the big cover, the edges of top floating block must be glued properly. After
24 hours, the machine can be put into the pool for work.
Figure 6-1
After the tests on the engineering
prototype are completed, confirm the
final bonding position of the floating
block

13
VII. Packing details
S/N
Name
Specificatio
ns
Quantity
(pieces)
Purpose
Remarks
1
Main machine body
of the cleaner
WY200
1
Put it directly in the
packing box
2
Hook
1
3
User manual,
certificates of
conformity
1
4
Charger
1
5
Floating block
2

14
LIMITED WARRANTY
WYBOTICS ROBOT, owned by WYBOTICS CO., LTD, makes products at the best quality we
can offer. All WYBOT products have been inspected against defects in materials and workmanship
prior to leaving factory. WYBOT is happy to offer warranty for the repair or replacement of pool
products for two (2) years on motor and PCB, and one (1) year on battery pack from the date of
purchase. The provisions of this Limited Warranty only apply to the original purchaser. Please
keep your original sales receipt, as this proof of purchase will be required and must accompany
warranty claims to WYBOT or its designated agents. This Limited Warranty does not apply
without proof of purchase; or should the purchaser modify or repair the product themselves or by
unauthorized people; use non-WYBOT parts or accessories with the product; use the product in
contravention of the manufacturer’s instructions; use improper voltage; abuse the product in any
way; or through accident or negligence. This Limited Warranty will not cover consequential
damages, including claims for normal wear-and-tea or any Act of God outside the control of
WYBOT. Non-manufacturing defects, such as grasses that may grow through the ground cloth
and/or pool liner are examples of which WYBOT cannot hold responsible for.
IN NO EVENT SHALL WYBOT, ITS AUTHORIZED AGENTS, RELATED ENTITIES, OR
EMPLOYEES BE LIABLE TO THE BUYER OR ANY OTHER PARTY FOR DIRECT OR
CONSEQUENTIAL DAMAGES. Some states or countries, or other jurisdictions, do not allow the
exclusion or limitation of incidental or consequential damages, so the above limitation or
exclusion may not apply to you.
This Limited Warranty is not extended to close-outs, factory seconds, or resold products (i.e.,
garage sales, online auctions, or online retailers not purchased directly from WYBOT). Any issue
with items purchased from these types of vendors/sellers will need to be addressed through these
stores.
