WYBOT WY1102 User manual

USER MANUAL
ROBOTIC POOL FLOOR CLEANER
WY1102
READ AND KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE
Thank you for purchasing WYBOT Robotic Pool Cleaner. If you have any question or
issue, please contact us for customer service.

CONTENTS
LIMITED WARRANTY ..................................................................................................1
IMPORTANT SAFETY INSTRUCTIONS...........................................................................2
1. Introduction ...........................................................................................................3
2. Packing List.............................................................................................................3
3. Product Diagram ....................................................................................................3
4. Specifications .........................................................................................................4
5. Operation Instructions ...........................................................................................5
5.1 Assembly before use.....................................................................................5
5.2 To use the robotic cleaner ............................................................................6
5.3 Clean after use..............................................................................................8
5.4 To adjust the running pattern .......................................................................9
6. Buzzer Note.......................................................................................................... 10
7. Trouble Shootings................................................................................................. 10

1
LIMITED WARRANTY
WYBOT, owned by TIANJIN WANGYUAN ENVIRONMENTAL PROTECTION & TECHNOLOGY CO.,
LTD, makes products at the best quality we can offer. All WYBOT products have been inspected
against defects in materials and workmanship prior to leaving factory. WYBOT is happy to offer
warranty for the repair or replacement of pool products for one (1) year, only covering battery, motor
and PCB from the date of purchase. The provisions of this Limited Warranty only apply to the original
purchaser. Please keep your original sales receipt, as this proof of purchase will be required and must
accompany warranty claims to WYBOT or its designated agents. This Limited Warranty does not
apply without proof of purchase; or should the purchaser modify or repair the product themselves
or by unauthorized people; use non-WYBOT parts or accessories with the product; use the product
in contravention of the manufacturer’s instructions; use improper voltage; abuse the product in any
way; or through accident or negligence. This Limited Warranty will not cover consequential damages,
including claims for normal wear-and-tea or any Act of God outside the control of WYBOT. Non-
manufacturing defects, such as grasses that may grow through the ground cloth and/or pool liner
are examples of which WYBOT cannot hold responsible for.
IN NO EVENT SHALL WYBOT, ITS AUTHORIZED AGENTS, RELATED ENTITIES, OR EMPLOYEES BE
LIABLE TO THE BUYER OR ANY OTHER PARTY FOR DIRECT OR CONSEQUENTIAL DAMAGES. Some
states or countries, or other jurisdictions, do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitation or exclusion may not apply to you.
This Limited Warranty is not extended to close-outs, factory seconds, or resold products (i.e.,
garage sales, online auctions, or online retailers not purchased directly from WYBOT). Any issue with
items purchased from these types of vendors/sellers will need to be addressed through these stores.
Scan QR code to watch setup video:

2
IMPORTANT SAFETY INSTRUCTIONS
READ AND FOLLOW ALL INSTRUCTIONS
1. Read the manual carefully, and use the cleaner according to the manual. We are not liable for any
loss or injury caused by improper use.
2. Only use the accessories recommended or sold by the manufacturer.
3. This model only applies to swimming pools with a flat floor.
4. Do not allow children to ride on the cleaner or play with it as a toy.
5. Use the original and authorized charging adapter only.
6. The adapter cord should only be repaired or replaced by a qualified electrician.
7. Do not turn on the cleaner when it is out of water.
8. The charging adapter must be connected to a leakage protected and earthed socket when
charging.
9. Do not operate the cleaner when there are people in the pool.
10. Always clean and wash the filter tray after use.
11. Turn off the cleaner when maintaining, cleaning or when it is not in use.
12. The cleaner should be stored in a cool and ventilated place, away from direct sunshine.
13. While charging, the cleaner should be kept in a cool place, and not be covered with anything to
prevent the damage of internal electrical components caused by overheating.
14. Only certified professionals can disassemble the sealed driving kit of the cleaner.
15. Do not operate the cleaner while pool filter is running.
16. Oil seals for motor contain grease, which may cause water pollution if grease leaks occur.
17. Due to the limitation of battery capacity, the cleaner is only suitable for swimming pools with
size up to 500 ft² (46.4m²), otherwise the cleaning effect will be affected.
18. When the cleaner is stored for a long period of time, it should be charged every three months to
maintain battery life between 40%-60%. Please use the original and authorized charging adapter
only. If the cleaner is not charged for a long time, the battery voltage will be lower than the over-
discharge protection voltage due to the self-discharge of the battery, which may cause fatal damage.
19. Do not use or store the cleaner near any heat source.
20. Do not pierce the shell of the cleaner with nails or other sharp objects. Do not hammer, impact,
or throw the cleaner.
21. Make sure the charging socket is dry before charging.
SAVE THESE INSTRUCTIONS

3
1. Introduction
The environmentally-friendly robotic pool cleaner WY1102 is a new type of rechargeable
automatic cleaner that filters the pool water and gets rid of particles without replacing the pool
water.
2. Packing List
Item
Name
QTY (pc)
Remark
1
Cleaner
1
In carton
2
Charger
1
In carton
3
Flipper
1
In carton
4
Retrieving Hook
1
In carton
5
Screw
2
In plastic bag
6
scraper
2
In plastic bag
7
User Manual
1
In plastic bag

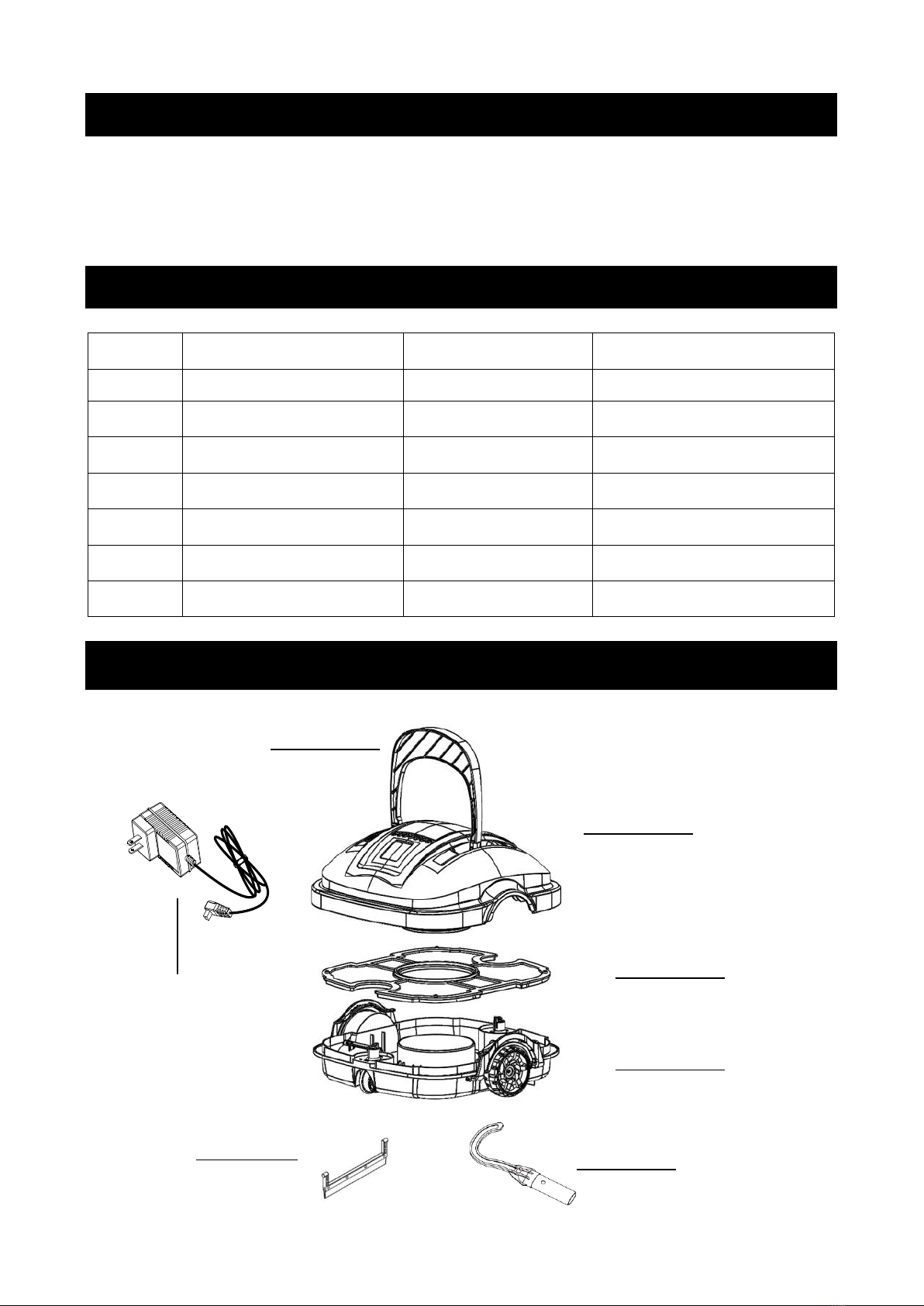

3. Product Diagram
Flipper
Top Cover
Filter Screen
Chassis
Retrieving Hook
Charger
Scraper

4
4. Specifications
Product Name
WYBOT Robotic Pool Cleaner
Model
WY1102
Rated Working Voltage
11.1V
Power
approx. 30W
Working Cycle
max. 60min
Rated Input Voltage of Adapter
100Vac-240Vac
Rated Input Frequency of Adapter
47Hz-63Hz
Rated Output Voltage of Adapter
12.6Vdc
Rated Output Current of Adapter
1A
Battery Capacity
2600mAh
Charging Time
3-4 H
Cleaning Surface
max. 500ft² / 46.4m²
Filter Capability
approx. 32gal/min (121.1L/min)
Filter Density
180μm
Moving Speed
approx. 65ft/min (19.8m/min)
Water Depth
max. 7ft / 2.1m
IP Grade
IPX8
Pool Water Temperature
50°F-95°F / 10°C-35°C
Charging Environment Temperature
41°F-95°F / 5°C-35°C
Storage Temperature
41°F-95°F / 5°C-35°C
Product Weight
7.9 lb / 3.6kg
Product Size
13.4 (L) * 13.8 (W) * 13.0 (H) in /
340 (L) * 350 (W) * 330 (H) mm

5
5. Operation Instructions

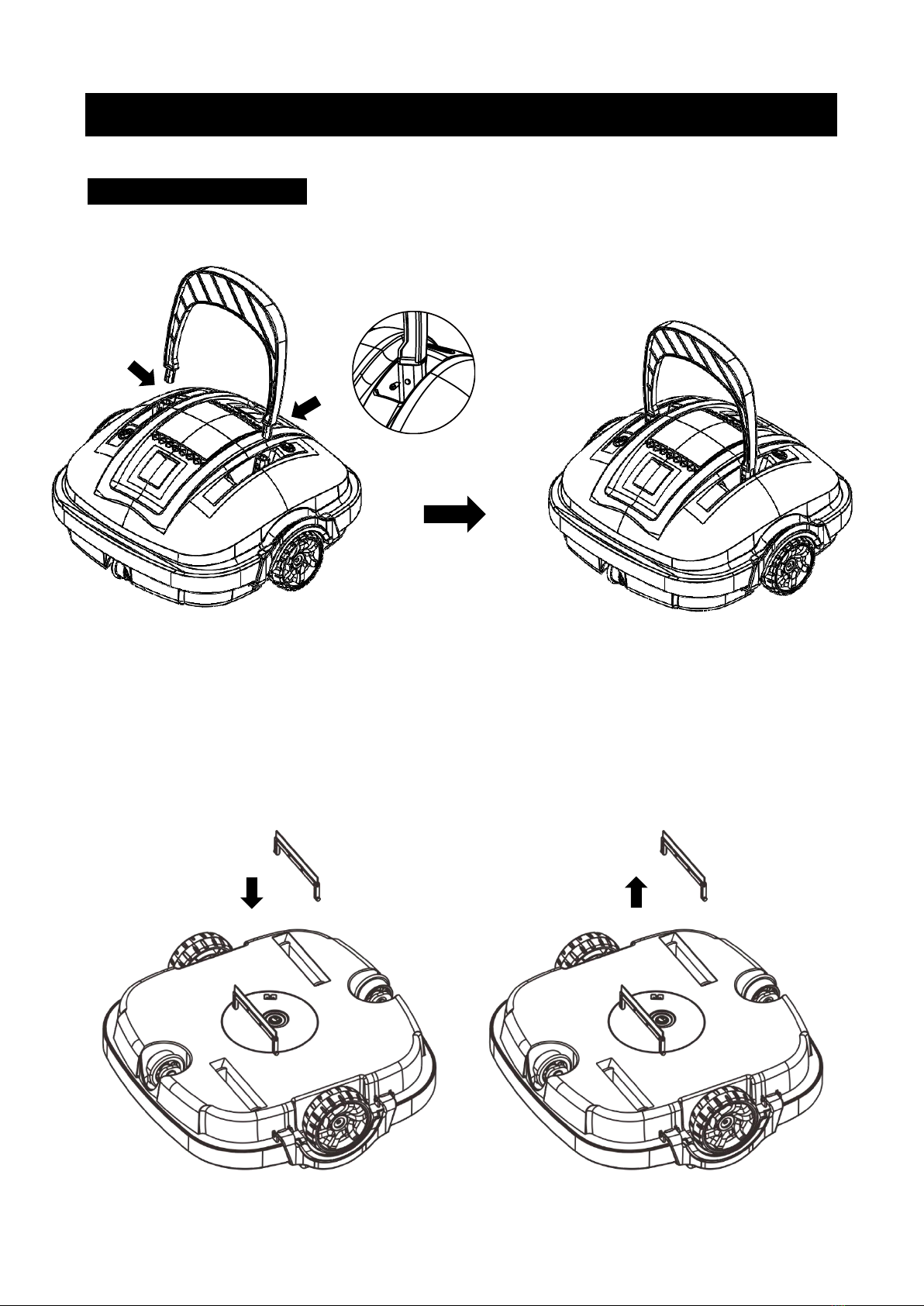

5.1 Assembly before use
1. Attach the flipper and fix it with the screws provided.
2. Install the scrapers to enhance s
Note: The installation direction of 2 screws is opposite.
2. Install the scrapers to enhance suction effect if the pool floor is full of debris or particles. It is not
recommended to install the scrapers if the pool bottom is uneven or full of pits, which avoids the
cleaner from getting stuck by the rough floor.

6
3. Attach the retrieving hook to a standard pool pole (not included).
5.2 To use the robotic cleaner
1. Charge the battery
Fully charge the cleaner before each use. Attach the charging connector to the charging socket at
the bottom of the cleaner. Place the cleaner in its upright position and, then plug the charger into
the main electrical outlet. The indicator lamp on the charger shall turn red when charging. It
should turn green once fully charged.
NOTE: The robotic cleaner must be charged indoor.
NOTE: It is strictly forbidden to face the bottom up to prevent the swing plate from being crushed
when charging.
NOTE: Clean and dry the charging socket before charging.
Charging Socket
Power Button

7
2. Purge out the air
Hold the robotic cleaner with two hands and submerge it into the pool. Rotate the cleaner until
no air bubble is coming out.
3. Turn on the power
While keeping the entire robotic cleaner underwater, switch on the product by pressing the power
button located at the bottom. Water will begin to flow out from the nozzle after 5 seconds.
4. Release the cleaner
Hold the robotic cleaner in its upright position and slowly release the product. The product shall
slowly sink to the pool floor. In case the cleaner is flipped upside down, use the floating handle to
correct its orientation.

8
5. Let it clean
The robotic cleaner shall run around the pool floor and vacuum the debris automatically for max.
60 minutes. It will automatically reverse when it touches the wall. The cleaner will move to the
pool wall automatically and stop running when it runs out of battery.
6. Retrieve the cleaner
To retrieve the robot, grasp the flipper and pull it out of the water and away from the pool. Power
off the robot. Use the retrieving hook if needed.

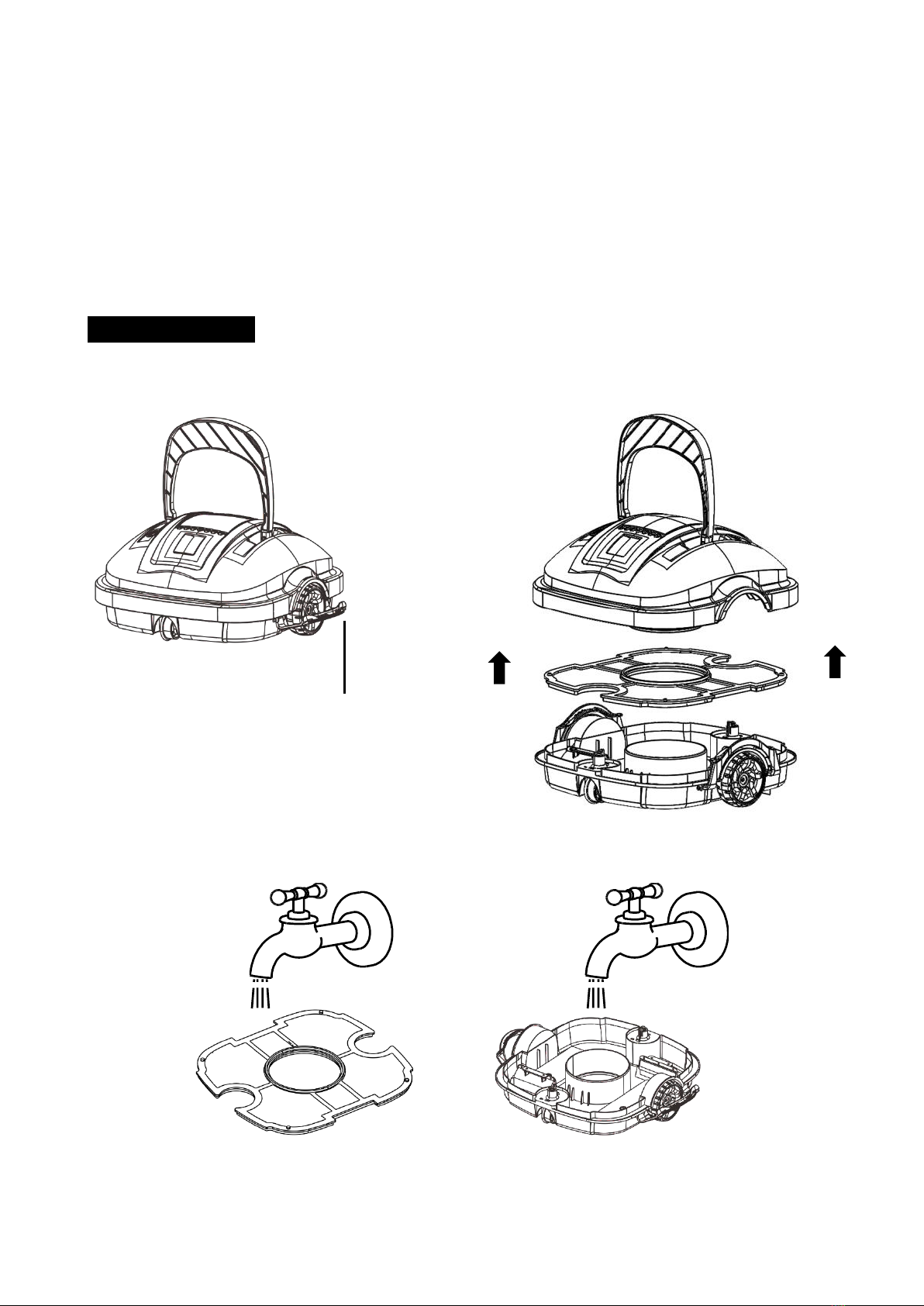

5.3 Clean after use
1. Open all lock buckles, detach the top cover, and remove the filter screen.
2. Rinse off all the dirt and debris with running water.
3. Wipe the robotic cleaner with a clean cloth and let it air dry.
Lock Buckle

9
5.4 To adjust the running pattern
1. This robotic cleaner comes with 2 adjustable wheels. By modifying the combination of these 2
adjustable wheels, it will change the running pattern of the cleaner.
2. To adjust the wheel, open the lock buckles and remove the top cover. Locate the 2 adjustable
wheels. Detach the wheel by pushing the wheel stem catch. Select the correct combination and
insert the wheel until the catch clicks.
3. Combinations:
A – C for most types of pool (factory setting)
B – C Smaller rebounding angle than A – C
C – C Minimum maneuvering (For rectangular or longer pool)
A – B For round pools
Adjustable Wheels
Wheel Stem Catch
Sleeve
Wheel Stem

10
6. Buzzer Note
7. Trouble Shootings
Status
Description
Power on
Beep before not fully immersed in the water; Stop beeping after fully
immersed in the water
Power off
Stop beeping
Issue
Scenario
Possible reason
Solution
The buzzer does not
beep, or the impeller
does not work when
the cleaner is out of
water.
--------
Battery level is low.
Recharge the battery.
--------
Internal fault
Call customer service
The buzzer still beeps,
or the impeller does
not work when the
cleaner is in the water.
Internal fault
Internal fault
Call customer service

11
The cleaner does not
change direction
when hitting the pool
wall.
The flipper does
not flip forward
when approaching
the pool wall
The flipper is stuck and
does not turn freely.
Hose off the dirt
around the hinge of the
flipper. Make sure the
flipper turns freely.
The LED indicator
does not light up
when the charger is
plugged in.
--------
Faulty charger
Call customer service
and request for a
replacement charger.
The cleaner does not
vacuum the entire
pool floor.
The cleaner keeps
bouncing at the
same direction,
some areas are
always missed.
Improper running
pattern setting
Try different running
patterns. Refer to the
“To adjust the running
pattern” section of the
manual.
Irregular pool shape
The pool filter is
on.
Water current inside
the pool affects the
running of the cleaner.
Turn off the pool’s filter
pump when using this
product.
