X-Loupe Conceiver series MPG4 PLUS User manual

Conceiver series
MGP4E
081915
U
In case of any question, please contact your
X-Loupe®distributor, or e-mail：[email protected]
MPG4_PLUS User Guide
Disclaimer
．Thank you for using this product. While every effort has been made to
ensure that the information contained in this guide is accurate and
complete, no liability can be accepted for any errors or omissions.
．We (Lumos Tech.) reserves the right to change the specifications
described herein at anytime without prior notice.
．No part of this guide may be reproduced, transmitted,transcribed, stored
in a retrieval system, or translated into any language in any Lumos
Technology Co., Ltd.
Trademark Acknowledgments
．Panasonic Lumix DMC-FH10 are either registered trademarks or
trademarks of Panasonic in Taiwan and/or other countries.
．X-Loupe®is a registered trademark of Lumos Technology Co., Ltd. You
are not authorized to use such trademark and service marks for any
purpose unless you receive specific written permission from us (Lumos
Tech.) We reserve the trademark or other intellectual property rights.

- 1 -
Precautions .............................................................................................................. 2
About “X-Loupe® MightyGetter (MGP4_PLUS)” ................................................... 4
Components ............................................................................................................. 5
Light Source ............................................................................................................. 7
Product Assembly .................................................................................................... 8
1 Mounting the lens on Module .......................................................................... 8
2 Mounting the Module with Camera .................................................................. 9
3 Steps in positioning and bonding of L-Square Ruler ......................................10
4 Accessories instructions for use .....................................................................12
Attention/Warning for the Battery Charging ..........................................................13
Notice and Preparation for Micro-Photography ....................................................14
1 X-Loupe® Basic Setup before using ...............................................................14
2 Camera Setup before using / while using for Micro-Photography ....................15
Troubleshooting & Storage.....................................................................................18
Unpacking
Before using
Test-Shooting
Upon receiving the product package, please check for every
item, if there is a shortage or merchandise damaged during
shipping, please contact your local distributor ASAP.
Please ensure that you read and understand the safety
precautions. Please refer to product introduction to prevent
product damaged due to mishandling.
Before taking pictures of any important subject, please do the
test-shooting to make sure the X-Loupe® is perfectly normal
without any damage caused by shipping. In case of any problem,
please contact your local distributor immediately
Contents
【Attention】

- 2 -
WARNINGS
Please ensure that you read and understand the safety
precautions before using.
Precautions
To avoid the re, electric shocks, or result in a body severe injury, please obey the
following instructions.
1. Keep X-loupe® and its accessories away from children and infants.Contact a doctor
if any dangerous situation occurs.
2. Do not aim this product at the Sun or blazed light sources.
Doing so may cause malfunction or damage the image sensor of camera (CCD.)
3. Keep X-Loupe® away from water or other liquids. The usage of damped or drowned
X-Loupe® could result in re or electric shock. Immediately turn off the power of
X-Loupe® and remove the battery.
4. Keep X-Loupe® away from the heat source, and avoid its exposure to the direct
ame or heat.
5. Do NOT disassemble, alter, or apply heat to the battery. Avoid any severe impacts
which could damage the protective casing of the battery.
6. In case of any contact to the leaked substances from the battery, immediately ush
the contacted skin, face, or cloth with large amount of water and ask for medical
assistance.
7. To avoid the re, explosion, or result in a body injury, please keep battery terminals
away from metal or magnetic materials.
8. Before you discard a battery, please use the insulation tape to cover battery
terminals to avoid direct contact with other object. Contact with metal or magnetic
materials in waste container may result in re, explosions, or body injury. Please
recycle when possible.
9. DO NOT STARE INTO THE LED LIGHT ! This product equipped high-brightness
LEDs, the visible and invisible radiation can damage your eyes. Never Stare Into
the Light and DO NOT AIM THE LIGHT AT PEOPLE! Keep the product away from
children!

- 3 -
X-Loupe® is protected by the following patents:(up to 2015/08 )
In the interest of continually improving products, Lumos Tech. reserves the right to update
or modify information contained in this manual without prior notice.
Product image of this manual is for reference only and actual product appearance may vary.
CAUTION
After Reading, Keep the User Guide Handy for Future Reference
If potential hazards are not eliminated, it may result in body injury, property/ nancial
loss, and the malfunction of the product. The following instructions are also applied to
the warning of unsafe operation.
1. Avoid strong impacts or shocks of the equipment. Be careful NOT bump or push
strongly on the lens. Do not touch the LED inside the Lens.
2. Do NOT use, place or store the equipment in a place with strong sunlight or high
temperature.
3. Avoid using the equipment under the airtight or airless condition; otherwise, it may
result in short circuit, overheating, explosion, re, burns, or other accidents. High
temperature could deform the sharp of casing.
4. If not using the equipment for a long period of time, please remove the battery from
the equipment and the battery charger, then store them in a safe place. Improper
usage of the battery could make the battery exhausted in a short time.
5. Use the included charger to charge the battery. Do not charge the battery with
other branded chargers; otherwise, product breakdown, overheating, re, electric
shock, or body injuries might occur.
6. Before you move the equipment rapidly from a cold place to a hot place, please
place the equipment inside a sealed plastic bag to allow its gradual adaptation with
the ambient temperature. As well as avoid the water condensation which cause the
mechanical problems. Moving the equipment rapidly from cold to hot temperatures
may cause condensation (water droplet) to form in the inside or on the surface of
the equipment.
1481234
1959827
1998503
2597665
1006570
3120470
3139250
M292708
M374055
M385006
M411588
M411592
M413885
M315354
US 7,327,526B1
US 7,821,569B2
US 8,597,795B2
China
Patent No.
Japan
Patent No.
Taiwan
Patent No.
US
Patent No.

- 4 -
About “X-Loupe® MightyGetter (MGP4_PLUS)”
Thank you for your purchase of X-Loupe® MightyGetter ( MGP4_PLUS) to take
Latent Print /ngerprints.
This trailblazing tool is with built-in Dual LED Ring light in lens, sustained and stable
high-brightness for feature, it provides the xed working distance of shooting which
efciently makes the size of ngerprint taken normalized, the way of ling photos as
required to be archived in the database is easier than before, therefore enhance the
le quality control. Device interface is simple, setup only need a few seconds to be
done, and easy to operate. Besides the <White + Blue> light sources, other custom-
made light source is available.
MGP4_PLUS is now compatible with Canon PowerShot D10 & GLPH 100HS.
This manual was written to help you enjoy using with your MGP4. Read this manual
thoroughly before using, and keep it where all those who use the product will read it.
Store this guide safely so that you can use it in the future.
For more information or downloading this user guide, please visit our website at
http://www.x-loupe com.tw. Please read the copyright declaration prior to the usage
of any part of the content in this booklet.
MGP4 Module
Objective Lens
Structure prole of X-Loupe® MGP4_PLUS《Camera not included》
Digital Still Camera

- 5 -
Components
Interchangeable 30X Object Lens for Latent print / Fingerprint Capture
Front of Module
Pogo pin
(female)
<Without Lens>
LED Illumination Control
On
Off
Mount adapter
On (Red dot) / Off switch

- 6 -
Components
L-Square Ruler sticker
Battery Cassette
With the ruler-side inward.
(see page 10 for function
and operating.)
Back of Module

- 7 -


Light Source
<Tips>
The two illumination positions make the lights are perpendicular to one another.
While the object surface is reective, switch to (Side), do not use the (Core).
Protection Filter
See last page supplement for
mounting and removing.
Slide Switches
shiny surface
shiny surface
Core
Lighting Switch
Side
Side
2. Lighting position:
Core - Parallel lighting from inner
Side - Focus lighting from side
1. Lighting source:
W - White light
F - Functional light

- 8 -
Product Assembly

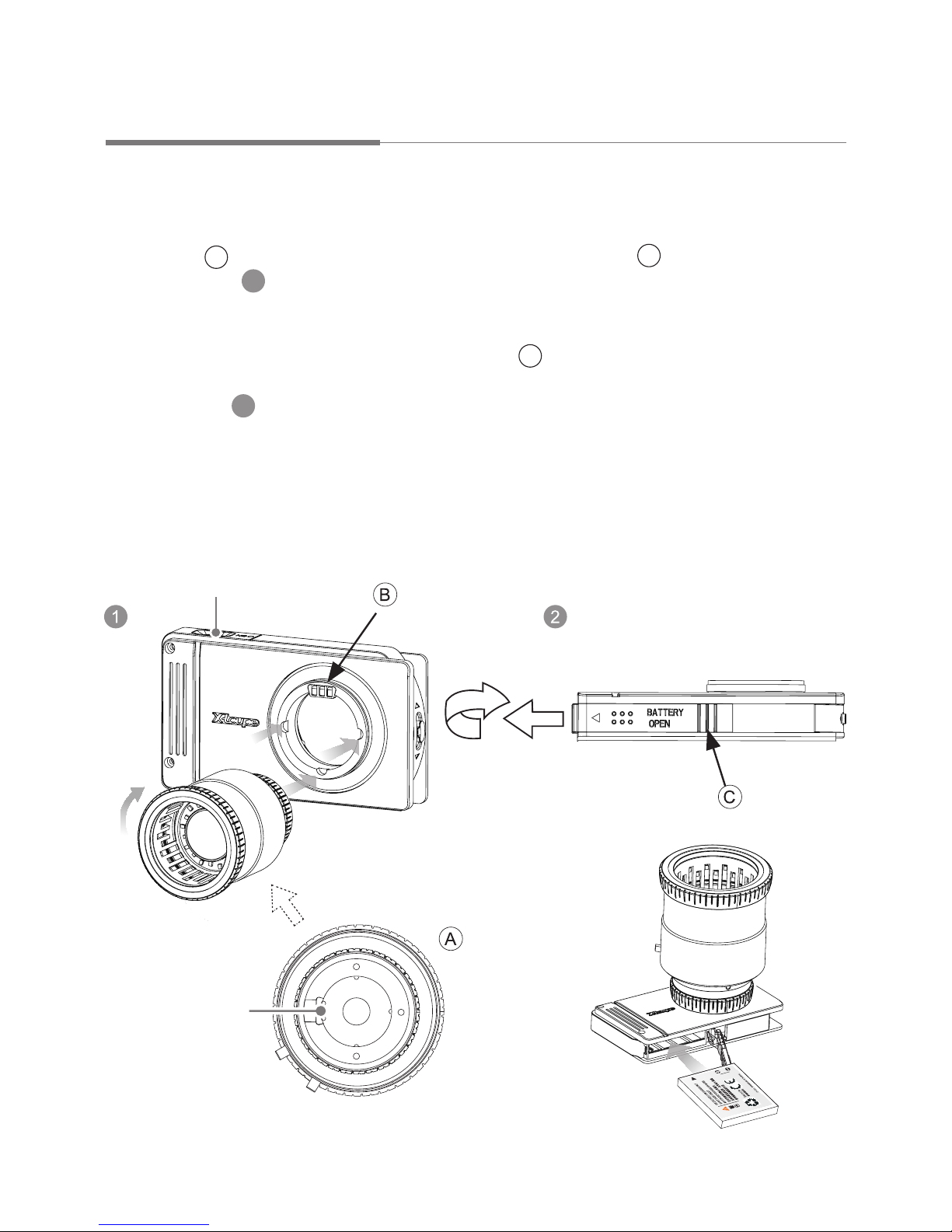

1 Mounting the lens on Module
(1) Get the lens and align the pogo pin -3 pin male header and 3 bolts on the rear
of lens- A , into the pogo pin female header and 3 notchs- B on lens mount of
module (g. 1), then attach the lens to module.
(2) Rotate the lens spiral tooth clockwise until it is tight. But do not over-tighten!
(3) Open the battery cover on the button ( press C and to slide the battery cover in
the direction indicated by the arrow,) and ll in fully-charged Canon NB-4L Li-ion
battery.(g. 2)
Caution: NB-4L Li-ion battery charging 4 hrs for the rst time; 1.5 hours for
general usage.
(4) Turn on X-Loupe® module power. It will light up if handling is correct.
Pogo pin (male)
Power
Battery Insert

- 9 -
2 Mounting the Module with Camera
(1) Align the red positioning mount dot on the mount ring (at the real of module) with
the red dot above the camera mount.(g. 1)
(2) Attach module to camera and turn 30 degrees clockwise, until both bodies are
completely stable union.(g. 2)
(3) Turn on the camera and module power. The image will appear on LCD screen
indicate the handling is correct. If the lens barrel can not extend properly, or
error code shows on camera monitor, please refer to the troubleshooting section
of this manual ; If unable to solve, please immediately contact your distributor for
assistance, do not try to modify X-Loupe® product by yourself in any way.
UNLOCK
LOCK
Turn 30 degrees clockwise
Red Dot
1
2

- 10 -

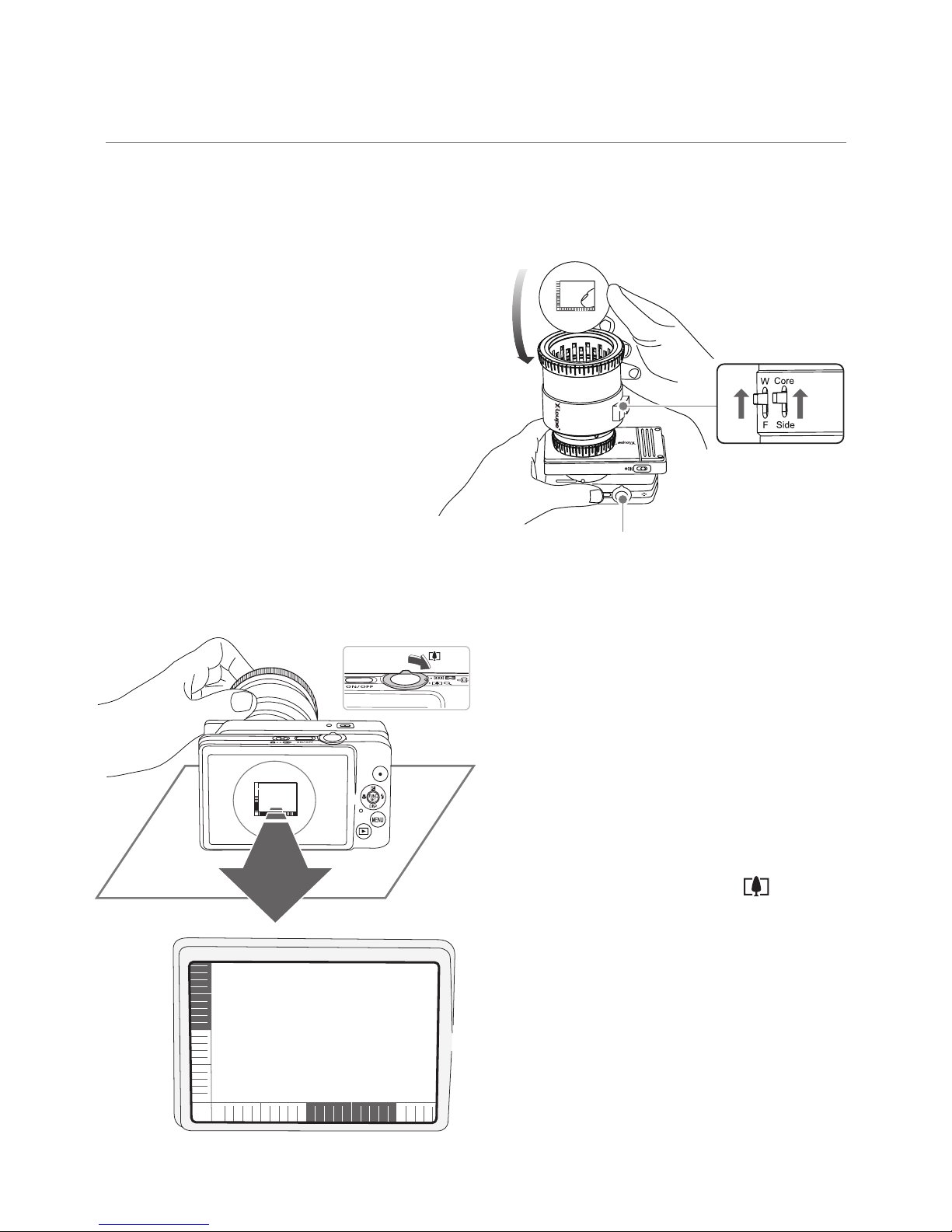

3 Steps in positioning and bonding of L-Square Ruler
(1) Have the lens cleaning cloth
placed on the table (to avoid
a rub of camera LCD screen),
then set the assembled nished
MGP4_PLUS upright on; the
way holding camera as shown in
Figure 1.
(2) Make sure the light setting
switched on W & Core.(Figure 2)
(3) Face the ruler side of the sticker
(still keep the plastic lm), and
then place it tted into the groove
of lens top.
(4) With left hand hold the front of lens
to keep the sticker position while
make the lens barrel with camara
body forward lay down at on the
table as shown in Figure 3.
(5) Turn on both power of Camera and
Module; the image will appear on
LCD screen as shown in Figure 3.
Move the zoom lever (at the upper
right of camera) toward , till
the image is enlarged as shown in
Figure 4.
gure 1
gure 2
Power
gure 3
gure 4

- 11 -

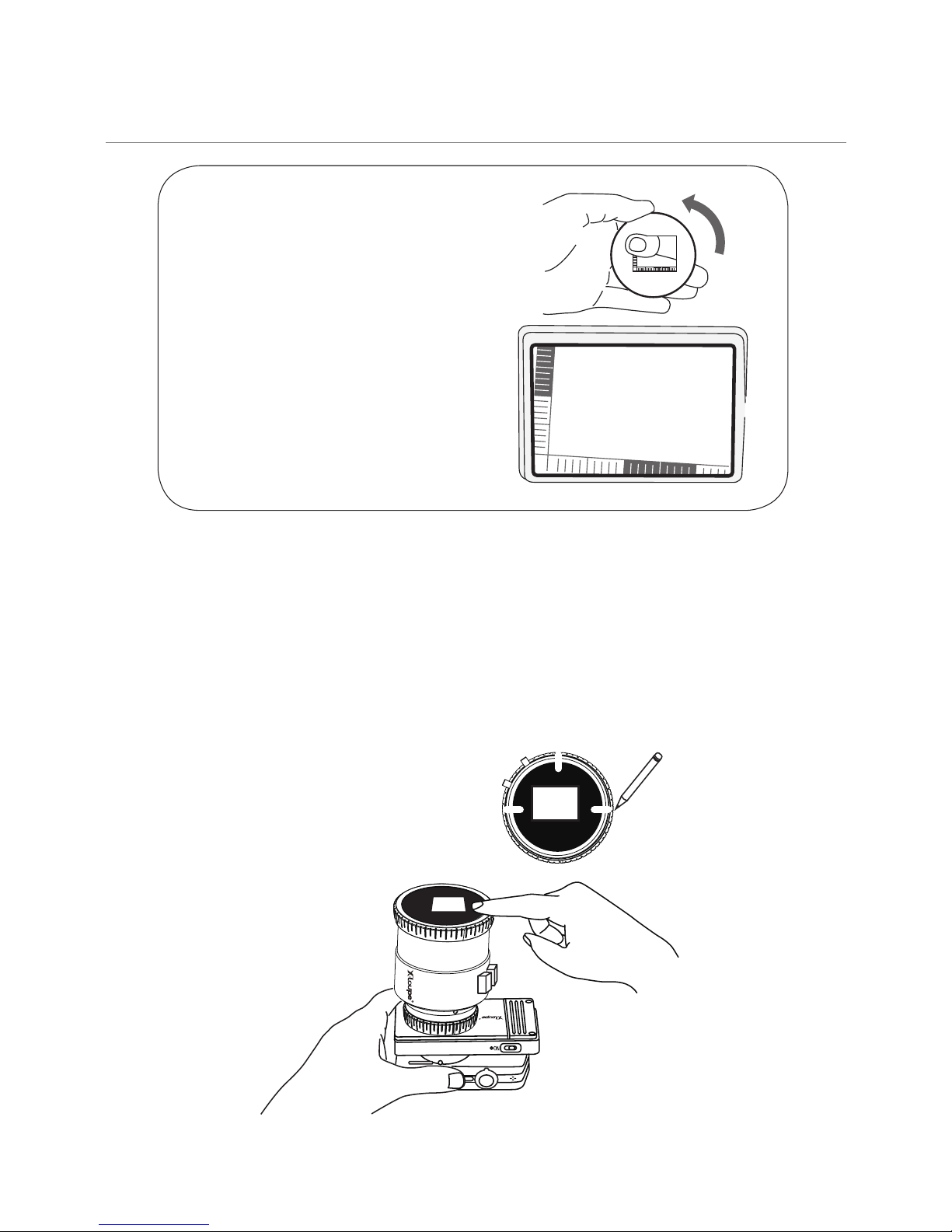

Oblique Image Rectication
If the image of L-Square Ruler
is slanted, with the left point nger
to hook into the Ruler while adjust
the image. (The scale line of ruler
should along the edge parallel to
frame of screen).
(6) Once the L-ruler is close to the screen frame which look like a double- L, with left
hand to x the position while re-erect the lens barrel as shown in Figure 5.
(7) Make pencil marks across the edges of L-ruler and lens so that can be replaced
at this position (shown as gure 5, upper right);
(8) Then tack out L-ruler sticker, remove the plastic cover now, once again align the
marks while replace it into the groove, then gently press the adhesive edge for
xed.
gure 5

- 12 -
4 Accessories instructions for use
The following items, except 2 is recommended to be used, others for your choice
whether to use, does not affect the overall function of MGP4_PLUS.
Items Usage
Lens Cover Strap
For the lens cover stay with the camera to prevent loss.
► Attach the long loop end of strap to camera strap post,
and connect the other end with the hook on lens cover.
Disposable Contact Ring
＊【Notice】Need to be tted around the rim of the lens front
to get the best working distance;
Have a replacement after contact with surface that have
been soiled with blood or other body uids.
L-Square Ruler Sticker To meet the image measuring requirement.(see P10)
Switch Dustproof Cover Prevent dust from getting into the switch.

- 13 -
Attention/Warning for the Battery Charging
Please use the included charger to charge the battery
and go by following steps to charge the battery
(1) Align the ▲marks on the battery and charger, then insert the battery by sliding
it in 1 and down 2 .
(2) Plug the battery charger into the power outlet, or attach the power cord to the
battery charger and plug it into a power outlet then the Charging Signal will
light on.
- Steady Red: charging; Steady Green: charging completed
- Alternate Red and Green: battery malfunction
(3) If the Charging Signal does not light on after plug in the battery charger, please
check the following:
a Battery loose from the battery charger?
b Does the power outlet switch ON?
c Check other factors which might affect the power supply of the outlet.
d Ask the expert for help to check the power outlet, or change another one to
try again.
(4) After full charge, remove the battery from charger. Do not leave a fully charged
battery connected to a charger, since overcharging may shorten its lifetime.
Unplug the charger from the electrical plug when not in use.
(5) DO NOT use the battery charger in humid circumstances.
(6) DO NOT dispose of batteries in a re as they may explode. Batteries may also
explode if damaged. Dispose of batteries according to local regulations.
Please recycle when possible.
DO NOT dispose as household waste.
Follow the direction
to ll in battery

- 14 -
Notice and Preparation for Micro-Photography
1 X-Loupe® Basic Setup before using
After assembling, do the following check procedures before shooting.
(1) Loaded and ready the battery and memory card into the camera.
(2) Select the lens as desired and assemble it onto the X-Loupe® module.
(3) Turn on X-Loupe® and camera. The camera lens should stretch out, and there
will be image circle observed on the LCD monitor (Shown at left ), and it’s normal.
Then you have to adjust the camera to its maximum optical value, (refer to next
page "Camara Setup before using", to start digital zoom), and this will be the
standard optical zoom value for operating X-Loupe®.
(4) Remember to turn OFF the camera ash whenever you are using X-Loupe® .
How to choose a proper magnication lens?
◎Field of View: The larger magnication, the smaller eld of view,
and vice versa.
◎Depth of Focus: The larger magnication, the smaller depth of
focus, and vice versa
◎Moving Speed of the object: The faster object is moving, and
the objective lens with smaller magnication should be used in order
to obtain clear pictures. It is useful while taking picture for a living
thing such as insects and the earthworm.
4.0X

- 15 -
All the settings of camera collocated with the X-Loupe® have been altered to meet
the micro-photography prior to its shipping. Afterward, if there’s any setting changed,
please refer to the following setting list.
(1) Adjust the zoom to its maximum optical value for micro-photography.
(2) Manual Mode is required for micro-photography. Do Not use Macro / Innity Shot
Mode.
(3) Set the Exposure Compensation to zero.
(4) Set the White Balance to Day Light Mode while using the Light Source of X-Loupe®.
(5) Set the Tone of an Image to Vivid.
(6) Set the Metering System to Evaluative.
(7) Turn OFF the ash for micro-photography.
2 Camera Setup before using / while using for Micro-Photography

- 16 -
Settings Supplement

<Tips > Lowering the ISO speed results in crisper images. Raising the ISO speed
results in a faster shutter speed, reducing camera shake, but the images will
appear rough. Therefore, get the setting on ISO 80/100, not over ISO 400 for the
micro-photography.

Press the button , choose , then press to turn the Flash off.
<Notice> The switch position is pressed easily by thumb to turn ON the ash
accidentally.
Notice and Preparation for Micro-Photography
The below setting are based on Panasonic Lumix DMC-FH 10
(1) Press the zoom bottom , until the cursor of
zoom bar move to the current zoom position
(5X optical zoom), the estimate will appear 1 m-∞.
(2) After pressing【MODE】, press the▲/►/▼/◄
to select [Normal Picture], and then press
【MENU/SET】.
(Panasonic Lumix DMC-FH 10 Owner’s Manual,
Page 29)




Exposure Compensation
Zoom Button
Macro
Display
Flash

- 17 -
Tips:
*1. For inspection purpose, the bigger digital zoom you use the less picture quality you
get. However, it helps user to view the subject in an easy way. For micro-photography
purpose, suggest using optical zoom only in order to have better picture quality, and
check the le with larger magnication on the LCD monitor.
*2. If the【AF Frame】is in【Center】, it will not appear magnied if the camera cannot
focus.
(3) Press the 【MENU / SET】,there are menu item【Rec】【Motion Picture】
【Set up】. Have each item follow the function setting below.
Rec Motion Picture
Picture Size 4:3 16M Rec Quality HD
Sensitivity i ISO Continuous AF ON
White Balance Depending on the conditions, but
Do NOT select Auto White Balance
AF Mode 1 Area Set up
i Exposure OFF Focus Icon ‧
i.ZOOM OFF Video Rec Area OFF
Digital Zoom OFF Auto Power Off OFF
Burst OFF Auto Review ON
Color Mode STANDARD

- 18 -
Troubleshooting
(1) About the troubleshooting of camera, please refer to the Camera User Guide.
(2) The built-in LED of lens barrel is not bright
(3) Error code shown on camera display- the lens barrel of camera can not stretch out
or retract
(4) Could not see the full eld of view on the camera monitor
(5) Out of Focus
a. Check the battery power.
b. Disassemble the lens and assemble it back to the module again. Make sure
that the assembling of the lens and module is correct.
c. Check the brightness index of module lighting is not set to zero. If it is, set
back to “entire bright” or the suitable brightness.
a. Turn off the camera power to make the lens retract. Disassemble camera
from the X-Loupe® module, and turn on the power of the camera again.
The lens of the camera should be able to stretch out.
b. If the problem is not solved, contact your local distributor; never try to x the
camera lens by force because it might void the warranty.
a. Adjust the Zoom of camera to Maximum so that the full eld of view can be
obtained.
b. Check the camera lens and make sure that the lens is able to stretch out and
Zoom Function is working.
a. Adjust the direction or posture while shooting.
b. Press the shutter halfway and adjust the distance between the subject and
lens to reach the best focus.
c. X-Loupe® is a contact-based digital microscope; therefore, do not take the
picture out of its short working distance.
Troubleshooting & Storage
