XAG ALR5 User manual

ALR5
Automatic Liquid Reller
Quick Start Guide
Version 1.1EN

Contact Us
If you have any questions about this document, please contact our Technical Support via email:
[email protected]
To Users
Dear user, thank you for choosing XAG products.
For safety reasons and the best experience possible, XAG recommends that you read through the
Quick Start Guide and Disclaimer in this document before attempting to use the ALR5 Automatic
Liquid Refiller.

www.xa.com
4
ALR5 Automatic Liquid Refiller

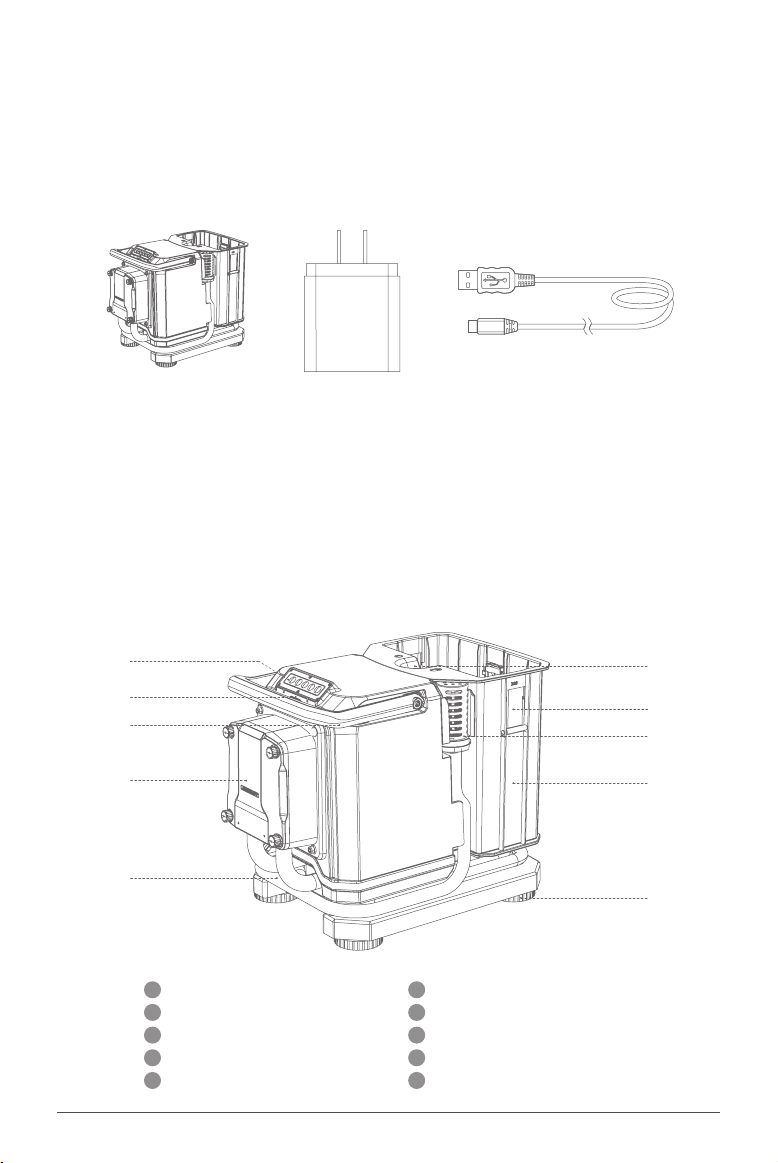

The main structural components of the XALR5 Automatic
Liquid Refiller are as follows:
List of Items
When unpacking the product, please carefully check if it contains all the items listed below. Please
contact your dealer if there are any missing items.
Refiller
×1
1
2
3
4
5
6
7
8
9
10
6
7
8
9
10
Discharge Port
Compatible Buckles (Left, Right and Rear)
Inlet Tube Sieve
Container Slot
Base
1
2
3
4
5
Control Panel / Status Indicator
Inlet Tube
USB Charging Port
Pump
Handle
Power Adapter
× 1
USB To Type-C Cable
× 1

www.xa.com
5
User Instructions
XALR5 XAG 5th Generation Automatic Liquid Refiller is compatible with XAG 2nd generation Liquid
Container, communicated via Bluetooth automatically and accurately refills the required amount of
liquid based on reducing the risks of chemical exposure by avoiding direct contact between
operators and chemicals.

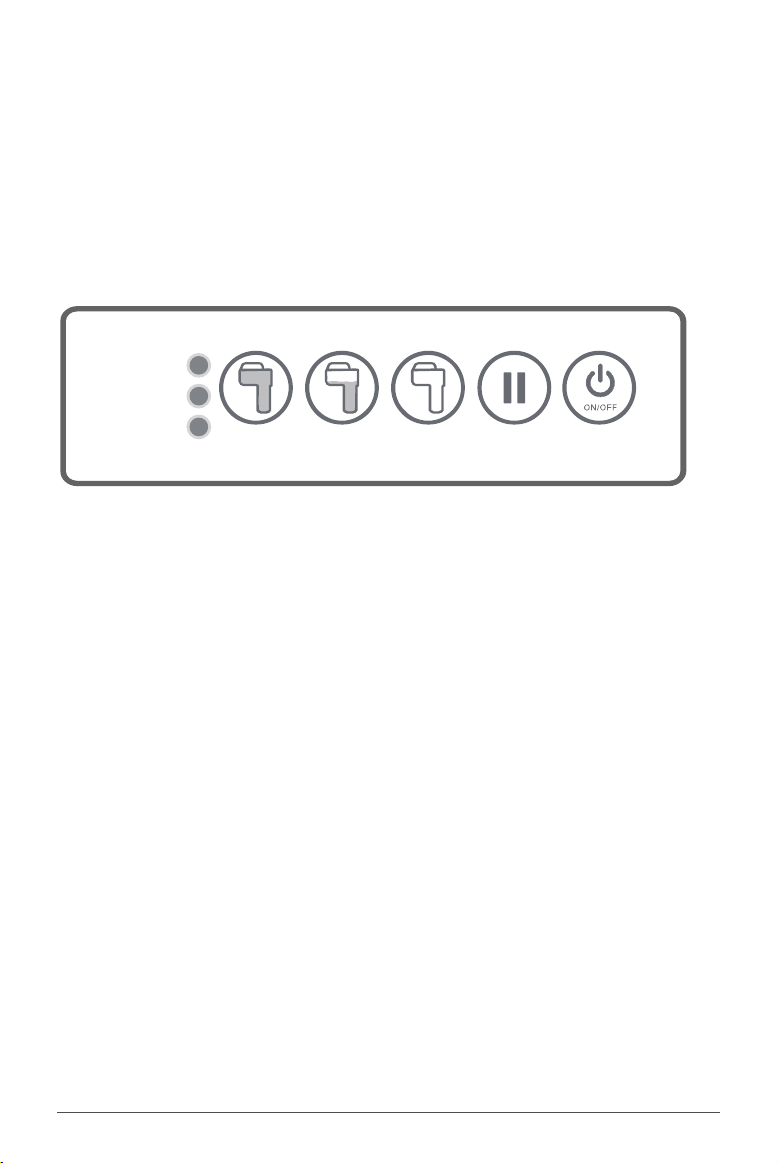

Control Panel Overview:
ON/OFF:
ON: Press once to turn ON
OFF: Long Press for 2 sec to turn OFF
Remarks:
The device will automatically shutdown after 30 secs of the last task, the power indicator will flash for 8
secs and shutdown.
Pause:
PAUSE Button: Pause Refilling
Pumpout:
Pumpout Button: Empty the Container
Remarks:
If the Bluetooth connection between the Refiller and the liquid container is lost, the device will stop after
20sec.
Half:
HALF Button: Fill the container to HALF capacity
Remarks:
ALR5 will stop refilling If the Bluetooth connection between the Refiller and the liquid container is lost.
Full:
FULL Button: Fill the container until FULL capacity
Remarks:
ALR5 will stop refilling If the Bluetooth connection between the Refiller and the liquid container is lost.
Charge
Power Level
Battery
Malfunction Full Pumpout ON/OFFHalf Pause

www.xa.com
6
Filling Instruction:
1 3
2
5
4
*See all-purpose buckles in the structure diagram of the Automatic Liquid Refiller on Page 4.
Charge
Full Half Pumpout Pause ON/OFF
Power
Level
Battery
Malfunction
1. Insert the Inlet tube into prepared container.
2. Turn ON the ALR5 Refiller.
3. Place the Liquid Container into the Container Slot, the device will issue a buzzer “DI” when the container
is inserted correctly.
4. Turn ON the Liquid Container.
5. On the control panel, select the volume to refill.

www.xa.com
7

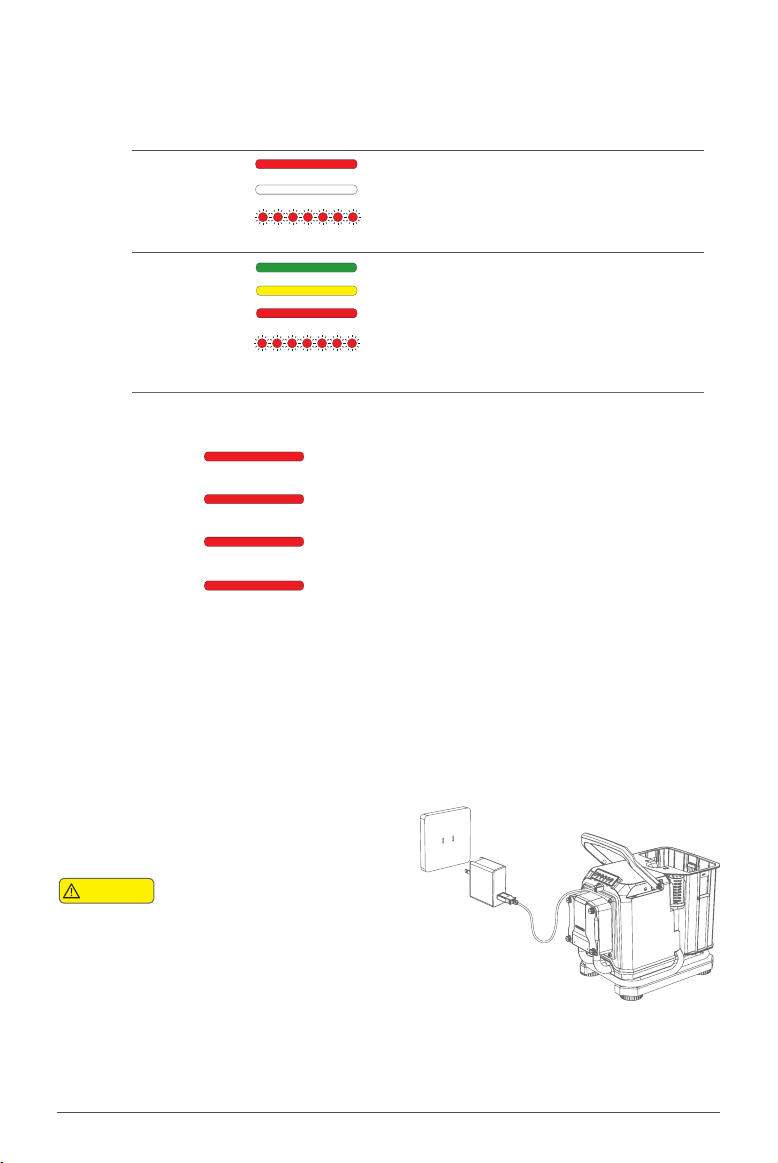

XALR5 Status Indicator / Buzzle Description:
ALR5 consist of 3 Status Indicator, each indicating a status as follows:
Charging
Place the XALR5 near a power outlet, then connect the charging port to the power outlet. The Charging
Status LED will indicate solid RED when charging, and switches off automatically when fully charged.
GREEN LIGHT ON
YELLOW LIGHT ON
RED LIGHT ON
OFF
RED LIGHT
FLASHES
RED LIGHT ON
RED LIGHT FLASH
Status LED Status
Charge
Power Level
Status LED
50%-100%
25% -50%
5%-25%
Power level lower than 5%. Please recharge
in a timely fashion.
Charging
Charging completed
Charging circuit failure or battery over
discharge
Battery Level
Warning
The refiller detects that the container has been accurately
placed.
The refiller fails to detect the placement of the container
when it starts operation and thus an alert is sent.
The refiller fails to connect to the container via Bluetooth
when it starts operation and thus an alert is sent.
The float of the container is stuck or the inlet tube of the
refiller is blocked, and thus an alert is sent.
The refiller detects irregular rotational speed and thus an
alert is sent.
The refiller has completed the operation.
The filler detects low power level. The operation is
suspended. All indicators flash eight times and the buzzer
beeps eight times before refiller turns off automatically.
RED
RED
RED
RED
Status LED Warning/Alarm Status
Once
Twice
Three
times
Four
times
Five
times
Six times
Eight
times
Battery
Malfunction
XALR5 must be charged with the specified charger, user
is responsible for all consequences caused by the use of
non-designated charging equipment.
PRECAUTIONS:
1. When charging, beware of the surrounding environment and avoid charging in high temperature, high
humidity, and near flammable materials.
2. After the charging is completed, reseal the charging port with the rubber plug to avoid short circuit or
damage caused by foreign objects.
When charging, the Charging indicator is solid RED.
Full Charge: 6 Hours
Operation Time: 4 Hours

www.xa.com
8
Upgrading Refiller
Please upgrade the refiller at the firmware center when connected via Bluetooth. The unified
Bluetooth name of the refiller is XALR5.
How to operate:
Step 1: Visit the Firmware Center in the app;
Step 2: Enter the refiller upgrade page and click the XALR5 icon;
Step 3: Select the Bluetooth name XALR5;
Step 4: Click Upgrade. It takes around 2 minutes to complete the upgrade;
Firmware
Center
Field Mapping
Frequency
Scanner
Gallery
Settings plant protection
operation
Recorder
Container
Toolkit
System
Settings
Factory
Testing
Select the product to
be upgraded
XALR5
Searching for Refillers
Next Step
Upgrade Upgrade
XALR5 XALR5
Connected
Module Current
Revision
Latest
Version
XALR5 Module
Module
XALR5 Module
a.m.
Flight
Log
Mapping
Operation

www.xa.com
9

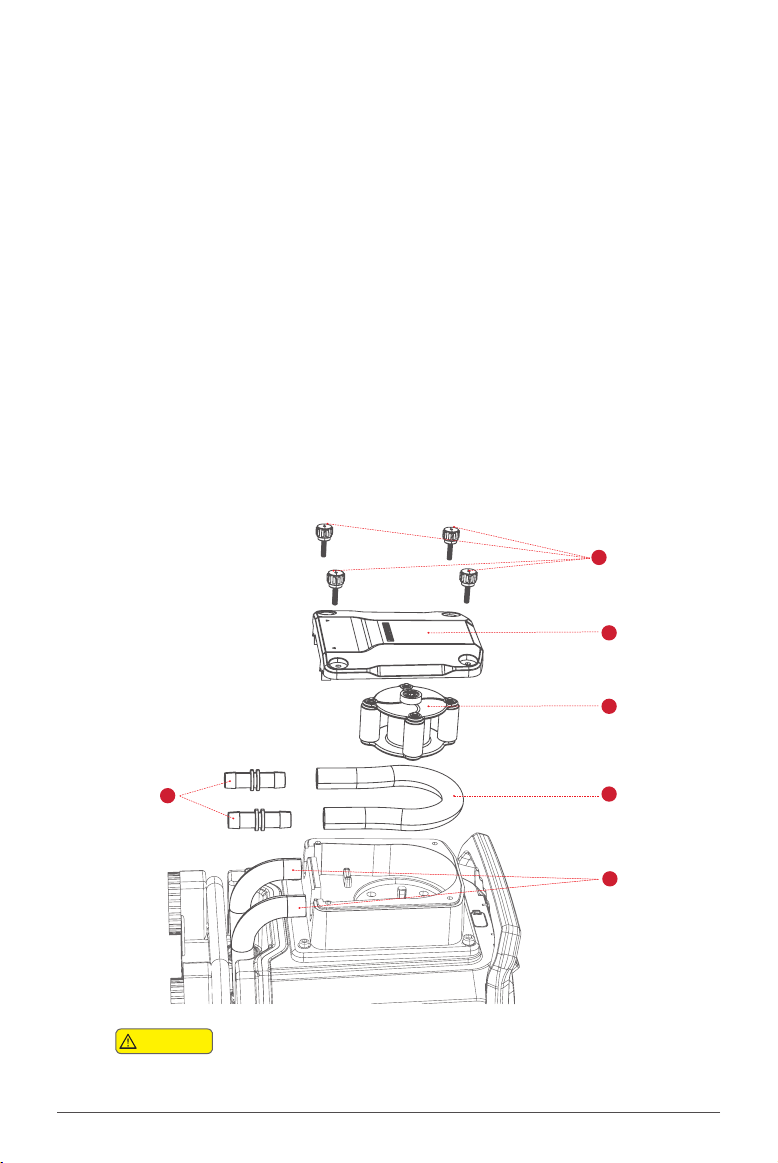

XALR5 Liquid Tube Replacement:
1
2
3
4
5
6
·Make sure to apply grease and avoid foreign matters.
·Make sure the parts are in place and there is no obvious gap in between.
1. Inlet/Outlet Tube
2. Screw
3. Peristaltic Pump Cover
4. Synchroniser
5. Pump Tube
6. Pagoda-shaped Connector
Disassemble
Warning
1.Drain the liquid in the tubes and unplug the inlet and outlet tubes of the peristaltic
pump.
2. Remove the screws that secure the peristaltic pump cover.
3. Remove the peristaltic pump cover, synchronizer, damaged pump tube, and pagoda-
shaped connectors, and separate the connectors from the damaged pump tube.
Assemble
1.Connect the pagoda-shaped connectors to the pump tube. Apply grease to the inner
wall of the pump head and the rotor of the synchronizer synchronizer.
2. Bend the silicone tube around the synchronizer and press it into the pump head.
Press the silicone tube down to the center of the rotor.
3. Install the pagoda-shaped connectors, and put the peristaltic pump cover back in
place and tighten the screws.

www.xa.com
10
Troubleshooting Guide:
Built-in Battery
Type: 18650 lithium battery
Voltage: 24 V
Capacity: 112wh
Charger
Input: AC220V
Output: DC5-12v
Power: 18w
Technical Specifications
Automatic Liquid Refiller
Model: ALR5
Dimensions: 405*238*315mm
Weight: 5 kg
Protection grade: IP65
Operating temperature: 0 - 80 °
Storage temperature: 5 - 60 °
Filling speed: 5L/min
Rated power: 36w
Continuous operating hours: <=4 h
Compatibility: 2019 Automatic Liquid
Container (10/16L)
1. The buzzer will beep once if the container is properly placed. Otherwise, it indicates the container
magnet is broken or the container detection circuit on the motherboard of the refiller is faulty.
2. If the refiller is turned on when the container is not placed, the buzzer will beep twice and the fault
indicator will turn red.
3. If the refiller is turned on when it is not connected to the container via Bluetooth, the buzzer will beep
three times and the fault indicator will turn red.
4. If the float of the container is stuck or the flow rate of the refiller is too low, the buzzer will beep four
times, and the fault indicator will turn red.
5. If the rotational speed of the refiller is irregular, the buzzer will beep five times, and the fault
indicator will turn red.
6. When the liquid filling is completed, the buzzer will beep six times.
7. 30 seconds after the refiller stops working, all indicators will flash eight times and the buzzer will beep
eight times before the refiller is automatically turned off.
8. When the power level is too low, the operation is suspended. All indicators flash eight times and the
buzzer beeps eight times before refiller turns off automatically. Now, the refiller needs to be
charged.

www.xa.com
11
Disclaimer
Warning
Users are required to read the complete “Product Manual” and be familiar with the product
operations before using the product. Otherwise, it may cause serious injury to yourself or others, or cause
product damage and property loss. Strong safety awareness is required to operate this product. Do not use
the parts that are not provided or suggested by XAG. Please strictly follow the instructions of XAG to install
and use the product.
Visit our website (www.xa.com/en) for more information
P-Series UAV Systems include supporting modules such as Airframe, Remote Controller, Battery, Operation Box, Liquid
Refiller, Charger, RTK Rover, RTK Base Station, etc. Users may also check the "User Manuals" of the modules for a better
use experience of the system.
7. In any case, the purchaser or user shall comply with relevant laws and regulations of the country and
region where the product is used. XAG does not assume any liability arising from violation of relevant
laws and regulations by the purchaser or user.
8. As laws in some countries may prohibit exemptions from liability clauses, your rights in different
countries may vary. This does not mean that the contents of this Disclaimer are necessarily invalid.
9. To the extent permitted by law, XAG has the final right to interpret and modify the above terms. XAG
has the right to update, modify, or terminate these terms through its official website, the Manual/
Operation Manual”, online APP and other means without prior notice.
1. Please read this document carefully before using this product. This Disclaimer has an important
impact on the safe use of the product and your legitimate rights and interests. The use of the
product shall be deemed as you have known, understood, acknowledged, and accepted all terms and
contents of this document.
2. This product is not a toy, and is not suitable for people under the age of 18. Please keep this
product away from the reach of children, and be very careful when operating in the presence of
children.
3. This product must be charged with the charging devices provided by XAG. For product malfunction or
damage caused by the use of other devices for charging, XAG does not bear any corresponding legal
responsibility.
4. Please install and use this product as guided by the “Product Manual/Operation Manual”. Do not
modify or disassemble the product without authorization. All losses caused by the user’s
modification or disassembly of this product shall be borne by the user, while XAG does not assume any
corresponding legal responsibility.
5. To the maximum extent permitted by law, XAG shall not be liable for all losses caused by users'
failure to use the product in accordance with this document and the “Product Manual/Operation
Manual”.
6. To the maximum extent permitted by law, XAG’s liability or amount under any circumstances to you for
all damages, losses, and litigation arising therefrom will not exceed the amount paid to XAG by you for
the purchase of the product.
