Xantech XT-HDMI-MX44-4K18G User manual
XT-HDMI-MX44-4K18G USER MANUAL
10019351 REV-A0
®
© 2018 XANTECH®is a registered trademark of Nortek Security & Control.
User Manual
XT-HDMI-MX44-4K18G
Our XT-HDMI-MX44-4K18G 4K HDMI matrix features HDMI 2.0 chipsets with HDCP 2.2 support, allowing distribution of four HDMI sources to four
displays. The unit transmits all HDMI resolutions up to and including 4K 60Hz 4:4:4. The 4-Way matrix also includes advanced features such as
RS-232 for control and configuration of the matrix, bi-directional IR routing, audio breakout and EDID management.
Introduction
Key Features
• Features 4x HDMI inputs which can be independently routed to 4x HDMI outputs
• Supports 4K UHD video (up to 4K @60Hz 4:4:4)
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio Transmission
• Bi-directional IR from all input and output locations
• HDMI audio breakout via analog L/R audio and coaxial digital outputs concurrently
• Advanced EDID management
• HDCP 2.2
XT-HDMI-MX44-4K18G USER MANUAL
www.xantech.com
®

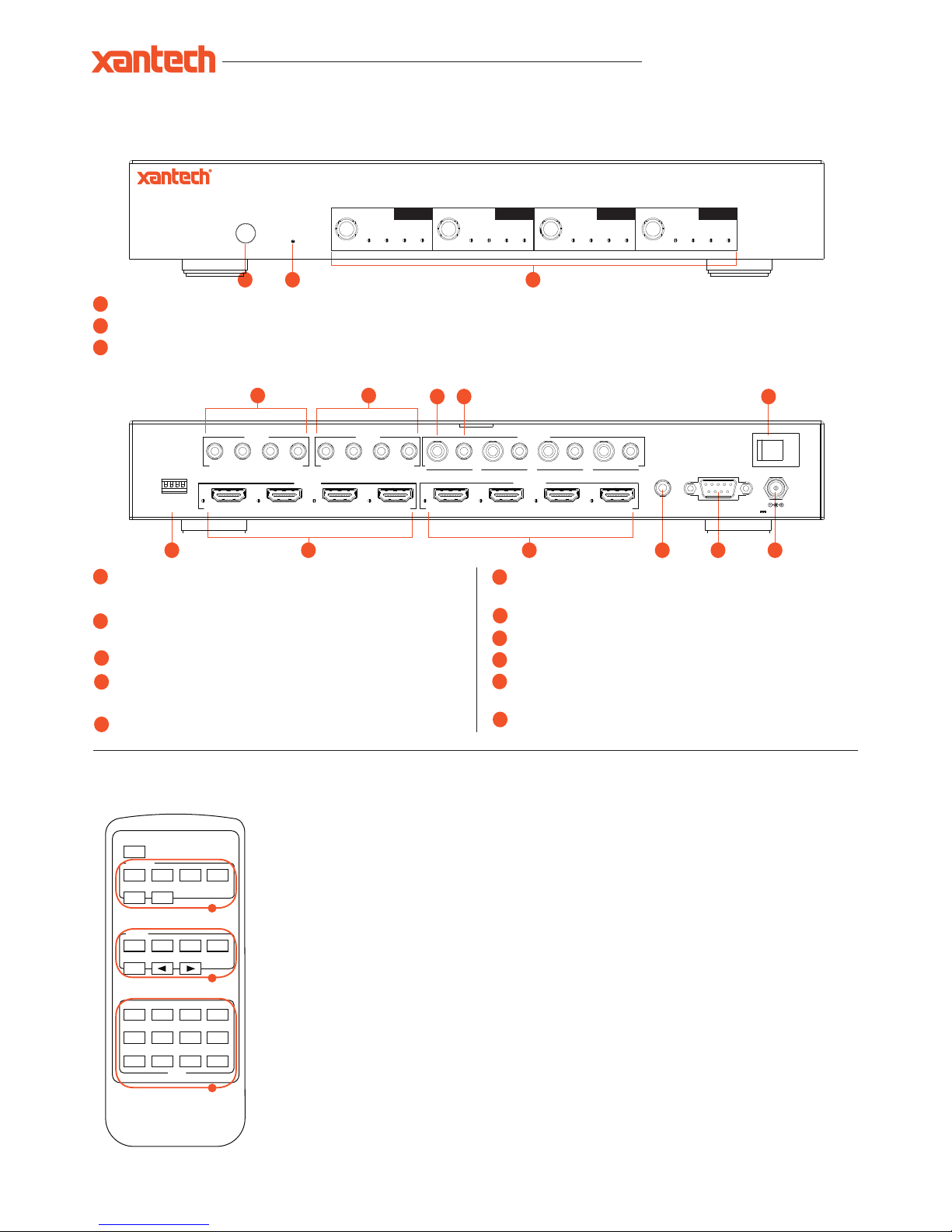

Panel Description
Front Panel
IR receiver window for matrix control
Power LED indicator
HDMI output selection buttons 1-4. Press to scroll through source inputs per HDMI output
1
2
3
12
Rear Panel
IR input - 3.5mm stereo jack provides zone specific routed IR
receiver input
IR output - 3.5mm mono jack provides routed IR emitter
output for discrete control of sources
Coaxial digital audio output - RCA (SPDIF)
Analog L/R audio output - 3.5mm stereo audio jack,
Supports 2 channel PCM only
Power on/off switch
EDID DIP switch - Used to manage the video and audio
resolution output by the connected source device.
HDMI inputs - connect to HDMI source devices
HDMI outputs - connect to HDMI display devices
IR input for matrix control
RS-232 Serial port - For control of switcher by third party control
devices
Power port - Use included 12V/2A DC power adaptor
4
7
9
14139
510
10 12
8
11
3
5
Power
IR
Output 1 Output 2 Output 3 Output 4
1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4
XT-HDMI-MX44-4K18G
HDMI 4K 18Gbps 4x4 Matrix
Input
12V 2A
On/Off
3 2 1
1
0
0
Coaxial Coaxial Coaxial CoaxialL/R L/R L/R L/R
EDID
IR Ext. RS-232
HDMI 1 HDMI 2 HDMI 3 HDMI 4HDMI 1 HDMI 2 HDMI 3 HDMI 4
Output
1
IR In IR Out Audio Out
2 3 4 1 2 3 4
1 2 3 4
4
11
6 7
6
8
12
13
14
Power
IR
Output 1 Output 2 Output 3 Output 4
1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4
XT-HDMI-MX44-4K18G
HDMI 4K 18Gbps 4x4 Matrix
Input
12V 2A
On/Off
3 2 1
1
0
0
Coaxial Coaxial Coaxial CoaxialL/R L/R L/R L/R
EDID
IR Ext. RS-232
HDMI 1 HDMI 2 HDMI 3 HDMI 4HDMI 1 HDMI 2 HDMI 3 HDMI 4
Output
1
IR In IR Out Audio Out
2 3 4 1 2 3 4
1 2 3 4
Remote Control Description
OUTPUT AND INPUT SELECTION
A Selects the zone OUTPUT (1 - 4) you wish to
change the source on
B Selects the source INPUT (1 - 4) you wish to
change on the selected zone
EXAMPLE: To switch source 2 to zone 4 you would
press Ouput 4 (A) followed by pressing Input 2 (B).
ALL button: The all button selects all the inputs or
outputs in its corresponding box. Example: (The “All”
button in the Output box selects all the zones so all
zones will change to what source input is selected next)
PTP: This button will align all zone outputs with the like
numbered source inputs. Example: Input 1 to output 1,
input 2 to output 2, etc
NOTE: BUTTON PRESS SEQUENCE MUST BE
FINISHED IN 5 SECONDS, OTHERWISE THE
OPERATION IS DISCARDED
EDID SET UP
The matrix provides a comprehensive range of EDID
settings. Below are three examples of how to deploy the
desired EDID setting when using the supplied remote.
A. Fix EDID to an Input or ALL inputs: Press the
desired video resolution button (1080I / 1080P / 3D
/ 4K), then select the desired audio format (2.0CH
/ 5.1CH / 7.1CH), then select the source input you
want this EDID information allocated to by pressing
the INPUT 1 – 4 or the ALL button
B. Copy EDID of Output-X to an Input or ALL: Press
the COPY button then select the OUTPUT you wish
to copy the EDID information from, then select
the source input you want to copy this EDID to by
selecting the INPUT 1-4 or the ALL button.
C. User defined EDID to an Input or ALL inputs:
Press USER1 / USER2 button then select the
source you wish to assign this EDID to by selecting
INPUT 1-4 or the ALL button
POWER
OUTPUT
INPUT
1 2 3 4
1 2 3 4
1080I
2.0CH
USER 1 USER 2 FN1 FN2
EDID
5.1CH 7.1CH COPY
1080P 3D 4K
ALL
PTPALL
B
A
C
XT-HDMI-MX44-4K18G USER MANUAL
10019351 REV-A0
®
© 2018 XANTECH®is a registered trademark of Nortek Security & Control.
5V 1A
Input 3Input 2Input 1 Input 4 Output Audio Out
Coaxial
RS-232
L/R IR Ext.
EDID
3 2 1 0
0
1
XT-SW41-4K18G
HDMI 4K 18Gbps 4x1 Switch
Output Select Input 1 Input 2 Input 3 Input 4 IR
EDID (Extended Display Identification Data) is a data structure that is used between a display and a source. This data is used by the source to find
out what audio and video resolutions are supported by the display, from this information the source will discover what the best audio and video
resolutions need to be outputted.
While the objective of EDID is to make connecting a digital display to a source a simple plug and play procedure, issues do arise when multiple
displays or video matrix switching is introduced because of the increased number of variables.
By pre-determining the video resolution and audio format of the sources and display device you can reduce the time needed for EDID hand shaking
thus making switching quicker and more reliable.
Configuration of EDID settings can be achieved using the product dip-switches on the XT-MX44-4K18G. EDID dip-switch settings are shown below.
Note: You must power cycle the product after making EDID changes. For some sources it may be necessary to power cycle the source after EDID
changes have been made for the source to update its video & audio output settings.
Adjusting The EDID Settings
[DIP]=0000: HDMI 1080p@60Hz, Audio 2ch PCM
[DIP]=0001: HDMI 1080p@60Hz, Audio 5.1ch PCM/DTS/DOLBY
[DIP]=0010: HDMI 1080p@60Hz, Audio 7.1ch PCM/DTS/DOLBY/HD
[DIP ]= 0011: HDMI 1080i@60Hz, Audio 2ch PCM
[DIP]=0100: HDMI 1080i@60Hz, Audio 5.1ch PCM/DTS/DOLBY
[DIP]=0101: HDMI 1080i@60Hz, Audio 7.1ch PCM/DTS/DOLBY/HD
[ DIP ] = 0110 : HDMI 4K@60Hz 4:2:0+4K@30Hz 4:4:4, Audio 2ch PCM
[DIP ]= 0111: HDMI 4K@60Hz 4:2:0+4K@30Hz 4:4:4, Audio 5.1ch PCM/DTS/DOLBY
[DIP]=1000: HDMI 4K@60Hz 4:2:0+4K@30Hz 4:4:4, Audio 7.1ch PCM/DTS/DOLBY/HD
[DIP]=1001: HDMI 4K@60Hz 4:4:4, Audio 2ch PCM
[DIP]=1010: HDMI 4K@60Hz 4:4:4, Audio 5.1ch PCM/DTS/DOLBY
[DIP] =1011: HDMI 4K@60Hz 4:4:4, Audio 7.1ch PCM/DTS/DOLBY/HD
[ DIP ] =1100 : DVI 1280x1024@60Hz, Audio None
[DIP] =1101: DVI 1920x1080@60Hz, Audio None
[ DIP ] =1110 : DVI 1920x1200@60Hz, Audio None
[DIP] =1111: Software Control EDID

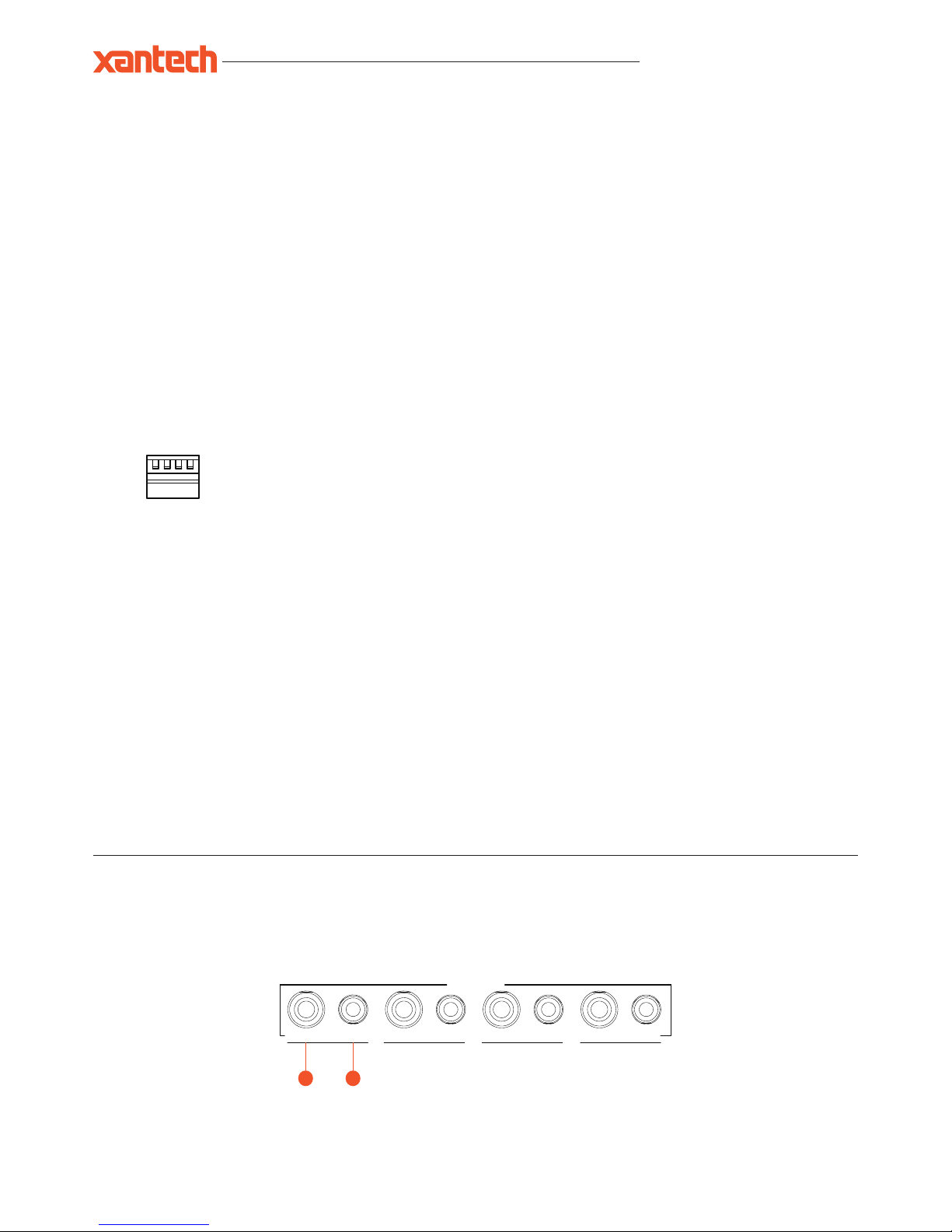

EDID Dip-switches
Dip-switch position ‘0’ = Off
Dip-switch position ‘1’ = On
Audio Breakout
The matrix includes audio breakout from the selected HDMI input to associated analogue L/R audio and coaxial digital outputs.
Extracted audio will be concurrent with the corresponding HDMI video output.
1. Coaxial digital output
2. Analogue fixed line level output 3.5mm stereo jack. Note:
supports 2 channel PCM only
Power
IR
Output 1 Output 2 Output 3 Output 4
1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4
XT-HDMI-MX44-4K18G
HDMI 4K 18Gbps 4x4 Matrix
Input
12V 2A
On/Off
3 2 1
1
0
0
Coaxial Coaxial Coaxial CoaxialL/R L/R L/R L/R
EDID
IR Ext. RS-232
HDMI 1 HDMI 2 HDMI 3 HDMI 4HDMI 1 HDMI 2 HDMI 3 HDMI 4
Output
1
IR In IR Out
Audio Out
2 3 4 1 2 3 4
1 2 3 4
12
XT-HDMI-MX44-4K18G USER MANUAL
www.xantech.com
®

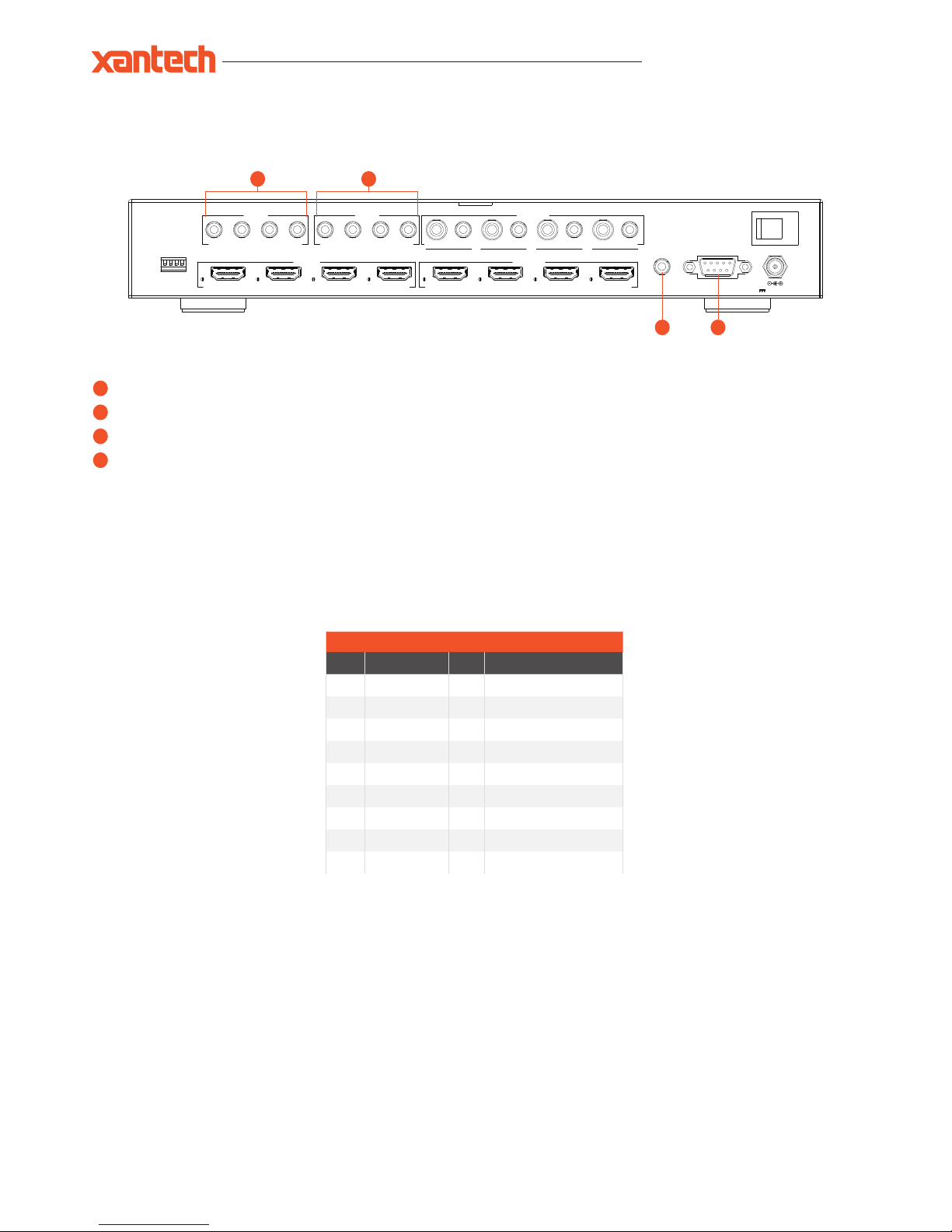

The matrix’s main communication ports are located on the rear panel and includes the following connections:-
Connections:
IR input - 3.5mm stereo jack provides zone specific routed IR receiver input
IR output - 3.5mm mono jack provides routed IR emitter
IR input for matrix control
RS-232 Serial port - For control of switcher by third party control devices
RS-232 2-Way
The matrix can be controlled via a 9-pin serial cable.
Details of RS-232 pin assignment and communication are below. Please note that depending on your control device serial port pin configuration
you may require either a ‘Straight’ RS-232 cable or ‘Null-modem’ type.
XANTECH RS-232 REMOTE CONTROL CONSOLE
PIN Assignment PIN Assignment
1 NC 1 NC
2 Tx 2 Rx
3 Rx 3 Tx
4 NC 4 NC
5 GND 5 GND
6 NC 6 NC
7 NC 7 NC
8 NC 8 NC
9 NC 9 NC
Baud Rate: 57600 bps
Data Bit: 8-bit
Parity: None
Stop Bit: 1-bit
Flow Control: None
Infrared and RS-232 Control
Power
IR
Output 1 Output 2 Output 3 Output 4
1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4
XT-HDMI-MX44-4K18G
HDMI 4K 18Gbps 4x4 Matrix
Input
12V 2A
On/Off
3 2 1
1
0
0
Coaxial Coaxial Coaxial CoaxialL/R L/R L/R L/R
EDID
IR Ext. RS-232
HDMI 1 HDMI 2 HDMI 3 HDMI 4HDMI 1 HDMI 2 HDMI 3 HDMI 4
Output
1
IR In IR Out Audio Out
2 3 4 1 2 3 4
1 2 3 4
43
21
1
2
3
4
XT-HDMI-MX44-4K18G USER MANUAL
10019351 REV-A0
®
© 2018 XANTECH®is a registered trademark of Nortek Security & Control.
RS-232 and Telnet Commands
The matrix can be controlled via serial RS-232. The following page lists all available serial commands for the Matrix.
Commonly used Serial commands:
There are several commands that are commonly used for control and testing:-
STATUS Status will give feedback on Matrix such as zones on, type of connection etc
PON Power on
POFF Power off
OUTxxFRyy (xx is the zone out, yy is the input)
Example:- OUT01FR04 (This would switch output 1 to source input 4)
Common Mistakes
• Carriage return – Some programs do not require the carriage return where as other will not work unless sent directly after the string. In the
case of some Terminal software the token <CR> is used to execute a carriage return. Depending on the program you are using this token maybe
different. Some other examples that other control systems deploy include \r or 0D (in hex)
• Spaces – RS-232 commands do not require space between commands unless specified. Some programs that require spacing in order to work.
- How the string should look is as follows OUT01FR02
- How the string may look if spaces are required: OUT{Space}01{Space}FR{Space}02
RS-232 COMMAND DESCRIPTION
? Print Help Information
HELP Print Help Information
STATUS Print System Status And Port Status
PON Power On, System Run On Normal Sta
POFF Power Off, System Run On Power Save State
IRON/OFF Set System IR Control On Or Off
KEYON/OFF Set System KEY Control On Or Off
BEEPON/OFF Set Onboard Beep On Or Off
LEDON/OFF Set Front Panel LED Always On
or Autio Turn Off in Power On State
RESET Reset System To Default Setting (Should Type “Yes” To Confirm, “No” To Discard)
OUTxxFRON/OFF
OUTxxFRyy
Set OUTPUT:xx On or Off
Set OUTPUT:xx From INPUT:yy
xx=00: Select All OUTPUT Port
xx=[01...04]: Select One OUTPUT Port
yy=[01...04]: Select One INPUT Port
EDIDxxCPyy
EDIDxxDFzz
xx=00: Select All INPUT Port
xx=[01...04]: Select One INPUT Port
yy=[01...04]: Select One OUTPUT Port
zz=00: HDMI 1080p@60Hz, Audio 2CH PCM
zz=01: HDMI 1080p@60Hz, Audio 5.1CH DTS/DOLBY
zz=02: HDMI 1080p@60Hz, Audio 7.1CH DTS/DOLBY/HD
zz=03: HDMI 1080i@60Hz, Audio 2CH PCM
zz=04: HDMI 1080i@60Hz, Audio 5.1CH DTS/DOLBY
zz=05: HDMI 1080i@60Hz, Audio 7.1CH DTS/DOLBY/HD
zz=06: HDMI 1080p@60Hz/3D, Audio 2CH PCM
zz=07: HDMI 1080p@60Hz/3D, Audio 5.1CH DTS/DOLBY
zz=08: HDMI 1080p@60Hz/3D, Audio 7.1CH DTS/DOLBY/HD
zz=09: HDMI 4K@30Hz 4:4:4, Audio 2CH PCM
zz=10: HDMI 4K@30Hz 4:4:4, Audio 5.1CH DTS/DOLBY
zz=11: HDMI 4K@30Hz 4:4:4, Audio 7.1CH DTS/DOLBY/HD
zz=12: DVI 1280x1024@60Hz, Audio None
zz=13: DVI 1920x1080@60Hz, Audio None
zz=14: DVI 1920x1200@60Hz, Audio None
zz=15: User EDID 1
zz=16: User EDID 2
zz=17: GUI Download EDID
zz=18: HDMI 4K@60Hz 4:2:0, Audio 2CH PCM
zz=19: HDMI 4K@60Hz 4:2:0, Audio 5.1CH DTS/DOLBY
zz=20: HDMI 4K@60Hz 4:2:0, Audio 7.1CH DTS/DOLBY/HD
zz=21: HDMI 4K@60Hz 4:4:4, Audio 2CH PCM
zz=22: HDMI 4K@60Hz 4:4:4, Audio 5.1CH DTS/DOLBY
zz=23: HDMI 4K@60Hz 4:4:4, Audio 7.1CH DTS/DOLBY/HD
XT-HDMI-MX44-4K18G USER MANUAL
www.xantech.com
®
4x4 Matrix IR Database
4X4 MATRIX PRODUCTS NEC IR: CUSTOMER CODE 1898 HEX IR
POWER 14
0000 006D 0000 0022 0157 00AC 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016
0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016 0016 0016
0016 003F 0016 0016 0016 0016 0016 003F 0016 0016 0016 003F 0016 0016 0016 0016 0016 0016
0016 003F 0016 003F 0016 0016 0016 003F 0016 0016 0016 003F 0016 003F 0016 003F 0016 0689
OUTPUT 1 09
0000 006D 0000 0022 0157 00AC 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016
0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016 0016 0016
0016 003F 0016 003F 0016 0016 0016 0016 0016 003F 0016 0016 0016 0016 0016 0016 0016 0016
0016 0016 0016 003F 0016 003F 0016 0016 0016 003F 0016 003F 0016 003F 0016 003F 0016 0689
OUTPUT 2 1D
0000 006D 0000 0022 0157 00AC 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016
0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016 0016 0016
0016 003F 0016 003F 0016 0016 0016 003F 0016 003F 0016 003F 0016 0016 0016 0016 0016 0016
0016 0016 0016 003F 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 003F 0016 0689
OUTPUT 3 1F
0000 006D 0000 0022 0157 00AC 0016 0016 0016 0016 0016 0016 0016 003f 0016 003f 0016 0016
0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 003f 0016 003f 0016 0016 0016 0016
0016 003f 0016 003f 0016 003f 0016 003f 0016 003f 0016 003f 0016 0016 0016 0016 0016 0016 0016
0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 003f 0016 003f 0016 003f 0016 0689
OUTPUT 4 0D
0000 006D 0000 0022 0157 00AC 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016
0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016 0016 0016
0016 003F 0016 003F 0016 0016 0016 003F 0016 003F 0016 0016 0016 0016 0016 0016 0016 0016
0016 0016 0016 003F 0016 0016 0016 0016 0016 003F 0016 003F 0016 003F 0016 003F 0016 0689
OUTPUT ALL 19
0000 006D 0000 0022 0157 00AC 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016
0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016 0016 0016
0016 003F 0016 003F 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016 0016 0016 0016 0016
0016 0016 0016 003F 0016 003F 0016 0016 0016 0016 0016 003F 0016 003F 0016 003F 0016 0689
OUTPUT PTP 18
0000 006D 0000 0022 0157 00AC 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016
0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016 0016 0016
0016 003F 0016 003F 0016 003F 0016 0016 0016 003F 0016 003F 0016 0016 0016 0016 0016 0016
0016 0016 0016 0016 0016 003F 0016 0016 0016 0016 0016 003F 0016 003F 0016 003F 0016 0689
INPUT 1 50
0000 006D 0000 0022 0157 00AC 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016
0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016 0016 0016
0016 003F 0016 0016 0016 0016 0016 0016 0016 0016 0016 003F 0016 0016 0016 003F 0016 0016
0016 003F 0016 003F 0016 003F 0016 003F 0016 0016 0016 003F 0016 0016 0016 003F 0016 0689
INPUT 2 55
0000 006D 0000 0022 0157 00AC 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016
0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016 0016 0016
0016 003F 0016 003F 0016 0016 0016 003F 0016 0016 0016 003F 0016 0016 0016 003F 0016 0016
0016 0016 0016 003F 0016 0016 0016 003F 0016 0016 0016 003F 0016 0016 0016 003F 0016 0689
INPUT 3 48
0000 006D 0000 0022 0157 00AC 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016
0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016 0016 0016
0016 003F 0016 0016 0016 0016 0016 0016 0016 003F 0016 0016 0016 0016 0016 003F 0016 0016
0016 003F 0016 003F 0016 003F 0016 0016 0016 003F 0016 003F 0016 0016 0016 003F 0016 0689
INPUT 4 4A
0000 006D 0000 0022 0157 00AC 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016
0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016 0016 0016
0016 003F 0016 0016 0016 003F 0016 0016 0016 003F 0016 0016 0016 0016 0016 003F 0016 0016
0016 003F 0016 0016 0016 003F 0016 0016 0016 003F 0016 003F 0016 0016 0016 003F 0016 0689
INPUT ALL 5E
0000 006D 0000 0022 0157 00AC 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016
0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016 0016 0016
0016 003F 0016 0016 0016 003F 0016 003F 0016 003F 0016 003F 0016 0016 0016 003F 0016 0016
0016 003F 0016 0016 0016 0016 0016 0016 0016 0016 0016 003F 0016 0016 0016 003F 0016 0689
INPUT BACK 06
0000 006D 0000 0022 0157 00AC 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016
0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016 0016 0016
0016 003F 0016 0016 0016 003F 0016 003F 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016
0016 003F 0016 0016 0016 0016 0016 003F 0016 003F 0016 003F 0016 003F 0016 003F 0016 0689
INPUT UP 05
0000 006D 0000 0022 0157 00AC 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016
0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016 0016 0016
0016 003F 0016 003F 0016 0016 0016 003F 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016
0016 0016 0016 003F 0016 0016 0016 003F 0016 003F 0016 003F 0016 003F 0016 003F 0016 0689
XT-HDMI-MX44-4K18G USER MANUAL
10019351 REV-A0
®
© 2018 XANTECH®is a registered trademark of Nortek Security & Control.
4x4 Matrix IR Database
4X4 MATRIX PRODUCTS NEC IR: CUSTOMER CODE 1898 HEX IR
1080i 18
0000 006D 0000 0022 0157 00AC 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016
0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016 0016 0016
0016 003F 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016 0016 0016 0016 0016
0016 003F 0016 003F 0016 003F 0016 0016 0016 0016 0016 003F 0016 003F 0016 003F 0016 0689
1080P 44
0000 006D 0000 0022 0157 00AC 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016
0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016 0016 0016
0016 003F 0016 0016 0016 0016 0016 003F 0016 0016 0016 0016 0016 0016 0016 003F 0016 0016
0016 003F 0016 003F 0016 0016 0016 003F 0016 003F 0016 003F 0016 0016 0016 003F 0016 0689
3D 0F
0000 006D 0000 0022 0157 00AC 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016
0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016 0016 0016
0016 003F 0016 003F 0016 003F 0016 003F 0016 003F 0016 0016 0016 0016 0016 0016 0016 0016
0016 0016 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 003F 0016 003F 0016 0689
4K 51
0000 006D 0000 0022 0157 00AC 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016
0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016 0016 0016
0016 003F 0016 003F 0016 0016 0016 0016 0016 0016 0016 003F 0016 0016 0016 003F 0016 0016
0016 0016 0016 003F 0016 003F 0016 003F 0016 0016 0016 003F 0016 0016 0016 003F 0016 0689
2.0CH 0A
0000 006D 0000 0022 0157 00AC 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016
0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016 0016 0016
0016 003F 0016 0016 0016 003F 0016 0016 0016 003F 0016 0016 0016 0016 0016 0016 0016 0016
0016 003F 0016 0016 0016 003F 0016 0016 0016 003F 0016 003F 0016 003F 0016 003F 0016 0689
5.1CH 1E
0000 006D 0000 0022 0157 00AC 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016
0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016 0016 0016
0016 003F 0016 0016 0016 003F 0016 003F 0016 003F 0016 003F 0016 0016 0016 0016 0016 0016
0016 003F 0016 0016 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 003F 0016 0689
7.1C H 0E
0000 006D 0000 0022 0157 00AC 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016
0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016 0016 0016
0016 003F 0016 0016 0016 003F 0016 003F 0016 003F 0016 0016 0016 0016 0016 0016 0016 0016
0016 003F 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 003F 0016 003F 0016 0689
COPY 1A
0000 006D 0000 0022 0157 00AC 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016
0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016 0016 0016
0016 003F 0016 0016 0016 003F 0016 0016 0016 003F 0016 003F 0016 0016 0016 0016 0016 0016
0016 003F 0016 0016 0016 003F 0016 0016 0016 0016 0016 003F 0016 003F 0016 003F 0016 0689
USER 1 53
0000 006D 0000 0022 0157 00AC 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016
0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016 0016 0016
0016 003F 0016 003F 0016 003F 0016 0016 0016 0016 0016 003F 0016 0016 0016 003F 0016 0016
0016 0016 0016 0016 0016 003F 0016 003F 0016 0016 0016 003F 0016 0016 0016 003F 0016 0689
USER 2 52
0000 006D 0000 0022 0157 00AC 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016
0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016 0016 0016
0016 003F 0016 0016 0016 003F 0016 0016 0016 0016 0016 003F 0016 0016 0016 003F 0016 0016
0016 003F 0016 0016 0016 003F 0016 003F 0016 0016 0016 003F 0016 0016 0016 003F 0016 0689
USER 3 01
0000 006D 0000 0022 0157 00AC 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016
0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016 0016 0016
0016 003F 0016 003F 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016
0016 0016 0016 003F 0016 003F 0016 003F 0016 003F 0016 003F 0016 003F 0016 003F 0016 0689
USER 4 45
0000 006D 0000 0022 0157 00AC 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016
0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016 0016 0016
0016 003F 0016 003F 0016 0016 0016 003F 0016 0016 0016 0016 0016 0016 0016 003F 0016 0016
0016 0016 0016 003F 0016 0016 0016 003F 0016 003F 0016 003F 0016 0016 0016 003F 0016 0689
XT-HDMI-MX44-4K18G USER MANUAL
www.xantech.com
®
Example Schematic
XT-HDMI-MX44-4K18G
Analogue Audio
Digital Audio
IR Receiver Cable
RS232 Cable
HDMI
Power
IR
Output 1 Output 2 Output 3 Output 4
1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4
XT-HDMI-MX44-4K18G
HDMI 4K 18Gbps 4x4 Matrix
Input
12V 2A
On/Off
3 2 1
1
0
0
Coaxial Coaxial Coaxial CoaxialL/R L/R L/R L/R
EDID
IR Ext. RS-232
HDMI 1 HDMI 2 HDMI 3 HDMI 4HDMI 1 HDMI 2 HDMI 3 HDMI 4
Output
1
IR In IR Out Audio Out
2 3 4 1 2 3 4
1 2 3 4
MAXIMUM OF 4 SOURCES
01 02
ZONE
03
ZONE
04
ZONEZONE
01 02
ZONE
03
ZONE
04
ZONEZONE
DISPLAY
1 2 3 4
XT-HDMI-MX44-4K18G USER MANUAL
10019351 REV-A0
®
© 2018 XANTECH®is a registered trademark of Nortek Security & Control.
Package Contents:
Specifications:
• 1x XT-HDMI-MX44-4K18G
• 1x 12V/2A DC power supply
• 1x Remote control
• 1x Mounting kit
• 1x Quick reference guide
Video Input Connectors: 4x HDMI Type A, 19-pin, female
Video Output Connectors: 4x HDMI Type A, 19-pin, female
Audio Output Connectors: 4x RCA (SPDIF), 4x 3.5mm stereo jack (L/R)
RS-232 Serial Port: 1x DB-9, female
IR Input Ports: 5x 3.5mm stereo jack
IR Output Ports: 4x 3.5mm mono jack
EDID: 4-Pin DIP switch
Casing Dimensions (W x D x H): 313mm x 129mm x 45mm
Dimensions Inc. Connections (W x D x H): 313mm x 140mm x 52mm
Shipping Weight: 4.7kg
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature : -4°F to 140°F (-20°C to 60°C)
Power Supply : 12V/2A DC
XT-HDMI-MX44-4K18G USER MANUAL
®
© 2018 XANTECH®is a registered trademark of Nortek Security & Control.
10019351 REV-A0
FCC Notice
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
CAUTION - changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate
the equipment.
CANADA, INDUSTRY CANADA (IC) NOTICES
This Class B digital apparatus complies with Canadian ICES-003.
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of the device.
CORRECT DISPOSAL OF THIS PRODUCT
This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or
human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used
device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for
environmentally safe recycling.
Certifications
tech support:
main:
1 (800) 472-5555 - US
1 (707) 283-5900 - International
1 (707) 283-5901 - Fax
web:
www.xantech.com
Table of contents
Other Xantech Matrix Switcher manuals
