INSTALLATION INSTRUCTIONS
XSS26100W
100Watt, Speaker Selector Volume Control
A/B Source Selection
6 Stereo Speaker Channels
DESCRIPTION
The XSS26100W provides an easy-to-use, easy-to-install, centralized speaker control unit. Premium
components are used to provide high-quality acoustical speaker distribution and independent volume
control. The XSS26100W requires no external power source.
SPECIFICATIONS
Source input selectable, A or B switches.
Dimensions: 17.5” W x 2.5” H x 6.25” L (with feet installed)
Frequency response: 20Hz to 20kHz ± 1dB
Attenuation: 11 steps plus OFF.
Adjustable impedance matching. 4- or 8-Ohm speaker compatible.
Recessed area allows the use of custom labels or fine permanent markings.
Removable screw terminal connectors used with 12 to 22 AWG wiring.
Rack-mount ears and hardware included.

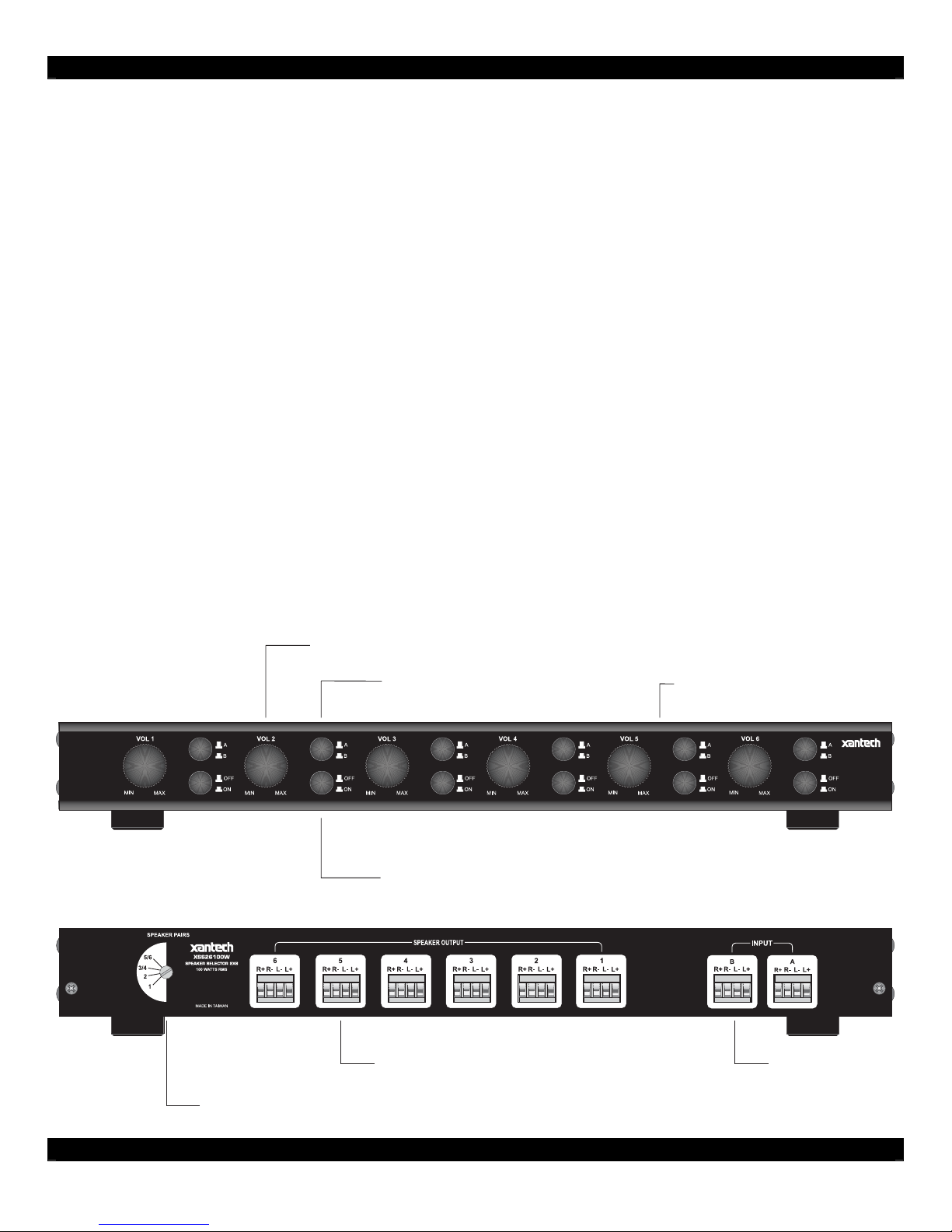

12 STEP VOLUME CONTROL
INDIVIDUAL ROOM ON/OFF SOURCE SWICH
INDIVIDUAL ROOM A/B SOURCE SWITCH RECESSED AREA FOR CUSTOM ROOM
LABELS
XSS26100W
SPEAKER
SELECTOR 2X6
IMPEDANCE PAIR SELECTOR
REMOVABLE CONNECTORS TO AMPLIFIER

08905087A - 2 -
A/B SOURCE INPUT SELECTION
The XSS26100W provides the ability for two amplifiers to be connected and active at the same time.
Each speaker output can select either an A or B source input independently.
ON/OFF OUTPUT SELECTION
The XSS26100W provides the ability for each speaker output to be turned ON or OFF independently.
Though it is possible to also turn off a speaker output by turning the volume control to OFF, this
feature allows the speaker output to maintain its previous set volume.
VOLUME CONTROL
The XSS26100W provides a volume control with 11 steps of attenuation and an OFF position. Each
speaker output can be independently controlled.
- Turning the volume knob clockwise will increase the volume.
- Turning the volume knob counter-clockwise will decrease the volume.
→→→CLOCKWISE DIRECTION ( VOLUME UP ) →→→
KNOB POSITION 1 2 3 4 5 6 7 8 9 10 11 12
ATTENUATION OFF -42dB -36dB -30dB -24dB -18dB -15dB -12dB -9dB -6dB -3dB 0
ADJUSTABLE IMPEDANCE MATCHING
Determine the number of speaker pairs that are to be installed on one speaker output. Then, set the
speaker pair to that number.
INSTALLATION
1) Set adjustable impedance matching selector using a flat-head screwdriver. (see ADJUSTABLE
IMPEDANCE MATCHING for more information).
2) Connect each pair of speakers to the desired speaker output. It is a good idea for each
speaker output to be in the OFF position.
3) Connect the amplifier output to the either A or B input. Now set each volume control to the
input that the amplifier was installed to. (see A/B SOURCE INPUT SELECTION for more
information).
4) Set the amplifier or receiver to the lowest volume setting.
5) Set each volume control to the maximum volume setting (fully clockwise). Be sure each
speaker output is in the ON position.
6) Slowly increase the amplifier or receiver volume level until you reach the maximum listening
level desired.
7) Finally, lower the volume control level. Volume control setting is now complete.
LABEL INSTALLATION
1) Using the included labels, select the description that best matches your application.
2) Peel off the label and apply it to the XSS26100W. Be sure the surface is clean and dry.

XantechLimitedWarranty
(Effectiveforproductssoldafter July1, 2006)
XantechCorporation (“Xantech”) warrantstotheholderofavalidproofofpurchaseasthefirstend-userpurchaser
(“You”), itsproductstobefreefromdefectsinmaterialsand workmanshipfortheperiodsspecified belowfromthedateof
purchase.ThislimitedwarrantyextendsonlytoYou forproductpurchased andused intheUnited StatesofAmerica.For
productpurchased outsideoftheUnited StatesofAmerica,thetermsofthiswarrantyapply EXCEPT thatYou must
contacttheXantechauthorizeddistributorin yourregion forwarrantyservices.Productisnotintendedforenduser
installation.IfwithintheapplicablewarrantyperiodaboveYou discoversuch itemwasnotaswarrantedaboveand You
promptlynotifyXantechinwriting,Xantechshall repair orreplacetheitemsatitsoption.Xantechmayelectwhichremedy
orcombination ofremediestoprovideinitssolediscretion.Xantechmay usefunctionallyequivalent
reconditioned/refurbished/pre-owned ornewproductsorpartsunderthislimited warranty.Thiswarrantyshallnotapply
(a)toproductwhichshallhavebeen installed byotherthan an authorizedXantechinstaller, (b)toinstalledproductwhich
isnotinstalled toXantech’sspecifications,(c)toproductwhichshallhavebeen repaired oraltered by othersthan
Xantech,(d)tochargesforinstallation orsetuporadjustmentofcustomercontrols,(e)toproductthathassuffered
normal cosmeticdeterioration (f) toproductwhichshallhavebeen subjected tonegligence,misuse,abuse,accident, or
damagebycircumstancesbeyondXantech’scontrol,including,butnotlimited to,lightning,flood,electrical surge,
tornado,earthquake,oranyothercatastrophiceventsbeyond Xantech’scontrol,or(g)toproductwhichshall havebeen
subjected toimproperoperation,connectedequipmentfailureormalfunction,inadequatepackingorshippingdamage,
maintenanceorstorage,ortootherthannormaluseofservice.Theforegoing warrantiesdonotcoverreimbursementfor
labor, transportation,shipping,removal,installation,orotherexpenseswhichmay beincurred inconnection withrepair or
replacement. Allclaimsforproduct shippingdamagemust beprocesseswithin3daysof receiptby You.
AXantechReturnAuthorization(RA) mustbeobtainedfromXantechbyYou,yourinstalleroryourdistributorforProduct
covered underthiswarranty.Covered productmustbesenttoXantech togetherwithproofofpurchase,RAnumber,
prepaidand insured toXantech.Freight collect shipmentswillbe refused.Risk ofloss or damageintransitisbornebythe
sender. Xantech'swarrantydoesnotcoverProductswhichhavebeen received improperlypackaged,altered,or
physicallydamaged. Productswillbeinspected upon receipt.
Exceptas may beexpresslyprovidedandauthorizedinwritingbyXantech,Xantech shall notbesubjecttoany
otherobligationsorliabilitieswhatsoeverwithrespecttoequipmentmanufacturedorsoldby Xantech orservices
renderedby Xantech.
THEFOREGOINGWARRANTIES AREEXCLUSIVE AND INLIEUOFALL OTHEREXPRESSEDAND IMPLIED
WARRANTIES,INCLUDINGBUTNOTLIMITEDTOIMPLIEDWARRANTIES OFMERCHANTABILITY AND
FITNESS FORAPARTICULARPURPOSE.
ATTENTION: TOOUR VALUEDCONSUMERS
To insurethatconsumersobtainqualitypre-saleandafter-salesupportandservice,Xantech productsaresold
exclusivelythrough authorizeddealers and authorizeddistributors.Xantech productsarenotsoldonline.The
warrantieson Xantech productsareNOTVALIDiftheproductshavebeenpurchasedfromanunauthorized
distributor oran onlineE-tailer.Inordertodetermineif yourXantech re-sellerisauthorized,please call Xantech
[phone].
XANTECH PRODUCT (gotoXantech.com/warrantyfor model numbers) WARRANTY DURATION
IRReceivers andIREmitters LimitedLifetime
A/Vdistribution and Control LimitedLifetime
RemoteControlSwitchers LimitedLifetime
ModulesandConnectingBlocks LimitedLifetime
Accessories LimitedLifetime
Speakers LimitedLifetime
VolumeControlsand SpeakerSelectors 5year Limited
MRC, BX,ZPRandCommercial Products 2year Limited
Amplifiers 2year Limited
ControlInterfaces 2year Limited
Hand HeldRemoteControls 1year Limited
SPLCD Product 1year Limited
SourceComponents 1year Limited
