XCLEA H30 Plus User manual
EN.................................................................................................................................................................
JA ..........................................................................................................................................................
KO.........................................................................................................................................................
Page 1 - 20
141-160
페이지161-180
FR ...............................................................................................................................................................Page 21 - 40
DE
............................................................................................................................................................
Seite 41 - 60
IT............................................................................................................................................................. 61 - 80
Pagina
ES
.......................................................................................................................................................
Página 81 - 100
PL ....................................................................................................................................................... Strona 101 - 120
RU............................................................................................................................................................ 121 - 140
EN
1
CONTENTS
Safety instructions ....................................................................................................................................................................................... 2
Warning .......................................................................................................................................................................................................................................................................................
2
Caution ........................................................................................................................................................................................................................................................................................
3
Product overview .......................................................................................................................................................................................... 4
Main unit .....................................................................................................................................................................................................................................................................................
4
Dust box + water tank (2 in 1) and mopping module ....................................................................................................................................................................................................
4
Dust collector (optional) .......................................................................................................................................................................................................................................................
5
Charging dock (optional) ......................................................................................................................................................................................................................................................
5
Installation ...................................................................................................................................................................................................... 6
Installing the dust collector (optional) .............................................................................................................................................................................................................................
6
Installing the charging dock (optional) ............................................................................................................................................................................................................................
6
Installing the mopping module ...........................................................................................................................................................................................................................................
7
Use ..................................................................................................................................................................................................................... 8
APP downloads .........................................................................................................................................................................................................................................................................
8
Turning on/off and cleaning modes ................................................................................................................................................................................................................................. 9
Turning on/off and operating the dust collector (optional) ...................................................................................................................................................................................... 10
Dust collector status indicator .......................................................................................................................................................................................................................................... 10
Cleaning and maintenance ..................................................................................................................................................................... 11
Disassembling and installing the main brush .............................................................................................................................................................................................................. 11
Disassembling and installing the side brush ................................................................................................................................................................................................................ 11
Disassembling and installing the dust box and filter ................................................................................................................................................................................................ 12
Disassembling and installing the mop ...........................................................................................................................................................................................................................
Cleaning the replacement parts ....................................................................................................................................................................................................................................... 13
Clean the charging dock (optional) ................................................................................................................................................................................................................................. 14
Clean the dust collector (optional) .................................................................................................................................................................................................................................. 14
Troubleshooting .......................................................................................................................................................................................... 15
FAQs ................................................................................................................................................................................................................ 17
Technical data .............................................................................................................................................................................................. 18
Disposal ......................................................................................................................................................................................................... 19
Warranty and limitations of liability ...................................................................................................................................................... 19
Warranty card ............................................................................................................................................................................................... 20
Maintenance records ................................................................................................................................................................................ 20
13
EN
2
Safety instructions
Read this operation manual before using the product
Warning: To avoid injury to yourself and others, and to avoid unnecessary property damage, read carefully before using the product and observe the
following “Safety instructions”. The safety instructions are divided into two sections, “Warning” and “Caution”. The “Warning” and “Caution” sections
contain important information for safe use of the product and must be followed.
Warning Instructions against incorrect product use that may lead to death or serious injury
Caution Instructions against incorrect product use that may lead to minor injury or product damage
Warning
1. Do not use this product in wet places such as bathrooms or near water sources.
2. Do not use it to clean up liquids, matches and wet garbage.
3. Do not pull or insert the plug, or touch the adapter socket with wet hands.
4. Do not use damaged power plugs and loose sockets.
5. Do not use the main unit to clean flammable liquids such as kerosene, gasoline, objects with sparks, toner cartridges, toner and other combustible
dust; do not use the device near the above items, or in environments with flammable and explosive gases to avoid fires.
6. Do not disassemble, repair, or modify the product on your own, to avoid fire, injury, or damage, except for the replacement of consumables in
accordance with this manual.
7. When using the adapter, use an AC power supply with a correct rated voltage, and do not use a generator or DC power supply to avoid fire or electric
shock. Do not charge non-rechargeable batteries.
8. Use a dry cloth to clean the dust on the plug regularly to avoid fires due to poor insulation or other reasons.
9. Be sure to insert the plug firmly and completely into the socket to avoid electric shock, short circuiting or fire.
10. In the event of an abnormal fault, cut off the power immediately and stop using the product to avoid smoke, fire or electric shock.
11. When charging or using the product, if the product’s body becomes deformed or is unusually hot, gives off a burning smell, or emits abnormal noises
while operating, immediately cut off the power and unplug the plug. Then place the product in an open area away from any combustible materials to
ensure safety. Have the manufacturer or authorized maintenance personnel replace or maintain the product to avoid danger.
12. Be sure to unplug the plug from the power socket before cleaning and maintenance to avoid electric shock or injury.
13. If you find that the main brush is abnormal during use, turn off the power and immediately check whether the main brush is entangled with hair or
other long fibers, and clean it in a timely manner.
14. Do not spray water on the product body and plug, or immerse them in water.
15. Do not use other adapters to charge the robot vacuum and mop cleaner.
16. When unplugging the plug, be sure to hold the insulated part of the adapter body. Do not pull the power cord.
17. The battery is a sealed device, and does not pose a safety hazard under normal circumstances. If liquid leaks out of the battery under extreme
conditions, it may cause irritation or burns. If you accidentally come into contact with the liquid, take the following instructions:
1) In case of skin contact - wash with soap and water;
2) In case of eye contact - rinse immediately with water for at least 15 minutes and seek medical help.
18. This appliance is not intended for use by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision.
19. Keep the robot vacuum and mop cleaner away from electromagnetic equipment in hospitals. This product is not a toy. Do not allow children to play
with it. Use this product only with accessories supplied with it.
EN
3
20. The adapter is for indoor use only, do not expose it to rain.
21. If the exterior is damaged, do not use the adapter to avoid risk of electric shock.
22. This adapter is only intended for use with designated robot vacuum and mop cleaners.
23. Before charging, check whether the adapter specifications conform with the required power supply voltage.
24. Remove the battery with a proper tool. Remove the screws of the bottom cap, open the bottom cap, unplug the battery connecting terminals and
remove the battery from the battery box.
25. Before disposing of the appliance, the battery must be removed from the appliance.
26. The appliance must be disconnected from power supply before removing the battery.
27. This appliance incorporates an earth connection for functional purposes only.
Caution
1. Do not use this product outdoors, on surfaces other than the ground, or in commercial or industrial environments.
2. Do not use the product in environments without protective fencing (such as duplex floors, open balconies, furniture tops).
3. Do not block the air outlet (so as to avoid deformation, product failure, or fire due to overheating).
4. Do not drag the product body (so as not to scratch the ground).
5. Do not shake or let children play with the product body (so as to avoid injury or damage to the product body).
6. Do not drop the product, bump it against other objects, or apply pressure to the product (so as to avoid fire or electric shock due to product failure).
7. Be sure to install the main brush and filter before use (so as not to cause damage to the motor or product body).
8. Check if the power cable is in good condition before charging the product.
9. Before using the robot vacuum and mop cleaner for the first time or replacing the specified filter, turn off the power on the main unit and make sure
that the filter is properly installed.
10. Used battery packs should be properly disposed off. Do not discard them randomly.
11. Before using the product, arrange the desks, chairs, household items, floor objects, etc. neatly, and clear power cords and small items laying on the
ground to avoid the product being blocked during cleaning.
12. When the machine is running, keep curtains and tablecloths away from the ground, and keep the carpet flat, so as to prevent the product from being
blocked during operation and causing damage to your valuables.
13. Be sure to open the door of each room before the first use, so that the product can build a complete home map.
14. Do not stand in front of the main unit when the appliance is running, to prevent the main unit from being unable to recognize the area to be cleaned.
15. Do not use and store the robot vacuum and mop cleaner under extreme adverse conditions, such as extreme temperatures. It is recommended to
use it indoors. Store it in a cool and dry place.
EN
4
Product overview
Main unit
Laser head pressure sensor
Laser sensor
Infrared docking sensor
Function buttons
Universal wheel
Bumper
Infrared docking sensor/Wall detection
sensor
TOF wall tracking sensor
Panel
Dust box release button
Dust inlet
Mop holder release button
Charging contact (x2)
Infrared sensor
Spot button
• Short p r ess to cl ean a lo c a lize d a rea. The ro b ot
automatically docks after cleaning.
• Short press while operating to pause
Reset button
• Short press to automatically restart
Power button
• Short press to start a cleaning cycle. The robot automatically
docks after cleaning.
• Press and hold to turn the robot on or off
• Short press while operating to pause
Dock button
• Short press to dock
Edge sensor (x4)
Charging plates
Side brush (x2)
Driving wheel (x2)
Main brush
Main brush cover release button
Mop
Dust box + water tank (2 in 1) and mopping module
Dust inlet
Filter release button
Dust box + water tank (2 in 1) release button
Dust box + water tank (2 in 1)
Filter
Dust box + water tank (2 in 1)
cover
EN
5
Mop holder
Mop holder release button
Mop
Disposable mop
Dust collector (optional)
Flip cover
LED display
Infrared lens
Charging contact
Dust inlet
Air outlet
Transparent cover of dust
channel
Charging port
Charging dock (optional)
Charging dock indicator
Signal emission area
Charging contact
Charging port
Cord storage slot
EN
6
Installation
Installing the dust collector (optional)
Step 1: Find a suitable location to place the dust collector; Step 2: Press and hold the Power button on the main unit to turn on the robot vacuum and mop
cleaner, then press the Dock button for the robot to search for the dust collector to charge.
>0.5 m
>1.5 m
>0.5 m
Dock button
Caution
1. When charging, do not install the mopping module to prevent water seeping from the wet mop and damaging the floor.
2. Do not use this product in the room of infants and young children, keep it away from infants and young children.
3. When the main unit is docked at the dust collector, do not let children or pets approach it or collide with the main unit to avoid danger.
4. In order to facilitate the smooth return of the main unit to the dust collector after cleaning, it is recommended to start the appliance from the dust collector and that you do not move the dust collector
during the cleaning process.
5. The dust collector has dust collection and charging functions, and a new dust bag is installed before the product leaves the factory.
Installing the charging dock (optional)
Step 1: Find a suitable location to place the charging dock; Step 2: Place the charging dock against the wall;
>0.5 m
>0.5 m
>1.5 m
EN
7
Step 3: Press and hold the Power button on the main unit to turn on the robot vacuum and mop cleaner, then press the Dock button for the robot to search for the charging dock to charge.
Dock button
Caution
1. When charging, do not install the mopping module to prevent water seeping from the wet mop and damaging the floor.
2. Do not use this product in the room of infants and young children, keep it away from infants and young children.
3. When the main unit is docked on the charging dock, do not let children or pets approach it or collide with the main unit to avoid danger.
4. In order to facilitate the smooth return of the main unit to the charging dock after cleaning, it is recommended to start the appliance from the charging dock and that you do not move the charging dock
during the cleaning process.
Installing the mopping module
Step 1: Attach the mop
Stick the mop on the designated area on the mop holder
Step 2: Add water to the water tank
Open the cover of the water tank, add water, and then shut the cover
8
Step 3: Install the dust box + water tank (2 in 1)
Push the dust box + water tank (2 in 1) horizontally in the direction of the groove on the main unit
until you hear a "click" sound.
Step 4: Install the mopping module
Push the mopping module buckle in parallel along the dust box + water tank (2 in 1) until you hear a
"click" sound.
Caution
1. Do not use the mopping function on the carpet.
2. When charging or when the robot is not in use, remove the mopping module, pour out the excess water in the water tank and clean the mop to avoid mold or odor.
3. It is recommended to clean the mop each time to maintain water speed and cleaning effect. Replace with a new mop if necessary.
4. When charging the main unit on wooden floors, remove the mopping module in a timely manner to prevent water seeping from the mop and damaging the floor.
Downloading app
* Either of below apps can be installed and used
Installing Xclea app
This product can be controlled using the Xclea app, which supports both Android and iOS
systems.
1. Search for “Xclea” in the app store or scan the QR code below to download and install the app.
2. Sign in to the app. Long press and buttons on the robot cleaner at the same time for
longer than 3 seconds to reset it. Click “+” at the upper right on the app’s homepage to add
device. Select the robot cleaner from the device list and connect it to WiFi according to the
prompts.
Reset WiFi Add device Configure network
Long press
and to reset
3. If you have any question, please contact our service personnel or visit our official website.
* This product only supports 2.4G WiFi
Smart devices can be interconnected via HUAWEI HiLink app.
Devices which support HUAWEI HiLink app can be managed and controlled via Huawei SmartHome
app.
Installing Huawei SmartHome app
Scan the QR code, or search for “Huawei SmartHome” in the app store to download and install the app.
If your phone has Huawei SmartHome app installed, ensure that it is the latest version.
1. Connect your phone to the home WiFi.
2. Open the Huawei SmartHome app. At first use, register an account and log in to the app as per the
instructions.
3. Long press and buttons on the robot cleaner at the same time for longer than 3 seconds to
reset it. Click “+” at the upper right on the app’s homepage to add device.
If no devices are found, click “Add manually” to manually add a device according to the prompts.
4. Click the device you want to add from the device list found. As per the prompts, enter the password
of the home WiFi to connect the device to the Home WiFi.
Only devices which support HUAWEI HiLink protocol (usually on the device’s packaging or user
manual is marked with text such as “works with HUAWEI HiLink”) can be added via the app.
HiLinkReset WiFi Configure network
Add device
Long press
and to reset
5. Name the device and arrange it in the virtual room created on the app. Once completed, the device
is successfully added.
Once added, the smart device will be shown under “Home” on the app’s homepage. Click the device
on the app’s homepage to enter the device control interface to control the device.
EN
EN
9
Turning on/off and cleaning modes
1. Turning on/off
Press and hold the Power button, the Power button indicator is ON and the main unit enters
Standby mode. When the main unit is in Idle mode, press and hold the Power button, the indicator
slowly turns off and the cleaning cycle is done.
When the main unit is running, press any button to pause the appliance. Press the Power button
again to resume the cleaning cycle.
Press the Dock button, the main unit automatically docks and the cleaning cycle will end. Press
the Spot button to clean a localized area.
2. Charging
When a cleaning cycle is complete, the main unit automatically docks and charges itself. If an
error occurs, resolve the problem and press the Dock button after troubleshooting, the main unit
automatically docks.
When the main unit is charging, the Power button indicator is always ON; when fully charged, the
indicator breathes (breathe = dim and brighten at a certain rate).
If a cleaning cycle does not start from the charging dock or dust collector, the robot may fail to
dock. When the cleaning cycle is complete, the main unit automatically returns to where it started.
To return it to the charging dock or the dust collector, press the Dock button.
3. Clean mode
After the main unit is turned on, it scans and intelligently maps out a series of areas. Then it
cleans along the wall and then in small arcs until the area is complete. When the cleaning cycle is
complete, the main unit automatically returns to the charging dock or the dust collector.
Press the Power button to start a cleaning cycle. The cleaning path is as shown in the figure below.
Press any button to pause the cleaning.
Area 1 Area 2
Area 4 Area 3
Spot button
• Short press to clean a localized area. The robot automatically docks
after cleaning.
• Short press while operating to pause
Power button
• Short press to start a cleaning cycle. The robot automatically docks
after cleaning.
• Press and hold to turn the robot on or off
• Short press while operating to pause
Dock button
• Short press to dock
4. Cleaning a localized area
When the main unit is in Standby mode or paused, press the Spot button to start cleaning a localized
area. The cleaning area is a 1.6 m x 1.6 m square centered on the main unit. After cleaning, the main
unit automatically docks.
1.6 m
1.6 m
Cleaning a localized area
5. Room mode
If a room has been set in map management, select the room and press the Spot button to clean it. If
not set, firstly set the room boundaries on the APP.
6. Adding water or cleaning the mop while operating
In Operating mode, to add water or clean the mop, press the Power button to pause the main unit,
remove the dust box + water tank (2 in 1) and the mopping module. When finished, reinstall them back,
and press the Power button to resume the cleaning cycle.
7. Error symptom
When an error occurs while the main unit is operating, the Power button indicator flashes quickly
and a voice prompt will be heard. Refer to the “Troubleshooting” section in this manual to resolve the
problem.
8. Sleep mode
After 20 minutes of no operation, the main unit automatically enters Sleep mode. Press any key to
wake it up.
9. WiFi reset
When resetting the password or when your phone is unable to connect to the main unit for other
reasons, reset the WiFi according to the instructions in “APP downloads” section of this manual.
10. Automatic dust collection (only applicable to robot vacuum and mop cleaner supplied with a dust
collector)
When a cleaning cycle is complete, the robot automatically returns to the dust collector for charging
and dust collection.
11. Reset button
When the button does not respondor cannotbe turnedon, please try to reset the system; after reset,
the timing cleaning setting and cleaning mode setting of the hostwill be cleared.Set WiFi.
EN
10
Caution
1. It is recommended to start cleaning when the main unit is on the charging dock or the dust collector.
2. When power is insufficient during cleaning, the main unit will automatically dock on the charging dock or the dust collector and charge itself. It will return to where it left off and resume cleaning after
charging is completed.
3. Before using the product, arrange the desks, chairs, household items, floor objects, etc. neatly, and clear power cords and small items laying on the ground to avoid the product being blocked during
cleaning.
4. Do not stand in front of the main unit when the appliance is running, to prevent the main unit from being unable to recognize the area to be cleaned.
5. After the main unit has finished working, it is recommended not to shut it down, and to keep the main unit in the charging state so it can better carry out the next cleaning task.
Turning on/off and operating the dust collector (optional)
LED display
Power level/error code indicator
Dust full reminder
Communication signal indicator
Dust collector status indicator
Status Outer ring indicator Power level indicator Communication signal
indicator Dust full reminder
Initializing 888
Main unit in place/dust collector functions well
Main unit absent/dust collector functions well
Collecting dust 012 001
Normal suction during dust collection
Abnormal suction during dust collection 001
Dust bag full/main unit in place
Dust bag full/main unit absent
Dust bag not installed/main unit in place 000
Dust bag not installed/main unit absent 000
Communication is abnormal/host is in place 004
Powered off/indicators turned off via APP
Remarks: indicates blinking; indicates off; indicates constant on
Reminder: Make sure the dust collector is connected to the power supply and the main unit is in place, so that you can start cleaning and dust collection remotely at any time through the APP.
Touch the LED display to turn on the dust collection function. When the dust collection function of the integrated station is normal, the outer ring indicator light shows the state of the running water light,
and the smell ion generator indicator light is always on for 30 minutes and then goes out. The LED display will also display the remaining power; if the dust bag is not installed, the fault code will be displayed;
in addition, the display There are also functions for reminding the work of the smell ion generator, the communication light of the dust collection station and the host, and the function of reminding that the
dust is full.
Smell ion generator
Taste ion indicator
EN
11
Cleaning and maintenance
Always turn off the product before any maintenance!
Disassembling and installing the main brush
Step 1: Disassemble the main brush
Turn the robot vacuum and mop cleaner over, press the main brush cover release button to remove
the main brush cover. Take out the main brush and clean it..
Step 2: Clean the main brush
Use the cleaning brush to pick up and cut away the hair and fibers entangled on the main brush. It
is recommended to replace the main brush every 3-6 months.
Caution
1. Turn off the product before replacing the main brush.
2. The cleaning brush has a sharp blade, which is used to cut away entangled objects that are difficult to clean. Keep the cleaning brush away from children.
Disassembling and installing the side brush
Step 1: Disassemble the side brush
Turn the robot vacuum and mop cleaner over, remove the screw with a screwdriver, and take out
the side brush.
Step 2: Clean the side brush
Use the cleaning brush to pick up and cut away the hair and fibers entangled on the side brush. It
is recommended to replace the side brush every 3-6 months to ensure effective cleaning.
EN
12
Caution
1. Only replace with a side brush supplied by XCLEA, otherwise, it may lead to damage to the main unit.
2. To avoid scratching yourself, be careful when using a screwdriver to replace the side brush.
3. Install the left and right side brushes correctly onto their respective pins.
Disassembling and installing the dust box and filter
Step 1: Disassemble the dust box + water tank (2 in 1)
Press the dust box + water tank (2 in 1) release button to remove the dust box + water tank (2 in 1).
Step 2: Disassemble the filter
Press the filter release button on the right of the dust box + water tank (2 in 1) to remove the filter.
Step 3: Empty the dust box + water tank (2 in 1)
Align the dust box with the opening of a trash can and empty the dust. Use the cleaning brush to
clean the dust box corners that are hard to reach.
Step 4: Clean the dust box + water tank (2 in 1)
Rinse the dust box + water tank (2 in 1) with clean water. Air-dry completely for at least 24 hours
before reinstalling to prevent dust from clumping during the next use.
EN
13
Disassembling and installing the mop
Step 1: Disassemble the mop
Remove the mopping module from the dust box + water thank (2 in 1), and remove the mop from
the mopping module.
Step 2: Clean the mop
Rinse the mop with clean water. Air-dry completely before reinstalling to prevent dust from
clumping during the next use.
Caution
1. Only replace with a mop supplied by XCLEA, otherwise, it may lead to ineffective cleaning.
2. Be sure to remove and clean the mop to prevent dirty water flowing back.
3. It is recommended to replace the mop every 3-6 months to ensure effective cleaning.
Cleaning the replacement parts
Step 1: Clean the sensors
Use a soft clean cloth to wipe and clean the charging plates on the back, the laser distance sensor
on the top, the edge sensors, the infrared docking sensors and the TOF wall tracking sensor.
Step 2: Clean the universal wheel
Turn the robot vacuum and mop cleaner over and pull out the universal wheel, clean out the hair
and dirt from the wheel and axle. Wash the universal wheel with water, air-dry completely and
reinstall it.
EN
14
Step 3: Clean the filter
Rinse the dust box filter with clean water. Air-dry completely before reinstalling to prevent dust from clumping during the next use.
Clean the charging dock (optional)
Step 1: Clean the charging contact
Check whether there is dirt on the charging contacts. Wipe and clean the charging contacts with a soft clean cloth to keep it clean and free of debris.
Caution
1. Use a dry cloth to clean the main unit’s sensors, infrared sensors and charging contacts. Do not use a wet cloth to prevent water from entering the appliance and causing damage.
2. To avoid scratching yourself, be careful when using a screwdriver to replace the replacement parts.
Clean the dust collector (optional)
Step 1: Replace the dust bag
When the dust bag is full, the dust full indicator on the LED display of the dust collector becomes constant on, replace the dust bag. It is recommended to replace the dust bag every 4 weeks.
Open the cover of the dust
collector
Pull the dust bag handle up to
remove the dust bag
Dispose of the used dust bag Replace with a new dust bag Close the cover of the dust
collector
EN
15
Step 2: Clean the dust channel
If the dust collector does not work while powered on and the dust bag is not full, firstly disconnect
it from the power supply and check whether the dust channel is blocked. If it is blocked, use a
screwdriver to open its transparent cover and clear out the obstructions.
Step 3: Clean the infrared lens and charging contacts
Wipe and clean the infrared lens and charging contacts with a soft clean cloth to keep it clean and
free of debris.
Transparent cover of dust channel Infrared lens
Charging contact
Step 4: Clean the fan filter bracket
Check whether the fan filter bracket is entangled with any foreign objects or debris. Wipe with a
soft clean cloth to keep it clean and free of debris.
Fan filter bracket
Caution
1. Use a dry cloth to clean. Do not use a wet cloth to prevent water from entering the appliance and causing damage.
2. To avoid scratching yourself, be careful when using a screwdriver to replace the replacement parts.
Troubleshooting
When an error occurs while the robot vacuum and mop cleaner is operating, the Power button indicator flashes quickly and a voice prompt will be heard. Refer to the “Troubleshooting” table below to fix the
error.
Error message Solution
Error 1:
Check if the radar is obstructed or stuck. If it is, move the main unit to a new
location and start it.
If the radar is obstructed or stuck, remove the obstruction or debris.
Do not use the product outdoors under sunlight or in places with strong light. Use it indoors.
If the solutions above do not work, move the main unit to a new location and start it.
If the alert continues, contact the customer service.
EN
16
Error message Solution
Error 2: Check if the bumper is stuck.
If the bumper is stuck, remove the debris and briskly tap the bumper several times to dislodge any debris that may be
trapped underneath.
If the product is trapped because of insufficient space, move it to a new location and start it.
If the alert continues, contact the customer service.
Error 3: Wipe the edge sensor, move the main unit away from edge and start
it.
If the main unit is suspended in the air, move it to a new location and start it.
If the edge sensor is dirty or obstructed by debris, clean the edge sensor regularly.
If the alert continues, contact the customer service.
Error 4: Check if the main brush is stuck.
If the main brush is entangled with wool, wires and other debris, remove the main brush and clean it.
Clean up wool, wires and other debris on the floor.
Regularly clean the main brush, as it can easily be entangled with debris.
If the alert continues, contact the customer service.
Error 5: Check if the side brushes are stuck.
If the side brushes are entangled with wool, wires and other debris, remove the side brushes and clean them.
Clean up wool, wires and other debris on the floor.
Regularly clean the side brushes, as they can easily be entangled with debris.
If the alert continues, contact the customer service.
Error 6: Check if the driving wheel is stuck. If the driving wheel is stuck, clean it.
If the alert continues, contact the customer service.
Error 7: Reinstall the dust box + water tank (2 in 1).
Reinstall the dust box + water tank (2 in 1) and filter and make sure they are reinstalled properly.
If the error persists, replace the filter.
If the alert continues, contact the customer service.
Error 8: Battery is too low, please charge. Battery is low, charge it before use.
Error 9: Cannot charge. Check if the main unit is correctly connected to the
dust collector. Use a dry clean cloth to wipe the charging contacts on the dust collector and the charging plates on the main unit.
Error 10: Battery pack temperature is too high or too low, try it again later. If battery temperature is too high or too low, use the appliance when its temperature returns to normal.
Error 11: Check the wall tracking sensor. If the wall tracking sensor is covered by dust, wipe and clean it.
Error 12: Place the main unit on level ground and start it. If the main unit is detected to be tilted, place it on level ground and start it.
Error 13: Abnormal vacuum fan. If the vacuum fan does not work properly, reset the system.
If the alert continues, contact the customer service.
Error 14: Check if the top radar cover is stuck. If the top radar cover is stuck or under pressure, move the appliance to a new location and start it.
Error 15: Move the main unit away from forbidden areas and start it. Move the main unit away from the virtual walls or forbidden areas and start it.
Error 16: Cannot return to the charging dock. Remove any obstacles near the
charging dock. Remove any obstacles that are closer than 1.5 m from the front of the charging dock.
Error 17: Dust bag is not in place.
Check if the dust bag is installed.
If installed, check if it reaches the bottom of the charging dock.
If the alert continues, contact the customer service.
Error 18: Dust bag is full.
If the dust bag is full, replace with a new one.
If the dust bag is not full, check if the dust collector’s channel is clogged. If clogged, clean the dust channel.
If the alert continues, contact the customer service.
Error 19: Clean the dust box + water tank (2 in 1) if it has not been cleaned for
a long time. If there is excessive dust in the dust box + water tank (2 in 1), clean it and the filter.
EN
17
Error message Solution
Error 20: Clean the filter. Remove the filter and clean it.
Tip: Resetting the system can fix some errors.
FAQs
Question type Solution
Cannot power on If the battery power is insufficient, dock the main unit on the charging dock and fully charge it before next use. If the
battery temperature is too low or too high, use the product at temperatures of 0-40 °C.
Cannot charge
Make sure both ends of the charging dock’s power cable are firmly plugged in. If poor contact is detected, clean the
charging contacts on the charging dock and the charging plates on the main unit. Confirm if the charging indicator turns
on.
Slow charging When the product is used at extreme temperatures, to extend the battery life, the main unit will automatically reduce the
charging speed. If the charging contacts are dirty, clean them with a dry cloth.
Cannot dock If there are many obstacles near the charging dock, place it in a clear, open space. If the main unit is far away from the
charging dock, place it near to the charging dock and try again.
Abnormal operation Restart the appliance.
Abnormal noises while cleaning
If the main brush, side brush or driving wheel is entangled with debris, turn off the appliance and clean. If the universal
wheel is dusty or jammed while cleaning, it is recommended to use a screwdriver to remove the wheel and rinse it under
water.
Decreased cleaning ability or dust falls out of the main unit If the dust box is full, clean the dust box. If the filter is clogged, clean the filter. If the main brush is entangled with debris,
clean the main brush.
Cannot connect to WiFi
If WiFi function is not activated, reset WiFi and try again.
If WiFi signal is poor, place the main unit within the coverage of WiFi signal.
If WiFi connection is abnormal, reset WiFi, download the latest mobile client and try again.
If the APP does not support the current device model, follow the prompts to check the models supported.
Cannot connect to WiFi suddenly. If the router settings are incorrect, contact the customer service.
Scheduled cleaning does not start Insufficient power. Scheduled cleaning will only start when the power level is greater than 15%.
Is energy consumption high if the main unit is kept on the charging dock? Keeping the main unit on the charging dock helps to keep the battery at its best performance, and the energy
consumption is low.
Is it necessary to charge for 16 hours during the first three uses? Lithium batteries exhibit no memory effect. You may use the appliance when the battery is full.
Mopping module discharges little or no water Check whether there is sufficient water in the water tank. Adjust the water volume to Large via the APP. Make sure the
mop and mop holder are installed correctly according to the instructions.
Main unit does not resume cleaning after docking for charging Make sure the main unit is not in “Do Not Disturb” mode, in which the main unit does not resume cleaning. It also does not
resume cleaning if it is docked by pressing the Dock button or manually returned to the charging dock.
Main unit does not return to charging dock after cleaning a localized area or
after being moved
After cleaning a localized area or being moved far away, the robot vacuum and mop cleaner will generate a new map. If the
charging dock is far away, the main unit may not automatically dock. In this case, manually return the main unit back on
the charging dock to charge.
Robot vacuum and mop cleaner misses spots If the wall tracking sensor or edge sensor is dirty, clean them with a soft dry cloth.
EN
18
Technical data

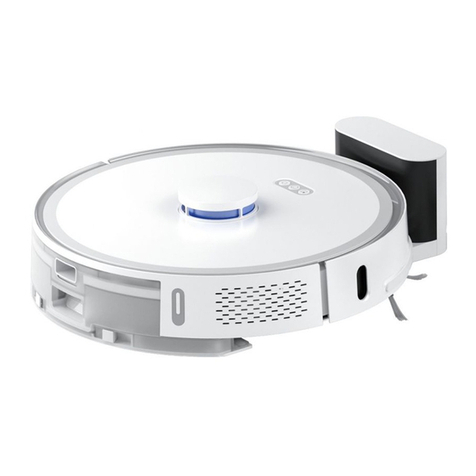

Product name Robot vacuum and mop cleaner Product model QYSDJ01
Rated operating voltage 14.4 V Rated power 50 W
Lithium battery capacity 5200mAh Rated charging voltage 24 V
Net weight ca. 3.5 kg Dimensions 355 x 355 x 100 mm
Charging time ca. 250 minutes Noise level (low/medium/high) ＜75dB（A）Dust box capacity 300 ml Cleaning time ca. 250 minutes
Water tank capacity About 250 ml Battery type lithium battery
Product name Dust collector Product model QYJCZ01
Rated power 850 W Rated input 200-240 V~, 50-60 Hz
Rated output 24 V , 1.2 A Dimensions 358 x 300 x 174 mm
Net weight ca. 4.2 kg Noise level 82 dB(A)
Vacuum time ca. 12 seconds Dust bag capacity ca. 3L
Product name Charging dock Product model QYHCZ01
Rated operating voltage 24 V Rated power 30 W
Rated input 24 V , 1.2 A Rated output 24 V , 1.2 A
Net weight ca. 0.4 kg Dimensions 145 x 140 x 99 mm
Product name Power adapter Power adapter
Rated input 100-240V~, 50-60 Hz, 0.9 A 100-240V~, 50-60 Hz, max. 1.0 A
Rated output 24 V 1.2 A, 28.8 W 24 V 1.2 A, 28.8 W
Product model
System requirements: Android 5.0 or later, iOS 10.0 or later (iPhone 5 or later)
This product includes a WiFi module that supports the 802.11b/g/n transmission protocol.
CMIIT ID:2020DP11783
China: KA3601A-2401200CN ; United Kingdom: KA3601A-2401200BS ;
Korea: KA3601A-2401200KR ; United States: KA3601A-2401200US ;
Japan: KA3601A-2401200JP ; Australia: KA3601A-2401200AU ;
European Union: KA3601A-2401200EU ;
China: DBS036A-2401200C ; United Kingdom: DBS036A-2401200B ;
Korea: DBS036A-2401200K ; United States: DBS036A-2401200U ;
Japan: DBS036A-2401200J ; European Union: DBS036A-2401200G ;
This manual suits for next models
1
Table of contents
Languages:
Other XCLEA Vacuum Cleaner manuals
