XeVision XeRay XV-LX50 User manual

HID Xenon & LED Lighting Technology for Aerospace, Military and Industry
XeVision 4245 Airport Rd. Ogden, UT 84405-3301, USA
info: [phone]-366-4415 fax: [phone] http://www.xevision.com
1
XeVision™ XeRay™ XV-LX50 HID Searchlight
User‘s Manual
Doc:XVLX50-HC-MAN – Version Sep 2013
Barn Burner on Steroids

HID Xenon & LED Lighting Technology for Aerospace, Military and Industry
XeVision 4245 Airport Rd. Ogden, UT 84405-3301, USA
info: [phone]-366-4415 fax: [phone] http://www.xevision.com
2
Table of Content
!...............................................................................................................................................................!3!
For!your!safety!.................................................................................................................................!3!
User´s!Manual!...................................................................................................................................!6!
Notices!...........................................................................................................................................................!6!
XeRay™!XV;LX50!specification!summary!..........................................................................................!6!
Basic parameters!......................................................................................................................................................!6!
Continuous run time!...............................................................................................................................................!6!
Weight!...........................................................................................................................................................................!6!
Rechargeable batteries!...........................................................................................................................................!6!
Dimensions!..................................................................................................................................................................!7!
What’s in the box!......................................................................................................................................................!7!
Optional accessories and spare parts!..............................................................................................................!7!
Operation!.....................................................................................................................................................!8!
Charging!......................................................................................................................................................................!8!
ON;OFF!Switch!.........................................................................................................................................................!9!
Additional power functions!.........................................................................................................................!10!
Maintenance!...........................................................................................................................................................!11!
Transport!.................................................................................................................................................................!11!
Warranty!.........................................................................................................................................!11!
Product!disposal!...........................................................................................................................!11!
Product!origin!................................................................................................................................!11!

HID Xenon & LED Lighting Technology for Aerospace, Military and Industry
XeVision 4245 Airport Rd. Ogden, UT 84405-3301, USA
info: [phone]-366-4415 fax: [phone] http://www.xevision.com
3
!
!
$%&!'%(&!)*+,-'!

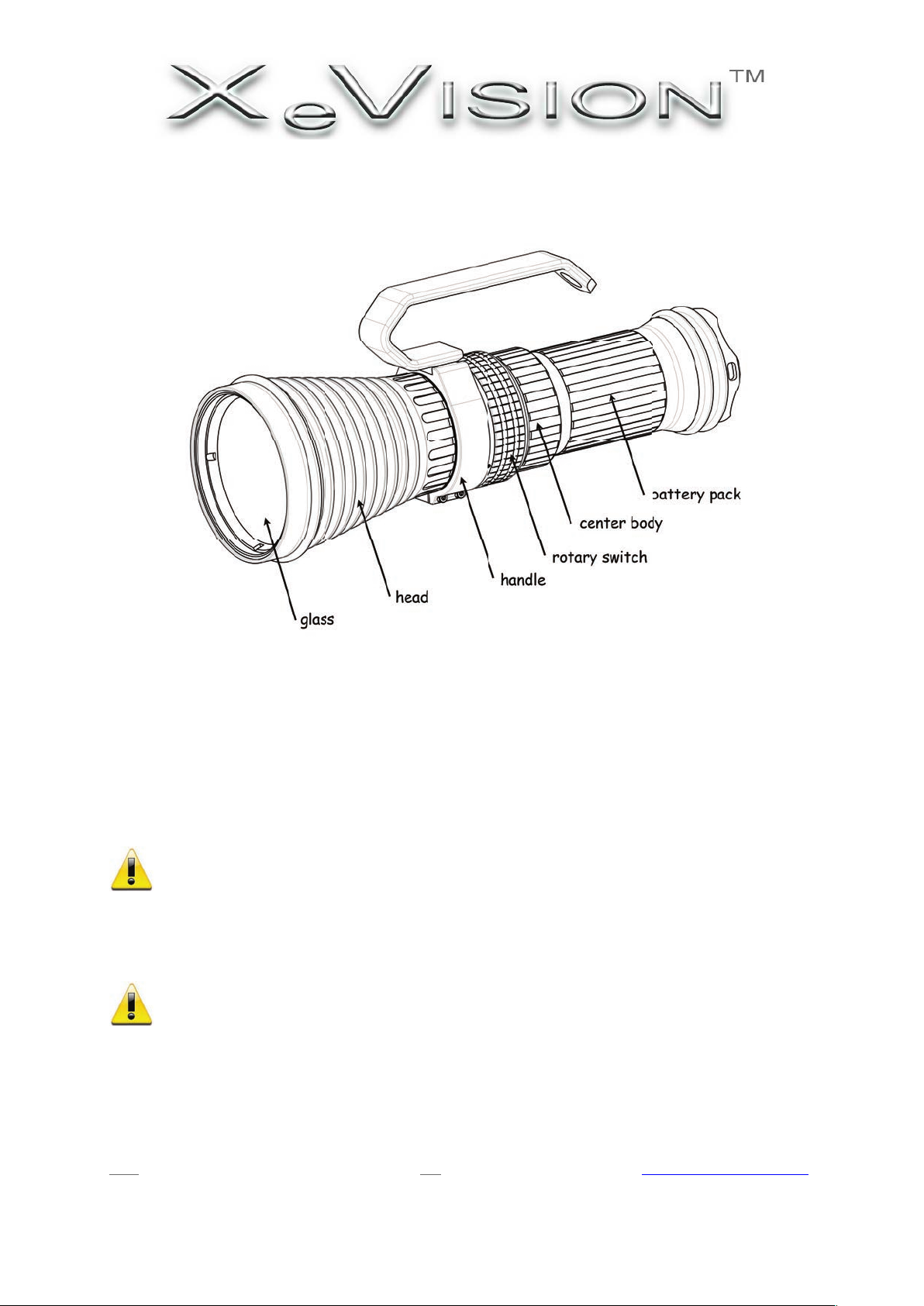

To prevent damage to the searchlight or injury to yourself or to others, read the following
safety precautions in their entirety before using this equipment. Keep these safety instructions
for all who use the product.
Warning
•The searchlight has a high energy output and it becomes hot during extended operation
(especially the front glass). Provide open air flow access for cooling. Avoid proximity
to flammable surfaces!
Do not disassemble
•Do not disassemble the searchlight! It is designed to fulfill the demands for operation
in extreme conditions. Disassembly not performed by professionals may result in
product failure of sensitive internal parts of the searchlight. Contact XeVision for
necessary repairs.

HID Xenon & LED Lighting Technology for Aerospace, Military and Industry
XeVision 4245 Airport Rd. Ogden, UT 84405-3301, USA
info: [phone]-366-4415 fax: [phone] http://www.xevision.com
4
If you lend the device also include the user´s manual
•This manual should be located within reach of the person(s) using the device.
•Only those persons well acquainted with the user’s manual contents, should be
allowed to use the searchlight.
Keep out of reach from children
•Children are forbidden to use the searchlight without supervision of an adult. The
temperature of the bulb increases after a longer runtime and it may cause serious
burns. Also the lamp is intensely bright, it could do retinal eye damage.
Storage
•Do not store the searchlight in wet or humid places or in a space where the ambient
temperature may exceed 40 oC or below 0 oC for extended periods.
Cleaning
•Use always a piece of clean cloth to clean the searchlight. Do not use any kind of
solvents or chemicals.
•Rinse the searchlight with generous amounts of fresh water after using the searchlight
in salt water!
Charging
•Always use the provided charger. Incorrect charging may cause serious damage to the
battery pack. Do not use the charger if the cable or any part of the charger has been
damaged. Damaged parts should be replaced by XeVision.
•Do not disassemble the charger. Any kind of repairs must be done by XeVision.
Incorrect assembly or disassembly or other incorrect manipulation may cause short
circuit and complete failure of the searchlight.
•Always unplug the cable of the charger before any kind of maintenance or cleaning!
•The charger has been designed ONLY to be used indoors.
•The charger must not be plugged in unattended for extended time after the battery has
been fully charged!
•Do not use the charger near flammable liquids and in explosive environments, it may
cause ignition of fumes and explosion.
Do not expose the searchlight to extreme conditions if it is not necessary
•Extreme conditions are e.g.: Low and high temperatures (under 0 oC and above 50 oC),
severe shocks and impacts, acids, Long term water exposure, etc.

HID Xenon & LED Lighting Technology for Aerospace, Military and Industry
XeVision 4245 Airport Rd. Ogden, UT 84405-3301, USA
info: [phone]-366-4415 fax: [phone] http://www.xevision.com
5
Warning
•Do not locate the searchlight near fire or other sources of heat. It may cause damage to
the product.
Warning

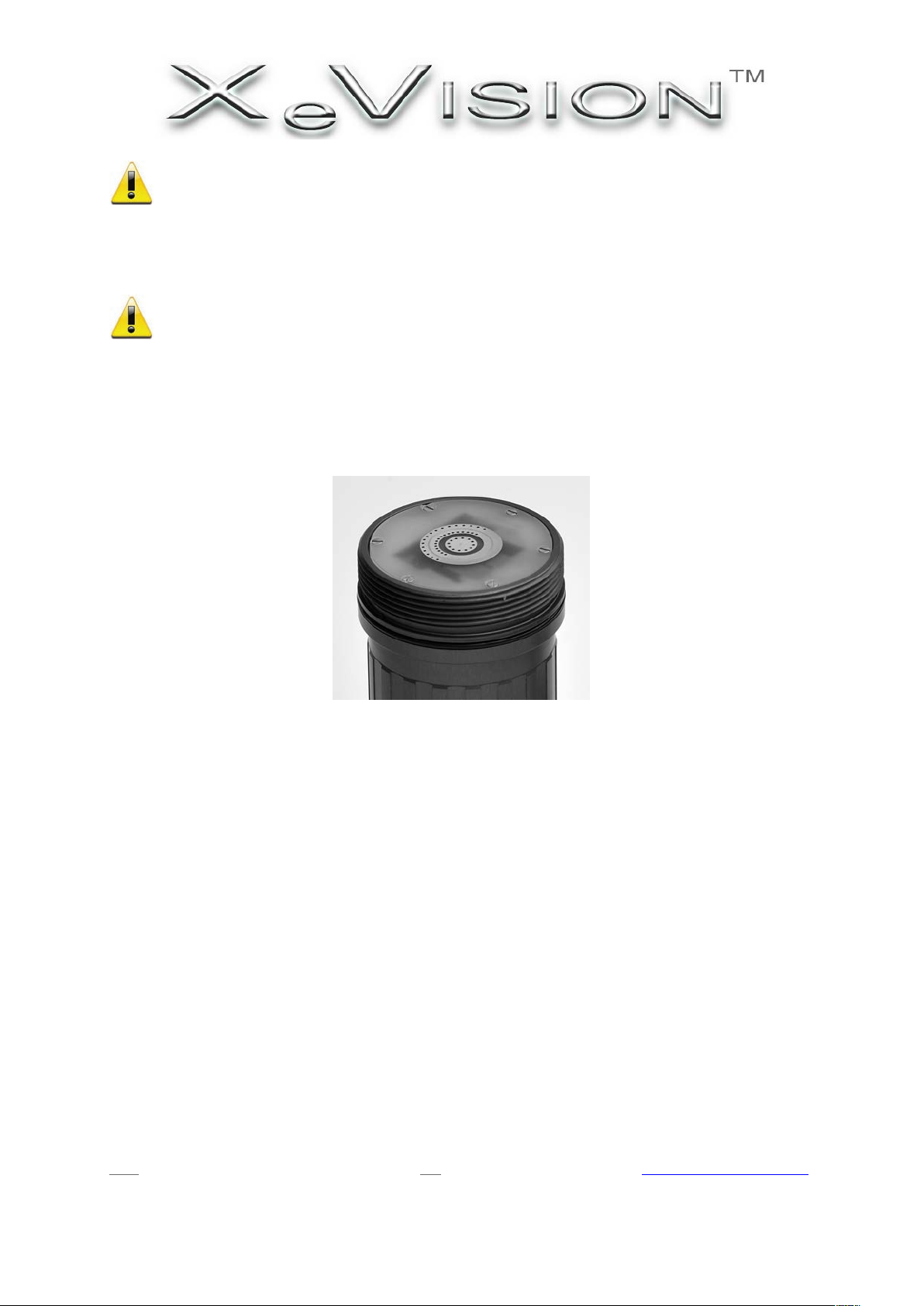

•Do NOT touch the gold contact areas of the battery. This could cause!" short
circuit and may damage the battery!!!!#$%&'()*!"+,$!+-".-,!"!/-,(0%-!$1!2$03!$(+,!
1/$4!3$%/!1()*-/,5

HID Xenon & LED Lighting Technology for Aerospace, Military and Industry
XeVision 4245 Airport Rd. Ogden, UT 84405-3301, USA
info: [phone]-366-4415 fax: [phone] http://www.xevision.com
6
!
User´s!Manual!
Notices
•Acquaint yourself FULLY with the functions of the searchlight. Read carefully the
user´s manual. The searchlight is designed to be used in extreme conditions but there
are limits of its utilization – see charging the searchlight.
•The searchlight must be used only with its original charger.
•The searchlight should always be stored with a fully charged battery.
•Be always careful with the use of this HID searchlight. Check the searchlight parts for
any kind of damage before use.
XeRay™ XV-LX50 specification summary
Basic parameters
Light source power: 35 W and 50 W, user switchable by magnetic ring switch
Luminous flux: 3200 lumen (35 W) or 5300 lumen (50 W)
HID D1S bulb life: 2000 hours
Color temperature: 4200 °K
Power: 12 VDC
Water resistance: 50 m
Maximum lighting distance: 2500 m
Effective lighting distance: 1000 m @50 W, 800 m @ 35 W
Working temperature: -20°C [-4°F] up to +60°C [+140°F]
Max. working temp.: +120°C [248°F] max. 1 min
Surface treatment: Hard anodizing: MIL-A-8625
Continuous run time
Approx. 200 min (35 W), approx. 140 min (50 W)
Weight
XeRay™ XV-LX50 : 1940 g [4.3 lb]
Charger: 345 g [0.76 lb]
Rechargeable batteries
Life cycles: 1000
Charge time: Approx. 350 min (at 20°C)

HID Xenon & LED Lighting Technology for Aerospace, Military and Industry
XeVision 4245 Airport Rd. Ogden, UT 84405-3301, USA
info: [phone]-366-4415 fax: [phone] http://www.xevision.com
7

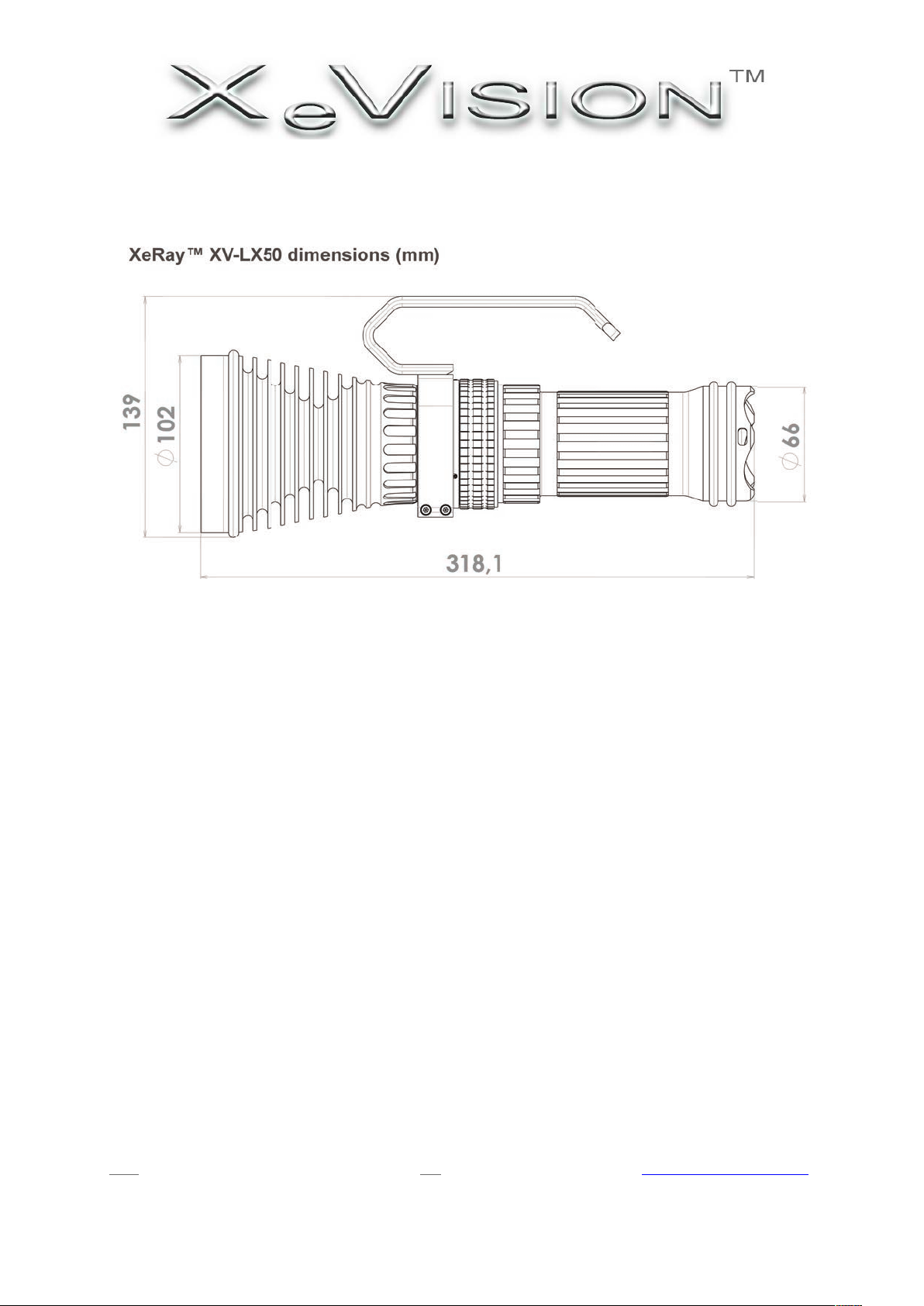

Dimensions
What’s in the box
XeRay™ XV-LX50 with handle
Battery pack, Li-Ion (14.4 VDC, 8500 mAh)
Charger: AC 100-240V/50-60 Hz
Container with 1 g DOW CORNING High vacuum grease (for head O-ring application only)
Shoulder strap
PELI Case
Optional accessories and spare parts
Battery pack, Li-Ion (14.4 VDC, 8500 mAh)
D1S HID bulb (modified)
Charger: AC 100-240V/50-60 Hz
Shoulder strap
IR Filter (Note: use 35 W Mode only due to excessive heat at 50 W)
Yellow (fog) filter
UV - Black-light filter (Note: use at 35 W mode only due to excessive heat at 50 W)
Diffuser lens

HID Xenon & LED Lighting Technology for Aerospace, Military and Industry
XeVision 4245 Airport Rd. Ogden, UT 84405-3301, USA
info: [phone]-366-4415 fax: [phone] http://www.xevision.com
8
Operation
Charging
Safety First
Indication of battery discharging
The searchlight informs the user by a short interruption of illumination (1/2 second) when the
battery has been run down to 20% (approx.) of its rated capacity. The illumination is shortly
interrupted every 60 sec thereafter, until the light shuts off fully as the battery has insufficient
remaining stored energy for operation.
After the searchlight starts with this indication, the effective discharge of the battery you have
approx. 20% of the actual running time left until full shutdown of the searchlight.
When using the 50 watt (high) setting, once the 20% battery level is reached, first the
searchlight automatically reduces to the 35 watt setting to conserve available battery power.
Then the unit also starts the light interruption sequence as explained above.
After switching off or fully discharging wait 5 min and connect the searchlight to the
charger.
Charging
1. To charge the battery, unscrew the battery assembly (rear part of the searchlight) from
the body of the searchlight. Use force (torque) only as necessary for connection and
disconnection of the battery from the searchlight. Because of the sealing O-ring
additional torque is not needed and will make future removal more difficult.
2. Connect the charger to the source of the electric current first.
3. Screw the battery to the charger.
4. The green light starts blinking.
5.
6. Before connecting the battery back to the searchlight XV-XV-LX50, oil the
sealing ring and also the screw thread if necessary.

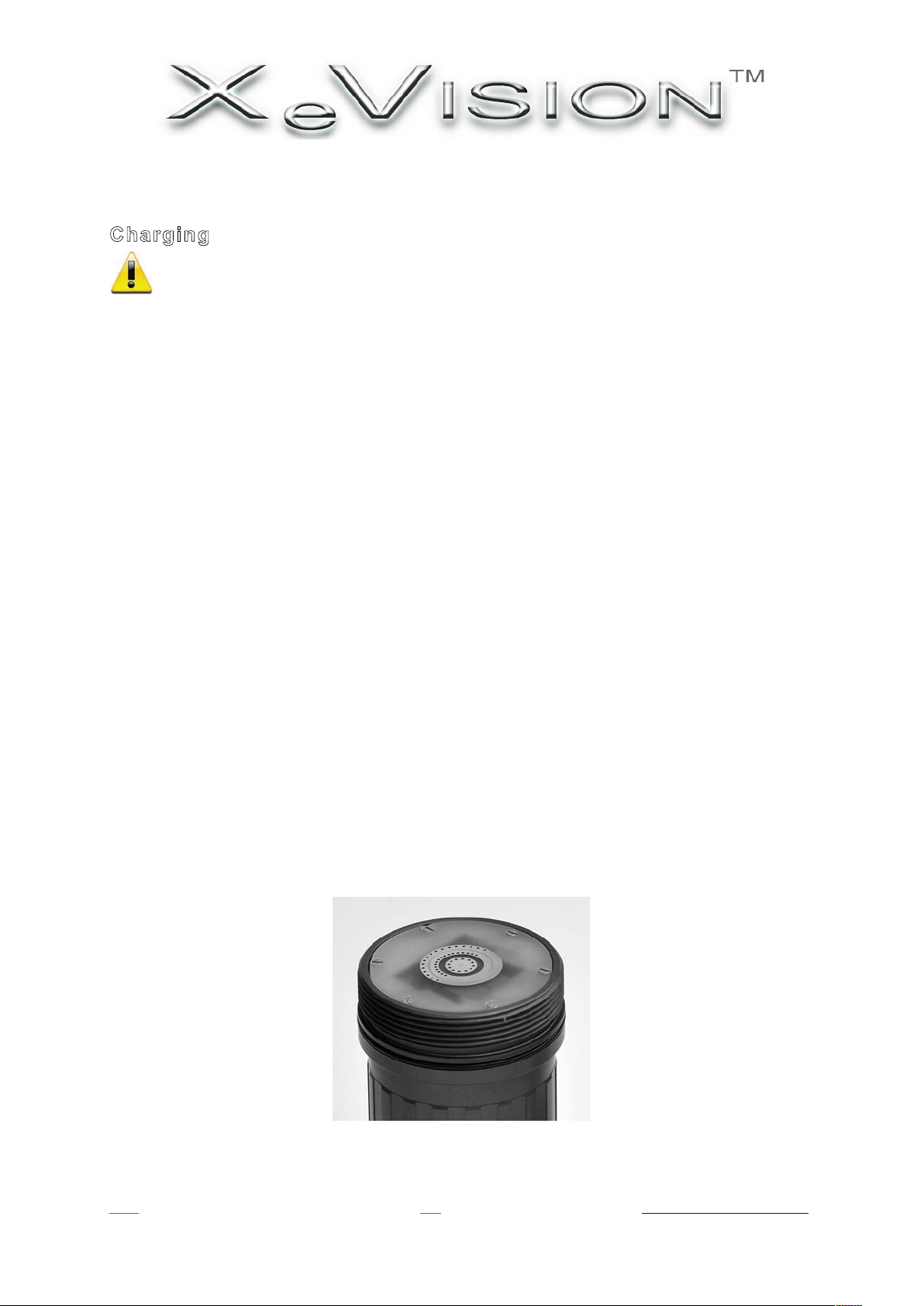

XeRay™ XV-LX50 charging – do not touch the gold contact circles!

HID Xenon & LED Lighting Technology for Aerospace, Military and Industry
XeVision 4245 Airport Rd. Ogden, UT 84405-3301, USA
info: [phone]-366-4415 fax: [phone] http://www.xevision.com
9
The searchlight is equipped with a set of Li-Ion cells assembled (enclosed) in an anodized
aluminum housing, (battery pack) that can be recharged repeatedly. Cells are heavily!under
load (power drain) during operation of the searchlight. Therefore wait 5 min after
finishing use of! (turned! off)! the searchlight,before recharging. If you connect the
searchlight to the charger immediately after switching off of the searchlight or immediately
after complete discharge, the charger will not start the charging! The internal batteries need a
few minutes to cool down.
Check the small indicator LED on the charger:
Green light off – Battery is not connected
Green light blinking – Charging
Green light on – Battery is full
Red light blinking – caution! – faulty operation, please disconnect and try again
ON-OFF Switch
The black rotary dial just behind the handle serves to switch the searchlight on and off.
Switching the searchlight on/off:
50 W – Quickly rotate the dial clockwise 3600.
35 W – Quickly rotate the dial counterclockwise 3600.
OFF – Quickly rotate the dial in opposite direction of the selected wattage
Note: Quick movements are necessary to switch the searchlight ON or OFF.

HID Xenon & LED Lighting Technology for Aerospace, Military and Industry
XeVision 4245 Airport Rd. Ogden, UT 84405-3301, USA
info: [phone]-366-4415 fax: [phone] http://www.xevision.com
10
Additional power functions
In addition to the normal operation of the XeRay™ XV-LX50 HID searchlight through
simple external manipulation, an internal dip switch array is provided for two group of
advanced functions (Factory settings – all switches set to ON).
The dip switch array can only be accessed after the battery has been removed. The dip switch
array is located on the PCB inside the XeRay™ XV-LX50 HID searchlight body, see picture
below:
In order to switch the individual dip switches a ball pen may be used.
XeRay™ XV-LX50 Output power preset
This setting is defined by selection of switch 1 and switch 2
Normal dual power mode, 35/50 W is selected
Switch 1 ON
Switch 2 ON
Permanent single power mode, 35 W is selected
Switch 1 ON
Switch 2 OFF
Permanent single power mode, 50 W is selected
Switch 1 OFF
Switch 2 ON
XeRay™ XV-LX50 Input power control function
This setting is defined by selection of switch 3 and switch 4, and will be released in the near
future (status aug. 2013). It will control external power sources and remote control.
Internal battery mode (factory setting)
Switch 3 ON
Switch 4 ON
