Xiaowa Xiaowa Lite User manual

User Manual of Xiaowa Robotic Vacuum Cleaner
Please read this user manual carefully before use and keep it well for future reference

Safety Information
Restrictions
This product is designed for indoor floor cleaning only. Please do not use it outdoors
(such as an open-ended terrace), on any surface instead of the ground (such as a sofa),
or in a commercial or industrial environment
Please do not use the product on any elevated surface without barriers (such as the
floor of a loft, an open-ended terrace and the surface of furniture
Please do not use the product when the temperature is higher than 40℃ or lower
than 4℃, or there is any liquid or sticky substance on the floor
Before using the product, please put aside wires on the floor to avoid them being
dragged around when the cleaner is working
To prevent the cleaner from being blocked whilst it is working and your valuables from
any damage from slight crashes, please clean up fragile objects and odds and ends on
the floor before switching on the cleaner (such as vases and plastic bags)
Children should be supervised to ensure that they do not play with the appliance
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervisionor instruction concerning use of the appliance by a
person responsible for their safety（CB）
1

The appliance must be switched off and the plug must be removed from socket-outlet
before cleaning or maintaining the appliance
2
Safety Information
Do not carry the cleaner by the cap on the distance laser sensor, the cover on the
main unit or the collision buffer
Do not use the cleaner to clean hard or sharp objects (such as decoration wastes, glass
and nails)
Do not use the cleaner on plush carpets (the cleaner might not work well on some
dark-colored carpets either)
Do not use the cleaner on any burning object (such as a burning cigarette butt)
Keep hair, loose clothing, fingers, and all parts of body away from openings and
moving parts
Do not place any object (including children and pets) on the cleaner, no matter
whether it is working or not
Please keep the main brush cleaning tools out of reach of children
This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a
safe way and understand the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be made by children without
supervision（EU）

Please make sure the cleaner is powered off in shipment and original packaging is advised
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent
or similarly qualified persons in order to avoid a hazard
Safety Information
Do not use a wet piece of cloth or any liquid to clean any part of the product
Do not use the mopping module on carpets
Please use the product according to the manual. Any loss or damage caused from improper
use will be borne by the user
Battery and Charging
For the purposes of recharging the battery, only use the detachable supply Unit
xiaowa CDZ03RR or CDZ04RR provided with this appliance
Do not arbitrarily dismantle, repair or modify the battery or dock charger
Please keep the dock charger away from heat (such as heating plates)
The battery must be removed from the appliance before it is scrapped
Do not wipe or clean the chargers shrapnel with a piece of wet cloth or wet hands
WARNING
The battery is to be disposed of safely. Please do not discard waste batteries. Leave them
to a professional recycling organization
The appliance must be disconnected from the supply mains when removing the battery
3

Item
Main Unit
Dock Charger
Failure of the functions given in the manual
Failure of power on
Malfunction of the main brush, the side brush, the fan or the main wheel
Failure of charging the main unit
Power cable Failure of supply electricity to the dock charger
Faults
Table of Faults of Robotic Vacuum Cleaner
Table of Faults of Robotic Vacuum Cleaner
Safety Information
If left unused for a long period, please store the cleaner in a cool and dry place after
having it fully charged and switched off, charge it at least every three months to avoid the
battery being over discharged
The laser distance sensor of this product meets the standards for Class I Laser Products
in IEC 60825-1:2014 and will not generate hazardous laser radiation
Laser Safety
4
Dock Charger xiaowa CDZ03RR/ CDZ04RR
E2 E3
Xiaowa E2 ,E3
s
Rechargeable Li-on battery pack information
Cell number
BRR-1P4S-2600S/BRR-1P4S-2600D
2600mAh/37.44Wh
4
BRR-2P4S-5200S/BRR-2P4S-5200D
5200mAh/74.88Wh
8

Machine
Introduction
Cover lift
POWER light
White: battery capacity ≥ 20%
Red: battery capacity ＜ 20%
Slow flashing: Charging or starting up
Flashing in red: Faulty state
Clean/ON&OFF
Press to start cleaning
Press and hold to power on or off
Spot cleaning
Press to start spot cleaning
Note: press any key to pause cleaning,
recharging or spot cleaning midway
Recharge
Press to start recharging
5
Reset WIFI
Press and hold and for 3 seconds

Part list
Introduction
6
Power cable
Mopping cloth
Dock charger
Water tank
Moistureproof mat
Main brush cleaning tool

Dust bin

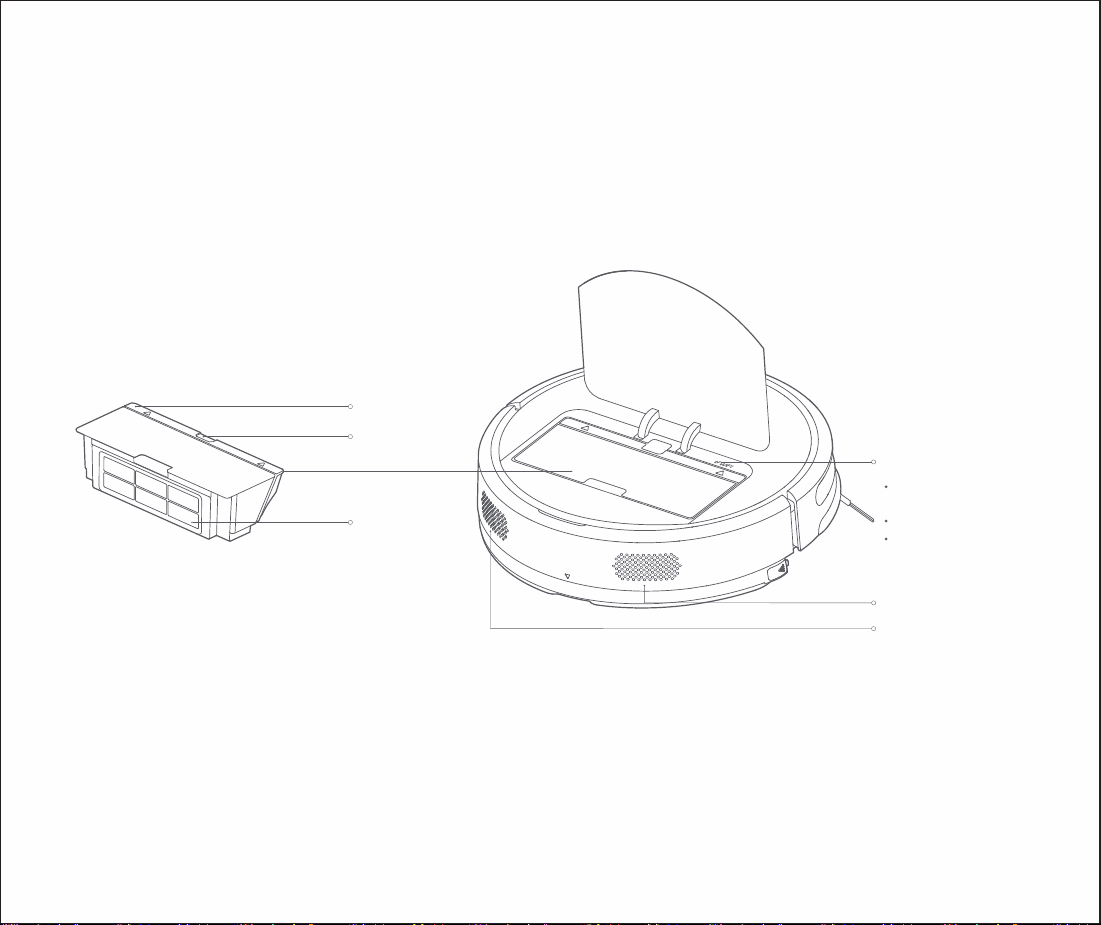

Introduction
Machine
7
WIFI indicator
Slow flashing:
Waiting for connection
Fast flashing: Connecting
Glowing: WIFI is
connected
Strainer
Dust bin buckle
Speaker
Air outlet
Dust bin cover

Machine and sensor
Introduction
8
Side brush
Omni-directional wheel
Bumper
Charging contact pieces
Motion tracking sensor
Main brush
Main wheel
Main brush cover buckle
Cliff Sensor
IR decelerate sensor
Omni-directional
recharge sensor
Dock charger
Dock charger
indicator
Charge tab
Power connector
Charge tab
Signal transmitting area

Installation
9
Power on and charge3
Press and hold the key to power on, wait until the power
light is normally on, and then dock the machine body to the
dock charger for charging
The machine is equipped with a built-in high performance
lithium-ion rechargeable battery pack. To maintain battery
performance, please keep the machine charged for normal use.
Clip the dock charger into the groove of the
waterproof mat and install it in place
1
Notes:
Ensure that 0.5 m or above in two sides and 1.5 m in the front are
retained for the dock charger
The power cable, when being vertical to the floor, may be dragged by
the machine body, thereby resulting in displacement or disconnection
of the dock charger
The dock charger indicator is normally on when the dock charger is
electrified, and off when the dock charger works
Place the dock charger against a wall on a
level floor and connect it to the power supply
2
Connect your mobile phone client (this can be skipped)4
Note: The machine may not be powered on when the battery is low.
Please directly dock the machine body to the dock charger
More than 0.5 m
More than 0.5 m
More than 1.5 m
The color of the POWER light
indicates the battery level
White: battery capacity ≥ 20%
Red: battery capacity < 20%

Installation
10
The product is compatible with Mi Home intelligent platform and could be controlled by Mi Home app.
It supports the MIUI system and can be interconnected with other Mi Home intelligent products
Quick Setup
Download App
Search "Mi Home" in App store/Google play or scan the QR code below to download and install the Mi Home app.
If anything is wrong with WIFI connection, you could try to reset WIFI to default.
Open upper cover to check the WIFI indicator status next to reset button. Press and hold the key and key until you hear the voice
"Reset WIFI ". The resetting is completed when the WIFIi indicator starts to flash slowly and the cleaner will enter a pending connection
state.
1
2
Go to "My Device" page of Mi Home app and tap "+" on the top right corner of the page to add a device. You could find newly added
device on "My Device" list
Add Device
3Reset WIFI

Installation
11
Note: When your mobile phone fails to connect to the machine,
please refer to "User Manual" - "Reset WIFI"
Slow flashing: Waiting for connection
Fast flashing: Connecting
Glowing: WIFI is connected
WIFI indicator
Install the mopping module5
1Install the module: push the module in parallel along the
alignment signs on the rear of the machine and on the
mopping module. It is installed in place when you hear
a "click" sound.
Note: Do not use the mopping module when there is nobody at home
Note: To get better mopping effect, it is recommended to install
the mopping module after cleaning for 3 times
Refill the water tank: open the water tank and reinstall the water
tank cover after refilling with tap water
Note: Please be aware that some floor cleaners or disinfectants may
cause blockage of the water tank filter
Install the mopping cloth: dampen the mopping cloth and
squeeze it dry. Insert it to the end along the slot of the
water tank and stick it firmly
2
3

Installation
12
Start cleaning6
When the power light changes from white breathing flash to
normally on, charging completes. Press the key or use your
mobile phone client to start cleaning
Note:
Do not use the mopping module when there is nobody at home
It is recommended to clean the mopping cloth every 30 minutes to ensure
water flow rate and cleaning effect
After the machine completes cleaning and returns to the dock
charger, use your hands to push two buckles in two sides, drag
the mopping module backwards and remove it
Remove the mopping module7
Note:
Remove the mopping module when the machine is charging or left unused.
Empty water residue in the water tank and clean the mopping cloth to
prevent mildew or undesirable odor
When the dock charger is placed on a wooden floor, always place a
moisture-proof mat thereunder to avoid moisture on the floor
Routine Maintenance
Note: It is recommended to replace the main brush every 6-12
months to ensure the cleaning effect
Main brush Clean weekly
1. Flip the machine over and push the buckle to remove
the main brush cover
2. Lift the main brush up and clean its bearing
3. Use the supplied main brush cleaning tool to cut off
hair entangled onto the main brush
4. Reinstall the main brush and clamp tightly the buckle
on the main brush cover
Use of main brush cleaning tool
Buckle
Main brush cover
Main brush
Main brush bearing
*

Routine Maintenance
13
Dust bin and strainer Clean weekly
1. Remove the top cover of the machine and press the
dust bin buckle to lift up and remove the dust bin
2. Open the dust bin cover as indicated by arrow, and empty trash out
Clean the washable strainer Clean every two weeks
1. Open the dust bin cover as indicated by arrow
2. Fill the dust bin with clean water and close the cover. Shake the
dust bin and then pour out the dirty water
Note: Please rinse with clean water without adding any detergents
* *

Routine Maintenance
14
3. Remove the filter and rinse with water
4. Rinse repeatedly and lightly pat the filter to remove any dirt.
Continue until it is clean
5. Dry the filter thoroughly and reinstall it before use
Note: Do not touch the surface of the filter with hands, brushes or sharp
objects so as to avoid damaging the filter
Note:
Always dry the filter thoroughly before use (dry for at least 24 hours)
It is recommended to alternate between two strainers
Note: flush it with tap water and reinstall after drying
1. Flip the machine over and lift the omni-directional wheel up
2. Remove hair and dirt on the wheel body and axle
3. Reinstall the wheel body and press tightly
Omni-directional wheel Clean monthly
Wheel body
Axle
Rack
Side brush Clean monthly
1. Flip the machine over to remove the fixing screw on the side brush
2. Remove and clean the side brush
3. Reinstall the side brush and tighten the screw
Note: It is recommended to replace the side brush every 3-6 months
to ensure the cleaning effect
*
*

Routine Maintenance
15
Mopping cloth Clean after use
1. Remove the mopping cloth from the mopping module
2. Clean the mopping cloth and dry it
Note:
Always remove the mopping cloth for cleaning and avoid backflow of
dirty water that may block the filter
If the mopping cloth is too dirty, the mopping effect may be affected.
Please clean it before use
It is recommended to replace the mopping cloth every 3-6 months
to ensure the cleaning effect
Filter assembly Replace every 1-3 months
1. Use your finger to remove the filter assemblies on the
left and right along the notch
2. Install a new filter assembly in place
Note: It is recommended to replace a filter assembly every 1-3
months to ensure the cleaning effect, depending on the quality
of water and frequency of use.
The machine is internally provided with a high performance
lithium-ion rechargeable battery pack. To maintain battery
performance, please keep the machine charged in normal use
Note: If the machine is left unused for a prolonged period of time,
please power it off before storage and charge it at least every 3 months
to avoid degradation due to over-discharge
Battery
**

Routine Maintenance
16
Machine sensor Clean monthly
Use soft dry cloth to wipe and clean each sensor, including:
1. Four cliff sensors on the bottom of the machine
2. IR decelerate sensor in front of the machine
3. Charging contact on the bottom of the machine
Omni-directional wheel
Charging contact
Motion tracking sensor
Side brush
Cliff Sensor
Dock charger Clean monthly
Use soft dry cloth to clean the charging contact of the dock charger
Reset system
Firmware update
When pressing keys makes no response or the machine cannot
be shut down, please try to reset the system by pressing
the key;
the machine will be restarted automatically after resetting
You can use your mobile phone client to update firmware for
the machine. Please connect it to the dock charger and ensure
that the battery capacity is more than 20% before update. The
power indicatoris fast flashing in white during firmware update
IR decelerate sensor
Restoring to Factory Defaults
If the system still doesn't work after resetting, please press
and hold the button simultaneously, until the system
prompts for "Start restoring initial version". The machine will
be restored to factory defaults in this way
* *

Basic parameters
17
Machine
353x350x90.5mm 353x350x90.5mmOutline Dimension
Model
Battery
Power rating
Weight
Wireless connection
Voltage rating
WIFI Smart Connect WIFI Smart Connect
14.4VDC 14.4VDC
Name Specs Specs
Dock charger
42W
100-240VAC
50-60Hz
151x130x98mm
Outline Dimension
Model CDZ03RR or CDZ04RR
Power rating
Input rating
Output rating
Frequency rating
20VDC 1.8A
Name Specs
About 3.0kg About 3.2kg
E2 , ( can be 0 to 9, A to Z, a to z, "-",
"_", "\", "/" or blank,for marketing purpose.)
***** * E3 , ( can be 0 to 9, A to Z, a to z, "-",
"_", "\", "/" or blank,for marketing purpose.)
***** *
14.4V/2600mAh lithium battery 14.4V/5200mAh lithium battery
54W 58W

Xiaowa Model Comparison
18
Xiaowa Lite Xiaowa Xiaowa Plus
Obstacle clearance height 2.0cm 2.0cm 2.0cm
Max suction 1600Pa 1800Pa 2000Pa
Dust bin capacity 640 ml 640 ml 640 ml
Max run time 60 minutes 90 minutes 150 minutes
Battery capacity 2600mAh 2600mAh 5200mAh
Cleaning map No map Pixel map Pixel map
Navigation method Adaptive random navigation Inertial navigation route planning Inertial navigation route planning
Wet mopping function No mopping Sweeping + mopping Sweeping + mopping
Automatic recharge √ √ √
Timer cleaning √ √ √
Fall prevention √ √ √
Washable strainer √ √
Moistureproof mat √ √
Smart home interconnection √ √ √
Carpet Boost √ √ √
Cleaning method
Cleaning capacity
Extended app functions
Hardware system
Xiaowa C1 ***** Xiaowa E2 ***** Xiaowa E3 *****
Model
to z, "-", "_", "\", "/" or blank,
for marketing purpose.)
（ can be 0 to 9, A to Z,
*
