Xineron XIN-PD-0585 User manual

DNR Super High Resolution
Day & Night Color Camera
3-AXIS INDOOR DOME CAMERA
Please read this manual thoroughly before use, and keep it handy for future reference.
INSTRUCTION MANUAL

ii
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT
THROUGH THE VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMENT.
EXPLANATION OF GRAPHICAL SYMBOLS
The lightning flash with arrowhead symbol, within an equilateral triangle,
is intended to alert the user to the presence of uninsulated ''dangerous
voltage'' within the product's enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the product.
PRECAUTIONS
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER(OR BACK).
NO USER-SERVICABLE PARTS INSIDE.
REFFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
Safety
Should any liquid or solid object fall into the cabinet,
unplug the unit and have it checked by
qualified personnel before operating it any further.
Unplug the unit from the wall outlet if it is no
t going to
be used for several days or more.
To disconnect the cord, pull it out by the plug. Never
pull the cord itself.
Allow adequate air circulation to prevent internal heat
build-
up. Do not place the unit on soft surfaces (rugs,
carpets, sofas, etc.
) or near materials (curtains,
draperies) that may block the ventilation holes.
Installation
Do not install the unit in an extremely hot or humid place
or in a place subject to excessive dust, mech
anical
vibration.
Cleaning
Clean the unit with a slightly damp soft cloth.
Use a mild household detergent. Never use strong
solvents such as thinner or benzine as they might
damage the finish of the unit.
Retain the original carton and packing material
s for safe
transport of this unit in the future.

iii
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding
type plug has two blades and a third grounding prong. The wide blade or
the third prong are provided for your safety. If the provided plug does not fit
into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the
cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when
unused for long periods of time.
14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been dropped.
15. CAUTION – THESE SERVICING INSTRUCTIONS ARE FOR USE BY
QUALIFIED SERVICE PERSONNEL ONLY. TO REDUCE THE RISK OF
ELECTRIC SHOCK DO NOT PERFORM ANY SERVICING OTHER THAN
THAT CONTAINED IN THE OPERATING INSTRUCTIONS UNLESS YOU
ARE QUALIFIED TO DO SO.
16. Use satisfy clause 2.5 of IEC60950-1/UL60950-1 or Certified/Listed
Class 2 power source only

iv
FCC COMPLIANCE STATEMENT
CE COMPLIANCE STATEMENT
WARNING: This is a Class A product. In a domestic environment this
product may cause radio interference in which case the user may be
required to take adequate measures.
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC INFORMATION :
This equipment
has been tested and found to
comply with the limits for a Class A digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to
correct the interference at his own expense.
CAUTION :
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-003
du Canada.

v
CONTENTS OF PACKAGE
Installation of the camera must be performed by qualified service personnel in
accordance with all local and national electrical and mechanical codes.
Carefully remove the color camera and its accessories from the carton
and verify that they were not damaged in shipment.
The contents of the package includes :
1. Camera in Housing _____________________1
2. Instruction Manual (This Document) ________1
3. Accessory Kit for Installing _______________1
4. Drilling guide label _____________________1

vi
TABLE OF CONTENTS
INTRODUCTION ----------------------------------------------------------------------------------------- 1
CAMERA CONNECTION & CONTENSTS of PACKAGE ------------------------------------- 2
INSTALLATION ------------------------------------------------------------------------------------------ 3
OSD MENU STRUCTURE ---------------------------------------------------------------------------- 7
AUTO WHITE DEFECT & LENS ADJUSTMENT ---------------------------------------------- 14
EXTERNAL DIMENSION ---------------------------------------------------------------------------- 15
SPECIFICATIONS ------------------------------------------------------------------------------------- 16

1
INTRODUCTION
The camera provides high-quality images using SONY 1/3” CCD and digital
Signal process LSIs.
Features:
● 1/3" HAD CCD Ⅱ for an image of high sensitivity
● 2.8~12 mm D/N Vari-focal(DC AI)
● Digital Wide Dynamic Range ( Adaptive Tone Reproduction)
● Excellent picture quality
● 700 lines of resolution
● Minimum illumination 0.15 Lux (Color)
● Auto electronic shutter [1/60(1/50) ~ 1/10,000] and manual electronic
shutter modes
● OSD (On Screen Display)
● Auto and manual white balance modes
● Auto BLC and HLC, Day & Night (Auto)
● 2D-NR
● Privacy Zone 4 point, Motion Detection 4 Point
● MIRROR, SHARPNESS, HUE, CONTRAST, GAIN
● AGC (Auto Gain Control)
● VIDEO OUT (BNC or UTP)
● Internal
● Operates in 12VDC or 24VAC
(If using DC 12V power adaptor, Please use a power supply capable of
supplying over 600mA.)
● Use Certified / Listed Class 2 power source only.
● Auto White Defect
IMPORTANT :
The user of this cam
era is responsible for
checking and complying with local, state, and federal laws and
statutes concerning the recording and monitoring of audio
signals.

2
CAMERA CONNECTION
1. Lens : 2.8~12mm D/N Vari-focal(DC AI) for wide area monitoring
2. Power : power source from a DC 12V or AC 24V
3. Video : BNC connector used to connect the camera to a monitor,
switcher.ect.
4. UTP OUT
CONTENTS of PACKAGE

3

4

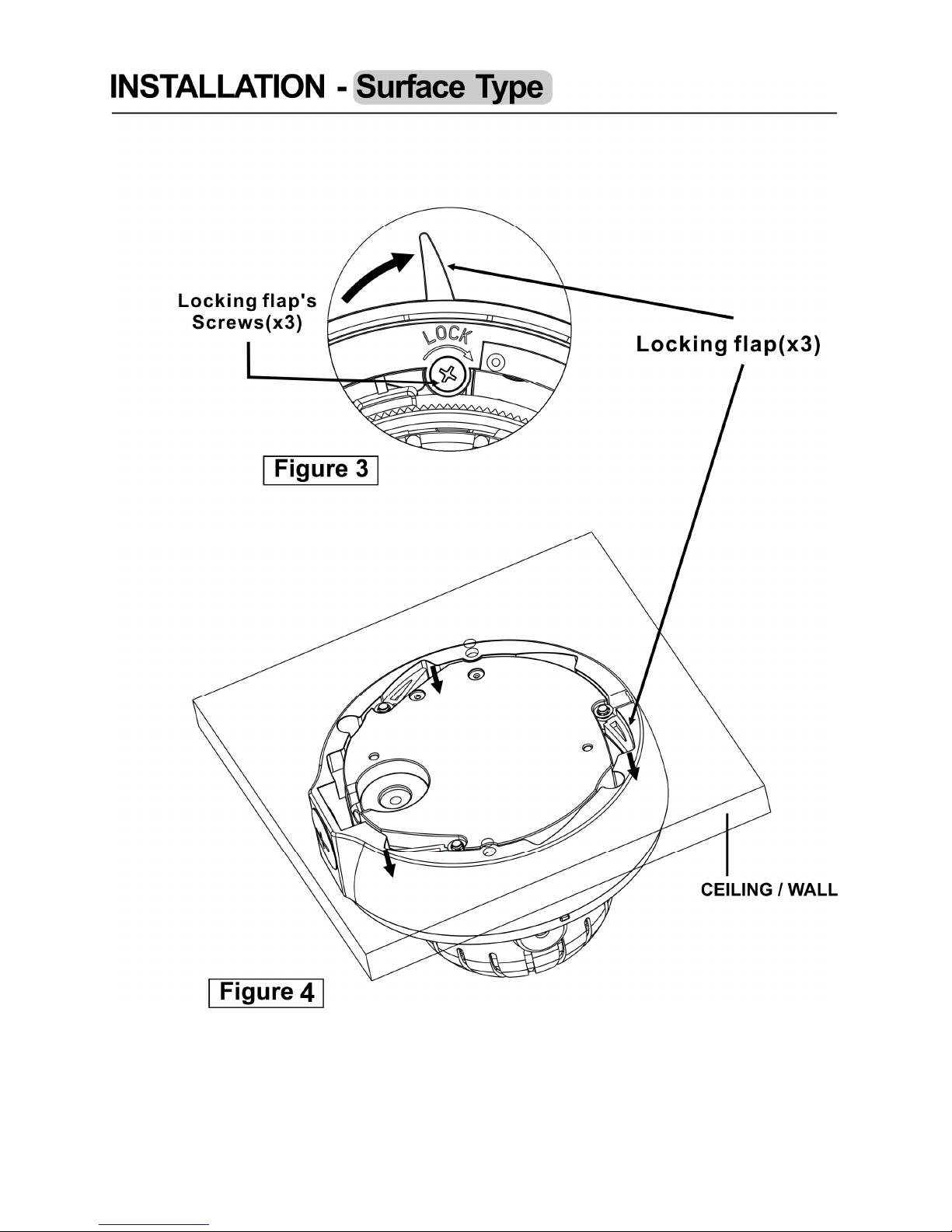

5

6

7
OSD MENU STRUCTURE
SETUP MENU (page 1)
LENS
SHUTTER/AGC
WHITE BAL
BACKLIGHT
PICT ADJUST
ATR
MOTION DET
NEXT (page2)
EXIT SAVE ALL
LENS
AUTO ↵
MANUAL
WHITE BALANCE
ATW ↵
PUSH
USER 1↵
USER 2↵
ANTI CR
MANUAL↵
PUSH LOCK
BACKLIGHT
OFF
BLC
HLC
PICTURE ADJUST↵
MIRROR
BRIGHTNESS
CONTRAST
SHARPNESS
HUE
GAIN
RETURN
SHUTTER/AGC
AUTO↵
MANUAL↵
ATR
OFF
ON↵
MOTION DET
OFF
ON↵

8
SETUP MENU (page 2)
PRIVACY
DAY/NIGHT
NR
CAMERA ID
LANGUAGE
CAMERA RESET
BACK (page 1)
EXIT SAVE ALL
PRIVACY
OFF
ON↵
DAY/NIGHT
COLOR
B/W↵
NR↵
NR MODE
Y LEVEL
C LEVEL
RETURN
CAMERA ID
OFF
ON↵
LANGUAGE
ENGLISH
日本語
DEUTSCH
FRANCAIS
PYCCKNN
PORTUGUES
ESPANOL
CAMERA RESET
(return the camera to
factory defaults)

9
LENS
AUTO
TYPE (DC / VIDEO)
Sets the type of mechanical iris
(Video lens is not supported)
MODE (AUTO / OPEN / CLOSE )
Sets the type of control to be applied over the mechanical iris.
SPEED (0 – 255)
Sets the convergence speed of the mechanical iris.
MANUAL
Manual lens only
. (Note Since Manual mode AUTO mode is changed SHUTTER/AGC to
SHUT+AUTO IRIS when MANUAL is changed to AUTO, AUTO MODE
should be changed to AUTO IRIS in SHUTTER/AGC)
SHUTTER/AGC
AUTO
HIGH LUMINANCE
MODE (SHUT+AUTO IRIS / AUTO IRIS)
(Note: only SHUT can be selected if LENS is in MANUAL mode
SHUT+AUTO IRIS is AE(Auto Exposure) for SHUTTER is 1/500(1/480) and
MIRIS)
BRIGHTNESS (0 ~ 255)
Adjusts the brightness
LOW LUMINANCE
MODE (AGC / OFF)
Auto Gain Control on or off
BRIGHTNESS (x0.25 / x0.50 / x0.75/ x1.00)
Amount of AGC applied in low lighting conditions
MANUAL
MODE (SHUT+ AGC)
Auto gain control
SHUTTER
Select the shutter speed (1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000,
1/10000)
AGC
Sets the AGC gain applied [dB] for ME (manual exposure)
(6, 12, 18, 24, 30, 36, 42, 44.8dB)

10
WHITE BAL
ATW (Auto Trace White balance)
SPEED (0~255)
Adjusts the pull-in speed of ATW.
DELAY CNT (0~255)
Sets the time-based hysteresis of ATW.
ATW FRAME (x0.5 / x1 / x1.5 / x2)
Sets the pull-in frame magnification.
ENVIROMENT (INDOOR / OUTDOOR)
Preset for either indoor or outdoor applications of the ATW
PUSH
Wide range Auto White Balance mode (AWB)
USER1 & 2
Both USER 1 & 2 can be individually set up for specific applications. The gain
values for the outdoor fixed mode are used as the adjustment items of USER1
on the internal OSD menu.
B-GAIN (0~255)
R-GAIN (0~255)
ANTI CR
Color rolling suppression
MANUAL
The B and R gain values for manual WB are set on this screen.
LEVEL (NTSC : 13 ~ 56) , (PAL : 16 ~ 78)
PUSH LOCK
PUSHLOCK is selected and the Enter input is active
BACKLIGHT
Sharpens subjects with backlight (OFF / BLC / HLC)
PICT ADJUST
MIRROR (OFF / ON) Horizontally inverts image.
BRIGHTNESS (0~255) Sets the screen brightness.
CONTRAST (0~255) Sets the screen contrast.
SHARPNESS (0~255) Sets the screen sharpness.
HUE (0~255) Adjusts the hue.
GAIN (0~255) Adjusts the gain.

11
ATR
ATR (Adaptive Tone Reproduction) allows adjustment of the image to assist
with widely contrasting scenes of view.
LUMINANCE (LOW / MID / HIGH)
Sets the extent of the luminance compression
CONTRAST (LOW / MIDLOW / MID / MIDHIGH / HIGH)
Sets the extent of the contrast enhancement
MOTION DET
DETECT SENSE (0~127)
Sets the motion detection sensitivity (0=low sensitivity, 127=high sensitivity)
BLOCK DISP (OFF / ON / ENABLE)
Applies a Motion block trace in the selected area. To define the area, select
Enable and push centrally on the joystick. Use the Joystick to navigate to the
blocks you want to Disable and not include in motion trace. To return to the
menu, push and hold central joystick for 2secs and release.
MOTION AREA (ON / OFF)
Enables/disables the motion detection
AREA SEL (1~4)
Selects the motion detection area
(Note: Set the area sel it would be better
to move firstly BOTTOM and RIGHT)
TOP (NTSC:0~244 , PAL:0~288)
0 = top
BOTTOM (NTSC:0~244 , PAL:0~288)
244(288) = bottom
LEFT (NTSC:0~474 , PAL:0~468)
0 = left
RIGHT (NTSC:0~474 , PAL:0~468)
474(468) = right
PRIVACY
AREA SEL (1~4)
Selects the motion detection area
(Note: Set the area sel it would be better
to move firstly BOTTOM and RIGHT)
TOP (NTSC:0~244 , PAL:0~288)
0 = top
BOTTOM (NTSC:0~244 , PAL:0~288)
244(288) = bottom
MOTION DET
DETECT SENSE IIIIIIIIIII 111
BLOCK DISP OFF
MONITOR AREA ON
AREA SEL 1/4
TOP IIIIIIIII 000
BOTTOM IIIIIIIII 076
LEFT IIIIIIIII 000
RIGHT IIIIIIIII 183
RETURN
PRIVACY
AREA SEL 1/4
TOP IIIIIIIIII000
BOTTOM IIIIIIIIII077
LEFT IIIIIIIIII000
RIGHT IIIIIIIIII187
COLOR 1
TRANSP 1.00
MOSAIC OFF
RETURN
PRIVACY
AREA SEL

12
LEFT (NTSC:0~474 , PAL:0~468)
0 = left
RIGHT (NTSC:0~474 , PAL:0~468)
474(468) = right
COLOR (1~8)
Sets the colors of the privacy zones.
TRANSP (0.00 / 0.50 / 0.75 / 1.00)
Sets the transparency of the privacy zone area if color is selected.
MOSAIC (OFF / ON)
Sets the mosaic function as the privacy to ON or OFF.
(Note: when ON, transparency needs to be set at 0.00 and privacy zones
can only be 1 color OR mosaic and not mixed)
DAY / NIGHT
COLOR (color only operation)
B/W (monochrome only operation)
BURST (OFF / ON)
Allows the color burst signal in monochrome to be removed if required.
IR OPTIMIZER (OFF / ON)
Smart IR mode OFF or ON
MODE (ONLY IR OPTIMIZER ON, AUTO / CENTER)
Auto : Histogram integration mode
Center : Center priority mode
LEVEL (ONLY IR OPTIMIZER ON, 0~31)
NR (2D-DNR)
This is used to remove noise from the image in low light conditions when
AGC is applied.
NR MODE (OFF, Y, C, Y/C)
Sets the 2D NR filter mode.
Y LEVEL (0-15)
Sets the Y filter (Luminance) strength.
C LEVEL (0-15)
Sets the C filter (Chrominance) strength.

13
CAMERA ID
Sets the camera ID to ON or OFF. A title of 52 characters per line can be
applied.
CLR
Inserts a space
POS
Allows you adjust the location of the camera ID title display. (if you move too
much right side or down, it might lose ID on the screen)
LANGUAGE
LANGUAGE select between:
English, Japanese, German, French, Russian, Portuguese & Spanish.
CAMERA RESET
CAMERA RESET - Returns the camera to the factory default settings.
SAVE ALL
SAVE ALL - Saves all the changes made in the menu.
EXIT
EXIT – Exits the menu and does not save changes made.
Use the joystick to navigate
the cursor. Pushing centrally
on the joystick will allow
selection of that character.
The arrows at the bottom
allow you to move the cursor
without changing the
character.

14
AUTO WHITE DEFECT
Push the left button for 5 seconds and enter Auto white defect menu.
Cover the lens and Enter for starting.
If white defects are over 65pcs, the camera is faulty and auto defect is
useless.
LENS ADJUSTMENT (OPTIONAL VARIFOCAL LENS)
Lens 2.8 ~ 12mm
Size 1/3’’ CCD
Focal
Length
2.8 ~ 12mm 5%
HORIZONTAL
Angular
Field of
View 100.8 ° ~ 23.7 °
