Xiolife 9180 Quickclean User manual
Model No.: 9180
Xiolife India Pvt. Ltd.
INSTRUCTION MANUAL
1st Floor, No.851/A, B-Block, AECS Layout, Singasandra Post, Koodlu Gate, Bangalore - 560068, India
Leaves No Dirt Or Debris Behind
Redefining Hygiene
R
1
Contents
INTRODUCTION
..............................................................................
2
SAFETY INSTRUCTIONS
..................................................................
3
ASSEMBLE & OPERATION
...............................................................
4
MAINTENANCE
............................................................................
6
Thank you for
purchasing the
Xiolife Quickclean
www.xiolifeindia.com
XIOLIFE INDIA PVT. LTD: 1st Floor, No.851/A, B-Block, AECS Layout,
Singasandra Post, Koodlu Gate, Bangalore - 560068, India
Introduction
2
www.xiolifeindia.com
XIOLIFE INDIA PVT. LTD: 1st Floor, No.851/A, B-Block, AECS Layout,
Singasandra Post, Koodlu Gate, Bangalore - 560068, India
1. Handle
6. Clarity Window
2. Connection Points
3. Connecting Poles
4. Dirt Cup Cover
5. Upper Housing
7. Belt Cover
8. Dirt Cup
9. Tie-In
10. Switch
11. Brush
12. Charging Point
13. Dirt Cup Handle
Please read these instructions carefully before using the appliance and
save them for future reference.
1
2
3
4
5
8
7
6
10
9
11
12
13
3
3
www.xiolifeindia.com
Description
It is a single roller rechargeable sweeper for cleaning hard-floor surfaces and carpets.
Functions
1: The battery is the main power source. Press the on/off button to switch the appliance on. The
switch is used to control sweeper operation and to protect the battery from damaging.
2: The sweeper handle can rotate upto 180 degree and can easily clean in all directions.
3: The brush base rotates in a circular motion allowing it to pick up dirt, crumbs, even hair very easily.
4: Sweeper parts: Brush and Dirt cup.
5: The brush rotates and cleans the surface. The dirt is stored in the dirt cup and can be seen
through the transparent cover. When the brush is in use, the light around the switch will flash
blue. When the battery is fully charged, the blue light will blink continuously.
6: The handle can be kept upright.
7. The dirt cup is patented magnetic for easy assembling and cleaning.
Important Safety Instructions
Read all instructions before using this appliance.
When using an electric appliance, basic precautions should always be followed, including the
following:
CAUTION:
To reduce the risk of fire, electrical shock, or injury:
1: Do not charge this product outdoors.
2: Keep it away from the reach of children. Close supervision is necessary when this product is used
by children.
3: Use this product only as described in this manual. Do not use attachments not recommended by
manufacturer.
4: Do not use this product if the cord or the plug is damaged. If the product is not working properly,
if it has been dropped, damaged, left outdoors or dropped into water. Return it to manufacturer for
examination, repair or adjustment.
XIOLIFE INDIA PVT. LTD: 1st Floor, No.851/A, B-Block, AECS Layout,
Singasandra Post, Koodlu Gate, Bangalore - 560068, India
4
www.xiolifeindia.com
5: Only charge the appliance with the adapter or charger supplied by the manufacturer.
6: Keep the product, cord and charging plug away from heated surfaces.
7: The product contains rechargeable Lithium battery. Do not burn batteries or expose them to high
temperatures, as they may explode.
8: Do not plug in the brush when the product is in use.
9: Do not use extension cord for charging. Plug charger directly into an electrical outlet. Use
charger only in a standard (In put 120V~240V,50/60Hz,Out put 5.5V 1000MA) electrical outlet.
Assemble and Operation

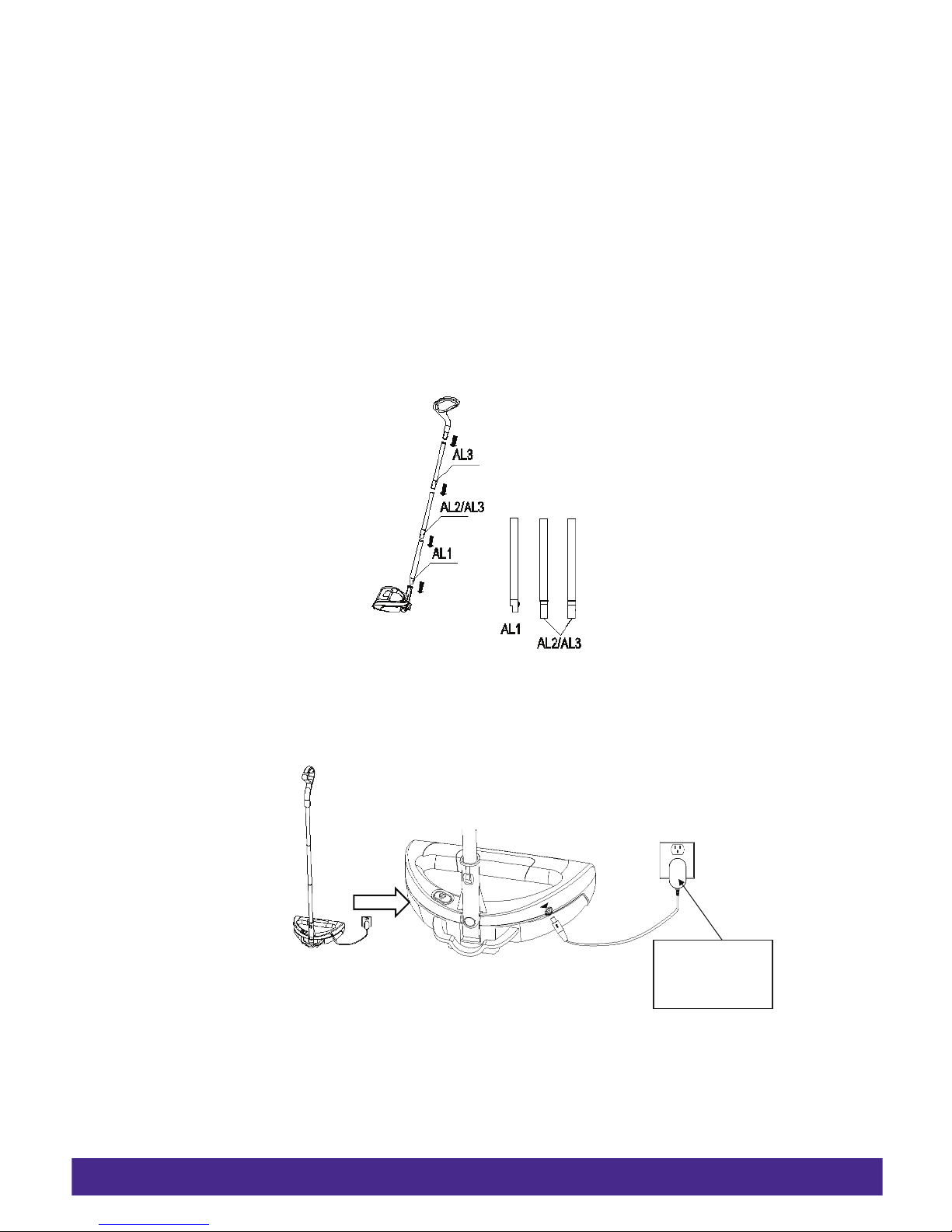

1. Assemble the handle as shown in the picture.
2. Charging the Sweeper: Connect charger to the outlet.
CC
charger to the
outlet
Remark: Plug the charger into plug-in located at the side of the product. A blue light will
flash which indicates the product is charging.
Once the battery is fully charged, the blue light will blink continuously. Remove the
plug. The machine is ready to use.
Connect
charger to
the socket.
XIOLIFE INDIA PVT. LTD: 1st Floor, No.851/A, B-Block, AECS Layout,
Singasandra Post, Koodlu Gate, Bangalore - 560068, India
5
www.xiolifeindia.com
3. Rechargeable Sweeper:
Make sure all the parts of the appliance are properly assembled. Also, switch off the appliance
before charging it. Otherwise the battery will not charge.
Operate as shown in the picture

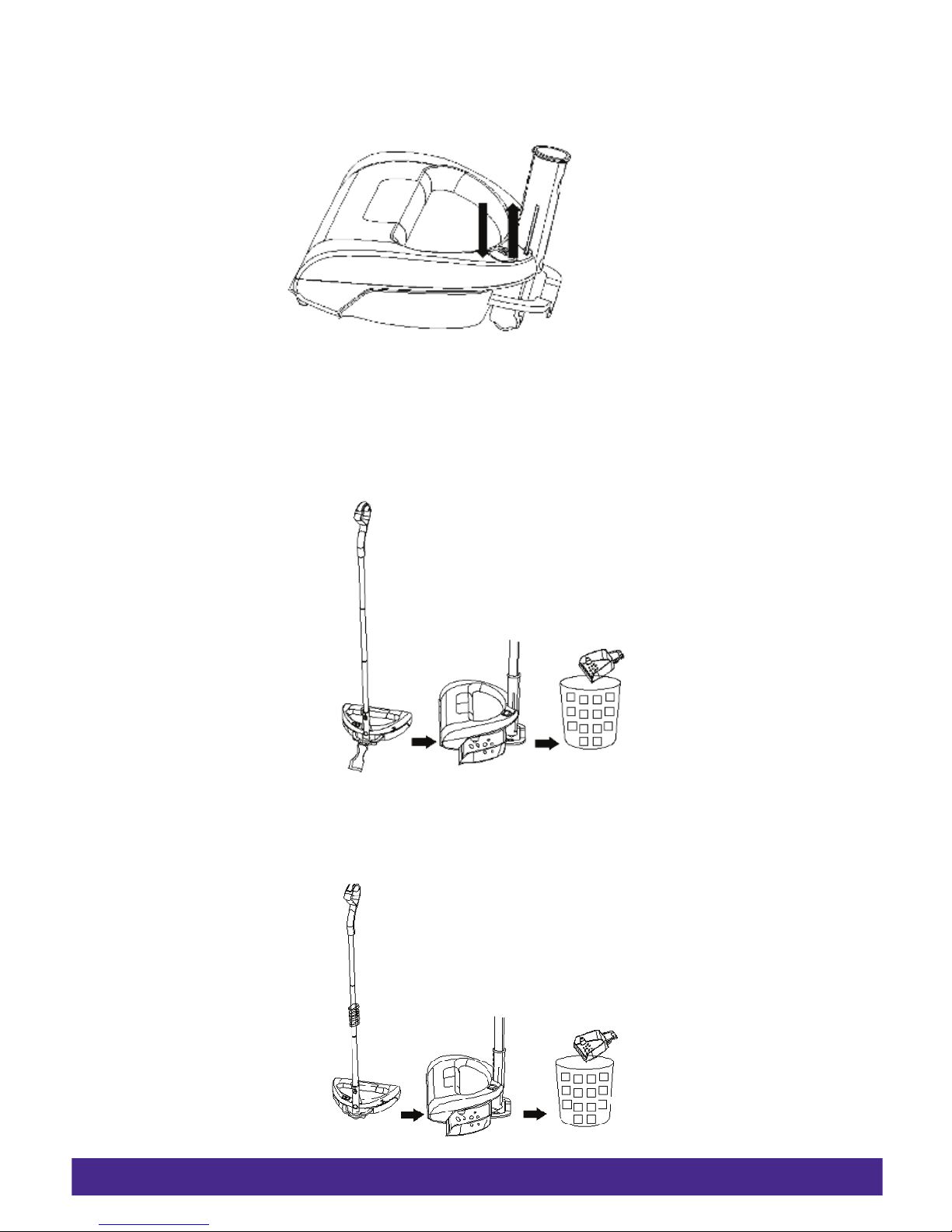

4. Dirt Cup cleaning:
Important: Clean the dirt cup after using the machine.
1: Press the dirt cup grip, lift the handle upright to remove the appliance.
2: Carry the dirt cup above the dustbin, rotate it to 180 degree, the dirt inside will be poured
into the dustbin. The dirt cup can be cleaned with water but it must be dry before use.
XIOLIFE INDIA PVT. LTD: 1st Floor, No.851/A, B-Block, AECS Layout,
Singasandra Post, Koodlu Gate, Bangalore - 560068, India
6
www.xiolifeindia.com
Maintenance
1. Cleaning the rotary brushes:
Disassemble the dirt cover and motor cover as below picture.
2. Removing the batteries:
Remove the dirt cup, loosen the two screws on the bottom of the brush base with a screwdriver,
and remove the cover battery.
3. Cleaning hair on the brush:
Your cordless sweeper will pick
up hair very easily. When
cleaning the brush you can use
a pair of scissors to cut any
entangled hair.
XIOLIFE INDIA PVT. LTD: 1st Floor, No.851/A, B-Block, AECS Layout,
Singasandra Post, Koodlu Gate, Bangalore - 560068, India
7
www.xiolifeindia.com
XIOLIFE INDIA PVT. LTD: 1st Floor, No.851/A, B-Block, AECS Layout,
Singasandra Post, Koodlu Gate, Bangalore - 560068, India
To make the battery last longer
Remark: Charge the product if using it for the first time or using it after a long time.
Remove the battery if you are not using the product.
1. When using the appliance, the battery must be fully charged.
2. Make sure the battery is recharged with the specified battery charger when the power is used out.
3. Do not throw the battery into fire or leave it near a heat source, it may cause explosion.
4. Charge it when your battery is about to get totally discharged and when you put it for charging, let
it get charged fully.
Warning:
1. Clean the appliance with dry cloth and remove the hairs on the brush once per month.
2. Do Not use detergent to clean the appliance.
3. Do Not use the appliance on wet floor or to sweep liquids.
4. Do Not use the appliance on concrete road or rough surface.
5. Do Not use the appliance to sweep big subject.
Model No. Battery Voltage Battery Parameter Charger
9180 3.7V/DC Lithium battery
3.7V
2200MAH
Input 100-240
V AC
50/60HZ,output
5.5V
DC1000MA
Electrical Specifications
Redefining Hygiene
R
1st Floor, No.851/A, B-Block, AECS Layout, Singasandra Post,
Koodlu Gate, Bangalore - 560068, India
Registered Corporate Office
Xiolife India Pvt. Ltd.
For more details visit us at www.xiolifeindia.com
