xit404 GC1201AQ User manual

Revsion 2.0 - APR2013 www.xit404.com
Thank you for purchasing Xit 404’s EF 8-15mm f/4L Fisheye USM
and EF16-35 f/2.8L II USM Zoom Gear. Below are instructions to
help you mount your gear. These instructions apply to lenses with
and without teleconverters. On the back is our warranty information
to help you prolong the life of this product.
Assembling the Zoom Gear
Look at the drawing to the left and note which end of the lens the
Red Zoom Gear slides onto. Slide the Zoom Gear onto your lens
from the back until it stops. If you have a teleconverter attached,
note that the main differences are the 1.4X and 2X gears are
longer and they are Gray color.
Disassembling the Zoom Gear
Remove the gear by pulling it off the back of the lens.
CANON EF 8-15mm f/4L Fisheye USM and EF 16-35 f/2.8L II USM
ZOOM GEAR ASSEMBLY INSTRUCTIONS
CANON 8-15 OR
16-35 LENS
RED ZOOM GEAR
(NAUTICAM GEAR
SHOWN)

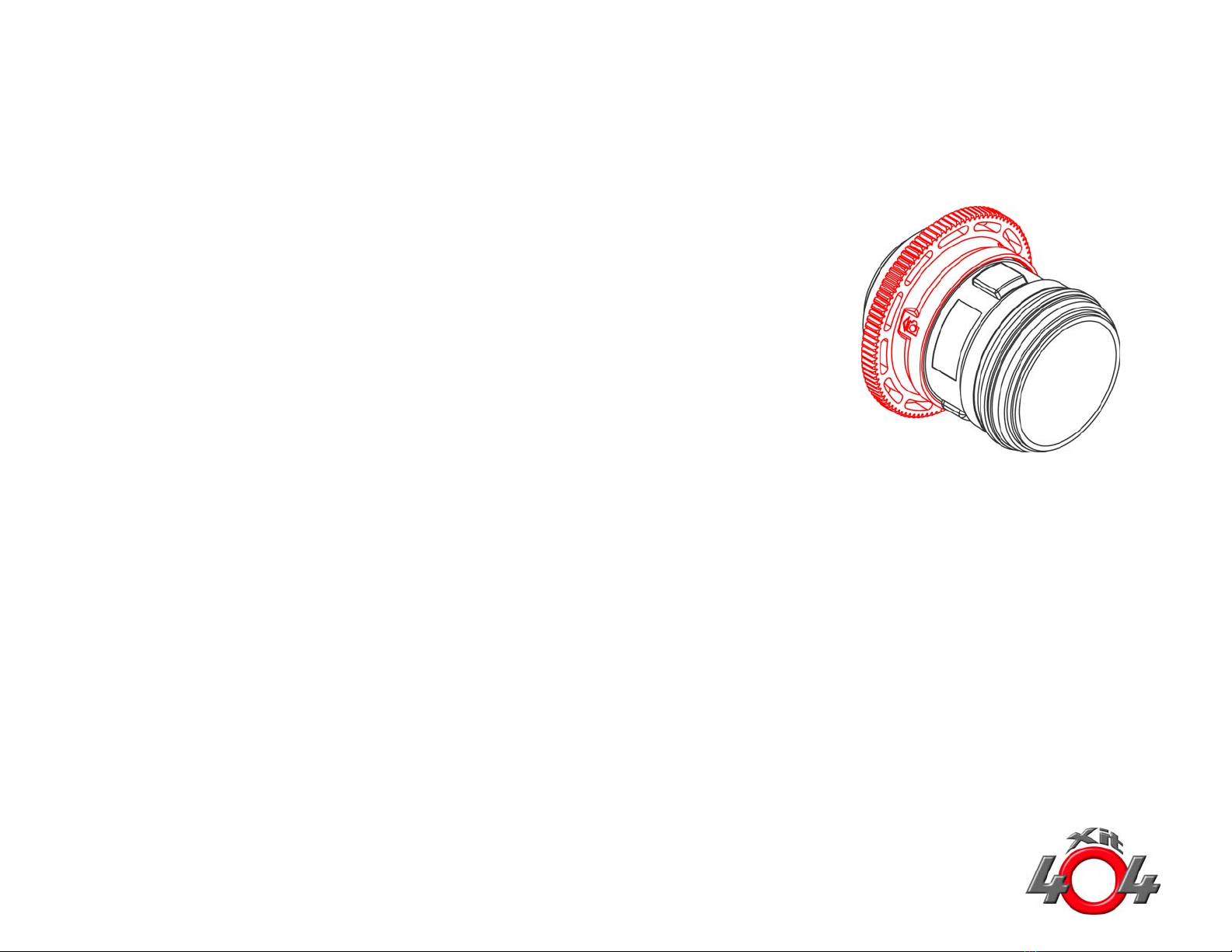

ZOOM GEAR PROPERLY
ATTACHED ONTO LENS
SLIDE GEAR ONTO LENS
UNTIL IT STOPS
CANON 8-15 OR
16-35 LENS
RED ZOOM GEAR
SLIDE GEAR ONTO LENS
UNTIL IT STOPS
SHOWN)
1.4X or 2X ZOOM GEAR
(NAUTICAM GEAR SHOWN)
LENS WITH 1.4X OR 2X
TELECONVERTER
SLIDE GEAR ONTO LENS
UNTIL IT STOPS

FDM parts - a brief description
Xit 404 manufactures a number of its parts using a process called Fused Deposition
Modeling (FDM) This process involves extruding a thread of plastic and laying it down
in thin layers to build a part. This enables us to supply you products that enhance your
underwater photography and videography.
Care and Maintenance
The FDM part is impact resistant and will withstand most drops from table height.
However, as with all plastic parts, they cannot withstand excessive pressure and force
without breaking. Being careful means handling the product during assembly with a light
touch, do not force.
If your part gets wet let it drip-dry for about an hour. If you have to pack it before it is dry
then wrap it in something absorbent such as a paper towel, tee shirt or sock and put it into
a plastic bag. This will keep your other parts from getting dripped on.
FDM Plastic Part Warranty
FDM parts are guaranteed to be free of manufacturing defects for a period of one year
from date of purchase. Unnecessary force can cause excessive wear and possibly break
the parts voiding warranty. Damaged or broken parts will be inspected. If Xit 404 determines
that the parts were misused or abused, warranty will be void. Valid purchase receipt is
required for all warranty claims.
Canon 8-15/16-35 Zoom Gear Product Line
ZOOM GEAR 1.4X ZOOM GEAR 2X ZOOM GEAR
ZOOM GEARS PRODUCT CODES PRODUCT CODES PRODUCT CODES
Aquatica Canon 8-15mm/16-35mm Gear GC1201AQ GC5201AQ GC5241AQ
Aquatica Type 4 Canon 8-15mm/16-35mm Gear GC1202AQ GC5202AQ GC5242AQ
Nauticam Canon 8-15mm/16-35mm Gear GC1203NC GC5203NC GC5243NC
Sea & Sea Canon 8-15mm/16-35mm Gear GC1204SS GC5204SS GC5244SS
Subal Type 4 Canon 8-15mm/16-35mm Gear GC1205SU GC5205SU GC5245SU
Revsion 2.0 - APR2013 www.xit404.com
CANON EF 8-15mm f/4L Fisheye USM and EF 16-35 f/2.8L II USM ZOOM GEAR
WARRANTY INFORMATION
