GXM 30 XM Radio Smart Antenna Owner’s Manual i
INTRODUCTION
Preface
Congratulations on choosing one of the most advanced
weather systems available! The GXM 30 XM Radio Smart
Antenna provides graphical and textual marine, aviation, and
automotive XM WX weather information that can be viewed
on your Garmin unit. Operation of the GXM 30 XM Radio
Smart Antenna requires a subscription to the XM WX Satellite
Weather service. Additionally, the GXM 30 XM Radio Smart
Antenna offers music, news, and talk programming capability
with a subscription to the XM Radio service. Hardware and
XM subscriptions sold separately.
This manual covers the XM WX Weather and XM Radio
features of the GXM 30 XM Radio Smart Antenna when
viewed on a Garmin unit. To get the most out of your new
system, take the time to go through this manual and the unit
Owner’s Manual. Operational procedures are found in the unit
Owner’s Manual. This manual discusses how to connect the
GXM 30 XM Radio Smart Antenna, how to subscribe to XM
WX Weather and XM Radio services and provides detailed
information about weather and audio features.
Terminology used throughout this manual
• This manual refers to the GXM 30 XM Radio Smart
Antenna as the GXM 30.
• All Garmin products that are compatible with the GXM
30 are referred to as “Garmin unit” throughout this
manual.
• This manual uses the term Warning to indicate a
potentially hazardous situation, which, if not avoided,
could result in death or serious injury.
• This manual uses the term Caution to indicate a
potentially hazardous situation, which, if not avoided,
may result in minor injury or property damage. It may
also be used without the symbol to alert you to avoid
unsafe practices.
INTRODUCTION > ABOUT THIS MANUAL

ii GXM 30 XM Radio Smart Antenna Owner’s Manual
Product Registration
Help us better support your equipment purchase by
completing our online registration today! Have the serial
number of your GXM 30 ready, connect to our Web site (www.
garmin.com) and click the Product Registration link on the
Home page. Record your serial number below for a quick
reference.
XM WX Weather and XM Radio ID
Use this area to record the radio ID numbers (8-digit number

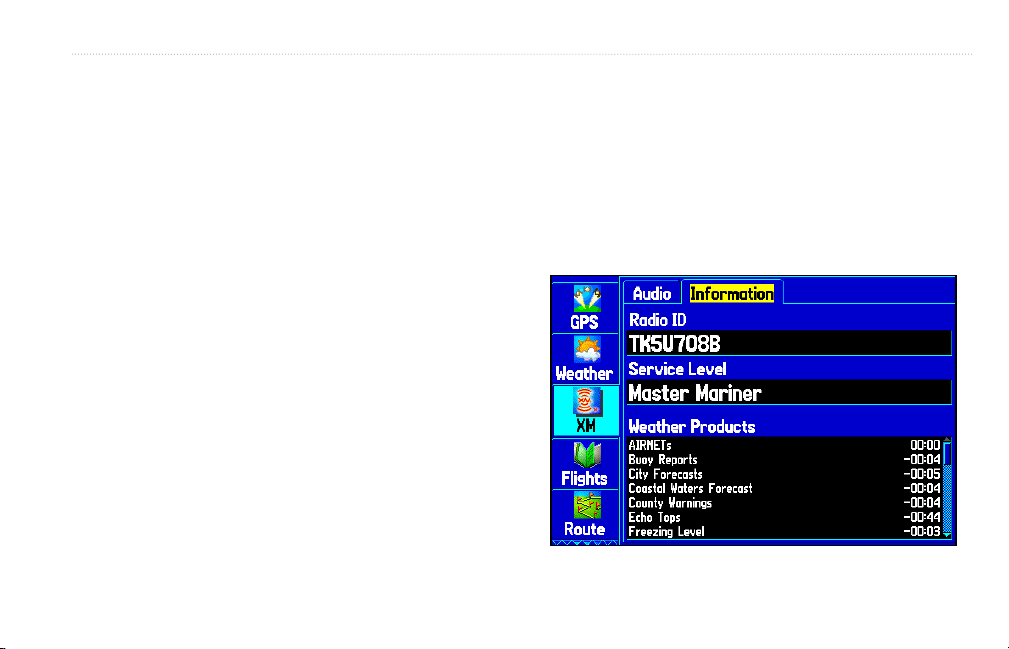

located on the Information sub tab of your unit) in case your
unit is lost or stolen. XM Satellite Radio can deactivate these
radio codes when you call.
Serial Number for GXM 30
Use this area to record the serial number (8-digit
number located on the bottom of your unit) in case
it is lost, stolen, or needs service. Be sure to keep
your original sales receipt in a safe place or attach a
photocopy inside the manual.
Serial Number:
XM Radio ID Number
www.XMWXweather.com
XM WX Satellite Weather Listener Care Center
800-985-9200
www.garmin.com
INTRODUCTION > PRODUCT REGISTRATION
Made in Taiwan
XM RADIO ID:
GXM30
010-00423-00
28400000
B99U70CU
XM Radio ID
Serial Number

GXM 30 XM Radio Smart Antenna Owner’s Manual 1
INTRODUCTION > TABLE OF CONTENTS
Introduction ..................................................................i
Preface ................................................................................... i
Terminology used throughout this manual ............................................... i
Product Registration ................................................................................ ii
XM WX Weather and XM Radio ID ....................................................... ii
Getting Started ............................................................2
Unit Overview ....................................................................... 2
Connecting the GXM 30 to a Garmin Unit .......................... 3
Subscribing to XM WX Weather and Radio ....................... 4
XM WX Weather Features ..........................................6
Displaying Weather Information ......................................... 6
NEXRAD Radar ..................................................................... 7
Satellite Mosaic .................................................................... 8
Lightning ............................................................................... 9
Storm Cells ......................................................................... 10
Hurricanes .......................................................................... 11
Surface Winds .................................................................... 12
Winds Aloft ......................................................................... 13
Surface Pressure ................................................................ 14
Fronts .................................................................................. 15
Visibility .............................................................................. 16
County Warnings ............................................................... 17
Water Temperature ............................................................. 18
Wave Period ........................................................................ 18
Wave Direction ................................................................... 19
Wave Height ........................................................................ 19
Marine Warnings ................................................................ 20
Buoy Reports ...................................................................... 21
METAR ................................................................................. 22
AIRMET ............................................................................... 23
SIGMET ............................................................................... 24
TFR ...................................................................................... 25
Echo Tops ........................................................................... 26
Freezing Level .................................................................... 27
Forecast .............................................................................. 27
TAF ...................................................................................... 28
XM Audio ............................................................................. 28
Appendix ...................................................................29
Specifications ..................................................................... 29
Physical Specifications ...........................................................................29
Power ......................................................................................................29
Performance ............................................................................................29
NEXRAD Overview ............................................................. 31
NEXRAD Description ............................................................................31
NEXRAD Abnormalities ........................................................................31
NEXRAD Limitations ............................................................................31
NEXRAD Intensity .................................................................................32
FCC Compliance ................................................................ 33
Limited Warranty ................................................................ 34
Software License Agreement ............................................ 36
XM Satellite Radio Service Agreement ............................ 36
Weather Data Warranty ...................................................... 37
TFR Data ............................................................................. 38

2 GXM 30 XM Radio Smart Antenna Owner’s Manual
GETTING STARTED
Unit Overview
Cleaning - The unit’s case is constructed of high quality
material and does not require user maintenance other
than cleaning. Clean the unit housing using a lightly-
dampened cloth with a mild detergent solution and then
wipe dry. Avoid chemical cleaners and solvents that may
damage plastic components. Do not apply cleaner to the
electrical contacts on the front of the unit.
Storage - Do not store the GXM 30 where exposure
to temperature extremes may occur, as permanent
damage may result.
UNIT CARE
The Garmin GXM 30 has no user-serviceable parts.
Should you ever encounter a problem with your unit,
take it to an authorized Garmin dealer for repairs.
The GXM 30 is fastened shut with screws. Any attempt
to open the case to change or modify the unit in any
way voids your warranty and may result in permanent
damage to the equipment.
SERVICING YOUR UNIT

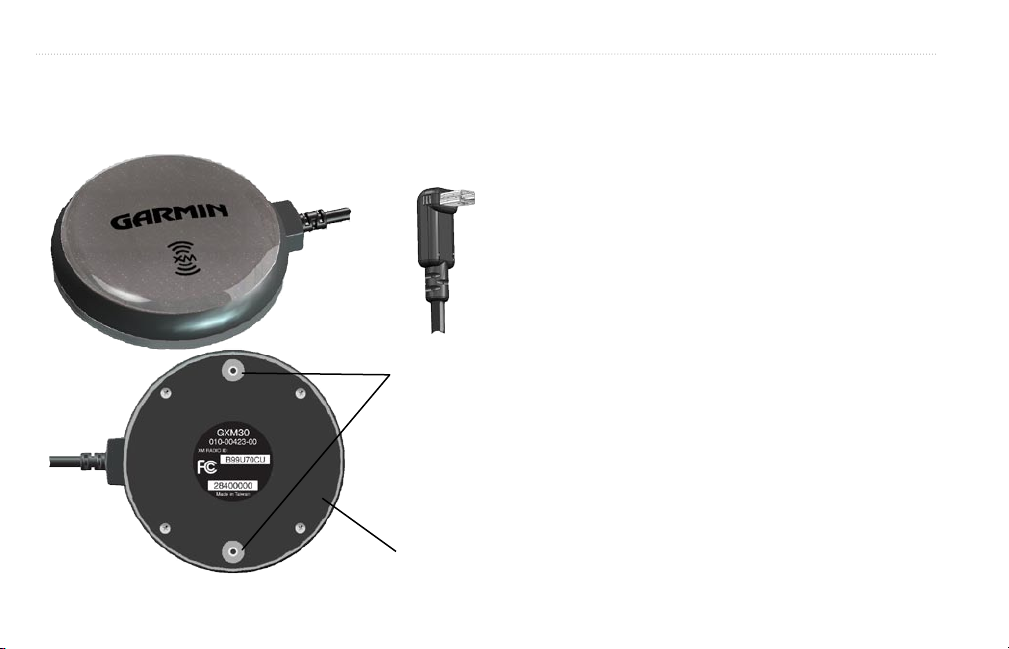

Magnetic Base
Mounting Holes
USB Connector
GXM 30 Radio Smart Antenna
GETTING STARTED > UNIT OVERVIEW

GXM 30 XM Radio Smart Antenna Owner’s Manual 3
Connecting the GXM 30 to a Garmin Unit
Position the GXM 30 where is has a clear view of the sky. This can be on the outside of the vehicle or behind the windscreen of the
vehicle. Connect the GXM 30 to the USB port on the Garmin unit.
GETTING STARTED > CONNECTING THE GXM 30 TO A GARMIN UNIT

4 GXM 30 XM Radio Smart Antenna Owner’s Manual
Subscribing to XM WX Weather and Radio
With the GXM 30 connected, contact XM Satellite Radio to
activate your XM WX weather and audio subscription service.
Follow the instructions below. Complete Steps 1-3 BEFORE
calling XM Satellite Radio:
Step 1: Check the System Setup
Make certain the GXM 30 is connected to the Garmin unit.
Step 2: Turn on your System
Place the GXM 30 where is has a clear view of the sky and t
urn on the Garmin unit. This automatically turns on the GXM
30.
Step 3: Identify Radio ID
On the Garmin unit, press the MENU key twice to display
the Main Menu. A list of tabs appear down the left-hand side
of the Main Menu. Using the ROCKER key, highlight the XM
tab and select the Information sub tab.
Write down the Radio ID number. Have the ID number, your
billing address and other billing information ready when you
contact XM.
Select the Audio sub tab (it is next to the Information sub
tab). Verify that XM Preview appears in the Radio Tuning
box.
Step 4: Set up the XM Account
Contact XM by phone at 800-985-9200. After providing the
required information, the XM representative activates the
account and sends out an XM signal to activate the GXM 30.
For answers to other XM questions you can call the above
number or visit www.XMWXweather.com.
GETTING STARTED > SUBSCRIBING TO XM WX WEATHER AND RADIO

GXM 30 XM Radio Smart Antenna Owner’s Manual 5
Step 5: Confirm all Components of your Service
Package
XM WX Weather: Keep your Garmin unit turned on to
ensure you receive the XM signal. The XM signal is being
received when the components of the selected service
package are displayed in the Weather Products list on the
Information sub tab. Do not turn off the Garmin unit until the
name of the selected service package is displayed in the
Service Level field (see Step 6).
XM Radio: Highlight the Audio sub tab and verify that
channels 7, 9, 47, and 122 are being received. This
indicates that all channels on XM’s basic radio service
are being received. If within an hour the XM WX Weather
and/or the XM Radio service has not activated, call XM WX
customer care at 800-985-9200 to validate the activation
of XM services. The customer care representative can
refresh the activation signal or you can do this yourself a
www.xmradio.com/refresh by entering your radio ID where
requested.
Step 6: Save the Service Package
After the service package name appears in the Service
Level field, turn off the Garmin unit.
Step 7: Add Features to your Unit
When you turn on the GXM 30 after completing Step 6, you
are ready to add weather features to the unit’s Map Page
and set your new favorite radio stations.
GETTING STARTED > SUBSCRIBING TO XM SERVICE
XM Information

6 GXM 30 XM Radio Smart Antenna Owner’s Manual
XM WX WEATHER FEATURES
Displaying Weather Information
The GXM 30 receives XM WX Weather data and shows it on
the Garmin unit’s Map Page and other screens throughout the
unit. The weather data for each feature comes from reputable
weather data centers such as the National Weather Service
and the Hydrometerological Prediction Center. (See the XM
WX Satellite Weather Web site at http://weather.xmradio.
com/weather for more information.) Any weather feature
can change in appearance or interpretation if the source that
provides the information changes. XM WX Weather data is
broadcast at set rates (See page 30 for all weather-related
broadcast rates). For example, NEXRAD Radar data is
broadcast at five minute intervals. When the Garmin unit is
turned on or when a new feature is selected, the GXM 30 has to
receive new data before it can be shown. You may experience a
delay before weather data or a new feature appears on the map.
To display weather features on the Garmin unit’s
Map Page:
1. Press the MENU key.
2. Highlight Show Weather, and press ENTER.
Displaying Weather
To display weather features on the map, press
the MENU key, highlight Show Weather, and
press ENTER.
XM WEATHER FEATURES > DISPLAYING WEATHER INFORMATION

GXM 30 XM Radio Smart Antenna Owner’s Manual 7
NEXRAD Radar
NEXRAD or NEXt Generation Weather RADar displays precipitation from very light rain and snow up to strong thunderstorms in
varying shades and colors. In the lower left corner of the screen is a Time Stamp. The Time Stamp displays the elapsed time
since the National Weather Service provided the displayed information. To display a legend showing the colors for Rain, Mix,
and Snow, press MENU, highlight Weather Legend, and press ENTER. NEXRAD can be displayed independently or with
a variety of other weather information. For information on NEXRAD Limitations, Abnormalities, and Intensity, see pages
31-32.
NEXRAD
NEXRAD Legend
XM WEATHER FEATURES > NEXRAD RADAR

8 GXM 30 XM Radio Smart Antenna Owner’s Manual
Satellite Mosaic

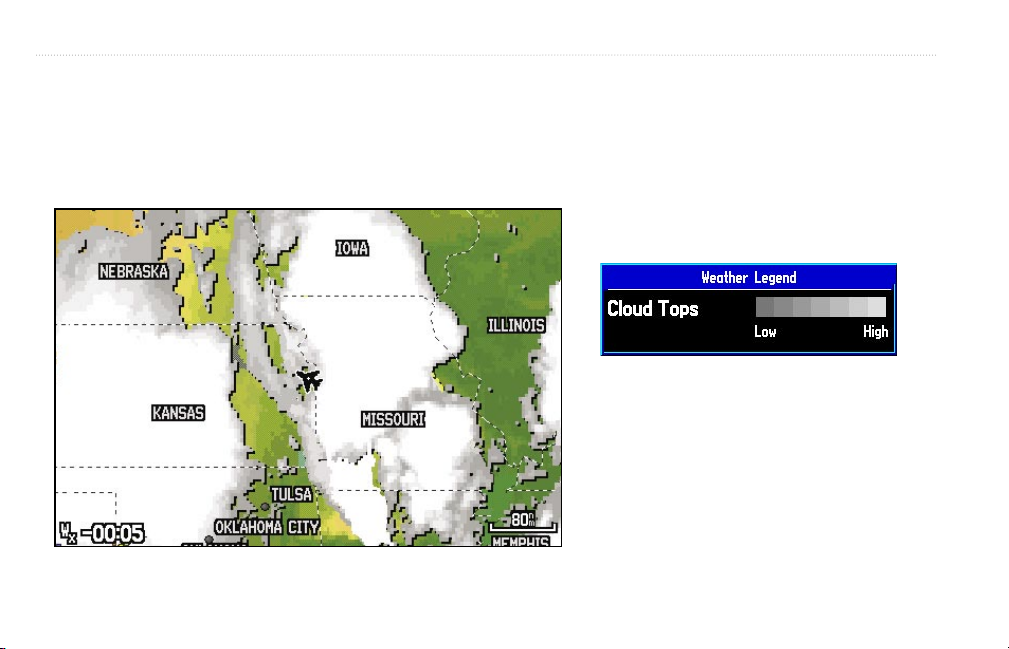

Satellite Mosaic displays infared composite images of cloud cover taken by geostationary weather satellites. The Satellite Mosaic
provides up to seven levels of cloud cover.
XM WEATHER FEATURES > SATELLITE MOSAIC
Cloud Tops Legend
Satellite Mosiac

GXM 30 XM Radio Smart Antenna Owner’s Manual 9
Lightning

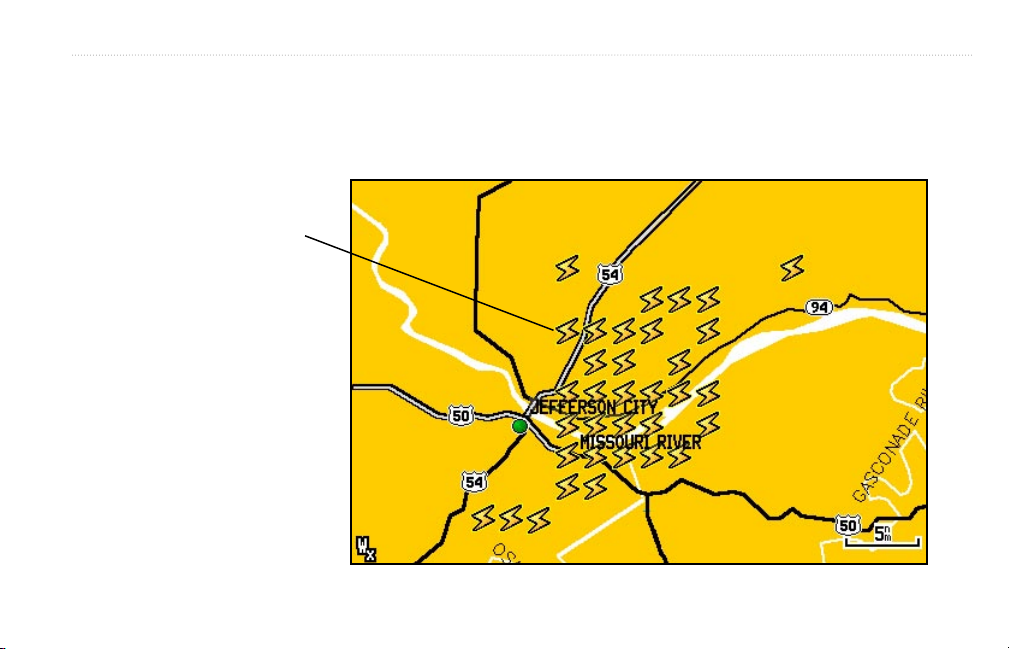

Lightning strikes are represented by lightning bolt icons, as shown in the images below. Lightning appears on the map if strikes
were detected within the last seven minutes. The ground-based lightning detection network only detects cloud-to-ground lightning.
XM WEATHER FEATURES > LIGHTNING
Lightning bolts indicate a
cloud-to-ground lightning
strike.

10 GXM 30 XM Radio Smart Antenna Owner’s Manual
Storm Cells

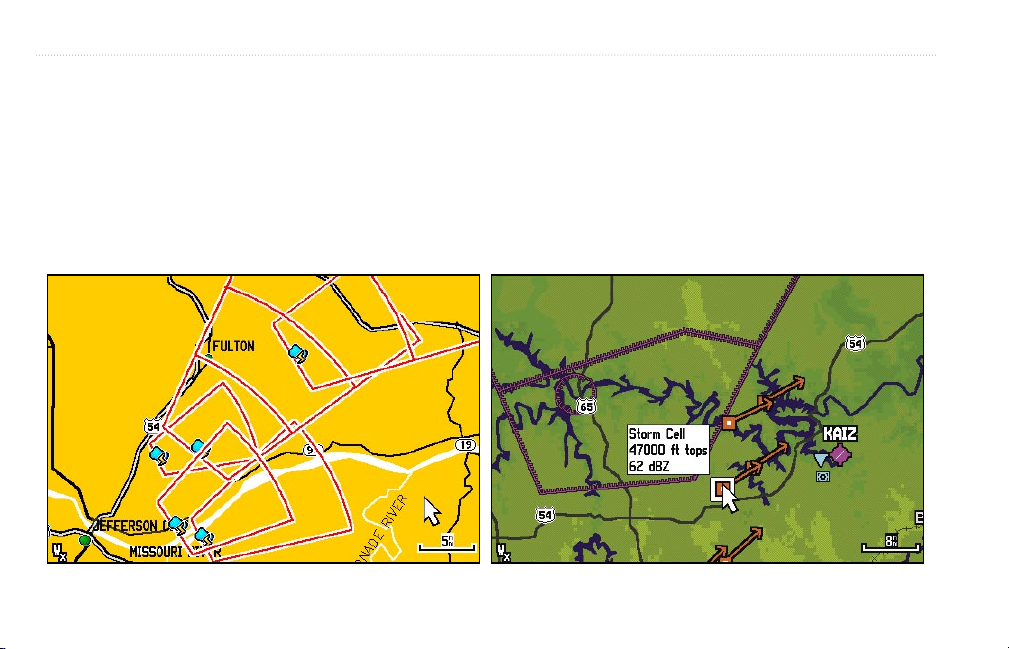

The Storm Cells feature displays storms as well as the storm’s projected path in the immediate future.
Marine and Automotive units also show the size of the storm cell. The direction of the red cone indicates the projected path of the
storm cell. The red bars that appear in the cone indicate where the storm will be in the future. Each bar represents 15 minutes.
Aviation units show the direction of the storm with an arrow. The tip of the arrow indicates where the storm should be in 15
minutes. Critical information about the storm cell can be viewed by selecting the storm cell with the map pointer.
Automotive and Marine Aviation
XM WEATHER FEATURES > STORM CELLS

GXM 30 XM Radio Smart Antenna Owner’s Manual 11
Hurricanes

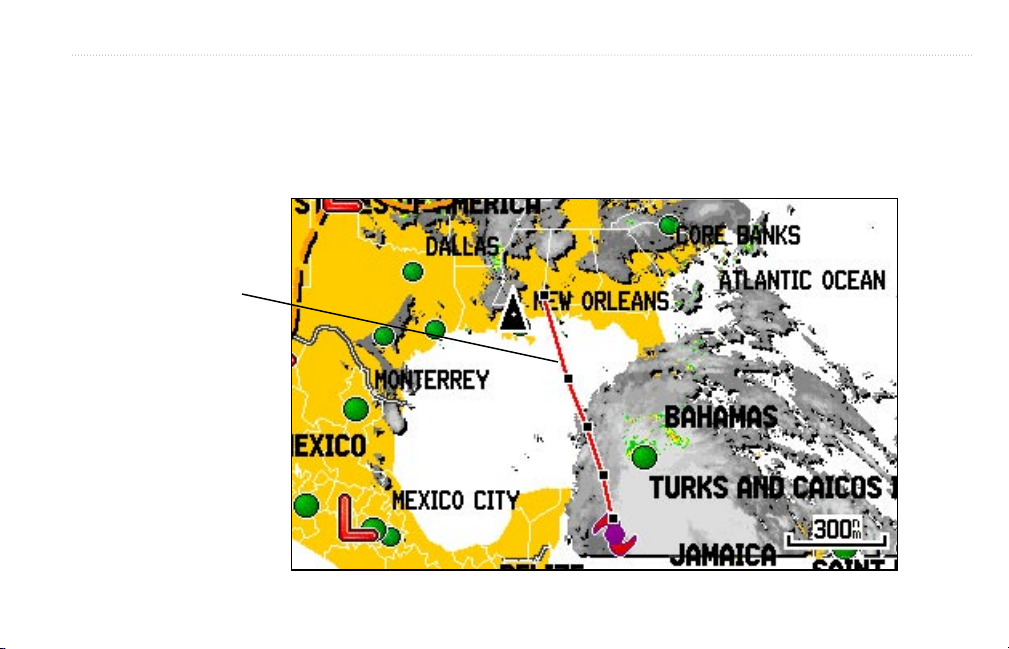

The Hurricanes feature shows the current position of a hurricane, tropical storm, or tropical depression, as well as its projected
path (indicated by a red line). The darkened squares that appear along the red line display the projected locations received from the
National Hurricane Center. The Center provides four forecasts at 12-hour intervals as well as a fifth forecast at a 24-hour interval.
XM WEATHER FEATURES > HURRICANES
Hurricane Track
Hurricanes

12 GXM 30 XM Radio Smart Antenna Owner’s Manual
Surface Winds
Marine and Automotive units display Surface Winds with a wind barb. The wind barb is a circle with a tail. The circle points into
the wind. Wind speed is indicated by the different combination of flags that are attached to the tail.
Wind Direction
Calm
5 knots
10 knots
15 knots
20 knots
50 knots
Surface Winds
XM WEATHER FEATURES > SURFACE WINDS

GXM 30 XM Radio Smart Antenna Owner’s Manual 13
Winds Aloft
Aviation units display winds aloft using wind barbs or a wind streamline depending on the zoom range of the map. Similar to
Marine and Automotive units, the wind barbs indicate wind speed and direction. The wind streamline indicates wind direction with
arrows.
XM WEATHER FEATURES > SURFACE PRESSURE
Wind Barbs Wind Streamline

14 GXM 30 XM Radio Smart Antenna Owner’s Manual
Surface Pressure
This feature displays pressure isobars and pressure centers. The isobars connect points of equal pressure. Pressure readings can help
determine weather and wind conditions in an area. High pressure areas are generally associated with fair weather. Low pressure
areas are generally associated with clouds and the chance of precipitation. Isobars that are packed closely together show a strong
pressure gradient. Strong pressure gradients are associated with areas of stronger winds. Pressure units can be displayed in Millibars
(mb), Inches of Mercury (in), and Hectopascals (hPa).
Strong Pressure Gradient
Pressure Isobars
XM WEATHER FEATURES > SURFACE PRESSURE
