XMOS XK-AUDIO-316-MC-AB User manual

xcore.ai Multichannel Audio Board 1v1 Hardware Manual
Publication Date: 2022/10/4
Document Number: XM014727A

xcore.ai Multichannel Audio Board 1v1 Hardware Manual
IN THIS DOCUMENT
·Features
·xCORE Multicore Microcontroller Device
·Boot
·Clocking
·Debug
·Analog audio input
·Analog audio output
·Digital audio output
·Digital audio input
·MIDI input and output
·Audio clocking
·USB Device
·General purpose user interface
·I2C bus address map
·Power supplies
·Operating requirements
·Dimensions
·xcore.ai multichannel audio board port map
·xcore.ai Multichannel Audio Board schematics
·RoHS and REACH
·Version history
The xcore.ai Multichannel Audio Board (XK-AUDIO-316-MC-AB) is a complete hardware
and reference software platform providing more than 32 input and 32 output channels
simultaneously over USB using the USB Audio Class.
The Multichannel Audio Platform hardware is based around the XU316-1024-TQ128-C24
multicore microcontroller; an xcore.ai device with an integrated High Speed USB 2.0 PHY
and 16 logical cores delivering up to 2400MIPS of deterministic and responsive processing
power.
Exploiting the flexible programmability of the xcore.ai architecture, the Multichannel Audio
Board supports USB streaming 32 input and 32 output audio channels simultaneously -
at up to 192kHz. Ideal for consumer and professional USB audio interfaces. The board
can also be used for testing general purpose audio DSP activities - mixing, filtering, etc.
The guaranteed Hardware-Response™times of xCORE technology always ensure lowest
latency (round trip as low as 3ms), bit perfect audio streaming to and from the USB host.
Delivered as source code, the reference software provides a fully featured production
ready solution, including support for:
2

xcore.ai Multichannel Audio Board 1v1 Hardware Manual
· Full-Speed and High-Speed USB operation, Audio Class 2.0 & 1.0, MIDI, SPDIF, ADAT,
HID and DFU classes.
1 Features
A block diagram of the xcore.ai Multichannel Audio Board (XK-AUDIO-316-MC-AB) is
shown below:
A
B
C
D
E
GF H
I
J
T
R
S
Q
O
P
M
L

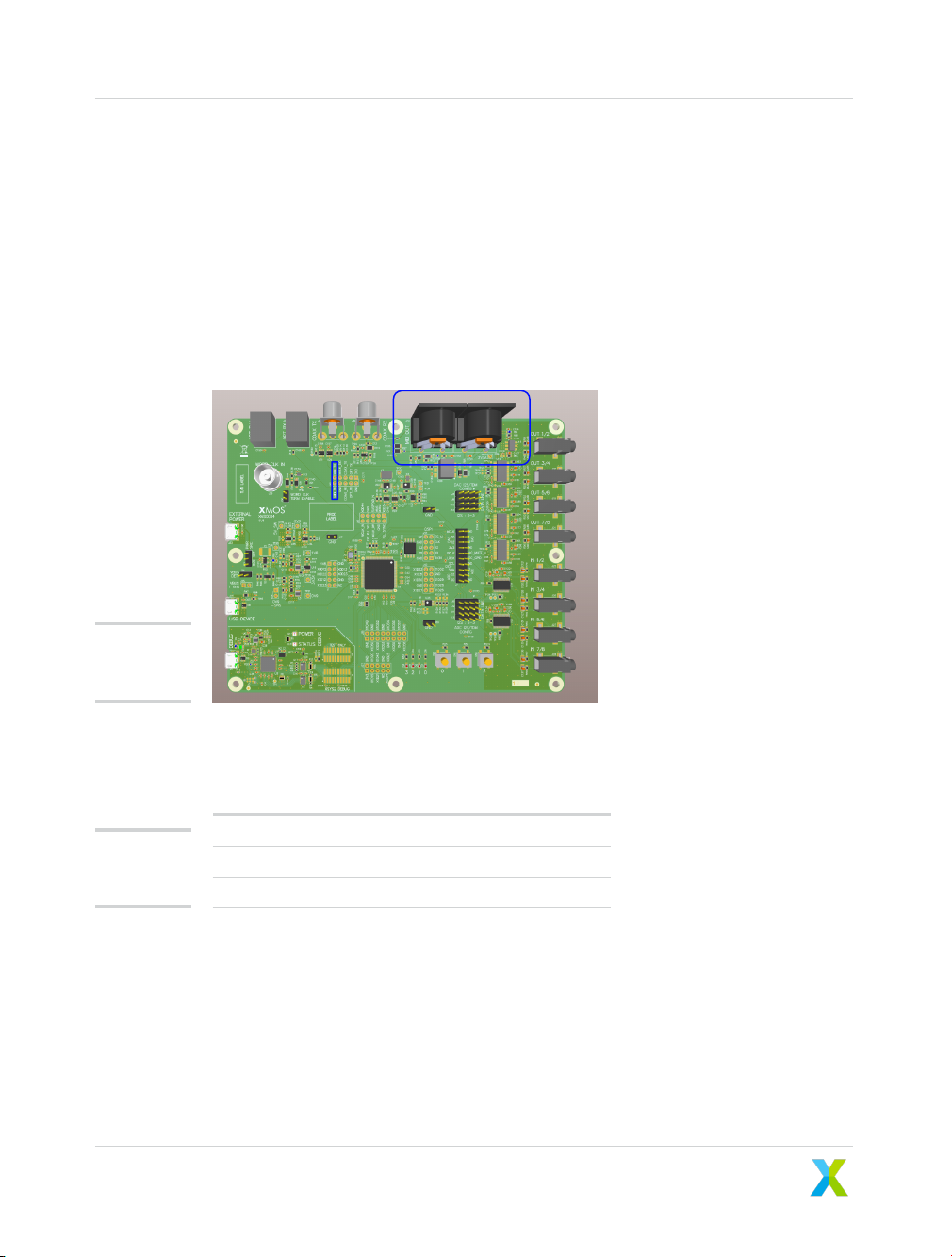

Figure 1:
xcore.ai
Multichannel
Audio Board
block diagram
It includes the following features:
·A: xcore.ai (XU316-1024-TQ128-C24) Multicore Microcontroller device
·B: 8 line level analog inputs (3.5mm stereo jacks)
·C: 8 line level analog outputs (3.5mm stereo jacks)
·D: 384kHz 24 bit audio DACs
·E: 192kHz 24 bit audio ADCs
·F: Optical connections for digital interface (e.g. S/PDIF and ADAT)
·G: Coaxial connections for digital interfaces (e.g. S/PDIF)
·H: MIDI in and out connections
·I: Flexible Audio Master clock generation
·J: USB 2.0 micro-B jacks
·L: 4 general purpose LEDs
·M: 3 general purpose buttons
·O: Flexible I2S/TDM input data routing
3

xcore.ai Multichannel Audio Board 1v1 Hardware Manual
·P: Flexible I2S/TDM output data routing
·Q: Integrated power supply
·R: Quad-SPI boot ROM
·S: 24MHz Crystal
·T: Integrated XTAG4 debugger
4

xcore.ai Multichannel Audio Board 1v1 Hardware Manual
2 xCORE Multicore Microcontroller Device
The xcore.ai Multichannel Audio board (XK-AUDIO-316-MC-AB) is based on a two-tile
xcore.ai device (XU316-1024-TQ128-C24). Each tile is user-programmable, providing eight
logical cores with a total of up to 1200 MIPS compute per tile. The device has an integrated
high speed USB interface which allows connection to a USB host. The device has a large
amount of digital IO which are used for interfacing to the on board components, spare
IOs are wired to expansion headers.
For information on xcore.ai follow this link: < https://www.xmos.ai/xcore-ai/ >
Figure 2:
xcore.ai device
3 Boot
The xcore.ai device boots from an on-board QSPI FLASH memory. The device on the
board is 32Mbit in capacity to allow for experimentation but in target applications it is
expected a 16Mbit or smaller device would be used to reduce cost.
The FLASH is connected as shown in Figure 3:
Board Net Pin Port
QSPI_CS_N X0D01 P1B0
QSPI_D0 X0D04 P4B0
QSPI_D1 X0D05 P4B1
QSPI_D2 X0D06 P4B2
QSPI_D3 X0D07 P4B3
QSPI_CLK X0D10 P1C0
Figure 3:
QSPI Flash
5

xcore.ai Multichannel Audio Board 1v1 Hardware Manual
The XTC tools include the xflash utility for programming compiled programs into the flash
memory. The flash upgrade images can be reprogrammed at run time over USB using
the DFU (Device Firmware Upgrade) utilities.
4 Clocking
The device is clocked by an integrated low power crystal oscillator block using an external
24MHz crystal.
5 Debug
The board contains an integrated XTAG4 debugger for loading and debugging programs
and programming the on board QSPI flash. This debugger connects to the host via
the DEBUG micro b USB connector and is connected to the xcore.ai device through the
JTAG interface and also a 2 wire xmos link for high speed debugging with xscope. The
debugger is powered separately from the main board and takes all of its power from its
USB connector. It only needs to be connected while debugging.
6 Analog audio input
A total of eight single-ended analog input channels are provided via four 3.5mm stereo
jacks. The 8 analog inputs are routed to two 4 channel ADCs (PCM1865). The ADCs are
configured to output digital audio over I2S or TDM. Configuration of the ADCs is via I2C.
The maximum input level is 2.1Vrms.
Figure 4:
Analog input
stage
The four digital input channels ADC_D0 to ADC_D3 are mapped to the xCORE inputs
X_ADC_D0 to X_ADC_D3 through a header array as described in Figure 5. Basic jumper
operation allows configuring the device to work in I2S or TDM mode. In I2S mode, each
wire carries 2 channels of audio so the 8 analog input channels map 1:1 to the four digital
inputs. In TDM mode, a single wire can carry up to 8 channels of data. This means the
four digital inputs can support up to 32 analog input channels. The jumpers allow the
common TDM line from the 8 input channels to connect to any one of the four digital
inputs on the xcore.
6

xcore.ai Multichannel Audio Board 1v1 Hardware Manual
Mode Shorting Jumper Position
J6 J9 J11 J13
I2S 2-3 2-3 2-3 2-3
TDM input on X_ADC_D0 1-2, 3-4 NO FIT 1-2 NO FIT
TDM input on X_ADC_D1 1-2 3-4 1-2 NO FIT
TDM input on X_ADC_D2 1-2 NO FIT 1-2, 3-4 NO FIT
TDM input on X_ADC_D3 1-2 NO FIT 1-2 3-4
Figure 5:
Analog input
configuration
Pin 1 of each jumper is denoted by a triangle on the silkscreen.
The ADC registers are accessed via the I2C bus - see §14.
Board Net xCORE GPIO Port Description
X_ADC_D0 X1D24 P1I0 Serial data input 0 (I2S or TDM)
X_ADC_D1 X1D25 P1J0 Serial data input 1 (I2S or TDM)
X_ADC_D2 X1D34 P1K0 Serial data input 2 (I2S or TDM)
X_ADC_D3 X1D35 P1L0 Serial data input 3 (I2S or TDM)
ADC_GPIO X0D33 P4E3 Multipurpose interrupt input
LRCK X1D01 P1B0 Serial left/right frame clock
BCLK X1D10 P1C0 Bit clock for serial data transfer
MCLK_ADC See note NA Buffered global audio master clock
Figure 6:
Analog input
xCORE GPIO
Notes:
·Details of the audio clocking scheme can be found in §11.
7 Analog audio output
A total of eight single-ended analog output channels are provided via four 3.5mm stereo
jacks. The 8 analog outputs are generated by four 2 channel DACs (PCM5122). The DACs
are configured to accept digital audio over I2S or TDM. Configuration of the DACs is via
I2C. The full scale output level is 2.1Vrms.
The four digital input channels ADC_D0 to ADC_D3 are mapped to the xCORE outputs
X_DAC_D0 to X_DAC_D3 through a header array as described in Figure 8. Basic jumper
operation allows configuring the device to work in I2S or TDM mode. In I2S mode, each
wire carries 2 channels of audio so the 8 analog output channels map 1:1 to the four digital
outputs. In TDM mode, a single wire can carry up to 8 channels of data. This means the
four xCORE digital outputs can support up to 32 analog output channels. The jumpers
7

xcore.ai Multichannel Audio Board 1v1 Hardware Manual
Figure 7:
Analog output
stage
allow the common TDM line to the 8 output channels to connect to any one of the four
digital outputs on the xcore.
Mode Shorting Jumper Position
J3 J8 J10 J12
I2S 2-3 2-3 2-3 2-3
TDM output from X_DAC_D0 1-2, 3-4 1-2 1-2 1-2
TDM output from X_DAC_D1 1-2 1-2, 3-4 1-2 1-2
TDM output from X_DAC_D2 1-2 1-2 1-2, 3-4 1-2
TDM output from X_DAC_D3 1-2 1-2 1-2 1-2, 3-4
Figure 8:
Analog output
configuration
Pin 1 of each jumper is denoted by a triangle on the silk-screen.
The DAC registers are accessed via the I2C bus - see §14.
Notes:
·Details of the audio clocking scheme can be found in §11.
8

xcore.ai Multichannel Audio Board 1v1 Hardware Manual
Board Net xCORE GPIO Port Description
X_DAC_D0 X1D39 P1P0 Serial data output 0 (I2S or TDM)
X_DAC_D1 X1D38 P1O0 Serial data output 1 (I2S or TDM)
X_DAC_D2 X1D37 P1N0 Serial data output 2 (I2S or TDM)
X_DAC_D3 X1D36 P1M0 Serial data output 3 (I2S or TDM)
DAC_MUTE_N X0D16 P4D0 Output to mute audio when low
LRCK X1D01 P1B0 Serial left/right frame clock
BCLK X1D10 P1C0 Bit clock for serial data transfer
MCLK_DAC See note NA Buffered global audio master clock
Figure 9:
Analog output
xCORE GPIO
8 Digital audio output
Optical and coaxial digital audio outputs are provided. Both of these outputs can support
transmission of audio data in IEC60958 consumer mode (S/PDIF) format. This format
allows transmission of two channels of audio data at up to 192kHz. Note the optical
transmitter used on the board can only support up to 96kHz in this mode.
Additionally the optical output can transmit data in the ADAT optical format. This format
allows transmission of eight channels of audio data at 48kHz. The S/MUX extension to
ADAT allows four channels at 96kHz or two channels at 192kHz.
In order to reduce clock jitter on these outputs, the data outputs from xcore.ai are re-
clocked using the global audio master clock to synchronise the data into the audio clock
domain. This is achieved using simple external D-type flip-flops.
Figure 10:
Digital audio
output
The signals are generated from two 1-bit ports on xcore.ai.
9

xcore.ai Multichannel Audio Board 1v1 Hardware Manual
Board Net xCORE GPIO Port Description
OPT_TX X1D22 P1G0 IEC60958 (S/PDIF) or ADAT optical output
COAX_TX X1D00 P1A0 IEC60958 (S/PDIF) output
MCLK_DIG See notes below Buffered global audio master clock
Figure 11:
Digital audio
output xCORE
GPIO
Notes:
·Details of the audio clocking scheme can be found in §11.
10

xcore.ai Multichannel Audio Board 1v1 Hardware Manual
9 Digital audio input
Optical and coaxial digital audio input is provided. Both of these inputs can support
reception of audio data in IEC60958 consumer mode (S/PDIF) format. This format allows
transmission of two channels of audio data at up to 192kHz. Note the optical receiver
used on the board can only support up to 96kHz in this mode.
Additionally the optical input can receive data in the ADAT optical format. This format
allows transmission of eight channels of audio data at 48kHz. The S/MUX extension to
ADAT allows four channels at 96kHz or two channels at 192kHz.
The coaxial input receiver circuit uses an unbuffered logic inverter configured as an analog
amplifier. This allows the 0.5V pk-pk signal to be amplified up to logic levels required by
xcore.ai. The 100k feedback resistor connected between input and output biases the
input stage to work in the analog region. This circuit does provide a low cost solution but
can use high supply currents (even when no input is present) up to 20mA or more. The
addition of the 68 ohm resistor in the supply line to the logic gate helps to reduce this
current significantly without affecting circuit operation. It works by reducing the supply
voltage to the device to around 2.5V which significantly reduces crossover current. The
output voltage will now only swing to 2.5V in the high state but this actually matches
quite well with the xcore.ai inputs which have a switching threshold around 1.3V typically.
Many other types of receive circuit are possible.
Figure 12:
Digital audio
input
The input signals are fed into two 1-bit ports on the xcore.ai device.
Board Net xCORE GPIO Port Description
OPT_RX X0D38 P1O0 IEC60958 (S/PDIF) or ADAT optical input
COAX_RX X0D37 P1N0 IEC60958 (S/PDIF) input
Figure 13:
Digital audio
input xCORE
GPIO
11

xcore.ai Multichannel Audio Board 1v1 Hardware Manual
10 MIDI input and output
MIDI input and output is provided on the board via standard 5-pin DIN connectors compli-
ant to the MIDI specification.
The MIDI signalling is essentially a 31.25kbaud UART over a 5mA current loop. The
interface circuits on this board are compliant with the MIDI specification addendum
pertaining to use with 3.3V logic signalling “MIDI 1.0 Electrical Specification Update 1.1
[2014]”.
The 3.3V logic signals are connected directly to ports on xcore.ai. A pullup resistor is used
to ensure the MIDI output does not drive when the xcore.ai device is not actively driving
the output.
Figure 14:
MIDI
input/output
The MIDI input signal is connected to a 1-bit port on xcore.ai, the MIDI output signal is
driven by bit 0 of a 4-bit port, the other bits of the port being unused. This is described in
Figure 15.
Board Net xCORE GPIO Port Description
MIDI_TX X1D14 P4C0 MIDI output signal
MIDI_RX X1D13 P1F0 MIDI input signal
Figure 15:
MIDI xCORE
GPIO
12

xcore.ai Multichannel Audio Board 1v1 Hardware Manual
11 Audio clocking
A flexible clocking scheme is provided to allow for experimentation with different clocking
architectures.
Figure 16:
Clocking
circuit
The audio master clock can be generated from one of three possible sources: the xcore.ai
secondary (application) PLL, a Cirrus Logic CS2100 Fractional-N clock multiplier, or a
Skyworks Si5351A-B-GT CMOS clock generator.
The master clock source is chosen by driving two control signals as shown below:
Control Signal Master Clock Source
EXT_PLL_SEL MCLK_DIR
0 0 Cirrus CS2100
1 0 Skyworks SI5351A-B-GT
X 1 xcore.ai secondary (application) PLL
Each of the sources have potential benefits, some of which are discussed below:
· The Cirrus CS2100 simplifies generating a master clock locked to an external clock
(such as S/PDIF in or word clock in).
· It multiplies up the PLL_SYNC signal which is generated by the xcore.ai device based
on the desired external source (so S/PDIF in frame signal or word clock in).
· The Si5351A-B-GT offers very low jitter performance at a relatively lower cost than the
CS2100. Locking to an external source is more difficult.
· The xcore.ai application PLL is obviously the lowest cost and significantly lowest power
solution, however its jitter performance can not match the Si5351A which may be
important in demanding applications. Locking to an external clock is possible but
involves more complicated firmware and more MIPS.
13

xcore.ai Multichannel Audio Board 1v1 Hardware Manual
In fixed mode (not locking to external source) one example of the application PLL jitter
performance on the xcore.ai multichannel audio board is shown below. Divided versions
of these clock frequencies will have similar jitter levels.
Desired Frequency 49.152MHz (1024x48kHz)
45.1584MHz
(1024x44.1kHz)
Actual Frequency 45.157895MHz 49.151786MHz
Frequency Error -11.2ppm -4.4ppm
Baseband Jitter 100Hz - 40kHz 7ps 7ps
100Hz - 1MHz 67ps 70ps
100Hz corner 215ps 118ps
Frequency accuracy of 0ppm is possible for most clock frequencies but they are likely to
have higher jitter levels. The frequency accuracies in this example (<11ppm) are better
than would be expected of typical crystal oscillators so would only be an issue in systems
requiring synchronicity from multiple devices on a common 24MHz clock reference which
is quite rare.
Clock jitter of 7ps in the 100Hz - 40kHz baseband shows the ability to produce very high
quality DAC/ADC performance in the 0-20kHz audio band (jitter artefacts should be below
the noise floor for the majority of converters).
Of course a fixed audio master clock is only suitable for certain applications: Asynchronous
mode USB audio or standalone analog audio processing. For most other applications
(Synchronous or Adaptive mode USB audio, ext S/PDIF, ADAT or Word clock in sync), the
local master clock will need to be able to lock to an external clock rate. The Cirrus Logic
CS2100 makes this easy as it can generate a low jitter master clock output which is a
multiple of a low frequency input reference. The input reference can then come from the
clock we need to sync to e.g. word clock in, a signal that toggles every S/PDIF frame or
the USB start of frame for Synchronous mode USB.
The xcore.ai application PLL can also work in locking to external clock sources but it
requires a software PLL to be implemented which will use some processing power. Work
on this solution is ongoing.
The Skyworks Si5351A-B-GT device was included on the board as a fixed very low jitter
clock source to use for comparison in audio quality measurements. It has the potential to
be used in locking to external sources using a software PLL and this approach is being
investigated.
The selected master clock is buffered and distributed to the DAC circuitry, the ADC circuitry
and the digital output circuitry.
Audio interface clocks LRCK and BCLK are used in both I2S and TDM modes. These
clocks are outputs when the xcore is I2S/TDM master and inputs when xcore is I2S/TDM
slave. As outputs these clocks are divided down versions of the audio master clock. As
inputs these clocks must be generated by a source synchronous to the global audio
master clock.
14

xcore.ai Multichannel Audio Board 1v1 Hardware Manual
Board Net xCORE GPIO Port Description
MCLK_DIR X0D43 P8D7
Controls audio master clock direction. MCLK is an
input to xcore when low and an output when high.
EXT_PLL_SEL X0D42 P8D6
Selects which external PLL to use. CS2100 when low,
Si5351A-B-GT when high.
PLL_SYNC X0D00 P1A0 Output to CS2100 frequency reference input.
MCLK_XMOS X1D11 P1D0
Audio master clock. Input or output as specified by
MCLK_DIR and internal firmware config.
MCLK_XMOS X0D11 P1D0
Audio master clock. Input only - for use by tile0
threads e.g. USB thread for clock sync.
LRCK X1D01 P1B0 Left/Right Frame clock. Input or output.
BCLK X1D10 P1C0 Serial bit clock. Input or output.
Figure 17:
Audio clocking
GPIO
The Cirrus Logic CS2100 and Skyworks Si5351A-B-GT devices are controlled using I2C.
Further information on the xcore.ai Multichannel Audio Board I2C bus can be found in
§14.
15

xcore.ai Multichannel Audio Board 1v1 Hardware Manual
12 USB Device
As a USB device, the board is connected to the host by the USB micro B connector marked
“USB DEVICE”.
The board can be configured in firmware as a bus or self powered USB device. In addition
to the firmware, two jumpers should be configured on the board to support the relevant
mode.
USB Device Type Jumper Setting
J22 “PWR SRC” J14 “VBUS DET”
Bus Powered 1-2 “BUS” No Fit
Self Powered 2-3 “EXT” Fit
The “PWR SRC” jumper selects the power source for the board. When set to bus powered,
power is taken from the “USB DEVICE” Vbus pin. When set to self powered, power is taken
from the “EXTERNAL POWER” Vbus pin.
The “VBUS DET” jumper enables detection of the presence of Vbus which is required only
when the board is configured as a self powered device. This is used to disable the pullup
connected to D+ when the host is unpowered, a requirement of the USB specification.
The Vbus detection circuit uses a bipolar transistor to detect the presence of Vbus and
output this as a 3.3V logic signal. This circuit is an improvement from a simple resistor
divider connected to an IO as it avoids any current paths from Vbus to the power supplies
on the board which could cause back powering of these supplies from Vbus (in the case
where USB is connected to a host but the device is unpowered). When directly using an
IO this path would be present due to the ESD clamp diodes from the IO to the IO power
supply. Back powering the board in this way can cause the supplies not to come up
cleanly and so some devices with built in power on reset may be affected.
Board Net xCORE GPIO Port Description
VBUS_DETECT X0D14 P4C0
VBUS presence detect. High if Vbus is less than
~0.6V
Figure 18:
USB xCORE
GPIO
16

xcore.ai Multichannel Audio Board 1v1 Hardware Manual
13 General purpose user interface
4 green LEDs and 3 buttons are provided for general purpose user interfacing.
The figure below shows the layout of the user interface subsection:
Figure 19:
User interface
components
The signal mapping of the user interface components is shown in Figure 20
Board Net xCORE GPIO Port Description
LED_0 X0D28 P4F0 LED Output 0. Set high to light LED.
LED_1 X0D29 P4F1 LED Output 1. Set high to light LED.
LED_2 X0D30 P4F2 LED Output 2. Set high to light LED.
LED_3 X0D31 P4F3 LED Output 3. Set high to light LED.
BUT_0 X0D26 P4E0 Button input 0. High = not pressed.
BUT_1 X0D27 P4E1 Button input 1. High = not pressed.
BUT_2 X0D32 P4E2 Button input 2. High = not pressed.
Figure 20:
User interface
GPIO
14 I2C bus address map
Due to a conflict in I2C slave addresses, two I2C buses are used on the board. These
buses are multiplexed onto the xcore.ai I2C bus using a PCA9540B 2-channel I2C-bus
multiplexer. This allows the I2C bus to be used (0 or 1) to be selected over I2C.
I2C slave address (7 bit) Device
0x70 NXP PCA9540B 2-channel I2C-bus multiplexer
17

xcore.ai Multichannel Audio Board 1v1 Hardware Manual
The I2C multiplexer must be written first to select bus 0 or bus 1 before communication
with the I2C devices on the relevant I2C bus can commence.
The I2C multiplexer takes the last byte written as the data for the control register. For an
I2C write we typically send a three byte string of slave address, register address, data. In
this case we do not use the register address so this can be set to 0. The control register
data is set to 0x04 to select I2C bus 0 and set to 0x05 to select I2C bus 1.
So to select bus 0 - WRITE 0x70 0x00 0x04. To select bus 1 - WRITE 0x70 0x00 0x05
A table showing details on I2C devices on the board can be seen here Figure 21
I2C Bus I2C slave address (7 bit) Device
0 0x4C TI PCM5122 stereo audio DAC 0 (Ch1/2)
0x4D TI PCM5122 stereo audio DAC 1 (Ch3/4)
0x4E TI PCM5122 stereo audio DAC 2 (Ch5/6)
0x4F TI PCM5122 stereo audio DAC 3 (Ch7/8)
0x4A TI PCM1865 4-Channel audio ADC 0 (Ch1/2/3/4)
0x4B TI PCM1865 4-Channel audio ADC 1 (Ch5/6/7/8)
1 0x4E Cirrus Logic CS2100 Fractional-N clock multiplier
0x60 Skyworks Si5351A-B-GT CMOS clock generator
Figure 21:
I2C devices
15 Power supplies
The board is powered either from the “USB DEVICE” connector or from the “EXTERNAL
POWER” connector as described in the USB section. This allows for testing as a bus or
self powered USB device.
The USB specification has quite stringent requirements as to how the device uses power
from Vbus. Some of these are listed below:
·Device must present less than 10uF of decoupling capacitance on Vbus.
·Device must use less than 2.5mA from Vbus in USB suspend.
· Device must use less than 100mA from Vbus until configured as a high power device.
For self powered devices these are trivially met as the board can use as much power as
required from the external power supply. For bus powered devices, the xcore.ai multichan-
nel audio board is designed to meet these requirements where possible which makes for
a slightly more complicated power supply scheme.
The essence of the design is that only supplies required by the xmos device are always on
and the other power supplies on the board are switched off until they are required/allowed.
An additional complication is switching supplies on can cause significant inrush current
if not controlled so current limited load switches are used for the purposes of switching
supplies on and off rather than regulator enable pins. It should be noted switching the
18

xcore.ai Multichannel Audio Board 1v1 Hardware Manual
power supplies on and off is not required in all designs, for simple designs the power may
be reduced sufficiently by setting all active devices into suspend or power down states.
An OnSemi NCP360 overvoltage protection device is used for two potential benefits:
protection against overvoltage transients (e.g. inductive spike on connection of long
cable) and also inrush current limiting.
3V3X, 1V8 and 0V9 are the always on supplies for xcore.ai and essential support compo-
nents. These use dc-dc supplies from the 5V supply apart from 1V8 which uses a low drop
out linear regulator from the 3V3X supply. This is because 1V8 uses much less current.
The supplies are sequenced such that the 3V3X and 1V8 supplies will be present before
the 0V9 supply is turned on. This meets the requirement of the xcore.ai device that the
VDDIOB18 supply must not be turned on last. For more details of supply requirements
see the XU316-1024-TQ128 datasheet.
The main board 3V3 and 5V supplies are switched such they can be turned off in low
power modes when bus powered. The switched 5V supply is used to generate a dedicated
analog 3V3 supply which is used by the DACs and ADCs as their analog supply. This
supply is separated and generated by a linear regulator to ensure it is low ripple/noise.
The requirement to use less than 2.5mA when in the USB suspend state is a difficult
one to meet. To meet this requirement care must been taken to minimise any unwanted
current draw, steps taken on this board are:
·All supplies not required for USB operation are turned off when in suspend.
·The xcore.ai VDD supply voltage is reduced to around 0.85V from the nominal 0.9V.
·All power management components chosen for low quiescent current.
· DC-DC supplies chosen/configured to support high efficiency at low output current
(PFM mode).
Board Net xCORE GPIO Port Description
X0D22 X0D22 P1G0
VDD core supply margin. Drive high for 0.85V, high-z
for 0.9V.
SUSPEND_N X0D41 P8D5 Enables the 5V_SW and 3V3 supplies when high.
Figure 22:
Power Supply
xCORE GPIO
16 Operating requirements
This development board is, like most exposed electronic equipment, sensitive to Elec-
trostatic Discharge (ESD) events. Users should operate the xcore.ai multichannel audio
board with appropriate ESD precautions in place.
17 Dimensions
The xcore.ai multichannel audio board dimensions are 160x130mm. The mounting holes
are 3.2mm in diameter for use with an M3 screw.
19

xcore.ai Multichannel Audio Board 1v1 Hardware Manual
18 xcore.ai multichannel audio board port map
The tables below provide a full description of the port-pin-net mappings described through-
out this document for the xcore.ai multichannel audio board.
Pin Port IO Board Net Description
X0D00 P1A0 3.3V PLL_SYNC CS2100 Frequency Ref
X0D01 P1B0 3.3V QSPI_CS_N Quad SPI Boot
X0D04 P4B0 P8A2 3.3V QSPI_D0 Quad SPI Boot
X0D05 P4B1 P8A3 3.3V QSPI_D1 Quad SPI Boot
X0D06 P4B2 P8A4 3.3V QSPI_D2 Quad SPI Boot
X0D07 P4B3 P8A5 3.3V QSPI_D3 Quad SPI Boot
X0D10 P1C0 3.3V QSPI_CLK Quad SPI Boot
X0D11 P1D0 3.3V MCLK_XMOS Audio master clock input
X0D12 P1E0 1.8V X0D12 GPIO (Used by USB)
X0D13 P1F0 1.8V X0D13 GPIO (Used by USB)
X0D14 P4C0 P8B0 3.3V VBUS DETECT Detect VBUS present
X0D16 P4D0 P8B2 3.3V DAC_MUTE_N Hardware DAC Mute
X0D22 P1G0 1.8V X0D22 Output (1.8V, margin core voltage)
X0D23 P1H0 1.8V X0D23 GPIO (Used by USB)
X0D24 P1I0 3.3V X0D24 GPIO (Used by USB)
X0D25 P1J0 3.3V X0D25 GPIO (Used by USB)
X0D26 P4E0 P8C0 3.3V BUT_0 Button input
X0D27 P4E1 P8C1 3.3V BUT_1 Button input
X0D28 P4F0 P8C2 3.3V LED_0 LED Output
X0D29 P4F1 P8C3 3.3V LED_1 LED Output
X0D30 P4F2 P8C4 3.3V LED_2 LED Output
X0D31 P4F3 P8C5 3.3V LED_3 LED Output
X0D32 P4E2 P8C6 3.3V BUT_2 Button input
X0D33 P4E3 P8C7 3.3V ADC_GPIO ADC interrupt input
X0D34 P1K0 3.3V X0D34 GPIO (Used by USB)
X0D35 P1L0 3.3V I2C_SCL I2C Serial Clock
X0D36 P1M0 P8D0 3.3V I2C_SDA I2C Serial Data
X0D37 P1N0 P8D1 3.3V COAX_RX S/PDIF input
X0D38 P1O0 P8D2 3.3V OPT_RX S/PDIF/ADAT input
X0D39 P1P0 P8D3 3.3V WCLK_IN Word Clock input
X0D40 P8D4 3.3V X0D40 GPIO
X0D41 P8D5 3.3V SUSPEND_N Low power mode output
X0D42 P8D6 3.3V EXT_PLL_SEL PLL Select output
X0D43 P8D7 3.3V MCLK_DIR Master clock direction
20
