Xo 4 User manual
XO® 4/ XO FLEX
RETROFIT OF QUICK CONNECTORS
YB-672
Version 1.10
XO CARE A/S
Usserød Mølle
Håndværkersvinget 6 +45 70 20 55 11
DK 2970 Hørsholm info@xo-care.com
Denmark www.xo-care.com
XO CARE A/S YB-672 Ver 1.10
Page 2 of 6
XO CARE A/S YB-672 Ver 1.10
Page 3 of 6
WARNING:
When making changes and handling
electronics in the XO 4 Unit – always
use ESD antistatic wristband (UC-600).
Tools:
Torx 20
Hose Cutter
Remove the 4 torx20 screws and
remove the panel on the service hatch.
XO CARE A/S YB-672 Ver 1.10
Page 4 of 6
Fit the new panel with the quick
connections on the service hatch.
Connect the supplied 4mm air and
water hose to the quick connectors.
Top (Blue): Air
Bottom (White): Water

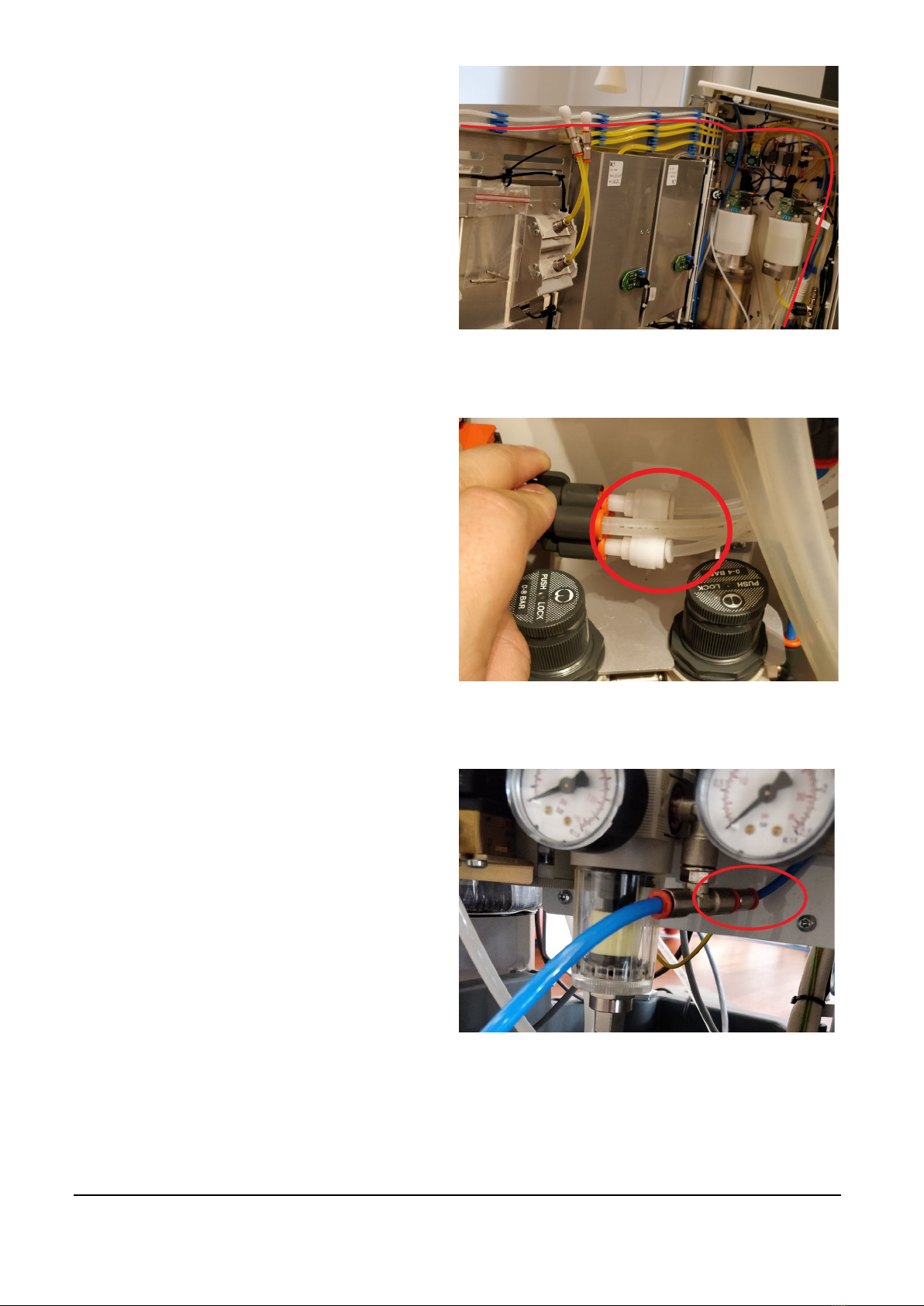

Route the 4mm water and air hose as
illustrated.
XO CARE A/S YB-672 Ver 1.10
Page 5 of 6
Route 4mm water and air hose as
illustrated.
Cut the 4mm water hose to desired
length, and connect the water hose to
the T-connector on the water regulator.
Cut the 4mm air hose to desired length,
and connect the air hose to the air
regulator as illustrated.
XO CARE A/S YB-672 Ver 1.10
Page 6 of 6
Be sure to remove the couplings before
switching on the unit.
Switch on the unit and test the newly
installed product. Check that there are
no leaks and that the system functions
properly.
