XOT UNDER CABINET
MODELS XOT48KSE, XOT1836KSE, XOT1848KSE

- 3 -
When buying any XO appliance
you can be confident you have chosen a
high quality, innovative and stylish product
from a company that cares about you!
If you require service or have questions,
there are 2 ways to contact our ventilation experts;
Online @ https://xoappliance.com/priority-service-for-your-xo-product/
Or by phone [phone]
CONGRATULATIONS
on purchasing your XO.
Before you proceed, take just a
moment to register your XO at:
www.xoappliance.com/register-your-product/
REGISTRATION HELPS YOU BY -
Ensuring warranty coverage should you need service
Providing ownership verification for insurance purposes
Let’s XO notify you in the event of product changes or recalls.

- 4 -
It’s for your
own good...
Honest.
please read and follow
all safety instructions
where things are
GETTING READY
Safety and Precautions
Planning Ductwork
Install Examples
Dimensions
THE INSTALL
Mounting Height
Top or Rear Exhaust
Installing
Electrical Connections
MAINTENANCE
Filters
Cleaning
Recirculation
Light Replacement
OPERATING
The Push Button Controls
PARTS & WARRANTY
22 - 23
24 - 25
5 - 13
14 - 19
20 - 21

- 5 -
safety first
IMPORTANT SAFETY INSTRUCTIONS
FOR RESIDENTIAL USE ONLY
READ AND SAVE THESE INSTRUCTIONS
PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING.
IMPORTANT: Save these Instructions for the Local Electrical Inspectors use.
INSTALLER: Please leave these Instructions with this unit for the owner.
OWNER: Please retain these instructions for future reference.
Take care when using cleaning agents or detergents.
Suitable for use in household cooking area.
WARNING - To reduce the risk of re or electric shock, do not use this fan with any
Solid-State Speed Control Device.
CAUTION - To reduce risk of re and to properly exhaust air, be sure to duct air out-
side – Do not vent exhaust air into spaces within walls or ceilings or into attics, crawl
spaces, or garages.
CAUTION - For Residential Kitchen ventilating use only. Do not use to exhaust haz-
ardous or explosive materials and vapors.
CAUTION - To avoid motor bearing damage and noisy and/or unbalanced impellers,
keep drywall spray, construction dust, etc. o power unit.
CAUTION - Please read specication label on product for further information and
requirements.
WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
A. Use this unit only in the manner intended by the manufacturer. If you have questions,
contact the manufacturer.
B. Before servicing or cleaning unit, switch power o at service panel and lock the ser-
vice disconnecting means to prevent power from being switched on accidentally.
When the service disconnecting means cannot be locked, securely fasten a promi-
nent warning device, such as a tag, to the service panel.
WARNING - TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
A. Never leave surface units unattended at high settings. Boilovers cause smoking and

- 6 -
greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
B. Always turn hood ON when cooking with high heat.
C. Clean ventilating fans frequently. Grease should not be allowed to accumulate on
fan or lter.
D. Use proper pan size. Always use cookware appropriate for the size of the surface
element.
E. Keep fan, lters and grease laden surface clean.
F. Use high range setting on range only when necessary. Heat oil slowly on low to me-
dium setting.
G. Don’t leave range unattended when cooking.
H. Always use cookware and utensils appropriate for the type and amount o food be-
ing prepared.
WARNING – TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE
TOP GREASE FIRE, OBSERVE THE FOLLOWING:
A. SMOTHER FLAMES with a close-tting lid, cookie sheet, or metal tray, then turn o
the burner. BE CAREFUL TO PREVENT BURNS. If the ames do not go out immediately,
EVACUATE AND CALL THE FIRE DEPARTMENT.
B. NEVER PICK UP A FLAMING PAN – You may be burned.
C. DO NOT USE WATER, including wet dishcloths or towels – a violent steam explosion
will result.
D. Use an extinguisher ONLY if:
1. You know you have a Class ABC extinguisher, and you already know how to operate it.
2. The re is small and contained in the area where it started.
3. The re department is being called.
4. You can ght the re with your back to an exit.
aBased on “kitchen resafety tips” published by NFPA.
Proper maintenance of the Range Hood will assure proper performance of the unit.
INSTALLATION INSTRUCTIONS
WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
A. Installation work and electrical wiring must be done by qualied person(s) in accord-
ance with all applicable codes and standards, including re-rated construction.
B. Sucient air is needed for proper combustion and exhausting of gases through the
ue (chimney) of fuel burning equipment to prevent back drafting. Follow the heat-
ing equipment manufacturer’s guideline and safety standards such as those pub-
lished by the National Fire Protection Association (NFPA), and the American Society
for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local

- 7 -
code authorities.
C. When cutting or drilling into wall or ceiling, do not damage electrical wiring and
other hidden utilities.
D. Ducted fans must always be vented to the outdoors.
E. This unit must be grounded.
WARNING - TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.
WARNING - UNDER CERTAIN CIRCUMSTANCES DOMESTIC APPLIANCES MAY BE
DANGEROUS.
A. Do not check lters with hood working.
B. Do not touch the lamps after a prolonged use of the appliance.
C. No food must be cooked ambè underneath the hood.
D. The use of an unprotected ame is dangerous for the lters and could cause res.
E. Watch constantly while frying food in order to avoid cooking oil are ups.
F. Before performing any maintenance operation, disconnect the hood from the
electrical service.
The manufacturers will not accept any responsibility for possible damages, because
of failure to observe the above instructions.

- 8 -
THIS HOOD IS DESIGNED TO USE AN 8” ROUND DUCT -
IT MAY BE TRANSITIONED TO A 4” X 14” RECTANGULAR DUCT
NEVER REDUCE DUCT SIZE. UNDERSIZED DUCTING SEVERELY RESTRICTS AIR
FLOW AND HARMS PERFORMANCE.
(Example: the area of an 8” Duct is more than 75% larger than a 6” Duct)
KEEP DUCT RUNS AS SHORT AND STRAIGHT AS POSSIBLE.
AVOID USING FLEXIBLE METAL DUCTING IF RUN IS LONGER THAN 6’.
NEVER USE PLASTIC DUCTING.
USE SMOOTH BORE METAL DUCTING.
MINIMIZE THE NUMBER OF FITTINGS (see chart).
WHEN YOU MUST USE FITTINGS, TRY TO SEPARATE THEM WITH SECTIONS OF
4’ OR MORE OF STRAIGHT DUCT.
ALWAYS FOLLOW THE MANUFACTURER’S GUIDELINES FOR THE COOKING
EQUIPMENT YOU ARE VENTING.
IF MAKE UP AIR CONTROL DAMPERS ARE REQUIRED, POSITION THE SENSOR
IN A STRAIGHT RUN OF DUCT IDEALLY WITH 4’ OF STRAIGHT DUCT BETWEEN
EACH SIDE OF THE SENSOR AND A DUCT FITTING. REMEMBER TO INCLUDE
POWER AND CONTROL WIRING FOR THIS IN YOUR PLANS.
ADHERE TO ALL LOCAL BUILDING CODES AND ORDINANCES.
USE THE WORKSHEET THAT FOLLOWS TO HELP CALCULATE THE
TOTAL EQUIVILENT FEET OF YOUR DUCT RUN.
TOTAL EQUIVILENT FEET SHOULD BE LESS THAN 100’.
a few simple rules to plan your
ductwork
1
1
12
7
14
8
2
4
24
24
33

- 9 -
1
1
12
7
14
8
2
4
24
24
33
CAUSING AIR TO CHANGE DIRECTION CAUSES TURBULENCE AND RESTRICTS FLOW IN
A SYSTEM.
IF USING FLEXIBLE METAL DUCT - INCREASE ALL MULTIPLIERS BY 50% (12 BECOMES
18 - ETC.)
THIS EASY TO USE WORKSHEET IS FOR 1000 CFM OR LESS.
UNDER “QTY USED” ENTER HOW OF EACH SECTION YOU WILL BE USING.
IN THE FIRST TWO ROWS - ENTER HOW MANY FEET OF EACH TYPE OF STRAIGHT DUCT
YOU WILL BE USING (I.E. FOR 20 FT ENTER 20, FOR 30FT ENTER 30).
ENTER THE NUMBER OF EACH TYPE OF TURN YOU ARE USING AND THE TYPE OF END CAP.
MULTIPLY ACROSS EACH ROW THE “MULTIPLIER” x “QTY USED” TO GET THE EQUIVALENT
FEET FOR THOSE COMPONENTS.
ADD UP ALL THE VALUES IN THE “EQUIVALENT FEET” COLUMN.
estimating total equivalent feet in
a duct
DUCT PIECE DESCRIPTION MULTIPLIER QTY USED EQUIVALENT
FEET
1’ of 8” Round Duct
1’ of 4“ x 14” Rect. Duct
8” 90 Degree Elbow
8” 45 Degree Elbow
4” x 14” 90 Degree
4” x 14” 45 Degree
4” x 14” x 8” Round
4” x 14” x 8” 90 Degree
8” Round Wall Cap w Damper
4” x 14” Wall Cap w Damper
8” Round Roof Cap
TOTAL EQUIVALENT FEET SHOULD BE LESS THAN 100

- 10 -
VENTED
WALL EXHAUST ROOF EXHAUST
typical installation examples
B
A
11" - 18" 1-5/16"
12"
8"
5-5/8"
3"
36" - 48"
22"

- 11 -
B
A
11" - 18" 1-5/16"
12"
8"
5-5/8"
3"
36" - 48"
22"
› Front of hood › Side of hood
› Top of hood

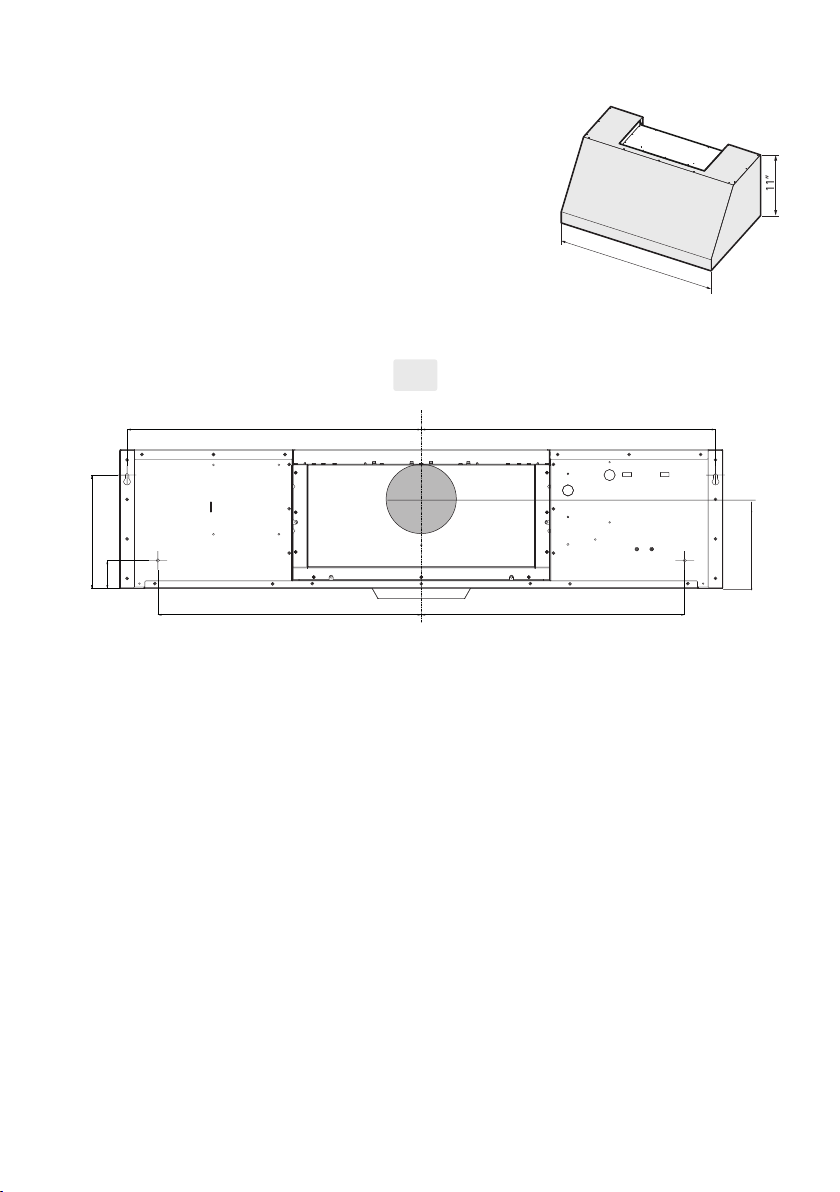

dimensions
MODEL A B
XOT48KSE 48” 11”
XOT1836KSE 36” 18”
XOT1848KSE 48” 18”

- 12 -
dimensions
48”
6-1/2''
23-3/8'' 23-3/8''
2-1/4''
9-1/16''
20-15/16'' 20-15/16''
48"
14-15/16'' 14-15/16''
13-7/16''
17-3/8''
15-15/16''
2-1/4''
17-3/8''
36"
36” - 48”
13-7/16''
48”
23-3/8'' 23-3/8''
2-1/4''
15-15/16''
20-15/16'' 20-15/16''
› Rear of hood
(alt vent location see page 15)

- 13 -
dimensions
48”
6-1/2''
23-3/8'' 23-3/8''
2-1/4''
9-1/16''
20-15/16'' 20-15/16''
48"
14-15/16'' 14-15/16''
13-7/16''
17-3/8''
15-15/16''
2-1/4''
17-3/8''
36"
36” - 48”
13-7/16''
48”
23-3/8'' 23-3/8''
2-1/4''
15-15/16''
20-15/16'' 20-15/16''
› Rear of hood
(alt vent location see page 15)

- 14 -

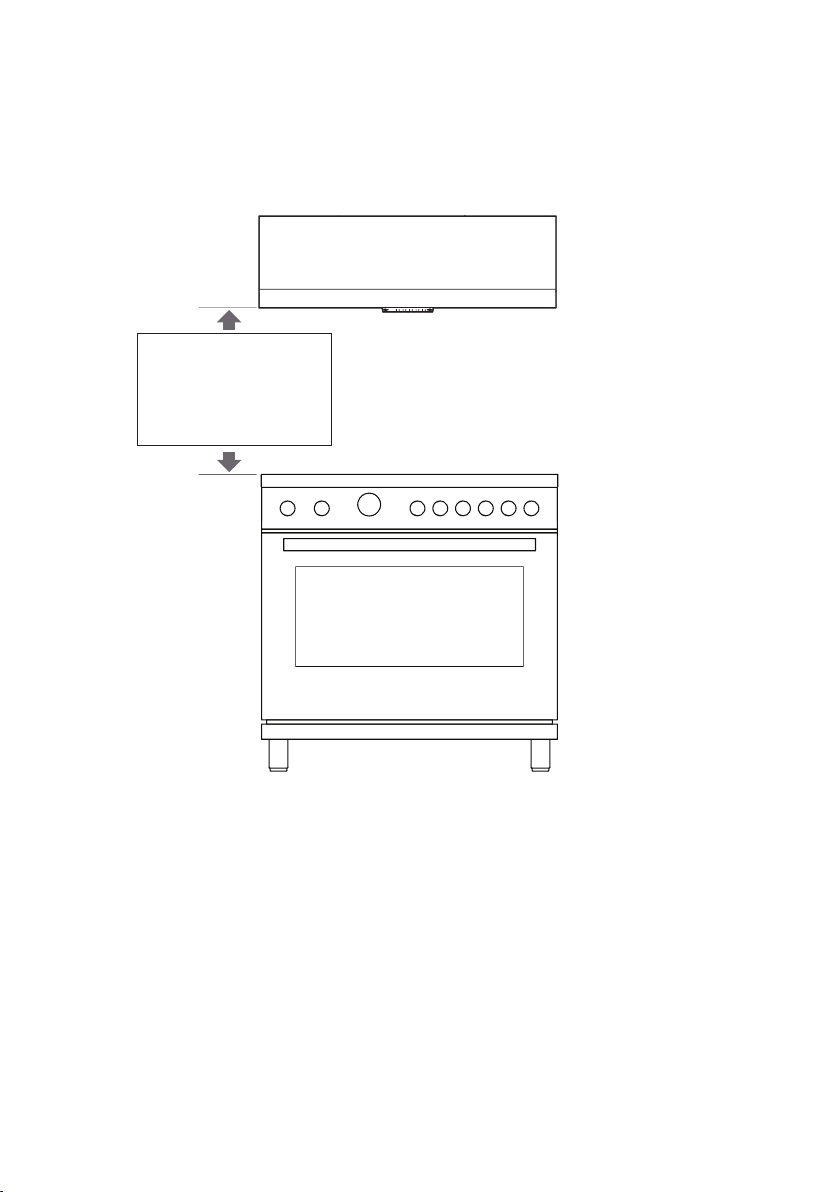

27”to32”
RECOMMENDED
MOUNTING HEIGHT
ABOVE GAS AND
ELECTRIC COOKTOPS
highs and lows
All range hoods have a recommended range of installation height over the cooking
surface.
It is important to install the hood at the proper mounting height. Hoods mounted too
low could result in heat damage and fire hazard; while hoods mounted too high will
be hard to reach and will lose its performance and efficiency.

- 15 -
27”to32”
A
A
1
2
3
C
2
1
C
C
A
B
3
OPTIONAL: the electric power supply box can be removed and xed in the position indicated
in Fig.3A.
WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO
PERSONS, OBSERVE THE FOLLOWING: Before connecting the appliance to the power
supply network, the electric plant box must be positioned in the seat.
To move the electric power supply box, refer to that indicated in Fig.3A:
1.Loosen the two screws CFig.3A.1.
2.Break and remove the small circular metal sheet positioned in the upper part of the hood,
with the aid of a at screwdriver Fig.3A.2.
3. Take the electric connection box and x it using the 2 screws C, previously removed, in the
position indicated in Fig.3A.3.
4.For the electric power supply connection refer to Fig.3B.2-Fig.3B.3.
!

- 16 -
1
B
B
A
B
A
A
B
4
A
1
2
A
B
B
A
A
A
B
4
A
A
B
1
installation

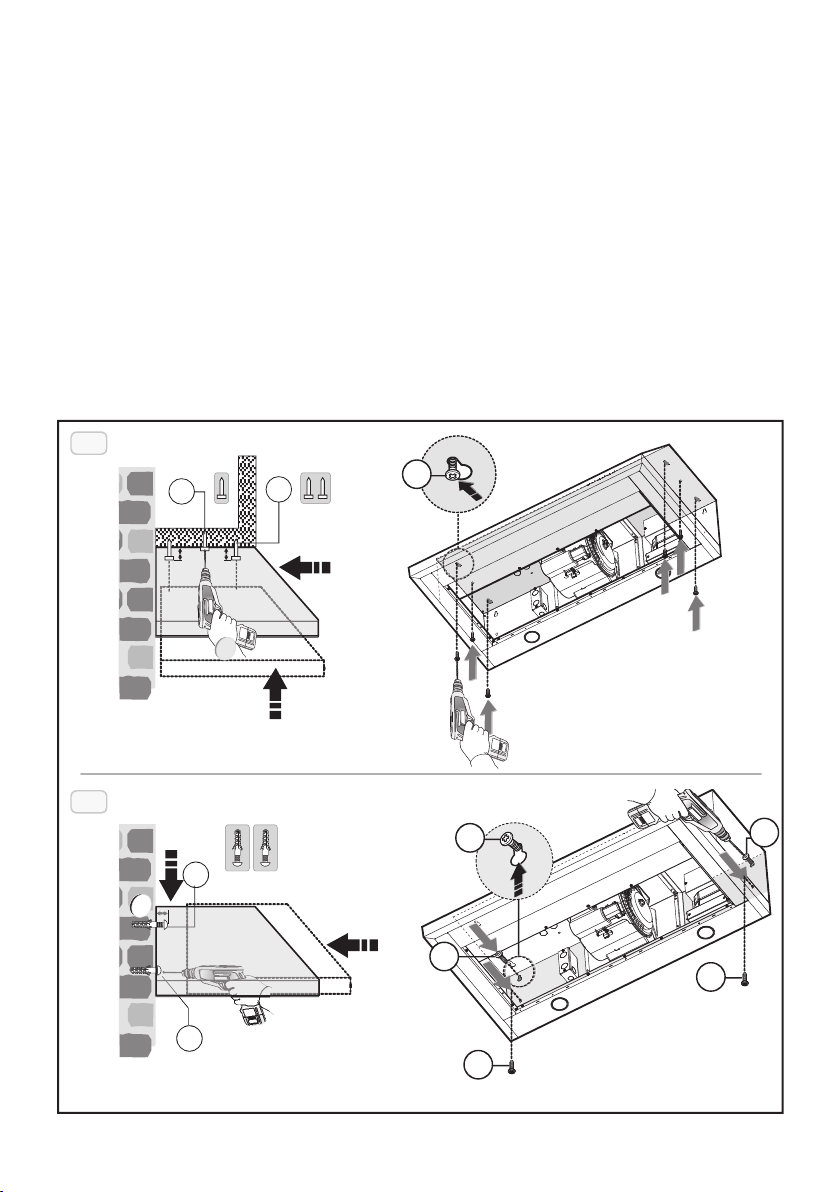

• This product can be installed in 2 di󰀨erent ways:
- Mounting the hood in the lower part of the shelf:
1type installation
- Mounting the hood on the wall:
2type installation.

- 17 -
1
B
B
A
B
A
A
B
4
A

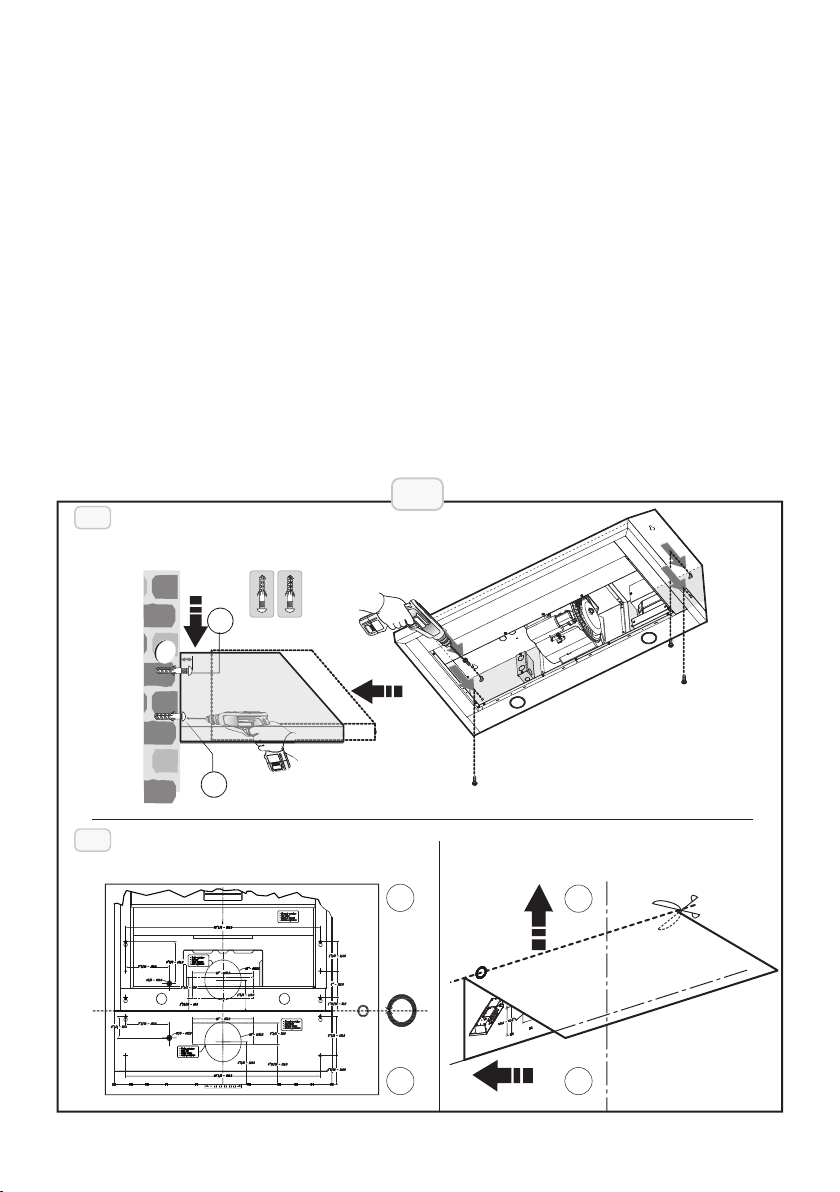

installation “1”
• Mounting the hood in the lower part of the shelf:
- Check that the screws used to mount the hood are suitable suitable for the type of material
you are mounting to.
- Position the xing template underneath the cabinet Fig.B,(considering the recommended
distance from the cooker top).
- Fix the 4 screws Awithout tightening them completely (Fig.A).
- Position the hood on the screws, under the cabinet (Fig.A), tighten/fasten the 4 screws A
and x it denitively using the 2 safety screws B.

- 18 -
2
A
B
B
A
B
A
A
B
1
installation “2”
• Mounting the hood on the wall:
Position the xing template on the wall Fig.B (considering the recommended distance from
the cooker top).
- Fix the 2 upper screws Awithout tightening them completely along with the plugs Fig.A.
- Hang the hood on the wall, aligning it in a horizontal position and tighten/fasten the 2 screws
A. When it has been regulated, x it denitively using the 2 safety screws B (Fig.A).
For the various installations use screws and screw anchors suited to the type of wall (e.g.
reinforced concrete, plasterboard, etc.). If the screws and screw anchors are provided with
the product, check that they are suitable for the type of wall on which the hood is to be xed.
• Limited to installation on plasterboard walls: make sure that the screws are xed to the wall
support elements. If this is not the case, install a support structure made up from 2 by 4 inch
cross members in correspondence with the screw anchorage points.

- 19 -
1. Route the power cord to the junction box inside the hood.
2. Using listed conduit fittings and connectors, connect the power supply to the box and each
line to the appropriate wire following this color convention:
BLACK = HOT LEG
WHITE = NEUTRAL
GREEN/YELLOW = GROUND
Polarity must be observed.
Unit must be properly grounded.
Use a double throw disconnect switch.
3. Replace the box cover
4. Replace the Anti-grease Baffles.
All wiring must be in compliance with national electrical code, ANSI/NFPA 70-1999 and all
local codes and regulations.
electrical connection

- 20 -
maintenance
Regular cleaning and maintenance is the key to long life and peak performance of any
equipment.
ANTI-GREASE BAFFLE FILTERS: Your XO hood is equipped with stainless steel pro-style
baffle filters designed to capture grease from cooking. The baffles are easily removed for
cleaning either by soaking in a warm, mild dish detergent solution, rinsing thoroughly and
drying - or - by washing in your dishwasher.
TO REMOVE THE BAFFLES:
1.Pull down on the release latch (shown left)
2.Lower the front edge of the baffle
3.Pull forward and remove
4.To replace, insert the rear of the baffle,
holding the latch open, swing the the front up
into place and release the latch.
The importance of this simple process is
essential for two reasons. First to help keep
your kitchen clean and healthy, but it is also
critical to minimize the risk of fire.
Baffle filters should be cleaned at least once every 2 months, more frequently depending on
the type of cooking performed and the build up of grease.
CLEANING STAINLESS STEEL:
Do not use corrosive detergents, abrasive detergents or oven cleaners.
Do not use any product containing chlorine bleach or any product containing chloride.
Do not use steel wool or abrasive scrubbing pads which will scratch and damage surface.
Cleaning Stainless Steel Clean periodically with warm soapy water and clean cotton cloth or
micro fiber cloth. Always rub in the direction of the stainless steel grain. To remove heavier
grease build up use a liquid degreaser detergent. After cleaning use a non-abrasive stainless
steel polish/cleaners, to polish and buff out the stainless luster and grain.Always rub lightly, with
a clean cotton cloth or a micro fiber cloth and buff in the direction of the stainless steel grain.
Any painted surfaces should be cleaned with warm water and detergent only.
