XOTIC EFFECTS Xotic Wah User manual

SAMPLE SETTINGS
1967 VOX Clyde “Picture” Wah
1969 VOX Clyde “Metal Can” Wah
1968 VOX Clyde “Signature” Wah
Hot Rod Wah for Humbucker Pickups
INTERNAL CONTROLS & FEATURES
Relay Bypass Switching - XW-1 uses a relay switch for true bypass switching.
Input Gain - Controls wah input gain - by turning clockwise it adds up to +6dB of Wah
Boost. Input gain trimmer is only active when the #2 dip switch is activated.
INTERNAL DIP SWITCHES - see below for detail
INPUT GAIN TRIMMER
DEFAULT SETTINGS TOE DOWN RANGE:
Activate to maximize treble frequency.Turn off
for darker toe-down frequency response.
INPUT GAIN:
Input gain trimmer is only active when this
switch is activated.
PRESENCE CUT:
Activate for smoother high end.
WAH Q FREQUENCY:
Activate for deeper vowel frequency response.
1.
2.
3.
4.

EXTERNAL CONTROLS & FEATURES
BIAS CONTROL – Turning up the bias control will lead the XW-1 to having
slightly more output & firm up bass frequencies along with a more
pronounced wah through the sweep. A cold bias is common with
vintage wah pedals for a very clear voice that is more transparent in
tone and smoother in operation.
WAH Q CONTROL – This knob adjusts the Q (the width
of the filter peak) and in basic terms,
adjusts the amount of the wah effect for
precise filter shaping to achieve
vocal-like effects.
TREBLE & BASS CONTROL – A two-band
EQ with +/-15 dB center-detent
potentiometers optimize the
voicing for different playing styles
and gear.

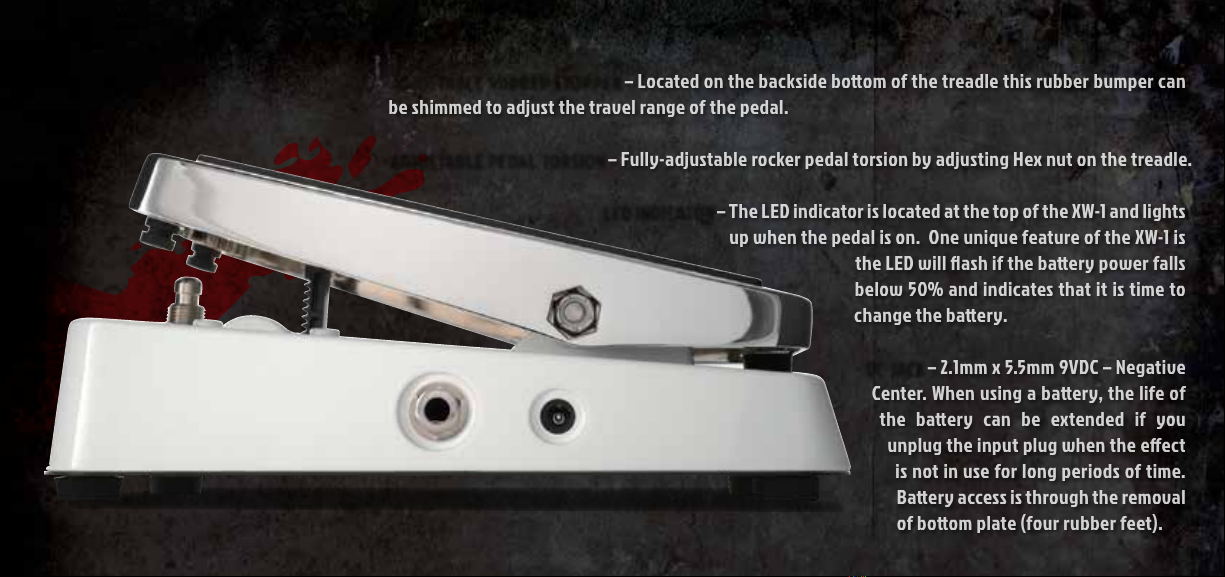

ADJUSTABLE RUBBER STOPPER – Located on the backside boom of the treadle this rubber bumper can
be shimmed to adjust the travel range of the pedal.
ADJUSTABLE PEDAL TORSION – Fully-adjustable rocker pedal torsion by adjusting Hex nut on the treadle.
LED INDICATOR – The LED indicator is located at the top of the XW-1 and lights
up when the pedal is on. One unique feature of the XW-1 is
the LED will flash if the baery power falls
below 50% and indicates that it is time to
change the baery.
DC JACK – 2.1mm x 5.5mm 9VDC – Negative
Center. When using a baery, the life of
the baery can be extended if you
unplug the input plug when the effect
is not in use for long periods of time.
Baery access is through the removal
of boom plate (four rubber feet).

Xotic Wah XW-1 is modeled based on the Holy Grail wah, 1967-1968 Italian-built Clyde McCoy Wahs. With the Xotic XW-1 you don’t get one or three sounds in one pedal,
you get unlimited sounds with unique controls that shape and contour your sound the way you hear it! The adjustability and flexibility of the XW-1 makes this one
of the most versatile wah pedals available today!
With the XW-1 you will enjoy some exciting and innovative features including:
Self-lubricating nylon bushing pivot for quiet and smooth operation with fully-adjustable rocker pedal tension.
Gold contact relay true bypassing, which allows for transparent true bypass tone, while incorporating ultra reliable switching with minimum one million life cycle.
20% smaller footprint than conventional wah pedals.
Fully adjustable Wah-Q and Bias controls and a two-band EQ with +/-15 dB center-detent potentiometers optimize the voicing for different playing styles and gear.
Fuzz friendly buffering circuit assures a great sounding wah tone with your favorite fuzz pedals.
SPECIFICATIONS
Dimensions: D 8.27” (210mm) W 3.94” (100mm) H 2.64 (67mm)
Weight: 2.16 lbs (980g)
Power Consumption: 9VDC/5mA Battery Type: 9VDC (006P) x 1
AC Adapter (Optional): Regulated 9VDC / Negative Tips
Input Impedance: 1MΩ Output Impedance: 10KΩ
Nominal Input Level -20 dBV
Bypass: True Bypass

Warranty Information
This product is warranted against failures due to defective parts or faulty workmanship for
a period of 1 year after delivery to the original owner. During this 1 year period,we, XOTIC
EFFECTS will make necessary repairs without charge for parts and labor. However, shipping
charges to and from the repair location must be paid by the owner.
* This warranty applies only to the original owner and is not transferable.
* This warranty does not cover damage to the product as a result from accident or misuse.
* This warranty will be cancelled at the sole discretion of us if the product has;
1. Any signs of tampering, unauthorized service, or modifications.
2. Any damage resulting from physical abuse or failure to follow operating warning.
Please contact us via online form below prior to returning the unit to us for repair.
hp://main.xotic.us/contacts
XOTIC EFFECTS USA
14920 Calvert Street, Van Nuys, CA 91411 USA
hp://www.xoticeffects.com
email: [e-mail]
Note: For international customer,if you purchased the
unit from a dealer in your country, please consult with
the dealer before returning.You are responsible for all
freight charges including custom duties. Also, check
with your local Customs Authority and register the
merchandise before sending it to the United States for
repair. Every country's Customs Authority has a
different procedure and documentation for repairs, so
it is important that you check before you ship the unit
back to us. This is important to avoid unnecessary
custom duties.
