Xovis PC Series User manual

PC-Series
User manual

Copyright reminder
Copyright © 2016 by Xovis AG, Switzerland.
All rights reserved. No part of this publication may be reproduced, stored in a retrieval
system, or transmitted, in any form by any means, electronic, mechanical, photocopying,
recording, or otherwise, without the prior written permission of the publisher. Printed and
published in Switzerland.
While Xovis AG believes the information included in this publication is correct as of the date
of publication, it is subject to change without notice.
All cited trademarks and registered trademarks are the property of their respective owners.
Non-disclosure reminder
All information in this document is strictly confidential and may only be published by Xovis
AG, Switzerland.
Document history
Version
Date
Author
Comment
1.0
17.11.2014
CG / FLM
First Release
1.1
27.03.2015
CG
Updates for SW release 2.2
1.2
16.04.2015
CG
Updates for SW release 2.2.1
1.3
30.06.2015
CG
Updates for SW release 2.3.1
1.4
22.07.2015
CG / FLM
Mounting instructions now described
in separate document
1.5
29.09.2015
CG / FLM
Updates for SW release 3.0.1
1.6
30.10.2015
CG / FLM
Updates for SW release 3.1.0
1.7
23.12.2015
CG
Updates for SW release 3.2.0
1.8
12.06.2016
CG
Updates for SW release 3.3.0
1.9
22.12.2016
CG
Updates SW release 3.4.0

Table of contents
1Overview ................................................................................................... 5
Content Declaration ...............................................................................................5
PC-Series hardware concept ..................................................................................5
PC-Series 3D sensor................................................................................................5
2Installation Fundamentals......................................................................... 6
Network requirements ...........................................................................................6
Power over Ethernet...............................................................................................6
Sensor LED ..............................................................................................................6
3Configuration & Usage ............................................................................. 7
Person tracking.......................................................................................................7
3.1.1 Person generation........................................................................................................ 7
3.1.2 Person position / coordinate mode............................................................................. 8
Setting up a sensor.................................................................................................9
3.2.1 Introduction ................................................................................................................. 9
3.2.2 Setting up the sensor in the network .......................................................................... 9
3.2.3 Xovis Sensor Explorer................................................................................................. 10
3.2.4 Access the web interface ........................................................................................... 14
3.2.5 Login to the sensor.................................................................................................... 15
3.2.6 Navigation.................................................................................................................. 15
3.2.7 Setup Wizard.............................................................................................................. 17
3.2.8 Live View .................................................................................................................... 42
3.2.9 Analytics View ............................................................................................................ 48
3.2.10 Config View................................................................................................................ 57
3.2.11 Status View................................................................................................................. 82
3.2.12 Firmware upgrade...................................................................................................... 84
3.2.13 Extended analytics ..................................................................................................... 86
3.2.14 Configuration changes from another client............................................................... 87
3.2.15 Connection warning................................................................................................... 88
4Troubleshooting...................................................................................... 89
False behavior.......................................................................................................89
Masks ....................................................................................................................89
4.2.1 Exclusion masks ......................................................................................................... 89
4.2.2 Taboo masks.............................................................................................................. 90
4.2.3 Example for mask differentiation............................................................................... 92

Placement of dwell zones.....................................................................................93
Time synchronization mechanism .......................................................................95
5Technical data ......................................................................................... 97
6Certificates / Tests................................................................................... 98
7Custom Integration................................................................................. 99
API.........................................................................................................................99
Plugin Architecture...............................................................................................99

5 / 99 www.xovis.com
1Overview
Content Declaration
This manual is intended for administrators and users of the PC-Series sensor and is
applicable for software version 3.3.0 and later. It includes instructions for installing, using
and managing the sensor on your network. Basic knowledge of network configuration and
knowledge of the specific network in which the sensor is operated are required when using
this product. Later versions of this document will be published in the customer section on
the Xovis website at www.xovis.com.
PC-Series hardware concept
The housing of a PC-Series sensor is designed to be mounted directly on the ceiling. Xovis
offers several accessories allowing different installation alternatives. Please refer to the
accessory overview and the mounting instruction showing all versions.
The housing has two holes for sensor positioning and fixation. The Ethernet connector is on
the backside.
Figure 1: PC2 (left) and PC3 (right) 3D sensor
PC-Series 3D sensor
The PC2 3D sensor comes in a black metal housing and supports ceiling heights up to 6.0m.
The PC3 3D sensor comes in a white metal housing and supports ceiling heights up to 20m.

6 / 99 www.xovis.com
2Installation Fundamentals
Network requirements
The device needs to be connected to the network by a shielded Cat 5 RJ45 Cable. The plug
and the sensor need to be free from any mechanical pressure. The sensor supports Ethernet
10/100Mb Full/Half/Auto negotiation based on the IEEE 802.3 standard. It is highly
recommended to set the switch port to auto negotiation.
Power over Ethernet
The sensor is powered by PoE Class 0 compliant to IEEE 802.3af. As defined by the standard,
the network switch port needs to provide 15 Watts at 48 V.
Sensor LED
The PC-Series sensor provides a multifunctional LED on the front side. The red arrow on the
next picture indicate the LED on the PC2 and PC3 models.
Figure 2: PC2 LED (left) and PC3 LED (right)
The LED indicates the following states:
-Green: Device is powered by PoE
-Orange/Green blinking: Device is up and running
The LED state can be useful during installation. When using the optional housing, the LED
will be covered after successful mounting.

7 / 99 www.xovis.com
3Configuration & Usage
Person tracking
The Xovis PC-Series sensor tracks persons. A few things have to be taken into account to
understand how the detection and tracking of persons works:
3.1.1 Person generation
The PC-Series sensor generates a person first when the person is completely within the
visible scene (see Figure 3).
Figure 3: Person generation
When a person track once was generated, the person stays tracked until it leaves the scene
again and its head is touching the visible scene border. Tracking/counting at border is
therefore not supported for persons only partially within the scene.
The following situation illustrates the person generation capability:
Figure 4: Demonstration of person generation with coordinate mode “head”
The situation shows that a person is first detected by the sensor when its head is completely
visible i.e. within the scene.

8 / 99 www.xovis.com
3.1.2 Person position / coordinate mode
The PC-Series sensor uses one specific position per person to evaluate the counting on lines
and zones. This position is either located at the head of a person or at its feet. Figure 5
illustrates the two possible positions.
Figure 5: Person position
Due to the visual perspective of the overhead mounted sensor, the head and foot positions
are congruent directly underneath (in the plump) of the sensor but at different positions at
the scene borders. The user can choose which position shall be used on the sensor by
defining the coordinate mode. This coordinate mode, which can either be “foot” or “head”,
then defines where to show the tracking of a person.
The displaying of the person tracks (paths) on the other hand influences the definition of the
counting elements: When choosing foot coordinates, the person paths will first be displayed
after an offset from the border, as persons get detected by the sensor first, when their head
is seen by the sensor. And, due to the visual perspective, the feet of a person will be seen by
the sensor long before the head of the same person is seen. Or, in other words, when a
persons head is seen by the sensor, its feet will be located within the sceen with a certain
distance to the border / to the head of the person. The following situation demonstrates this
fact:
Figure 6: Different tracking areas depending on the coordinate mode

9 / 99 www.xovis.com
Theoretically the foot coordinates will always be the easier way to use, as all counting items
(e.g. count line) can then just be oriented on the scenes floor (all possible locations of a
persons feet are given by considering the floor of the scene). But due to the visual
perspecitive, feet positions will not be displayed within the complete visible floor which can
complicate the proper drawing of counting items, especially on lower mounting heights
where the difference between the trackable areas of both coordinate modes is quite big (see
Figure 6). Therefore, in some situations, head coordinates can be the preferred choice.
The following situation illustrates the two different coordinate positions:

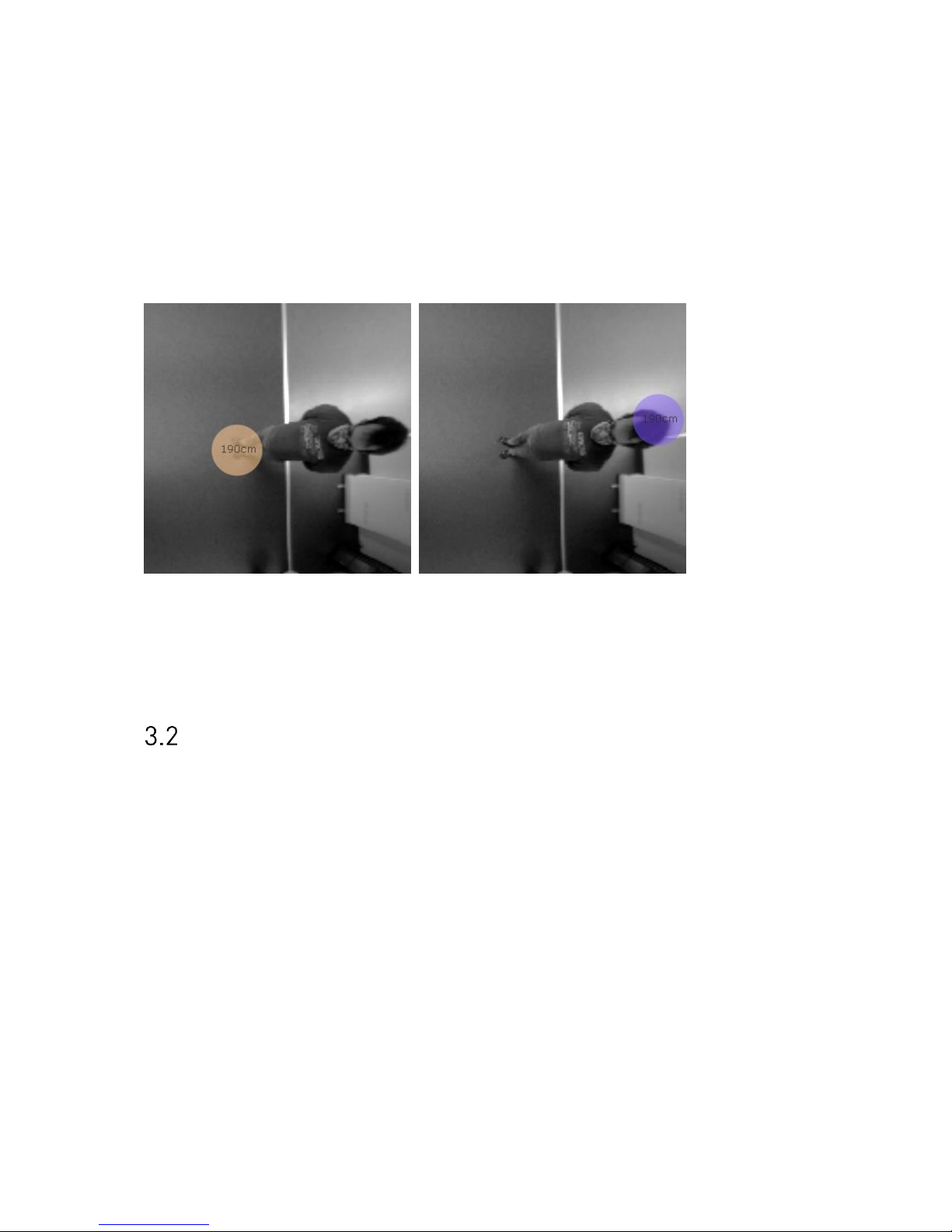

Figure 7: Demonstration of coordinate modes
In the left image, foot coordinates are in use. In the right image, head coordinates are in use.
The situation shows that the first possible position of person “bubbles” is clearly closer at
the border when using head positions.
Setting up a sensor
3.2.1 Introduction
This chapter describes the recommended procedure how to set up a new PC-Series sensor.
3.2.2 Setting up the sensor in the network
The sensor is setup for use in a DHCP environment by default. If a sensor is attached to a
network, it is expecting an IP address assignment by a DHCP server in the network. This is
the simplest way to install a new sensor.
If no DHCP server is present, a static IP setting needs to be applied to the sensor. For this
purpose, a Windows PC attached to the same physical subnet as the sensor is required. The
static network settings can then be applied with the Xovis Sensor Explorer tool, which is
described in the next chapter.

10 / 99 www.xovis.com
3.2.3 Xovis Sensor Explorer
The Xovis Sensor Explorer tool offers a simple way to install and manage Xovis sensors in the
network.
3.2.3.1 Discover sensor on the network
The Xovis Sensor Explorer can be run without installation directly by double-clicking the
XovisSensorExplorer.exe file. The following screen shows up:
Figure 8: Xovis Sensor Explorer
On the top right of the screen, an IP range can be specified. This range will be scanned for
Xovis sensors when clicking on the “Scan” button. Every sensor properly configured in the
specified IP subnet will be discovered and listed in the Xovis Sensor Explorer. Figure 9
shows an example:
Figure 9: Found sensors on the network

11 / 99 www.xovis.com
For all discovered sensors the Xovis Sensor Explorer will display a series of information
which can be useful for maintaining the Xovis sensors in a network:
Item
Description
IP Address
The sensors IP address
Serial Number
Serial number of the sensor
Name
The sensor name, if set
Group
The sensor group, if set
Device Type
The type of the sensor (e.g. PC2, PC2-UL, PC3)
Software Version
The version of the software currently running on the sensor
Up Time
The sensors uptime in the format d.hh:mm:ss
Illumination
The illumination status of the scene in which the sensor is operating,
can be “ok” or “insufficient”
Temperature
The sensors temperature in degrees Celsius whereby the first number
represents the sensors housing temperature and the second number
the sensors internal temperature

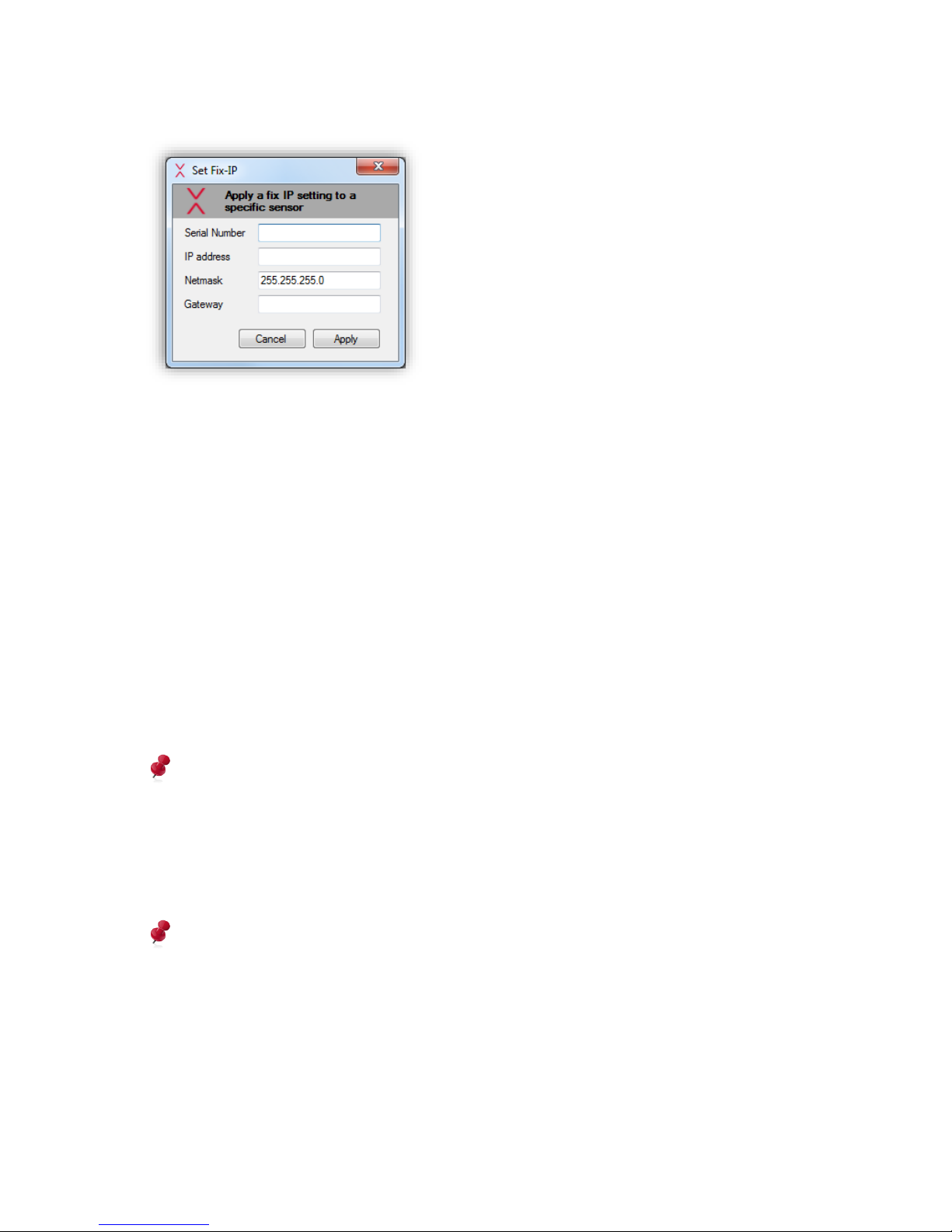

3.2.3.2 Installing a sensor in a fix IP environment
The Xovis Sensor Explorer will only display sensors properly configured and reachable on the
network. In a fix IP environment, a newly attached sensor needs to be setup with a valid IP
configuration first to be able to get discovered by the Xovis Sensor Explorer (the default IP
address of the sensor when no DHCP is in use is 192.168.1.168). For this purpose, the Xovis
Sensor Explorer allows to temporarily apply a specific IP setting to any sensor physically
attached to the same subnet, regardless of whether the sensor was already discovered and
therefore displayed in the Xovis Sensor Explorer list or not, just by specifying the sensors
serial number and the desired network configuration. The menu located directly beneath the
Xovis lettering in the top left of the screen contains the menu item “Set fix IP…” (see Figure
10).
Figure 10: Set fix IP menu item

12 / 99 www.xovis.com
By clicking it, the following dialog appears:
Figure 11: Set Fix-IP dialog
In the first field, the serial number of the sensor needs to be specified. The correctness of
this number is very important and needs to be in the format XX:XX:XX:XX:XX:XX (X to be
replaced). The serial number can be found on the back side of the sensor or on the package
in which the sensor was delivered.
In the fields “IP address”, “Netmask” and “Gateway”, the desired network settings need to be
specified, i.e. the fix IP settings to be applied on this sensor. All fields are required. When
pressing “Apply”, the specified settings are sent to the sensor and a message informs the
user to be patient for 20 seconds. After this time, the sensor should have come up with the
new IP settings.
If the PC running the Xovis Sensor Explorer is located in the same IP range or allows routing
to the IP range of the previously configured sensor, the Xovis Sensor Explorer is now able to
discover the sensor when specifying the proper IP range and clicking again on the “Scan”
button.
The sensor needs to be attached to the same physical subnet as the Windows PC running
the Xovis Sensor Explorer.
As the static IP was only set temporarily and will be lost with the next reboot of the sensor it
is now important to apply the desired IP settings permanently using the web interface (see
following chapters).
After temporarily applying a static IP with this procedure, it is important to permanently
set the fixed IP-address in the web interface afterwards!

13 / 99 www.xovis.com
3.2.3.3 Setting a fix IP address to a discovered sensor
The Fix-IP dialog (see chapter “3.2.3.2 Installing a sensor in a fix IP environment”) can also
be opened for any sensor already discovered by the Xovis Sensor Explorer by simply right-
clicking on it in the list and choosing “Set Fix-IP” in the popping up menu (see Figure 12).
Figure 12: Set Fix-IP
The same dialog as described in chapter 3.2.3.2 shows up with the single difference that the
serial number field is already filled with the one of the selected sensor. The remaining fields
again request the user to specify the IP address, the subnet mask and the gateway for the
specific sensor:
Figure 13: Set Fix-IP dialog
After applying the IP settings to the sensor by clicking the “Apply” button, the specified
settings are sent to the sensor and a message informs the user to be patient for 20 seconds.
After this time, the sensor should have come up with the new IP settings and can be found in
the according network and IP range.
After temporarily applying a static IP with this procedure, it is important to permanently
set the fixed IP-address in the web interface afterwards!
3.2.3.4 Upgrading a sensor
A sensors software / firmware can be upgraded by right clicking on a specific sensor in the
list of the Xovis Sensor Explorer and choosing “Upgrade” in the appearing dropdown menu.
In the appearing file dialog, an upgrade file of the type “xfw” (file extension) needs to be
selected. After applying a valid upgrade file, the sensor will instantaneously start with the
upgrade procedure which usually takes about 3 minutes. When refreshing the list of sensors
in the network by clicking again on the “Scan” button of the Xovis Sensor Explorer after these
3 minutes, the upgraded sensor will appear with updated software version.

14 / 99 www.xovis.com
An upgrade can also be applied to multiple sensors at the same time by selecting all or a
part of the sensor in the list of the Xovis Sensor Explorer with [Ctrl] + [A] or pressed [Ctrl]
and left mouse click on the desired sensors. A right click on the selection opens a popup
menu with the only item “Multi Upgrade” (see Figure 14). Clicking it opens the same file
dialog as for upgrading a single sensor but will distribute the chosen upgrade file to all
selected sensors at the same time when applying.

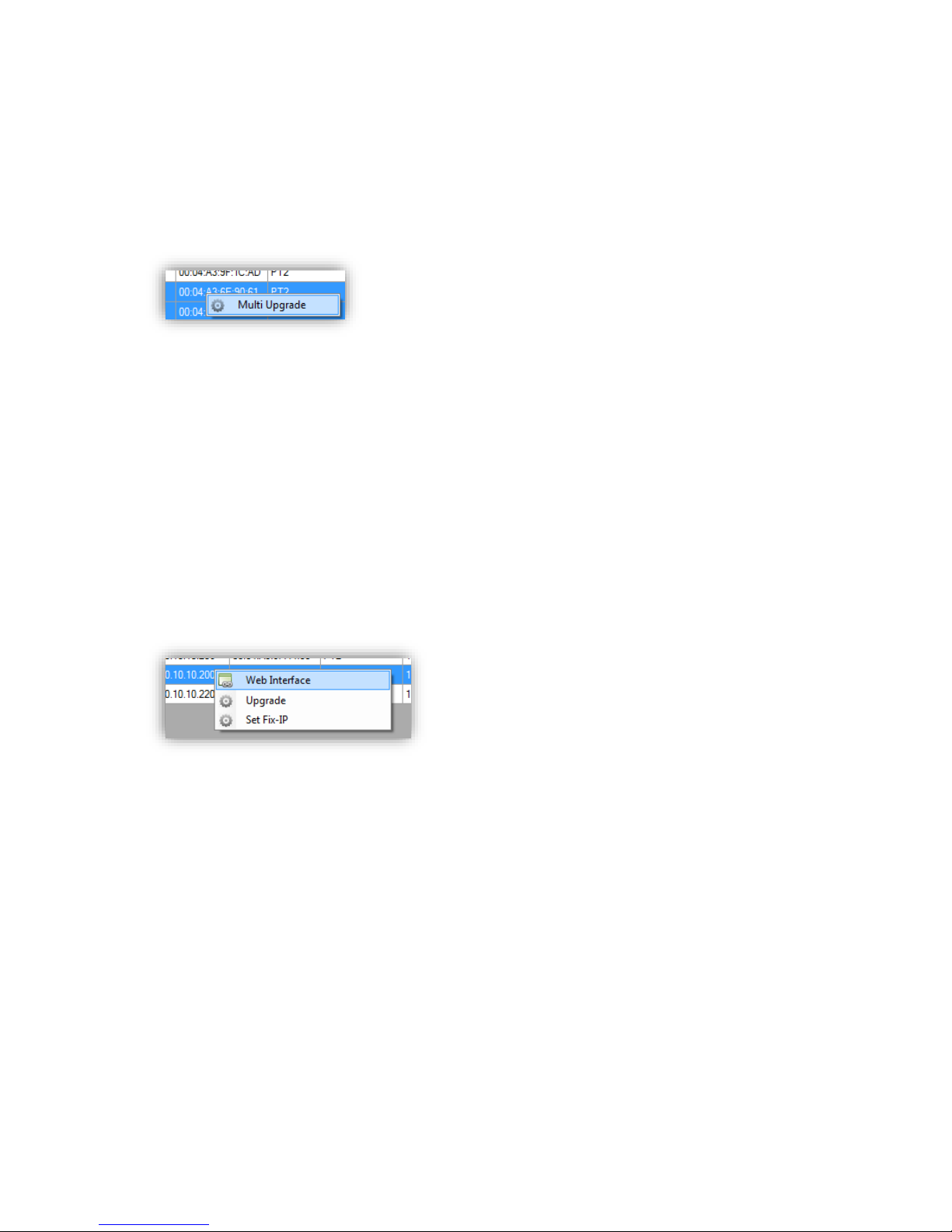

Figure 14: Multi Upgrade
A sensors software / firmware can also be upgraded via its web interface. This procedure is
described in chapter 3.2.12.
3.2.4 Access the web interface
The sensor web interface is accessed by typing its IP address directly into a web browser on
a PC connected to the same network as the sensor. Alternatively, the sensors web page can
be opened by double-clicking a sensor in the Xovis Sensor Explorer or by clicking the menu
item “Web Interface” in the popup menu appearing when right-clicking on a sensor in the
Xovis Sensor Explorer (see Figure 15). The web page will be opened in the default browser of
the operating system.
Figure 15: Menu item “Web Interface” in Xovis Sensor Explorer
3.2.4.1 HTTPS
The sensor web interface can also be accessed over HTTPS by just declaring the protocol
accordingly (https://).
3.2.4.2 Supported browsers
The sensor user interface is an HTML/JavaScript based website. The following web browsers
offer a proper functionality of the website:
-Firefox 4 or newer
-Google Chrome version 10 or newer
-Microsoft Internet Explorer version 10 or newer
-Apple Safari version 5 or newer
-Opera version 12 or newer

15 / 99 www.xovis.com
Recommended browsers are Firefox, Chrome, Opera and Internet Explorer.
For all browsers JavaScript support needs to be enabled and all caching for this website
needs to be switched off!
3.2.5 Login to the sensor
The arrival page of the website shows a log-in dialog. The default password is “pass”
(without the “”).

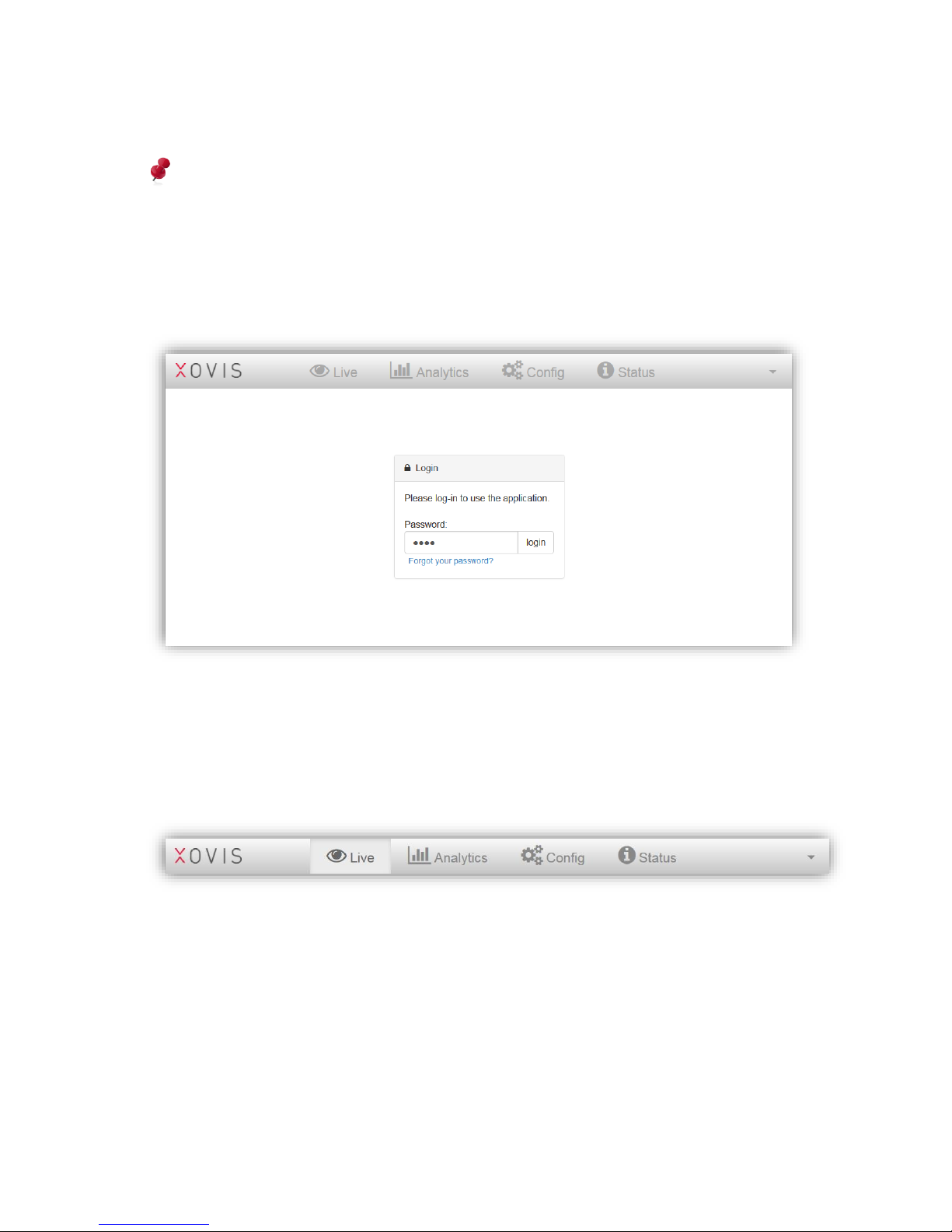

Figure 16: Login screen
The login screen holds a “Forgot your password” link. This allows to reset the sensor using
the Sensor Master Key (SMK). The reset procedure is described in chapter 3.2.10.4.5.
3.2.6 Navigation
The navigation bar is located at the top of the web GUI. It basically holds three sections: The
logo, the menu buttons and a context menu.
The menu buttons allow the user to switch between the four main views “Live”, “Analytics”,
“Config” and “Status”. The purpose of these views is described in their respective chapters
3.2.8 to 3.2.11. These buttons are disabled when logged out and in the setup wizard mode
(see next chapter).

16 / 99 www.xovis.com
The context menu holds additional functionalities for maintaining the sensor and to logout
the current user:
The “Software Upgrade” procedure will be explained in chapter 3.2.12. “Extended Analytics”
is covered in chapter 3.2.13. The “Expert Mode” is not documented in this manual as it is
reserved for expert use only.
Xovis strongly recommends to NOT USE the expert mode at all as changes made with the
expert mode can cause the sensor to become unresponsive.
The two entries for EULA and third-party licenses display the respective licenses.
The “Logout” button ends the session of the currently logged in user and returns to the login
page. The currently logged in user is displayed directly above the “Logout” button.
3.2.6.1 Plugins
The PC2 sensor can be enriched with various plugins. The plugin installation procedure is
described in chapter 3.2.10.4.3. Plugins which offer a frontend component will also be listed
in the navigation bar. Figure 17 shows an example with the “Wrong Way Detection”plugin:
Figure 17: Plugin button in the navigation bar
A plugins functionality and usage is documented in the documentation of the specific plugin.

17 / 99 www.xovis.com
3.2.7 Setup Wizard
As long as the sensor is not configured, the setup wizard will be shown directly after logging-
in.
It is strongly recommended to use the setup wizard for setting up the sensor as the wizard
ensures to gather all information needed for a proper usage of the sensor.
3.2.7.1 Welcome screen
Figure 18: Setup wizard
The welcome screen of the wizard gives a quick description of the intent of the wizard and
allows the user to choose the desired GUI language. The wizard can be started by clicking
“Start”. At any step of the wizard, it can be ended by clicking “Cancel”. The setup wizard can
be re-started anytime in the config view (see chapter 3.2.10.1.3).
3.2.7.2 Network settings & Identification

18 / 99 www.xovis.com
As first step, the wizard is asking for the network settings and identification naming. The
sensor can be run with DHCP or a fix IP address. If not using DHCP and the IP settings have
been applied already by using the Xovis Sensor Explorer (see chapter 3.2.3.2), it is
recommended to double check the network settings here. Optionally, a name and group can
be specified for the sensor. By clicking “Next”, the network settings are applied to the
sensor.
If the IP address of the sensor is changed here, the sensor will instantaneously come up
under the new address after pressing “Save”. In that case the new IP address needs to be
entered in the web browser after saving.
3.2.7.3 Date & Time
In the next screen the wizard is asking for setting the sensors date, time and units.
Whenever possible it is recommended to use a timeserver, as a correct time can be
crucial for stored counting data statistics.
When not using a time server, the sensor time can be set manually by switching the “Use
time server” toggle to “No” and then clicking on “Set time”:
The time zone dropdown is ordered by continents / geographic regions and cities. The time
zone should be set according to the sensors location.
The “Units” dropdown allows to choose between Metric (cm) and Imperial (feet/inch) units.
By clicking “Next”, the date and time settings are applied to the sensor.

19 / 99 www.xovis.com

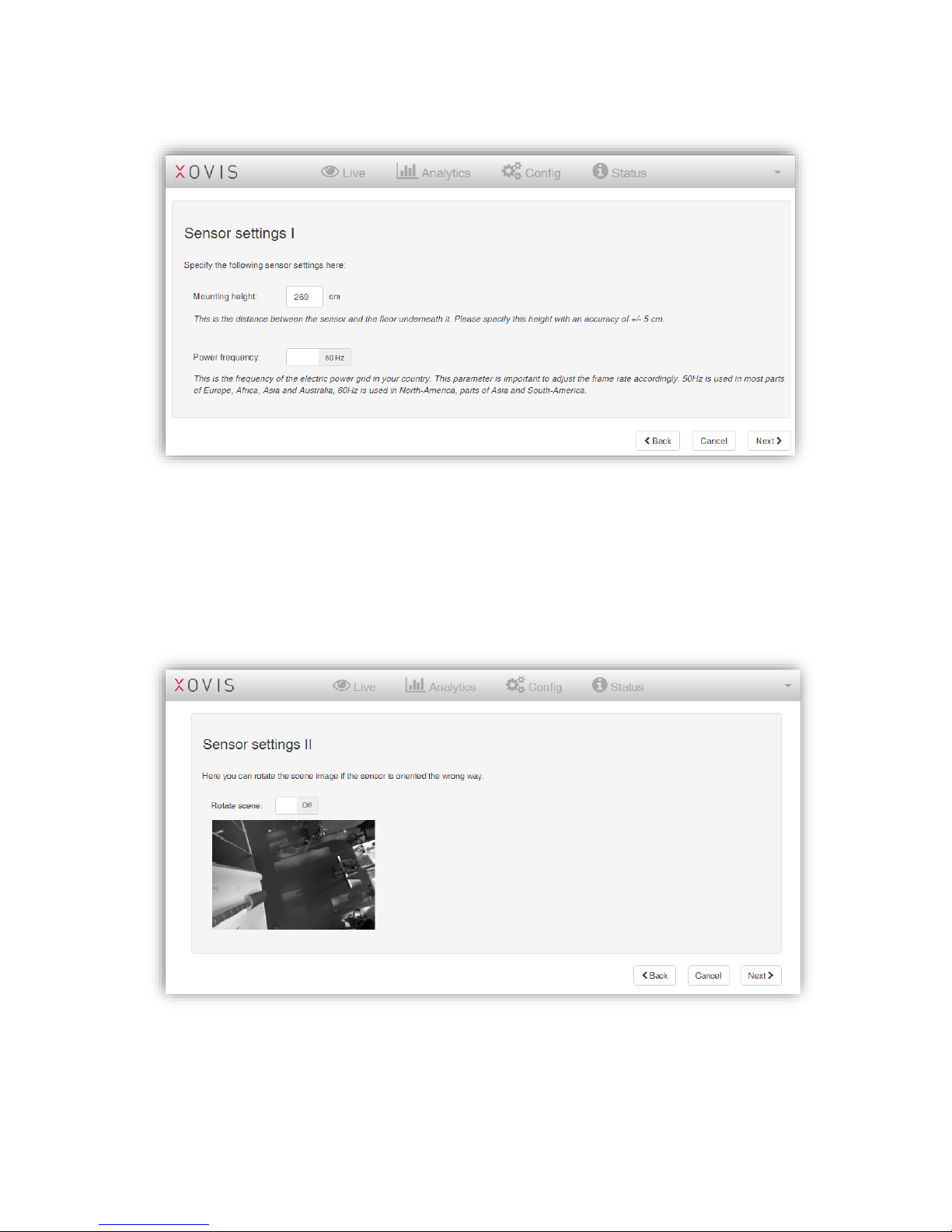

3.2.7.4 Sensor settings I
In the next screen, some base settings for the sensor operation need to be specified. First,
the mounting height needs to be set as accurate as possible. Second, the user is asked to
specify the power frequency of the country of operation. This is needed to adjust the sensors
frame rate to the illumination frequency. By clicking “Next”, these settings are applied to the
sensor.
3.2.7.5 Sensor settings II
In the succeeding screen, the scene image can be rotated by 180 degrees if desired. This can
be of use if the user’s sense of the scene view differs from the orientation of the mounted
sensor. The orientation is applied by clicking “Next”.

20 / 99 www.xovis.com
3.2.7.6 Mark the scene floor
Figure 19: Drawn scene floor
In the next screen, the user is asked to mark the scene floor. The displayed scene image by
default is a still image as this usually simplifies the analysis of the scene environment.
However, if a video stream is preferred or maybe to just recapture a new still image, the live
stream can be displayed by clicking on the play button located below the scene image. The
help button beside the play button also offers a short explanation when hovering over it with
the mouse:
The floor is masked by selecting the drawing tool “Floor” and directly drawing the whole
floor as a polygon in the scene (see Figure 19). With the “Floor” tool activated, one can simply
click in the scene image to draw corners of a floor area. A floor area is finished by clicking on
the first corner again, by double-clicking to create the last corner, by disabling the “Floor”
tool or by pressing [Esc] on the keyboard. After finishing a floor area, one is asked to name it
(see Figure 20). A default name is proposed.
