INSTALLATION GUIDE & USER’S MANUAL
IMPORTANT: READ AND SAVE THESE INSTRUCTIONS
FOR RESIDENTIAL & INDOOR USE ONLY
ISLAND MOUNT RANGE HOOD
Model: SP05-I/36/42 & PX05-I/36/42

P a g e 2 | 10
TABLE OF CONTENTS
1 IMPORTANT SAFETY INSTRUCTIONS ....................................................................................................... 2
2 HEIGHT & CLEARANCE ........................................................................................................................ 3
3 VENTING REQUIREMENT ................................................................................................................. 3
4 VENTING METHODS ........................................................................................................................ 3
5 ELECTRICAL REQUIREMENT ............................................................................................................... 3
6 TOOLS YOU WILL NEED ....................................................................................................................... 3
7 PARTS SUPPLIED ............................................................................................................................ 4
8 GENERAL INSTALLTION DIAGRAM ......................................................................................................... 4
9 INSTALLATION .............................................................................................................................. 5- 6
10 RANGE HOOD OPERATION ................................................................................................................... 6-7
11 SPECIFICATION ............................................................................................................................8
12 TROUBLE SHOOTING …………………………………………………………………………………………………………………………. 8
13 USE & CARE INFORMATION .................................................................................................................. 9
14 MAINTENANCE............................................................................................................................9
15 PRODUCT WARRANTY ...................................................................................................................10
1. IMPORTANT SAFETY INSTRUCTIONS
I MPORTANT N OTICE : The Important Safety Instructions and warnings in this manual are not meant to cover all possible problems and/or situations that can
occur upon installation of this unit. Use extreme caution when installing, maintaining or operating this or any other appliance. Contact the XtremeAir USA Customer
Support Team at [e-mail] with any concerns or situations that you do not understand. The manufacturer disclaims all liability
for any damage or injury caused as a result of not following instructions for installation contained in this manual.
To avoid the possibility of an explosion or fire, do not store or use combustible, flammable or explosive vapors and liquids (such as gasoline) inside or in the
vicinity of this or any other appliance. Keep all combustible items (such as aerosol cans) away from cook top burners, ovens and range hoods. Do not store
flammable or explosive materials in adjacent cabinets or surrounding areas.
Disclaimer : The manufacturer and/or distributor/reseller decline all responsibility in the event of failure to observe the instructions provided for installation,
maintenance and suitable use of the product. The manufacturer and/or distributor/reseller shall NOT be responsible for any injury due to negligence and the
warranty of the unit shall automatically be voided due to failure to observe proper safety and installation procedures. The manufacturer and/or
distributor/reseller will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly
by the range hood.
WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
*Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.
PRODUCT: Do not remove permanently affixed labels, warnings or plates from the product. This may void the warranty. Do not try to alter the hood.
INSTALLATION : The installation in this manual is intended for qualified installers, service technicians or persons with a similar qualified background. Installation
and electrical wiring must be provided by qualified professionals and in accordance with all applicable codes and standards, including fire-related construction.
When cutting or drilling into the wall or ceiling; do not damage electrical wiring and other utilities. It is recommended that two or more people assist with the
installation. The range hood may have very sharp edges; please wear protective gloves if it is necessary to remove any parts for installing, cleaning or
servicing.
VENTING: For kitchen range or cook top ventilating use only. DO NOT use units to exhaust hazardous or explosive materials and vapors. Ducted fans MUST
always be vented to the outdoors. DO NOT vent exhaust into spaces between walls, crawl spaces, ceiling, attics and/or garages. Use only metal ductwork. Old
duct work should be cleaned or replaced if necessary to avoid the possibility grease fires. Check all joints on ductwork to insure proper connections. All joints
should be properly taped.
ELECTRICAL: All electrical wiring must be properly installed, insulated and grounded. TURN POWER OFF and un-plug cords from outlet before servicing and/
or cleaning to insure your safety.
OPERATION: Caution is suggested when using high settings on cooking range. Keep all fan, baffle, spaces, filter, grease tunnel, oil container and grease-
laden surfaces clean. Grease should not be allowed to accumulate on fan, baffle, spaces, filter, grease tunnel, and oil container. Never allow the filters to
become blocked or clogged. Do not allow foreign objects such as cigarettes and/or napkins, to be absorbed into the hood. Clean ventilating fans frequently.
Grease should not be allowed to accumulate on the fan or filters.
DANGER

P a g e 3 | 10
5. ELECTRICAL REQUIREMENTS
6. TOOLS YOUWLL NEED
2. HEIGHT & CLEARANCE
Min 26”
Max 30”
36” Base
4. VENTING METHODS
IMPORTANT:
 NEVER exhaust air or terminate ductwork into crawl spaces, between walls, ceiling, attics or garages. All exhaust
must be ducted to the outside.
 Hood mounted too low could result in heat and/or fire hazard. Hoods mounted too high will be hard to reach and will lose
its performance and efficiency.
 Use metal ductwork only.
 DO NOT use plastic ventilation.
 DO NOT use 4” (10.2 cm) laundry-type wall caps.
 Fasten all connections with sheet metal screws. Tape all joints with aluminum tape.
 Use caulking to seal exterior wall or roof openings around the cap.
 The ventilation system must have a damper. If the roof or wall cap has a damper, you may opt out from usage of your
range hood supplied damper (for some models only).
For the most efficient & quiet operation:
 A distance of 26” to 30” is recommended between stove top and the bottom of range hood.
 It is recommended that the range hood be vented vertically through the roof with a minimum of a 6” or larger vent work.
 ALWAYS, when possible, reduce the number or transitions and turns. If a long duct run is required, increase duct size from
6” to 7” or 8”. If a reducer is used, install a long reducer instead of a pancake reducer. Reducing duct size will
restrict/decrease airflow.
 The size of the vent should be uniform.
 Use no more than three 90° elbows.
 Make sure there is a minimum of 24” (61 cm) of straight vent between the elbows if more than one elbow is used.
I MPORTANT : Observe all governing building codes and city ordinances.
A 120 volt, 60 Hz., AC, 15-amp outlet is needed (fused electrical circuit is required)
It is the customer’s responsibility:
1. To contact a qualified electrical installer. To assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/ NFPA
70 — latest edition*, or CSA Standards C22. 1-94, Canadian Electrical Code, Part 1 and C22. 2 No. 0-M91 - latest edition and all local codes and ordinances.
5. TOOLS YOU WILL NEED
Cabinet Jack
( 2) 2” x 4” x 24” stud
(1) 24” x 36”/42” x ¾” plywood
Note: about 6” wider than stove is ok
Level
Phillip Screwdriver
Tape Measure
Aluminum Tape
Powered Screwdriver
3. VENTING REQUIREMENTS
OPTIONAL

P a g e 4 | 10
G
8. GENERAL INSTALALTION DIAGRAM
7. PARTS SUPPLIED
PART SKETCH
DESCRIPTION
P
1
CEILNG MOUNT
BRACKET (W/18
ATTACHED BOLTS
P
2
(4) MULTI-HOLE
BRACKET (W/ 16
ATTACHED BOLTS)
P
3
(4) LOWER
CHIMNEY BRACKET
(W/ 16 ATTACHED
BOLTS)
(4) 1 ¾” SCREWS
P
5
ALUMINUM PIPE
(2) DUCT CLAMP
B
F
(4) BAFLER FILTERS
(2) OIL CONTAINER
(ATTACHED)
U
S
C
UPPER “SLOT”
CHIMNEY
U
H
C
UPPER “HOOK”
CHIMNEY
L
S
C
LOWER “SLOT”
CHIMNEY
L
H
C
LOWER “HOOK”
CHIMNEY
MANUAL BOOK
DIMENSION TABLE
D1
D2
D3
D4
D5
D6
D7
D9
10.5
inch
3.8
inch
12 5/8
inch
23.0
inch
19.0
inch
23.6
inch
35.4 / 41.3
inch
8.25
inch
Ceiling
mount
bracket
depth
Ceiling mount
bracket
perimeter
height
Ceiling
mount
bracket
width
Upper
chimney
length
Lower
chimney
length
Body depth
(I36, I42
models)
Body width
(I36, I42
models)
Body
height
D8: Total bracket length. See formula below
D8 = CEILING HEIGHT FROM FLOOR –D11 –D10 –D9
D10: Clearance from bottom of hood to cook top (26” to 30” as per your design)
D11: Cook top height from floor (36”)

P a g e 5 | 10
A. Cut out a hole in the ceiling where the ducting
will go.
B. Prepare support framework for ceiling
bracket.
C. Place chimney bracket against ceiling & screw
it into place.
D. Drop the ducting and electrical work through
the ceiling.
STEP #3: INSTALLING “SUPPORT BRACKET”
STEP #4: ATTACHING HOOD BODY
HINT: Due to the heavy weight of this range hood, use of a vertical jack to lift and support the hood in place is highly recommended.
STEP #5: INSTALLING CHIMNEYS - DO NOT REMOVE CHIMNEY PROTECTIVE FILM UNTIL FINISHED INSTALLATION
Slide upper “hook”
chimney (UHC) in,
leave about 1” from
(
the ceiling. Use
tape to hold it up
from falling down if
you don’t have any
helper to hold it.
Slide the entire
chimney up and
secure with the
ceiling bracket
using the 2
provided bolts
–1 on each
side.

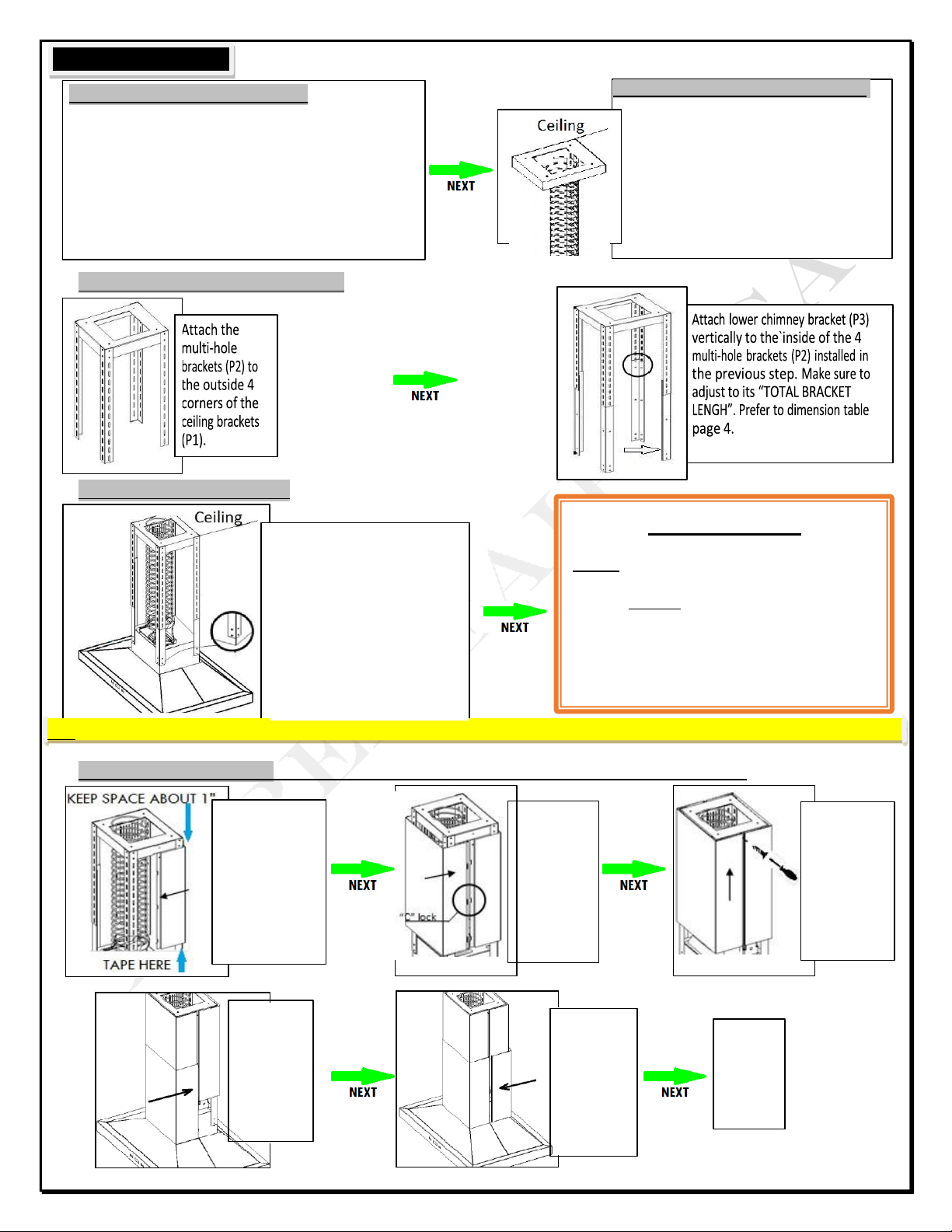

9. INSTALLATION
STEP #2: INSTALLING “CEILING BRACKET”
CAREFULLY
REMOVE
CHIMNEY
PROTECTIVE
FILM.
Slide upper
“slot” chimney
USC) into place
connecting the
6 “C” locks –3
on each side.
STEP #1: MARKING “CEILING BRACKET”
A. Put a thick, protective covering over counter top, cook top or
Range to protect from damage or debris.
B. Find and mark the center point directly above your cook top.
C. Place the ceiling bracket on the ceiling around the center point.
Make sure it is square with your cook top).
D. Trace the outline of the ceiling bracket onto the ceiling.
E. Trace a circle where the ducting will go.
F. Mark the 4 pre-holes where you will insert the screws.
IMPORTANT
Before moving to STEP5, do the following:
1. Make sure the damper is able to open
FULLY when the hood is on.
2. Test run to see if there is any air leaks
/ abnormal noise.
D. Have a third person raise up the
island range hood into its position.
Hood should be directly under the
support brackets.
E. Attach the hood to the support
brackets at all 4 corners with bolts.
F. Connect the ductwork to the range
hood. Use aluminum tape to secure
the pipe joint area.
G. Connect power plug.
Set the lower
“HOOK”
Chimney piece
into place so
it drops into
the top of the
hood.
Carefully slide
and drop
lower “SLOT”
chimney into
place. Make
sure SLOT and
HOOK are
snapped.

P a g e 6 | 10
Button is NOT completely covered
STEP #6: INSTALLING OIL TUNNEL & BAFFLE FILTERS
IMPORTANT: BEFORE YOU BEGIN
1. This unit is equipped with TOUCH SENSITIVE CONTROLS so please DO NOT PRESS. A light touch and hold on the required button for a matter of a (1) one
second is all that is needed.
2. TOUCH THE ENTIRE BUTTON. See the following illustration:
VS.
Entire button covered and lightly touched.
For best results, Start the range hood
before cooking and allow it to operate
several minutes after the cooking is
completed to clear all smoke and odors
from the kitchen.
FOR PX05-I30/36/42 models:
Importance Notice:
1. 2 ½ HOUR AUTOMATIC SHUT OFF: this range hood will be shut off for every approx. 2 ½ hour. You can re-start
operation as usual after it was shut off.
2. 30 HOUR REMINDER: after 30 hours of use, the timer (8) will be flashing. To clear it, please refer to “G-To Clear
Cleaning Reminder” on page 7.
TYPE 2: TOUCH BUTTON
1. (1) To power ON/OFF, and to activate power-off delay timer.
2. (2) To decrease blower (motor) speed, decrease timer value, and enter timer mode.
3. (7) To increase blower (motor) speed, increase timer value, and cumulative timer reset.
4. (3) Blower (motor) is running light indicator.
5. (4) Shows current blower (motor) speed (1-4).
6. (5) Lights up when lights turned on.
7. (6) To turns ON/OFF lights.
8. (8) Indicates the accumulated time the system is running.
9. (9) Indicates the length of time left for delay off function.
10. (10) Lights up when auto-shutdown delay timer function is on.

P a g e 7 | 10
A. ACTIVATING BLOWER FUNCTION:
 Option 1: Touch and hold down (+) for 1-2 seconds. 
 Option 2: Touch and hold down power sign (1) for 1-2 seconds. (The blower will be running at the same speed as last used). 
Note : The system saves user configurations, settings such as timer and blower (motor) speed will remain the same the next time it is turned on.
B. ADJUSTING BLOWER SPEED:
 Touch and hold down (+) for increase. 
 Touch and hold down (-) for decrease. 
C. TURNING OFF THE BLOWER:
 Touch and hold down power sign (1) for 1-2 seconds. 
D. TO TURN THE LIGHT ON/OFF:
 Touch Light button (6) once to turn on the lights, and once again to turn off the lights. 
E. ADJUSTING THE TIMER FUNCTION:
 While the blower (motor) is not running, touch and hold Decrease Value button (2) over 3 seconds (until it’s flashing) to enter timer mode. 
 Adjust to desired period of delay off timer by touching Increase Value or Decrease Value button (minimum 1 minute to maximum 15 minutes).
This setting will be saved immediately. 
F. ACTIVATING THE TIMER FUNCTION:
 While the blower (motor) is running, touch and hold “Power” button (1) for over 3 seconds to activate delay off timer. Power-Off Delay Timer Indicator 
(10) will light up and Power-Off Delay Digital Timer (9) will begin to countdown. When it reaches zero, the blower (motor) will shut down.
G. TO CLEAR CLEANING REMINDER:
 When blower (motor) starts to rotate, cumulative running time will be shown in Power-On Elapsed Digital Timer (8) . This timer icon flashes when 30
hours is up and reminds user to clean the baffle filters. 
 After cleaning the filters and when the motor is not in use, touch and hold (+) Increase Value button (7) over 3 seconds to reset the timer. Please
note that turning off the system will not reset the Power-On Elapsed Digital Timer (8) . 
FOR SP05-I30/36/42 models:
A. Clock Button & Delay Timer Button:
Set the clock: With the fan not running. Touch the clock symbol. The time on the display will llight up and blink.
Immediately use the (+) and (-) button to adjust the hours. Then touch the clock symbol again and immdiately use
the (+) and (-) buttons to adjust the minutes. After 3 seconds of no butons being touched, the time will save. The
clock is in standard 12-hr format.
Delay Timer: When the fan is running, touch the clock sysmbol. The delay shut off timer has a default setting of 1
minute. Touch the (+) or (-) buttons to increase or decrease the timer duration up to 15 minutes.
B. Light: Touch to turn light on/off.
C. Minus (-) Button: Used to decrease settings.
Quick high speed on: When the unit is off, touch the (-) button once as a shortcut to turn on the fan with speed
setting.
D. Plus (+) Button: Used to increase setting
Quick low low speed on: When the unit is off, touch the (+) button once as a shoutcut to turn on the fans with low
speed setting
E. Power Button: Press to turn the control panel on/off


P a g e 8 | 10
11. SPECIFICATION
Body Design
Non-Magnetic 1.0 mm Stainless Steel, Satin Finish
Power Rating
120V/60Hz (USA & Canada standard)
General Input Power
158W (150W + 4x2W)
Motor Input Power
150 W each
Ampere
1.3 A
Levels Of Speed Control
4 Levels
Maximum Airflow
900CFM
Noise Level
Approximately 1.5 – 6.0 sones or 33 – 54 dB
Number Of Motors
Single Motor
Motor Type
Single Chamber Ultra Quiet
Fan Type
Squirrel Cage blower
Filtration Type
Heavy Duty Stainless Steel Baffle Filter
Illumination
4 LED lights, 2W Maximum/each
Venting Size
Top 6 inches Round
Interference Protection
Radio Frequency Interference Protected
Note
Specification subject to change without notice.
12. TROUBLESHOOTING
1. If the range hood or lights does not operate after installation:
 Check if the range hood has been plugged in. Make sure that all power has been turned back ON. Check if the fuse is not blown and all electrical wiring is
properly connected.
 Swap out light assembly to working ones to deter mine whether it is caused by defective bulbs. See replacing the light bulbs on Page 13.
2. The range hood vibrates when the blower is on:
 The range hood might not have been secured properly on to the ceiling or wall.
 Check if the motor is secured in place. If not, then tighten the motor in place. Check if the blower wheel is damaged.
3. The bower or fan seems weak:
 Check that the duct sized used is at least 6”. Range hood WILL NOT function efficiently with insufficient duct size & loosely secured. 
 Check if duct is clogged or if damper unit (half-circular flapper) is not installed correctly or opening properly. A tight mesh on a side wall cap unit might
also cause restriction to the air flow. 
4. The lights work but the blower is not spinning at all, is stuck or is rattling.
 The blower might be jammed or scraping the bottom due to shipping damage. Please contact us immediately. 
 The motor is defective, possibly seized - change the motor. 
5. The hood is not venting out properly :
 Make sure the distance between the stove top and the bottom of the hood is within 26” and 30” in distance. Due to different ceiling
height configurations, recommended height may not be applicable. 
 Reduce the number of elbows and length of ductwork. Check if all joints are properly connected, sealed, and taped. 
 Make sure the power is on high speed for heavy cooking. 
6. The hood is noisier than normal
 The duct is not secure and causes vibration. 
 The smaller duct size than required is being used. 
7. Control panel is not active
 Check to make sure the auto function is not on. 

P a g e 9 | 10
13. USE & CARE INFORMATION
Operations:
Read and understand all instructions and warnings in this manual before operating the appliance. Save these instructions for future reference. 
 Always leave safety grills and filters in place. Without these components, operating blowers could catch on to hair, fingers and loose clothing. 
 NEVER dispose cigarette ashes, ignitable substances, or any foreign objects into blowers. 
 NEVER leave cooking unattended. When frying, oil in the pan can easily overheat and catch fire. The risk of self combustion is higher when the
oil has been used several times. 
 NEVER cook on “open” flames under the range hood. Check deep-fryers during use: Superheated oil may be flammable. 

Cleaning:
 The saturation of greasy residue in the blower and filters may cause increased inflammability. Keep unit clean and free of grease and residue
build- up at all times to prevent possible fires. 
 FILTERS MUST BE CLEANED PERIODICALLY AND FREE FROM ACCUMULATION OF COOKING RESIDUE. 
 DO NOT operate blowers when filters are removed. Never disassemble parts to clean without proper instructions. Disassembly is
recommended to be performed by qualified personnel only. Read and understand all instructions and warnings in this manual before
proceeding. 

14. MAINTENANCE

SAFETY WARNING: Never put your hand into area housing the fan while the fan is operating! For optimal operation, clean range hood and all baffle/spacer
/filter/grease tunnel/oil container regularly. Regular care will help preserve the appearance of the range hood.
Cleaning Exterior surfaces:
 Clean periodically with stainless steel cleaner or hot soapy water and clean cotton cloth. Do not use corrosive or abrasive detergent
(e.g. Comet Power Scrub
®
, EZ-Off® oven cleaner), or steel wool/scoring pads, which will scratch and damage the
stainless steel surface. For heavier soil use liquid degrease such as “Formula 409
®
” or “Fantastic
®
” brand cleaner. 
 If hood looks splotchy (stainless steel hood), use a stainless steel cleaner to clean the surface of the hood. Avoid getting cleaning solution on
or into the control panel. Follow directions of the stainless steel cleaner. CAUTION: Do not leave on too long as this may cause damage to hood
finish. Use soft towel to wipe off the cleaning solution, gently rub off any stubborn spots. Use dry soft towel to dry the hood. 
 After cleaning, you may use non abrasive stainless steel polish such as 3M ® or ZEP®, to polish and buff out the stainless luster and grain.
Always scrub lightly, with clean cotton cloth, and with the grain. 
 DO NOT allow deposits to accumulate or remain on the hood. 
 DO NOT use ordinary steel wool or steel brushes. Small bits of steel may adhere to the surface and cause rusting. 
 DO NOT allow salt solutions, disinfectants, bleaches, or cleaning compounds to remain in contact with stainless steel for extended periods. Many
of these compounds contain chemicals, which may be harmful. Rinse with water after exposure and wipe dry with a clean cloth. 
Cleaning Grease Filter / Stainless Steel Filter less Grill:
IMPORTANT: Drain oil from oil containers before oil and residue overflow!
 The metal filters fitted by the factory are intended to filter out residue and grease from cooking. It needs not be replaced on a regular basis
but are required to be kept clean. 
 Filters should be cleaned after every 30 hours of use. Remove and clean by hand or dishwasher. Use proper degreasing detergent for stainless
steel and leave to soak if heavily soiled. Dry filters and re-install before using hood. 














P a g e 10 | 10
XtremeAIR USA HOOD TEN (10) YEARS MOTOR LIMITED WARRANTY
XtremeAIR USA Range Hood (hereunder called “The Company”) warrants its product against defects in material orworkmanship for the
time periods and as set forth below. **Note: for products purchased after January 2021**
Parts: For a period of one (1) year from the original date of purchase of product (“Parts Warranty”), The Companywill
supply new or equivalent replacement parts in exchange for parts determined to be defective. The motor warranty is
extended for an additional nine (9) years to accumulate ten (10) years total (motor only).
Labor: For a period of one (1) year from the original date of purchase of the product (“Labor Warranty”), if the product is
determined to be defective, The Company will repair or replace the product, at its option, at no charge. The Company will
only cover labor performed at its facility. This warranty does not cover on site labor costs. Afterthe Labor Warranty period,
labor charges are applicable.
Warranty Performance: In the event of any malfunction or defect covered under the terms of this warranty, immediately
contact the company. Written notice of any malfunction or defect must be given within 7 days of thetime of discovery of the
malfunction and must be accompanied by the original consumer purchase receipt which shows the date of purchase.
To obtain warranty service, the products must be delivered, freight prepaid, in either its original packaging or packaging
affording an equal degree of protection to the company authorized service facility. Therepaired unit will be returned at The
Company’s expense. For specific instructions on how to obtain warranty service for your product, contact XtremeAir USA by
emailing [e-mail] or visit our website www.XtremeAirUsa.com
Repair/ Replacement Warranty: This Limited Warranty shall apply to any repair, replacement part or replacementproduct
for the remainder of the original Limited Warranty period. Any part or product replaced under this Limited Warranty will
become the property of The Company.
This Limited Warranty only covers product issues caused by defects in material or workmanship during ordinary consumer
use and is non-transferable. It does not cover product issues caused by any other reason, including but notlimited to:
product issues due to commercial use, acts of God, misuse, and defects resulting from damages sustained during shipping,
unauthorized repair, modification of or to any part of the XtremeAir product.
This Limited Warranty does not cover XtremeAir products sold AS IS or WITH ALL FAULTS, light bulbs, remotecontrol, normal
maintenance and service, costs of removal or installation. This Limited Warranty is invalid if the factory-applied serial
number has been altered or removed from the product.
DISCLAIMERS
XtremeAir USA shall not be responsible for loss of use or other incidental consequential costs, expenses or damages which
may occur. Under no circumstances shall XtremeAir USA or any of its representatives be held liable for injury to any person
or damage to any property, however arising. This warranty gives you specific legal rights, and you may have other rights
which vary from state to state.
All rights reserved
15. LIMITED WARRANTY
