Xtrons D716GY User manual

USER MANUAL
Thank you for buying this XTRONS product. Please read through these instructions so you will
know how to operate this unit properly. After you have finished reading the instructions, keep
this document in a safe place for future reference.

Contents Precaution
Before installing this product
- Use this unit with a 12-volt battery and negative grounding only. Failure to do so
may result in a fire or malfunction.
Important safety information
WARNING
- Do not attempt to install or service this product by yourself. Installation or servicing
of this product by persons without training and experience in electronic equipment
and automotive accessories may be dangerous and could expose you to the risk of
electric shock, injury or other hazards.
- To avoid shorts in the electrical system, be sure to disconnect the (-) battery cable
before installation.
- Do not allow this product to come into contact with liquids. Electrical shock could
result. Also, damage to the product , smoke and overheating could result from
contact with liquids.
- If liquid or foreign matter should get inside this product, park your vehicle in a safe
place, turn the ignition switch off (ACC OFF) immediately and consult your dealer.
Do not use this product in this condition because doing so may result in a fire,
electric shock, or other failure.
- If you notice smoke, a strange noise or odor from this product, or any other
abnormal signs on the screen, turn off the power immediately and consult your
dealer. Using this product in this condition may result in permanent damage to the
system.
12
Precaution ..........................................................................................................
Main Menu .........................................................................................................
Radio .....................................................................................................................
Play DVD ..............................................................................................................
USB/SD .................................................................................................................
iPod .....................................................................................................................
AV Input .............................................................................................................
Bluetooth ..........................................................................................................
Screen Mirroring .............................................................................................
OBD2 ..................................................................................................................
Navigation ........................................................................................................
DVR .....................................................................................................................

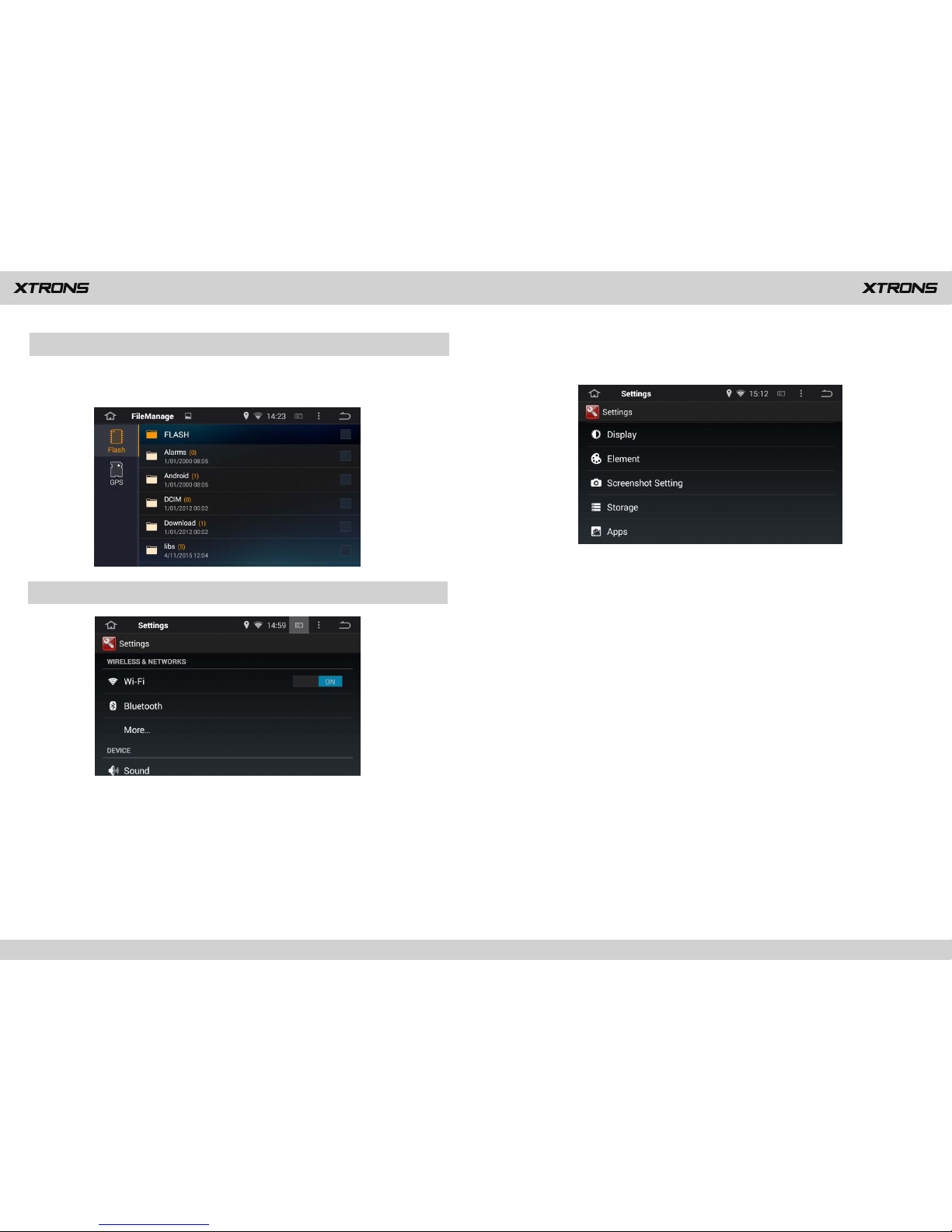

File Manage ......................................................................................................

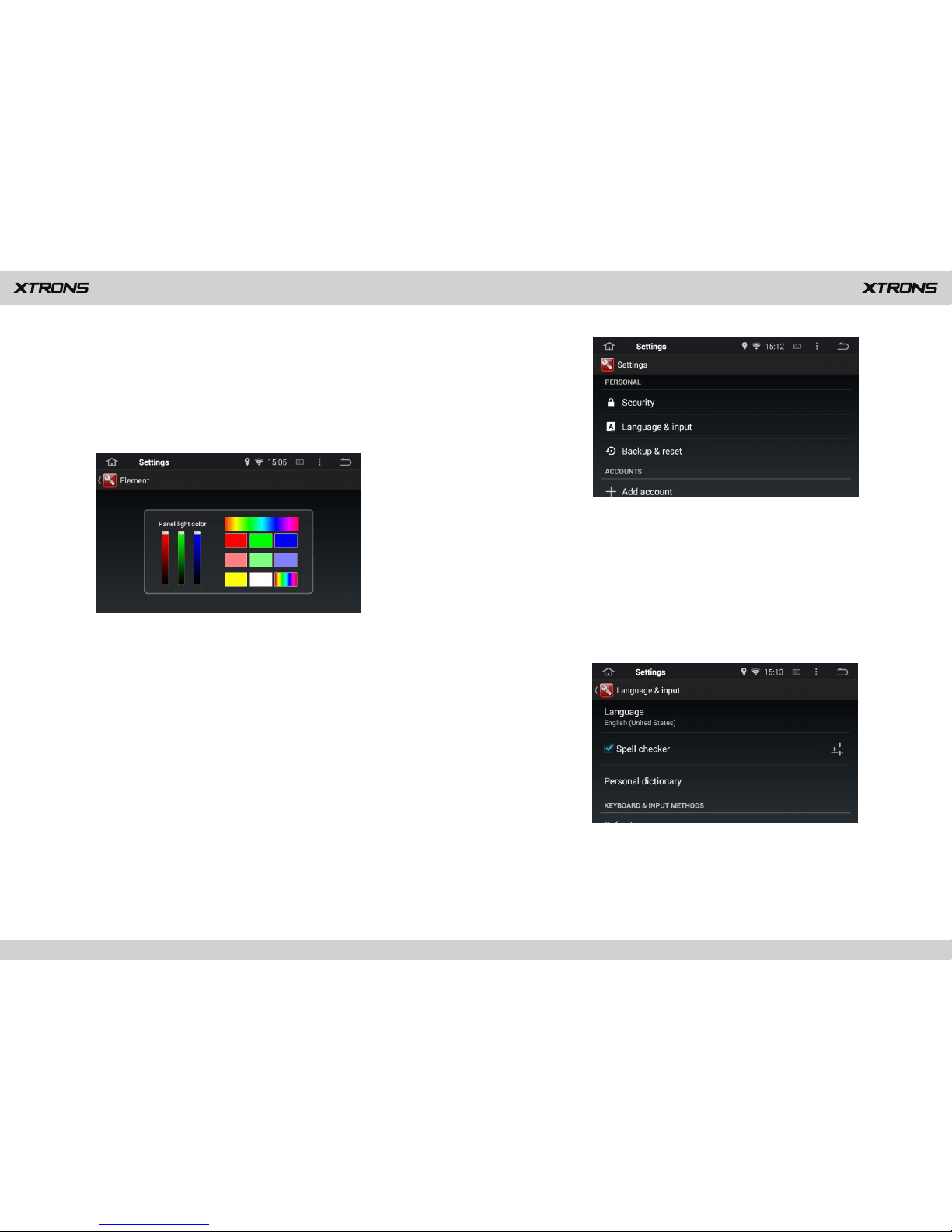

Settings ..............................................................................................................
Troubleshooting ............................................................................................
2
5
7
8
9
10
10
11
14
15
16
16
17
17
27

To ensure safe driving
- Do not disassemble or modify this product, as there are high-voltage components
inside which may cause an electric shock. Be sure to consult your dealer for internal
inspection, adjustments or repairs.
- Do not operate this product, any applications, or the rear view camera option (if
purchased) if doing so will divert your attention in any way from the safe operation
of your vehicle. Always observe safe driving rules and follow all existing traffic
regulations. If you experience difficulty in operating this product or reading the
display, park your vehicle in a safe location and apply the parking brake before
making the necessary adjustments.
- Never set the volume of this product so high that you cannot hear outside traffic
and emergency vehicles.
- To promote safety, certain functions are disabled unless the vehicle is stopped
and/or the parking brake is applied.
- Keep this manual handy as a reference for operating procedures and safety
information.
- Do not install this product where it may (i) obstruct the driver’s vision, (ii) impair
the performance of any of the vehicle’s operating systems or safety features,
including air bags or hazard lamp buttons or (iii) impair the driver’s ability to safely
operate the vehicle.
- Please remember to fasten your seat belt at all times while operating your
vehicle. If you are ever in an accident, your injuries can be considerably more
severe if your seat belt is not properly buckled.
- Never use headphones while driving.
Before using this product , be sure to read and fully understand the following
safety information:
- LIGHT GREEN LEAD AT POWER CONNECTOR IS DESIGNED TO DETECT PARKED
STATUS AND MUST BE CONNECTED TO THE POWER SUPPLY SIDE OF THE
PARKING BRAKE SWITCH. IMPROPER CONNECTION OR USE OF THIS LEAD MAY
VIOLATE APPLICABLE LAW AND MAY RESULT IN SERIOUS INJURY OR DAMAGE.
- Do not take any steps to tamper with or disable the parking brake interlock
system which is in place for your protection. Tampering with or disabling the
parking brake interlock system could result in serious injury or death.
- To avoid the risk of damage and injury and the potential violation of applicable
laws, this product is not for use with a video image that is visible to the driver.
- In some countries the viewing of video image on a display inside a vehicle even by
persons other than the driver may be illegal. Where such regulations apply, they be
obeyed.
If you attempt to watch video image while driving, the warning “Viewing of front
seat video source while driving is strictly prohibited.” will appear on the screen. To
watch video image on this display, stop the vehicle in a safe place and apply the
parking brake. Please keep the brake pedal pushed down before releasing the parking
brake.
To avoid battery exhaustion
WARNING
WARNING
Be sure to run the vehicle engine while using this product. Using this product without
running the engine can drain the battery.
34
Do not install this product in a vehicle that does not have an ACC wire or circuitry
available.

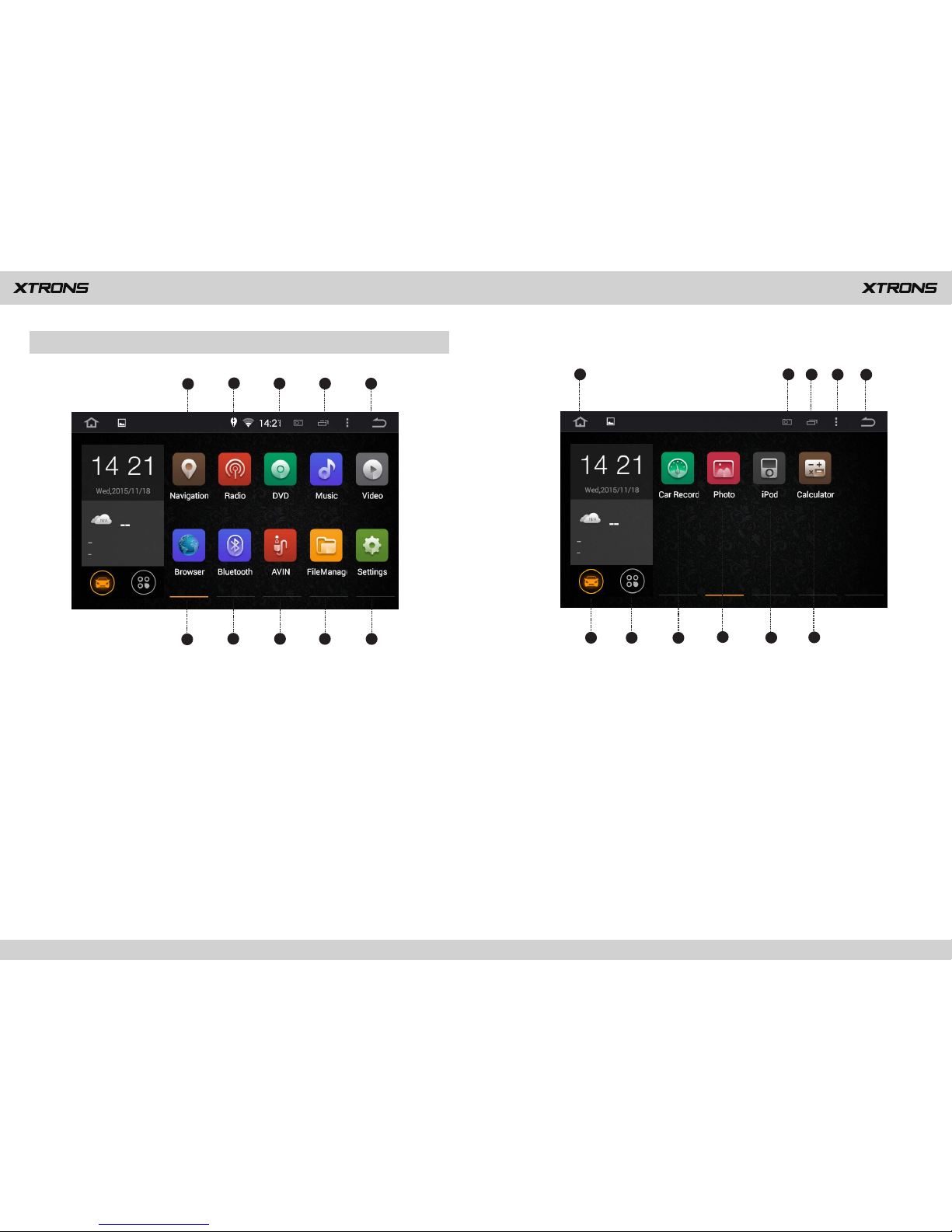

Main Menu
2
6
1345
78910
1. Navigation
2. Radio
3. DVD
4. Music
5. Video
6. Browser
7. Bluetooth
8. AV Input
9. File Manage
10. Settings
2345
1
67811
910
1. Return to the Home Screen
2. Screenshot
3. Recent Apps
4. Shortcut to Go to Wallpaper /
Manage Apps / System Settings
5. Return to the Previous Menu
6. Display the Home Screen Apps
7. Display All the Apps
8. Car Record
9. Photo
10. iPod
11. Calculator
Use apps
Tap an app to open it.
Arrange apps
Touch and hold any app on the Home screen, then drag the app around. Drag
an app to the edge of the screen to move it to a different Home screen. Swipe
left or right to see other screens.
56

Play DVD
DVD Player
Radio
1. There are two screws on the top face of the unit to protect the disc drive
in transit. The screws need to be removed first. Otherwise it cannot accept
or play discs.
1
___2
78910 11
1. Broadcast frequency slider
2. Perform manual tuning
3. Preset channel list
4. AF (Alternative Frequencies)
5. TA (Traffic Announcement)
6. PTY (Program Type)
7. Perform seek tuning or non-stop seek tuning
8. ST (mono/stereo switch)
9. LOC (Local seek tuning)
10. AM band (AM1 or AM2)
456
___3
11. FM band (FM1, FM2 or FM3)
123456
7
CAUTION
2. For safety reasons, video images cannot be viewed while your vehicle is
in motion. To view video images, stop in a safe place and apply the
parking brake.
7 8

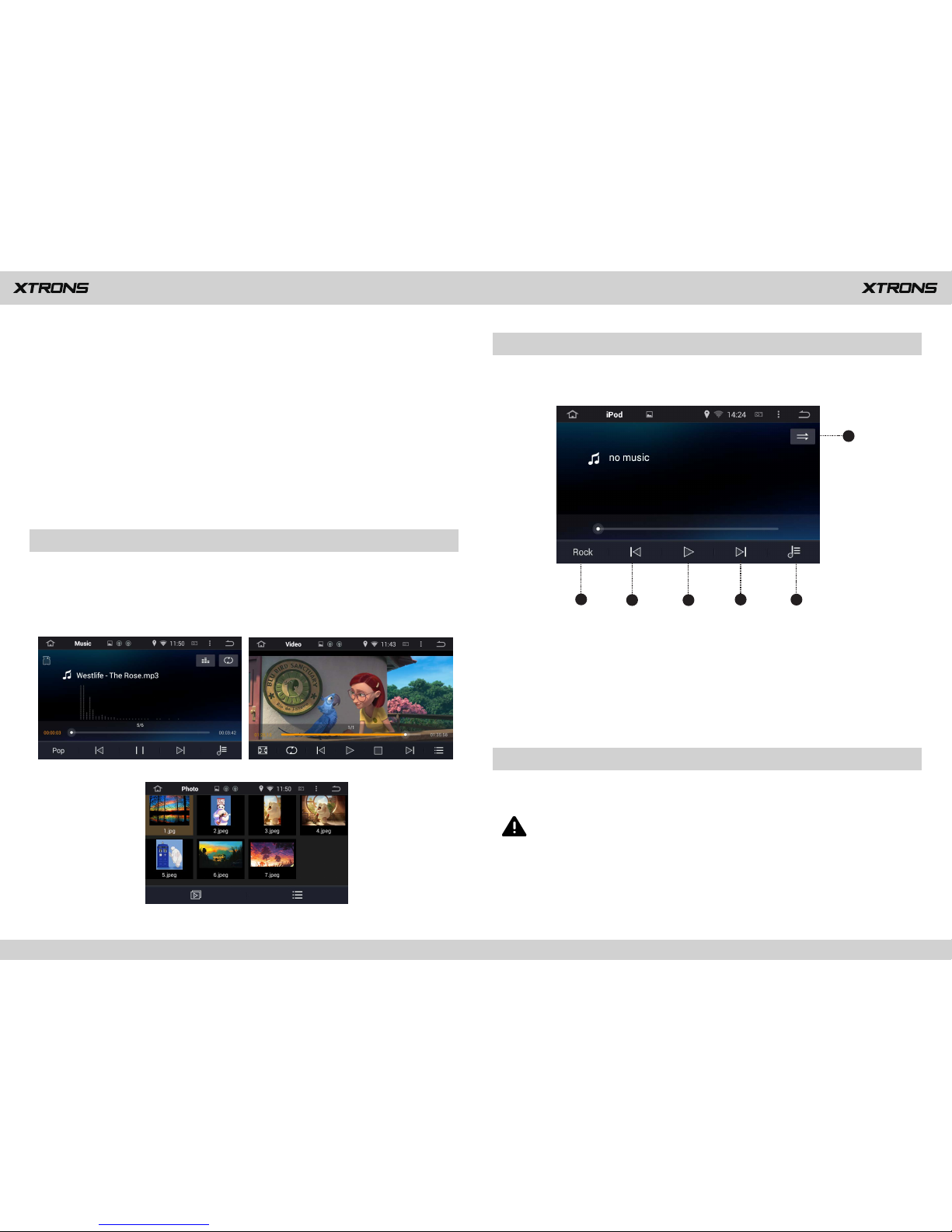

USB/SD
1. Equalizer settings
Choose from Rock, Pop, Jazz, Classic, Flat, Voice and Custom.
2. Previous file
3. Pause/Play
4. Stop
5. Next file
6. File menu
7. Repeat play
Choose from repeat the current file, repeat all files and repeat off.
Plug a USB storage device or insert an SD memory card, then tap Music on the
Home screen to play music, tap Video to play the video files, or tap Photo to view
the images and photos.
12345
6
1. Equalizer settings
Choose from Rock, Pop, Jazz, Classic,
Flat, Voice and Custom.
2. Previous file
3. Pause/Play
4. Next file
5. File menu
6. Repeat play
Choose from repeat the current file,
repeat all files and repeat off.
You can display the video image output by the device connected to this unit.
CAUTION
Control your iPod/iPhone directly from your car dashboard. Enjoy music playback in
superior sound quality.
For safety reasons, video images cannot be viewed while your vehicle is in
motion. To view video images, stop in a safe place and apply the parking brake.
910
iPod
AV Input

Enter the number to make a call. You can also choose a contact from the phone book
to make a call.
View recent outgoing calls, incoming calls or missed calls.
Bluetooth
＊Connect to a Bluetooth device
Connect your mobile phone to this unit via Bluetooth and use an external
microphone to make and receive hands-free calls.
a. The Bluetooth device must be within 1 meter of this unit. Turn on Bluetooth on
the device, then tap on the screen.
b. You can find this unit in the devices list of your Bluetooth device at the same
time.
c. If your Bluetooth device supports SSP (Secure Simple Pairing), a four-digit
number password will be required. The default password is 0000.
d.
1
2
3
4
5
6
1. Keypad
2. Phone book
3. Recent calls
4. Bluetooth music
5. Devices list
6. Bluetooth settings
CAUTION
For your safety, avoid talking on the phone as much as possible while driving.
Connection (Bluetooth pairing)
1. Phone calls
2. Phone book
3. Recent calls
Once the connection is established, your Bluetooth device information will be
highlighted on the Paired devices list of the unit.
Tap to synchronize the contacts from your Bluetooth device.
11 12

After the Bluetooth connection is established, you can play music stored in your
Bluetooth device on this unit.
Tap Easy Connect on the APPS menu screen to enter into the screen mirroring mode.
When you connect a mobile phone with compatible applications installed, you can
control the applications for the mobile phone directly from this unit.
Screen Mirroring
4. Bluetooth music
※ At first, you need to operate the music playback on your Bluetooth device.
※ Please note that the unit may not support the Bluetooth music function
Then you can operate the Bluetooth music on the unit.
when some mobile phones models are not quite compatible with the unit.
①
You can change the PIN Number (Bluetooth pairing password). The default
password is 0000. Enter another four-digit number, then tap Done to set a
new password.
②
You can turn AutoAnswer/AutoConnect on or off.
③
5. Devices list
Tap a device on the Paired devices or on the Available devices list, then tap
to pair the device. Tap to unpair the device.
6. Bluetooth settings
You can change the Device Name of this unit. Tap CAR KIT to enter a different
name.
13 14

Navigation
For Android smart phone:
a. Go to Settings > About Device, then tap Build number 7 times to enable
Developer options. Turn on USB debugging. A message Allow USB debugging?
will pop up. Turn Always allow from this computer on, then tap OK.
b. Connect your Android smart phone to this unit via a USB cable.
c. Tap Detect Phone.
※ Please note that this function is only applicable for the smart phones
equipped with wireless mirroring function, and it only supports
Android version above 4.0. Audio streaming requires a Bluetooth
connection.
For iPhone:
a. Go to Settings > Personal Hotspot, turn Personal Hotspot on.
b. Turn on Wi-Fi and choose your iPhone name from the Wi-Fi settings on this
unit. Enter the password when prompted.
c. Tap AirPlay in the Control Center on your iPhone. Select EC-Mirror and turn
Mirroring on.
※ On iPhone 4/4s, only photos can be streamed wireless to this unit.
On iPhone 5 and other later iPhone models, both music and photos can
be streamed wireless to this unit. Video streaming requires the
appropriate Apple cable or adapter.
OBD2
The unit supports OBD2 (On Board Diagnosis) car diagnosis. With OBD2 function
available on this unit, you can retrieve real-time data and trouble codes from your
vehicles computer. All the data of your vehicles are displayed to you. (OBD2
Bluetooth scan diagnostic scanner tool is sold separately)
15 16
You can actually download a range of GPS Navigation applications via Google Play
and run them on the unit. You can download Sat Nav Apps like TomTom, Navigon,
Route 66, Sygic, iGO, Google Maps and many more.
DVR
You can control a car DVR camera (sold separately) on this unit and use it to record all
the events of a journey.

File Manage
17 18
Settings
You can manage files stored in this unit and files stored on a USB storage device
or an SD memory card. You can copy, paste, move, or delete a file.
1. Wi-Fi
Turn Wi-Fi on or off.
Choose a network: Tap one of the listed networks, then enter the password, if asked.
2. Bluetooth
You can change the Device Name or the PIN Number (Bluetooth pairing password)
of this unit.
You can turn Auto Answer/Auto Connect on or off.
Tap a device on the Paired devices or on the Available devices list to pair or unpair it.
3. More…
You can set up Portable Wi-Fi hotspot or VPN.
4. Sound
Turn Key tone on or off.
Drag the slider to adjust the volumes.
5.1 Brightness
Drag the slider to adjust the screen brightness.
5.2 Brightness mode
Choose Light or Dark.
5.3 Wallpaper
You can set an image or photo as wallpaper for the Home screen. You can choose
from the preset Live Wallpapers (dynamic) and Wallpapers (stills), or choose from
images or photos stored on a USB storage device or an SD memory card.
5.4 Screen recorder
Settings for Screen recorder include:
- Video size
- Bitrate
- Record audio
- Set the location of recorder storage
- Start or stop recorder
5. Display

19 20
6. Element
This enables you to change the illumination color of the buttons to your personal
preference. You can choose from a wide variety of colors. Drag the color bars of red,
green and blue to create a favorite color.
Please note that the multi-colored button illumination function is not
available for all XTRONS Android head units.
7. Screenshot settings
- Select delay time to capture the screen
Choose from 15 seconds, 30 seconds, 1 minute, 2 minutes, 3 minutes, 4 minutes, or
5 minutes later.
- Set the location of screenshot storage
Choose from Nand Flash, GPS Card, SD Card, USB Storage 1, or USB Storage 2.
- Show the screenshot button in the status bar
Turn this on or off.
8. Storage
- Preferred install location
- Internal storage
- NAND flash
- SD card
- USB storage
9. Apps
Manage all the apps downloaded on the unit or on an SD memory card.
10. Security
- Device administrators
- Unknown sources
- Verify apps
- Storage type
- Trusted credentials
- Install certificates from SD card
- Clear credentials
- User experience program
11. Language & input
11.1 Language
Set the language for the unit. Choose from English, French, German, Spanish, and
many more.

21 22
11.2 Spell checker
Turn Spell checker on or off.
11.3 Personal dictionary
Add words in the user dictionary.
11.4 Keyboard & input methods
The default input method is English (US) - Android Keyboard.
Tap the icon on the right side of each input method for the settings.
11.5 Voice search
Tap it for the settings.
11.6 Pointer speed
Drag the slider to adjust the pointer speed.
12. Backup & reset
- Back up my data
Back up app data, Wi-Fi passwords, and other settings to Google servers.
- Backup account
- Automatic restore
- Factory data rest
Erase all data on the unit.
13. Add account
Add a Google account or other accounts.
14. Date & time
Date & time settings include:
- GPS automatic update time
- Automatic date & time
- Automatic time zone
- Set date
- Set time
- Select time zone
- Use 24-hour format
- Choose date format
15. Accessibility
- Text-to-speech output
- Touch & hold delay

23 24
16. GPS
16.1 GPS application options
Choose which GPS application you want to use for the navigation.
16.2 GPS monitoring
Turn GPS monitoring on or off.
16.3 GPS sound mode
16.4 GPS mixing ratio
16.5 GPS monitor
16.6 Location
Turn Location on or off.
Location mode: Choose from High accuracy, Battery saving, or Device only.
17. Driving settings
17.1 Watching video
Turn this on to allow you to watch video while driving.
17.2 Reversing X-mirror
With an optional rear view camera, turn this on to enter into mirror imaging
mode for rear parking, and turn this off to enter into normal imaging mode for
rear parking.
17.3 Reversing volume
17.4 Reversing trajectory display
17.5 Parking radar display
17.6 Rear view ruler
18. Amplifier
18.1 Equalizer adjustment
You can choose from Rock, Pop, Jazz, Classic, Flat, Voice, and Custom.

25 26
18.2 Fader/balance adjustment
You can select a listening position that you want to make as the center of the sound
effects.
Choose from Driver, User, Front, Rear, or All.
19. Factory settings
Enter the password 126 to go to Factory settings.
19.1 Application
Change the options for Bluetooth, DVD, CanBus, TV, iPod and Radio.
19.2 Radio band
Select an area for the radio.
19.3 Car logo
Select one of the 85 preinstalled car manufacturer logos as your start up screen.
You can also select images imported from an SD memory card. You need to insert
the SD memory card into the GPS card slot. The image size should be 800 pixels x
480 pixels and the image format should be JPEG.
19.4 Audio
Adjust the volumes of TV, DVD, System, AV Input, Radio, and Bluetooth modes.
19.5 Other
Change the options for RDS, Front Camera, Key Light and more.
20. About machine
See information about the unit. The items you can view include:
- System updates
- Model number
- S/N
- MCU version
- Kernel version
- Build number
- CPU
- Memory

Troubleshooting
If you have problems operating this product, refer to this section. The most common
problems are listed below, along with likely causes and solutions.
- Car engine has not been started. Start the car engine.
- Incorrect wiring connection. Check the wiring.
- Fuse has been damaged. Replace fuse.
- Parking brake wire connect is incorrect. Check the parking wiring.
- The disc is inserted upside down. Insert the disc with the label upward.
- The disc is dirty. Clean the disc.
- The disc is cracked or otherwise damaged. Insert a normal, round disc.
- The files on the discs are in an irregular file format. Check the file format.
- The disc format cannot be played back. Replace the disc.
- The loaded disc is a type this product cannot play. Check what type of disc it is.
- The parking brake lead is not connected or applied. Connect the parking brake
lead correctly, and apply the parking brake.
- The parking brake interlock is activated. Park your vehicle in a safe place and apply
the parking brake.
- Set the TV Signal settings (NTSC/PAL) of the iPod/iPhone correctly.
- The Bluetooth reception is poor. Move the mobile phone closer to the product or
remove any obstacle between the mobile phone and the product.
- Some mobile phones may connect and disconnect constantly when you make or
end calls. This does not indicate any malfunction of the product.
- For some mobile phones, the Bluetooth connection may be deactivated
automatically as a power-saving feature. This does not indicate any malfunction of
the product.
- Volume is too low. Adjust volume.
- Incorrect wiring connection. Check the wiring.
No power
- Video DVD settings do not match with the DVD. Adjust video DVD settings.
- Video connection is incorrect.
- Signals are too weak. Select other stations with stronger signals.
- Check the connection of the vehicle antenna.
- Change broadcast from stereo to mono.
No sound
No image
Disc does not play
The screen is covered by a caution message and the video cannot be shown
Image flashes or distorted
Noise in broadcasts
The paired mobile phone connects and disconnects constantly
Preset station lost
- Battery cable is not correctly connected. Connect the battery cable to the terminal
that is always live.
The iPod/iPhone’s video image is disturbed
27 28
