Yaesu FTDX3000 Sound card digital modes setup
using internal USB interface
He took information here and there on the internet and gathered where
you can find some more details
https://morsetutor.com/2015/02/yaesu-ftdx3000-digi-setup/ (by W0JD)
NOTE!!! The instructions which follow are intended to be used when FSK is desired.
Frankly unless you are a purest, AFSK works just as well and if you have already
followed the PSK setup instructions. You are good to go, change the mode in DM780
to AFSK and go.
If someone at Yaesu is reading this, please have HAM’s proofread your manuals.
Writed by:
Jay Duthler
W0JD
[email protected]

Yaesu FTDX3000 with an external interface such as a Signalink or simple similar or
internal. As the radio has a built in interface I am somewhat shocked by this. And
when I ask why are they not using the built in interface the most common answer is
along the lines of I was not aware that the radio had it built in.
With this in mind I took a few pictures and documented a few settings and leveraging
the power of the net and search engines everywhere. Hopefully this blog post on
setting up the FTDX3000 for sound card digital modes will prevent a few from doing
the hard way, and for those who have already gone the external interface route to
change.
Preparation
DO NOT Connect the radio to the PC at this time.
Before diving in you will need a few things in addition to the radio and a PC.
1. Visit the Yaesu website and download the USB Serial driver.
2. Obtain but do not connect an appropriate length Type A to Type B USB cable.
Your PC will have the rectangular plug and the back of the radio has square
type B plug.
The driver pack on the Yaesu web site has instructions, follow them and install the
drivers. Once installed and the radio is connected and powered up you will get
various messages in the windows task bar that drivers and being installed and or
have been installed and the device is ready for use. The driver install directions on the
Yaesu website details all of this.
In this next step we will check and confirm that the drivers are correctly installed.

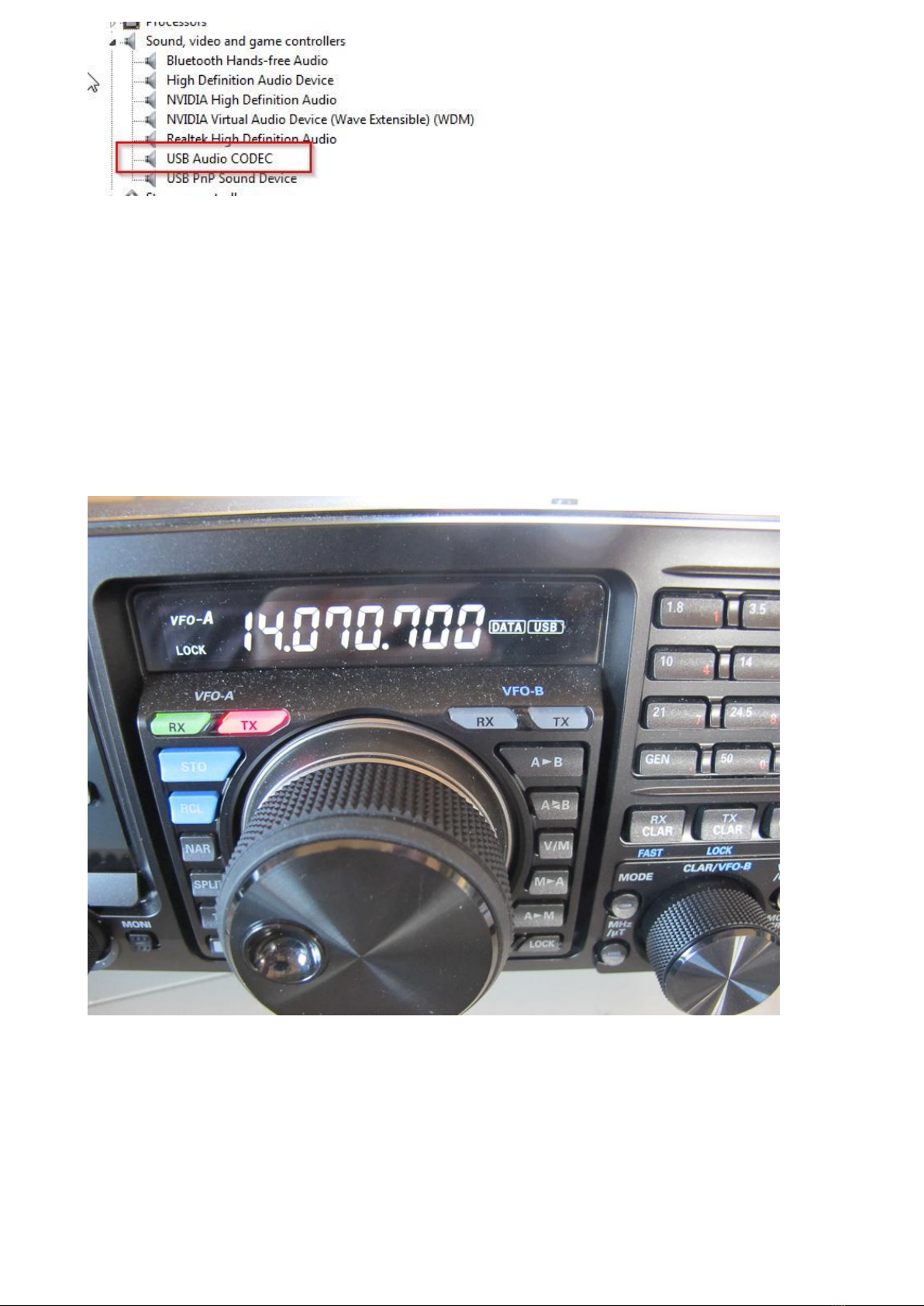

Via the Windows control panel enter the device manager and expand the Ports and
the Sound, video and game controllers section. Your port numbers may differ from
mine which is ok. However if they are missing you have a problem and need to return
to the Yaesu driver installation instructions.
Write down the port numbers for the Standard and Enhanced com port you will need
these values when setting up the PTT.

Configure the Radio
Before we begin to setup DM780 to interface with the radio, we first need to setup the
radio side of the connection. When using the 3000 for PSK and other sound card
based digital modes. The data mode lets the radio use a different set of interfaces and
configuration settings for example from SSB use. Which is nice as it allows you to flip
between data and voice modes without having to reset a series of controls.
Enter the menu system and change option #65 PC Keying to DTR.

Change item #75 to USB, which tells the radio to source TX audio from the USB audio
interface.
The next two items #76 and #77 is the gain settings internal to the radio between the
internal sound card and the audio input of the transmitter and the audio output of
the receiver. These are the values which work best for me.

Change #037 to use the USB serial port and not the back panel port. Also ensure that
CAT RTS #040 is enabled as this will permit hardware flow control with the PC.
Menu settings applicable to the serial port
When you setup HRD to connect to the radio ensure that the “Enhanced port” is being
used and that the speed is the same as what was set in radio option #038.
Also as shown here ensure that DTR is unchecked and RTS is checked.
Typical serial port settings

Setup DM780 –configure PTT
I will assume that you have already setup the radio control side of HRD to connect
with the radio. It is important that when configuring HRD you use the enhanced port
recorded above and not the standard port number.

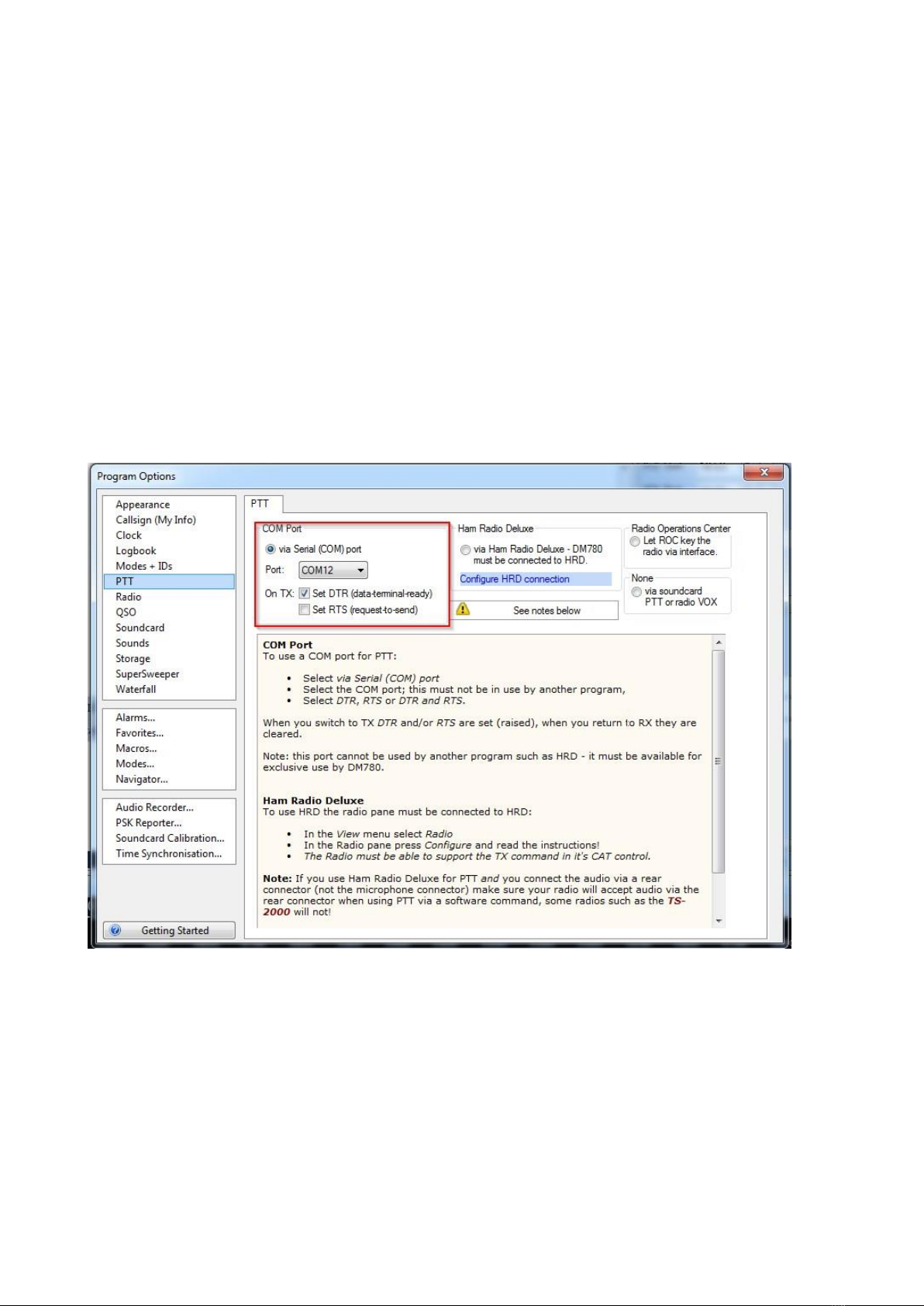

Via the DM780 options screen.
I prefer the serial line DTR option over via the HRD connection as it is consistent with
the CW keying mechanism used in the next section and pulling the USB cable will
drop the DTR line. Where as pulling the USB cable or shutting down the PC will not
send a TX stop CAT command, to counter the TX start CAT command that HRD would
use to place the radio in transmit.

Configure CW keying
Configure the Sound card
Set sound-card initial gain levels
Before taking it for a test drive on the air the initial gain level for the USB sound card
which while physically inside the transceiver it is logically part of Windows. In my

particular installation the FTDX3000 sound card shows up as Speakers “7-USB Audio
CODEC” and Microphone “7-USB Audio CODEC”.
In your system the number may be different but the rest of the text will be the same.
Right click on each device, select properties and levels. Start out will a low level
around 10 for you initial trials. You can tweak the TX value in DM780, here in the
logical device config, and in the radio menu settings as shown above in the radio
configuration section.

That should be enough to get you on the air. Perform a few test transmissions to get
the the audio levels in DM780, the sound card and in the radio setup options to
achieve the ALC levels recommended for your mode. Normally you are striving for no
ALC deflection. Set the carrier level in the radio either via the front panel or inside the
menu system to the power level desired and have fun.
Troubleshooting
If you have trouble getting the PC to talk to the CAT port on the Radio, I would suggest
downloading from the Yaesu website the PCC-3000 package.
It presents a very simple interface to the radio and is simple to setup and less may be
more by using this simple app to verify radio connectivity. Versus the more capable
and more complex HRD Suite.
The PCC-3000 package is what you want, very simple to run no installation is needed.
25-July-2015 Update Note!, a later version of this package is now available on the
Yaesu website. Use whatever version is available.
