Yamaha 500LI User manual

CAUTION
ELECTRICALLY OPERATED PRODUCT
Not recommended for children under 16 years of age. As with all electrical products, precautions should be observed during
handling to reduce the risk of electric shock.
EN
• When passing on this device, include the user manual and
all relevant warning information and parts.
• It is the responsibility of the owner to give proper instruction
and precaution (regarding the risk associated with this
device) when lending the device to other people.
USER MANUAL
Yamaha, the Crossed Tuning Fork Design, and any likeness thereof are trademarks
of Yamaha Motor Corp. U.S.A. and Yamaha Motor Co., Ltd. (“Yamaha”) used
under license by Sport Dimension Inc. www.yamaha-motor.com.
This Product is not manufactured by Yamaha. For consumer purposes,
please contact Sport Dimension Inc. at 1-800-678-7873.
LICENSED PRODUCT

INTRODUCTION 2
WARNING 3
PARTS DIAGRAM 5
BATTERY CAUTION 6
CHARGING THE BATTERY 7
REPLACING THE BATTERY 8-9
GETTING STARTED 10-11
CARE & MAINTENANCE 12
BUYING PARTS 12
TROUBLESHOOTING
- Unit does not function
- Blocked propeller
- Flooding events
- Blocked triggers
13-14
TECHNICAL SPECIFICATIONS 16
CAMERA ASSEMBLY 15
WARRANTY & CUSTOMER SERVICE 17-18
CONTENTS
Discarded electrical appliances are recyclable and should not be discarded in the domestic
waste! Please actively support us in conserving resources and protecting the environment by
returning this appliance to the collection centers (if available).
1

INTRODUCTION
I
DISCOVER
I
There is nothing ordinary about the way it looks….
Or the way it glides for that matter…..
You submerge and it reacts and adapts…..
You toggle into gear, it comes to life….
THE YAMAHA PROFESSIONAL DIVE LI SERIES!
The Seascooter introduces the first LI-ION battery system in a lightweight recreational DPV that can be charged inside the unit, but that is also removable
for external charging and simple battery replacements required for back-to-back dives or snorkel runs.
I
OTHER FEATURES
I
BUOYANCY
The Seascooter contains a self-filling ballast hull to achieve neutral buoyancy almost instantly in seawater. Strategically placed drain holes allow water to
freely enter and exit the ballast space making the Seascooter assume neutral buoyancy when submerged, and expel it as soon as it hits the surface.
FINS
The strategically placed front foil and pectoral glide fins prevent upward skidding of the Seascooter when accelerating and allow for the fastest
straight-line forward navigation underwater. The fins allow you to rest your arms while you use the Seascooter in the water.
HANDLEBAR + LED BATTERY STATUS INDICATOR
The handlebar of the Seascooter is the user’s main navigation tool and is made of the best impact resistant material. It features smart ergonomically
positioned triggers for a natural thumb position during trigger operation, accessory D-ring attachment points and a dashboard-style LED battery status
indicator for an accurate voltage display during use.
The Seascooter is designed for use in seawater. It will have less buoyancy in fresh water and pool and may sink in such waters.
2

• This is not a life saving device.
DO NOT use it as a buoyancy aid.
• A child under 16 years old should never operate
this product.
• The Seascooter is designed for 1 person use.
• ALWAYS inspect the swimming area to ensure it is free
of hazards or obstacles such as boats or swimmers
before using the Seascooter.
• Read the user manual carefully before using this
product.
• Be careful when you are transporting the Seascooter
and setting it down to avoid crushing hazard on hands,
foot or toes.
• Crushing / Cutting Hazard
• ALWAYS wear a life vest (personal floatation device - PFD)
approved by your local authorities for Snorkeling: (U.S.
Coast Guard Type III vest in the US or Canadian Coast
Guard approved life vest in Canada or SAI Approval PFD
in Australia or ISO/CE Approved PFD in Europe).
• Never stick body parts, clothing or other objects in the
vicinity of the propeller. Do not wear loose or flowing
clothing or equipment that could be drawn into the
propeller.
• Particular care should be exercised when using the
Seascooter near anybody with long hair. Users with long
hair should tie it up or wear a swimming cap when using
the Seascooter.
• Do not use alcohol or drugs prior to and during use of this
product.
• Always ensure sufficient charge remains in the battery to
return to the shore surface before using the Seascooter.
• Be aware of appropriate water levels, tidal changes,
dangerous currents, weather change and strong
offshore winds. ALWAYS scout unfamiliar water before
venturing out.
•Use appropriate equipment such as wetsuit, BCD, fins, mask & snorkel, surface signaling devise, regulator(s) approved life jacket etc. when using
Seascooter.
•The Seascooter shall not be used in reverse direction.
• Only operate the Seascooter in water.
• Adequate lighting shall be used when using the Seascooter in dark waters and during night diving.
WARNING
• Do not attach your body, clothing, other equipment
to the seascooter in any way.
16 +
3

• NEVER remove the grilles except for maintenance.
• Familiarize yourself with the Seascooter functions and battery life before embarking on any dives or excursions.
• Always charge battery to its fullest before using the Seascooter.
• Do not allow sun tan oils or lotions to be in prolonged contact with the Seascooter plastic as it may cause the plastic to become brittle and
break apart.
• If the propeller becomes intermittent, and/or a buzzer is heard, water has entered the housing(s). If safe to do so, turn OFF the master switch,
remove the Seascooter from the water and check it for water ingress. ALWAYS observe safe diving practice if this occurs during a dive.
• ALWAYS keep the Seascooter out of direct sunlight when not in use. HEAT KILLS BATTERIES AND IT MAY EXPLODE OR LEAK.
• Never open the Nose Cone of the Seascooter in the water.
• When not in use, always turn the Master Switch to the OFF position.
• Do not use the Seascooter 500Li and 350Li below the recommended maximum depth of 40m/130ft.
• Do not use the Seascooter 220Li below the recommended maximum depth of 30m/100ft.
• This machine is not intended for mixing or working with sand, concrete and material with similar physical characteristics. This machine is only
intended for swimming and diving in the water.
• Do not use the unit if it is damaged in any way.
• Replace the battery immediately if it is damaged.
• The Seascooter should only be used for scuba diving by qualified divers.
• When using the Seascooter for scuba diving, ascents and descents should be made in accordance with recognized diving practices.
• Due to safety considerations those who have not obtained a C-Card (attesting to completion of training) from an entity providing diving
instruction must not under any circumstances use this product for diving.
• In different waters (seawater, lake, pool) and conditions such as currents, temperature and pressure can affect the buoyancy of the unit which
may cause the unit to sink if accidentally released.
• DO NOT release or leave the Seascooter in the water. Always take the unit out of water when not in use.
CAUTION:
CRUSHING HAZARD:
The following action during assembly, disassembly, and transportation of the seascooter may incur
crushing hazards to your fingers or toes:
• Closing the nose cone latches
• Putting on the nose cone housing
• Setting down the seascooter of battery
• Accidental dropping of the seascooter or battery.
4

PARTS DIAGRAM
1 Outer Nose Cone Protector
2 Outer Nose Cone
3 Front Foil
4 Vent Plug
5 Inner Nose Cone
6 Battery Pod Handle
7 Battery Pod
8 Side Latches
9 Base Latch
10 PCB (Printed Circuit Board)
Box Assembly
11 Rear Foil
12 Triggers
13 Handle
14 LED Battery Status Indicator
15 Master Switch
16 Front Grille
17 Nozzle Support
18 Propeller
19 Nozzle
20 Rear Grille
21 Fin x 2
(NOT included with 220Li)
22 Charger
23 Extended Charging Cable
24 Rubber Ring x 2
25 Pump
26 Pump Nozzle
27 Ballast weight x 4
(NOT included with 220Li)
28 Silicone Grease
29 Camera Mount
28
29
1
3
4
5
6
22
23
24 25 26
27
7
10
8
11
9
13
12
14
15
16
1718
19
20
21
2
1
5

BATTERY CAUTION
500Li Battery: Suitable for use in the 500Li / 350Li / 220Li Seascooter
350Li Battery: Only suitable for use in the 350Li / 220Li Seascooter
220Li Battery: Only suitable for use in the 220Li Seascooter
((See page 12))
• Use the specified charger only.
• Must be disposed of properly.
• Always store the battery in well ventilated areas where it is out of the reach of children and away from heat and
ignition sources.
• Do not incinerate, disassemble, damage, short-circuit or expose to heat.
• The battery contains safety and protection devices which, if damaged, may cause the battery to generate heat,
rupture or ignite.
• Do not place the battery in fire, direct sunlight or apply heat to the battery; it may explode or leak.
• Do not leave the battery in direct sunlight or use or store the battery inside high temperature containers. Doing so
may cause the battery to generate heat, rupture, or ignite. Using the battery in this manner may also result in a loss
of performance and a shortened life expectancy.
• Do not place the battery on or near fires, stoves, or other high temperature locations.
• DO NOT THROW WATER ON A BURNING LI-ION BATTERY. If an exposed battery does ignite, it will burn even
more violently if it comes into contact with water or even the moisture in air. A fire extinguisher must be used.
• Do not expose the battery to water or salt water, or allow the battery to get wet.
• Do not subject the battery to strong impacts or shocks.
• Do not pierce the battery with nails, strike the battery with a hammer, step on the battery, or otherwise damage the outer casing.
• MUST re-charge the battery after EACH USE.
• MUST re-charge the battery at least EVERY SIX MONTHS when not in use.
• ALWAYS REMOVE the Battery from the seascooter FOR STORAGE.
• Never leave Lithium-Ion batteries discharged for long - the batteries do self-discharge and the charge could drop low enough to damage the
battery.
• Keep Lithium-Ion batteries away from high heat - high temperatures may cause premature battery failure.
• ALWAYS store Lithium-Ion batteries partially discharged in a cool, dry place.
WARNING!
Replace the battery immediately if it is damaged.
6

CHARGING THE BATTERY
To remove the Nose Cone and charge the Battery Pod, user MUST follow these instructions to avoid any injury.
1. ALWAYS ensure that the Master Switch is in OFF position. (see Fig. 2)
2. ALWAYS ensure that the Seascooter is out of the water, dry and placed in a dry area.
3. Pull the three Latches down and remove the outer nose cone (see Fig. 3 & 4)

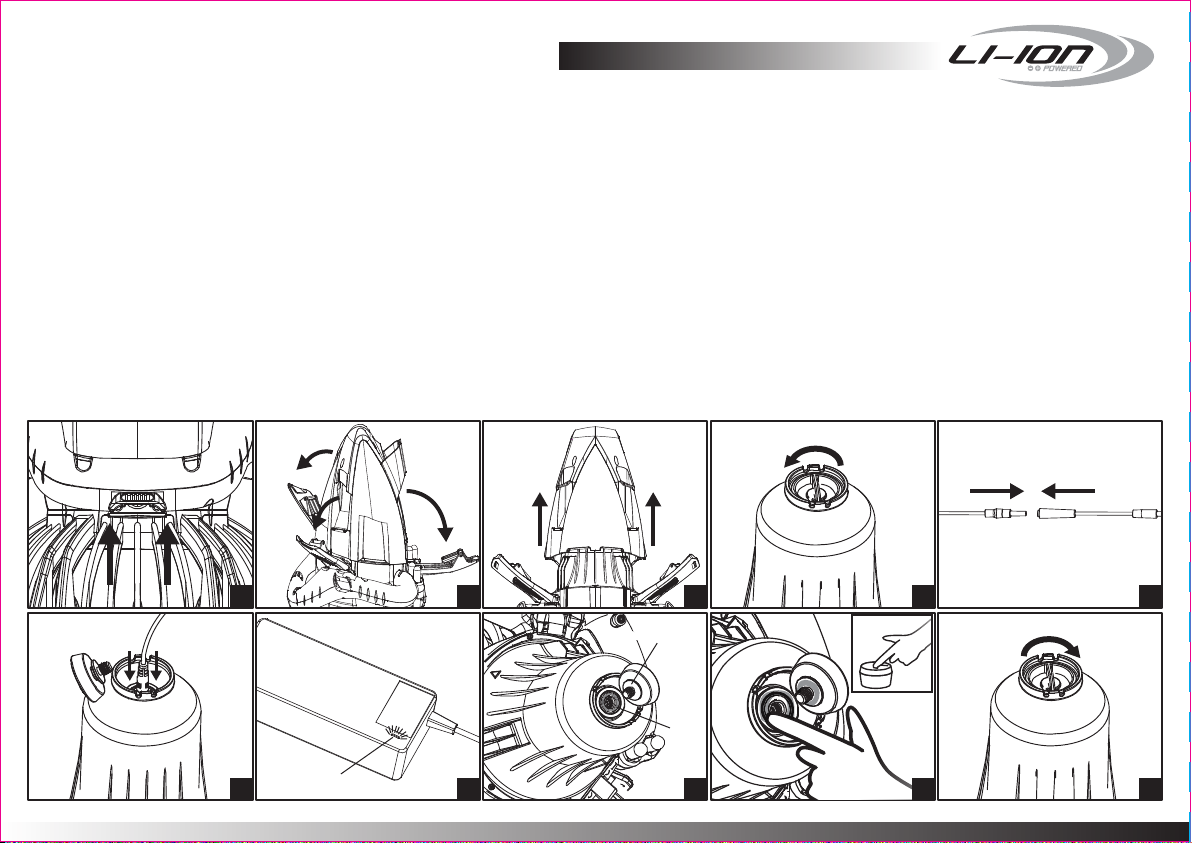

4. Release the Vent Plug on top of the Nose Cone. (see Fig. 5)
5. Connect the extended charging cable to the charging plug of the charger. (see Fig. 6)
6. Plug the extended charging cable into the battery pod through the vent plug hole and then plug the Charger into the mains (wall socket), and turn on
the supply. (see Fig. 7)
7. Charging will take around 3-5 hours for a fully discharged 220Li battery, 4-6 hours for a fully discharged 350Li battery and 7-9 hours for a fully
discharged 500Li battery. When the Battery Pod is charging, the LED light of the charger turns RED. When the battery is fully charged, the LED light
turns GREEN (see Fig. 8)
8. Once the battery pod is fully charged, unplug the Charger from the mains (wall socket).
9. Unplug the extended charging cable from the battery pod.
10. MAKE SURE the seals and sealing surface are clean and fully lubricated with the supplied grease EVERYTIME (you can also buy this at your local
hardware store) before replacing the vent Plug (see Fig. 9 & Fig. 10) and CLOSE THE VENT PLUG TIGHTLY. (see Fig. 11). MAKE SURE the plastic link
of the vent plug is not jammed in between the vent plug and the o-ring when tighten the vent plug.
11. Close the outer nose cone with the 3 latches.
Seals
Sealing Surface
Sealing Surface
23456
7 8 9 10 11
LED light
Silicone
Grease
7

REPLACING THE BATTERY
To remove the Inner Nose Cone and replace the Battery Pod, user MUST follow these instructions to avoid any injury.
1. ALWAYS ensure that the Master Switch is in OFF position. (see Fig. 12)
2. ALWAYS ensure that the Seascooter is out of the water, dry and placed in a dry area.
3. Pull the three Latches down and remove the outer nose cone. (see Fig. 13 & 14)

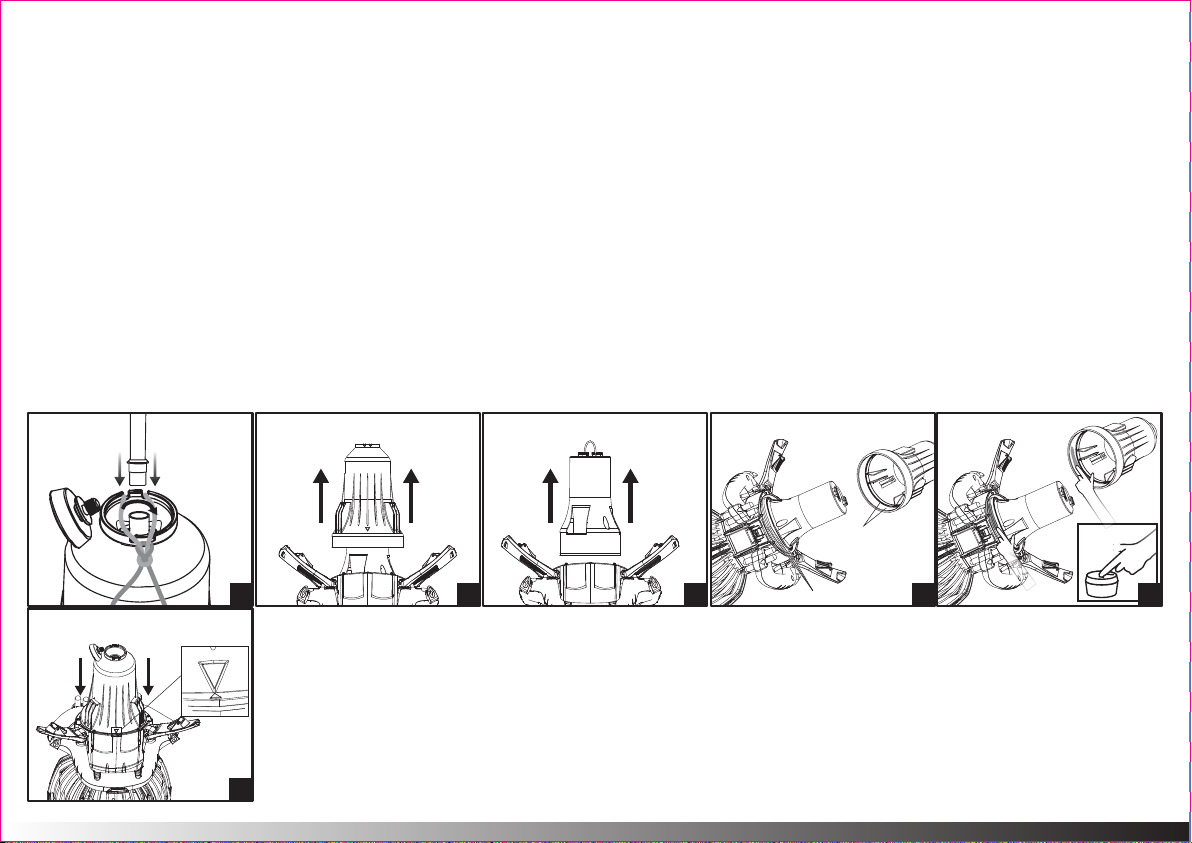

4. Release the Vent plug on top of the Nose Cone. (see Fig. 15)
5. Tie up the rubber rings together and pull them through the slots of the inner nose cone and attach both ends around the handle and bottom latch
hinge as shown in Fig. 16.
6. Remove the pump nozzle from the pump, and screw it to the vent chamber.
7. Connect the pump to the Pump nozzle and pump air in until the Nose Cone pops off (see Fig. 17).
IMPORTANT: ALWAYS attach the Rubber Ring before using the pump. The Nose Cone can pop off and cause injury if the Rubber Ring is not
attached and tightly secured.)
8. Remove the Rubber Ring and the Inner Nose Cone. (see Fig. 18)
9. Take out the Battery Pod from the unit. (see Fig. 19)
10. Replace with a new suitable battery pod.
IMPORTANT: 500Li battery pod is suitable for use in the 500Li, 350Li and 220Li Seascooter. 350Li battery pod is only suitable for use in the 350Li &
220Li Seascooter. 220Li Battery pod is only suitable for use in 220Li Seascooter. (see page 12)
I
DISCOVER
I
There is nothing ordinary about the way it looks….
Or the way it glides for that matter…..
You submerge and it reacts and adapts…..
You toggle into gear, it comes to life….
THE YAMAHA PROFESSIONAL DIVE LI SERIES!
The Seascooter introduces the first LI-ION battery system in a lightweight recreational DPV that can be charged inside the unit, but that is also removable
for external charging and simple battery replacements required for back-to-back dives or snorkel runs.
I
OTHER FEATURES
I
BUOYANCY
The Seascooter contains a self-filling ballast hull to achieve neutral buoyancy almost instantly in seawater. Strategically placed drain holes allow water to
freely enter and exit the ballast space making the Seascooter assume neutral buoyancy when submerged, and expel it as soon as it hits the surface.
FINS
The strategically placed front foil and pectoral glide fins prevent upward skidding of the Seascooter when accelerating and allow for the fastest
straight-line forward navigation underwater. The fins allow you to rest your arms while you use the Seascooter in the water.
HANDLEBAR + LED BATTERY STATUS INDICATOR
The handlebar of the Seascooter is the user’s main navigation tool and is made of the best impact resistant material. It features smart ergonomically
positioned triggers for a natural thumb position during trigger operation, accessory D-ring attachment points and a dashboard-style LED battery status
indicator for an accurate voltage display during use.
12 13 14 15 16
8

11. MAKE SURE the seals and sealing surface are clean and Fully lubricated with the supplied grease EVERYTIME (you can also buy this at your local
hardware store) before replacing the Inner Nose Cone. (see Fig. 20 and 21)
12. Align the arrow marking and close the inner nose cone by pushing all the way down. (see Fig. 22)
13. MAKE SURE the seals and sealing surface are clean and lubricated before replacing the vent Plug and CLOSE THE VENT PLUG TIGHTLY.
MAKE SURE the plastic link of the vent plug is not jammed in between the vent plug and the o-ring when tighten the vent plug.
14. Close the outer nose cone and the three latches.
Seals
Sealing Surface
17 18 19 20 21
22
Silicone
Grease
Silicone
Grease
•Use appropriate equipment such as wetsuit, BCD, fins, mask & snorkel, surface signaling devise, regulator(s) approved life jacket etc. when using
Seascooter.
•The Seascooter shall not be used in reverse direction.
• Only operate the Seascooter in water.
• Adequate lighting shall be used when using the Seascooter in dark waters and during night diving.
9

Before you use the PROFESSIONAL DIVE LI series Seascooter for the first time, the battery needs to be charged. Follow the Battery Cautions
on page 6 and Charging instructions on page 7.
Your Seascooter 500Li & 350Li can be used for swimming, snorkeling or diving up to 40m/130ft (by qualified divers).
Your Seascooter 220Li can be used for swimming, snorkeling or diving up to 30m/100ft (by qualified divers).
To use the Seascooter, follow these instructions.
1. Follow instructions on page 7 and charge the battery just before use.
2. Place the Seascooter into the water and rock gently to release trapped air.
3. The Professional Dive Li series unit automatically assumes neutral to positive buoyancy in seawater. It will have less buoyancy in fresh water and pool and
may sink in such waters. In fresh water the 500Li unit may assume slight negative buoyancy. The 350Li and 220Li units assume neutral to positive
buoyancy. All units will have less buoyancy in fresh water and pool and may sink in such waters. Always check the buoyancy of your unit before use. Use
accessory lead ballast weights (Purchase separately for 220Li) for making small buoyancy adjustments (see Fig. 23).
4. Slide both clip-on accessory fins onto the rear grille fixture points of your Professional Dive Li series unit (see Fig. 24, Purchased separately for 220Li).
5. When ready to set off, switch the Master Switch to the ON position (see Fig. 25).
6. For US version : The Professional Dive Li series unit can be operated by pushing only one trigger or both triggers at the same time. Push the left or right
Trigger to start the Propeller (see Fig. 26). The Seascooter will accelerate up to speed 1. (There is a short delay before the Propeller begins to rotate)
For EU version : Push both Triggers to start the Propeller (see fig. 26). The Seascooter will accelerate up to speed 1. (There is a short delay before the
Propeller begins to rotate)
7. For US version : To increase speed at any time, simply pulse the left or right trigger off and on again within half a second. The Seascooter will accelerate up
to the next speed level.
For EU version : To increase speed at any time, simply pulse the left or right trigger off and on again within half a second. The Seascooter will accelerate up
to the next speed level. Make sure to keep both trigger pressed at all times.
8. When at maximum speed, further pulses will have no effect. (500Li & 350Li - 3 speeds, 220Li - 2 speeds)
9. To stop the Propeller, simply release both Triggers.
10. Always set the Master Switch to the OFF position when the Professional Dive Li series unit is out of the water. (see Fig. 27)
11. Maintain proper posture to achieve the maximum speed when using the Seascooter.
– see Fig. 28 for the correct position of the Seascooter when using it.
Plug in Ballast Weight
and click to hold
Plug in Ballast Weight
and click to hold
23 24 25 26 27
GETTING STARTED
10

LED battery status indicator (operates when Master Switch is on)
Your Seascooter has a Battery Status Indicator (see Fig. 1 “Parts Diagram” - part 15), which can be seen through the LED Window located in the Handle.
When the battery is full, 3 green LEDs are on. When 2 LEDs are on, 2/3 of power remains. When 1 LED is on and flashing, about 1/3 of power remains.
When all 3 LEDs are off, the machine will run 3 minutes and then will automatically shut down.

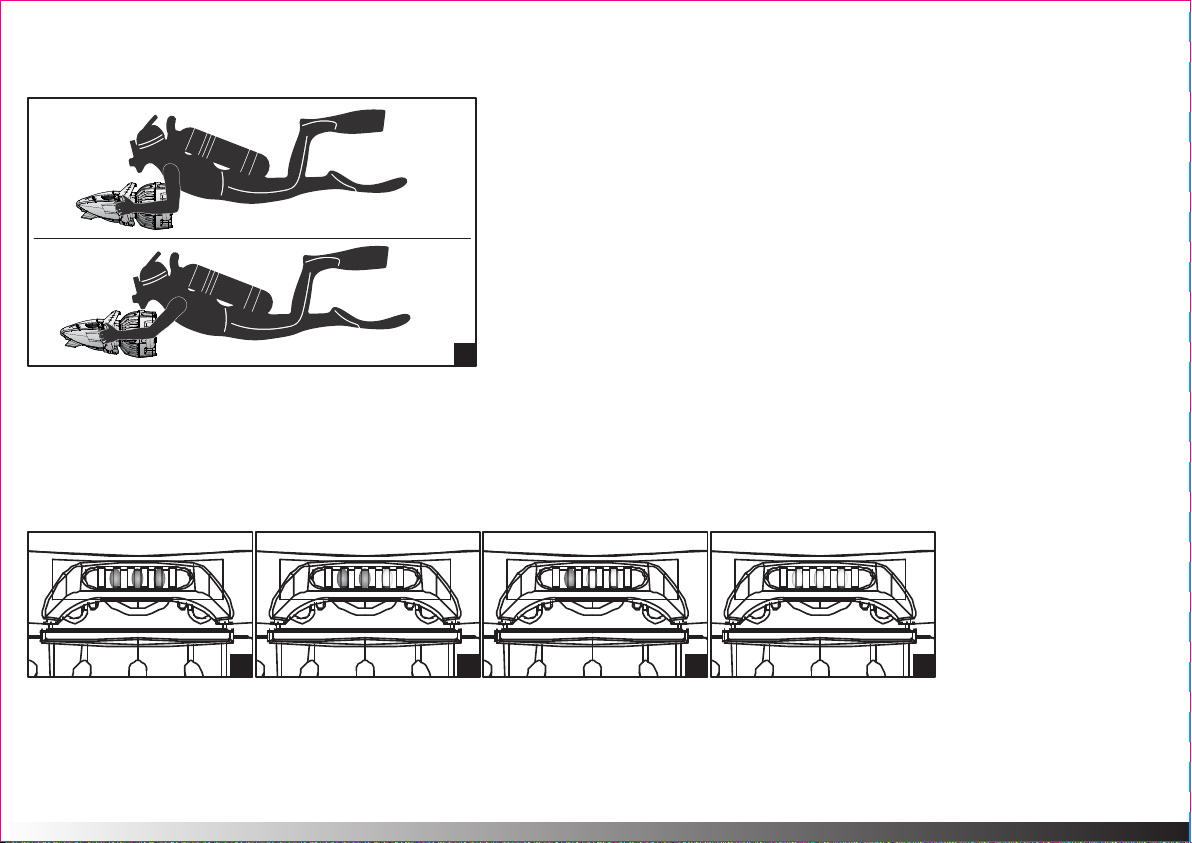

1. User should always try and assume the most horizontal body position for the
best performance results. (see Fig. 28)
29 30 31 32
Best
Good
28
11

CARE & MAINTENANCE
BUYING PARTS
Washing and Care
• DO NOT leave the Seascooter in the water. Always take the unit out of water when not in use.
• Always rinse the Seascooter with fresh water and allow it to dry before storage.
• Whenever possible rinse the Seascooter with fresh water immediately after use.
• To clean the Seascooter do not use detergents; only use a damp cloth to wipe the unit clean.
• The battery housing interior should be kept dry at all times.
• If the battery housing interior gets wet, see page 14, “Flooding Events” for procedure.
Additional battery pods, chargers or Li series accessories can be purchased separately. Please contact your Local Customer Service Center /
Distributor, or visit www.seascooter.net to purchase them.
Using the Optional Extended Life Battery for 350Li and 220Li
An optional extended life battery is available through your Local Customer Service Center / Distributor (or visit www.seascooter.net).
The battery fits into the Battery housing in the same position as the Normal battery, and can be charged the same way as the standard battery.
500Li battery
Optional Extended Life Battery Running Time (Normal Use)
350Li battery
220Li battery
90 minutes
500Li
NA
NA
120 minutes
350Li
75 minutes
NA
160 minutes
220Li
100 minutes
60 minutes
CAUTION:
The Seascooter 350Li and 220Li will assume slight negative buoyancy when using
the extended life 500Li Battery, because this battery is heavier than the standard
batteries included with the 350Li and 220Li Seascooter. When upgrading your 350Li
or 220Li with an 500Li battery pack always insert EPS floats inside the Nose cone as
illustrated for adding extra buoyancy. Never use the 350Li or 220Li with 500Li
battery pack without adding the EPS Floats because the units will have less
buoyancy and may sink. EPS floats can be purchased separately.
A
BC
B
A
C
Check the marking on the EPS floats and insert them into the
Nose Cone as shown above. Always use 3M double-sided tape
to fix the EPS Floats inside the Nose Cone. Never use glue.
12

Beware of
sharp corners
when servicing
TROUBLESHOOTING
Drive Pin In Position
33 34 35
Unit does not function
If the Propeller does not start when the trigger(s) is/are pressed, make sure:
1. The Master Switch is ON.
2. The Battery Pod is fully charged. (see page 7, Charging The Battery)
3. The battery compartment is dry.
Blocked Propeller
If the Propeller becomes blocked, it will be necessary to open the Protective Grilles to remove the obstacle.
UNDER NORMAL USE the grilles must not be opened.
NEVER turn the propeller ON when it is blocked; it would cause serious damage to the gear box.
Opening the Grilles to Remove Obstruction
WARNING
Crushing / Cutting Hazard
Before opening the grille for maintenance purposes, make sure the master switch is in off position, and the battery is disconnected.
1. Take the Seascooter out from the water.
2. Make sure the Master Switch is in the OFF position.
3. Disconnect and remove the Battery Pod - see page 8, step 1 - 9.

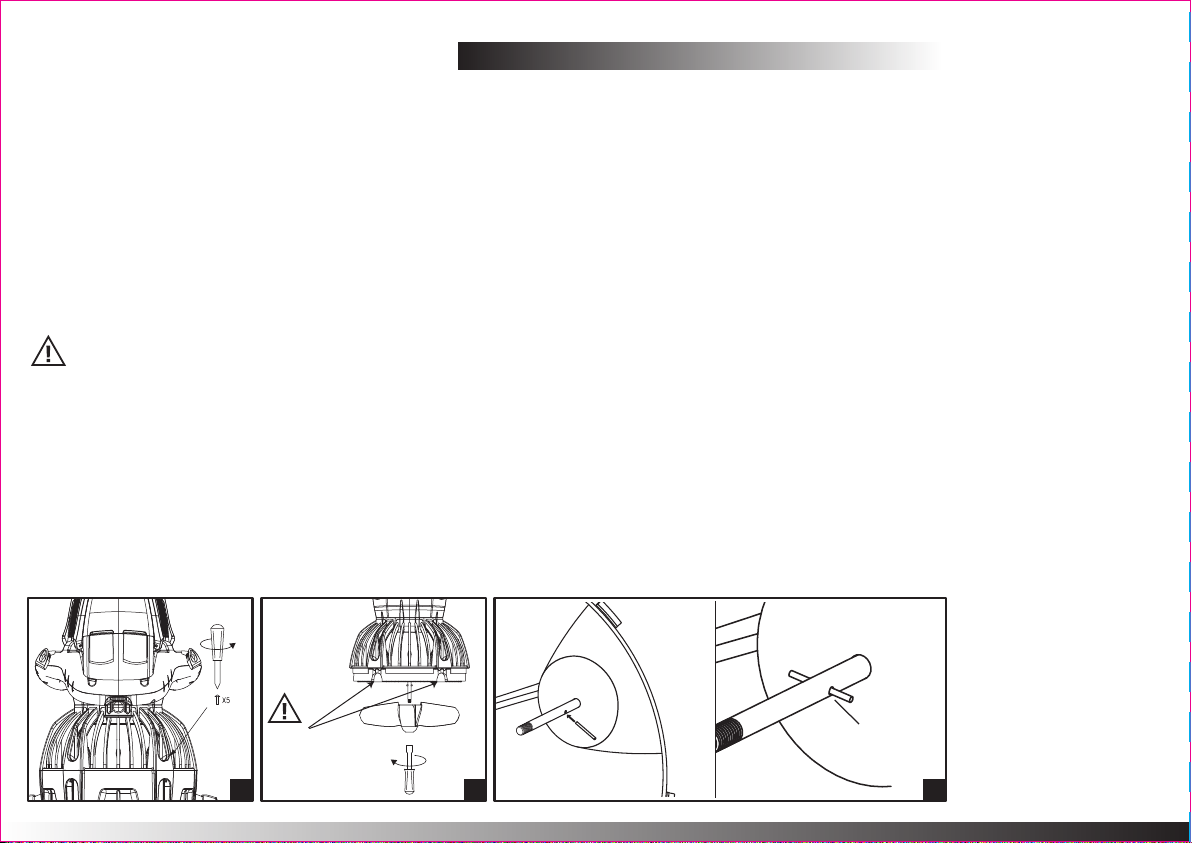

4. Unscrew the five Rear Grille screws to remove the rear grille. (see Fig. 33)
5. While holding the Propeller, use an M6 socket wrench to remove the nut from the Propeller shaft as shown in Fig. 34.
6. Slide the Propeller off the shaft, taking care not to lose the drive pin or washers.
7. Remove the blockage from the Propeller or Propeller Shaft.
8. Replace the drive pin (if removed), see Fig. 35, and Propeller. Turn the Propeller slowly until you locate the pin and push the Propeller fully on.
13

Sand or Grit on O-ring Seal
Ensure that sand/grit does not get on the seals as correct maintenance and care is essential.
To remove sand or grit from the O-ring Seal, rinse the O-ring Seals with fresh water and
apply fresh lubricant. If there is sand inside the Battery Housing, gently brush the sand from
the unit, taking care not to scratch the sealing surfaces.
If an O-ring Seal is damaged, replace it with a new one and apply fresh lubricant before use.
Flooding Events
Be sure to keep the O-ring Seal sand and grit free to ensure it keeps water out and to close the latches fully after accessing the battery chamber.
However, should the O-ring Seal not be clean or the latches not fully closed and water enters the battery chamber, your Seascooter will not be
damaged as it is designed for protection against accidental flooding.
Water Leakage Sensor (operates when propeller is turning)
Your Seascooter has a built-in water leakage sensor – when the unit experiences accidental
flooding, the motor will stop momentarily every 10 seconds. At the same moment, a buzzer
will beep every 10 seconds.
If water enters the battery chamber:
1. Remove the Seascooter from the water if safe to do so. Always observe safe diving
practices.
2. Remove outer and inner nose cone and tip out any excess water.
3. Remove battery pod.
4. If salt water has entered, rinse battery, battery pod and housing with fresh water.
5. Dry housing and battery pod thoroughly.
If the battery chamber is dry and the water leakage sensor continues to beep, there is a
leakage in the motor housing; contact customer service center/repair center for maintenance.
DO NOT OPERATE A UNIT WITH A SUSPECTED LEAK INTO THE MOTOR CHAMBER.
Washer
Drive pin
Propeller
Propeller Shaft
Nut
36
9. Replace the washer and nut and tighten with the socket wrench while holding the
Propeller; make sure it is securely fastened. (see Fig. 36)
10. Re-install the rear grille.
11. Install the Battery Pod and replace the Nose Cone when ready for use.
Blocked triggers
If not washed properly, sand, salt or grit build-up could harm the operation trigger
mechanism. Please follow below maintenance instruction:
1. Pull out the triggers button and remove the rubber cap located at the bottom of the
handle. (See Fig.37)
2. Spray and flush water into the triggers, or the Rubber cap holes to clear any debris.
(See Fig.38)
3. Put the Triggers and the Locking Buttons back in position and test if they operate
smoothly.
4. MAKE SURE to put the Rubber caps back in position before use.
37
rubber cap
Trigger button
rubber cap
Trigger button
38
14

CAMERA ASSEMBLY
CompleteInsert The Bucke
To The Camera Mount
Camera Mount Clip On The Camera Mount
To The Seascooter Top Handle
Attachment Buckle Thumb Screw Waterhousing Complete Unit
Can be used with GoPro
®
HERO [3, 3+, 4, or 5] cameras, or other camera with using the same mount system.
To attach your camera to a mount, firstly you will need a thumb screw or hardware depending on the mount you are using.
To attach your camera to the Seascooter, please follow the step below:
ATTACHING YOUR CAMERA TO SEASCOOTER MOUNTS
Release
The Buckle,
And Take Out
The Camera
To Remove
The Camera Mount,
Simply Lift Up The
Clips To Release
The Lock
REMOVE THE CAMERA MOUNT
*Camera and Screw are not included
15

TECHNICAL SPECIFICATIONS
12.6 inches x 11.8 inches x 24 inches (319 x 300 x 610 mm)Unit Dimensions
I
SEASCOOTER™ 500Li
Unit Weight 21 lb (9.5 kg) (with rechargeable Li-ion battery)
Battery Type 1 x 22 V / 12000 mAh rechargeable Li-ion battery
Depth rating (Maximum advised depth rating for recreational diving) 40 m / 130 ft
□
Gears / Speed 3 speeds / Up to 4.35 mph (7 km/h)
Battery Life / Fully Charged *Runs up to 90 minutes with normal use (
∆
Continuous use up to 30 minutes)
12.6 inches x 11.8 inches x 24 inches (319 x 300 x 610 mm)Unit Dimensions
I
SEASCOOTER™ 350Li
Unit Weight 19 lb (8.6 kg) (with rechargeable Li-ion battery)
Battery Type 1 x 22 V / 8000 mAh rechargeable Li-ion battery
Depth rating (Maximum advised depth rating for recreational diving) 40 m / 130 ft
□
Gears / Speed 3 speeds / Up to 3.7 mph (6 km/h)
Battery Life / Fully Charged *Runs up to 75 minutes with normal use (
∆
Continuous use up to 30 minutes)
12.6 inches x 11.8 inches x 24 inches (319 x 300 x 610 mm)Unit Dimensions
I
SEASCOOTER™ 220Li
Unit Weight 19 lb (8.6 kg) (with rechargeable Li-ion battery)
Battery Type 1 x 22 V / 4000 mAh rechargeable Li-ion battery
Depth rating (Maximum advised depth rating for recreational diving) 30 m / 100 ft
□
Gears / Speed 2 speeds / Up to 3.1 mph (5 km/h)
Battery Life / Fully Charged *Runs up to 60 minutes with normal use (
∆
Continuous use up to 30 minutes)
*Normal Use
The definition of normal use is based on the average general time during which the user activates the Seascooter in the water
∆
Continuous Use
The definition of continuous use is based on a fully charged battery whereby the Seascooter is used continuously in the water without stopping.
□
Gears / Speed
May vary depending on diver’s posture, physique, equipment configuration and water conditions.
16

CONSUMER WARRANTY & SERVICE INFORMATION
Distributors in the United States and Canada provide a Standard Limited Warranty for 6 months from the date of purchase for new products. If you're not located in the United
States or Canada, please contact your Local Distributor for warranty arrangements in your territory. Please visit www.seascooter.net for Distributor / Service Center details.
Distributors ONLY warrant Yamaha Seascooter products purchased from an authorized dealer and with an original purchase receipt. All warranties are limited to a single original
owner on the purchase of new and current product from an authorized reseller. Closeouts, Discontinued and Secondary sales of any kind including “like new” or out of box are not
eligible for warranty consideration.
This warranty gives the consumer specific legal rights, and those rights may vary from place to place. Ask your Local Distributor for the warranty period in your region by calling
their Service Center. Any part of the product supplied by the Distributor and found in the reasonable judgment of the Distributor to be defective in material or workmanship will be
repaired or replaced then returned by the Distributor without charging for parts and repair costs. The product including any defective part must be sent to the Distributor within the
warranty period. The customer will pay for the expense of delivering the product to the Distributor.
This warranty does not cover any product that has been subject to misuse negligence or accident, or that has been operated in any way contrary to the operating instructions as
specified in the User Manual. Any flood, loss or damage, for any reason, that is caused by accidental release and sinking of the unit, or from flooding an o-ring sealed or water
tight area will not be covered under warranty. This warranty does not apply to theft, loss, abuse or tampering, lack of maintenance, improper storage, exposure to excessive
temperature, extended sunlight, material interactions, deteriorating chemicals or fumes, any damage to the product that is the result of improper maintenance or parts
replacement performed by someone other than the official Distributor Service Center or to any product that has been altered or modified so as to change its intended use. This
warranty does not extend to repairs made necessary by normal wear or by the use of parts or accessories which are either incompatible with the product or adversely affects its
operation, performance or durability.
In addition, this warranty does not cover items that experience normal wear and tear.
All implied warranties are limited in the duration to the warranty period. And such implied warranties including merchantability, fitness for a particular purpose,
or otherwise, are disclaimed in their entirety after the expiration of the appropriate warranty period. The distributor’s obligation under the warranty is strictly and
exclusively limited to the repair or replacement of defective parts and return of the product to the customer. The distributor does not assume or authorize
anyone to assume for them any other obligation.
The distributor assumes no responsibility for incidental, consequential or other damages including, but not limited to expense of returning the product to the
distributor, loss of use of product and loss of time or inconvenience.
THIS PRODUCT IS DESIGNED AND INTENDED FOR PERSONAL RECREATIONAL USE ONLY!
THIS PRODUCT IS NOT WARRANTED FOR COMMERCIAL OR RENTAL USE!
REPAIR WORK OR DELIVERY OF A REPLACEMENT DOES NOT EXTEND OR RENEW THE WARRANTY PERIOD.
WARRANTY SHALL AUTOMATICALLY BE VOID IF DAMAGE IS RESULT OF NON-ORIGINAL PARTS.
17

LIMITED WARRANTY for seascooters with camera mount:
• ALWAYS inspect to ensure the product works properly every time before use. Warranty of this product does not cover any damages due to misuse.
• Failure to follow the user(s) instructions on packaging and/or user(s) manual may result in damages or loss of your cameras including but not limited to any user’s personal
items, all of which are not covered under warranty of this product.
• Use at your own risk. Manufacturer(s) and/or suppliers/agents are not responsible for any damages/repairs, loss to cameras/electronic items including but not limited to any
user’s personal items directly and/or indirectly resulted in the use of this product. Damage(s) resulting from any use, misuse, accident, and normal wear and tear are
understandably not covered under this product warranty nor be responsible by manufacturer(s) and/or suppliers/agents.
EXCLUSIONS
BATTERY. This warranty does not include the battery.
Never replace the original SEASCOOTER BATTERY with an AFTERMARKET BATTERY. Seascooter with aftermarket battery will not be covered by this warranty.
CUSTOMER ENQUIRIES
If your unit is not operating, please refer to your User Manual before contacting our Customer Service Center. For any damage or repair work required, please do not return your
product to the store where it was purchased.
RETURN / REPAIR POLICY
Customers must contact their Local Distributor Service Center to ask for an official Claim Form. The Claim Form must be returned with the customer’s contact details and a photo
of the Seascooter, defective parts, the serial number and the Original Purchase Receipt. The Distributor Customer Service Center will review the case and issue a Return / Repair
Authorization Number before sending the product to the Distributor Service Center. Returned products must be shipped with original packaging including the polystyrene packing
material and all defective parts. Please contact your Local Distributor Service Center for assistance in handling your case.
Please visit our website www.yamahaseascooters.com for a listing of most update distributor contacts
and service center contacts.
RETURN / REPAIR PROCEDURE
1. Call the Customer Service Center for your Return / Repair Authorization Number.
2. Make a copy of your Proof of Purchase (receipt).
3. Pack the defective unit in its original packaging including the polystyrene foam and include the unit and all defective parts.
4. Attach the copy of your Proof of Purchase (receipt) to the outside of the box (clearly visible), together with the Return / Repair Authorization Number.
5. Ship the package to the Service Center on your cost.
PLEASE NOTE: Deliveries that do not have the Proof of Purchase (receipt) and Return / Repair Authorization Number attached clearly to the outside of the box, will not be
accepted by the Service Center.
For any questions or queries you may have regarding your SEASCOOTER™,
please follow the below steps for easy and fast resolution:
- STEP 1- Please read your User Manual. For a copy of the User Manuals, please visit www.yamahaseascooters.com
- STEP 2- Go to www.yamahaseascooters.com and see our FAQ section to find instant answers.
- STEP 3- Contact one of our Customer Service representatives at the Customer Service Center in your region.
18

YMEP#18013 - V2
US & CANADA MARKET ONLY
Toll Free (US) : 1-800-678-7873
[email protected]
www.yamahaseascooters.com
(US & CANADA MARKET ONLY)
PATENTED and PATENT PENDING
Please visit our website at www.yamahaseascooters.com to find out your local distributor.
All corresponding specication appear in this manual are correct at the time of printing.
For the latest updates and further information on the complete range of the Seascooter™,
PLEASE VISIT www.yamahaseascooters.com
PRINTED IN CHINA
Yamaha, the Crossed Tuning Fork Design, and any likeness thereof are trademarks of Yamaha Motor Corp. U.S.A. and Yamaha Motor Co.,
Ltd. (“Yamaha”) used under license by Sport Dimension Inc. www.yamaha-motor.com.
This Product is not manufactured by Yamaha. For consumer purposes, please contact Sport Dimension Inc. at 1-800-678-7873.
For more information on Seascooter™Products
(Warranty, Customer Care / Maintenance, Parts & Battery Purchase)
PLEASE VISIT www.yamahaseascooters.com
