SERVICE MANUAL
DVD RECORDER
DRX-1
100821
■CONTENTS
TO SERVICE PERSONNEL ...................................... 2~3
PREVENTION OF ELECTRO STATIC DISCHARGE............. 4
LOCALE MANAGEMENT INFORMATION ................... 4
FRONT PANELS............................................................ 5
REMOTE CONTROL...................................................... 5
REAR PANELS .............................................................. 6
SPECIFICATIONS...................................................... 6~8
DISASSEMBLY PROCEDURES ................................... 9
SERVICE POSITION.............................................. 10~11

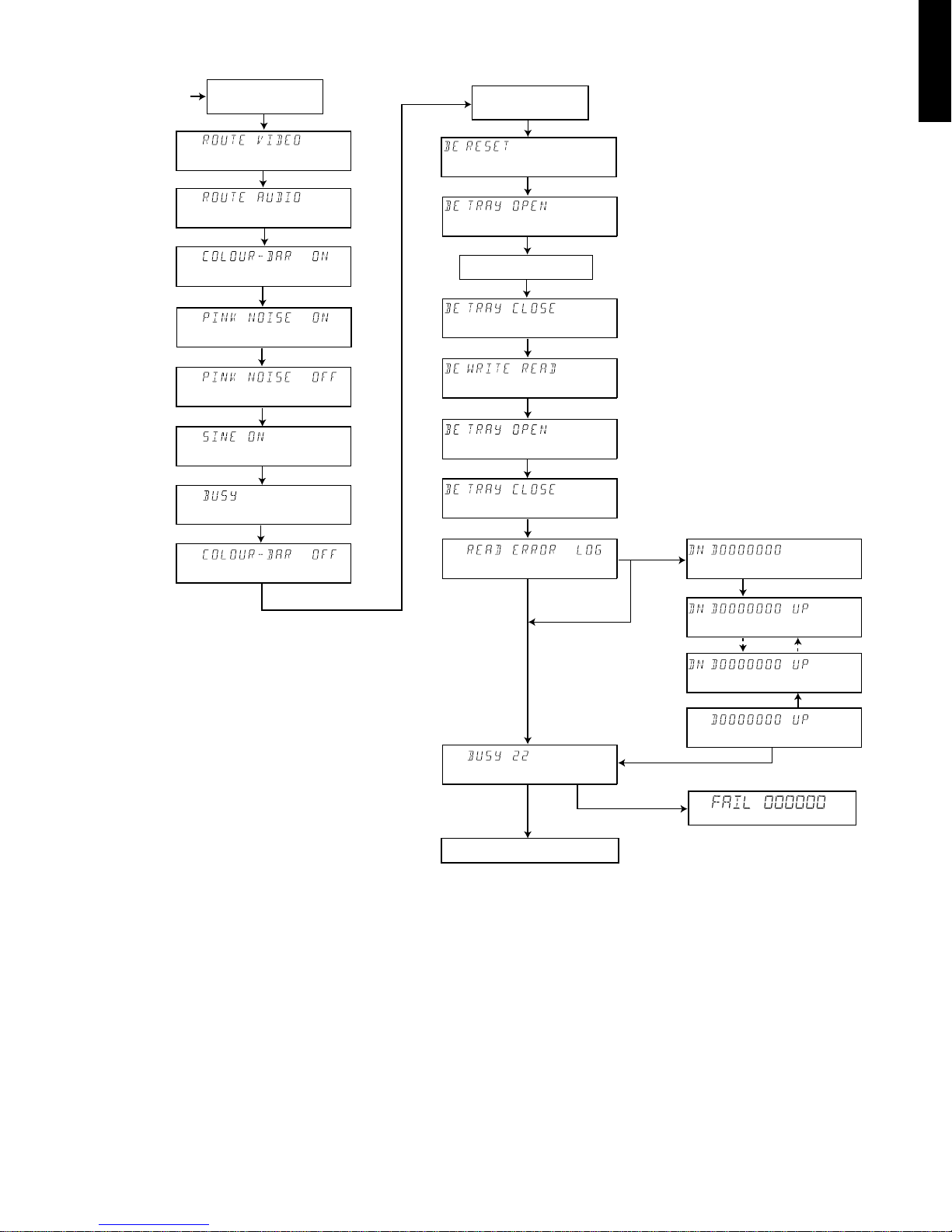

DIAGNOSTIC SOFTWARE ................................... 12~41
FAULTFINDING TREES ........................................ 42~68
ALIGNMENTS ........................................................ 69~71
CIRCUIT DESCRIPTIONS ..................................... 72~90
ABBREVIATION LIST ........................................... 91~96
IC DATA ............................................................... 97~105
BLOCK DIAGRAM............................................. 107~108
WIRING DIAGRAM .................................................... 109
PRINTED CIRCUIT BOARD .............................. 110~143
SCHEMATIC DIAGRAM .................................... 144~186
EXPLODED VIEW.............................................. 187~188
MECHANICAL PARTS LIST ..................................... 189
EXPLODED VIEW (FRONT ASS'Y) .......................... 190
MECHANICAL PARTS LIST (FRONT ASS'Y) ......... 191
MECHANICAL PARTS LIST (ACCESSORIES) ....... 191
IMPORTANT NOTICE
This manual has been provided for the use of authorized YAMAHA Retailers and their service personnel.
It has been assumed that basic service procedures inherent to the industry, and more specifically YAMAHA Products, are already
known and understood by the users, and have therefore not been restated.
WARNING: Failure to follow appropriate service and safety procedures when servicing this product may result in personal
injury, destruction of expensive components, and failure of the product to perform as specified. For these reasons,
we advise all YAMAHA product owners that any service required should be performed by an authorized
YAMAHA Retailer or the appointed service representative.
IMPORTANT: The presentation or sale of this manual to any individual or firm does not constitute authorization, certification or
recognition of any applicable technical capabilities, or establish a principle-agent relationship of any form.
The data provided is believed to be accurate and applicable to the unit(s) indicated on the cover. The research, engineering, and
service departments of YAMAHA are continually striving to improve YAMAHA products. Modifications are, therefore, inevitable
and specifications are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please
contact the distributor's Service Division.
WARNING: Static discharges can destroy expensive components. Discharge any static electricity your body may have
accumulated by grounding yourself to the ground buss in the unit (heavy gauge black wires connect to this buss).
IMPORTANT: Turn the unit OFF during disassembly and part replacement. Recheck all work before you apply power to the unit.
P.O.Box 1, Hamamatsu, Japan

DRX-1
DRX-1
2
WARNING: CHEMICAL CONTENT NOTICE!
The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and /or plastic
(where applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency
(and possibly other entities) to cause cancer and/or birth defects or other reproductive harm.
DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REA-
SON WHATSOEVER!
Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose
eyes to solder/flux vapor!
If you come in contact with solder or components located inside the enclosure of this product, wash your hands before
handling food.
WARNING: Laser Safety
This product contains a laser beam component. This component may emit invisible, as well as visible radiation, which may
cause eye damage. To protect your eyes and skin from laser radiation, the following precautions must be used during
servicing of the unit.
1) When testing and/or repairing any component within the product, keep your eyes and skin more than 30 cm away from
the laser pick-up unit at all times. Do not stare at the laser beam at any time.
2) Do not attempt to readjust, disassemble or repair the laser pick-up, unless noted elsewhere in this manual.
3) CAUTION: Use of controls, adjustments or performance of procedures other than those specified herein may result in
hazardous radiation exposure.
Laser Emitting conditions:
1) When the Top Cover is removed and the "STANDBY/ON" SW is turned to the "ON" position, the laser component will emit
a beam for several seconds to detect if a disc is present. During this time (5 - 10 sec.) the laser may radiate through the
lens of the laser pick-up unit. Do not attempt any servicing during this period!
If no disc is detected, the laser will stop emitting the beam. When a disc is loaded, you will not be exposed to any laser
emissions.
2) The laser power level can be adjusted with the VR on the pick-up PWB. However, this level has been set by the factory prior to
shipping from the factory. Do not adjust this laser level control unless instruction is provided elsewhere in this manual.
Adjustment of this control can increase the laser emission level from the device.

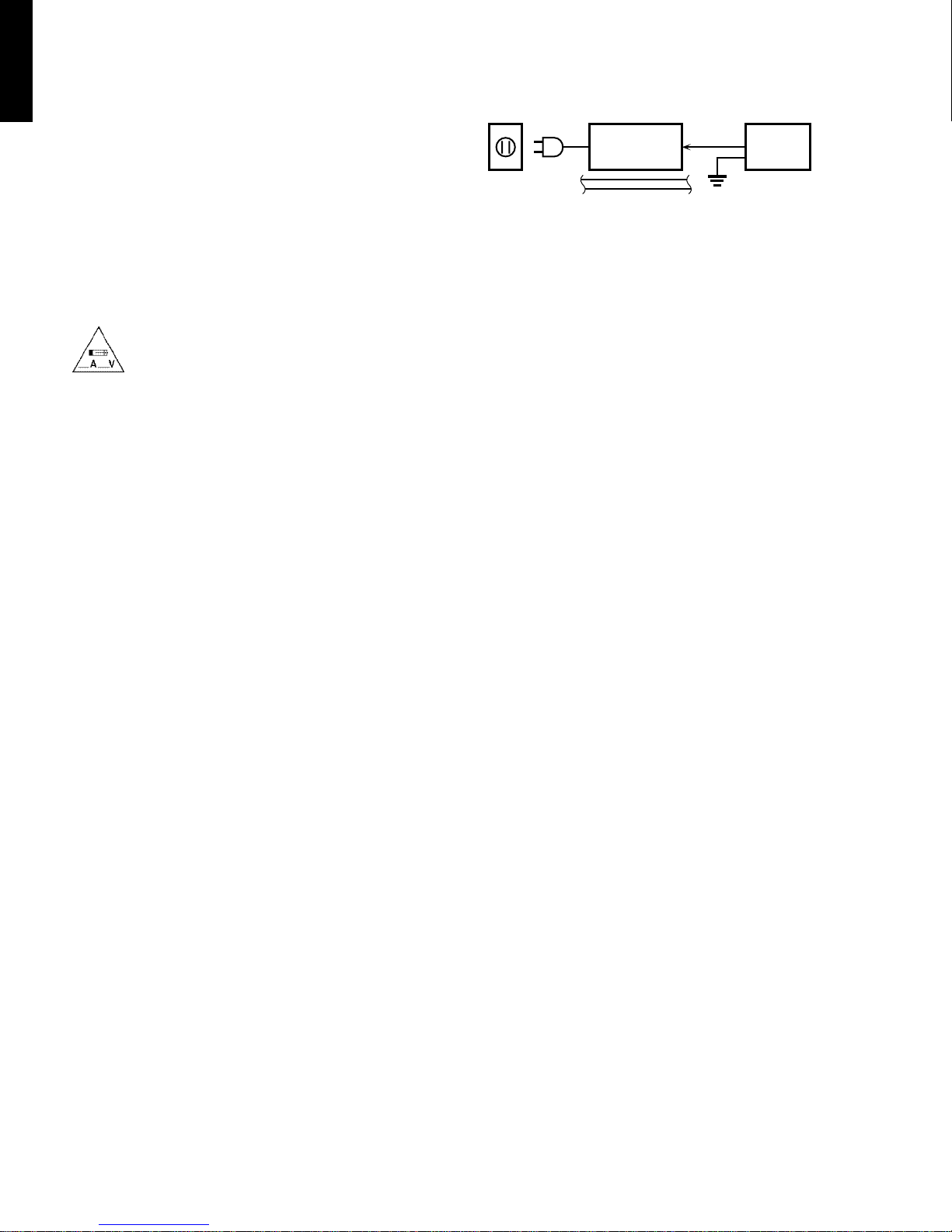

WALL
OUTLET EQUIPMENT UNDER TEST
AC LEAKAGE
TESTER OR
EQUIVALENT
INSULATING
TABLE
■TO SERVICE PERSONNEL
1. Critical Components Information
Components having special characteristics are marked s
and must be replaced with parts having specifications equal
to those originally installed.
2. Leakage Current Measurement (For 120V Models Only)
When service has been completed, it is imperative to verify
that all exposed conductive surfaces are properly insulated
from supply circuits.
●Meter impedance should be equivalent to 1500 ohm shunted
by 0.15µF.
CAUTION
1120: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE 2.5A, 250V FUSE.
CAUTION
1120: REPLACE WITH SAME TYPE 2.5A, 250V FUSE.
ATTENTION
1120: UTILISER UN FUSIBLE DE RECHANGE DE MEME TYPE DE 2.5A, 250V.
●Leakage current must not exceed 0.5mA.
●Be sure to test for leakage with the AC plug in both polarities.
THE DVD AUDIO/VIDEO RECEIVER SHOULD NOT BE ADJUSTED OR REPAIRED BY ANYONE EXCEPT PROPERLY
QUALIFIED SERVICE PERSONNEL.

DRX-1
DRX-1
3
when open.
Visible and invisible laserradiation
CAUTION :
LASER PRODUCT
CLASS 1
Avoid exposure to beam.
when open.
Visible and invisible laserradiation
A, B, G models
U, A, B, G models
LASER PRODUCT
CLASS 1 CAUTION :
Avoid exposure to beam.
Laser Diode Properties
Type: InGaAIP Semiconductor laser (DVD)
AlGaAs Semiconductor laser (CD)
Wave length: 660 nm (DVD)
780 nm (VCD/CD)
Output Power: 20 mW (DVD writing)
(out of objective) 0.8 mW (DVD reading)
0.3mW (CD reading)
Beam divergence: 82 degree (DVD)
54 degree (CD)
VARO! : AVATTAESSA JA SUOJALUKITUS OHITETTAESSA OLET ALTTIINA NÄkymÄTTÖMÄLLE LASER-
SÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN.
VARNING! : OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD OCH SPÄRREN ÄR URKOPPLAD.
BETRAKTA EJ STRÅLEN.
WARNING
The use of optical instruments with this product will increase eye hazard.
Repair handling should take place as much as possible with a disc loaded inside the player
WARNING LOCATION: REAR PANEL
CAUTION VISIBLE AND INVISIBLE LASER RADIATION.WHEN OPEN AVOID EXPOSURE TO BEAM
ADVARSEL SYNLIG OG USYNLIG LASERSTRÅLING VED ÅBNING UNDGÅ UDSÆTTELSE FOR STRÅLING
ADVARSEL SYNLIG OG USYNLIG LASERSTRÅLING NÅR DEKSEL ÅPNES UNNGÅ EKSPONERING FOR STRÅLEN
VARNING SYNLIG OCH OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD BETRAKTA EJ STRÅLEN
VARO!AVATTAESSA OLET ALTTIINA NÄKYV¨ALLE JA NÄKYMÄTTÖMÄLLE LASER SÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN
VORSICHT SICHTBARE UND UNSICHTBARE LASERSTRAHLUNG WENN ABDECKUNG GEÖFFNET NICHT DEM STRAHL AUSSETSEN
DANGER VISIBLE AND INVISIBLE LASER RADIATION.WHEN OPEN AVOID DIRECT EXPOSURE TO BEAM
ATTENTION RAYONNEMENT LASER VISIBLE ET INVISIBLE EN CAS D’OUVERTURE EXPOSITION DANGEREUSE AU FAISCEAU
Warning for power supply
The primary side of the power supply carries live mains voltage when the player is connected to the mains even
when the player is switched off !
This primary area is not shielded so it is possible to touch copper tracks and/or components when servicing the player.
Service personnel have to take precautions to prevent touching this area or components in this area .
The primary side of the power supply has been indicated with a lightening stroke and a stripe-marked print on the printed
wiring board
Note:
The screws on the DVDR mechanism (position 1 in on the exploded view drawing) may never be touched, removed
or re-adjusted.
Handle the DVDR mechanism with care when the unit has to be exchanged!
The DVDR mechanism is very sensitive for dropping or giving shocks.

DRX-1
DRX-1
4
1
2
4
2
5
5
4
2
6
3
5
■LOCALE MANAGEMENT INFORMATION
Locale Management Information : This DVD recorder is designed and manufactured to respond to the Locale Management
Information that is recorded on the DVDR disc. If the Locale number described on the DVDR disc does not correspond to the
Locale number of this DVD recorder, this DVD recorder cannot play this disc.
This product incorporates copyright protection
technology that is protected by method claims of
certain U.S. patents and other intellectual
property rights owned by Macrovision
Corporation and other rights owners. Use of this
copyright protection technology must be
authorized by Macrovision Corporation, and is
intended for home and other limited viewing uses
only unless otherwise authorized by Macrovision
Corporation. Reverse engineering or
disassembly is prohibited.
■PREVENTION OF ELECTRO STATIC DISCHARGE
The laser diode in the DVDR mechanism may be damaged due to static electricity from clothes or the human body. Use
caution to prevent electrostatic damage when servicing or handling the DVDR mechanism.

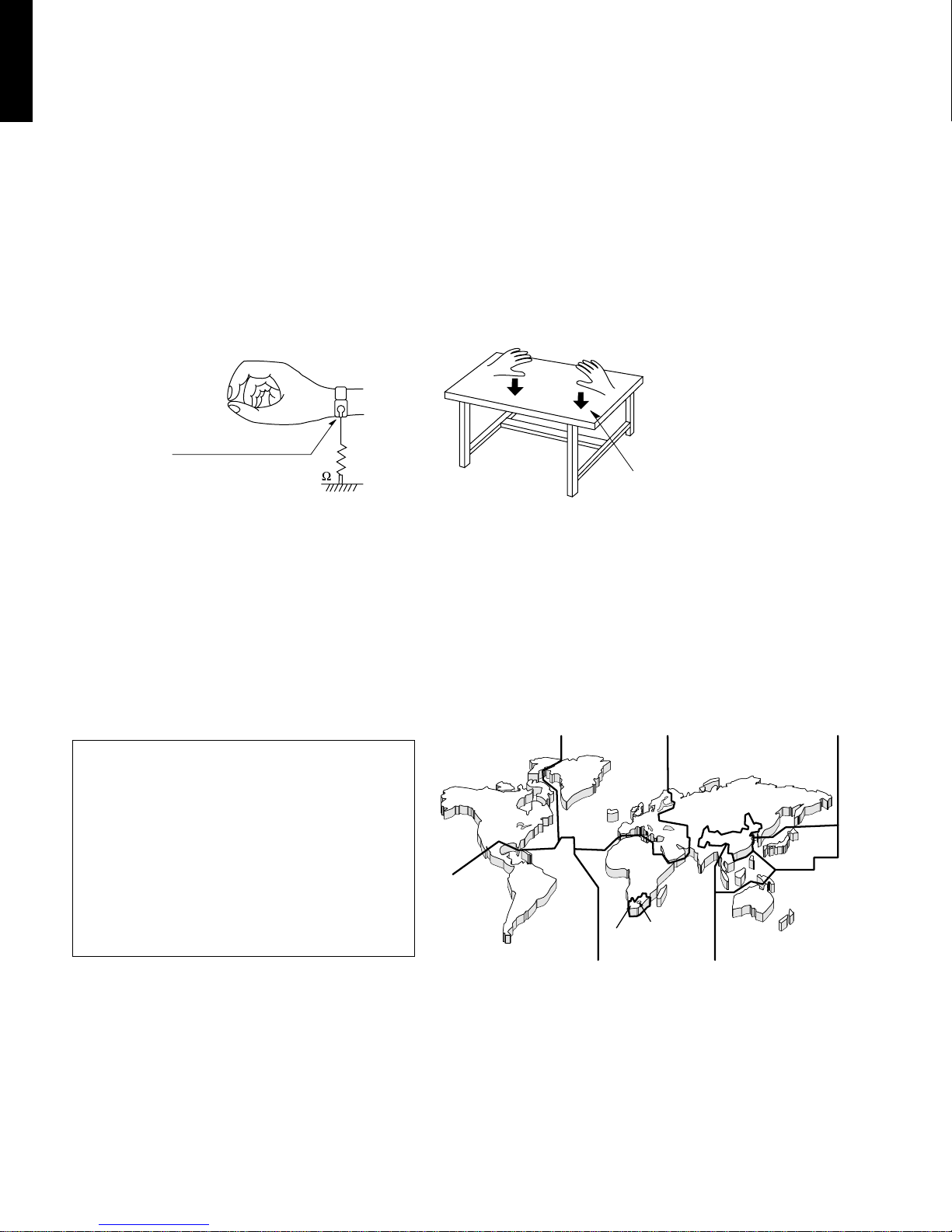

1. Grounding for electrostatic damage prevention
Some devices, such as the DVD recorder, use an optical pickup (laser diode) that will be damaged by static electricity in the
working environment. Only attempt service after ensuring that all grounding procedures have been completed.
1. Worktable grounding
Put a grounded conductive material (sheet) or iron sheet on the area where the optical pickup is placed.
2. Human body grounding
Use an anti-static wrist strap to discharge the static electricity from your body.
1M Conductive material
(sheet) or steel sheet
Anti-static wrist strip
2. Handling Precautions for DVDR mechanism
1. Handle the DVDR mechanism gently, as it is an extremely high-precision assembly.
2. The flexible cable lines may break if an excessive force is applied to it. Use caution when handling the cable.
3. The semi-fixed resistor for laser power adjustment should not be adjusted. Do not turn the resistor.

DRX-1
DRX-1
5
NATURAL SOUND DVD VIDEO RECORDER DRX-1
STANDBY
STANDBY
/ON
DV S VIDEO VIDEO
TITLE
SEARCH
REC VOLUME
AUTO/MAN
MANUAL CHANNEL
REC
LRAUDIO
U model
A model
B model
G model
■FRONT PANELS
■REMOTE CONTROL
A/CH
CH
231
564
897
0
VOL
MUTECLEARSELECT
TIMER RETURN
TOP MENU SYSTEM
ZOOMANGLEAUDIO
SUBTITLE
REPEAT
A–B SHUFFLE SCAN
SKIP
PLAY
DVD RECORDER
STOP
DIMMER
TV SHIFT REC REC MODE
PAUSE SEARCH/SLOW
MENU
EDIT
TITLE/CHAP
ENTER
OK
MONTER
+
–
+
–

DRX-1
DRX-1
6
■REAR PANELS
U model
A, B, G models
■SPECIFICATIONS
DISC FORMATS SUPPORTED
Disc type Playback Recording
DVD+RW ••
DVD+R ••
DVD-RW (Video format) •—
DVD-R •—
DVD-Video •—
SVCD •—
Video CD •—
Audio CD •—
CD-R •—
CD-RW •—
RECORDABLE DISC FORMATS
Medium DVD+RW: Phase-Change ReWritable
DVD+R: dye-based
Diameter 12 cm
Capacity (single side) 4.7 Gbyte
Recording time HQ 60’9.72 Mbit/s
SP+ 150’4.06 Mbit/s
EP 240’2.54 Mbit/s
EP+ 360’1.69 Mbit/s
A, B, G models U model
TV Standard PAL/SECAM NTSC
Scan Frequency 50Hz 60Hz
Number of lines 625 525
Playback ••
Recording ••
Internal tuner ••
VIDEO FORMAT
Digital Compression MPEG2 for DVD
MPEG1 for VCD
VIDEO RESOLUTION 50Hz 60Hz
DVD-Video/
DVD+RW(HQ/SP+)
•Horiz. Resolution 720 pixels1 720 pixels1
•Vertical Resolution 576 lines 480 lines
DVD+RW (EP/EP+)
•Horiz. Resolution 360 pixels2 360 pixels2
•Vertical Resolution 576 lines 480 lines
VCD
•Horiz. Resolution 352 pixels 352 pixels
•Vertical Resolution 288 lines 240 lines
1 equivalent to 500 lines on your TV
2 equivalent to 250 lines on your TV
VIDEO PERFORMANCE
DA Converter 10-bit
AD Converter 9-bit
Signal handling Components
Video Output 1 Vpp into 75 Ohm
S-video Output Y: 1 Vpp into 75 Ohm
C: 0.300 Vpp into 75 Ohm
Component/Progressive out Y: 1Vpp into 75 Ohm (U model)
Pb: 0.7 Vpp into 75 Ohm (U model)
Pr: 0.7 Vpp into 75 Ohm (U model)
RGB Output 0.7 Vpp into 75 Ohm (A, B, G models)

DRX-1
DRX-1
7
AUDIO FORMAT
Compressed digital Playback Recording
•Dolby Digital (AC-3) Multi-channel 2-channel
16 bit, fs 48 kHz
•DTS Multi-channel —
•MPEG1 2-channel —
Uncompressed digital (SPDIF)
•PCM 2-channel —
16, 20, 24 bit
fs 48 kHz
AUDIO PERFORMANCE
DA Converter 24 bit
AD Converter 16 bit
DVD fs 96 kHz 4 Hz - 44 kHz
fs 48 kHz 4 Hz - 22 kHz
Video CD fs 44.1 kHz 4 Hz - 20 kHz
Audio CD fs 44.1 kHz 4 Hz - 20 kHz
Signal-Noise (1kHz) 105 dB
Dynamic Range (1kHz)100 dB
Crosstalk (1kHz) 110 dB
Distortion/Noise (1kHz)90 dB
PROGRAMMING
Number of events 6; 1 year; Daily/Weekly
Programming mode OTR, Remote
Timer programming
Manual, the VCR Plus+ system (U model)
Manual, VIDEO Plus+, NexTView Link (B model)
Manual, SHOWVIEW, NexTView Link (G model)
Manual, G-CODE, NexTView Link (A model)
Record Control and
transmitter identification PDC, VPS (B, G models)
DISC RECORDING
- One-Touch Recording (OTR)
- Safe Recording
- Direct Recording (A, B, G models)
- Append
- Divide
- Erase
- Automatic/Manual Chapter Marker insertion
- Disc write lock
- Index Picture Screen
- Custom Index Pictures
- Automatic/Manual Audio Recording Level
DISC PLAYBACK
- Auto Resume (20 disc)
- Play / Stop / Pause
- Fast Forward/Backward (three speeds)
- Step Forward/Backward
- Slow (three speeds)
- Title / Track Select
- Next / Previous Title / Track / Chapter
- Repeat (Chapter / Title / All) or (Track / All)
- A-B Repeat
- Intro Scan
- Perfect Still with digital multi-tap filter
- Zoom (x1.33, x2, x4) with picture enhancement
- Pan
GENERAL FUNCTIONALITY
- 3D sound (SRS TruSurround)
- Beep Feedback for Remote Control
- Backup Presets & Timer Events: 1 year
- Backup Clock & Calendar: 7 hours
- Time & Date Download
POWER SUPPLY
Power supply
U model 100 - 120V, 60Hz
A, B, G models 220 - 240V, 50/60 Hz
Power consumption Operation
U model 36 W
A, B, G models 33 W
Low-power standby 3 W
CABINET
Dimensions (WxHxD) 435 x 120 x 330 (17 x 4.8 x 13 inches)
Net Weight 13.9 lb. (6.3 kg)
Front Panel 3mm Aluminum
ACCESSORIES
- Remote Control with separately-packed batteries
- 2-core power cord
- Component video cable (U nodel)
- SCART cable (A, B, G models)
- S-Video cable
- Antenna cable
- Audio cable (x 2: U model / x 1: A, B, G models)
- Video cable
- DVD+RW disc
If any item is damaged or missing, please inform your
supplier without delay.
Keep the packaging materials; you may need them to
transport your Recorder in the future.
* Specifications are subject to change without notice due
to product improvements.
U ........ U.S.A. model G ........ Europe model
B ........ British model A ........ Australia model

DRX-1
DRX-1
8
VCR Plus+ and PlusCode are registered trademarks
of Gemstar Development Corporation.The VCR Plus+
system is manufactured under license from Gemstar
Development Corporation.
Pats. 5,307,173; 5,335,079; 4,908,713; 4,751,578;
and 4,706,121
Manufactured under license from Dolby Laboratories.
“Dolby,”“Pro Logic”and the double-D symbol are
trademarks of Dolby Laboratories. Confidential
Unpublished Works.
©1992-1997 Dolby Laboratories, Inc. All rights
reserved.
"DTS" and "DTS Digital Soround" are registered
trademarks of Digital Theater Systems, Inc.
DCDi is a trademark of Faroudja, a division of Sage
Inc.
This product incorporates copyright protection
technology that is protected by method claims of
certain U.S. patents and other intellectual property
rights owned by Macrovision Corporation and other
rights owners.
Use of this copyright protection technology must be
authorized by Macrovision Corporation, and is
intended for home and other limited viewing uses only
unless otherwise authorized by Macrovision
Corporation. Reverse engineering or disassembly is
prohibited.
TRUSURROUND, , and symbol are
trademarks of SRS Labs,Inc. TRUSURROUND
technology is manufactured under license from SRS
Labs, Inc.
G-CODE is a registered trademark of Gemstar
Development Corporation.
The G-CODE system is manufactured under license
from Gemstar Development Corporation.
VIDEO Plus+ and PlusCode are registered
trademarks
of the Gemstar Development Corporation.The VIDEO
Plus+ system is manufactured under license from
Gemstar Development Corporation.
SHOWVIEW is a registered trademark of Gemstar
Development Corporation.The SHOWVIEW system is
manufactured under licence from Gemstar
Development Corporation.

DRX-1
DRX-1
9
See exploded view for item numbers
Cover 151
⇒Remove 9 screws
171 →174 at both sides
175 →179 at the rearside
⇒Lift the cover at the
rearside tp remove
Front assy
⇒open the tray and remove the
tray front 65
⇒remove 4 screws 75 →78
(front assy →frame 181)
⇒unlock the front from the
frame by releasing
successively 6 snaps.
(1 on the left, 2 in the middle,
1 on the reight and 2 in the
bottom of the frame. The
snaps in the bottom can be
released inside the set via the
holes in the bottom.)
Analog board 1003
⇒remove the connections
⇒remove 1 screw (215)
(board →frame)
⇒remove screws 271 →279
(cinches →backplate)
⇒remove nut 269
(tuner →backplate)
⇒release the snaps of 4 spacers
185 →188 (board →frame)
⇒demount the board
DVIO board 1005 (DVDR985)
⇒Remove 2 scrws 217 and 218
(DVIO board →frame 181)
⇒Release the snaps of 2 spacers
(DVIO board →Digital board)
⇒demount carefully the board.
(board to board connection to
the Digital board)
Digital board 1001
⇒Remove the connections
⇒Remove 4 scrws 207 →210
(Digital board →frame 181)
⇒demount the board.
FRONT DV Board 1006 (DVDR985)
⇒Remove scrw 17
(board →front)
⇒demount the board
Display board 1001
⇒Remove 8 screws 31 →38
(board →front)
⇒demount the board
IR/STBY Board 1001
⇒remove screws 41+42
(board →front)
⇒demount the board
FRONT AV Board 1007
⇒remove screws 48+49
(board →front)
⇒demount the board
Switched Operating Power supply 1002
⇒Remove the connections
⇒Remove screws 204 →206
(board →frame)
⇒Remove screw 268
(mains inlet →backplate)
⇒Release the snaps of 2 spacers
186 and 184 (board →frame)
⇒Demount the board
DVDR LOADER 81
⇒Remove the connections
⇒Remove 4 screws (192 →195)
(air filter 196 →loader 81)
⇒Remove screw 196
(air filter inlet 191 →frame 181)
⇒Remove air filter assy
⇒Open the tray and remove the
tray front 65
⇒Remove 4 screws 200 →203
(loader 81 →frame 181)
⇒Demount the DVDR loader
Manually removal of tray front 65
In case the loader is defective and cannot
be opened electrically, you can open the
tray as follows:
⇒Via a hole in the frame and by way of a
screwdriver, it is possible tp unlock the tray.
Push the white pin of the slider at the bottom
side of the loader to the left.
⇒Open the unlocked tray.
mounting
↑
↓
demounting
1.7 mm for screws 22, 31 and 33
T6
2.2 mm for screws 32
T8
2.7 mm for screws 21, 34 and 35
T10
When disassembling, use the special screw driver with
tip shape in figure. FrFront Pont Panelanel
FrameFrame
Front Panel
Frame
■DISASSEMBLY PROCEDURES

DRX-1
DRX-1
10
■SERVICE POSITION
●Front
Front
Photo 1
●DVIO board
To put the DVIO board in a service position, an
extender board must be used. This extender board can
be ordered with codenumber 3104 128 07770.
DVIO Extender
Photo 2
DVIO 1
Photo 3
DVIO 2
Photo 4
●Digital board
After demounting of DVIO board, the top side of the
digital board is in reach. To reach the bottom side of the
digital board, the DVDR module must be demounted
together with the digital board. Connected to each
other, the assembly can be set in a service position. In
this position, the bottom side of the digital board and the
servo board are in reach to be serviced.
Digital 1
Photo 5
Digital 2
Photo 6

DRX-1
DRX-1
11
●Analog board
To put the analog board in service position, demount
the assembly of analog board and backplate as follows:
1. Remove 3 screws from the backplate to the frame
2. Remove the screw from the backplate to the mains inlet
of the power supply
3. Remove the screw of the analog board to the frame
4. Release the snaps of the 4 spacers of the analog board
to the frame.
Turn the assembly of the backplate and the analog
board against the loader.
Analog (A, B, G models)
Photo 7
Analog (U model)
Photo 8

DRX-1
DRX-1
12
Due to the complexity of the DVD recorder, the time to find
a defect in the recorder can become long. To reduce this
time, the recorder has been equipped with Diagnostic and
Service software (DS). The DS offers functionality to
diagnose the DVDR hardware and tests the following:
•Interconnections between components
•Accessibility of components
•Functionality of the audio and video paths
This functionality can be accessed via several interfaces:
1. End user/Dealer script interface
2. Player script interface
3. Menu and command interface
1. End User/Dealer Script Interface
1.1 Description
The End user/Dealer script interface gives a diagnosis on
a stand alone DVD recorder; no other equipment is
needed. During this mode, a number of hardware tests
(nuclei) are automatically executed to check if the recorder
is faulty. The diagnosis is simply a "fail" or "pass"
message. If the message "FAIL" appears on the display,
there is apparently a failure in the recorder. If the message
"PASS" appears, the nuclei in this mode have been
executed successfully. There can be still a failure in the
recorder because the nuclei in this mode don't cover the
complete functionality of the recorder.
■DIAGNOSTIC SOFTWARE 1.2 Contents
Hold key <PLAY> pressed
while you plug the recorder
Unplug the power cord
During the test, the following display
is shown: the counter counts down
from the number of nuclei to be run
before the test finishes. Example:
SET O.K.?
YES
NO
To exit DEALER SCRIPT, unplug the power cord
Fig. 1
The End use/Dealer script executes all diagnostic nuclei
that do not need any user interaction and are meaningful
on a standalone DVD recorder. The nuclei called in the
End user/Dealer script are the following:
Counter Nucleus Name Description
22 104 HostdSdramWrR checks all memory locations of the 4MB SDRAM
21 106 HostdDramWrR checks all the DRAM connected to the microprocessor of the digital board
20 123 HostdI2cNvram checks the data line (SDA) and the clock line (SCL) of the I2C bus between the host
decoder and NVRAM
19 202 SAA7118I2c checks the interface between the Host I2C controller and the AVENC SAA7118 Video
Input Processor
18 200 VideoEncI2c checks the interface between the host I2C controller and Empress SAA6752
17 207 AudioEncI2c checks the I2C connection between the host decoder and Empress SAA6752
16 204 AudioEncAccess tests the HIO8 interface lines between the host decoder and the audio encoder
15 203 AudioEncSramAccess checks the access of the SRAM by the audio encoder (address and data lines).
14 205 AudioEncSramWrR tests the SRAM connected to the audio encoder
13 206 AudioEncInterrupt tests the interrupt line between the host decoder and the audio encoder
12 300 VsmAccess checks whether the VSM interrupt controllers and DRAM are accessible
11 303 VsmInterrupt checks both interrupt lines between the VSM and the host decoder
10 302 VsmSdramWrR tests the entire SDRAM of the VSM
9 1400 Clock11_289MHz switches the A_CLK of the micro clock to 11.2896 MHz
8 1401 Clock12_288MHz switches the A_CLK of the micro clock to 12.288 MHz
7 601 BeS2Bengine checks the S2B interface with the Basic Engine by sending an echo command
6 500 DisplayEcho checks the interface between the host processor and the slave processor on the
display board
5 700 AnalogueEcho checks the interface between the host processor and the microprocessor on the
analogue board
4 711 AnalogueNvram checks the NVRAM on the analogue board

DRX-1
DRX-1
13
2. Player Script Interface
2.1 Description
The Player script will give the opportunity to perform a test
that will determine which of the DVD recorder's modules
are faulty, to read the error log and to perform an
endurance loop test. To successfully perform the tests, the
DVD recorder must be connected to a TV set.
To be able to check results of certain nuclei, the player
script expects some interaction of the user (i.e. to approve
a test picture or a test sound). Some nuclei (e.g. nuclei
that test functionality of the DVDR module) require that a
DVD+RW disc is inserted.
Only tests within the scope of the diagnostic software will
be executed hence only faults within this scope can be
detected.
2.2 Structure of the Player Script
The player script consists of a set of nuclei testing the
hardware modules in the DVD recorder: the Display PWB,
the Digital PWB, the Analogue In/Out PWB and the DVDR
module.
Nuclei run by the player test need some user interaction;
in the next table this interaction is described. The player
test is done in two phases:
•Interactive tests: this part of the player test depends
strongly on user interaction and input to determine
nucleus results and to progress through the full test.
Reading the error log information can be useful to
determine any errors that occurred recently during
normal operation of the DVD player.
•The loop test will perform the same nuclei as the dealer
test, but it will loop through the list of nuclei indefinitely.
STEP DESCRIPTION NUCLEUS
1 Press OPEN/CLOSE and PLAY at the same time and POWER ON the recorder to start the playerscript 2
2 The local display shows FPSEGMENTS. Press PLAY to start the test. 502
First the starburst pattern is lit, then the horizontal segments are lit, followed by the vertical segments and
the last test is light all segments test. After each of the 4 tests the user has to confirm that the correct
pattern was lit.
Press PLAY to confirm that the correct pattern was lit (four times if the FPSEGMENTS test was
successful).
Press RECORD to indicate that the correct pattern was not successfully lit.
Press STOP to skip this nucleus.
3 The local display shows FPLABELS. Press PLAY to start the test. 503
Press PLAY to confirm that all labels are lit.
Press RECORD to indicate that not all labels are lit.
Press STOP to skip this nucleus.
4 The local display shows FPLIGHT ALL. Press PLAY to start the test. 520
Press PLAY to confirm that everything was lit.
Press RECORD to indicate that not all patterns are lit.
Press STOP to skip this nucleus.
3 706 AnalogueTuner checks whether the tuner on the analogue board is accessible
2 901 LoopAudioUserDealer This nucleus tests the components on the audio signal path The host decoder
- The analogue board
- The audio encoder
- The VSM
On the analogue board the audio is internally looped back to the digital board
1 906 LoopVideoUserDealer Nucleus for testing the components on the video signal system path:
- The VIP
- The video encoder
- The VSM
- The host decoder
- The analogue board
On the analogue the video signal is internally routed back to the digital board.•5.2
Player Script Interface

DRX-1
DRX-1
14
STEP DESCRIPTION NUCLEUS
5 The local display shows FPLED. Press PLAY to start the test. 504
Press PLAY to confirm that the led is lit.
Press RECORD to indicate that the led is not lit.
Press STOP to skip this nucleus.
6 The local display shows FPFLAP OPEN. Press PLAY to start the test. 522
Press PLAY to confirm that the flap has opened.
Press RECORD to indicate that the flap did not open.
Press STOP to skip this nucleus.
7 The local display shows FPKEYBOARD. Press PLAY to start the test. 505
Attention all keys have to be pressed to get a positive result!
Press PLAY for more than one second to confirm that all the keys were pressed and shown on the local
dis-play.
If not all the keys were pressed, a FAIL message will appear on the local display.
Press RECORD for more than one second to indicate that not all keys were pressed and shown on the
local display.
Press STOP for more than one second to skip this nucleus.
8 The local display shows FPREMOTE CONTROL. Press PLAY to start the test. 506
Press PLAY to confirm that a key on the remote control was pressed and shown on the local display. Only
one key has to be pressed to get a successful result.
Press RECORD to indicate that the key on the remote control was pressed but not shown on the local
display.
Press STOP to skip this nucleus.
9 The local display shows FPDIMMER. Press PLAY to start the test. 518
Press PLAY to confirm that the text on the local display was dimmed.
Press RECORD to indicate that the text on the local display was not dimmed.
Press STOP to skip this nucleus.
10 The local display shows FPBEEPER. Press PLAY to start the test. 514
Press PLAY to confirm that the beeper on the front panel sounded.
Press RECORD to indicate that the beeper on the front panel did not sound.
Press STOP to skip this nucleus.
11 The local display shows FPFLAP CLOSE. Press PLAY to start the test. 523
Press STOP to skip this nucleus.
12 The local display shows ROUTE VIDEO. Press PLAY to start the test. 712
Press STOP to skip this nucleus.
13 The local display shows ROUTE AUDIO. Press PLAY to start the test. 713
Press STOP to skip this nucleus.
14 The local display shows COLOUR-BAR ON. Press PLAY to start the test. 120
Press STOP to skip this nucleus.
15 The local display shows PINK NOISE ON. Press PLAY to start the test. 115
Press STOP to skip this nucleus.
16 The local display shows PINK NOISE OFF. Press PLAY to start the test. 116
Press STOP to skip this nucleus.
17 The local display shows SINE ON. Press PLAY to start the test. 117
Press STOP to stop the sine.
Press STOP to skip this nucleus.
18 The local display shows COLOUR-BAR OFF. Press PLAY to start the test. 121
Press STOP to skip this nucleus.
19 The local display shows BERESET. Press PLAY to start the test. 603
Press STOP to skip this nucleus.
20 The local display shows BETRAY OPEN. Press PLAY to start the test. 616
Press STOP to skip this nucleus.
21 The local display shows BETRAY CLOSE. Press PLAY to start the test. 615
Press STOP to skip this nucleus.

DRX-1
DRX-1
15
STEP DESCRIPTION NUCLEUS
22 The local display shows BEWRITE READ. Press PLAY to start the test. 617
Press STOP to skip this nucleus.
23 The local display shows BETRAY OPEN. Press PLAY to start the test. 616
Press STOP to skip this nucleus.
24 The local display shows BETRAY CLOSE. Press PLAY to start the test. 615
Press STOP to skip this nucleus.
25 The local display shows READ ERRORLOG. Press PLAY to start the test. 633
Press STOP to skip this nucleus.
If the player test succeeded, the user/dealer script will start in an endless loop.
If the player test failed, the local display will display FAIL and the error code
Remark
In case of failure, the display shows " FAIL XXXXXX ". The
description of the shown error code can be retrieved in the
survey of Nuclei Error Codes (paragraph 5.4). Once an
error occurs, it is not possible to continue the player script.
Unplug the set and restart the player script. By pressing
the STOP key, it is possible to jump over the failure and to
continue the player script.

DRX-1
DRX-1
16
Hold 2 keys
<OPEN/CLOSE> + <PLAY>
simultaneously pressed while you plug the recorder
Unplug the power cord
FRONTPANEL TEST
PRESS
<PLAY>
TO START TEST
PRESS
<PLAY>
IF OK
PRESS
<STOP>
TO ABORT
PRESS
<PLAY>
IF OK
PRESS
<STOP>
TO ABORT
PRESS
<PLAY>
IF OK
PRESS
<STOP>
TO ABORT
PRESS
<PLAY>
IF OK
PRESS
<RECORD>
IF NOT OK
PRESS
<PLAY>
IF OK
PRESS
<RECORD>
IF NOT OK
PRESS
<PLAY>
IF OK
PRESS
<RECORD>
IF NOT OK
PRESS
<PLAY>
IF OK
PRESS
<RECORD>
IF NOT OK
PRESS
<PLAY>
IF OK
PRESS
<RECORD>
IF NOT OK
PRESS
<PLAY>
IF OK
PRESS
<RECORD>
IF NOT OK
BEEP IS AUDIBLE
PRESS
<PLAY>
TO START TEST PRESS
<STOP>
TO SKIP TEST
PRESS
<STOP>
TO SKIP TEST PRESS
<STOP>
TO SKIP TEST
PRESS
<STOP>
TO SKIP TEST
PRESS
<STOP>
TO SKIP TEST
PRESS
<STOP>
TO SKIP TEST
PRESS
<STOP>
TO SKIP TEST
PRESS
<PLAY>
TO START TEST
PRESS
<PLAY>
TO START TEST
PRESS
<PLAY>
TO START TEST PRESS
<PLAY>
TO START TEST
PRESS ALL KEYS AT LEAST ONCE SEE TABLE FOR KEY CODES
PRESS
<PLAY>
MORE THAN 1S IFTEST IS OK
PRESS
<RECORD>
MORE THAN 1S IFTEST IS NOT OK
FRONT KEY NAME
PLAY STANDBY/ON STOP OPEN/CLOSE
RECORD AUTOMAN REC VOLUME MANUAL UP MANUAL DOWN CHANNEL DOWN CHANNEL UP
FRONT KEY CODE
00E
001 002 003 004
00D
00B
00C
009
00A 008 007 005 006
LED BECOMES RED
PRESS
<PLAY>
TO START TEST
PRESS
<PLAY>
TO START TEST
PRESS AT LEAST ONE KEY ON THE REMOTE CONTROL SEE TABLE FOR RC KEY CODES
TO EXITTEST:PRESS ONE OF FOLLOWING KEYS ON THE LOCAL KEYBOARD PRESS
<PLAY>
IF TEST IS OK
PRESS
<RECORD>
IF TEST IS NOT OK
DIGITAL BOARDTEST
RC KEY NAME
MONITOR ON/OFF STOP REC/OTR PLAY REVERSE PAUSE
RC KEY CODE
0C
37
EE
31
2C
29 30 28 21
CF
20 54
0F
58
5A 5B
59 83
5C
41
FE
FA
F7
EE
85
00 01 02 03 04 05 06 07 08 09
C8
4B 4E
13
1D
3B 2A
FORWARD
PREVIOUS
EDIT NEXT DISC SYSTEM UP LEFT RIGHT DOWN RETURN OK
CLEAR TIMER SELECT
ZOOM
A/CH
ANGLE
0 1 2 3 4 5 6 7 8 9 T/C SUBTITLE AUDIO DIM REPEAT REPEAT A-B SCAN 1C
94
SHUFFLE REC MODE VOL + VOL - CH + CH - MUTE
ONLY FOR TV
ONLY FOR TV
1E
1F
ONLY FOR TV
PRESS
<STOP>
TO SKIP TEST
PRESS
<PLAY>
TO START TEST
HEXADECIMAL
KEY CODE XX TIMES
PRESSED
HEXADECIMAL
RC KEY CODE XX TIMES
PRESSED
CHAPTER TRACK TIME REMAINTITLE TRACK CHANNEL VPS/PDC
DVD RW SAVCD HQ SP L:P EP+ MONITOR SAT TIMER RECORD DECODER
AM
PM
PROLOGIC MPEG DTS PCM MANUAL DIGITAL NICAM STEREO SAP
I
II
TOTAL
DIGITALD
D
CHAPTER TRACK TIME REMAINTITLE TRACK CHANNEL VPS/PDC
DVD RW SAVCD HQ SP L:P EP+ MONITOR SAT TIMER RECORD DECODER
-40 -30 -20 -10 0 OVER
AM
PM
PROLOGIC -40 -30 -20 -10 0 OVER
MPEG DTS PCM MANUAL DIGITAL NICAM STEREO SAP
I
II
TOTAL
DIGITALD
D
Player script
Fig. 2

DRX-1
DRX-1
17
press <PLAY> to execute
press
< STOP > to skip
press <PLAY> to execute
press
< STOP > to skip
press <PLAY> to execute
press
<PLAY> to execute
press
< STOP > to skip
press <PLAY> to execute
press
< STOP > to skip
press <PLAY> to execute
press
<NEXT > to skip
press <PLAY> to execute
press
< STOP > to skip
press <PLAY> to execute
press
<NEXT > to skip
press <PLAY> to execute
press
<STOP> to skip
press <PLAY> to execute
press
<STOP> to skip
press <STOP> to continue
DIGITAL BOARD &
ANALOG BOARD
TEST
FRONTPANEL
TEST
<PLAY>
BASIC ENGINE
TEST
IF ERR
IF ERROR
IF NO ERROR
OR
PRESS
<STOP>
TO STEP DOWN
NO ERRORS LOGGED
PRESS <RECORD>
TO STEP UP
PRESS <RECORD>
TO STEP UP
PRESS
<STOP>
TO STEP DOWN
PRESS
<PLAY> TO CONTINUE
To exit PLAYER SCRIPT, unplug the power cord
press <PLAY> to execute
press
<NEXT > to skip
press <PLAY> to execute
press
<STOP> to skip
press <STOP> to skip
press <PLAY> to execute
press
<STOP> to skip
INSERT DVD +RW DISCTO EXECUTE
WRITE / READ TEST
Fig. 3
2.3 Error Log
Explanation:
The application errors will be logged in the NVRAM. The
maximum number of error bytes that will be visible is 19.
The last reported error is shown as DN D0000000, the
oldest visible error as D0000000 UP and the errors in
between as DN D0000000 UP. DN stands for DOWN, UP
stands for UPWARDS. The shown
D error codes are identical to the Nuclei Error Codes
(paragraph 4).

DRX-1
DRX-1
18
2.4 Trade Mode
UNPLUG THE RECORDER
IF TRADE MODE OFF
PRESS 2 KEYS
SIMULTANEOUSLY
PLUG THE RECORDER
RECORDER IS IN TRADE MODE
WHEN PRESSING FRONT
KEYS, THE RECORDER
DOESN'T RESPOND
<STOP> + <OPEN/CLOSE>
UNPLUG THE RECORDER
IF TRADE MODE ON
PRESS 2 KEYS
SIMULTANEOUSLY
PLUG THE RECORDER
RECORDER IS IN NORMAL MODE
WHEN PRESSING FRONT
KEYS, THE RECORDER
WILL RESPOND
<STOP> + <OPEN/CLOSE>
Fig. 4
2.5 Virgin Mode
If you want that the recorder starts up in Virgin mode,
follow this procedure:
•Unplug the recorder
•plug the recorder again while you keep the STAND BY/
ON key pressed
•the set starts up in Virgin mode.
3. Menu and Command Mode Interface
3.1 Nuclei Numeration
Each nucleus has a unique number of four digits. This
number is the input of the command mode.
[ XXYY ]
Nucleus number
Nucleus group number
Fig. 5
The following groups are defined:
Group number Group name
0 Basic / S cripts
1 Host decoder (Sti5508 and memory)
2 Audio / video encoder (DVDR only)
3 VSM (DVDR only)
4 NVRAM
5 Front Panel
6 Basic Engine
7 Analogue board (DVDR only)
8 DVIO (DVDR only)
9 Loop nuclei (DVDR only)
10 Library sub nuclei (I2C nuclei)
11 User interface
12 Furore (SACD only)
13 DAC (SACD only)
14 Miscellaneous
3.2 Error Handling
Each nucleus returns an error code. This code contains
six numerals, which means:
[ XXYY ZZ ] Error code
Nucleus number
Nucleus group number
Fig. 6
The nucleus group numbers and nucleus numbers are the
same as above.
3.3 Command Mode Interface
Set-Up Physical Interface Components
Hardware required:
•Service PC
•one free COM port on the Service PC
•special cable to connect DVD recorder to Service PC
The service PC must have a terminal emulation program
(e.g. OS2 WarpTerminal or Procomm) installed and must
have a free COM port (e.g. COM1). Activate the terminal
emulation program and check that the port settings for the
free COM port are: 19200 bps, 8 data bits, no parity, 1 stop
bit and no flow control. The free COM port must be
connected via a special cable to the RS232 port of the
DVD recorder. This special cable will also connect the test
pin, which is available on the connector, to ground (i.e.
activate test pin).
Code number of PC interface cable: 3122 785 90017
Activation
Plug the recorder to the mains and the following text will
appear on the screen of the terminal (program):
DVD Video Recorder Diagnostic Software version 84
Basic SDRAM Data bus test passed
Basic SDRAM Address bus test passed
Basic SDRAM Device test passed
(M) enu, (C) ommand or (S) 2B-interface? [M] : @ C
DD:>
Fig. 7
The first line indicates that the Diagnostic software has
been activated and contains the version number. The next
lines are the successful result of the SDRAM
interconnection test and the basic SDRAM test. The last
line allows the user to choose between the three possible
interface forms. If pressing C has made a choice for
Command Interface, the prompt ("DD>") will appear. The
diagnostic software is now ready to receive commands.
The commands that can be given are the numbers of the
nuclei.

DRX-1
DRX-1
19
Command Overview
We provide an overview of the nuclei and their numbers.
This overview is preliminary and subject to modifications.
Host Decoder [01]
[xxyy] Nuclei
Number
100 Checksum Flash
101 Flash Write Access 1
102 Flash Write Access 2
103 Flash Write Read
104 SdRam Write Read
105 SdRam Write Read Fast
106 Dram Write Read
107 Dram Write Read Fast
108 Hardware Version
109 Mute On
110 Mute Off
115 Pink Noise On
116 Pink Noise Off
117 Sine On
118 Sine Burst 1kHz
119 Sine Burst 12kHz
120 Colour-bar On
121 Colour-bar Off
122 NvramWrR
123 NvramI2c
130 Boot Version
131 Application Version
132 Diagnostics Version
133 Download Version
134
Write / read I2C message to / from digital board
135 Video Test Signal On
136 Video Test Signal Off
137 Macrovision Off
Audio Video Decoder [02]
[xxyy] Nuclei
Number
200 Video Encoder I2C
202 SAA7118 I2C
203 Audio Encoder SRAM Access
204 Audio Encoder Access
205 Audio Encoder SRAM Write Read
206 Audio Encoder Interrupts
207 Audio Encoder I2C
208 SAA7118 select input
209 Empress Version
VSM [03]
[xxyy] Nuclei
Number
300 Register Access
301 SDRAM Access
302 SDRAM Write Read
303 Interrupt lines
304 VSM Interconnection
305 UART
NVRAM [04]
[xxyy] Nuclei
Number
400 Reset
401 Read
402 Modify
403 UniqueNr Read
404 Read Error Log
407 Reset Error Log
409 Line2 Region-Code Reset
410 UniqueNr Store
Front Panel [05]
[xxyy] Nuclei
Number
500 Echo
501 Version
502 Segment
503 Label
504 Led
505 Keyboard
506 Remote-Control
507 Segment Starburst
508 Segment Vertical
509 Segment Horizontal
514 Beeper
515 Discbar
516 Discbar Dots
517 Vu / Grid
518 Dimmer
519 Blinking
520 Light All Segments
522 Flap Open
523 Flap Close

DRX-1
DRX-1
20
Basic Engine [06]
[xxyy] Nuclei
Number
600 S2B Pass
601 S2B Echo
602 Version
603 Reset
604 Focus On
605 Focus Off
606 Disc Motor On
607 Disc Motor Off
608 Radial On
609 Radial Off
615 Tray In
616 Tray Out
617 Write Read
618 Write Read Endless Loop
619 Selftest
620 BE Test
621 Laser Test
622 Spindle (Disc) Motor Test
623 Focus Test
624 Sledge Motor Test
625 Sledge Motor Slow
626 Tilt
627 EEPROM Read
628 EEPROM Write
629 Optimise Jitter
630 Radial ATLS Calibration
631 Get Statistics Information
632 Reset Statistics Information
Analog Board [07]
[xxyy] Nuclei
Number
700 Echo
703 Boot Version
704 Hardware Version
705 Clock Adjust
706 Tuner
707 Frequency Download
708 Data Slicer
709 Sound Processor
710 AV Selector
711 Nvram
712 Route Video
713 Route Audio
715 Set Slash Version
716 Application Version
717 Diagnostics Version
[xxyy] Nuclei
Number
718 Download Version
720 Bargraph Level Adjustment
721 Clock correction
722 Clock reference
723 Re-virginise Recorder
724 Flash Checksum
725 Tuner frequency selection
727 Set virgin bit
728 Clear Virgin Bit
729
Write / read I2C message to / from analogue board
730 Store external presets
731 Get slash version
732 AFC Reference Voltage Tuner
DVIO [08]
[xxyy] Nuclei
Number
800 Check DVIO board presence
801 Reset DVIO
802 DVIO Access
803 Get DVIO error codes
804 Get DVIO module Ids
805 Execute DVIO module SelfTest
806 Set DVIO led on.
807 Set DVIO led off.
Loop Nuclei [09]
[xxyy] Nuclei
Number
900 Digital Audio Loop
901 User / Dealer Audio Loop
902 Digital Video Loop
903 Digital Video VBI Loop
904 System Video Loop
905 System Video VBI Loop
906 User / Dealer Video Loop
907 User / Dealer Video VBI Loop
908 System Audio Loop SCART
909 System Audio Loop CINCH
910 Digital DVIO Video Loop
911 System Video Vip
