1What are the benefits of connecting SongBook+ with the
keyboard?
1.1 SongBook+ controls the keyboard
When a song in SongBook+ is opened, SongBook+ can send MIDI commands to select the
corresponding registration in the connected keyboard. So you don’t have to manually
switch anything on keyboard during your performance to start playing the next song.
This method of remote control works with Tyros 2 and later keyboards, but not with the
Tyros 1 or any PSR keyboard.
Attention:
This method of remote control only works with Tyros 2 or newer, but not with Tyros 1 or
keyboards of PSR series.
1.2 Keyboard controls SongBook+
If you prefer to select your song from a registration on the keyboard, then the other
direction of remote control is available. SongBook+ can automatically open the matching
song and display the corresponding PDF file as soon as you select a registration on the
keyboard.
This type of remote control works with all keyboards.
2Compatible Yamaha keyboards
Attention:
For the new Yamaha Genos keyboard, you can find a separate manual named “How to
connect YAMAHA Genos keyboards with SongBook+”.
This manual shows how the settings are made on a Tyros 5. The configuration of other Tyros
models or PRS keyboards is similar. Note that older PSR models support only 250 files per
folder, as opposed to 500 on a Tyros.
With Tyros 2-5, PSR-S775 and PSR-S975 keyboards, both directions of remote control are
possible. With the Tyros 1 and older PSR keyboards, only the direction from keyboard to
SongBook+ is available.

Page 4
3How do I connect SongBook+ with my keyboard?
SongBook+ has a MIDI monitor which can display received MIDI events. Using this, you can
check the communication with the keyboard. Just open this window and have the keyboard
send some MIDI signals to SongBook+, e.g. by pressing keys, by selecting a registration or
playing a midi (song) file. The received MIDI events will then be displayed.
If the connection is not established automatically (ie, no events are displayed in the
Monitor), you may need to press the “Restart MIDI” button and/or reconnect your cable to
the iPad.

Page 5
3.1 Using the WiFi stick of Tyros 5
The UD-WL01 WiFi stick shipped with the Tyros 5 can be used to connect the iPad with the
Tyros 5. The Tyros 5 can then act as a Wireless MIDI Server and SongBook+ is the Wireless
MIDI Client. In the MIDI Settings of SongBook+ you activate the Wireless MIDI Client and add
the IP address of the Tyros 5 as host. Additionally, you must enable the option “Also send
commands to Wi-Fi”.
The easiest way to connect the WiFi stick is in “Access Point Mode“. In this mode the
keyboard creates its own WiFi network and you need to select in the WiFi settings of the
iPad this WiFi network of the keyboard. The IP address of the Tyros is then 192.168.0.1.
Alternatively, you can integrate the WiFi stick into an existing WiFi network, but the IP
address of the Tyros will then be different.

Page 6
3.2 Using a Bluetooth LE MIDI Adapter
You can also find wireless MIDI Adapters that are recognized by the operating system of the
iPad as Bluetooth MIDI LE devices and these can be used by compatible apps.
Pairing of the adapter in the Bluetooth settings of the iPad is not needed. SongBook+ has a
“Bluetooth LE MIDI devices” function to establish the connection to the adapter.
(e.g. Yamaha MD-BT01, Yamaha UT-BT01, QuiccoSound mi.1, Zivix PUC+)
Note that the Bluetooth LE MIDI is supported only by iPad 3 or later.

Page 7

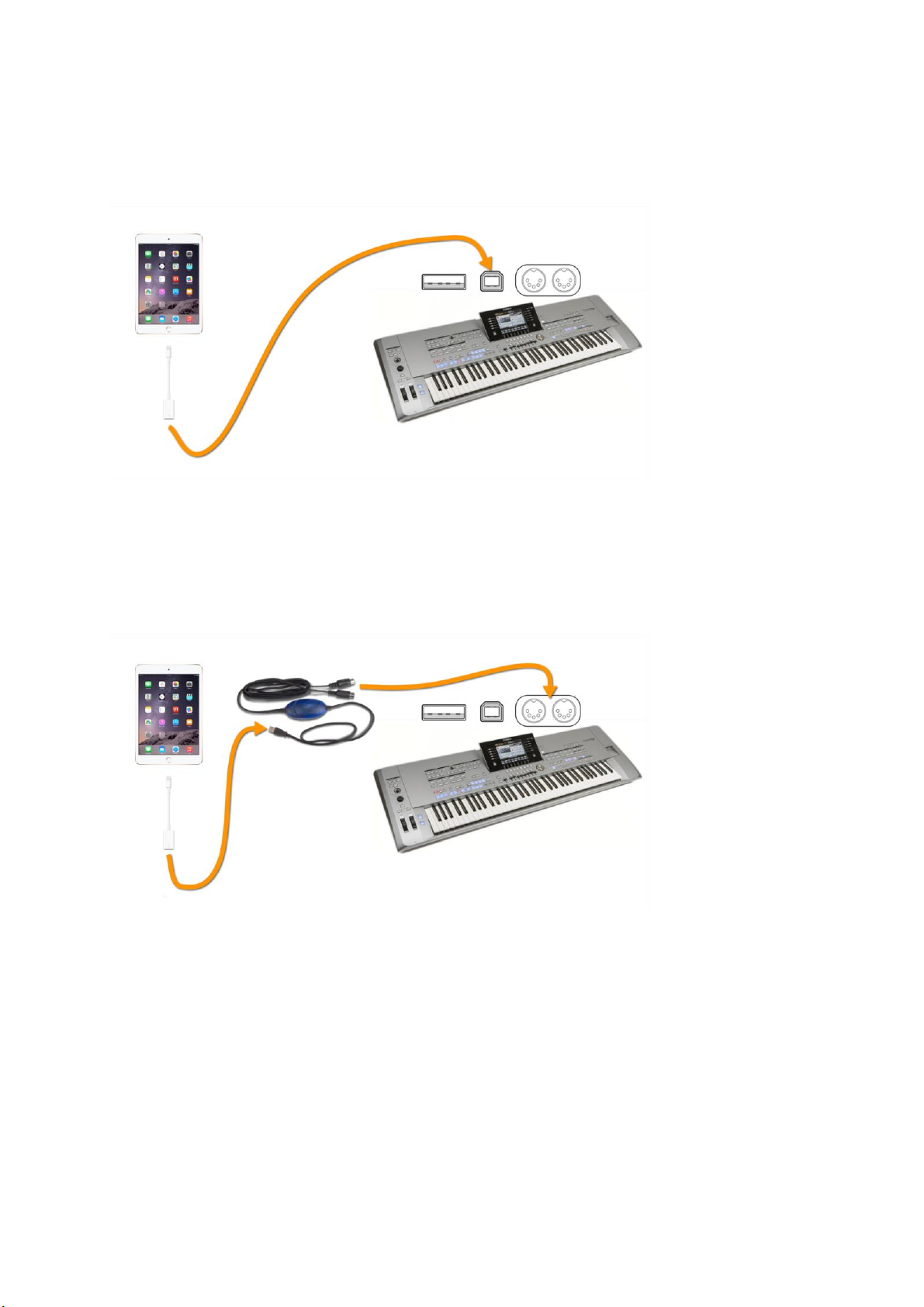

3.3 Using USB-MIDI directly to the keyboard
Keyboards with a USB to Host port can be connected using a USB printer cable. As the iPad
doesn’t have a USB connection, you need an adapter (commonly called a camera connector)
to connect the iPad with the USB cable.
3.4 Using a USB MIDI adapter
Many USB to MIDI cables can be also used with the iPad. The cable is connected to the 5-pin
MIDI port (either midi A or midi B). Since the iPad doesn’t have a USB connection, you need
a camera connector to connect the USB end of the cable to the iPad.
To avoid the adapter draining the iPad’s battery, you can use an active USB Hub (with power
supply) between the iPad and USB MIDI adapter.

Page 8

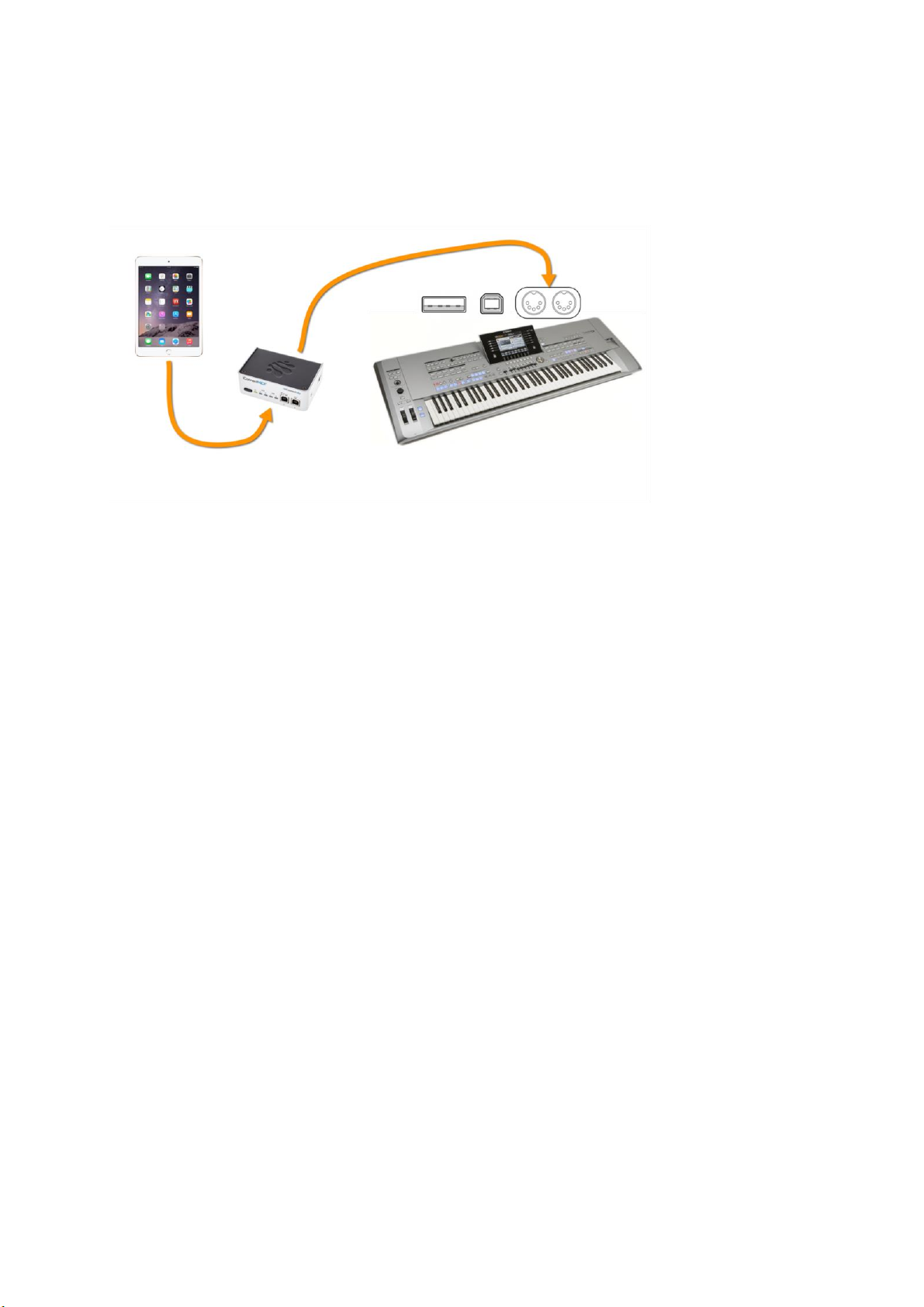

3.5 Using a MIDI adapter that can be connected directly to iPad
You can also find MIDI cables that are designed for use with Apple iOS devices (iPad, iPhone,
etc). For these cables, the camera connector is not needed.
Note that only a few of these adapters can charge the iPad while it’s being used. Consider
that feature when buying such an adapter.
(e.g. adapters like iConnectMIDI2+/4+, Alesis ioDock, Behringer iStudio IS202 or the iRig MIDI
only in the old version 1 can charge the iPad.)

Page 9
4MIDI settings in SongBook+
The MIDI settings in SongBook+ are the same regardless of the control method used. In
SongBook+ you select the correct MIDI channel and the correct “Control mode”.
The default channel is MIDI channel 1. If you want to use another MIDI channel, you need to
specify this in the settings.
1. Open the settings in
SongBook+.
2. Select MIDI settings
3. Select channel 1.
4. Select the control mode
“YAMAHA Tyros
Registrations (with code)“.
5. When using the WiFi-
Stick with Tyros 5, activate
this setting.

Page 10
5”SongBook+ controls keyboard“ Method
Using this feature, SongBook+ can activate a registration bank from the current folder.
If needed, it can also activate a specific registration from the 8 registrations contained in the
bank.
Attention:
This method of remote control only works with Tyros 2 or newer, but not with Tyros 1 or
keyboards of PSR series.
Note that a folder in the Tyros keyboard can not contain more than 500 files. This means a
maximum of 500 banks are available to SongBook+ (when the folder contains only
registration bank files).

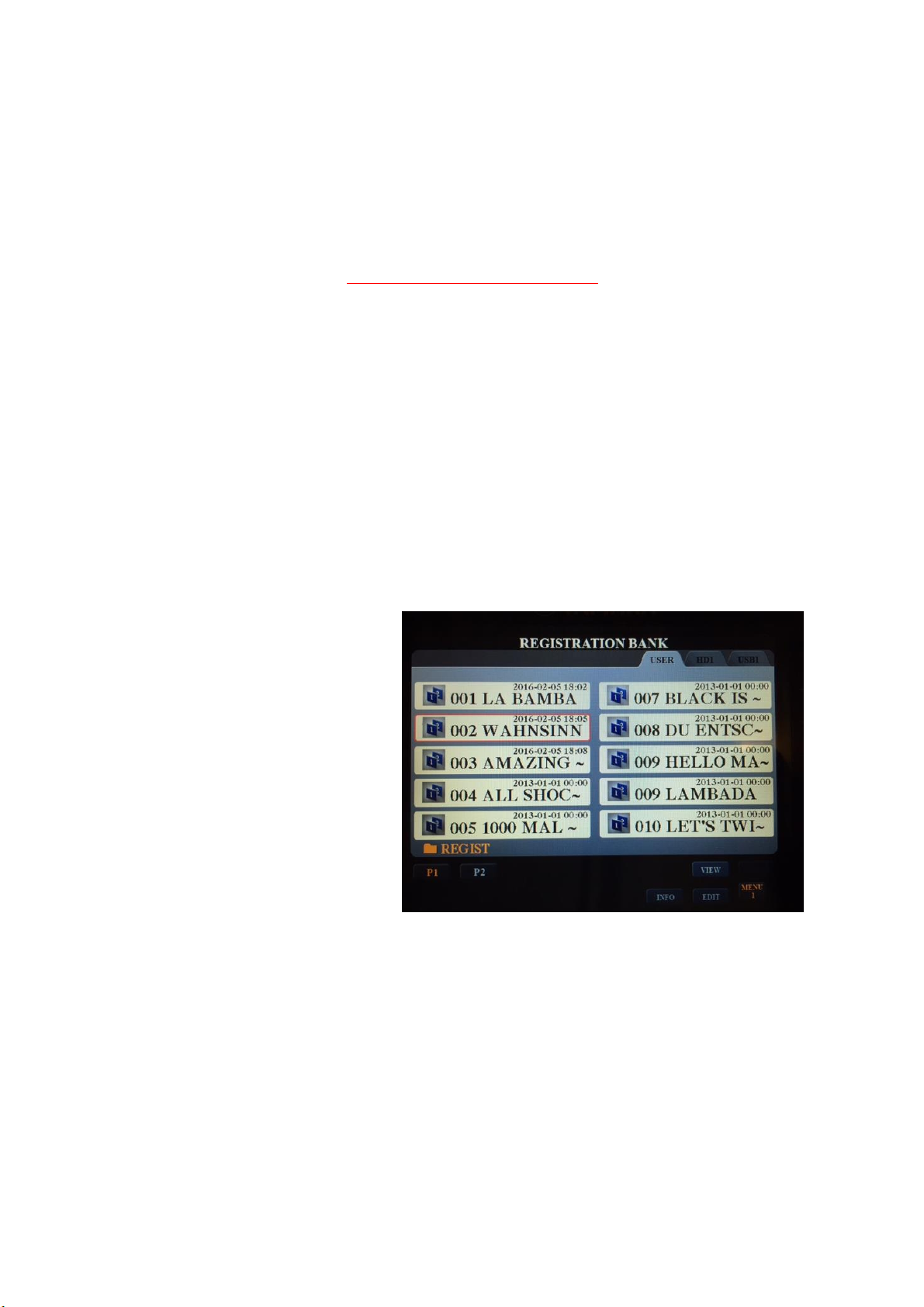

5.1 Naming the registration banks
It’s important to note that, when using this control method, the registration bank can be
selected only by its numerical position in the folder, e.g. the 1st, 2nd, 3rd, …, 499th, 500th.
Because of this, we recommend you name the registration banks starting with a 3-digit
number so they always keep their numerical position in the folder.
For example:
-001 La Bamba
-002 Wahnsinn
-003 Amazing Grace
-...
-...
-...
-...
-497 Reserve
-498 Reserve
-499 Beautiful Dream
-500 Achy Breaky Heart
If you want to reserve spots for later use, you will have to fill them with empty registration
banks in order that the numerical position of the following registrations is maintained.

Page 11
5.2 MIDI settings on keyboard

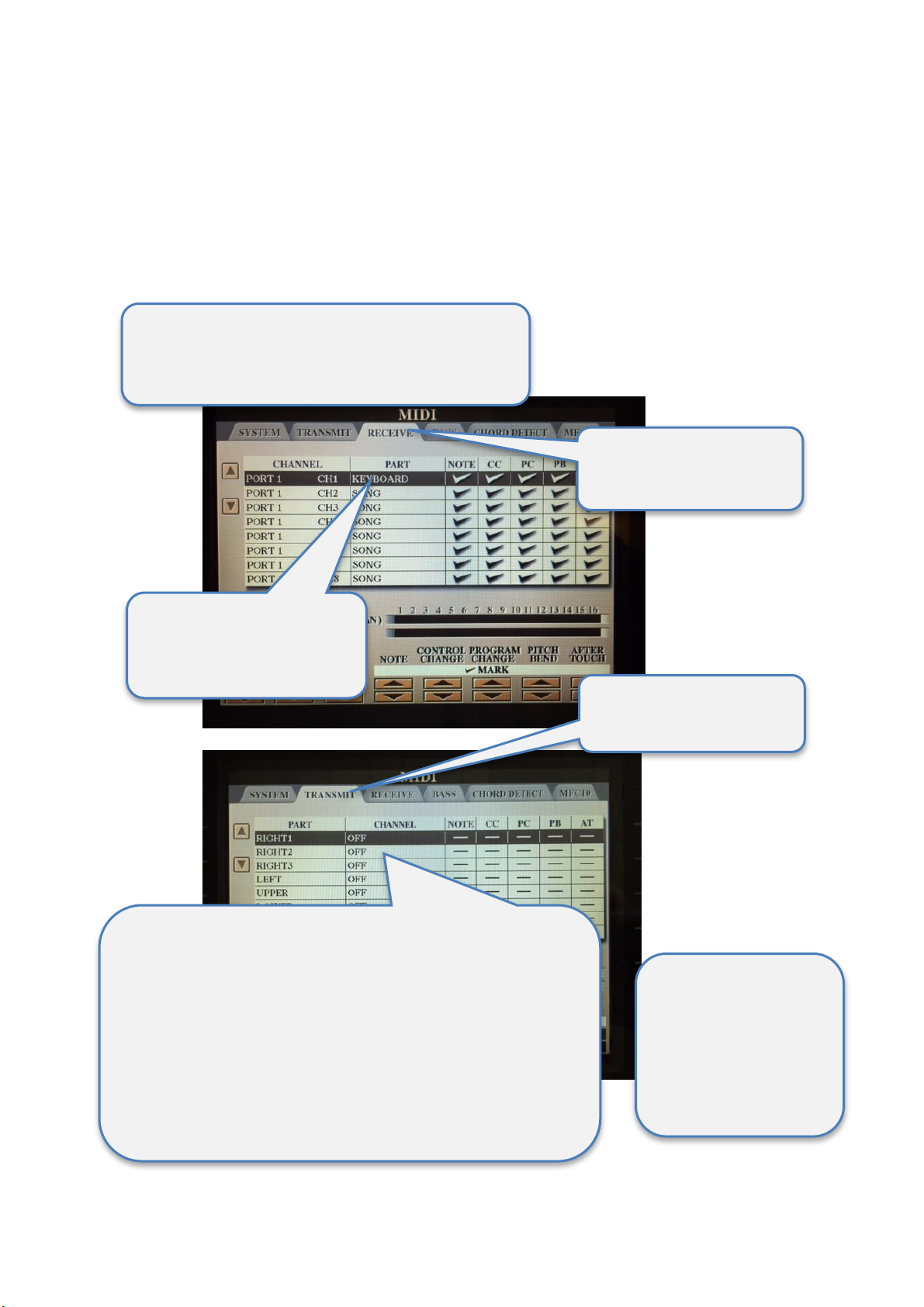

In order to select the registration by MIDI commands from SongBook+, the keyboard needs
some corresponding MIDI settings.
We assume here that the MIDI channel 1 is used to control the keyboard and that the iPad is
connected to PORT 1 (MIDI A/USB 1/WLAN). If you want to use another MIDI channel or
another PORT, you need to specify it as needed.
2. Select the RECEIVE
tab.
3. Select at PORT 1 CH1
the part KEYBOARD
5. For stable use, you should not send any unnecessary
MIDI signals to the port where SongBook+ is connected.
Therefore you should set all to OFF.
But at least you must avoid sending any other Control
Changes (CC) or Program Changes (PC) to the iPad on
channel 1 that is used to remote control SongBook+.
4. Select the TRANSMIT
tab
1. Press the FUNCTION button on the keyboard,
then select the MIDI tab, then press EDIT to
enter into the MIDI Setup.
Tip:
Save the MIDI
settings in the USER
section e.g. with the
name SONGBOOK+.

Page 12
5.3 Link the Song in SongBook+ to the keyboard registration
Enter in the “Code” field the number of the corresponding registration bank as a 3-digit
number. This will activate the first registration of that bank when you open a song in
SongBook+.
If you prefer to activate a different registration in the bank, just add a point and a number
between 1 and 8 to the code, e.g. 004.3 for the 3rd registration in bank number 4.

Page 13
6“Keyboard controls SongBook+“ Method
Using this feature, selecting a registration on the keyboard triggers SongBook+ to open the
corresponding PDF file (to display the notes, chords, lyrics, etc.). This is done by including a
midi (song) file in the registration to identify the desired file.
The required MIDI files can be downloaded from the SongBook+ website using the link in
chapter 6.2.
As the MIDI control file doesn’t contain any music notes, the content is automatically played
when selecting the registration (as long as the “QuickStart” feature of the keyboard is not
disabled). This means the PDF file in SongBook+ is automatically displayed when the
registration button is pressed.
If you also want to play a normal MIDI (song) file, you must embed the required midi
commands at the beginning of the file, using, for example, SongCreator directly on the
keyboard.

Page 14
6.1 MIDI Settings on keyboard
In order to control SongBook+ using these small MIDI files, the keyboard must be configured
accordingly.
We assume here that the MIDI channel 1 is used to control SongBook+ and that the iPad is
connected to PORT 1 (MIDI A/USB 1/WLAN). If you want to use another MIDI channel or
another port, you need to specify it where needed.
2. Select the TRANSMIT
tab.
3. Configure for SONG
CH1 the target
PORT 1 CH1 and set a
checkmark at CC and PC.
4. For stable use, you should not send any unnecessary
MIDI signals to the port where SongBook+ is connected.
Therefore you should set all others to OFF.
But at least you must avoid sending any other Control
Changes (CC) or Program Changes (PC) to the iPad on the
channel that is used to control SongBook+.
1. Press the FUNCTION button on the keyboard,
then select the MIDI tab, then press EDIT to
enter into the MIDI Setup.
Tip:
Save the MIDI settings in the USER section e.g. with the
name SONGBOOK+.

Page 15
6.2 Link the Song in SongBook+ to the keyboard registration
Download the prepared small MIDI files from the SongBook+ website:
www.baum-software.ch/downloads/DummyFiles/YamahaDummyMidis.zip
Extract the files from the zip file, and copy the necessary files to the same drive your
registrations are on. We recommend you put these files in a subfolder called “SongBook”.
First, add a 3-digit number to the “Code” field of SongBook+. Then assign the MIDI file with
the same number to the first registration of the bank. You do this by loading your
registration, selecting the midi file using the Song (A) button, memorizing the registration
(ensuring the Song group is checked), then saving the bank.
Now on selecting the registration, the corresponding song is opened in SongBook+ and the
PDF file is displayed.
If you want to use a single registration per song, you will also find the required MIDI files in
the download. For example, “SongBook_004.3” will load the file with Code field “004.3”.

Page 16
7Combine both methods
It is technically possible to combine both methods described above. But because to select
songs in SongBook+ the registrations must be sorted by code, and to select songs in the
keyboard you probably want the songs to be sorted by name, it doesn’t make much sense to
combine both methods.
8Alternative control using the “MIDI wheels” of SongBook+
Instead of mapping with a song number in the Code field, you can also specify the required
BankSelect MSB, BankSelect LSB and Program Change code using the “MIDI wheels” in the
song details of SongBook+, then activate the switch “Auto open on MIDI command” or “Send
MIDI command on open”.
Older user manuals describe this method of using SongBook+ with the Tyros.
Using the Code field does exactly the same thing but is simpler to configure and requires less
MIDI knowledge. You would need to use the MIDI wheel method only if you have more than
500 songs in your repertoire.
To be complete here is a short description here how to find the correct values for the MIDI
wheels.
With ProgramChange you
select the registration
inside of the bank.
Das Beispiel wäre
With BankSelect MSB + LSB you select
the registration bank.
Bank number = 128 x (MSB + 1) + LSB + 1
