EAU03338 INTRODUCTION
Welcome to the Yamaha world of motorcycling!
As the owner of an FZS600, you are benefiting from Yamaha’s vast experience and
newest technology regarding the design and manufacture of high-quality products,
which have earned Yamaha a reputation for dependability.
Please take the time to read this manual thoroughly, so as to enjoy all advantages of
your FZS600. The owner’s manual does not only instruct you in how to operate,
inspect and maintain your motorcycle, but also in how to safeguard yourself and oth-
ers from trouble and injury.
In addition, the many tips given in this manual will help keep your motorcycle in the
best possible condition. If you have any further questions, do not hesitate to contact
your Yamaha dealer.
The Yamaha team wishes you many safe and pleasant rides. So, remember to put
safety first!
E_5rt.book Page 1 Wednesday, October 3, 2001 10:55 AM

EAU00005
IMPORTANT MANUAL INFORMATION
Particularly important information is distinguished in this manual by the following notations:
The Safety Alert Symbol means ATTENTION! BECOME ALERT! YOUR SAFETY IS
INVOLVED!
WARNING Failure to follow WARNING instructions could result in severe injury or death to the
motorcycle operator, a bystander, or a person inspecting or repairing the motorcycle.
CAUTION: A CAUTION indicates special precautions that must be taken to avoid damage to the
motorcycle.
NOTE: A NOTE provides key information to make procedures easier or clearer.
NOTE:
@
●This manual should be considered a permanent part of this motorcycle and should remain
with it even if the motorcycle is subsequently sold.
●Yamaha continually seeks advancements in product design and quality. Therefore, while
this manual contains the most current product information available at the time of printing,
there may be minor discrepancies between your motorcycle and this manual. If you have
any questions concerning this manual, please consult your Yamaha dealer.
@
E_5rt.book Page 1 Wednesday, October 3, 2001 10:55 AM

IMPORTANT MANUAL INFORMATION
EW000002
WARNING
@
PLEASE READ THIS MANUAL CAREFULLY AND COMPLETELY BEFORE OPERATING
THIS MOTORCYCLE.
@
E_5rt.book Page 2 Wednesday, October 3, 2001 10:55 AM

IMPORTANT MANUAL INFORMATION
EAU04229
FZS600
OWNER’S MANUAL
©2001 by Yamaha Motor Co., Ltd.
1st edition, July 2001
All rights reserved.
Any reprinting or unauthorized use
without the written permission of
Yamaha Motor Co., Ltd.
is expressly prohibited.
Printed in Japan.
E_5rt.book Page 3 Wednesday, October 3, 2001 10:55 AM

TABLE OF CONTENTS
1 GIVE SAFETY THE RIGHT OF WAY 1
2 DESCRIPTION 2
3 INSTRUMENT AND CONTROL FUNCTIONS 3
4 PRE-OPERATION CHECKS 4
5 OPERATION AND IMPORTANT RIDING POINTS 5
6 PERIODIC MAINTENANCE AND MINOR REPAIR 6
7 MOTORCYCLE CARE AND STORAGE 7
8 SPECIFICATIONS 8
9 CONSUMER INFORMATION 9
INDEX
EAU00009
E_5rt.book Page 1 Wednesday, October 3, 2001 10:55 AM

E_5rt.book Page 2 Wednesday, October 3, 2001 10:55 AM

GIVE SAFETY THE RIGHT OF WAY
1
GIVE SAFETY THE RIGHT OF WAY ................................................ 1-1
E_5rt.book Page 1 Wednesday, October 3, 2001 10:55 AM

1
1-1
EAU00021
1-
GIVE SAFETY THE RIGHT OF WAY
Motorcycles are fascinating vehicles, which can give you an unsurpassed feeling of power and
freedom. However, they also impose certain limits, which you must accept; even the best motorcycle
does not ignore the laws of physics.
Regular care and maintenance are essential for preserving value and operating condition of your
motorcycle. Moreover, what is true for the motorcycle is also true for the rider: good performance
depends on being in good shape. Riding under the influence of medication, drugs and alcohol is, of
course, out of the question. Motorcycle riders—more than car drivers—must always be at their mental
and physical best. Under the influence of even small amounts of alcohol, there is a tendency to take
dangerous risks.
Protective clothing is as essential for the motorcycle rider as seat belts are for car drivers and
passengers. Always wear a complete motorcycle suit (whether made of leather or tear-resistant
synthetic materials with protectors), sturdy boots, motorcycle gloves and a properly fitting helmet.
Optimum protective wear, however, should not encourage carelessness. Although full-coverage
helmets and suits, in particular, create an illusion of total safety and protection, motorcyclists will
always be vulnerable. Riders who lack critical self-control run the risk of going too fast and are apt to
take chances. This is even more dangerous in wet weather. The good motorcyclist rides safely,
predictably and defensively—avoiding all dangers, including those caused by others.
Enjoy your ride!
E_5rt.book Page 1 Wednesday, October 3, 2001 10:55 AM

DESCRIPTION
2
Left view ............................................................................................. 2-1
Right view........................................................................................... 2-2
Controls and instruments ................................................................... 2-3
E_5rt.book Page 1 Wednesday, October 3, 2001 10:55 AM

2-1
2
EAU00026
2-
DESCRIPTION
Left view
1. Front fork spring preload adjusting bolt (page 3-13)
2. Starter (choke) lever (page 3-12)
3. Air filter element (page 6-17)
4. Fuses (page 6-36)
5. Storage compartment (page 3-13)
6. Grab bar
7. Luggage strap holder (page 3-15)
8. Seat lock (page 3-12)
9. Rear shock absorber spring preload
adjusting ring (page 3-14)
10. Shift pedal (page 3-9)
11. Throttle stop screw (page 6-20)
12. Engine oil drain bolt (page 6-10)
E_5rt.book Page 1 Wednesday, October 3, 2001 10:55 AM

DESCRIPTION
2-2
2

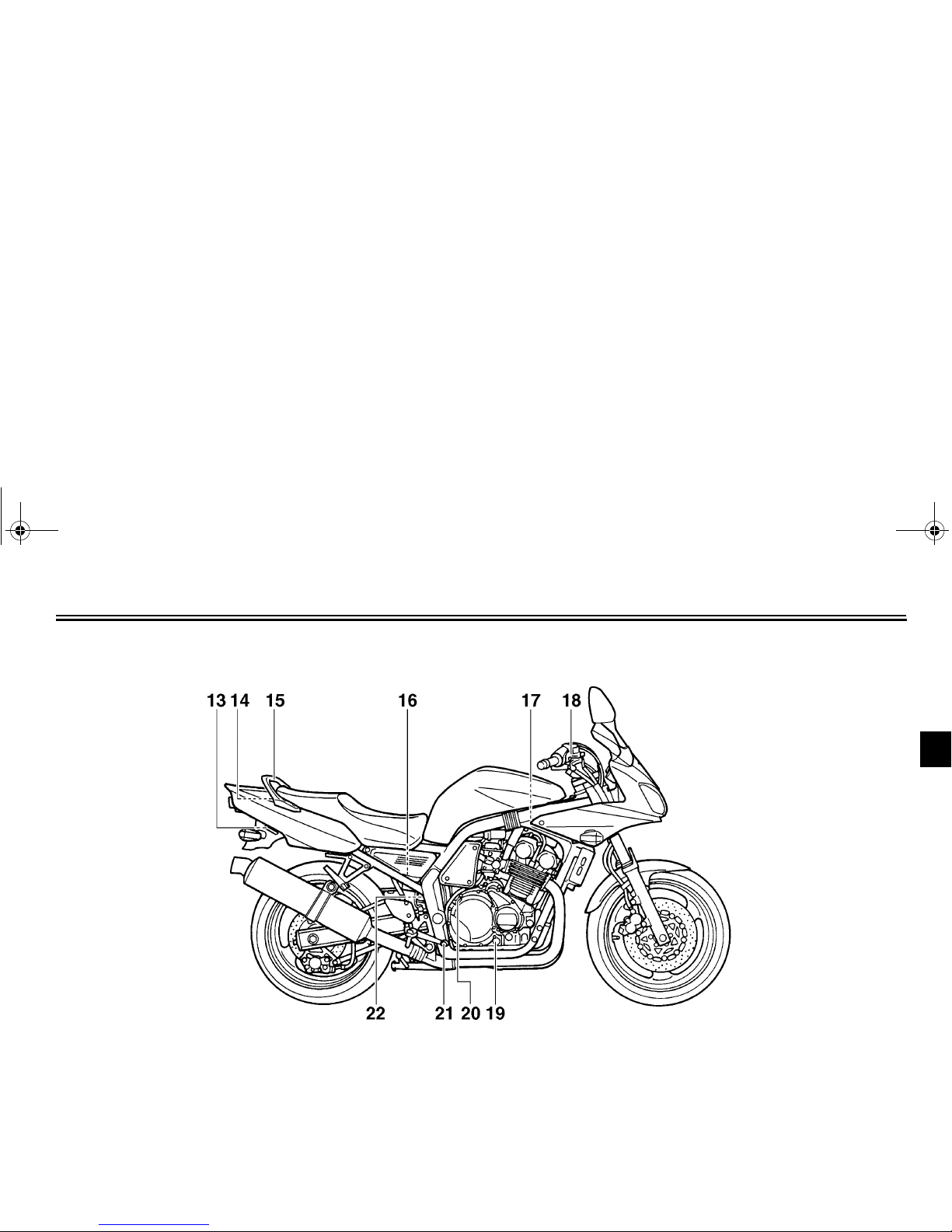

Right view
13. Luggage strap holder (page 3-15)
14. Tool kit (page 6-1)
15. Grab bar
16. Rear brake fluid reservoir (page 6-27)
17. Radiator cap (page 6-14)
18. Front brake master cylinder (page 6-27)
19. Engine oil level check window (page 6-9)
20. Engine oil filler cap (page 6-9)
21. Brake pedal (page 3-10)
22. Coolant reservoir (page 6-12)
E_5rt.book Page 2 Wednesday, October 3, 2001 10:55 AM

DESCRIPTION
2-3
2
Controls and instruments
1. Clutch lever (page 3-9)
2. Left handlebar switches (page 3-7)
3. Speedometer unit (page 3-4)
4. Main switch/steering lock (page 3-1)
5. Tachometer (page 3-5)
6. Fuel gauge (page 3-7)
7. Right handlebar switches (page 3-8)
8. Brake lever (page 3-9)
9. Throttle grip (page 6-20)
E_5rt.book Page 3 Wednesday, October 3, 2001 10:55 AM

3
INSTRUMENT AND CONTROL FUNCTIONS
Main switch/steering lock .....................................3-1
Indicator and warning lights ................................3-3
Speedometer unit ................................................3-4
Tachometer unit ...................................................3-5
Self-diagnosis devices .........................................3-6
Anti-theft alarm (optional) ....................................3-6
Fuel gauge ...........................................................3-7
Handlebar switches .............................................3-7
Clutch lever ..........................................................3-9
Shift pedal ............................................................3-9
Brake lever ...........................................................3-9
Brake pedal ........................................................3-10
Fuel tank cap .................................................... 3-10
Fuel ................................................................... 3-11
Starter (choke) lever .......................................... 3-12
Seat ................................................................... 3-12
Storage compartment ....................................... 3-13
Adjusting the front fork ...................................... 3-13
Adjusting the shock absorber assembly ............ 3-14
Luggage strap holders ...................................... 3-15
Sidestand .......................................................... 3-15
Ignition circuit cut-off system ............................. 3-16
E_5rt.book Page 1 Wednesday, October 3, 2001 10:55 AM

3-1
3
EAU00027
3-
INSTRUMENT AND CONTROL FUNCTIONS
EAU00029

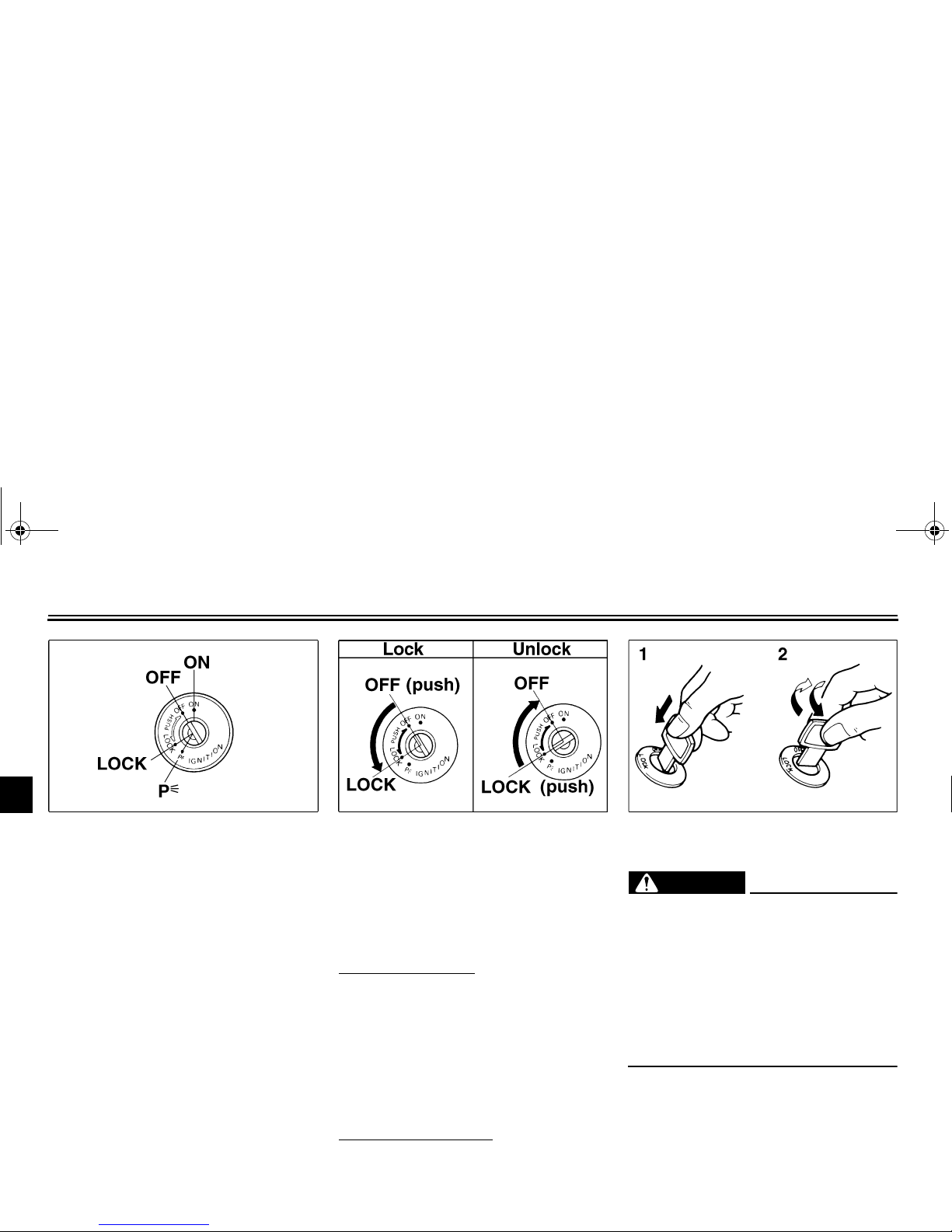

Main switch/steering lock
The main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering. The various
positions are described below.
EAU00036
ON
All electrical systems are supplied with
power, and the engine can be started.
The key cannot be removed.
EAU00038
OFF
All electrical systems are off. The key
can be removed.
EAU00040
LOCK
The steering is locked, and all electrical
systems are off. The key can be re-
moved.
To lock the steering
1. Turn the handlebars all the way to
the left.
2. Push the key in from the “OFF”po-
sition, and then turn it to “LOCK”
while still pushing it.
3. Remove the key.
To unlock the steering
Push the key in, and then turn it to
“OFF”while still pushing it.
EW000016
WARNING
@
Never turn the key to “OFF”or
“LOCK”while the motorcycle is
moving, otherwise the electrical
systems will be switched off, which
may result in loss of control or an
accident. Make sure that the motor-
cycle is stopped before turning the
key to “OFF”or “LOCK”.
@
1. Push.
2. Turn.
E_5rt.book Page 1 Wednesday, October 3, 2001 10:55 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-2
3
EAU01574
(Parking)
The steering is locked, and the taillights
and auxiliary lights are on, but all other
electrical systems are off. The key can
be removed.
The steering must be locked before the
key can be turned to “”.
ECA00043
CAUTION:
_
Do not use the parking position for
an extended length of time, other-
wise the battery may discharge.
_
E_5rt.book Page 2 Wednesday, October 3, 2001 10:55 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-3
3
EAU03034
Indicator and warning lights
EAU04121
Turn signal indicator lights “”
and “”
The corresponding indicator light flash-
es when the turn signal switch is
pushed to the left or right.
EAU00061
Neutral indicator light “”
This indicator light comes on when the
transmission is in the neutral position.
EAU00063
High beam indicator light “”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU04301
Oil level warning light “”
This warning light comes on when the
engine oil level is low.
The electrical circuit of the warning light
can be checked according to the fol-
lowing procedure.
1. Turn the key to “ON”.
2. If the warning light does not come
on for a few seconds, then go off,
have a Yamaha dealer check the
electrical circuit.
NOTE:
_
Even if the oil level is sufficient, the
warning light may flicker when riding on
a slope or during sudden acceleration
or deceleration, but this is not a mal-
function.
_
EAU04302
Coolant temperature warning light
“”
This warning light comes on when the
engine overheats. When this occurs,
stop the engine immediately and allow
the engine to cool.
The electrical circuit of the warning light
can be checked according to the fol-
lowing procedure.
1. Turn the key to “ON”.
2. If the warning light does not come
on for a few seconds, then go off,
have a Yamaha dealer check the
electrical circuit.
EC000002
CAUTION:
_
Do not operate the engine if it is
overheated.
_
1. Left turn signal indicator light “”
2. Neutral indicator light “”
3. High beam indicator light “”
4. Oil level warning light “”
5. Right turn signal indicator light “”
6. Coolant temperature warning light “”
7. Fuel level warning light “”
E_5rt.book Page 3 Wednesday, October 3, 2001 10:55 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-4
3
EAU04303
Fuel level warning light “”
This warning light comes on when the
fuel level drops below approximately
3.6 L. When this occurs, refuel as soon
as possible.
The electrical circuit of the warning light
can be checked according to the fol-
lowing procedure.
1. Turn the key to “ON”.
2. If the warning light does not come
on for a few seconds, then go off,
have a Yamaha dealer check the
electrical circuit. EAU04289
Speedometer unit
The speedometer unit is equipped with
the following:
●an odometer
●two tripmeters
When set to “ODO”, the motorcycle’s
total mileage is indicated.
When set to “TRIP 1”or “TRIP 2”, the
motorcycle’s mileage since the tripme-
ter was last reset is indicated. The trip-
meters can be used together with the
fuel gauge to estimate the distance that
can be traveled on a full tank of fuel.
This information will enable you to plan
future fuel stops.
To set a mode
Push the “SELECT”button to change
between the odometer mode “ODO”,
and the tripmeter modes “TRIP 1”and
“TRIP 2”in the following order:
ODO →TRIP 1 →TRIP 2 →ODO
To reset a meter
To reset either tripmeter 1 or 2 to 0.0,
select either by pushing the “SELECT”
button, and then push the “RESET”
button for at least one second.
1. Speedometer
2. Odometer/tripmeter
3. “SELECT”button
4. “RESET”button
E_5rt.book Page 4 Wednesday, October 3, 2001 10:55 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-5
3
EAU03954
Tachometer unit
The electric tachometer allows the rider
to monitor the engine speed and keep it
within the ideal power range.
EC000003
CAUTION:
_
Do not operate the engine in the ta-
chometer red zone.
Red zone: 12,500 r/min and above
_
This tachometer unit is equipped with a
clock.
To set the clock:
1. Push both the “SELECT”and
“RESET”buttons for at least two
seconds.
2. When the hour digits start flashing,
push the “RESET”button to set
the hours.
3. Push the “SELECT”button to
change the minutes.
4. When the minute digits start flash-
ing, push the “RESET”button to
set the minutes.
5. Push the “SELECT”button to start
the clock.
NOTE:
_
After setting the clock, be sure to push
the “SELECT”button before turning the
key to “OFF”, otherwise the clock will
not be set.
_
1. Tachometer
2. Tachometer red zone
3. Clock
E_5rt.book Page 5 Wednesday, October 3, 2001 10:55 AM
