Yamaha Virago XV535 User manual

3BT-28199-E6
OWNER’S MANUAL
XV535

R/Net/layout8/layout_G2/work/Imai_work/OM-PS/AA9149_XV535-E6/English/INT.frame
EAU00001
Welcome to the Yamaha world of motorcycling!
As the owner of a XV535, you are benefiting from YamahaÕs vast experience in and
newest technology for the design and the manufacture of high-quality products, which
have earned Yamaha a reputation for dependability.
Please take the time to read this manual thoroughly, so as to enjoy all your XV535Õs ad-
vantages. The ownerÕs manual does not only instruct you in how to operate, inspect
and maintain your motorcycle, but also in how to safeguard yourself and others from
trouble and injury.
In addition, the many tips given in this manual will help to keep your motorcycle in the
best possible condition. If you have any further questions, do not hesitate to contact
your Yamaha dealer.
The Yamaha team wishes you many safe and pleasant rides. So, remember to put
safety first!
INTRODUCTION

L/Net/layout8/layout_G2/work/Imai_work/OM-PS/AA9149_XV535-E6/English/INT.frame
EAU00005
Particularly important information is distinguished in this manual by the following notations:
The Safety Alert Symbol means ATTENTION! BECOME ALERT! YOUR SAFETY
IS INVOLVED!
Failure to follow WARNING instructions could result in severe injury or death to
the motorcycle operator, a bystander or a person inspecting or repairing the
motorcycle.
A CAUTION indicates special precautions that must be taken to avoid damage to
the motorcycle.
NOTE: A NOTE provides key information to make procedures easier or clearer.
lThis manual should be considered a permanent part of this motorcycle and should remain with it
even if the motorcycle is subsequently sold.
lYamaha continually seeks advancements in product design and quality. Therefore, while this
manual contains the most current product information available at the time of printing, there may
be minor discrepancies between your motorcycle and this manual. If there is any question con-
cerning this manual, please consult your Yamaha dealer.
CAUTION:
IMPORTANT MANUAL INFORMATION

R/Net/layout8/layout_G2/work/Imai_work/OM-PS/AA9149_XV535-E6/English/INT.frame
EW000002
PLEASE READ THIS MANUAL CAREFULLY AND COMPLETELY BEFORE OPERATING THIS
MOTORCYCLE.
IMPORTANT MANUAL INFORMATION

L/Net/layout8/layout_G2/work/Imai_work/OM-PS/AA9149_XV535-E6/English/INT.frame
EAU00008
XV535
OWNERÕS MANUAL
©1999 by Yamaha Motor Co., Ltd.
1st Edition, April 1999
All rights reserved. Any reprinting or
unauthorized use without the written
permission of Yamaha Motor Co., Ltd.
is expressly prohibited.
Printed in Japan.

EAA30002
R
TABLE OF CONTENTS
/Net/layout8/layout_G2/work/Imai_work/OM-PS/AA9149_XV535-E6/English/E-TOC.frame
1 GIVE SAFETY THE RIGHT OF WAY
2 DESCRIPTION
3 INSTRUMENT AND CONTROL FUNCTIONS
4 PRE-OPERATION CHECKS
5 OPERATION AND IMPORTANT RIDING POINTS
6 PERIODIC MAINTENANCE AND MINOR REPAIR
7 MOTORCYCLE CARE AND STORAGE
8 SPECIFICATIONS
9 CONSUMER INFORMATION
INDEX

/Net/layout8/layout_G2/work/Imai_work/OM-PS/AA9149_XV535-E6/English/E-TOC.frame

R
GIVE SAFETY THE RIGHT OF WAY
/Net/layout8/layout_G2/work/Imai_work/OM-PS/AA9149_XV535-E6/English/E-1TOC.frame
GIVE SAFETY THE RIGHT OF WAY................................................. 1-1

L
1-1
GIVE SAFETY THE RIGHT OF WAY
/Net/layout8/layout_G2/work/Imai_work/OM-PS/AA9149_XV535-E6/English/E-1.frame
Motorcycles are fascinating vehicles, which can give you an unsurpassed feeling of power and freedom.
However, they also impose certain limits, which you must accept; even the best motorcycle does not ig-
nore the laws of physics.
Regular care and maintenance are essential for preserving your motorcycleÕs value and operating condi-
tion. Moreover, what is true for the motorcycle is also true for the rider: good performance depends on be-
ing in good shape. Riding under the influence of medication, drugs and alcohol is, of course, out of the
question. Motorcycle riders Ð more than car drivers Ð must always be at their mental and physical best.
Under the influence of even small amounts of alcohol, there is a tendency to take dangerous risks.
Protective clothing is as essential for the motorcycle rider as seat belts are for car drivers and passengers.
Always wear a complete motorcycle suit (whether made of leather or tear-resistant synthetic materials
with protectors), sturdy boots, motorcycle gloves and a properly fitting helmet. Optimum protective wear,
however, should not encourage carelessness. Though full-coverage helmets and suits, in particular, cre-
ate an illusion of total safety and protection, motorcyclists will always be vulnerable. Riders who lack criti-
cal self-control run the risk of going too fast and are apt to take chances. This is even more dangerous in
wet weather. The good motorcyclist rides safely, predictably and defensively Ð avoiding all dangers, in-
cluding those caused by others.
Enjoy your ride!
EAU00021

R
DESCRIPTION
/Net/layout8/layout_G2/work/Imai_work/OM-PS/AA9149_XV535-E6/English/E-2TOC.frame
Left view ............................................................................................. 2-1
Right view........................................................................................... 2-2
Controls/Instruments .......................................................................... 2-3

L
2-1
DESCRIPTION
/Net/layout8/layout_G2/work/Imai_work/OM-PS/AA9149_XV535-E6/English/E-2.frame
Left view
EAU00026
1. Headlight (page 6-27)
2. Air filter (page 6-10)
3. Rider seat (page 3-7)
4. Tool kit (page 6-1)
5. Passenger seat (page 3-7)
6. Rear shock absorber spring
preload adjusting ring (page 3-9)
7. Main switch (page 3-1)
8. Starter (choke) Ò Ó (page 3-6)
9. Shift pedal (page 3-4)

R
2-2
DESCRIPTION
/Net/layout8/layout_G2/work/Imai_work/OM-PS/AA9149_XV535-E6/English/E-2.frame

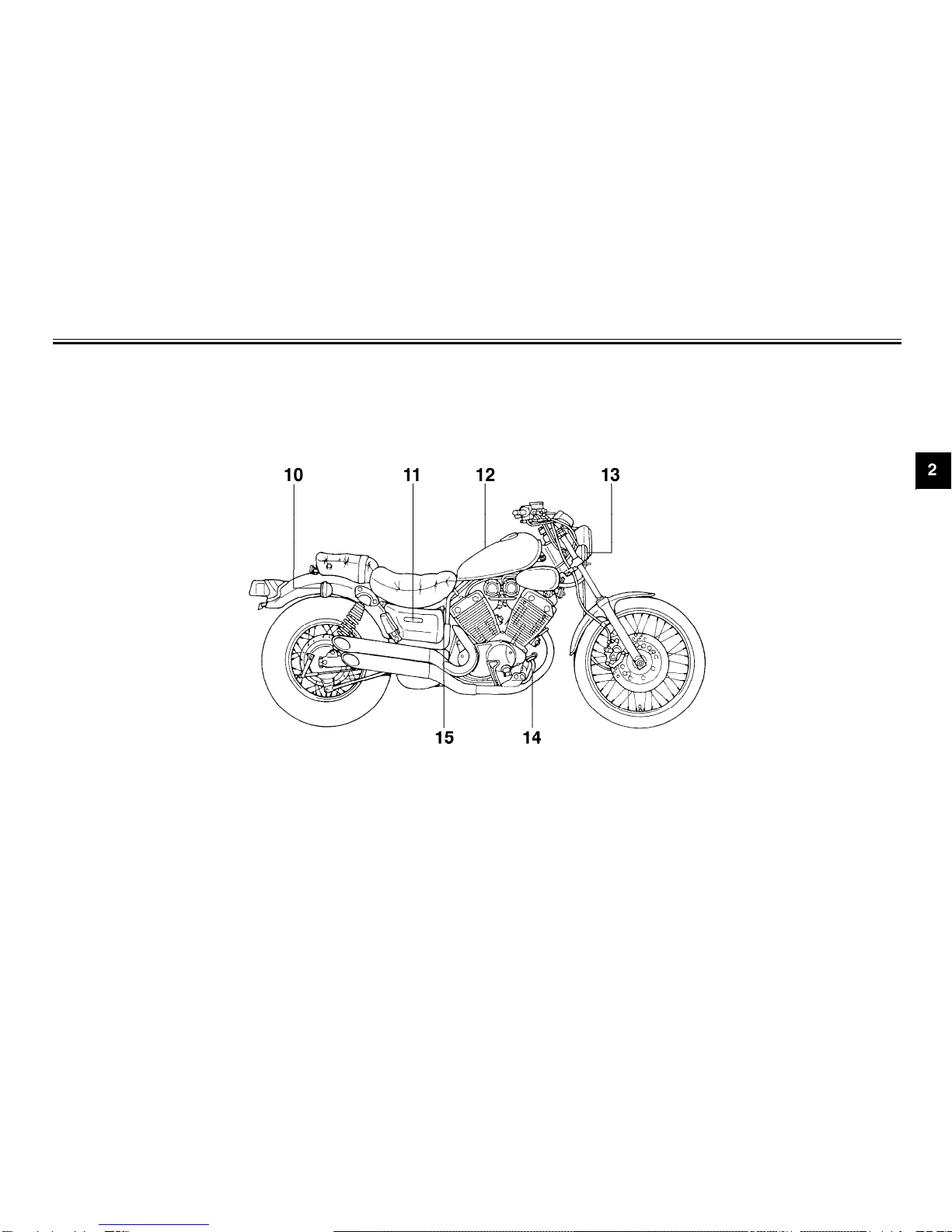

Right view
10. Rear turn signal light (page 6-29)
11. Sub fuel tank
12. Fuel tank (page 3-5)
13. Front turn signal light (page 6-29)
14. Rear brake pedal (page 3-4)
15. Battery (page 6-25)

L
2-3
DESCRIPTION
/Net/layout8/layout_G2/work/Imai_work/OM-PS/AA9149_XV535-E6/English/E-2.frame
Controls/Instruments
1. Clutch lever (page 3-3)
2. Speedometer (page 3-2)
3. Front brake lever (page 3-4)
4. Throttle grip (page 6-13)
5. Right handlebar switches (page 3-3)
6. Left handlebar switches (page 3-2)

R
INSTRUMENT AND CONTROL FUNCTIONS
/Net/layout8/layout_G2/work/Imai_work/OM-PS/AA9149_XV535-E6/English/E-3TOC.frame
Main switch ........................................................................................ 3-1
Indicator lights .................................................................................... 3-1
Speedometer...................................................................................... 3-2
Handlebar switches............................................................................ 3-2
Clutch lever ........................................................................................ 3-3
Shift pedal .......................................................................................... 3-4
Front brake lever ................................................................................ 3-4
Rear brake pedal................................................................................ 3-4
Fuel tank cap...................................................................................... 3-5
Fuel .................................................................................................... 3-5
Starter (choke) Ò Ó........................................................................... 3-6
Steering lock ...................................................................................... 3-6
Seats .................................................................................................. 3-7
Helmet holder..................................................................................... 3-8
Rear shock absorber adjustment ....................................................... 3-9
Sidestand ........................................................................................... 3-9
Sidestand/clutch switch operation check ......................................... 3-10

L
3-1
INSTRUMENT AND CONTROL FUNCTIONS
/Net/layout8/layout_G2/work/Imai_work/OM-PS/AA9149_XV535-E6/English/E-3.frame
EAU00027
EAU00028
Main switch
The main switch controls the ignition
and lighting systems. Its operation is
described below.
EAU00036
ON
Electrical circuits are switched on. The
engine can be started. The key cannot
be removed in this position.
EAU00038
OFF
All electrical circuits are switched off.
The key can be removed in this posi-
tion.
1. Push
2. Release
3. Turn
EAU00055
P (Parking)
The taillight and auxiliary light come on
but all other circuits are off. With the
key at ÒOFFÓ, push it into the main
switch and release it. Then turn it coun-
terclockwise to ÒPÓ, and remove it. (Do
not use this position for an extended
length of time as the battery may dis-
charge.) To cancel the parking, turn the
key clockwise.
1. High beam indicator light Ò Ó
2. Neutral indicator light Ò Ó
3. Turn indicator light Ò Ó
EAU00056
Indicator lights
EAU00063
High beam indicator light Ò Ó
This indicator comes on when the
headlight high beam is used.
EAU00061
Neutral indicator light Ò Ó
This indicator comes on when the
transmission is in neutral.
EAU00057
Turn indicator light Ò Ó
This indicator flashes when the turn
switch is moved to the left or right.

R
3-2
INSTRUMENT AND CONTROL FUNCTIONS
/Net/layout8/layout_G2/work/Imai_work/OM-PS/AA9149_XV535-E6/English/E-3.frame
1. Reset knob
2. Odometer
3. Trip odometer
EAU00095
Speedometer
The speedometer shows riding speed.
This speedometer is equipped with an
odometer and trip odometer. The trip
odometer can be reset to Ò0Ó with the
reset knob. Use the trip odometer to
estimate how far you can ride on a tank
of fuel. This information will enable you
to plan fuel stops in the future.
1. Pass switch Ò Ó
2. Dimmer switch
3. Turn signal switch Ò Ó
4. Horn switch Ò Ó
EAU00118
Handlebar switches
EAU00119
Pass switch Ò Ó
Press the switch to operate the passing
light.
EAU00121
Dimmer switch
Turn the switch to Ò Ó for the high
beam and to Ò Ó for the low beam.
EAU00124
Turn signal switch Ò Ó
This model is equipped with self-can-
celling turn signals. To signal a right-
hand turn, push the switch to the right.
To signal a left-hand turn, push the
switch to the left. Once the switch is re-
leased it will return to the center posi-
tion. To cancel the signal, push the
switch in after it has returned to the
center position. If the switch is not can-
celled by hand, it will self-cancel after
the motorcycle has travelled at least
150 meters and 15 seconds have
passed. The self-cancelling mecha-
nism only operates when the motor-
cycle is moving. Therefore the signal
will not self-cancel while you are
stopped at an intersection.
EAU00129
Horn switch Ò Ó
Press the switch to sound the horn.

L
3-3
INSTRUMENT AND CONTROL FUNCTIONS
/Net/layout8/layout_G2/work/Imai_work/OM-PS/AA9149_XV535-E6/English/E-3.frame
1. Engine stop switch
2. Lights switch
3. Start switch Ò Ó
4. Fuel reserve switch ÒFUELÓ
EAU00138
Engine stop switch
The engine stop switch is a safety de-
vice for use in an emergency such as
when the motorcycle overturns or if
trouble occurs in the throttle system.
Turn the switch to Ò Ó to start the en-
gine. In case of emergency, turn the
switch to Ò Ó to stop the engine.
EAU00134
Lights switch
Turning the light switch to Ò Ó,
turns on the auxiliary light, meter lights
and taillight. Turning the light switch to
Ò Ó, turns the headlight on also.
EAU00143
Start switch Ò Ó
The starter motor cranks the engine
when pushing the start switch.
EC000005
CAUTION:
See starting instructions prior to
starting the engine.
EAU00149
Fuel reserve switch ÒFUELÓ
This switch should usually be kept
ÒONÓ while riding. If you run out of fuel
while riding, move the switch to ÒRESÓ
and refuel at the first opportunity. Then
move the switch to ÒONÓ.
When the switch is turned to reserve
ÒRESÓ, about 2.5 L remain in the fuel
tank.
1. Clutch lever
EAU00152
Clutch lever
The clutch lever is located on the left
handlebar, and the ignition circuit cut-
off system is incorporated in the clutch
lever holder. Pull the clutch lever to the
handlebar to disengage the clutch, and
release the lever to engage the clutch.
The lever should be pulled rapidly and
released slowly for smooth clutch oper-
ation. (Refer to the engine starting pro-
cedures for a description of the ignition
circuit cut-off system.)

R
3-4
INSTRUMENT AND CONTROL FUNCTIONS
/Net/layout8/layout_G2/work/Imai_work/OM-PS/AA9149_XV535-E6/English/E-3.frame
1. Shift pedal
EAU00157
Shift pedal
This motorcycle is equipped with a con-
stant-mesh 5-speed transmission.
The shift pedal is located on the left
side of the engine and is used in com-
bination with the clutch when shifting.
1. Front brake lever
EAU00158
Front brake lever
The front brake lever is located on the
right handlebar. Pull it toward the han-
dlebar to apply the front brake.
1. Rear brake pedal
EAU00162
Rear brake pedal
The rear brake pedal is on the right
side of the motorcycle. Press down on
the brake pedal to apply the rear brake.

L
3-5
INSTRUMENT AND CONTROL FUNCTIONS
/Net/layout8/layout_G2/work/Imai_work/OM-PS/AA9149_XV535-E6/English/E-3.frame
1. Open
EAU00167
Fuel tank cap
To open
Insert the key and turn it 1/4 turn clock-
wise. The lock will be released and the
cap can be opened.
To close
Push the tank cap into position with the
key inserted. To remove the key, turn it
counterclockwise to the original posi-
tion.
NOTE:
This tank cap cannot be closed unless
the key is in the lock. The key cannot
be removed if the cap is not locked
properly.
EW000023
Be sure the cap is properly installed
and locked in place before riding the
motorcycle.
1. Filler tube
2. Fuel level
EAU01183
Fuel
Make sure there is sufficient fuel in the
tank. Fill the fuel tank to the bottom of
the filler tube as shown in the illustra-
tion.
EW000130
Do not overfill the fuel tank. Avoid
spilling fuel on the hot engine. Do
not fill the fuel tank above the bot-
tom of the filler tube or it may over-
flow when the fuel heats up later and
expands.

R
3-6
INSTRUMENT AND CONTROL FUNCTIONS
/Net/layout8/layout_G2/work/Imai_work/OM-PS/AA9149_XV535-E6/English/E-3.frame
EAU00185
CAUTION:
Always wipe off spilled fuel immedi-
ately with a dry and clean soft cloth.
Fuel may deteriorate painted surfac-
es or plastic parts.
EAU00191
NOTE:
If knocking or pinging occurs, use a dif-
ferent brand of gasoline or higher oc-
tane grade.
Recommended fuel:
Regular unleaded gasoline with
a research octane number of 91
or higher.
Fuel tank capacity:
Total:
13.5 L
Reserve:
2.5 L
1. Starter (choke) Ò Ó
EAU02976
Starter (choke) Ò Ó
Starting a cold engine requires a richer
air-fuel mixture. A separate starter cir-
cuit supplies this mixture.
Move in direction ato turn on the
starter (choke).
Move in direction bto turn off the
starter (choke).
1. Steering lock
EAU02934
Steering lock
To lock the steering
Turn the handlebars all the way to the
right and open the steering lock cover.
Insert the key and turn it 1/8 turn coun-
terclockwise. Then, push the key in
while turning the handlebars slightly to
the left and turn the key 1/8 turn clock-
wise.
Check that the steering is locked, re-
move the key and close the lock cover.
To unlock the steering
Insert the key, push it in and turn it 1/8
turn counterclockwise so that it moves
out. Then, release and remove the key.
