Yamaha XJR1300 User manual

5EA-28199-E2
XJR1300
XJR1300SP
OWNER’S MANUAL

EAU00001 INTRODUCTION
Welcome to the Yamaha world of motorcycling!
As the owner of a XJR1300/XJR1300SP, you are benefiting from Yamaha’s vast
experience in and newest technology for the design and the manufacture of high-
quality products, which have earned Yamaha a reputation for dependability.
Please take the time to read this manual thoroughly, so as to enjoy all your XJR1300/
XJR1300SP’s advantages. The owner’s manual does not only instruct you in how to
operate, inspect and maintain your motorcycle, but also in how to safeguard yourself
and others from trouble and injury.
In addition, the many tips given in this manual will help to keep your motorcycle in
the best possible condition. If you have any further questions, do not hesitate to con-
tact your Yamaha dealer.
The Yamaha team wishes you many safe and pleasant rides. So, remember to put
safety first!

EAU00005
IMPORTANT MANUAL INFORMATION
Particularly important information is distinguished in this manual by the following notations:
The Safety Alert Symbol means ATTENTION! BECOME ALERT! YOUR SAFETY IS
INVOLVED!
WARNING Failure to follow WARNING instructions could result in severe injury or death to the
motorcycle operator, a bystander or a person inspecting or repairing the motorcycle.
CAUTION: A CAUTION indicates special precautions that must be taken to avoid damage to the
motorcycle.
NOTE: A NOTE provides key information to make procedures easier or clearer.
NOTE:
@ ●This manual should be considered a permanent part of this motorcycle and should remain
with it even if the motorcycle is subsequently sold.
●Yamaha continually seeks advancements in product design and quality. Therefore, while
this manual contains the most current product information available at the time of printing,
there may be minor discrepancies between your motorcycle and this manual. If there is any
question concerning this manual, please consult your Yamaha dealer.
@

IMPORTANT MANUAL INFORMATION
EW000002
WARNING
@
PLEASE READ THIS MANUAL CAREFULLY AND COMPLETELY BEFORE OPERATING
THIS MOTORCYCLE.
@

IMPORTANT MANUAL INFORMATION
EAU00008
XJR1300/XJR1300SP
OWNER’S MANUAL
© 1999 by Yamaha Motor Co., Ltd.
1st Edition, July 1999
All rights reserved. Any reprinting or
unauthorized use without the written
permission of Yamaha Motor Co., Ltd.
is expressly prohibited.
Printed in Japan.

TABLE OF CONTENTS
1 GIVE SAFETY THE RIGHT OF WAY 1
2 DESCRIPTION 2
3 INSTRUMENT AND CONTROL FUNCTIONS 3
4 PRE-OPERATION CHECKS 4
5 OPERATION AND IMPORTANT RIDING POINTS 5
6 PERIODIC MAINTENANCE AND MINOR REPAIR 6
7 MOTORCYCLE CARE AND STORAGE 7
8 SPECIFICATIONS 8
9 CONSUMER INFORMATION 9
INDEX
EAU00009

1
GIVE SAFETY THE RIGHT OF WAY
GIVE SAFETY THE RIGHT OF WAY.................................................1-1

1
1-1
1-
GIVE SAFETY THE RIGHT OF WAY EAU00021
Motorcycles are fascinating vehicles, which can give you an unsurpassed feeling of power and
freedom. However, they also impose certain limits, which you must accept; even the best motorcycle
does not ignore the laws of physics.
Regular care and maintenance are essential for preserving your motorcycle’s value and operating
condition. Moreover, what is true for the motorcycle is also true for the rider: good performance
depends on being in good shape. Riding under the influence of medication, drugs and alcohol is, of
course, out of the question. Motorcycle riders - more than car drivers - must always be at their mental
and physical best. Under the influence of even small amounts of alcohol, there is a tendency to take
dangerous risks.
Protective clothing is as essential for the motorcycle rider as seat belts are for car drivers and
passengers. Always wear a complete motorcycle suit (whether made of leather or tear-resistant
synthetic materials with protectors), sturdy boots, motorcycle gloves and a properly fitting helmet.
Optimum protective wear, however, should not encourage carelessness. Though full-coverage
helmets and suits, in particular, create an illusion of total safety and protection, motorcyclists will
always be vulnerable. Riders who lack critical self-control run the risk of going too fast and are apt to
take chances. This is even more dangerous in wet weather. The good motorcyclist rides safely,
predictably and defensively - avoiding all dangers, including those caused by others.
Enjoy your ride!
Give safety the right of way

2
DESCRIPTION
Left view.............................................................................................2-1
Right view...........................................................................................2-2
Controls/Instruments..........................................................................2-3

2-1
2
EAU00026
2-
DESCRIPTION
Left view
1.Clutch fluid reservoir (page 6-18)
2.Fuel cock (page 3-10)
3.Rear shock absorber spring preload adjusting ring (page 3-13)
4.Luggage strap holders (page 3-15)
5.Helmet holder/seat lock (page 3-12 / page 3-11)
6.Shift pedal (page 3-7)
7.Engine oil filter element (page 6-8)

DESCRIPTION
2-2
2
Right view
8.Tail/brake light (page 6-27)
9.Luggage strap holders (page 3-15)
10.Tool kit (page 6-1)
11.Rear brake fluid reservoir (page 6-18)
12.Fuses (page 6-25)
13.Air filter (page 6-10)
14.Fuel tank (page 3-9)
15.Front brake fluid reservoir (page 6-18)
16.Headlight (page 6-25)
17.Rear brake pedal (page 3-8)

DESCRIPTION
2-3
2
Controls/Instruments
1.Clutch lever (page 3-7)
2.Left handlebar switches (page 3-5)
3.Starter (choke) “ ” (page 3-11)
4.Speedometer (page 3-4)
5.Fuel gauge (page 3-5)
6.Tachometer (page 3-4)
7.Right handlebar switches (page 3-6)
8.Front brake lever (page 3-8)
9.Throttle grip (page 6-12)
10.Main switch/steering lock (page 3-1)
11.Front fork spring preload
adjusting bolt (page 3-13)

3
INSTRUMENT AND CONTROL FUNCTIONS
Main switch/steering lock......................................3-1
Indicator lights ......................................................3-2
Oil level indicator circuit check..............................3-3
Speedometer........................................................3-4
Tachometer...........................................................3-4
Antitheft alarm (optional) ......................................3-4
Fuel gauge............................................................3-5
Handlebar switches ..............................................3-5
Clutch lever...........................................................3-7
Shift pedal.............................................................3-7
Front brake lever...................................................3-8
Rear brake pedal..................................................3-8
Fuel tank cap ....................................................... 3-9
Fuel...................................................................... 3-9
Fuel cock............................................................ 3-10
Starter (choke) “ ”........................................... 3-11
Seat.................................................................... 3-11
Helmet holder..................................................... 3-12
Storage compartment ........................................ 3-12
Front fork adjustment ......................................... 3-13
Rear shock absorber adjustment....................... 3-13
Luggage strap holders ....................................... 3-15
Sidestand........................................................... 3-15
Sidestand/clutch switch operation check............ 3-15

3-1
3
EAU00027
3-
INSTRUMENT AND CONTROL FUNCTIONS
EAU00029*

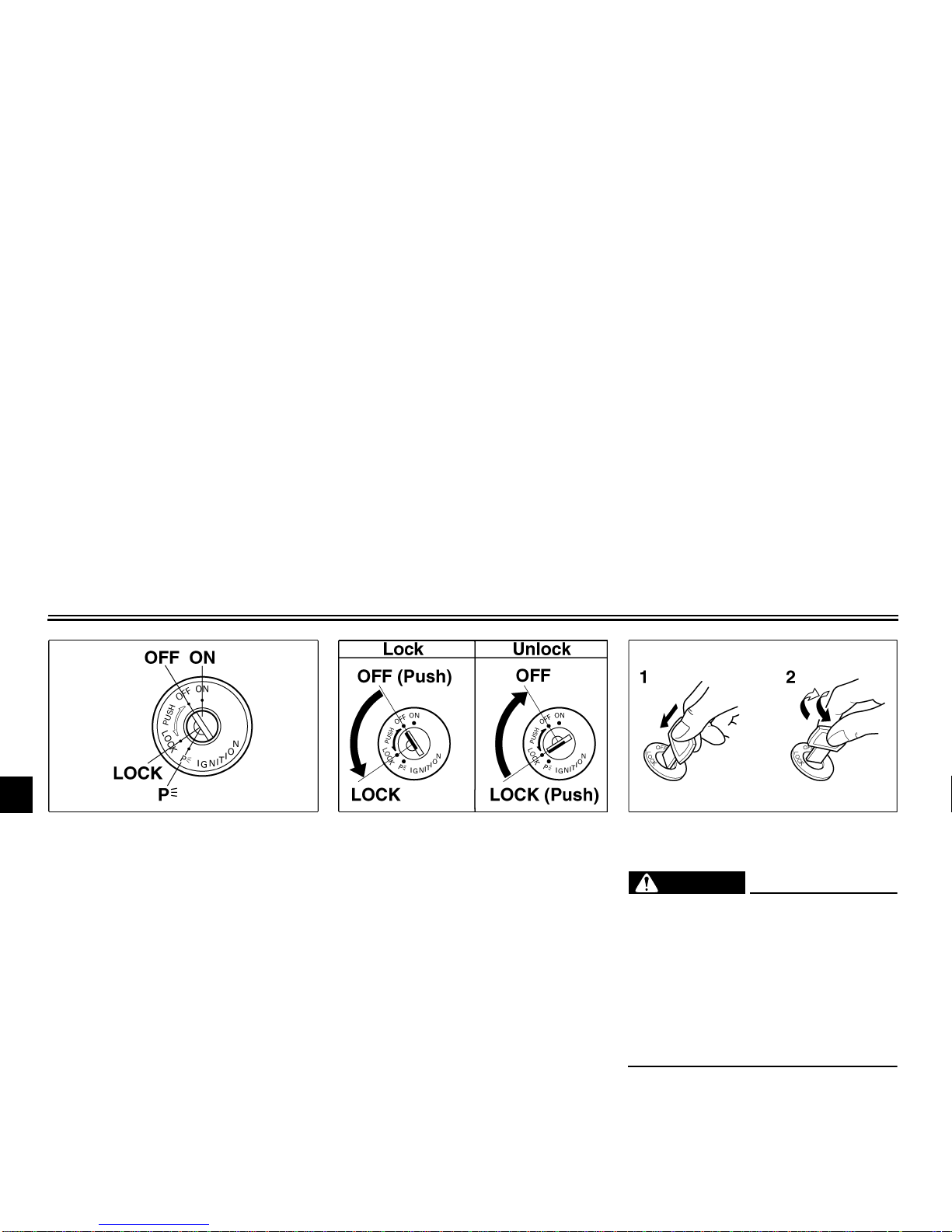

Main switch/steering lock
The main switch controls the ignition
and lighting systems. Its operation is
described below.
EAU00036
ON
Electrical circuits are switched on. The
engine can be started. The key cannot
be removed in this position.
EAU00038
OFF
All electrical circuits are switched off.
The key can be removed in this posi-
tion.
EAU00040
LOCK
The steering is locked in this position
and all electrical circuits are switched
off. The key can be removed in this po-
sition.
To lock the steering, turn the handle-
bars all the way to the left. While push-
ing the key into the main switch, turn it
from “OFF” to “LOCK” and remove it.
To release the lock, turn the key to
“OFF” while pushing.
EW000016
WARNING
@
Never turn the key to “OFF” or
“LOCK” when the motorcycle is
moving. The electrical circuits will
be switched off which may result in
loss of control or an accident. Be
sure the motorcycle is stopped be-
fore turning the key to “OFF” or
“LOCK”.
@
1. Push
2. Turn

INSTRUMENT AND CONTROL FUNCTIONS
3-2
3
EAU01590
(Parking)
The steering is locked in this position,
and the taillight and auxiliary light come
on but all other circuits are off. The key
can be removed in this position.
To use the parking position, first lock
the steering, then turn the key to “ ”.
Do not use this position for an extend-
ed length of time as the battery may
discharge.
EAU00056
Indicator lights EAU00058
Turn indicator lights “ ” / “ ”
The corresponding indicator flashes
when the turn switch is moved to the
left or right.
EAU00063
High beam indicator light “ ”
This indicator comes on when the
headlight high beam is used.
EAU00061
Neutral indicator light “ ”
This indicator comes on when the
transmission is in neutral.
EAU01313
Oil level indicator light “ ”
This indicator comes on when the oil
level is low. This light circuit can be
checked by the procedure on page 3-3.
EC000000
CAUTION:
@
Do not run the motorcycle until you
know it has sufficient engine oil.
@
NOTE:
@
Even if the oil is filled to the specified
level, the indicator light may flicker
when riding on a slope or during sud-
den acceleration or deceleration, but
this is normal.
@
1. Left turn indicator light “ ”
2. High beam indicator light “ ”
3. Neutral indicator light “ ”
4. Right turn indicator light “ ”
5. Oil level indicator light “ ”

INSTRUMENT AND CONTROL FUNCTIONS
3-3
3
EAU00073
Oil level indicator circuit check
CB-52E
Wait a few seconds (see NOTE).
Oil level indicator light
goes off. Oil level indicator light remains on.
Check engine oil level.
Oil level indicator light
comes on. Oil level indicator light still does not come on.
Engine oil level and
electrical circuit are OK.
Go ahead with riding.
Put the transmission in neutral or apply the
clutch lever, then push the start switch.
Oil level
is OK.
Supply
engine oil.
Oil level
is low.
Ask a Yamaha dealer to
inspect electrical circuit.
Turn the main switch to “ON”.
Turn the engine stop switch to “ ”.
NOTE:
When the main switch is turned on, the oil level indicator
light will come on for a few seconds and then go off. If the
indicator light does not come on, ask a Yamaha dealer to in-
spect the electrical circuit.

INSTRUMENT AND CONTROL FUNCTIONS
3-4
3
EAU00097
Speedometer
The speedometer shows riding speed.
This speedometer is equipped with an
odometer and trip odometer. The trip
odometer can be reset to “0” with the
reset knob. Use the odometer together
with the fuel gauge to estimate how far
you can ride on a tank of fuel. This in-
formation will enable you to plan fuel
stops in the future.
EAU00101
Tachometer
This model is equipped with an electric
tachometer so the rider can monitor the
engine speed and keep it within the
ideal power range. EC000003
CAUTION:
@
Do not operate in the red zone.
Red zone: 9,500 r/min and above
@
EAU00109
Antitheft alarm (optional)
An antitheft alarm can be equipped to
this motorcycle. Consult your Yamaha
dealer to obtain and install the alarm.
1. Reset knob
2. Tripmeter
3. Odometer
4. Speedometer
1. Tachometer
2. Red zone

INSTRUMENT AND CONTROL FUNCTIONS
3-5
3
EAU00110
Fuel gauge
This model is equipped with an electric
fuel gauge so the rider can monitor the
fuel level in the fuel tank. When the
needle indicates “E” (Empty), about
4.5 L remain in the fuel tank.
EAU00118
Handlebar switches EAU00120
Pass switch “PASS”
Press the switch to operate the passing
light.
EAU00121
Dimmer switch
Turn the switch to “ ” for the high
beam and to “ ” for the low beam.
EAU00127
Turn signal switch
To signal a right-hand turn, push the
switch to “ ”. To signal a left-hand
turn, push the switch to “ ”. Once the
switch is released it will return to the
center position. To cancel the signal,
push the switch in after it has returned
to the center position.
EAU00129
Horn switch “ ”
Press the switch to sound the horn.
1. Fuel gauge 1. Pass switch “PASS”
2. Dimmer switch
3. Turn signal switch
4. Horn switch “ ”

INSTRUMENT AND CONTROL FUNCTIONS
3-6
3
EAU00138
Engine stop switch
The engine stop switch is a safety de-
vice for use in an emergency such as
when the motorcycle overturns or if
trouble occurs in the throttle system.
Turn the switch to “ ” to start the en-
gine. In case of emergency, turn the
switch to “ ” to stop the engine.
EAU00134
Lights switch
Turning the light switch to “ ”, turns
on the auxiliary light, meter lights and
taillight. Turning the light switch to
“ ” turns the headlight on also.
EAU00143
Start switch “ ”
The starter motor cranks the engine
when pushing the start switch. EC000005
CAUTION:
@
See starting instructions prior to
starting the engine.
@
1. Engine stop switch
2. Lights switch
3. Start switch “ ”
