Yamaha YCDCMP Instruction Manual

YZ125F1 A1

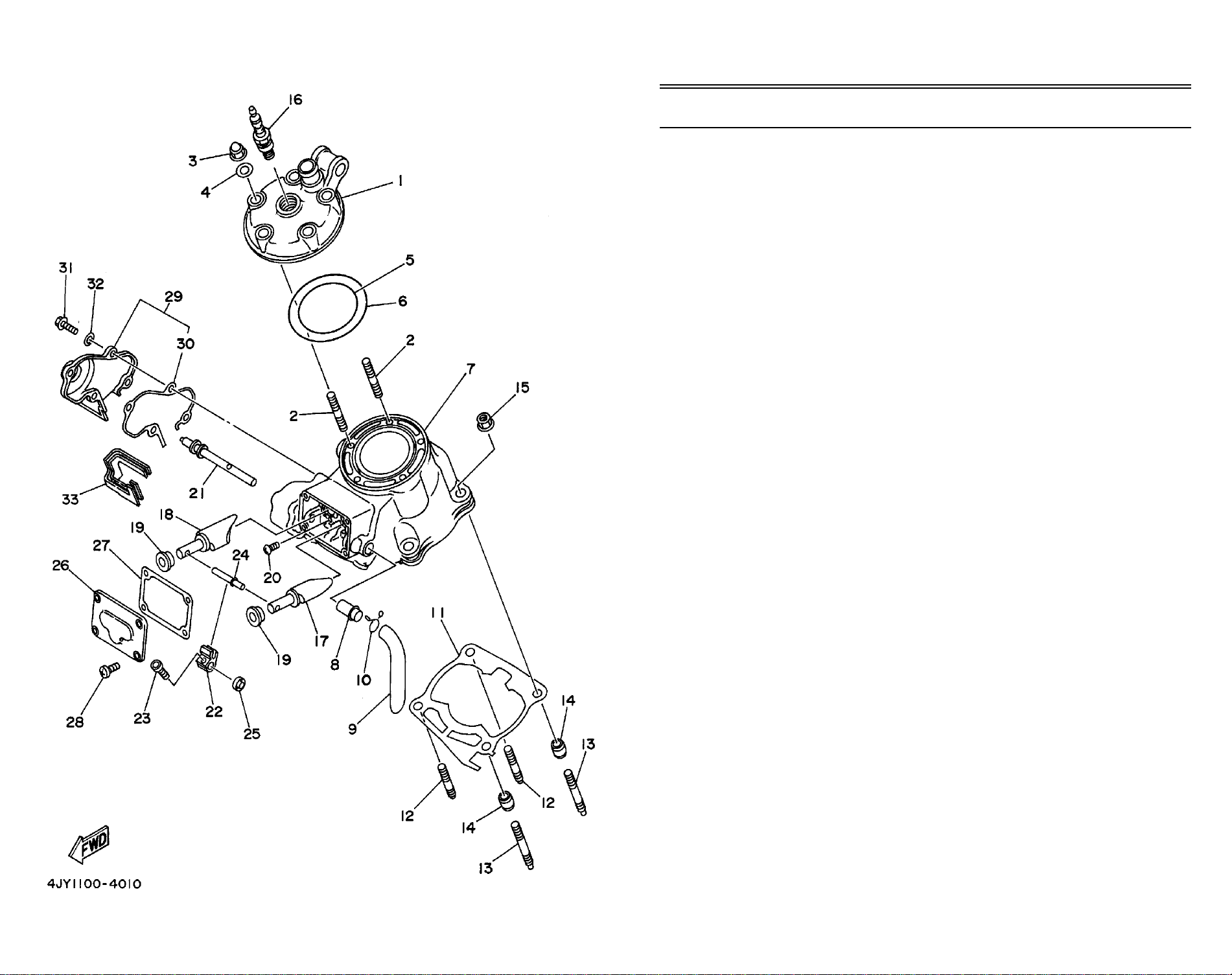

1 4JY-11111-00-00 HEAD, CYLINDER 1
(4JY-11111-01-00) . . . . . . . . . . 1
2 90116-08394-00 BOLT, STUD . . . . . . . . . . . . . . 5
3 90176-08026-00 NUT, CROWN . . . . . . . . . . . . . 5
4 90201-08087-00 WASHER, PLATE . . . . . . . . . . . 5
5 93210-63442-00 O-RING . . . . . . . . . . . . . . . . . . 1
6 93210-90785-00 O-RING . . . . . . . . . . . . . . . . . . 1
7 4JY-11311-00-00 CYLINDER 1 . . . . . . . . . . . . . . 1
8 4JY-11167-00-00 PIPE, BREATHER 2 . . . . . . . . . 1
9 4JY-11166-00-00 PIPE, BREATHER 1 . . . . . . . . . 1
10 90467-11044-00 CLIP . . . . . . . . . . . . . . . . . . . . 1
11 4JY-11351-00-00 GASKET, CYLINDER . . . . . . . . 1
12 90116-08318-00 BOLT, STUD . . . . . . . . . . . . . . 2
13 90116-08388-00 BOLT, STUD . . . . . . . . . . . . . . 2
14 99510-10114-00 PIN, DOWEL . . . . . . . . . . . . . . 2
15 90179-08491-00 NUT, FLANGE . . . . . . . . . . . . . 4
16 NGK-B9EG0-00-00 NGK B9EG 4PK . . . . . . . . . . . . 1 UR
17 4JY-1131A-00-00 VALVE 1 . . . . . . . . . . . . . . . . . 1
18 4JY-1132A-00-00 VALVE 2 . . . . . . . . . . . . . . . . . 1
19 4JY-1131E-00-00 HOLDER 1 . . . . . . . . . . . . . . . . 2
20 98903-05010-00 SCREW, BIND . . . . . . . . . . . . . 4
21 4JY-1131V-00-00 SHAFT 1 . . . . . . . . . . . . . . . . . 1
22 4JY-11832-00-00 LEVER, LINK . . . . . . . . . . . . . . 1
23 91316-04008-00 BOLT . . . . . . . . . . . . . . . . . . . . 1
24 4JY-11812-00-00 SHAFT, VALVE . . . . . . . . . . . . 1
25 93104-08040-00 OIL SEAL . . . . . . . . . . . . . . . . . 1
26 4JY-1131M-00-00 COVER . . . . . . . . . . . . . . . . . . 1
27 4JY-11354-00-00 GASKET . . . . . . . . . . . . . . . . . 1
28 98901-05014-00 SCREW, BIND . . . . . . . . . . . . . 4
CONTINUED ON NEXT FRAME ➤
CYLINDER HEAD
Ref. Part
No. Number Description Qty Remarks
A2
YZ125F1

29 4JY-11991-00-00 HOUSING 1 . . . . . . . . . . . . . . . 1
30 4JY-11993-00-00 . GASKET . . . . . . . . . . . . . . . . 1
31 97001-05016-00 BOLT (97002-05016-00) . . . . . . 4
32 92990-05600-00 WASHER, PLATE . . . . . . . . . . . 4
33 4JY-11995-00-00 SEAL, HOUSING . . . . . . . . . . . 1
CYLINDER HEAD
Ref. Part
No. Number Description Qty Remarks
A3
YZ125F1

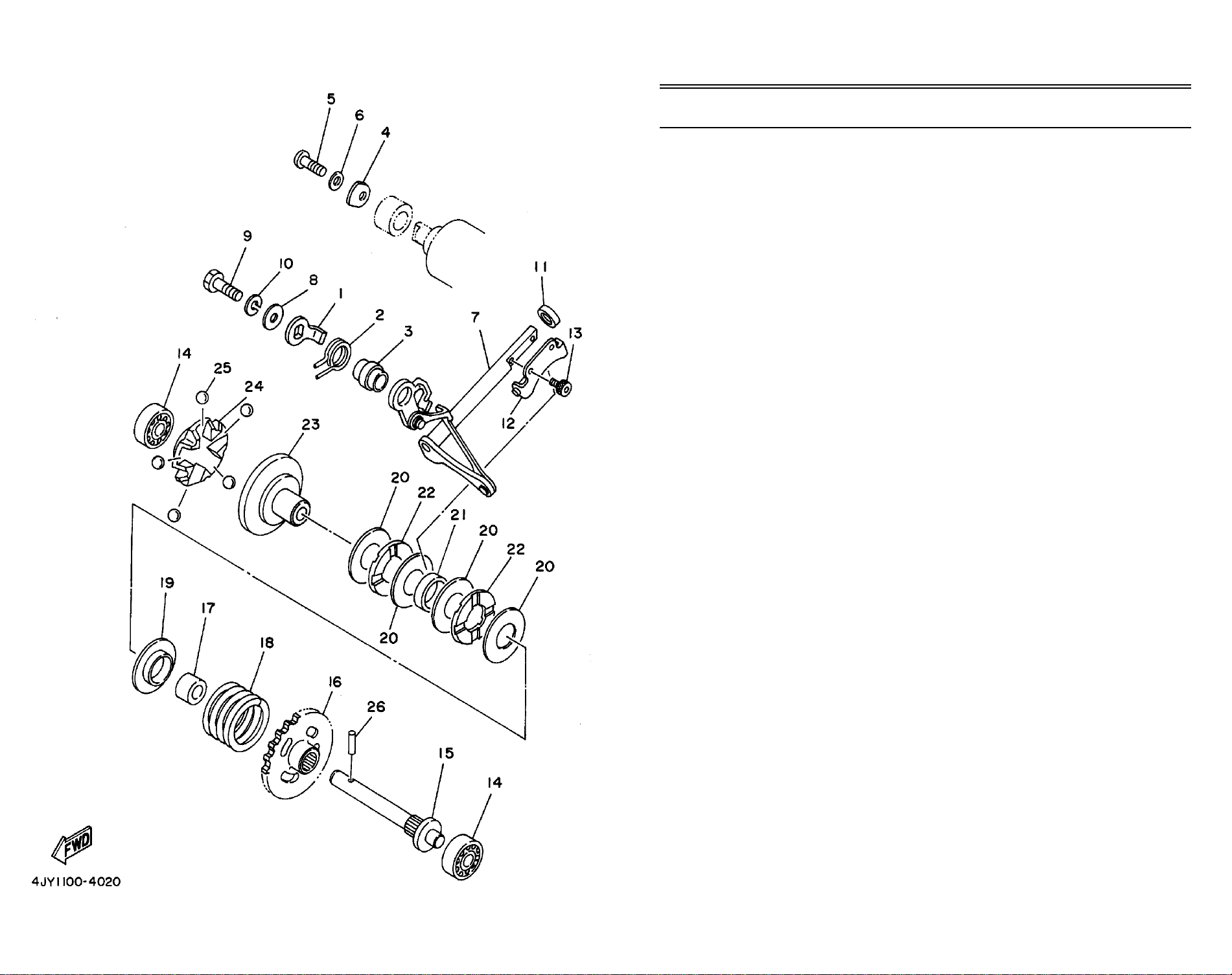

1 4JY-11931-00-00 LEVER . . . . . . . . . . . . . . . . . . . 1
2 90508-14783-00 SPRING, TORSION . . . . . . . . . 1
3 4JY-11937-00-00 BOSS, LEVER . . . . . . . . . . . . . 1
4 4JY-11915-00-00 PLATE, THRUST 1 . . . . . . . . . . 1
5 98580-05014-00 SCREW, PAN HEAD . . . . . . . . 1
6 92990-05100-00 WASHER, SPRING . . . . . . . . . . 1
7 4JY-11990-00-00 PUSH ROD ASSEMBLY . . . . . . 1
8 90201-057H5-00 WASHER, PLATE . . . . . . . . . . . 1
9 97001-05016-00 BOLT (97002-05016-00) . . . . . . 1
10 92990-05100-00 WASHER, SPRING . . . . . . . . . . 1
11 93104-08040-00 OIL SEAL . . . . . . . . . . . . . . . . . 1
12 3JE-11922-00-00 FORK, GOVERNOR . . . . . . . . . 1
13 91316-04006-00 BOLT . . . . . . . . . . . . . . . . . . . . 2
14 93300-60814-00 BEARING (608M4ML01) . . . . . . 2 NMB
15 5X4-11921-02-00 SHAFT, GOVERNOR . . . . . . . . 1
16 24X-11953-01-00 GEAR, GOVERNOR . . . . . . . . . 1
17 90560-08213-00 SPACER . . . . . . . . . . . . . . . . . 1
18 90501-264J6-00 SPRING, COMPRESSION . . . . . 1
19 5X4-11952-00-00 PLATE . . . . . . . . . . . . . . . . . . . 1
20 90201-154E9-00 WASHER, PLATE . . . . . . . . . . . 4
21 90387-152F2-00 COLLAR . . . . . . . . . . . . . . . . . 1
22 93340-21505-00 BEARING . . . . . . . . . . . . . . . . . 2
23 5X5-11912-01-00 RETAINER, WEIGHT . . . . . . . . 1
24 4JX-11911-01-00 RETAINER . . . . . . . . . . . . . . . . 1
25 93521-64032-00 BALL . . . . . . . . . . . . . . . . . . . . 5
26 93603-14179-00 PIN, DOWEL . . . . . . . . . . . . . . 1
GOVERNOR
Ref. Part
No. Number Description Qty Remarks
A4
YZ125F1

1 4JY-11400-00-00 CRANKSHAFT ASSEMBLY . . . 1
2 4JY-11412-00-00 . CRANK 1 . . . . . . . . . . . . . . . . 1
3 4JY-11422-00-00 . CRANK 2 . . . . . . . . . . . . . . . . 1
4 4PE-11651-00-00 . ROD, CONNECTING . . . . . . . . 1
5 3JD-11681-01-00 . PIN, CRANK 1 . . . . . . . . . . . . 1
6 90209-22257-00 . WASHER . . . . . . . . . . . . . . . . 2
7 93310-522P7-00 . BEARING . . . . . . . . . . . . . . . . 1
8 4JY-11631-00-A0 PISTON (STD) . . . . . . . . . . . . . 1 UR RED
4JY-11631-00-B0 PISTON (STD) . . . . . . . . . . . . . 1 UR ORANGE
4JY-11631-00-C0 PISTON (STD) . . . . . . . . . . . . . 1 UR GREEN
4JY-11631-00-D0 PISTON (STD) . . . . . . . . . . . . . 1 UR PURPLE
9 4JY-11611-00-00 RING, PISTON . . . . . . . . . . . . . 1
10 280-11633-00-00 PIN, PISTON . . . . . . . . . . . . . . 1
11 93450-17129-00 CIRCLIP . . . . . . . . . . . . . . . . . . 2
12 93310-216L2-00 BEARING, CYLINDRICAL . . . . 1
13 93306-37204-00 BEARING (63/22SH2-9TC4) . . . 2 KOYO
14 93102-22363-00 OIL SEAL . . . . . . . . . . . . . . . . . 1
15 93103-32171-00 OIL SEAL (93103-32099-00 ) . . 1
16 90280-03017-00 KEY, WOODRUFF . . . . . . . . . . 1
CRANKSHAFT - PISTON
Ref. Part
No. Number Description Qty Remarks
A5
YZ125F1

1 1LX-12459-00-00 GEAR, IMPELLER SHAFT . . . . 1
2 1LX-12450-00-00 IMPELLER SHAFT ASSEMBLY 1
3 99080-07600-00 CIRCLIP (E) . . . . . . . . . . . . . . . 1
4 90201-08512-00 WASHER, PLATE . . . . . . . . . . . 1
5 93603-22028-00 PIN, DOWEL . . . . . . . . . . . . . . 1
6 90201-08784-00 WASHER, PLATE . . . . . . . . . . . 1
7 93103-10168-00 OIL SEAL . . . . . . . . . . . . . . . . . 1
8 4JY-12422-00-00 COVER, HOUSING . . . . . . . . . . 1
9 4JY-12428-00-00 GASKET, HOUSING COVER 2 . 1
10 93604-10011-00 PIN, DOWEL . . . . . . . . . . . . . . 2
11 95021-06065-00 BOLT, FLANGE . . . . . . . . . . . . 2
12 95023-06030-00 BOLT, FLANGE (95021-06030) . 2
13 90430-06166-00 GASKET . . . . . . . . . . . . . . . . . 1
14 95023-06010-00 BOLT, FLANGE . . . . . . . . . . . . 1
WATER PUMP
Ref. Part
No. Number Description Qty Remarks
A6
YZ125F1

1 4EW-1240A-01-00 RADIATOR ASSEMBLY . . . . . . 1
2 91A20-05065-00 TUBE, FLEXIBLE VINYL . . . . . 1
3 90467-09006-00 CLIP . . . . . . . . . . . . . . . . . . . . 1
4 4EX-12461-00-00 RADIATOR ASSEMBLY . . . . . . 1
5 22W-12462-00-00 CAP, RADIATOR . . . . . . . . . . . 1
6 4EW-12482-01-00 PIPE 2 . . . . . . . . . . . . . . . . . . . 1
7 4JY-12483-00-00 PIPE 3 . . . . . . . . . . . . . . . . . . . 1
8 3AK-12483-00-00 PIPE 3 . . . . . . . . . . . . . . . . . . . 1
9 4EX-12469-00-00 JOINT 1 . . . . . . . . . . . . . . . . . . 1
10 4EX-12477-01-00 PIPE 7 . . . . . . . . . . . . . . . . . . . 2
11 4DC-1248A-00-00 PIPE 8 . . . . . . . . . . . . . . . . . . . 1
12 90450-28014-00 HOSE CLAMP ASSEMBLY . . . 6
13 90450-22052-00 HOSE CLAMP ASSEMBLY . . . 4
14 90450-15041-00 HOSE CLAMP ASSEMBLY . . . 1
15 90450-17036-00 HOSE CLAMP ASSEMBLY . . . 1
16 90480-15528-00 GROMMET . . . . . . . . . . . . . . . . 6
17 90387-0700G-00 COLLAR . . . . . . . . . . . . . . . . . 6
18 95023-06030-00 BOLT, FLANGE (95021-06030) . 6
19 90201-06765-00 WASHER, PLATE . . . . . . . . . . . 4
RADIATOR - HOSE
Ref. Part
No. Number Description Qty Remarks
A7
YZ125F1

1 4JY-13610-00-00 REED VALVE ASSEMBLY . . . . 1
2 4JY-13613-00-00 . REED, VALVE . . . . . . . . . . . . 2
3 4JY-13616-00-00 . STOPPER, REED VALVE . . . . 2
4 98580-03008-00 . SCREW, PAN HEAD . . . . . . . 4
5 92990-03100-00 . WASHER, SPRING
(92901-03100) . . . . . . . . . . . . 4
6 4JY-13565-00-00 JOINT, CARBURETOR . . . . . . . 1
7 95023-06020-00 BOLT, FLANGE . . . . . . . . . . . . 4
8 90450-51070-00 HOSE CLAMP ASSEMBLY . . . 1
9 90450-70072-00 HOSE CLAMP ASSEMBLY . . . 1
10 4EX-14453-02-00 JOINT, AIR CLEANER 1 . . . . . . 1
11 3JD-14459-00-00 HOLDER, GUIDE . . . . . . . . . . . 1
12 3JD-14462-00-00 SEAL . . . . . . . . . . . . . . . . . . . . 1
13 4EW-14411-02-00 CASE, AIR CLEANER 1 . . . . . . 1
14 3JD-14477-00-00 PLATE . . . . . . . . . . . . . . . . . . . 1
15 95601-05100-00 NUT, U . . . . . . . . . . . . . . . . . . . 5
16 4EW-14451-00-00 ELEMENT, AIR CLEANER . . . . 1
17 3JD-14458-00-00 GUIDE . . . . . . . . . . . . . . . . . . . 1
18 90209-06096-00 WASHER . . . . . . . . . . . . . . . . . 1
19 90122-06035-00 BOLT, WING . . . . . . . . . . . . . . 1
20 90201-06571-00 WASHER, PLATE . . . . . . . . . . . 2
21 90105-06553-00 BOLT, WASHER BASED . . . . . 2
INTAKE
Ref. Part
No. Number Description Qty Remarks
A8
YZ125F1

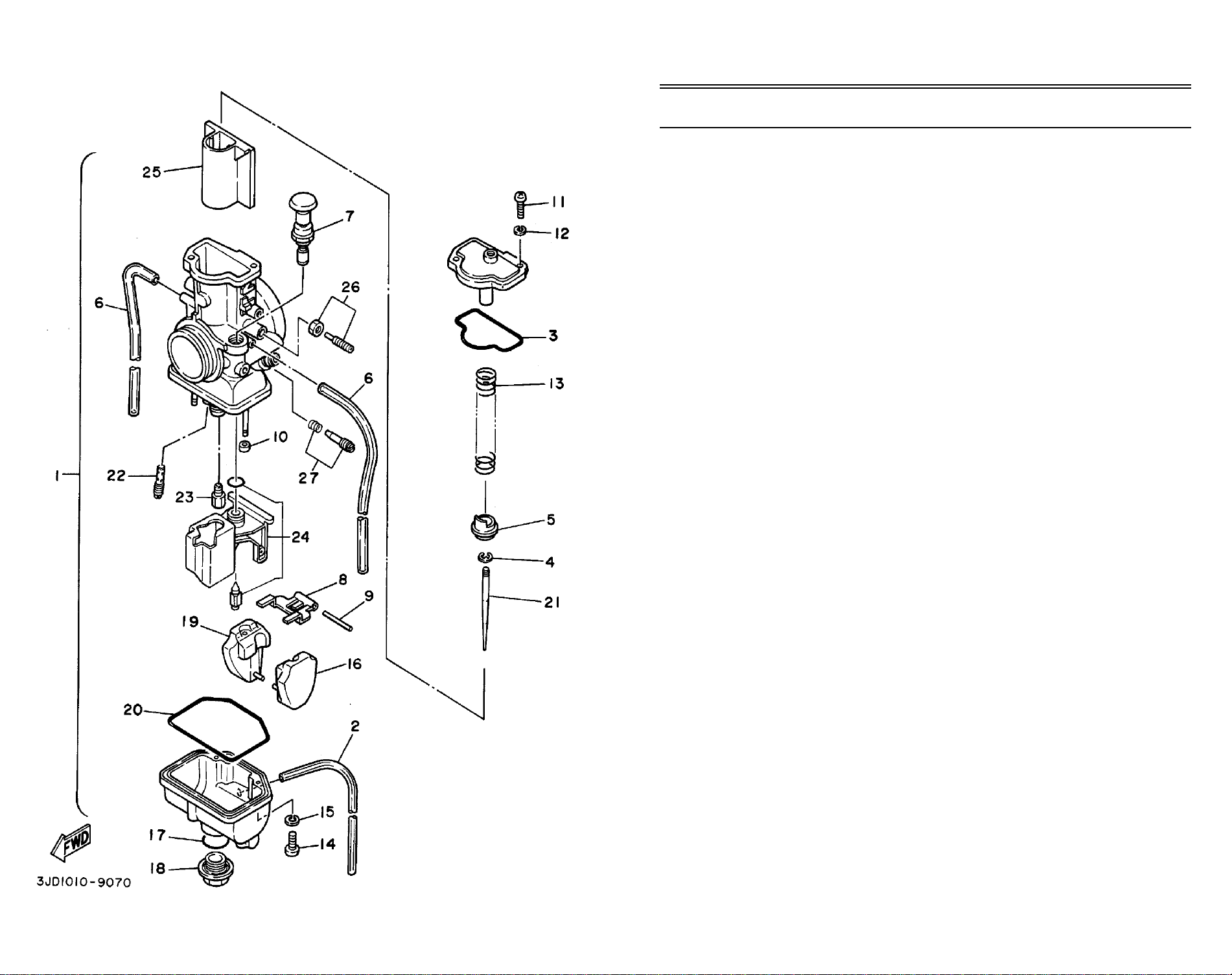

1 4JY-14101-00-00 CARBURETOR ASSEMBLY 1 . 1 UR
2 3X3-14197-00-00 . PIPE . . . . . . . . . . . . . . . . . . . 1
3 3JD-14147-00-00 . O-RING . . . . . . . . . . . . . . . . . 1
4 256-14919-00-00 . CLIP . . . . . . . . . . . . . . . . . . . 1
5 3JD-14194-00-00 . RING . . . . . . . . . . . . . . . . . . . 1
6 2HH-14197-00-00 . PIPE . . . . . . . . . . . . . . . . . . . 2
7 3JE-14171-00-00 . PLUNGER, STARTER . . . . . . 1
8 363-14187-00-00 . ARM, FLOAT . . . . . . . . . . . . . 1
9 353-14186-00-00 . PIN, FLOAT . . . . . . . . . . . . . . 1
10 214-14118-00-00 . CAP . . . . . . . . . . . . . . . . . . . . 2
11 98517-04012-00 . SCREW, PAN HEAD . . . . . . . 2
12 92990-04100-00 . WASHER, SPRING . . . . . . . . . 2
13 3JD-14131-00-00 . SPRING, THROTTLE VALVE . 1
14 98580-03010-00 . SCREW, PAN HEAD
(98502-03010) . . . . . . . . . . . . 1
15 92990-03100-00 . WASHER, SPRING
(92901-03100) . . . . . . . . . . . . 1
16 3XV-14185-10-00 . FLOAT . . . . . . . . . . . . . . . . . . 1
17 3JE-14561-00-00 . O-RING . . . . . . . . . . . . . . . . . 1
18 4DB-14115-00-00 . PLUG, SCREW . . . . . . . . . . . . 1
19 3XV-14185-00-00 . FLOAT . . . . . . . . . . . . . . . . . . 1
20 3JE-14147-00-00 . O-RING . . . . . . . . . . . . . . . . . 1
21 3JD-14116-G0-00 . NEEDLE (J8-6EJ35-59) . . . . . 1 STD
3JD-14116-G1-00 . NEEDLE (J8-6EJ35-57) . . . . . 1 AP
3JD-14116-G2-00 . NEEDLE (J8-6EJ35-58) . . . . . 1 AP
3JD-14116-G3-00 . NEEDLE (J8-6EJ35-60) . . . . . 1 AP
3JD-14116-G4-00 . NEEDLE (J8-6EJ35-61) . . . . . 1 AP
22 3H1-14142-12-00 . JET, PILOT (#12.5) . . . . . . . . . 1 AP
3H1-14142-15-00 . JET, PILOT (#15) . . . . . . . . . . 1 STD
CONTINUED ON NEXT FRAME ➤
CARBURETOR
Ref. Part
No. Number Description Qty Remarks
A9
YZ125F1

22 3H1-14142-17-00 . JET, PILOT (#17.5) . . . . . . . . . 1 AP
3H1-14142-20-00 . JET, PILOT # 0 . . . . . . . . . . . 1 AP
23 137-14143-60-A0 . JET, MAIN (# 300) . . . . . . . . . 1 AP
137-14143-62-A1 . JET, MAIN (#310) . . . . . . . . . . 1 AP
137-14143-64-00 . JET, MAIN (#320) . . . . . . . . . . 1 AP
137-14143-66-A1 . JET MAIN, (# 330) . . . . . . . . . 1 STD
137-14143-68-00 . JET, MAIN (#340) . . . . . . . . . . 1 AP
137-14143-70-00 . JET, MAIN (#350) . . . . . . . . . . 1 AP
137-14143-72-00 . JET, MAIN (#360) . . . . . . . . . . 1 AP
24 3JD-14107-35-00 . NEEDLE VALVE SET . . . . . . . 1
25 3JD-14112-40-00 . VALVE, THROTTLE (C.A 4.0) . 1 AP
3JD-14112-45-00 . VALVE, THROTTLE (C.A 4.5) . 1 AP
3JD-14112-50-00 . VALVE, THROTTLE (C.A 5.0) . 1 STD
3JD-14112-55-00 . VALVE, THROTTLE (C.A 5.5) . 1 AP
3JD-14112-60-00 . VALVE, THROTTLE (C.A 6.0) . 1 AP
26 3JD-14103-00-00 . THROTTLE SCREW SET . . . . 1
27 3JD-14104-00-00 . AIR SCREW SET . . . . . . . . . . 1
CARBURETOR
Ref. Part
No. Number Description Qty Remarks
A10
YZ125F1

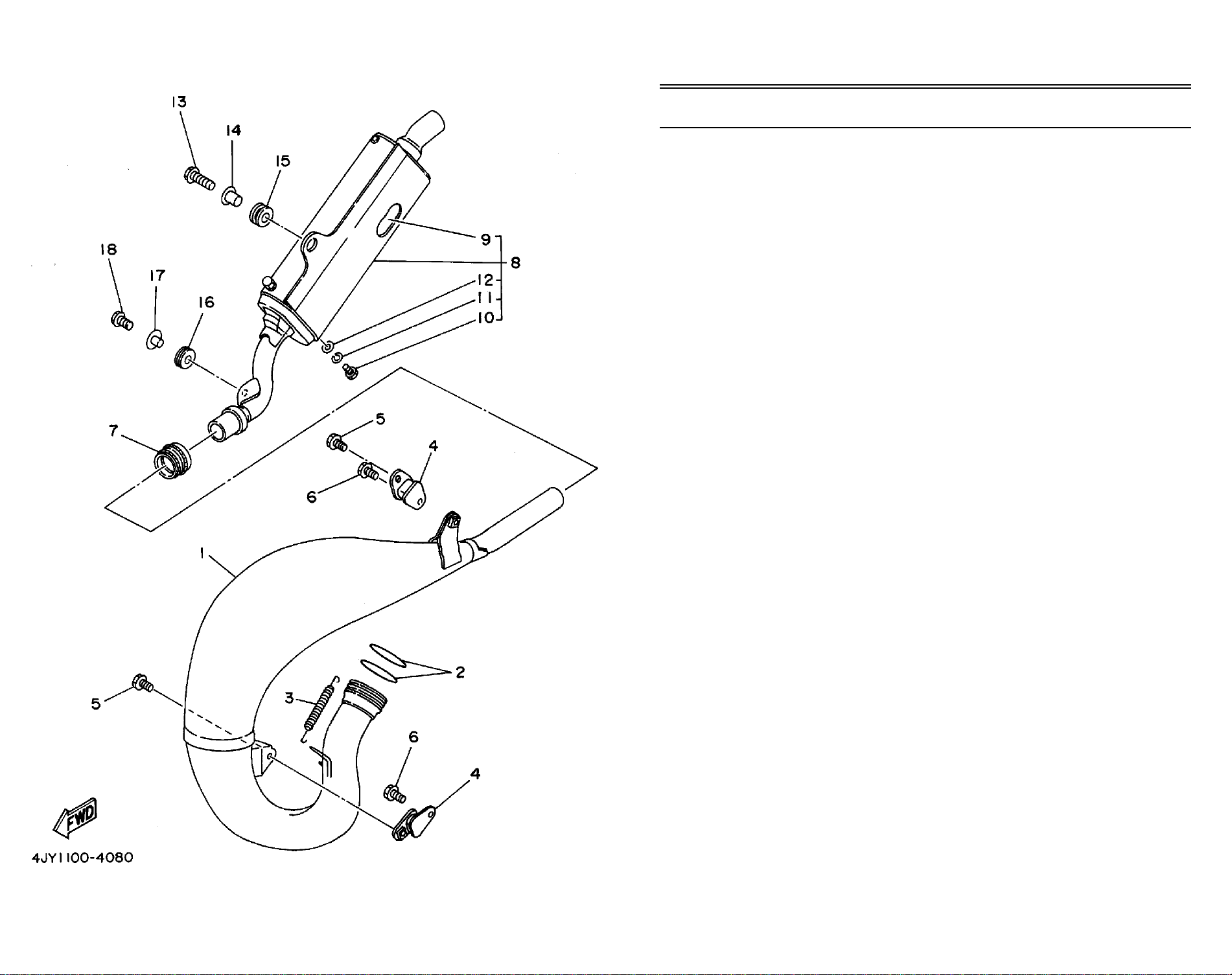

1 4JY-14610-00-00 EXHAUST PIPE ASSEMBLY 1 . 1
2 93210-42728-00 O-RING . . . . . . . . . . . . . . . . . . 2
3 90507-20052-00 SPRING, TENSION . . . . . . . . . . 2
4 565-14771-00-00 STAY, MUFFLER 1 . . . . . . . . . . 2
5 95023-06012-00 BOLT, FLANGE . . . . . . . . . . . . 2
6 90119-06185-00 BOLT, WITH WASHER . . . . . . . 2
7 4JY-14615-00-00 JOINT, EXHAUST 1 . . . . . . . . . 1
8 4JY-14753-00-00 SILENCER, EXHAUST . . . . . . . 1
9 4JY-1469A-00-00 . FIBER . . . . . . . . . . . . . . . . . . 1
10 97011-06010-00 . BOLT . . . . . . . . . . . . . . . . . . . 2
11 92995-06100-00 . WASHER, SPRING . . . . . . . . . 2
12 92901-06600-00 . WASHER . . . . . . . . . . . . . . . . 2
13 95023-06025-00 BOLT, FLANGE . . . . . . . . . . . . 1
14 90387-063G3-00 COLLAR . . . . . . . . . . . . . . . . . 1
15 90480-16561-00 GROMMET . . . . . . . . . . . . . . . . 1
16 90480-10289-00 GROMMET . . . . . . . . . . . . . . . . 1
17 90387-107R6-00 COLLAR . . . . . . . . . . . . . . . . . 1
18 95024-06016-00 BOLT, FLANGE . . . . . . . . . . . . 1
EXHAUST
Ref. Part
No. Number Description Qty Remarks
A11
YZ125F1

1 4JY-15111-00-00 CRANKCASE 1 . . . . . . . . . . . . 1
2 353-13115-01-00 CONNECTOR, SUCTION PIPE . 1
3 90445-08605-00 HOSE . . . . . . . . . . . . . . . . . . . . 1
4 99510-12016-00 PIN, DOWEL . . . . . . . . . . . . . . 2
5 4JY-15121-00-00 CRANKCASE 2 . . . . . . . . . . . . 1
6 90387-160H4-00 COLLAR . . . . . . . . . . . . . . . . . 2
7 90340-12097-00 PLUG, STRAIGHT SCREW . . . . 1
8 90430-12207-00 GASKET . . . . . . . . . . . . . . . . . 1
9 91316-06045-00 BOLT, SOCKET HEAD . . . . . . . 4
10 91316-06055-00 BOLT, SOCKET HEAD . . . . . . . 6
11 91316-06070-00 BOLT, SOCKET HEAD . . . . . . . 2
12 90465-08336-00 CLAMP . . . . . . . . . . . . . . . . . . 1
CRANKCASE
Ref. Part
No. Number Description Qty Remarks
A12
YZ125F1

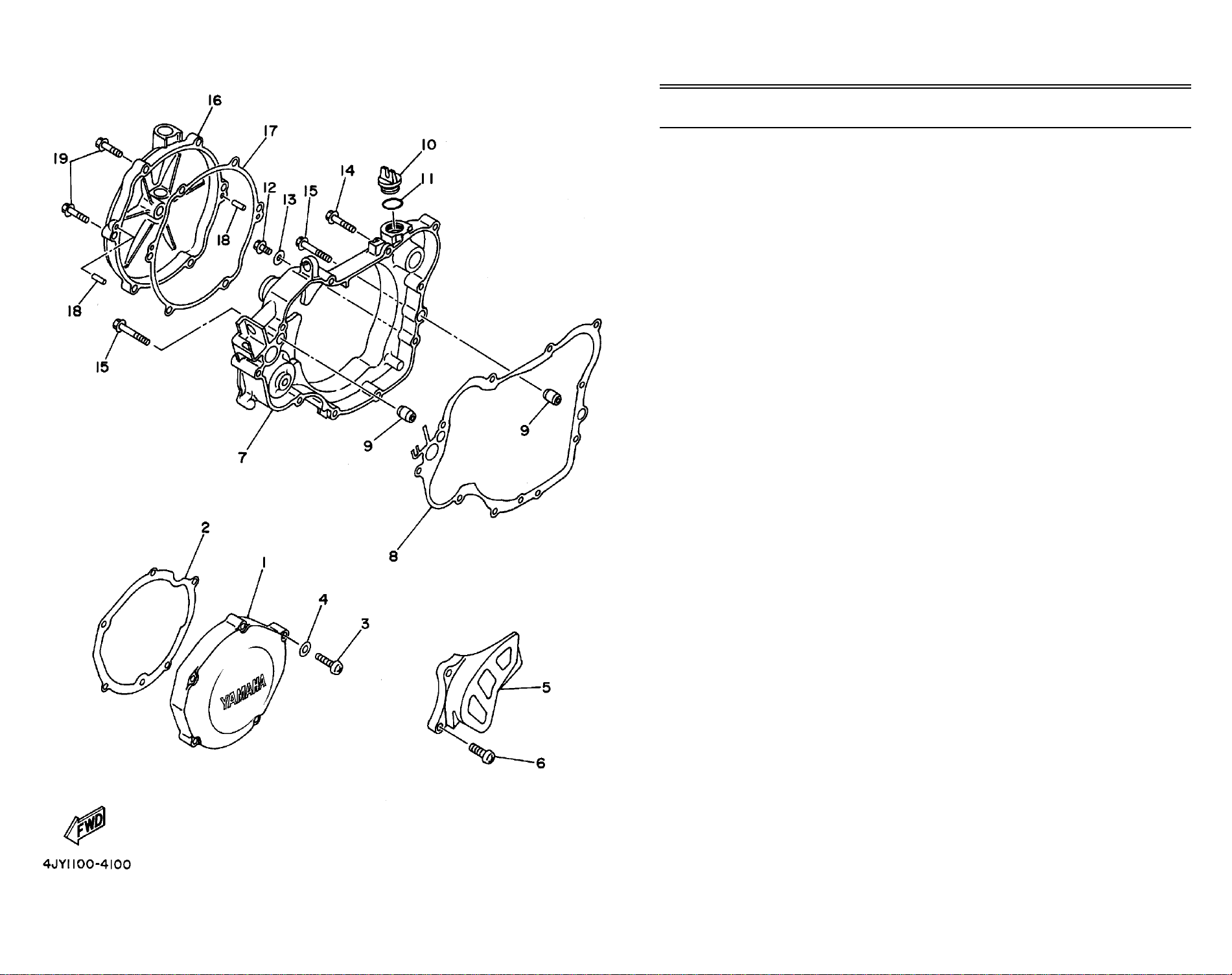

1 4JY-15411-00-00 COVER, CRANKCASE 1 . . . . . 1
2 4JY-15451-00-00 GASKET, CRANKCASE
COVER 1 . . . . . . . . . . . . . . . . . 1
3 98580-06030-00 SCREW PAN HEAD . . . . . . . . . 5
4 92901-06600-00 WASHER . . . . . . . . . . . . . . . . . 5
5 4EX-15421-00-00 COVER, CRANKCASE 2 . . . . . 1
6 98580-06016-00 SCREW, PAN HEAD . . . . . . . . 2
7 4JY-15431-00-00 COVER, CRANKCASE 3 . . . . . 1
8 4JY-15462-00-00 GASKET, CRANKCASE
COVER 3 . . . . . . . . . . . . . . . . . 1
9 99530-10014-00 PIN, DOWEL . . . . . . . . . . . . . . 2
10 1RG-15363-00-00 PLUG, OIL . . . . . . . . . . . . . . . . 1
11 93210-19123-00 O-RING . . . . . . . . . . . . . . . . . . 1
12 95023-06010-00 BOLT, FLANGE . . . . . . . . . . . . 1
13 90430-06014-00 GASKET . . . . . . . . . . . . . . . . . 1
14 95023-06030-00 BOLT, FLANGE (95021-06030) . 6
15 95023-06040-00 BOLT, FLANGE (1YW) . . . . . . . 2
16 4JY-15415-00-00 COVER, GENERATOR . . . . . . . 1
17 4JY-15463-00-00 GASKET, CARBURETOR
COVER 2 . . . . . . . . . . . . . . . . . 1
18 93604-10011-00 PIN, DOWEL . . . . . . . . . . . . . . 2
19 95023-06025-00 BOLT, FLANGE . . . . . . . . . . . . 6
CRANKCASE COVER 1
Ref. Part
No. Number Description Qty Remarks
B1
YZ125F1

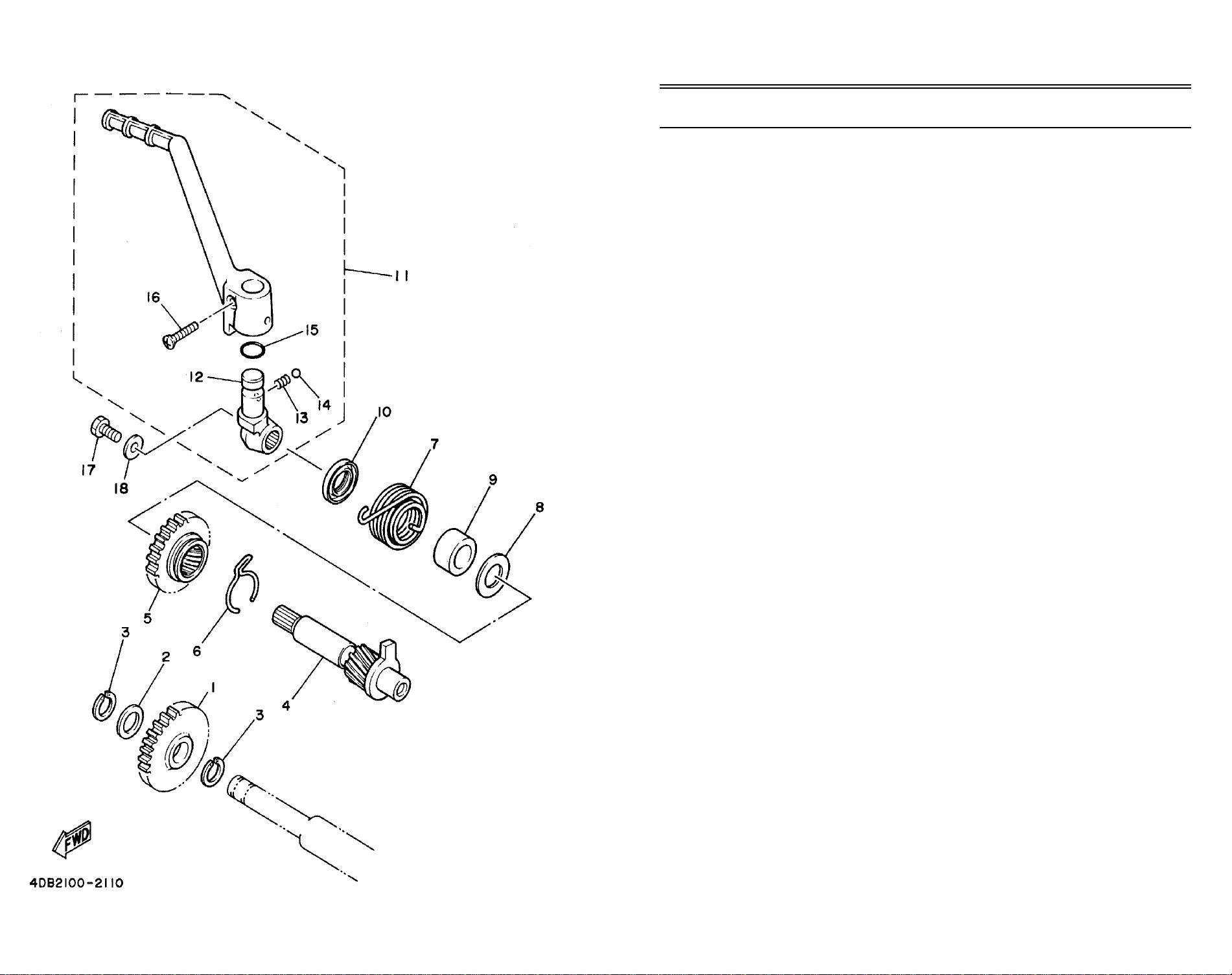

1 1LX-15651-00-00 GEAR, KICK IDLE . . . . . . . . . . 1
2 137-17417-00-05 SHIM 1 (0.5T) . . . . . . . . . . . . . . 1
3 93440-15012-00 CIRCLIP . . . . . . . . . . . . . . . . . . 2
4 1LX-15660-02-00 KICK AXLE ASSEMBLY . . . . . . 1
5 1LX-15641-00-00 GEAR, KICK . . . . . . . . . . . . . . 1
6 90468-26048-00 CLIP . . . . . . . . . . . . . . . . . . . . 1
7 90508-26450-00 SPRING, TORSION . . . . . . . . . 1
8 90201-171G4-00 WASHER, PLATE . . . . . . . . . . . 1
9 90560-17279-00 SPACER . . . . . . . . . . . . . . . . . 1
10 93102-17263-00 OIL SEAL . . . . . . . . . . . . . . . . . 1
11 4DB-15620-03-00 KICK CRANK ASSEMBLY . . . . 1
12 4DB-15621-03-00 . BOSS, KICK CRANK . . . . . . . 1
13 90501-12081-00 . SPRING, COMPRESSION . . . . 1
14 93507-32031-00 . BALL . . . . . . . . . . . . . . . . . . . 1
15 93210-15171-00 . O-RING . . . . . . . . . . . . . . . . . 1
16 90152-06010-00 . SCREW, COUNTERSUNK . . . 1
17 97021-06012-00 BOLT . . . . . . . . . . . . . . . . . . . . 1
18 90201-065F3-00 WASHER, PLATE . . . . . . . . . . . 1
STARTER
Ref. Part
No. Number Description Qty Remarks
B2
YZ125F1

1 3XJ-16111-00-00 GEAR, PRIMARY DRIVE . . . . . 1
2 90387-202T9-00 COLLAR . . . . . . . . . . . . . . . . . 1
3 90105-10445-00 BOLT, WASHER BASED . . . . . 1
4 4JY-16150-00-00 PRIMARY DRIVEN GEAR
COMP. . . . . . . . . . . . . . . . . . . . 1
5 4EX-16371-00-00 BOSS, CLUTCH . . . . . . . . . . . . 1
6 3XJ-16324-00-00 PLATE, CLUTCH 1 . . . . . . . . . . 7
7 3XJ-16321-00-00 PLATE, FRICTION . . . . . . . . . . 8
8 4EX-16351-00-00 PLATE, PRESSURE 1 . . . . . . . 1
9 90501-23598-00 SPRING, COMPRESSION . . . . . 5
10 90159-06016-00 SCREW, WITH WASHER . . . . . 5
11 3SB-16356-00-00 ROD, PUSH 1 . . . . . . . . . . . . . . 1
12 93342-21013-00 BEARING, THRUST . . . . . . . . . 1
13 90201-204K8-00 WASHER, PLATE . . . . . . . . . . . 1
14 3XJ-16181-00-00 SPACER 1 . . . . . . . . . . . . . . . . 1
15 93310-225N0-00 BEARING . . . . . . . . . . . . . . . . . 1
16 3XJ-16164-00-00 PLATE, THRUST 2 . . . . . . . . . . 1
17 90215-16320-00 WASHER, LOCK . . . . . . . . . . . 1
18 90170-16326-00 NUT . . . . . . . . . . . . . . . . . . . . . 1
19 4EX-16382-00-00 AXLE, PUSH LEVER . . . . . . . . 1
20 90109-06418-00 BOLT . . . . . . . . . . . . . . . . . . . . 1
21 90430-06014-00 GASKET . . . . . . . . . . . . . . . . . 1
22 93102-12224-00 OIL SEAL . . . . . . . . . . . . . . . . . 1
23 3JD-16340-00-00 PUSH LEVER ASSEMBLY . . . . 1
24 90201-10119-00 WASHER, PLATE . . . . . . . . . . . 1
25 99009-10400-00 CIRCLIP . . . . . . . . . . . . . . . . . . 1
26 93315-11206-00 BEARING . . . . . . . . . . . . . . . . . 1
CLUTCH
Ref. Part
No. Number Description Qty Remarks
B3
YZ125F1

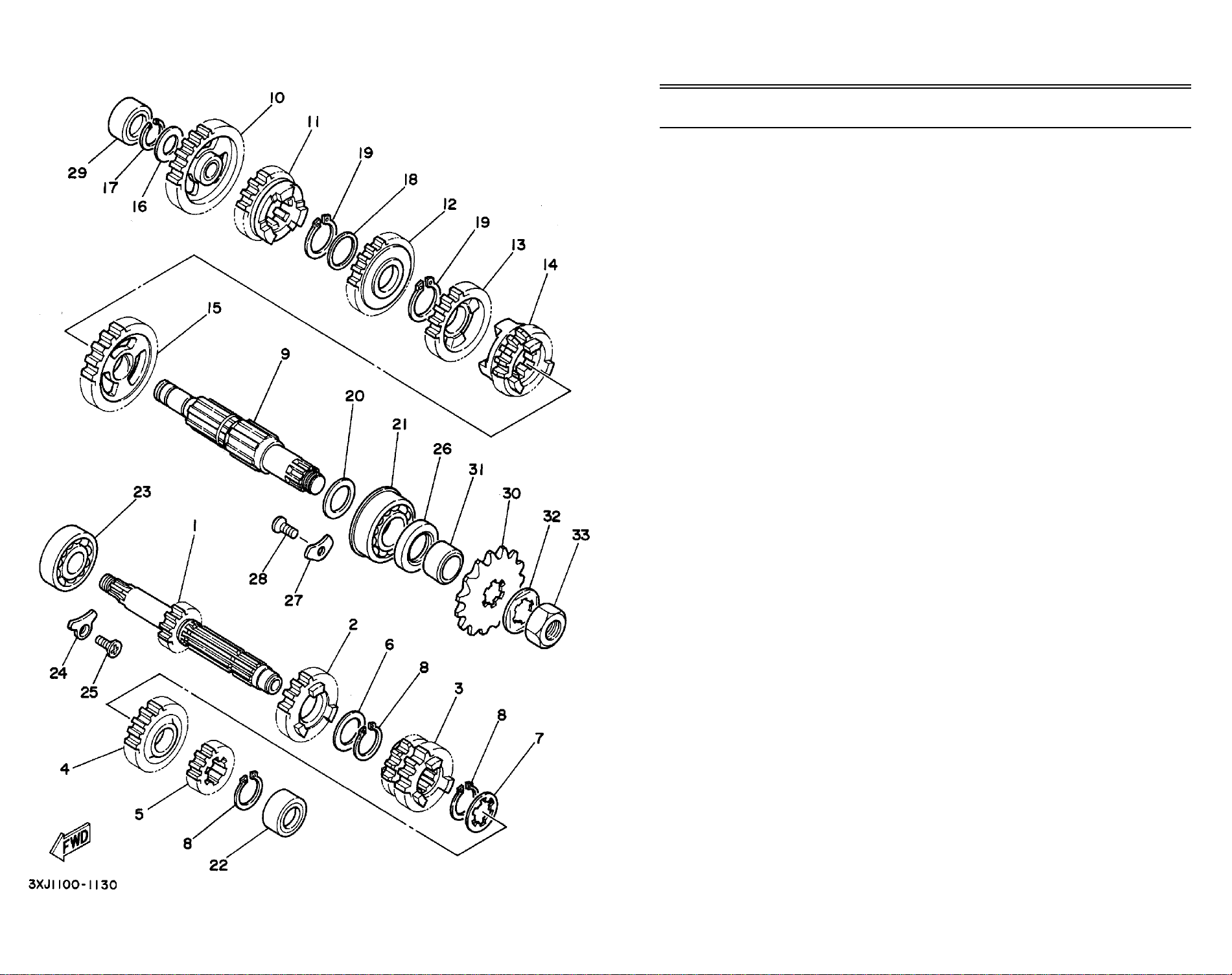

1 3XJ-17411-00-00 AXLE, MAIN . . . . . . . . . . . . . . . 1
2 4EX-17151-00-00 GEAR, 5TH PINION . . . . . . . . . 1
3 4EX-17131-00-00 GEAR, 3RD PINION . . . . . . . . . 1
4 4EX-17161-00-00 GEAR, 6TH PINION . . . . . . . . . 1
5 3SR-17121-00-00 GEAR, 2ND PINION . . . . . . . . . 1
6 90201-22555-00 WASHER, PLATE . . . . . . . . . . . 1
7 90209-18135-00 WASHER . . . . . . . . . . . . . . . . . 1
8 93410-22039-00 CIRCLIP . . . . . . . . . . . . . . . . . . 3
9 3XJ-17421-00-00 AXLE, DRIVE . . . . . . . . . . . . . . 1
10 1LX-17211-01-00 GEAR, 1ST WHEEL . . . . . . . . . 1
11 4EX-17251-00-00 GEAR, 5TH WHEEL . . . . . . . . . 1
12 3SR-17231-00-00 GEAR, 3RD WHEEL . . . . . . . . . 1
13 4EX-17241-00-00 GEAR, 4TH WHEEL . . . . . . . . . 1
14 4EX-17261-00-00 GEAR, 6TH WHEEL . . . . . . . . . 1
15 3XJ-17221-00-00 GEAR, 2ND WHEEL . . . . . . . . . 1
16 90201-15701-00 WASHER, PLATE (1.0T) . . . . . . 1
17 99009-15400-00 CIRCLIP . . . . . . . . . . . . . . . . . . 1
18 90209-18208-00 WASHER . . . . . . . . . . . . . . . . . 1
19 93410-22039-00 CIRCLIP . . . . . . . . . . . . . . . . . . 2
20 90201-206K8-00 WASHER, PLATE . . . . . . . . . . . 1
21 93306-30411-00 BEARING (B6304) . . . . . . . . . . 1
22 93311-41530-00 BEARING . . . . . . . . . . . . . . . . . 1
23 93306-20469-00 BEARING . . . . . . . . . . . . . . . . . 1
24 1LX-15383-00-00 PLATE, BEARING COVER . . . . 1
25 98701-06012-00 SCREW, FLAT HEAD
(92701-06012) . . . . . . . . . . . . . 1
26 93102-26042-00 OIL SEAL . . . . . . . . . . . . . . . . . 1
27 3XJ-15383-00-00 PLATE, BEARING COVER . . . . 2
28 98701-06012-00 SCREW, FLAT HEAD
(92701-06012) . . . . . . . . . . . . . 2
CONTINUED ON NEXT FRAME ➤
TRANSMISSION
Ref. Part
No. Number Description Qty Remarks
B4
YZ125F1

29 93311-31567-00 BEARING, CYLINDRICAL . . . . 1
30 9383A-12017-00 SPROCKET, DRIVE 12T
(2HG1746120) . . . . . . . . . . . . . 1 AP
9383A-13031-00 SPROCKET, DRIVE 13T
(2HG1746130) . . . . . . . . . . . . . 1 STD
9383A-14054-00 SPROCKET, DRIVE 14T
(2HG1746140) . . . . . . . . . . . . . 1 AP
31 90387-202A0-00 COLLAR . . . . . . . . . . . . . . . . . 1
32 90215-20261-00 WASHER, LOCK . . . . . . . . . . . 1
33 90179-16226-00 NUT . . . . . . . . . . . . . . . . . . . . . 1
TRANSMISSION
Ref. Part
No. Number Description Qty Remarks
B5
YZ125F1

1 4JY-18540-00-00 SHIFT CAM ASSEMBLY . . . . . . 1
2 4JY-18140-00-00 STOPPER LEVER ASSEMBLY . 1
3 90508-26691-00 SPRING, TORSION . . . . . . . . . 1
4 90387-063F7-00 COLLAR . . . . . . . . . . . . . . . . . 1
5 90159-06078-00 SCREW, WITH WASHER . . . . . 1
6 3JD-18511-01-00 FORK, SHIFT 1 . . . . . . . . . . . . 1
7 2VN-18512-01-00 FORK, SHIFT 2 . . . . . . . . . . . . 1
8 1LX-18513-01-00 FORK, SHIFT 3 . . . . . . . . . . . . 1
9 4EX-18531-00-00 BAR, SHIFT FORK GUIDE 1 . . . 1
10 4EX-18535-00-00 BAR, SHIFT FORK GUIDE 2 . . . 1
SHIFT CAM - SHIFT FORK
Ref. Part
No. Number Description Qty Remarks
B6
YZ125F1

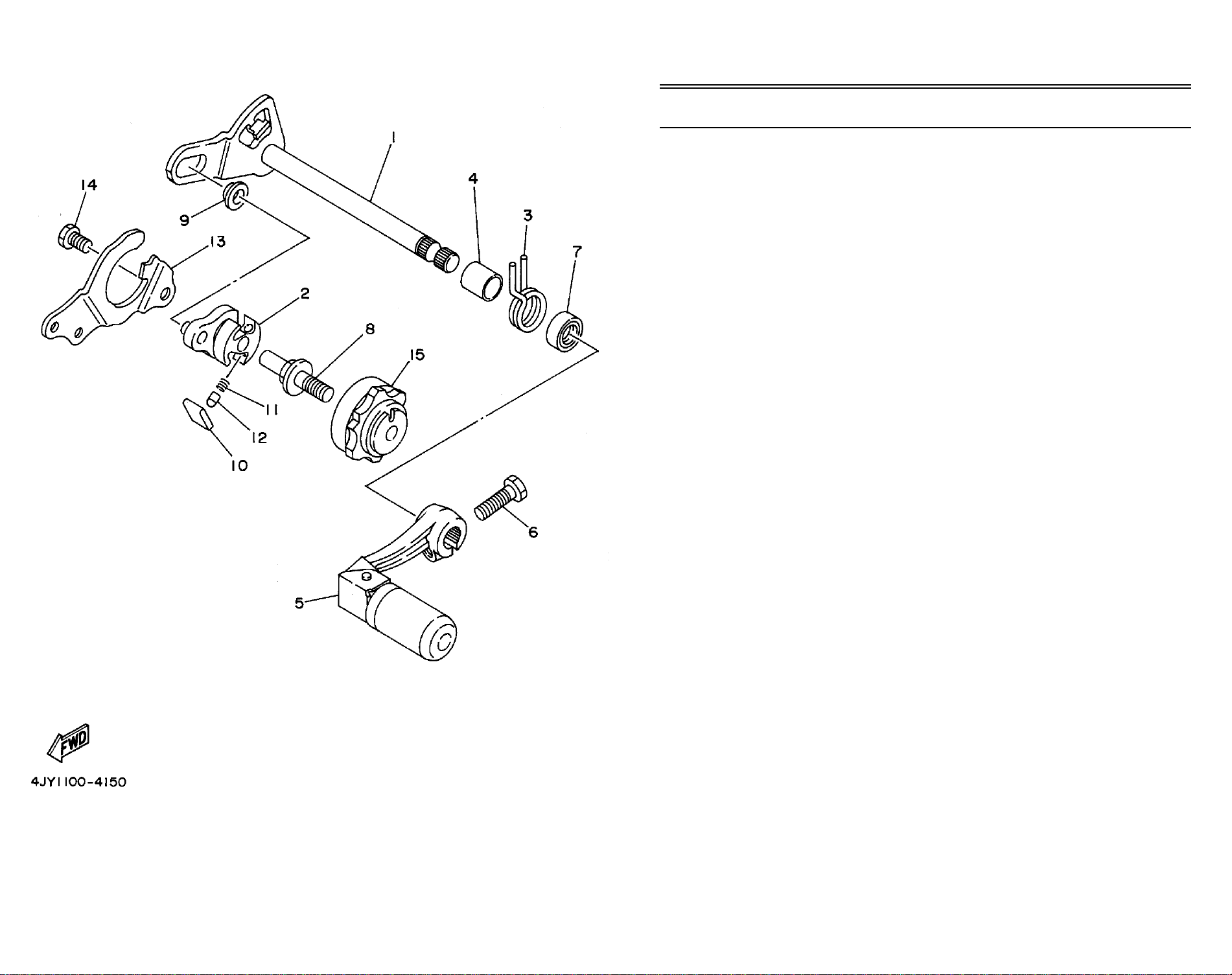

1 4JY-18101-00-00 SHIFT SHAFT ASSEMBLY . . . . 1
2 3XJ-18122-00-00 LEVER, SHIFT 2 . . . . . . . . . . . . 1
3 90508-295A7-00 SPRING, TORSION . . . . . . . . . 1
4 90560-12280-00 SPACER . . . . . . . . . . . . . . . . . 1
5 1LX-18110-02-00 SHIFT PEDAL ASSEMBLY . . . . 1
6 97011-06025-00 BOLT (97001-06025) . . . . . . . . 1
7 93109-12012-00 OIL SEAL . . . . . . . . . . . . . . . . . 1
8 3XJ-18173-00-00 PIN, SHIFT . . . . . . . . . . . . . . . . 1
9 3XJ-18178-00-00 ROLLER, SHIFT LEVER . . . . . . 1
10 3XJ-18182-00-00 PAWL, SHIFTER . . . . . . . . . . . 2
11 90501-052G5-00 SPRING, COMPRESSION . . . . . 2
12 3XJ-18184-00-00 PIN, PAWL . . . . . . . . . . . . . . . . 2
13 4JY-18172-00-00 GUIDE, SHIFT . . . . . . . . . . . . . 1
14 90101-06664-00 BOLT . . . . . . . . . . . . . . . . . . . . 2
15 4EW-18185-00-00 SEGMENT . . . . . . . . . . . . . . . . 1
SHIFT SHAFT
Ref. Part
No. Number Description Qty Remarks
B7
YZ125F1

1 4JY-21101-00-P0 FRONT FRAME COMP. . . . . . . 1 DEEP VIOLET SOLID 1
2 4JY-21190-00-P0 REAR FRAME COMP. . . . . . . . 1 DEEP VIOLET SOLID 1
3 90105-08120-00 BOLT, WASHER BASED . . . . . 1
4 90106-08051-00 BOLT . . . . . . . . . . . . . . . . . . . . 2
5 90201-080E2-00 WASHER, PLATE . . . . . . . . . . . 2
6 95024-08040-00 BOLT, FLANGE . . . . . . . . . . . . 1
7 4EW-22178-00-00 TENSIONER . . . . . . . . . . . . . . . 1
8 93300-60804-00 BEARING . . . . . . . . . . . . . . . . . 2
9 90387-086N4-00 COLLAR . . . . . . . . . . . . . . . . . 2
10 95021-08065-00 BOLT, FLANGE . . . . . . . . . . . . 1
11 95311-08700-00 NUT . . . . . . . . . . . . . . . . . . . . . 1
12 90201-086P8-00 WASHER, PLATE . . . . . . . . . . . 4
13 3JD-22178-10-00 TENSIONER . . . . . . . . . . . . . . . 1
14 95811-08090-00 BOLT, FLANGE (95822-08090) . 1
15 95611-08100-00 NUT, U . . . . . . . . . . . . . . . . . . . 1
16 90201-08326-00 WASHER, PLATE . . . . . . . . . . . 1
17 90105-10733-00 BOLT, WASHER BASED . . . . . 1
18 95611-10100-00 NUT, U . . . . . . . . . . . . . . . . . . . 1
19 90201-101J1-00 WASHER, PLATE . . . . . . . . . . . 1
20 4JY-21425-00-00 BRACKET, REAR UPPER 1 . . . 2
21 95811-08050-00 BOLT, FLANGE (95812-08050) . 3
22 90201-08730-00 WASHER, PLATE . . . . . . . . . . . 2
23 95617-08200-00 NUT, SELF-LOCKING
(95607-08200-00) . . . . . . . . . . . 3
24 12R-82591-00-00 BAND . . . . . . . . . . . . . . . . . . . 1
25 4JY-21274-00-00 BRACKET, C.D.I. UNIT . . . . . . . 1
26 90105-06452-00 BOLT, WASHER BASED . . . . . 1
27 90201-067J4-00 WASHER, PLATE . . . . . . . . . . . 1
28 56A-28166-00-00 WRENCH, HEXAGON . . . . . . . . 1
FRAME
Ref. Part
No. Number Description Qty Remarks
B8
YZ125F1
