EAU04575 INTRODUCTION
Welcome to the Yamaha world of motorcycling!
As the owner of the YZF-R6, you are benefiting from Yamaha’s vast experience and
newest technology regarding the design and manufacture of high-quality products,
which have earned Yamaha a reputation for dependability.
Please take the time to read this manual thoroughly, so as to enjoy all advantages of
your YZF-R6. The owner’s manual does not only instruct you in how to operate,
inspect and maintain your motorcycle, but also in how to safeguard yourself and oth-
ers from trouble and injury.
In addition, the many tips given in this manual will help keep your motorcycle in the
best possible condition. If you have any further questions, do not hesitate to contact
your Yamaha dealer.
The Yamaha team wishes you many safe and pleasant rides. So, remember to put
safety first!
U5SLE0.book Page 1 Wednesday, September 11, 2002 11:46 AM

EAU00005
IMPORTANT MANUAL INFORMATION
Particularly important information is distinguished in this manual by the following notations:
The Safety Alert Symbol means ATTENTION! BECOME ALERT! YOUR SAFETY IS
INVOLVED!
WARNING Failure to follow WARNING instructions could result in severe injury or death to the
motorcycle operator, a bystander, or a person inspecting or repairing the motorcycle.
CAUTION: A CAUTION indicates special precautions that must be taken to avoid damage to the
motorcycle.
NOTE: A NOTE provides key information to make procedures easier or clearer.
NOTE:
@
●This manual should be considered a permanent part of this motorcycle and should remain
with it even if the motorcycle is subsequently sold.
●Yamaha continually seeks advancements in product design and quality. Therefore, while
this manual contains the most current product information available at the time of printing,
there may be minor discrepancies between your motorcycle and this manual. If you have
any questions concerning this manual, please consult your Yamaha dealer.
@
U5SLE0.book Page 1 Wednesday, September 11, 2002 11:46 AM

IMPORTANT MANUAL INFORMATION
EW000002
WARNING
@
PLEASE READ THIS MANUAL CAREFULLY AND COMPLETELY BEFORE OPERATING
THIS MOTORCYCLE.
@
U5SLE0.book Page 2 Wednesday, September 11, 2002 11:46 AM

IMPORTANT MANUAL INFORMATION
EAU04229
YZF-R6
OWNER’S MANUAL
©2002 by Yamaha Motor Co., Ltd.
2nd edition, October 2002
All rights reserved.
Any reprinting or unauthorized use
without the written permission of
Yamaha Motor Co., Ltd.
is expressly prohibited.
Printed in Japan.
E_5sl_Info0.fm Page 3 Thursday, October 17, 2002 1:13 PM

TABLE OF CONTENTS
1 GIVE SAFETY THE RIGHT OF WAY 1
2 DESCRIPTION 2
3 INSTRUMENT AND CONTROL FUNCTIONS 3
4 PRE-OPERATION CHECKS 4
5 OPERATION AND IMPORTANT RIDING POINTS 5
6 PERIODIC MAINTENANCE AND MINOR REPAIR 6
7 MOTORCYCLE CARE AND STORAGE 7
8 SPECIFICATIONS 8
9 CONSUMER INFORMATION 9
INDEX
EAU00009
U5SLE0.book Page 1 Wednesday, September 11, 2002 11:46 AM

U5SLE0.book Page 2 Wednesday, September 11, 2002 11:46 AM

GIVE SAFETY THE RIGHT OF WAY
1
GIVE SAFETY THE RIGHT OF WAY ................................................ 1-1
U5SLE0.book Page 1 Wednesday, September 11, 2002 11:46 AM

1
1-1
1-
GIVE SAFETY THE RIGHT OF WAY EAU00021
Motorcycles are fascinating vehicles, which can give you an unsurpassed feeling of power and
freedom. However, they also impose certain limits, which you must accept; even the best motorcycle
does not ignore the laws of physics.
Regular care and maintenance are essential for preserving value and operating condition of your
motorcycle. Moreover, what is true for the motorcycle is also true for the rider: good performance
depends on being in good shape. Riding under the influence of medication, drugs and alcohol is, of
course, out of the question. Motorcycle riders—more than car drivers—must always be at their mental
and physical best. Under the influence of even small amounts of alcohol, there is a tendency to take
dangerous risks.
Protective clothing is as essential for the motorcycle rider as seat belts are for car drivers and
passengers. Always wear a complete motorcycle suit (whether made of leather or tear-resistant
synthetic materials with protectors), sturdy boots, motorcycle gloves and a properly fitting helmet.
Optimum protective wear, however, should not encourage carelessness. Although full-coverage
helmets and suits, in particular, create an illusion of total safety and protection, motorcyclists will
always be vulnerable. Riders who lack critical self-control run the risk of going too fast and are apt to
take chances. This is even more dangerous in wet weather. The good motorcyclist rides safely,
predictably and defensively—avoiding all dangers, including those caused by others.
Enjoy your ride!
U5SLE0.book Page 1 Wednesday, September 11, 2002 11:46 AM

DESCRIPTION
2
Left view ............................................................................................. 2-1
Right view........................................................................................... 2-2
Controls and instruments ................................................................... 2-3
U5SLE0.book Page 1 Wednesday, September 11, 2002 11:46 AM

2-1
2
EAU00026
2-
DESCRIPTION
Left view
1. Front fork rebound damping force
adjusting screw (page 3-24)
2. Front fork spring preload adjusting bolt (page 3-23)
3. Fuse box 2 (page 6-40)
4. Coolant reservoir (page 6-14)
5. Shock absorber assembly spring
preload adjusting ring (page 3-25)
6. Shock absorber assembly compression
damping force adjusting screw (page 3-26)
7. Owner’s tool kit (page 6-1)
8. Shock absorber assembly rebound
damping force adjusting screw (page 3-26)
9. Shift pedal (page 3-15)
10. Engine oil drain bolt (page 6-11)
11. Engine oil filter cartridge (page 6-11)
12. Front fork compression damping force
adjusting screw (page 3-24)
U5SLE0.book Page 1 Wednesday, September 11, 2002 11:46 AM

DESCRIPTION
2-2
2

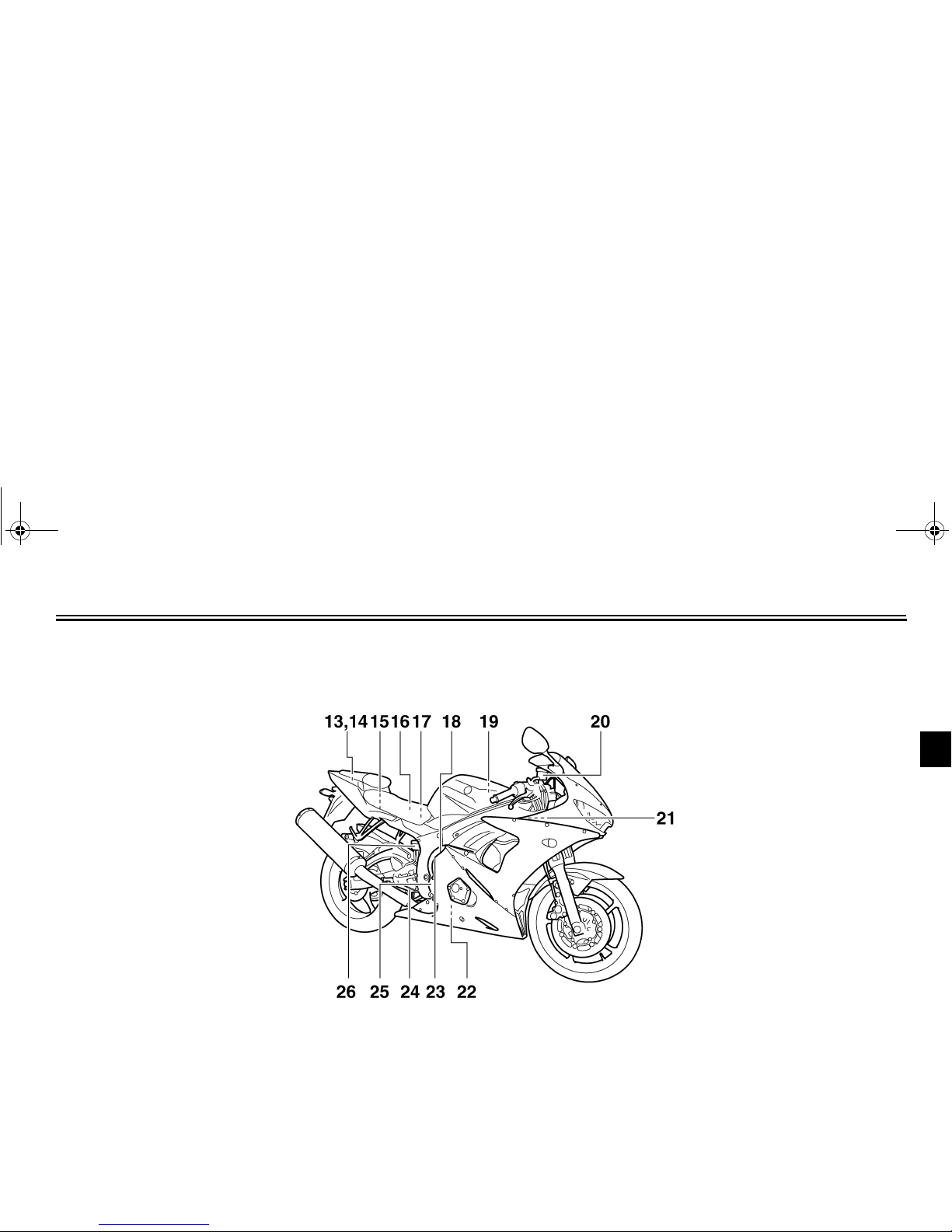

Right view
13. Luggage strap holder (page 3-27)
14. Helmet holder (page 3-21)
15. Fuse box 1 (page 6-40)
16. Main fuse (page 6-40)
17. Battery (page 6-38)
18. Throttle stop screw (page 6-23)
19. Air filter element (page 6-19)
20. Front brake fluid reservoir (page 6-31)
21. Radiator cap (page 6-16)
22. Coolant drain bolt (page 6-16)
23. Engine oil filler cap (page 6-10)
24. Brake pedal (page 3-16)
25. Engine oil dipstick (page 6-10)
26. Rear brake fluid reservoir (page 6-31)
U5SLE0.book Page 2 Wednesday, September 11, 2002 11:46 AM

DESCRIPTION
2-3
2

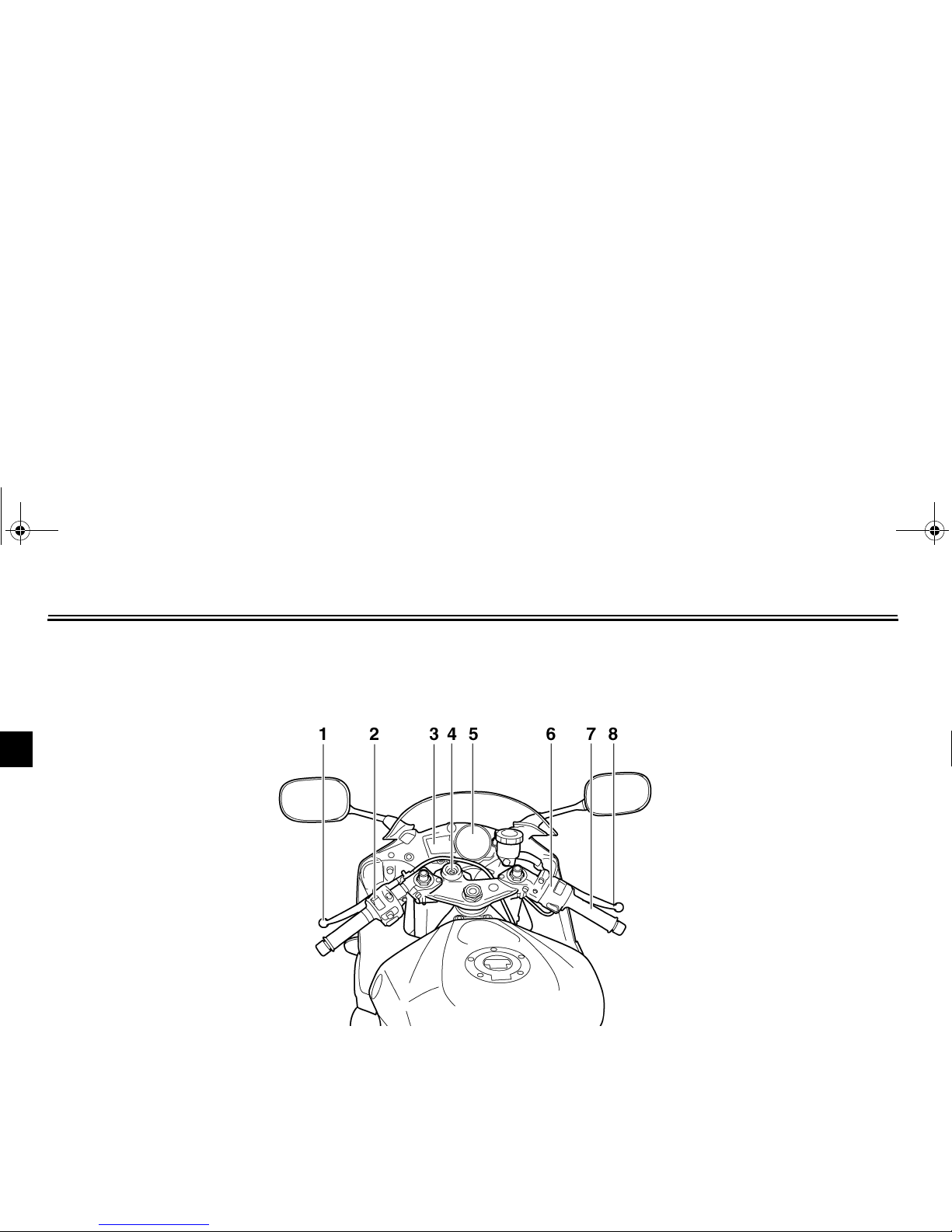

Controls and instruments
1. Clutch lever (page 3-15)
2. Left handlebar switches (page 3-13)
3. Multi-function display (page 3-8)
4. Main switch/steering lock (page 3-2)
5. Tachometer (page 3-13)
6. Right handlebar switches (page 3-14)
7. Throttle grip (page 6-23)
8. Brake lever (page 3-16)
U5SLE0.book Page 3 Wednesday, September 11, 2002 11:46 AM

3
INSTRUMENT AND CONTROL FUNCTIONS
Immobilizer system ..............................................3-1
Main switch/steering lock .....................................3-2
Indicator and warning lights ................................3-4
Multi-function display ...........................................3-8
Tachometer ........................................................3-13
Anti-theft alarm (optional) ..................................3-13
Handlebar switches ...........................................3-13
Clutch lever ........................................................3-15
Shift pedal ..........................................................3-15
Brake lever .........................................................3-16
Brake pedal ........................................................3-16
Fuel tank cap .....................................................3-17
Fuel ................................................................... 3-17
Fuel tank breather hose .................................... 3-18
Catalytic converter ............................................ 3-19
Seats ................................................................. 3-19
Helmet holders .................................................. 3-21
Storage compartment ....................................... 3-21
Adjusting the front fork ...................................... 3-23
Adjusting the shock absorber assembly ............ 3-25
Luggage strap holders ...................................... 3-27
Sidestand .......................................................... 3-27
Ignition circuit cut-off system ............................. 3-28
U5SLE0.book Page 1 Wednesday, September 11, 2002 11:46 AM

3-1
3
EAU00027
3-
INSTRUMENT AND CONTROL FUNCTIONS
EAU04983
Immobilizer system
This vehicle is equipped with an immo-
bilizer system to help prevent theft by
re-registering codes in the standard
keys. This system consists of the fol-
lowing.
●a code re-registering key (with a
red bow)
●two standard keys (with a black
bow) that can be re-registered with
new codes
●a transponder (which is installed in
the code re-registering key)
●an immobilizer unit
●the ECU
●an immobilizer system indicator
light (See page 3-6 for details.)
The key with the red bow is used to
register codes in each standard key.
Since re-registering is a difficult pro-
cess, take the vehicle along with all
three keys to a Yamaha dealer to have
them re-registered. Do not use the key
with the red bow for driving. It should
only be used for re-registering the stan-
dard keys. Always use a standard key
for driving.
ECA00151
CAUTION:
_
●DO NOT LOSE THE CODE RE-
REGISTERING KEY! CONTACT
YOUR DEALER IMMEDIATELY
IF IT IS LOST! If the code re-reg-
istering key is lost, registering
new codes in the standard keys
is impossible. The standard
keys can still be used to start
the vehicle, however if code re-
registering is required (i.e., if a
new standard key is made or all
keys are lost) the entire immobi-
lizer system must be replaced.
Therefore, it is highly recom-
mended to use either standard
key and keep the code re-regis-
tering key in a safe place.
●Do not submerse any key in wa-
ter.
●Do not expose any key to ex-
cessively high temperatures.

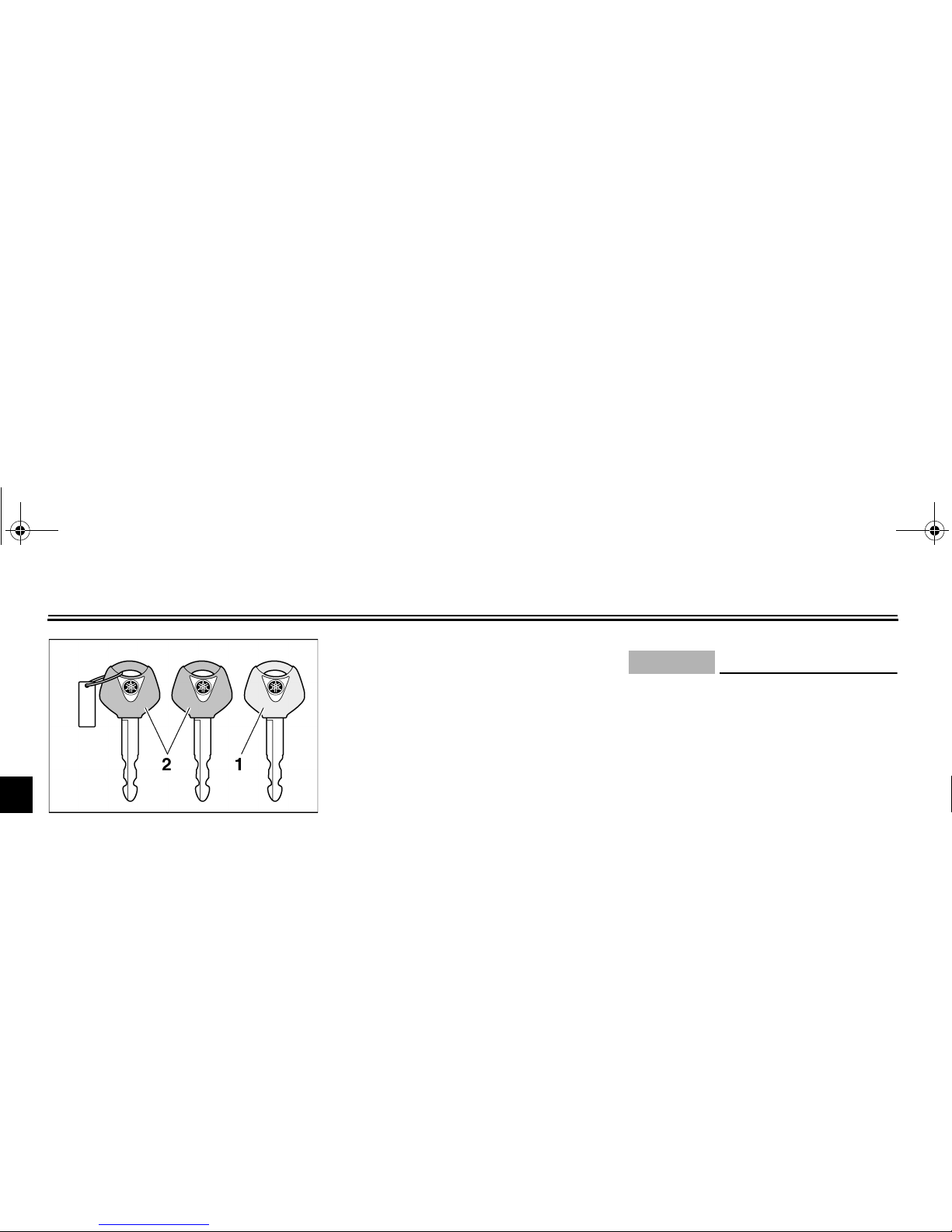

1. Code re-registering key (red bow)
2. Standard key (×2, black bow)
U5SLE0.book Page 1 Wednesday, September 11, 2002 11:46 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-2
3
●Do not place any key close to
magnets (this includes, but not
limited to, products such as
speakers, etc.).
●Do not place heavy items on
any key.
●Do not grind any key or alter its
shape.
●Do not disassemble the plastic
part of any key.
●Do not put two keys of any im-
mobilizer system on the same
key ring.
●Keep the standard keys as well
as keys of other immobilizer
systems away from this vehi-
cle’s code re-registering key.
●Keep other immobilizer system
keys away from the main switch
as they may cause signal inter-
ference.
_
EAU04984
Main switch/steering lock
The main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering.
NOTE:
_
Be sure to use the standard key (black
bow) for regular use of the vehicle. To
minimize the risk of losing the code re-
registering key (red bow), keep it in a
safe place and only use it for code re-
registering.
_
EAU04562
ON
All electrical circuits are supplied with
power, and the meter lighting, taillight,
license plate light and auxiliary lights
come on, and the engine can be start-
ed. The key cannot be removed.
NOTE:
_
The headlights come on automatically
when the engine is started and stay on
until the key is turned to “OFF”, even if
the engine stalls.
_
EAU00038
OFF
All electrical systems are off. The key
can be removed.
U5SLE0.book Page 2 Wednesday, September 11, 2002 11:46 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-3
3
EAU00040
LOCK
The steering is locked, and all electrical
systems are off. The key can be
removed.

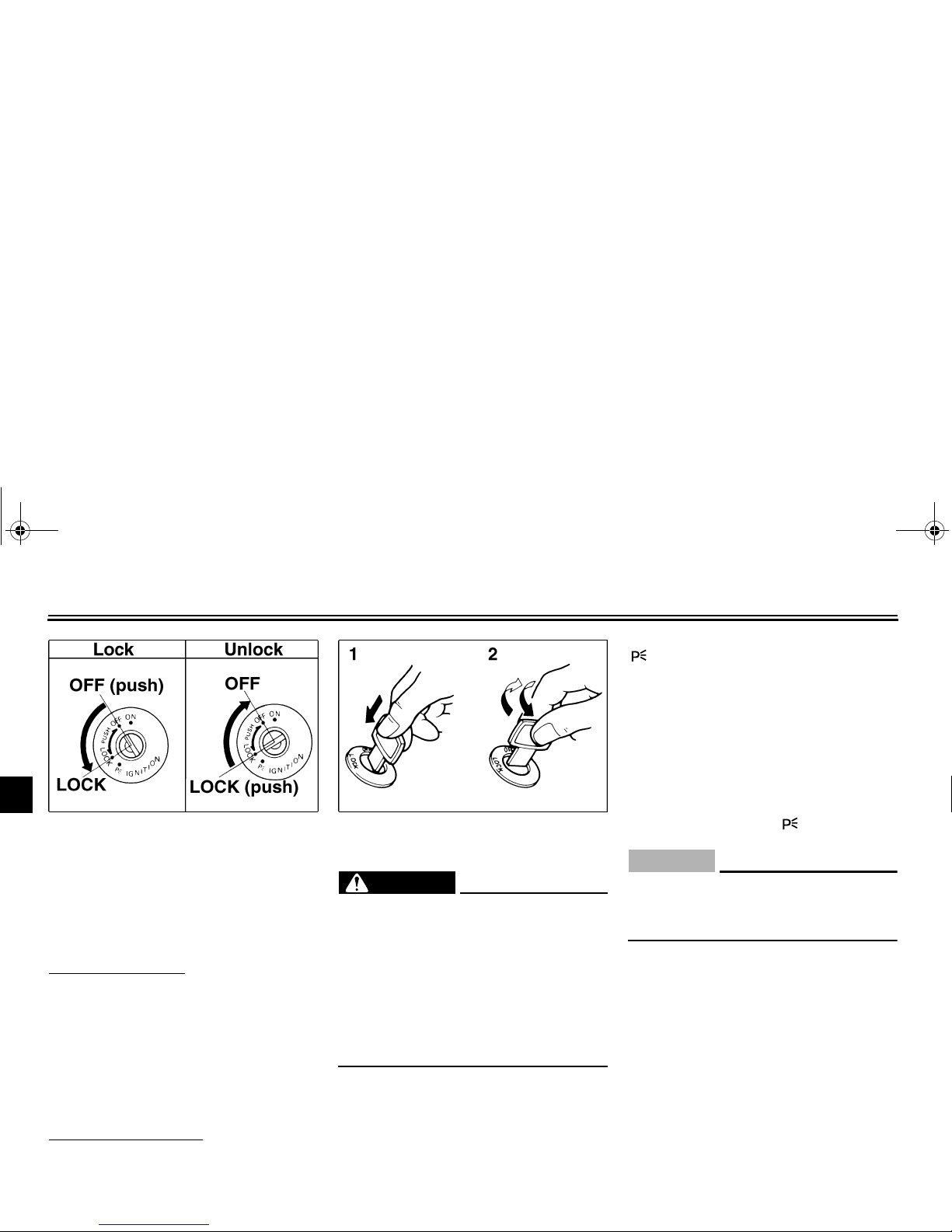

To lock the steering
1. Turn the handlebars all the way to
the left.
2. Push the key in from the “OFF”po-
sition, and then turn it to “LOCK”
while still pushing it.
3. Remove the key.
To unlock the steering
Push the key in, and then turn it to
“OFF”while still pushing it.
EW000016
WARNING
@
Never turn the key to “OFF”or
“LOCK”while the motorcycle is
moving, otherwise the electrical
systems will be switched off, which
may result in loss of control or an
accident. Make sure that the motor-
cycle is stopped before turning the
key to “OFF”or “LOCK”.
@
EAU04920
(Parking)
The steering is locked, and the taillight,
license plate light and auxiliary lights
are on. The hazard light and turn signal
lights can be turned on, but all other
electrical systems are off. The key can
be removed.
The steering must be locked before the
key can be turned to “”.
ECA00043
CAUTION:
_
Do not use the parking position for
an extended length of time, other-
wise the battery may discharge.
_
1. Push.
2. Turn.
U5SLE0.book Page 3 Wednesday, September 11, 2002 11:46 AM
