Yamaha Magicstomp UB99 User manual

UB99
1
SERVICE MANUAL
GA 011703 Copyright (c) Yamaha Corporation. All rights reserved. PDF-K244 ’03.11
HAMAMATSU, JAPAN
20031201-28000
CONTENTS
SPECIFICATIONS .................................................. 3
PANEL LAYOUT .................................... 4
BLOCK DIAGRAM ........................... 5
CIRCUIT BOARD LAYOUT ................. 6
DISASSEMBLY PROCEDURE .............................. 6
LSI PIN DESCRIPTION ................................ 8
IC BLOCK DIAGRAM ................................... 11
CIRCUIT BOARD .......................................... 12
INSPECTIONS / FACTORY SET
............................................ 14/18
BACKUP THE USER PATCH DATA
......................................... 22
ERROR MESSAGES ............................. 23
PARTS LIST
CIRCUIT DIAGRAM
GUITAR EFFECTS PROCESSOR
UB99
（目次）
（総合仕様）
（パネルレイアウト）
（ブロックダイアグラム）
（ユニットレイアウト）
（分解手順）
（LSI端子機能表）
（ICブロック図）
（シート基板図）
（検査／ファクトリーセット）
（ユーザーパッチのバックアップ）
（エラーメッセージ）
（回路図）

2
UB99
WARNING: CHEMICAL CONTENT NOTICE!
The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (Where
applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly
other entities) to cause cancer and/or birth defects or other reproductive harm.
DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON WHAT
SO EVER!
Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose
eyes to solder/flux vapor!
If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling
food.
IMPORTANT NOTICE
This manual has been provided for the use of authorized Yamaha Retailers and their service personnel. It has been assumed
that basic service procedures inherent to the industry, and more specifically Yamaha Products, are already known and under-
stood by the users, and have therefore not been restated.
WARNING : Failure to follow appropriate service and safety procedures when servicing this product may result in per-
sonal injury, destruction of expensive components and failure of the product to perform as specified. For
these reasons, we advise all Yamaha product owners that all service required should be performed by an
authorized Yamaha Retailer or the appointed service representative.
IMPORTANT : This presentation or sale of this manual to any individual or firm does not constitute authorization certifi-
cation, recognition of any applicable technical capabilities, or establish a principal-agent relationship of
any form.
The data provided is belived to be accurate and applicable to the unit(s) indicated on the cover. The research engineering, and
service departments of Yamaha are continually striving to improve Yamaha products. Modifications are, therefore, inevitable
and changes in specification are subject to change without notice or obligation to retrofit. Should any discrepancy appear to
exist, please contact the distributor’s Service Division.
WARNING : Static discharges can destroy expensive components. Discharge any static electricity your body may have
accumulated by grounding yourself to the ground bus in the unit (heavy gauge black wires connect to
this bus.)
IMPORTANT : Turn the unit OFF during disassembly and parts replacement. Recheck all work before you apply power
to the unit.
Components having special characteristics are marked and must be replaced with parts having specification equal to those
originally installed.
印の商品は、安全を維持するために重要な部品です。交換する場合は、安全のために必ず指定の部品をご使用ください。
WARNING

UB99
3
SPECIFICATIONS
Digital Section
• Digital signal processing effector
• Includes special editor application “Sound Editor for
MAGICSTOMP”
• Patch Select: 2 Modes
• Built-in Chromatic Auto Tuner
Communications
Receive: Parameter Change, Bulk In (1 patch), Bulk In
(99 patch)
Transmit: Bulk Out (99 patch)
Controller/Switch
Knob x4
CONTROL1, 2, 3, VOLUME
Push Switch x4
–, +, ON/OFF, STORE
Slide Switch x1
INPUT LEVEL (HIGH/LOW)
Display
16 x 2 character LCD (w/Back light)
LED x 3 (–, +, ON/OFF)
Connections
INPUT:Standard Monaural Phone Jack
OUTPUT L/MONO, R: Standard Monaural Phone Jack
USB
AC IN
A/D Converter
24 bit + 3 bit Floating
D/A Converter 24 bit
Sampling Frequency 44.1 kHz
Memory Allocations Preset: 99
User: 99
Input Level/Impedance
INPUT HIGH: -25dBm/1 MΩ
INPUT LOW : -15dBm/1 MΩ
Output Level/Impedance
OUTPUT L/MONO, R: 0dBm/1 kΩ
Power
Exclusive Power Adaptor (AC-10)
AC Output: AC 12 V, 1 A
Power Consumption 12 W
Dimensions (W x H x D)
164 x 62 x 176 mm
(6-7/16" x 2-7/16" x 6-15/16")
Weight 910 g (2lbs.)
Accessories Power Adaptor (AC-10)
CD-ROM
USB Cable
Owner’s Manual
Patch List
（総合仕様）
デジタル部
・デジタルシグナルプロセッシング・エフェクター
・専用エディターソフトSoundEditorfor
MAGICSTOMP同梱
・パッチセレクト：2モード
・クロマチックオートチューナー内蔵
通信機能
受信 ParameterChange,BulkIn(1patch),BulkIn
(99patch)
送信 BulkOut(99patch)
コントローラー/スイッチ
ボリューム×4
CONTROL1,2,3,VOLUME
プッシュスイッチ×4
−,＋,ON/OFF,STORE
スライドスイッチ×1
INPUTLEVEL(HIGH/LOW)
ディスプレイ
16×2characterLCD(バックライト付き)
LED×3(−,＋,ON/OFF)
接続端子
INPUT(標準フォンモノジャック)
OUTPUTL/MONO,R(標準フォンモノジャック)
USB
ACIN
A/Dコンバーター
24ビット＋3ビットフローティング
D/Aコンバーター 24ビット
サンプリング周波数 44.1kHz
メモリー数 プリセット：99
ユーザー：99
入力レベル/インピーダンス
INPUTHIGH：−25dBm/1MΩ
INPUTLOW：−15dBm/1MΩ
出力レベル/インピーダンス
OUTPUTL/MONO,R：0dBm/1kΩ
電源
専用電源アダプター(AC-10)
入力：AC100V,50/60Hz
出力：AC12V,1000mA
消費電力 12W
寸法(WxHxD) 164×62×176mm
重量 910g
付属品 電源アダプター(AC-10)
CD-ROM
USBケーブル
取扱説明書
パッチリスト

4
UB99
PANEL LAYOUT
qDisplay
wCONTROL Knobs
eVOLUME Knob
rSTORE Button
t-Switch, + Switch, ON/OFF Switch
yINPUT Jack
uINPUT LEVEL HIGH/LOW Switch
iOUTPUT L/MONO, R Jacks
oUSB Jack
!0 AC IN Jack (Power Adaptor)
Top Panel
Rear Panel
（パネルレイアウト）
（ディスプレイ）
（コントロールツマミ）
（ボリュームツマミ）
（ストアボタン） （−スイッチ , ＋スイッチ ,ON/OFF スイッチ）
（インプット端子） （インプットレベル切替スイッチ）
（アウトプット端子）
（USB 端子） （電源アダプター端子）
（トップパネル）
（リアパネル）

UB99
5
BLOCK DIAGRAM
DM
JK101
312673
31
57
1
2
57
6
67
1
21
IC101 (8P)
IC102 (8P)
IC104
(28P) IC105 (8P) IC106 (8P)
IC7 (64P)IC4 (100P)
IC1 (48P)
SYSTEM
RESET
IC2 (28P) IC10 (44P)
IC6 (44P)
D106~112
TR105,106
IC5
(176P)
2
3
4
5
19
15
13,14
12
4
6366,67
55,653
28
27
26
25
IC103 (8P)
IC3 (5P)
JK102
JK103
CN1
JK104
AC-10
X 3X
2
X
1
IC111
IC109
IC108
IC112
IC113
12,13
（ブロックダイアグラム）

6
UB99

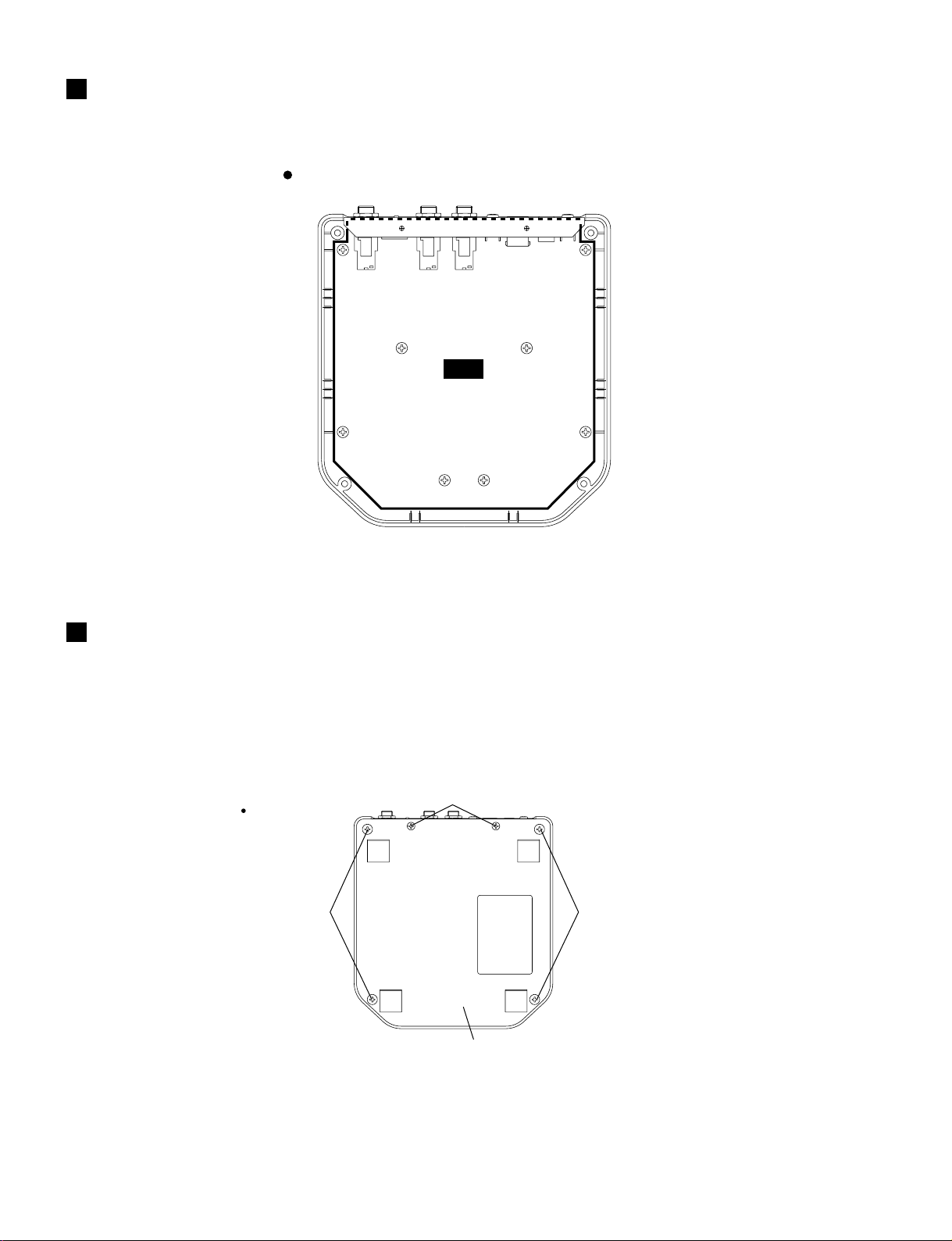

CIRCUIT BOARD LAYOUT
DISASSEMBLY PROCEDURE
1. Bottom Case
(Time required: About 1 minute)
1-1. Remove the four (4) screws marked [40] and the
two (2) screws marked [30]. The bottom case can
then be removed. (Fig.1)
1. ボトムケース(所要時間:約 1 分)
1-1. [40]のネジ4本と[30]のネジ2本を外し、ボトムケー
スを外します。(図1)
[40] [40]
[30]
Bottom case（ボトムケース）
[30]: Bind Head Tapping Screw-B 3.0X8 MFZN2BL (EP600190)
[40]: Bind Head Tapping Screw-P 4.0X8 MFZN2BL (VB931600)
Fig.1
DM
Bottom view
Bottom view
（ユニットレイアウト）
（分解手順）
（+バインドBタイト）
（+バインドPタイト）
（図1）

UB99
7

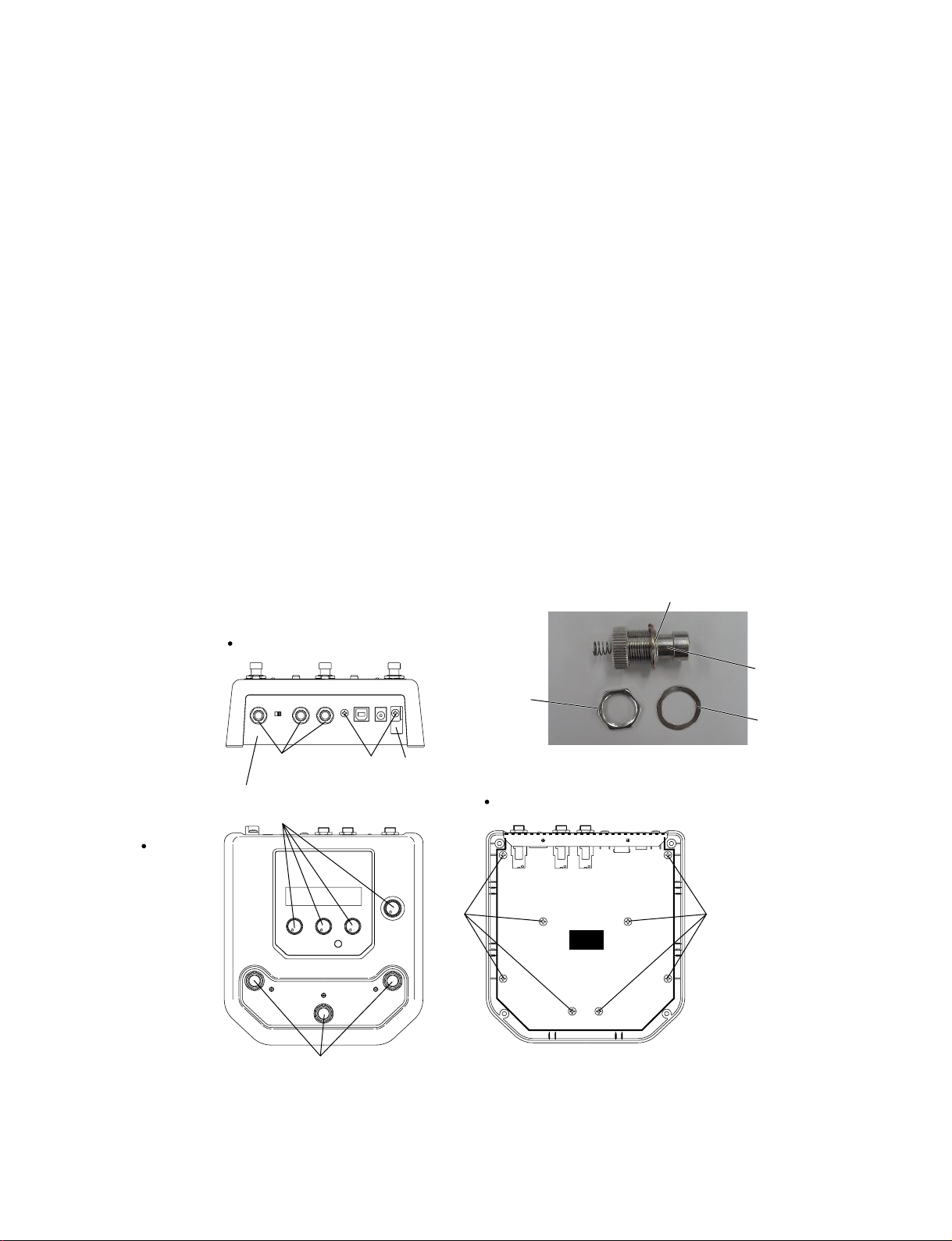

Fig.2
[110]
Knob（ノブ）
Rear panel（リアパネル）
Foot switch（フットスイッチ）
Hexagonal nut（特殊六角ナット）
Foot switch
（フットスイッチ）

Spring Washer（バネ座金）
Hexagonal nut
（特殊六角ナット）
AC Cord Column
（ACコードコラム）
Flat Washer
（特殊平座金）
[120]
[130]
[90] [90]
DM
[90]: Bind Head Tapping Screw-P 3.0X8 MFZN2BL (EP630220)
[110]: Bind Head Screw 3.0X8 MFZN2BL (VA295800)
[120]: Hexagonal Nut 9.0 12X2 MFNI33 (LX200060)
[130]: Flat Washer 9.0X14X0.5 MFNI33 (VL802300)
Rear view
Top view
Bottom view
2. Rear Panel (Time required: About 3 minutes)
2-1. Remove the bottom case.(See Procedure 1.)
(Fig. 2)
2-2. Remove the two (2) screws marked [110], the three
(3) hexagonal nuts marked [120] and the three (3)
flat washers marked [130] from the rear panel. AC
cordcolumn and the rear panelcanthen be removed.
(Fig. 2)
2. リアパネル(所要時間:約 3 分)
2-1. ボトムケースを外します。(1 項参照)
2-2. リアパネル面より[110]のネジ2本と[120]の特殊六
角ナット 3 個、[130]の特殊平座金 3 個を外し、AC
コードコラムとリアパネルを外します。(図2)
4. Foot Switch (Time required:About 3 minutes)
4-1. Remove the bottom case.(See Procedure 1.)
4-2. Remove the rear panel. (See Procedure 2.)
4-3. Remove the DM circuit board. (See Procedure 3.)
4-4. Remove the hexagonal nut of the foot switch.The foot
switch can then be removed.(Fig.2, Photo.1)
4. フットスイッチ(所要時間:約 3 分)
4-1. ボトムケースを外します。(1 項参照)
4-2. リアパネルを外します。(2項参照)
4-3. DM シートを外します。(3項参照)
4-4. フットスイッチの特殊六角ナットを外し、フットス
イッチを外します。(図 2、写真1)
Photo. 1
3. DM Circuit Board
(Time required: About 3 minutes)
3-1. Remove the bottom case.(See Procedure 1.)
3-2. Remove the rear panel. (See Procedure 2.)
3-3. Remove the four (4) knobs from the front panel.
3-4. Remove the eight (8) screws marked [90].The DM
circuit board can then be removed. (Fig. 2)
（図2）
（+バインドPタイト）
（+バインド小ネジ）
（特殊六角ナット）
（特殊平座金）
（写真1）
3. DM シート(所要時間:約 3 分)
3-1. ボトムケースを外します。(1 項参照)
3-2. リアパネルを外します。(2 項参照)
3-3. フロントパネルのノブを 4 個外します。(図2)
3-4. [90]のネジ8本を外し、DMシートを外します。(図2)

8
UB99
LSI PIN DESCRIPTION
DM: IC4
PIN
NO. I/O FUNCTION
NAME PIN
NO. I/O FUNCTION
NAME
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
VCC
CS7/TMO0/TP8/PB0
CS6/TMIO1/TP9/PB1
CS5/TMO2/TP10/PB2
CS4/TMIO3/TP11/PB3
TP12/PB4
TP13/PB5
TP14/PB6
TP15/PB7
RESO
VSS
TXD0/P90
TXD1/P91
RXD0/P93
RXD1/P93
IRQ4/SCK0/P94
IRQ5/SCK1/P95
D0/P40
D1/P41
D2/P42
D3/P43
VSS
D4/P44
D5/P45
D6/P46
P47/D7
P30/D8
P31/D9
P32/D10
P33/D11
P34/D12
P35/D13
P36/D14
P37/D15
VCC
P10/A0
P11/A1
P12/A2
P13/A3
P14/A4
P15/A5
P16/A6
P17/A7
VSS
P20/A8
P21/A9
P22/A10
P23/A11
P24/A12
P25/A13
-
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
O
-
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
-
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
-
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
-
I/O
I/O
I/O
I/O
I/O
I/O
Analog power supply +3.3V
Chip select / / / Port B
Data transmission / Port B
Reset
Ground
Data transmission / Port 9
Data reception / Port 9
Interropt request / Serial clock / Port 9
Data bus / Port 4
Ground
Data bus / Port 4
Port 4 / Data bus
Port 3 / Data bus
Analog power supply +3.3V
Port 1 / Address bus
Ground
Port 2 / Address bus
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
P26/A14
P27/A15
P50/A16
P51/A17
P52/A18
P53/A19
VSS
P60/WAIT
P61/BREO
P62/BACK
P67/
STBY
RES
NMI
VSS
EXTAL
XTAL
VCC
P63/AS
P64/RD
P65/HWR
P66/LWR
MD0
MD1
MD2
AVCC
VREF
AN0/P70
AN1/P71
AN2/P72
AN3/P73
AN4/P74
AN5/P75
DA0/AN6/P76
DA1/AN7/P77
AVSS
IRQ0/P80
CS3/IRQ1/P81
CS2/IRQ2/P82
ADTRG/CS1/IRQ3/P83
CS0/P84
VSS
TCLKA/TP0/PA0
TCLKB/TP1/PA1
TCLKC/TIOCA0/TP2/PA2
TCLKD/TIOCB0/TP3/PA3
A23/TIOCA1/TP4/PA4
A22/TIOCB1/TP5/PA5
A21/TIOCA2/TP6/PA6
A20/TIOCB2/TP7/PA7
I/O
I/O
I/O
I/O
I/O
I/O
-
I/O
I/O
I/O
I/O
I
I
I
-
I
O
-
O
O
O
O
I
I
I
-
I
I
I
I
I
I
I
I/O
I/O
-
O
I/O
I/O
I/O
-
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
Port 2 / Address bus
Port 5 / Address bus
Ground
Port 6
Port 6 / System clock output
Stand-by mode signal
Reset
Non-maskable interrupt
Ground
Clock
Clock
Power supply +3.3V
Port 6
Model control
Power supply +3.3V for A/D
Reference Voltage for A/D
Analog input / Port 7
D/A output / Analog input / Port 7
Ground for A/D
Interropt request / Port 8
Chip select / Interropt request / Port 8
Chip select / Interropt request / Port 8
Ground
Timer clock / Pulse output / Port A
Timer clock / Output comparison / Pulse output / Port A
Timer clock / Input capture / Pulse output / Port A
Address bus / Output comparison / Pulse output / Port A
Address bus / Input capture / Pulse output / Port A
Address bus / Output comparison / Pulse output / Port A
Address bus / Input capture / Pulse output / Port A
HD6413008VF25 (X4196A00) CPU (MAIN)
（LSI端子機能表）

UB99
9
PIN
NO. I/O FUNCTIONNAME PIN
NO. I/O FUNCTIONNAME
1
2
3
4
5
6
7
8
9
10
11
12
13
14
VCOM
AINR+
AINR-
AINL+
AINL-
VREF
AGND
VA
P/S
MCLK
LRCK
BICK
SDTO
SDTI
O
I
I
I
I
I
-
-
I
I
I
I
O
I
Common voltage output , VA/2
Rch analog positive input
Rch analog negative input
Lch analog positive input
Lch analog negative input
Reference voltage
Analog ground +3.3V
Analog power supply
Paralle/serial mode select
Master clock input
Input/output channel clock
Audio serial data clock
Audio serial data output
Audio serial data input
15
16
17
18
19
20
21
22
23
24
25
26
27
28
CKS0
CKS1
DIF
DFS
PDN
DEM0
DEM1
VT
VD
DGND
AOUTL-
AOUTL+
AOUTR-
AOUTR+
O
I
I
I
I
I
I
-
-
-
O
O
O
O
Master clock select
Digital audio interface select
Double speed sampling mode
Power-down mode
De-emphasis frequency select
Output buffer power supply
Digital power supply
Digital ground
Lch analog negative output
Lch analog positive output
Rch analog negative output
Rch analog positive output
AK4528VF (XY624A00) ADC/DAC (CMOS A/D & D/A Converter)
DM: IC104
DM: IC7
PIN
NO. I/O FUNCTION
NAME PIN
NO. I/O FUNCTION
NAME
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
P1 2 /DQ 2 /AN 2
P1 3 /DQ 3 /AN 3
P1 4 /DQ 4 /AN 4
P1 5 /DQ 5 /AN 5
P1 6 /DQ 6 /AN 6
P1 7 /DQ 7 /AN 7
CNV SS
RESET
V
CC E
V
REF
V SS
X IN
V OUT
V CC
CNV SS 2
P6 0 (LED 0 )
P6
1 (LED 1 )
P6
2 (LED 2 )
P6
3 (LED 3 )
PV SS
PV CC
DV CC
USBV REF
TrON
D0+
D0-
P2
0
P2 1
P2 2
P2 3
P2 4
P2 5
I/O
I/O
I/O
I/O
I/O
I/O
I
I
-
I
-
I
O
-
I
I/O
I/O
I/O
I/O
-
-
-
-
O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
Port P1 (In/output)
Chip active
System reset input
Analog power supply +3.3V
Reference voltage input
Ground
Clock input
Clock output
Power supply +3.3V
Chip active
Port P6 (In/output)
Analog power supply +3.3V
USB reference power supply
USB reference volyage output
USB upstream in/output
Port P2 (In/output)
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
P2 6
P2 7
P5 0 /INT 0
P5 1 /CNTR 0
P5 2 /INT 1
P5 3
P5 4
P5 5
P5 6
P5 7
P0 0
P0 1
P0 2
P0 3
P0 4
P0 5
P0 6
P0 7
P4 0 /E X DREQ/R X D
P4 1 /E X DACK/T X D
P4 2 /E X TC/S CLK
P4 3 /E X A1/S RDY
P3 0
P3 1
P3 2
P3 3 /E X INT
P3 4 /E X CS
P3 5 /E X WR
P3 6 /E X RD
P3 7 /E X A 0
P1 0 /DQ 0 /AN 0
P1 1 /DQ 1 /AN 1
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
Port P2 (In/output)
Port P5 (In/output)/Interruption input
Port P5 (In/output)/
Port P5 (In/output)/Interruption input
Port P5 (In/output)
Port P0 (In/output)
Port P4 (In/output)/Serial I/O/External bus interface
Port P3 (In/output)
Port P3 (In/output)/External bus interface
Port P1 (In/output)
M38K07M4L-303HP (X3921200) CPU (USB)

10
UB99
PIN
NO. I/O FUNCTIONNAME PIN NO. I/O FUNCTIONNAME
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
Vdd
Vss
XI
XO
Vdd5
/SYNCI
/SYNCO
Vdd5
CKI
CKO
CKSEL
Vss
MCKS
/SSYNC
/IC
/TEST
BTYP
/IRQ
TRIG
Vdd5
Vss
/CS
/WR
/RD
CA7
CA6
CA5
CA4
CA3
CA2
CA1
Vss
Vdd
CD15
CD14
CD13
CD12
CD11
CD10
CD09
CD08
CD07
CD06
Vss
Vdd
Vdd5
CD05
CD04
CD03
CD02
CD01
CD00
/WAIT
Vss
SI0
SI1
SI2
SI3
SI4
SI5
SI6
SI7
Vss
Vdd5
SO0
SO1
SO2
SO3
SO4
SO5
SO6
SO7
Vss
DB00
DB01
DB02
DB03
DB04
DB05
DB06
DB07
DB08
DB09
DB10
DB11
DB12
Vdd5
Vdd
I
O
I
O
I
O
I
I
I
I
I
I
O
I/O
I
I
I
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
O
I
I
I
I
I
I
I
I
O
O
O
O
O
O
O
O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
Power supply (3.3 V)
Ground
System master clock input (60 MHz or 30 MHz)
System master clock output (High or 30 MHz)
Power supply (5 V)
Sync. signal input
Sync. signal output
Power supply (5 V)
System clock input (30 MHz)
System clock output (30 MHz)
System master clock select (0: 60 MHz, 1: 30 MHz)
Ground
Serial I/O master clock input (128 x Fs)
Serial I/O Sync. signal output
Initial clear (RESET)
Test mode setting (0: Test, 1: Normal)
Data bus type select (0: 8 bit, 1: 16 bit)
IRQ output
Trigger signal input/output
Power supply (5 V)
Ground
chip select signal input
Write signal input
Read signal input
Address bus of internal register
Ground
Power supply (3.3 V)
Data bus of internal register
Ground
Power supply (3.3 V)
Power supply (5 V)
Data bus of internal register
WAIT output
Ground
Serial data input
Ground
Power supply (5 V)
Serial data output
Ground
Parallel data bus
Power supply (5 V)
Power supply (3.3 V)
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
Vss
DB13
DB14
DB15
DB16
DB17
DB18
DB19
DB20
DB21
DB22
Vss
Vdd
DB23
DB24
DB25
DB26
DB27
DB28
DB29
DB30
DB31
TIMO/DBOB
Vss
Vdd5
DA00
DA01
DA02
DA03
DA04
DA05
DA06
DA07
Vss
DA08
DA09
DA10
DA11
DA12
DA13
DA14
DA15
Vss
Vdd
(n.c)
Vdd5
DA16
DA17
DA18
DA19
DA20
DA21
DA22
DA23
Vss
DA24
DA25
DA26
DA27
DA28
DA29
DA30
DA31
Vdd5
Vss
A00
A01
A02
A03
A04
A05
A06
A07
A08
A09
Vss
Vdd
A10
A11
A12
A13
A14
A15/RAS
A16/CAS
A17/CE
/WE
/OE
Vdd5
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
Ground
Parallel data bus
Ground
Power supply (3.3 V)
Parallel data bus
Timing signal output/ Parallel data bus output/ input
Ground
Power supply (5 V)
Memory data bus
Ground
Memory data bus
Ground
Power supply (3.3 V)
Not used
Power supply (5 V)
Memory data bus
Ground
Memory data bus
Power supply (5 V)
Ground
Memory address (SRAM, PSRAM, DRAM)
Ground
Power supply (3.3 V)
Memory address (SRAM, PSRAM, DRAM)
Memory address (SRAM, PSRAM)
Memory address (SRAM, PSRAM), /RAS (DRAM)
Memory address (SRAM, PSRAM), /CAS (DRAM)
Memory address (SRAM), /CE (PSRAM)
Memory write enable signal
Memory output enable signal
Power supply (5 V)
YSS910-S (XV988A00) DSP6 (Digital Signal Processor)
DM: IC5

UB99
11

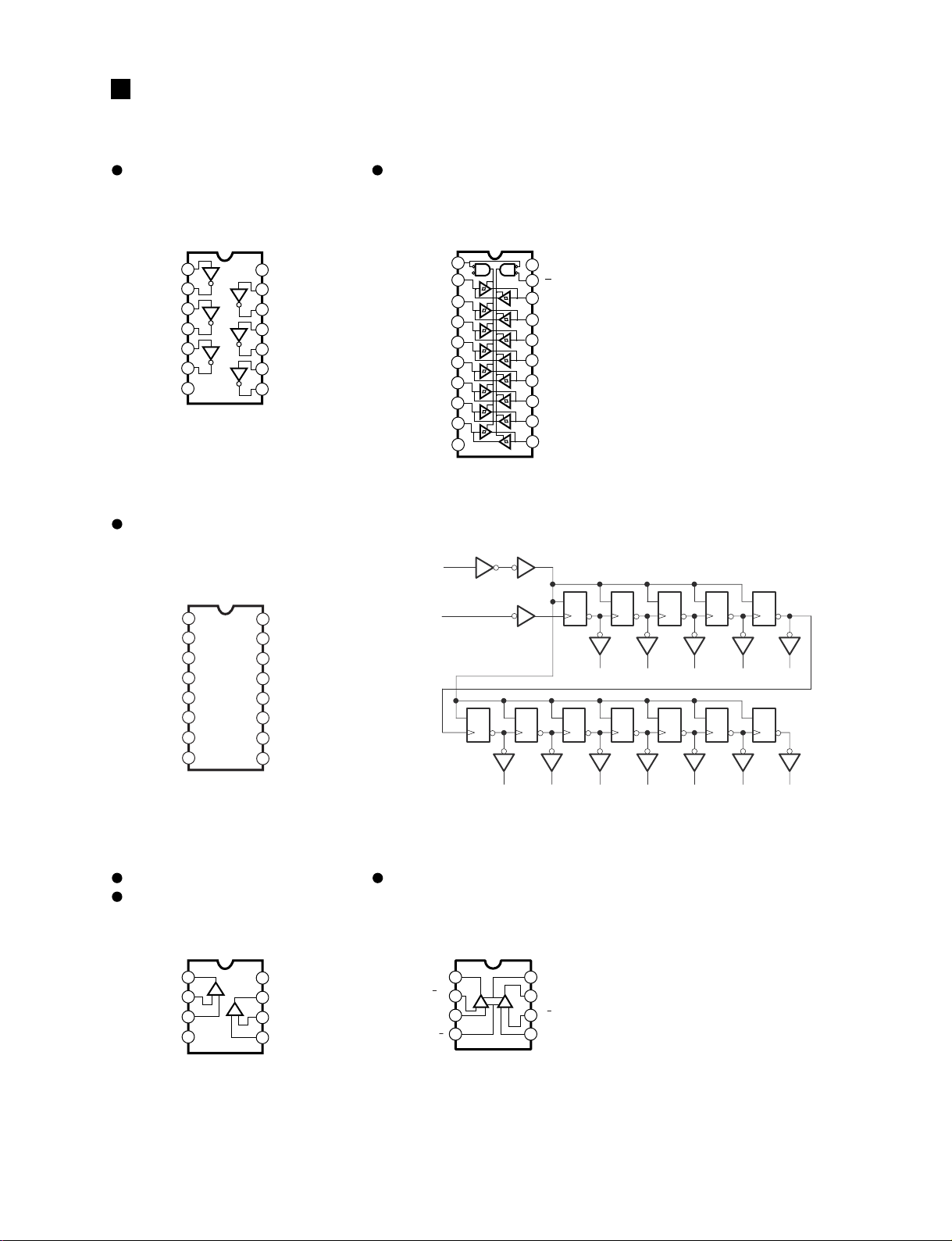

IC BLOCK DIAGRAM
1
2
3
4
5
6
7
QL
QF
QE
QG
QD
QC
QB
GND
VCC
QK
QJ
QH
QI
CLR
CLK
QA
16
14
13
12
11
10
89
SN74LVU04APWR (X3936A00)
Hex Inverter
DM: IC107
SN74LV245APWR (X3693A00)
Octal 3-State Bus Transceiver
DM: IC8,9
SN74LV4040APWR (X3935A00)
12-Bit Asynchronous Binary Counter
DM: IC110
NJM072M (XC458A00)
TL072CPSR (XV423A00)
Dual Operational Amplifier
DM: IC101
NJM5532M (XC011A00)
Dual Operational Amplifier
DM: IC102,103,105,106
R
T
R
T
R
T
R
T
R
T
R
T
R
T
R
T
R
T
R
T
R
T
R
T
95 3
2 4 13 12 14 15 1
11
10
CLR
CLK
QAQDQE
QHQKQL QFQGQIQJ
7
QB
6
QC
1
2
3
4
5
6
7
1A
1Y
2A
2Y
3A
3Y
Vss
14
13
12
11
10
9
8
VDD
6A
6Y
5A
5Y
4A
4Y
1
2
3
4
5
6
7
20
19
18
17
16
15
14
Vcc
G
B1
B2
B3
B4
B5
B6
B7
B8
8
9
10
12
11
GND
A8
A7
A6
A5
A4
A3
A2
A1
D1R
13
Output A
Inverting
Input A
Non-Inverting
Input A
–DC Voltage
Supply
+DC Voltage
Supply
Output B
Inverting
Input B
Non-Inverting
Input B
1
2
3
4
8
7
6
5
–+
–+
–V
1
2
3
4
8
7
6
5
A OUT
A+IN
V+
B OUT
B+IN
A IN
V
B IN
15
（IC ブロック図）

12
UB99
CIRCUIT BOARD
INPUT ROUTPUT
L / MONO USB AC IN
INPUT LEVEL
HIGH / LOW
DM Circuit Board
CNA-WC10200-2 1
Component side
（部品側）
Note: See parts list for details of circuit board component parts.
（シート基板図）
注：シートの部品詳細はパーツリストをご参照ください。

UB99
13
CONTROL 1 CONTROL 2
STORE
CONTROL 3
VOLUME
+
-
ON/OFF
ON/OFF
-+
DM Circuit Board
CNA-WC10200-3
Pattern side
（パターン側）

14
UB99
1. Preparation
1) Measuring instrument: Oscillator
Distortion meter
Level meter
2) Jig: USB cable, P.C (Personal computer)
3) Connections of terminals are shown as follows:
INPUT Monaural Input 1/4 inch Plug (Signal Input)
OUT L/
MONO
Monaural Output 1/4 inch Plug (RL 47KΩ)
OUT R
Monaural Output 1/4 inch Plug (RL 47Ω)
AC IN AC ADAPTOR (AC-10)
USB USB Cable /P.C.
INPUT
LEVEL HIGH(+10dB) / LOW(0dB)
2. Measurement Conditions
Unless otherwise specified, input signals are of
sinusoidal waves and the frequency is 1 kHz.
Before turning on power, set knobs of Control VR1,
Control VR2 and Control VR3 at positions near their
respective Centers.
Set Output VR to MAX and Input Level SW to Low.
Make sure that the input impedance of the measuring
instrument is 1 MΩor greater.
Install USB-MIDI driver on the P.C.
3. Method of Inspection
3-1. How to get TEST MODE
When turning on power while pushing [Å|] SW and [Å{]
SW, you will get TEST MODE.
Proceed with inspection according to the instruction in
the following display.
Make sure that the back light SED of LCD is lit.
INSPECTIONS / FACTORY SET
UB99 P.CHEK V1.0
PUSH [ON/OFF] SW
3-1-1. DSP & DRAM & AD/DA Check
Push [ON/OFF] SW. The following display appears.
Make sure that a signal wave is outputted.
3-1-2. Electrical characteristics
U B99 DSP&DRAM
PUSH [ON/OFF] SW
Item Input terminal, Conditions Output terminal, Specifications
1: Input INPUT OUT L/MONO
sensitivity -4.5dBm(1KHz) 0dBm ±3dB
2: ditto INPUT OUT L/MONO
-4.5dBm(10KHz) 0dBm ±3dB
3: ditto INPUT OUT L/MONO
-4.5dBm(100Hz) 0dBm ±3dB
4: ditto INPUT OUT R
-22.5dBm(100Hz) 0dBm ±3dB
5: ditto INPUT OUT R
-22.5dBm(10KHz) 0dBm ±3dB
6: ditto INPUT OUT R
-22.5dBm(1KHz) 0dBm ±3dB
7: ditto INPUT OUT R
-33dBm(1KHz) 0dBm ±3dB
INPUT LEVEL HIGH
8: ditto INPUT OUT L / MONO
-15dBm(1KHz) 0dBm ±3dB
INPUT LEVEL HIGH
LOW after completion
9: NOISE INPUT OUT L / MONO
LEVEL Pull Out Plug -44 dBm or less
10: ditto INPUT OUT R
-44 dBm or less
11:
Distortion INPUT OUT R
factor -12dBm(1KHz) 0.5% or less
Push Insert Plug
12: ditto INPUT OUT L / MONO
+6dBm(1KHz) 0.5% or less

UB99
15

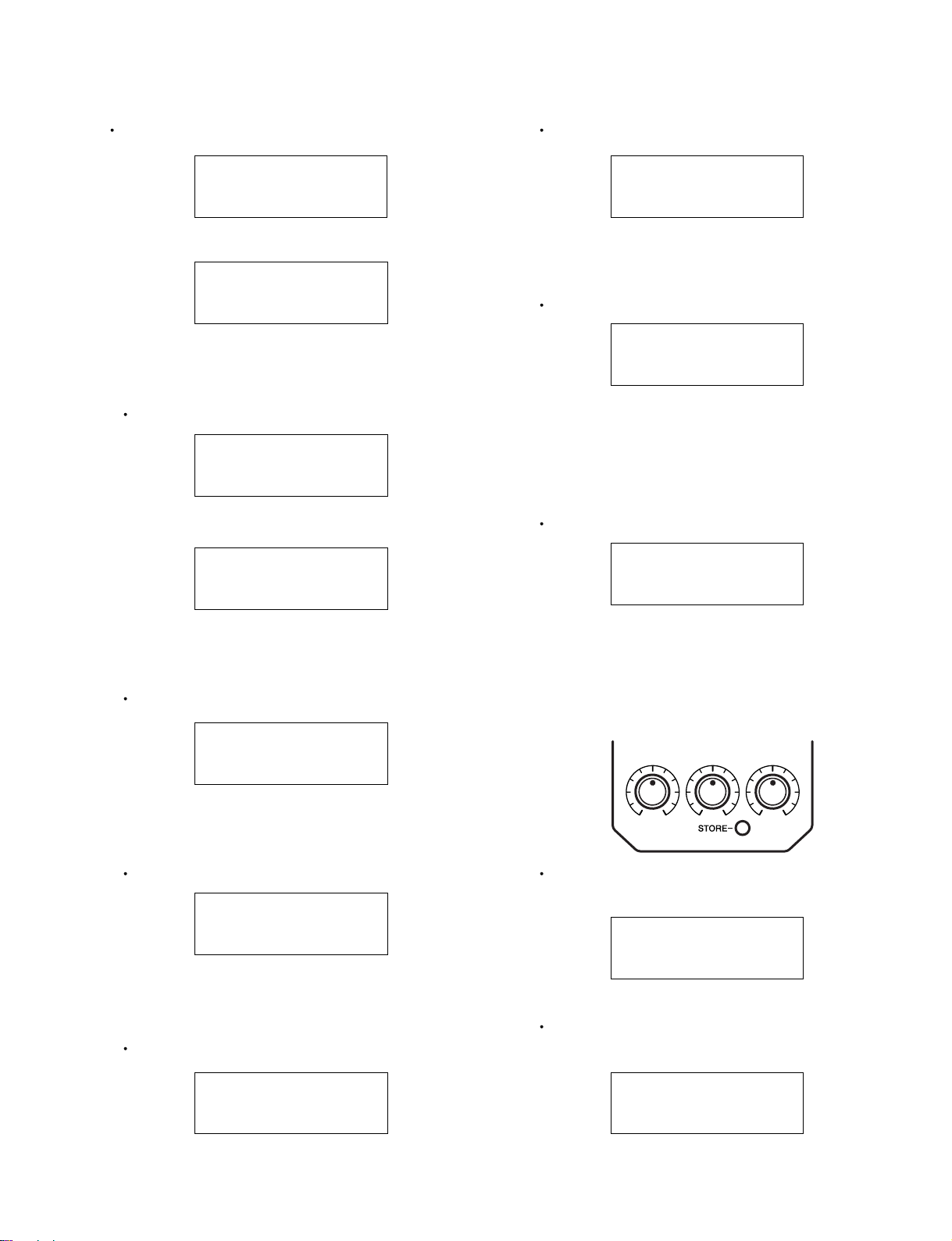

3-1-8. SW&LED Check
Push [+] SW. The following display appears.
Then, LED (+) will be turned on.
3-1-9. SW&LED Check
Push [STORE] SW. The following display appears.
Then, three LEDs, LED (-), LED [ON/OFF], and LED
(+) will be turned on.
Check for the OK sign in the display.
3-1-10. VR Check
Push [ON/OFF] SW. The following display appears.
The LEDs will be turned off.
"**" represents each of VR values, and "[]" shows the
position of the VR to be inspected.
3-1-11. VR Check
Turn VR1 (Control 1) fully clockwise. The following
display appears.
3-1-12. VR Check
Turn VR1 (Control 1) fully counterclockwise. The
following display appears.
3-1-3. SRAM Check
Push [ON/OFF] SW. The following display appears.
In a short time, the display is changed as follows.
Check for the OK sign in the display.
3-1-4. FLASH ROM Check
Push [ON/OFF] SW. The following display appears.
In a short time, the display is changed as follows.
Check for the OK sign in the display.
3-1-5. SW&LED Check
Push [ON/OFF] SW. The following display appears.
Check for the OK sign in the display.
3-1-6. SW&LED Check
Push [ - ] SW. The following display appears.
and LED (-) will be turned on.
3-1-7. SW&LED Check
Push [ON/OFF] SW. The following display appears.
Then, LED [ON/OFF] will be turned on.
UB99 SRAM CHECK
N OW WRITE & READ
UB99 SRAM CHECK
OK PUSH [ONOFF] SW
UB99 FLASH ROM
NOW WRITE & READ
UB99 FLASH ROM
OK PUSH [ONOFF] SW
UB99 SW&LED CHECK
PUSH [ - ] SWITCH
UB99 SW&LED CHECK
PUSH [ON/OFF] SW
UB99 SW&LED CHECK
PUSH [+] SWITCH
UB99 SW&LED CHECK
PUSH [STORE] SW
UB99 SW&LED CHECK
OK PUSH [ONOFF] SW
UB99 VOL1 CHECK
MAX [**] ** **
UB99 VOL1 CHECK
MIN [ ff ] ** **
UB99 VOL1 CHECK
UP [00] ** **
VR1 VR2 VR3

16
UB99
3-1-19. VR Check
Turn VR3 (Control 3) slightly clockwise. The following
display appears.
Check for the OK sign in the display.
3-1-20. USB Check
Push [ON/OFF] SW. The following display appears.
3-1-21. USB Check
Connect with PC by USB cable. The following display
appears.
3-1-22. USB Check
Remove the USB cable. The following display appears.
Check for the OK sign in the display.
3-1-23. LCD Check
Push [ON/OFF] SW. The following display appears.
3-1-24. LCD Check
Push [ON/OFF] SW. The following display appears.
All the LEDs will be turned on.
3-1-13. VR Check
Turn VR1 (Control 1) slightly clockwise. The following
display appears.
3-1-14. VR Check
Turn VR2 (Control 2) fully clockwise. The following
display appears.
3-1-15. VR Check
Turn VR2 (Control 2) fully counterclockwise. The
following display appears.
3-1-16. VR Check
Turn VR2 (Control 2) slightly clockwise. The following
display appears.
3-1-17. VR Check
Turn VR3 (Control 3) fully clockwise. The following
display appears.
3-1-18. VR Check
Turn VR3 (Control 3) fully counterclockwise. The
following display appears.
UB99 VOL2 CHECK
MAX ** [**] **
UB99 VOL2 CHECK
MIN ** [ff ] **
UB99 VOL2 CHECK
UP ** [00] **
UB99 VOL3 CHECK
MAX ** ** [**]
UB99 VOL3 CHECK
MIN ** ** [ff]
UB99 VOL3 CHECK
UP ** ** [00]
UB99 VOL3 CHECK
OK PUSH [ONOFF] SW
UB99 USB CHECK
V10103 CNECT USB
UB99 USB CHECK
DISCONNECT CABLE
UB99 USB CHECK
OK PUSH [ONOFF] SW
UB99 LCD CHECK
PUSH [ON/OFF] SW
■■■■■■■■■■■■
■■■■■■■■■■■■

UB99
17
5. Opening MODE
In this mode, the following display appears.
Then, the display is changed as follows.
Finally, the display is changed as follows.
This picture shows an example.
Turn off power and finish the procedure.
3-1-25. END
Push [ON/OFF] SW. The following display appears.
Turn off power, and the inspection is now completed.
Finally, perform "4. Factory Set" as follows.
4. Factory Set MODE
Turn off power, and the inspection is now completed.
If you reset UB99 to the factory default setting, all of
the batch contents you saved are erased. Take notes
of the settings, or save the settings on your computer,
if necessary. (See page 22.)
Turn on power while pushing [ON/OFF] SW and
[STORE] SW. The following display appears.
Push [+] SW. The following display appears.
Push [STORE] SW. The following display appears.
Then, the display is changed as follows.
The SET is completed.
Then, "5: Opening" display will appear and operation
returns to a normal condition.
At the time of cancellation, the following display
appears.
UB99 DIAG ALL OK
PLEASE POWER OFF
FACTORY SET
NO: [-] YES: [+]
FACTORY SET
SURE? PUSH [STORE]
FACTORY SET
NOW FACTORY SET!
FACTORY SET
COMPLETE!!
FACTORY SET
CANCELLED!
MAGICSTOMP
V1.01
WAIT A MOMENT···
U01△TUBE DRIVE
-/+●GAIN●MSTR●TONE

18
UB99
1. 準備
1）測定器： 発振器
歪率計
レベル計
2）治具：USBケーブル、P.C.（パーソナルコンピュータ）
3）以下に各端子の接続を示します。
INPUT モノラル入力（SignalInput）
OUTL/
MONO モノラル出力（RL47K Ω）
OUTR モノラル出力（RL47K Ω）
ACIN ACADAPTOR（AC-10）
USB
USBケーブル→P.C（パーソナルコンピュータ）
INPUT
LEVEL HIGH(+10dB)/LOW(0dB)
2. 測定基準
・特に規定の無い場合の入力信号は正弦波、周波数は
1KHz とします。
・電源を投入する前に、ControlVR1,ControlVR2,
ControlVR3 のツマミを Center 付近に Set します。
・OutputVR は MAX,InputLevelSW は Low とします。
・測定器の入力インピーダンスは1MΩ以上であること
を確認します。
・P.C に USB-MIDI ドライバーをインストールします。
3. 検査方法
3-1. TESTMODE の入り方
・[―]SW,[＋]SWを押しながら電源を投入するとTEST
MODE に入ります。
と表示されるのでその指示にしたがい検査を進めます。
LCDバックライトLEDが点灯していることを確認します。
UB99 P.CHEK V1.0
PUSH [ON/OFF] SW
3-1-1. DSP&DRAM&AD/DACheck
・[ON/OFF]SW を押します。
と表示され、信号波形が出力されるのを確認します。
3-1-2. 電気的特性
UB99 DSP&DRAM
PUSH [ON/OFF] SW
項目 入力端子、条件 出力端子、規格値
1,入力感度 INPUT OUTL/MONO
-4.5dBm(1KHz) 0dBm ± 3dB
2,同上 INPUT OUTL/MONO
-4.5dBm(10KHz) 0dBm ± 3dB
3,同上 INPUT OUTL/MONO
-4.5dBm(100Hz) 0dBm± 3dB
4,同上 INPUT OUTR
-22.5dBm(100Hz) 0dBm ± 3dB
5,同上 INPUT OUTR
-22.5dBm(10KHz) 0dBm ± 3dB
6,同上 INPUT OUTR
-22.5dBm(1KHz) 0dBm ± 3dB
7,同上 INPUT OUTR
-33dBm(1KHz) 0dBm ± 3dB
INPUTLEVELHIGH
8,同上 INPUT OUTL/MONO
-15dBm(1KHz) 0dBm ± 3dB
INPUTLEVELHIGH
終了後LOW
9,NOISE INPUT OUTL/MONO
LEVEL
入力プラグを抜きます -44dBm 以下
10, 同上 INPUT OUTR
-44dBm 以下
11, 歪率 INPUT OUTR
-12dBm(1KHz) 0.5%以下
入力プラグを差します
12, 同上 INPUT OUTL/MONO
+6dBm(1KHz) 0.5%以下
検査／ファクトリーセット

UB99
19

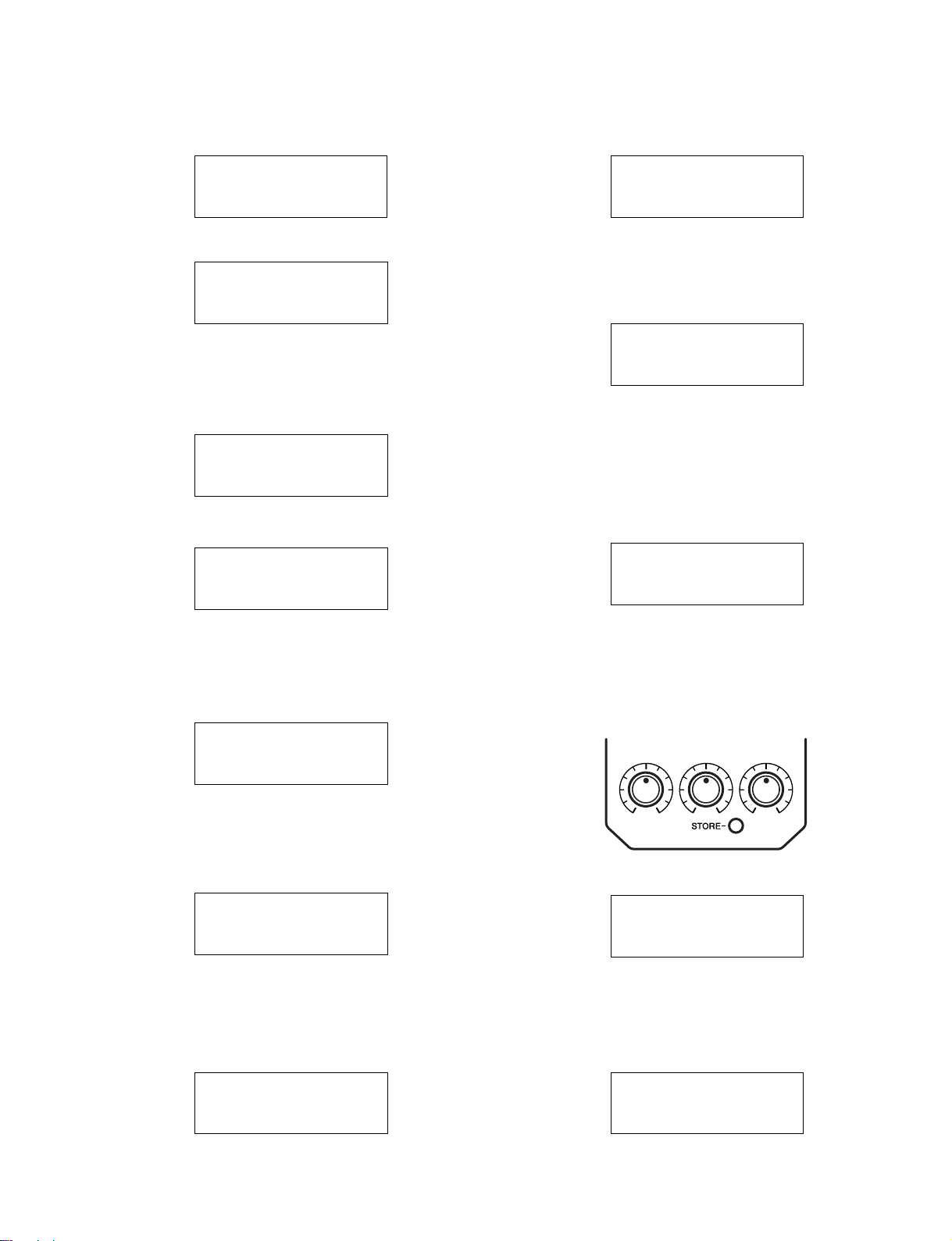

3-1-3. SRAMCheck
・[ON/OFF]SW を押します。
と表示し、しばらくすると
と表示されます。OK表示を確認してください。
3-1-4. FLASHROMCheck
・[ON/OFF]SW を押します。
と表示し、しばらくすると
と表示されます。OK表示を確認してください。
3-1-5. SW&LEDCheck
・[ON/OFF]SW を押します。
と表示されます。
3-1-6. SW&LEDCheck
・[―]SWを押します。
と表示され LED(―)が点灯します。
3-1-7. SW&LEDCheck
・[ON/OFF]SW を押します。
と表示され LED(ON/OFF)が点灯します。
UB99SRAMCHECK
NOWWRITE&READ
UB99SRAMCHECK
OKPUSH[ONOFF]SW
UB99FLASHROM
NOWWRITE&READ
UB99FLASHROM
OKPUSH[ONOFF]SW
UB99SW&LEDCHECK
PUSH[―]SWITCH
UB99SW&LEDCHECK
PUSH[ON/OFF]SW
UB99SW&LEDCHECK
PUSH[＋]SWITCH
3-1-8. SW&LEDCheck
・[+]SW を押します。
と表示され LED(+)が点灯します。
3-1-9. SW&LEDCheck
・[STORE]SWを押します。
と表示されLED(―),LED(ON/OFF),LED(+)が 3
個点灯します。
OK表示を確認してください。
3-1-10. VRCheck
・[ON/OFF]SW を押します。
と表示されます。LED は消灯します。
**はそれぞれのVRの値を表示します。[]が検査する
VR の位置を示します。
3-1-11. VRCheck
・VR1(Control1)を右にいっぱいまで回します。
と表示されます。
3-1-12. VRCheck
・VR1(Control1)を左にいっぱいまで回します。
と表示されます。
UB99SW&LEDCHECK
PUSH[STORE]SW
UB99SW&LEDCHECK
OKPUSH[ONOFF]SW
UB99VOL1CHECK
MAX[**]****
UB99VOL1CHECK
MIN[ff]****
UB99VOL1CHECK
UP[00]****
VR1 VR2 VR3

20
UB99
3-1-13. VRCheck
・VR1(Control1)を右に少し回します。
と表示されます。
3-1-14. VRCheck
・VR2(Control2)を右にいっぱいまで回します。
と表示されます。
3-1-15. VRCheck
・VR2(Control2)を左にいっぱいまで回します。
と表示されます。
3-1-16. VRCheck
・VR2(Control2)を右に少し回します。
と表示されます。
3-1-17. VRCheck
・VR3(Control3)を右にいっぱいまで回します。
と表示されます。
3-1-18. VRCheck
・VR3(Control3)を左にいっぱいまで回します。
と表示されます。
UB99VOL2CHECK
MAX**[**]**
UB99VOL2CHECK
MIN**[ff]**
UB99VOL2CHECK
UP**[00]**
UB99VOL3CHECK
MAX****[**]
UB99VOL3CHECK
MIN****[ff]
UB99VOL3CHECK
UP****[00]
3-1-19. VRCheck
・VR3(Control3)を右に少し回します。
と表示されます。
OK 表示を確認してください。
3-1-20. USBCheck
・[ON/OFF]SWを押します。
と表示されます。
3-1-21. USBCheck
・USBCableでP.C.と接続します。
と表示されます。
3-1-22. USBCheck
・USBCableを抜きます。
と表示されます。
OK 表示を確認してください。
3-1-23. LCDCheck
・[ON/OFF]SWを押します。
と表示されます。
3-1-24. LCDCheck
・[ON/OFF]SWを押します。
と全点灯されます。
UB99VOL3CHECK
OKPUSH[ONOFF]SW
UB99USBCHECK
V10103CNECTUSB
UB99USBCHECK
DISCONNECTCABLE
UB99USBCHECK
OKPUSH[ONOFF]SW
UB99LCDCHECK
PUSH[ON/OFF]SW
■■■■■■■■■■■■
■■■■■■■■■■■■
