What is the Song Filer?
With the Song Filer, you can receive and transmit data between your computer and your musical
instrument. You can also use it to manage the files stored on your musical instrument via your
computer. The Song Filer can perform the following three functions.
nMake sure to connect both the MIDI IN/OUT terminals to the computer.
Receive Files
You can save your musical instrument’s song data on your computer (Page 5).
Transmit Files
You can transmit song data from your computer to your musical instrument (Page 7).
Manage Files on Musical Instrument
You can delete and rename files on your musical instrument using your computer (Page 9).
abcd.mid
Delete
abcd.mid efgh.mid
Rename
Computer
Transmit
MIDI OUT
MIDI IN
MIDI OUT
MIDI IN
Computer
Receive
2
SongFiler_E.qx 4/12/01 4:14 PM Page 2

Top display
When you start the Song Filer, the “top display” will appear as shown below.
1Opens the “Receive” window where you can transfer data from your musical instrument to your
computer, then save it (page 5).
2Opens the “Transmit” window where you can transfer data from your computer to your musical
instrument (page 7).
3Opens the “Control” window where you can delete and rename files on your musical
instrument (page 9).
Menu Bar
File
Transfer
Setup
Help
Opens the Song Filer Manual PDF file.
Displays the Song Filer’s version, etc.
Opens the “MIDI Port Setup”window
where you can specify your computer’s
“MIDI IN Port”and “MIDI OUT Port”used to
communicate with your musical instrument.
Same as the [Receive] button of the top display.
Same as the [Transmit] button of the top display.
Same as the [Control] button of the top display.
Quits the Song Filer application.
1
2
3
3
SongFiler_E.qx 4/12/01 4:14 PM Page 3

MIDI Device Setup
You will need to specify the MIDI device drivers through which your computer will
communicate with your musical instrument. Follow the procedure below.
nIf you are using a Macintosh, refer to the section “OMS Port Setup” on page 5.
MIDI Port Setup (Windows)

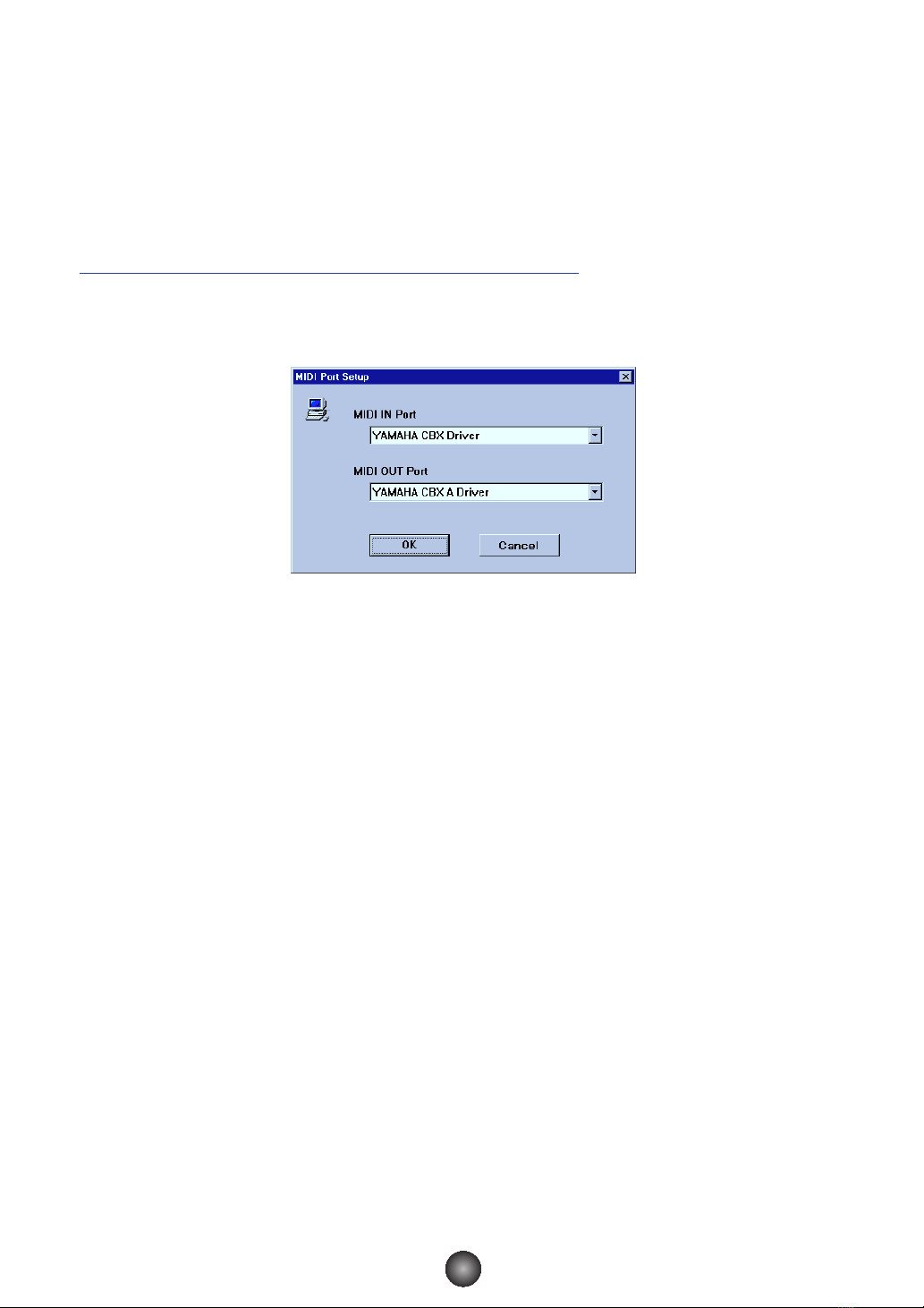

1.Select “MIDI Port Setup” from the “Setup” menu.
The “MIDI Port Setup” dialog box is displayed.
2.Click on each of the “▼” buttons for the “MIDI IN Port” or “MIDI OUT
Port”, select the MIDI driver from the drop-down list that is displayed.
• If the musical instrument’s MIDI terminals are connected to the computer via a MIDI
interface.
For both the “MIDI IN Port” and “MIDI OUT Port”, select the MIDI driver that is compatible
with the MIDI interface you are using. For more information, refer to the manual that came
with your MIDI interface.
• If the musical instrument’s TO HOST terminal is connected directly to the
computer’s serial port.
Select the “Yamaha CBX Driver” for the “MIDI IN Port”, and the “Yamaha CBX A Driver” for
the “MIDI OUT Port”.
nYAMAHA CBX Driver must be installed beforehand.
3.Click [OK].
4
SongFiler_E.qx 4/12/01 4:14 PM Page 4

OMS Port Setup (Macintosh)
The Song Filer software uses OMS (Open Music System) for MIDI input/output. To use the Song
Filer software, OMS must be installed and set up correctly before starting the Song Filer.
1.Start up the Song Filer by double-clicking its icon.
nIf AppleTalk is enabled, you will get an alert message. Click “Turn It Off.” It will take some time for AppleTalk to be
disabled.

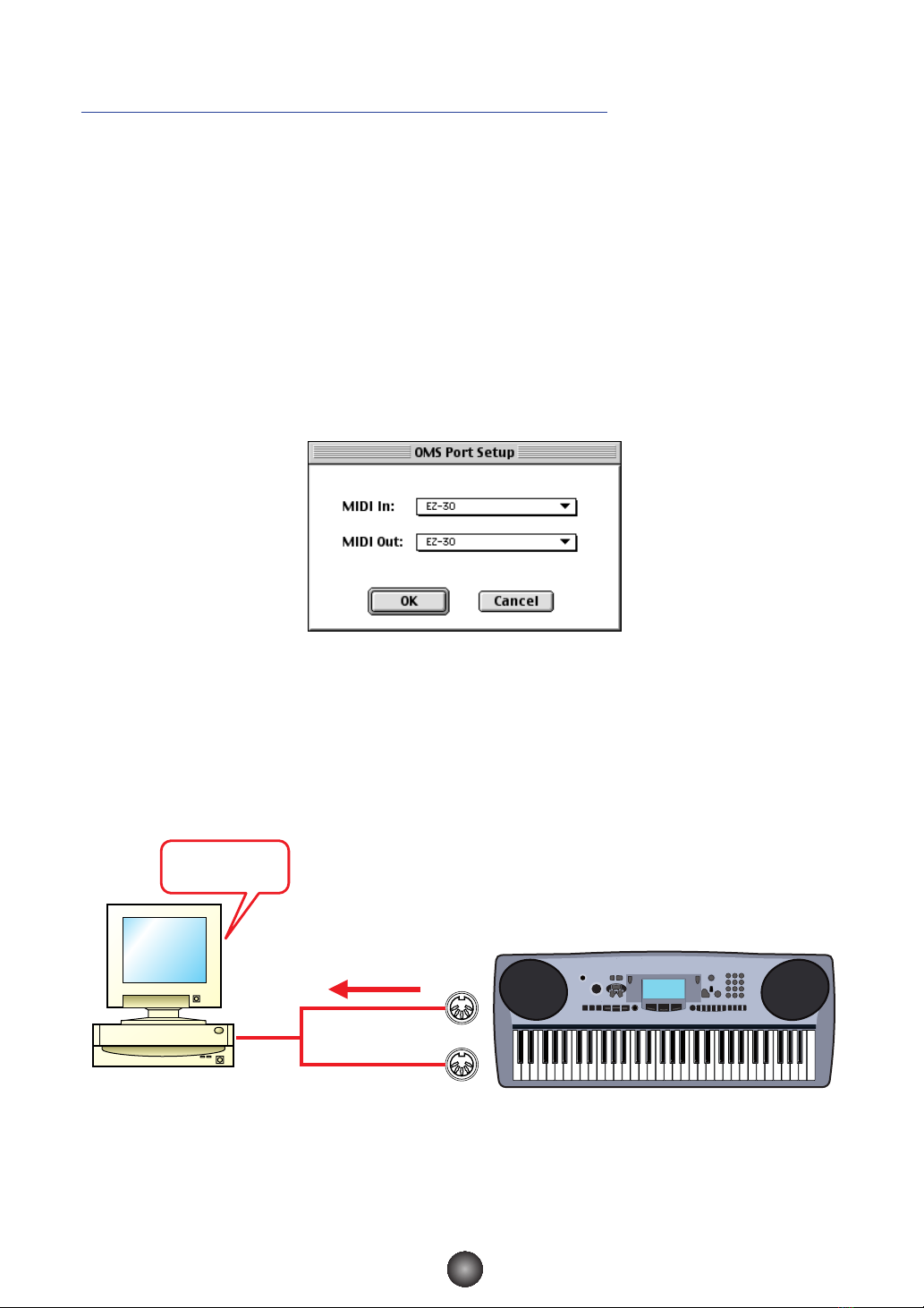

2.Choose “OMS Port Setup” from the Song Filer’s “Setup” menu, and the
“OMS Port Setup” dialog box will appear.
3.Click [MIDI In] and [MIDI Out] to select the desired input/output ports.
nThe displayed port names differ, depending on the current studio setup. If you connect your musical instrument via
a MIDI interface, for details on selecting the ports, refer to the manual that came with the MIDI interface.
4.Click [OK] to close OMS Port Setup.
Receiving Files
You can save your musical instrument’s data on your computer.
nYou do not need to perform a bulk dump from your musical instrument.
Computer
Receive
MIDI OUT
MIDI IN
5
SongFiler_E.qx 4/12/01 4:14 PM Page 5

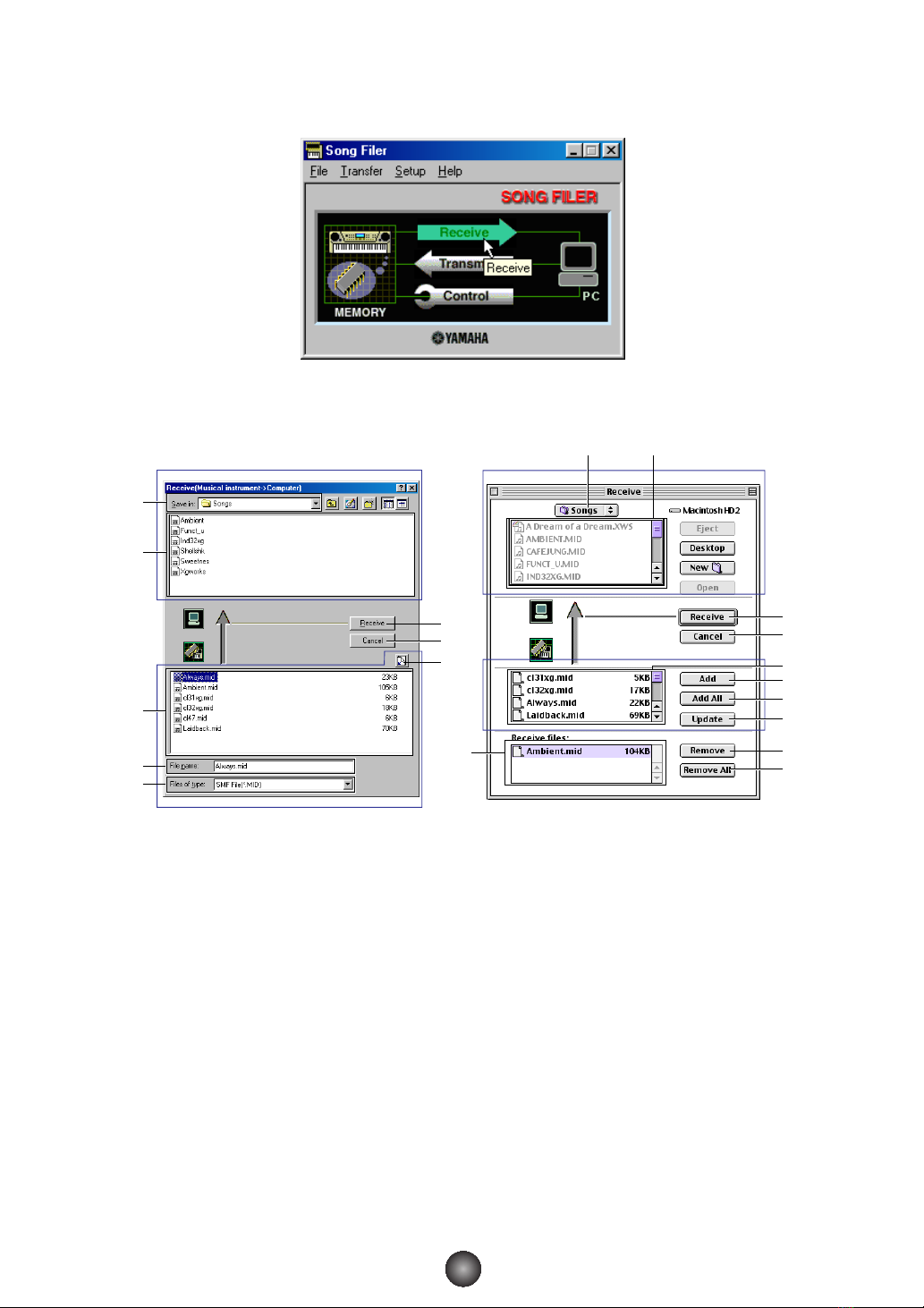

1.Open the “Receive” window.
Click [Receive] in the top display.
The “Receive” window will open.
Computer
1“Save in:”: Click this and choose the destination folder (to save to) from the drop-down list.
2File/folder list: This shows the contents of the destination folder.
Musical Instrument
3[Refresh (Update)]: Click this to update the contents.
4File list: This shows the contents.
5“File name (Receive files)”: This shows the name of the file selected from the File list.
6“Files of type:”: Click this and choose the file type from the drop-down list, if necessary.
7[Receive]: Click this to begin receiving the file.
8[Cancel]: Click this to cancel the file transfer.
9[Add]: Choose a file and click this to add it to the “Receive files” list.
)[Add All]: Click this to add all files to the “Receive files” list.
![Remove]: Choose a file and click this to remove a file from the “Receive files” list.
@[Remove All]: Click this to remove all files from the “Receive files” list.
Musical
Instrument
1 2
8
3
77
8
!
@
4
3
9
)
1
2
5
5
6
4
Computer
Windows Macintosh
Musical Instrument
Computer
6
SongFiler_E.qx 4/12/01 4:14 PM Page 6

7
2.Specify the file(s) and destination folder.
From the bottom list of musical instrument’s files, choose the files you wish to transfer to your
computer.
3.Click [Receive] to begin transferring data from your musical instrument
to your computer.
You will see the following message after the transfer is complete:
4.Click [OK] to return to the “Receive” window.
Transmitting Files
You can transmit data from your computer to your musical instrument.
1.Open the “Transmit” window.
Click [Transmit] in the top display.
The “Transmit” window will open.
MIDI OUT
MIDI IN
Computer
Transmit
SongFiler_E.qx 4/12/01 4:14 PM Page 7

Computer
1“Look in:”: Click this and choose the source folder (to send from) from the drop-down list.
2File/folder list: This shows the contents of the source folder.
3“File name (Transmit Files):”: This shows the name of the file selected from the File/folder list.
4“Files of type:”: Click this and choose the file type from the drop-down list, if necessary.
Musical Instrument
5[Refresh (Update)]: Click this to update the contents.
6File list: This shows the contents.
7[Transmit]: Click this to begin transmitting the file.
8[Cancel]: Click this to cancel the file transfer.
9[Add]: Choose a file and click this to add it to the “Transmit files” list.
)[Add All]: Click this to add all files to the “Transmit files” list.
![Remove]: Choose a file and click this to remove a file from the “Transmit files” list.
@[Remove All]: Click this to remove all files from the “Transmit files” list.
2.Specify the file(s).
From the top list of files on your computer, choose those that you wish to transfer to your musical
instrument.
3.Click [Transmit].
You will see the following message after the transfer is complete.
4.Click [OK] to return to the “Transmit” window.
1 2
8
5
7
8
7
@
!
)
9
5
1
2
3
4
6
6
3
Windows Macintosh
Musical
Instrument
Computer
Musical Instrument
Computer
8
SongFiler_E.qx 4/12/01 4:14 PM Page 8

Controls
You can delete and rename files in the musical instrument using your computer.
Deleting files

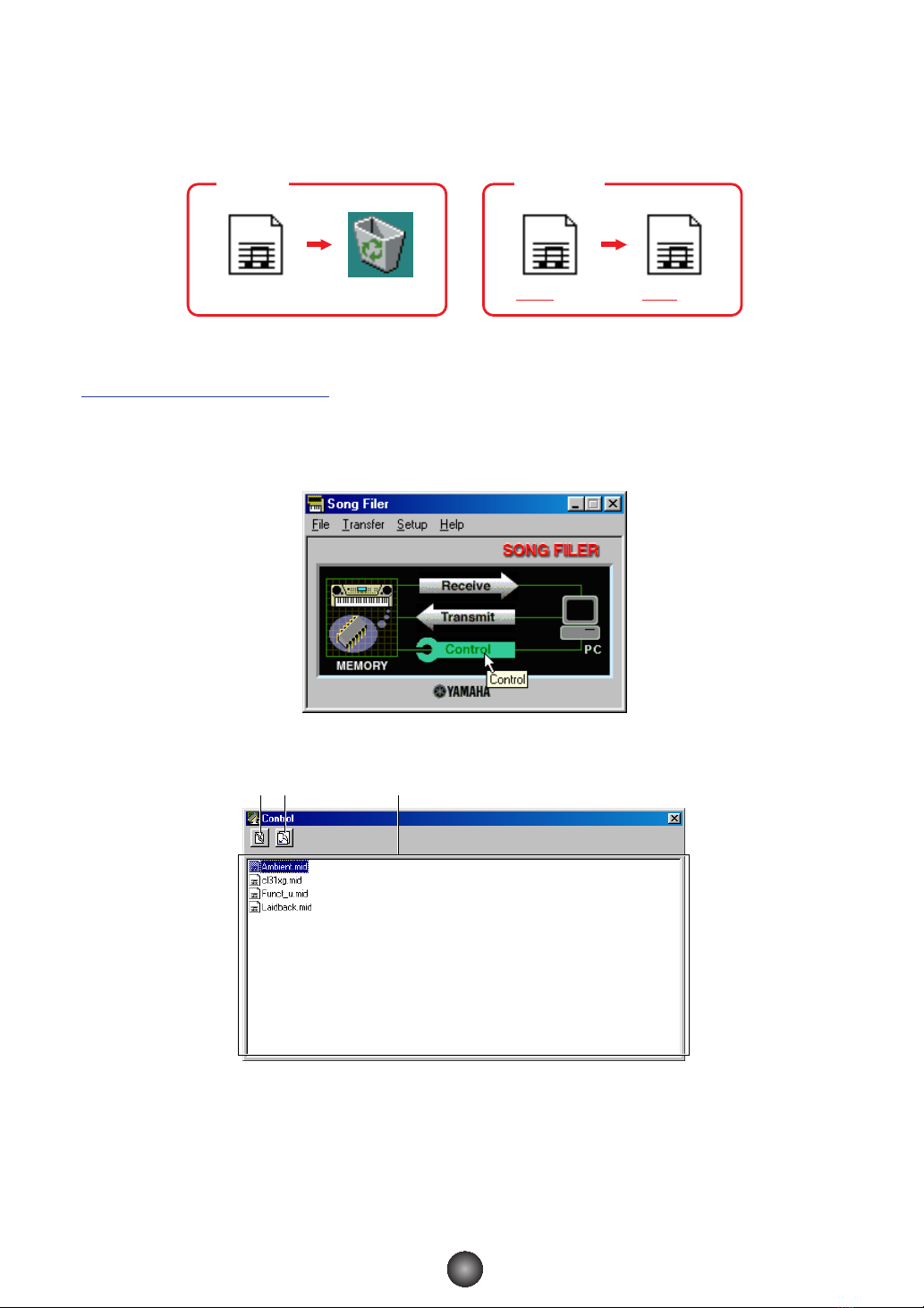

1.Open the “Control” window.
Click [Control] in the top display.
The “Control” window will open.
1“Delete” button: Click this to delete the currently selected file. (A confirmation prompt will
appear.)
2“Refresh” button: Click this to update the contents.
3File list: This shows the contents.
1 2 3
abcd.mid
Delete
abcd.mid efgh.mid
Rename
9
SongFiler_E.qx 4/12/01 4:14 PM Page 9

2.From the list, choose those file(s) that you wish to delete from your
musical instrument.
3.Click [Delete].
You will see the following confirmation message:
4.Click [OK] to return to the “Control” window.
Renaming files
1.Open the “Control” window.
Click [Control] in the top display. The “Control” window will open.
nFor details about the “control” window, see page 9.
2.Click the file that you wish to rename. Then click it again.
Now enter a name for the file and press the [Enter] key.
nA file name can consist of up to 8 characters plus a 3-character extension (extensions cannot be editted).
10
SongFiler_E.qx 4/12/01 4:14 PM Page 10

Error Messages
“The selected MIDI device is in use. Quit any applications currently using
the device.”
This message is displayed when the Song Filer starts up and the MIDI driver is currently being
used by another application. Click [OK], quit any applications that are using the MIDI driver, and
start the Song Filer again.
“Cannot find the MIDI device. Confirm the MIDI device settings.”
If the MIDI IN/OUT terminals are connected to the computer via a MIDI interface, install and set up
the MIDI driver properly, referring to the manual that came with the MIDI interface. If the TO HOST
terminal is connected to the computer, install YAMAHA CBX Driver and select the correct COM
port, etc.
“OMS is not installed.”
Install the OMS software and set it up properly.
“Data transfer failed. Confirm the musical instrument is connected to the
computer properly (HOST SELECT switch and others).”
Confirm the following and try the operation again.
• Is the musical instrument properly connected to the computer?
If not, make the proper connections according to the instructions in the musical instrument’s
Owner’s Manual.
• Is the musical instrument switched ON?
If not, switch the power ON.
• Is the musical instrument’s HOST SELECT switch set correctly?
Make the correct the setting according to the instructions in the musical instrument’s Owner’s
Manual.
• Is the driver properly set up? (Windows)
If the TO HOST terminal is connected to the computer, install YAMAHA CBX Driver and select
the correct COM port, etc.
• Set up OMS properly. (Macintosh)
“Data transfer is not possible in the current mode. Designate a mode that
allows data transfer by operating the musical instrument.”
This message is displayed when the data transfer is disabled on your musical instrument (e.g.
during playback, recording or recording-standby.)
nThe mode that does not allow data transfer differs, depending on the musical instrument.
“There is no room for creating “********.*** (File name)”.”
The file could not be saved to the musical instrument because the memory is full.
“Specify up to 8 letters for the file name and up to 3 for the extension.”
A file name can consist of up to 8 characters plus a 3-character extension (extensions cannot be
editted).
11
SongFiler_E.qx 4/12/01 4:14 PM Page 11
