INTRODUCTION
About the provided manuals
The following manuals are provided with this unit. Be sure to read each manual and keep the manuals that
are included with the unit readily available for future reference.
Safety Brochure (included with this unit)
This document describes safety precautions. Be sure to read it before use.
Quick Start Guide (included with this unit)
This document explains basic connection methods and operations.
User Guide (this manual)
This guide explains all functions of this unit. This guide is only provided on the Yamaha website.
TRUE X SURROUND Connection and Operation Guide
This guide explains the connection method when using this unit as a surround speaker for the sound bar.
This guide is only provided on the Yamaha website.
(CAUTION
This content indicates “risk of injury.”
(NOTICE
Indicates points that you must observe in order to prevent product failure, damage or malfunction and
data loss, as well as to protect the environment.
(NOTE
Indicates notes on instructions, restrictions on functions, and additional information that may be helpful.
(The illustrations and screens in the descriptions are for instructional purposes only.
3
INTRODUCTION > About the provided manuals

Features
This unit is a Bluetooth-supporting wireless speaker that you can take anywhere you like, to enjoy music
whenever you want to.
In addition to using this unit as a Bluetooth speaker, you can also use it as a surround speaker for your home
theater by connecting it to a Yamaha sound bar.
nUsing this unit as a Bluetooth speaker
You can use the unit as a Bluetooth speaker by connecting it to a smartphone or other mobile device.
In addition to high-quality audio playback, the unit also has the Clear Voice function that makes it easier to
hear human voices such as dialog.
Related links
“Listening to audio from a Bluetooth device”(p.11)
nUsing this unit as a surround speaker
The unit can be connected wirelessly to the sound bar. This unit is a portable type speaker that you can take
anywhere you like and use whenever you want to, so it will not disrupt the atmosphere of your room.
Related links
“Playing surround sound of the sound bar”(p.13)
4
INTRODUCTION > Features

ACCESSORIES
Included accessories
Make sure you have received all of the following accessories:
(USB cable (for charging this unit; 1 m, Type-A to Type-C) (×1)
(Additional Information (TRUE X SURROUND) (×1)
(Quick Start Guide (×1)
(Safety Brochure (×1)
5
ACCESSORIES > Included accessories

PART NAMES AND FUNCTIONS
Top controls/Front
This section describes the names and functions of the controls.

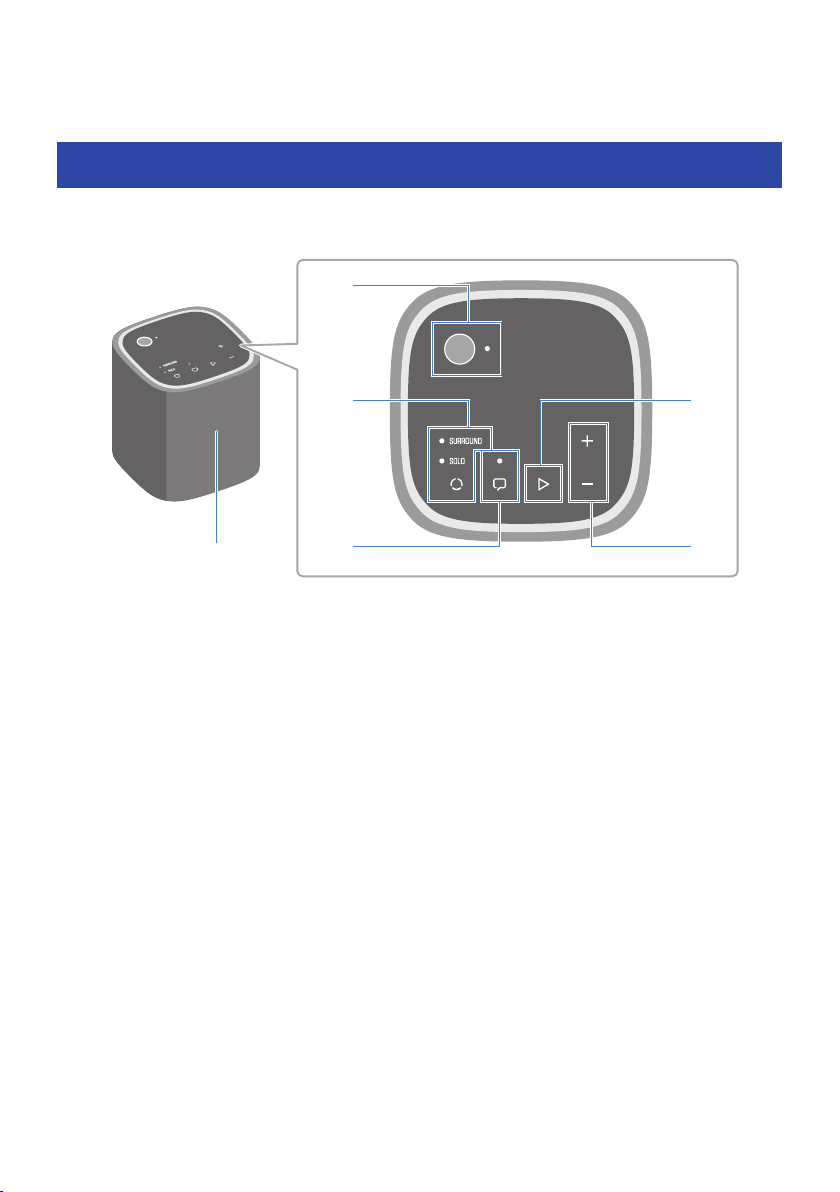

a
b
c
d
e
f
aPower button and lamp
Turn the wireless speaker on and off. The power lamp informs you of the remaining battery level or the status of the
power.
bP (mode) button and lamps
The unit’s mode changes each time this button is pressed. The SURROUND or SOLO lamp shows the selected mode.
(SOLO: This mode is used when using this unit alone as a Bluetooth speaker (p.11).
(SURROUND: This mode is used when using the unit in combination with a Yamaha sound bar (p.13).
cQ (Clear Voice) button and lamp
Enable or disable the Clear Voice function.
When the Clear Voice function is enabled, the Clear Voice lamp glows, and human voices such as dialog can be heard
more easily.
dR (play/pause) button
Audio is played or paused each time this button is pressed.
During playback, press the button twice quickly to skip to the next song, or three times to skip backward to the
beginning of the current song or previous song.
eVolume (+/−) buttons
Adjust the volume.
fSpeaker
6
PART NAMES AND FUNCTIONS > Top controls/Front

Rear/Bottom
This section describes the part names and functions of the rear and bottom of the unit.
a
b
c
aL/R lamps
The lamps glow to show the setting status when the sound bar is connected.
(L lamp glows: The wireless speaker is set to output surround left sound (back left channel).
(R lamp glows: The wireless speaker is set to output surround right sound (back right channel).
(L and R lamps glow: The single wireless speaker is set to output both surround left and surround right sounds.
bUSB port (Type-C)
Connect the included USB cable (for charging this unit) (p.8).
cCharging terminal (bottom)
Use when charging the unit by placing it on a charging cradle (Yamaha CC-T1A; sold separately).
Related links
“Playing surround sound of the sound bar”(p.13)
7
PART NAMES AND FUNCTIONS > Rear/Bottom

PREPARATION
Charging the unit
Use a commercially available USB power adapter that can output DC 5 V (2 A or more) when charging the
unit.
A charging cradle (Yamaha CC-T1A; sold separately) can also be used to charge the unit.
CAUTION
(Do not charge the unit when it is wet. Charging with liquid or foreign matter on the terminals may cause fire, explosion, battery
fluid leakage, electric shock, or malfunction.
USB cable (included)
USB power
adapter
(commercially
available)
1Connect the Type-C connector of the USB cable to the USB port on this unit.
2Connect the Type-A connector of the USB cable to the USB power adapter.
3Plug in the USB power adapter to an AC wall outlet.
The power lamp glows orange and charging will start. When charging is completed, the power
lamp turns off.
NOTE
(When charging with a DC 5 V (2 A or more) USB power adapter, the charging time is as follows: Charging time varies depending on
the usage environment and conditions.
(WS-X1A: approx. three hours
(If the unit is playing at a high volume while it is being charged, the remaining battery may decrease. Turn down the volume, or turn
off the unit and wait until charging is complete before using it.
(Not all commercially available USB power adapters are guaranteed to be compatible with this product.
8
PREPARATION > Charging the unit

Turning the unit on and off (standby)
To turn the unit on/off, follow the instructions below.
1・・・2・・・
Press and hold the power button to turn the power on.
The power lamp flashes to inform you of the remaining battery level.
(Flashing white: Remaining battery level is more than half.
(Flashing orange: Remaining battery level is less than half.
After showing the remaining battery level, the unit turns on. To turn off the unit, press and hold the power
button again.
Related links
“Restarting or initializing (factory reset) the unit”(p.22)
nChecking the remaining battery level
If the play/pause (R) button is pressed and held for at least five seconds while the unit is on, the power lamp
and a melody inform you of the remaining battery level.
Remaining battery level Power lamp Melody
More than half Flashes white Long sound
Less than half Flashes orange Medium length sound
Less than 20% Short sound
9
PREPARATION > Turning the unit on and off (standby)

NOTE
(This unit will automatically switch to standby in any of the following situations (Auto Standby):
(When SOLO mode is selected
No playback and no control operations for 20 minutes or more
No control operations for eight hours or more, regardless of playback
(When SURROUND mode is selected
Not connected to the sound bar for 20 minutes or more
The sound bar is turned off while the unit is connected to the sound bar
(A melody will inform you of the status of this unit, such as when the power is turned on or when a Bluetooth device is connected.
(Sound Guide: Enabled by default.)
To disable the Sound Guide, hold down the Clear Voice button for at least three seconds. Sound Guide switches between enabled
and disabled each time the button is held down.
Related links
“Top controls/Front”(p.6)
10
PREPARATION > Turning the unit on and off (standby)

USING THIS UNIT AS A BLUETOOTH®
SPEAKER
Listening to audio from a Bluetooth device
A Bluetooth device can be connected when the SOLO lamp is flashing blue.
If the unit has been connected to a sound bar as a surround speaker, change the unit's mode to SOLO using
the mode (P) button.
NOTE
(If other Bluetooth devices have been connected before, the unit will automatically connect to the last connected device when the
unit is turned on. To connect a new Bluetooth device, disconnect the currently connected Bluetooth device and then connect the
new device.
(To terminate the Bluetooth connection from this unit, press the volume (−) button and play/pause (R) button simultaneously for
at least five seconds.

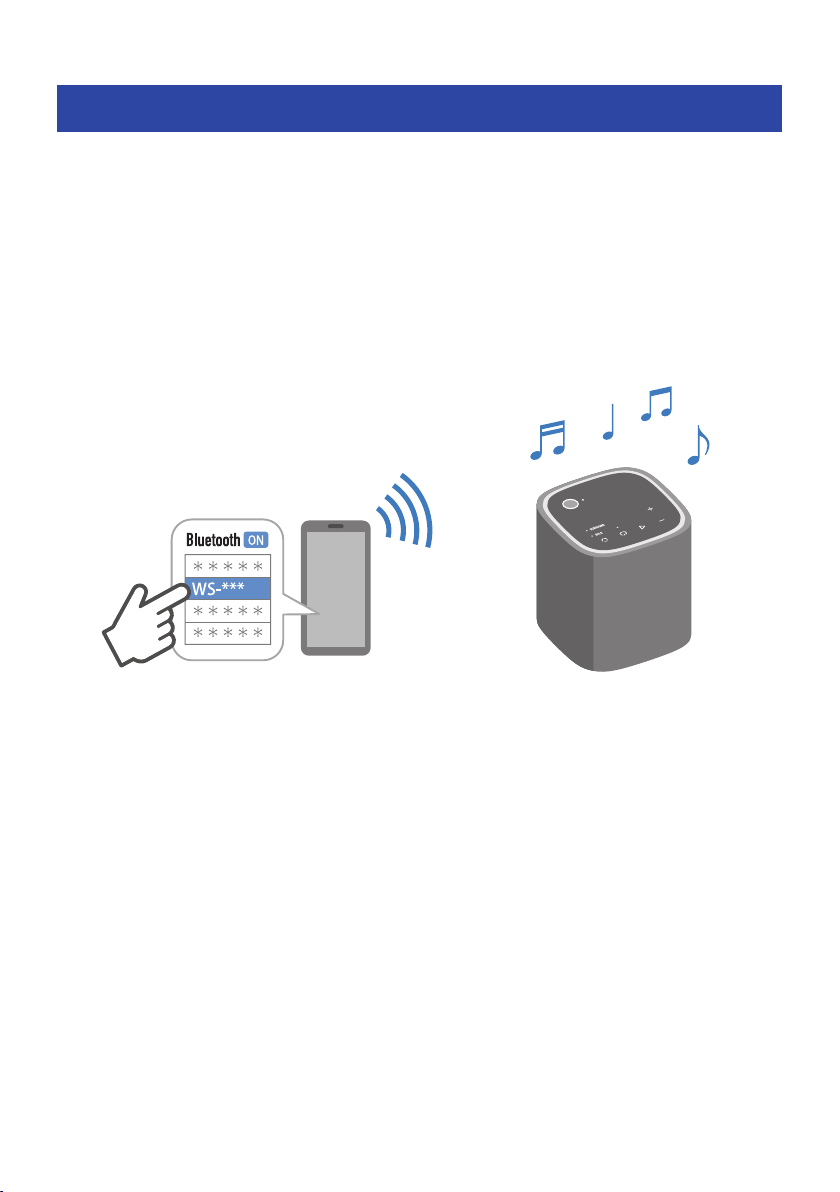

1On the Bluetooth device, enable the Bluetooth function.
2On the Bluetooth device, select this unit (Yamaha WS-***) from the list of available
devices to connect to.
The model name of your product (X1A) is displayed in place of ***. If a passkey is required,
enter the number “0000”.
WS-***＊＊＊＊＊＊＊＊＊＊＊＊＊＊＊
ON
When the connection is established, the SOLO lamp glows blue.
11
USING THIS UNIT AS A BLUETOOTH® SPEAKER > Listening to audio from a Bluetooth device

3Start playback of audio on the Bluetooth device.
Related links
“PART NAMES AND FUNCTIONS”(p.6)
12
USING THIS UNIT AS A BLUETOOTH® SPEAKER > Listening to audio from a Bluetooth device

USING THIS UNIT AS A SURROUND SPEAKER
Playing surround sound of the sound bar

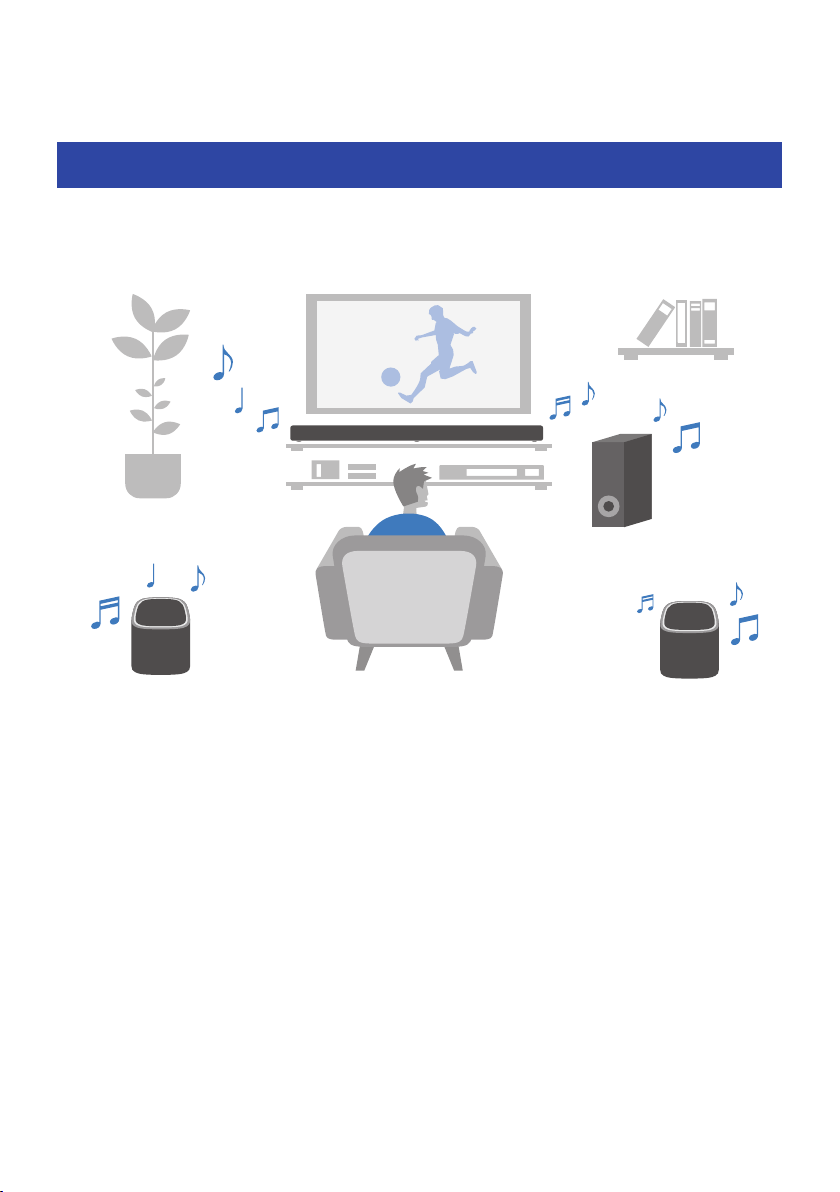

Real surround sound can be achieved just by using this unit as a surround speaker for the sound bar.
For information on compatible Yamaha sound bars and connection methods, visit the following website:
https://manual.yamaha.com/av/truexsur/
13
USING THIS UNIT AS A SURROUND SPEAKER > Playing surround sound of the sound bar

TROUBLESHOOTING
When a problem occurs
Check the following first when any problem occurs
Try following the instructions described in “When a problem occurs” first when the unit does not function
properly. If an error occurs, the lamp flashes to notify you.
(“List of lamp displays”(p.23)
If the unit does not function properly after following the instructions to solve the problem, restart or initialize
it.
(“Restarting or initializing (factory reset) the unit”(p.22)
If the unit still does not function properly even after doing so, turn off the unit and contact the nearest
authorized Yamaha dealer or service center.
When this unit is connected to the sound bar
See also the following guide when this unit is connected to a sound bar.
https://manual.yamaha.com/av/truexsur/
14
TROUBLESHOOTING > When a problem occurs

The unit cannot be charged/It takes a long time to charge
(A USB power adapter that is not compatible with the unit is being used.
Use a USB power adapter that can output DC 5 V (2 A or more).
(“Charging the unit”(p.8)
(The USB power adapter’s output is not stable.
Not all commercially available USB power adapters are guaranteed to be compatible with this product.
Try using a different USB power adapter.
(The USB power adapter and this unit are not properly connected.
Check that all connections are made properly.
(“Charging the unit”(p.8)
(Ambient temperature is too high or too low.
Charge the unit within its temperature range for usage (5°C to 35°C).
(“Charging the unit”(p.8)
(Charging is taking a long time.
It is possible that charging is stopped. Disconnect and reconnect the included USB cable and charge the
unit again.
(“Charging the unit”(p.8)
(The protection circuitry of this unit has been activated.
Check the lamp display.
(“List of lamp displays”(p.23)
(The unit is connected to a USB charging compatible port on a computer.
Charging from a USB port of a computer is not guaranteed to work. Use a USB power adapter that can
output DC 5 V (2 A or more).
15
TROUBLESHOOTING > When a problem occurs

The unit cannot be turned on
(The power button is not being pressed and held.
To turn on the unit, press and hold the power button for at least three seconds.
(“Turning the unit on and off (standby)”(p.9)
(The remaining battery level is low.
Charge the unit.
(“Charging the unit”(p.8)
(Ambient temperature is too high or too low.
Use the unit within the operating temperature range.
(“SPECIFICATIONS”(p.25)
16
TROUBLESHOOTING > When a problem occurs

The unit turns off suddenly
(The remaining battery level is low.
Charge the unit.
If the unit is playing at a high volume, the remaining battery may decrease and the unit may turn off even
if it is charging. In this case, turn off the unit, and then fully charge it before use.
(“Charging the unit”(p.8)
(The Auto Standby function turned off the unit.
Turn on the unit again.
(“Turning the unit on and off (standby)”(p.9)
(Ambient temperature is too high or too low.
Use the unit within the operating temperature range.
(“SPECIFICATIONS”(p.25)
(The sound bar that is connected to the unit has been turned off.
Turning the sound bar on and off turns the unit on and off when the unit is connected to the sound bar.
(https://manual.yamaha.com/av/truexsur/
(The USB power adapter’s output is not stable.
Turn down the volume or try using a different USB power adapter. Not all commercially available USB
power adapters are guaranteed to be compatible with this product.
(The rechargeable battery in the unit has deteriorated.
If the unit turns off immediately even after fully charging, the rechargeable battery may be deteriorated.
Contact the nearest authorized Yamaha dealer or service center.
17
TROUBLESHOOTING > When a problem occurs

The unit cannot be connected to a Bluetooth device
(The name of this unit is not displayed in the list of available devices to connect to on the Bluetooth
device.
Try disabling and re-enabling the Bluetooth function of the Bluetooth device. The name of this unit may
then be displayed.
(This unit cannot be connected to the Bluetooth device even though the name of the unit is
displayed in the list of available devices to connect to on the Bluetooth device.
Try deleting this unit from the list and connecting the unit to the Bluetooth device again. It may then be
possible to connect to the Bluetooth device.
(The Bluetooth device is not turned on.
Ensure that the Bluetooth device is turned on and that its Bluetooth function is enabled.
(The unit is connected to another Bluetooth device.
Terminate the current Bluetooth connection, and then connect to the new device.
(“Listening to audio from a Bluetooth device”(p.11)
(The unit and the Bluetooth device are too far away from each other.
Move the Bluetooth device and/or the unit so that they are closer to each other.
(The audio output destination on the Bluetooth device is not set to this unit.
Select this unit as the audio output destination on the Bluetooth device.
(Electromagnetic waves being emitted from devices using the 2.4 GHz frequency band (such as
microwave ovens or wireless routers) are obstructing the wireless communication.
Do not use the unit near such devices.
(This unit has been initialized.
The connection information will be deleted when the unit is initialized. Delete this unit from the list of
available devices to connect to on the Bluetooth device and then connect to the Bluetooth device again.
(“Listening to audio from a Bluetooth device”(p.11)
(The passkey for the Bluetooth device is not “0000”.
Bluetooth devices with a passkey other than “0000” cannot be used.
(The Bluetooth device you are using does not support the A2DP profile.
Use a Bluetooth device that supports the A2DP profile.
18
TROUBLESHOOTING > When a problem occurs

No sound
(The unit and Bluetooth device are not connected.
Connect to the Bluetooth device.
(“Listening to audio from a Bluetooth device”(p.11)
(The volume is too low
Turn up the volume.
(“Top controls/Front”(p.6)
19
TROUBLESHOOTING > When a problem occurs

Broken, distorted, or unusual sound is heard from the unit
(The volume is too high.
Turn down the volume.
(“Top controls/Front”(p.6)
(Electromagnetic waves being emitted from devices using the 2.4 GHz frequency band (such as
microwave ovens or wireless routers) are obstructing the wireless communication.
Do not use the unit near such devices.
(The unit and the Bluetooth device are too far away from each other.
Move the Bluetooth device and/or the unit so that they are closer to each other.
20
TROUBLESHOOTING > When a problem occurs
