i En
English
1To assure the finest performance, please read this manual
carefully. Keep it in a safe place for future reference.
2Install this sound system in a well ventilated, cool, dry, clean
place – away from direct sunlight, heat sources, vibration,
dust, moisture, and/or cold. For proper ventilation, allow the
following minimum clearances.
Top: 30 cm (11-3/4 in)
Rear: 20 cm (7-7/8 in)
Sides: 20 cm (7-7/8 in)
3Locate this unit away from other electrical appliances, motors,
or transformers to avoid humming sounds.
4Do not expose this unit to sudden temperature changes from
cold to hot, and do not locate this unit in an environment with
high humidity (i.e. a room with a humidifier) to prevent
condensation inside this unit, which may cause an electrical
shock, fire, damage to this unit, and/or personal injury.
5Avoid installing this unit where foreign objects may fall onto
this unit and/or this unit may be exposed to liquid dripping or
splashing. On the top of this unit, do not place:
– Other components, as they may cause damage and/or
discoloration on the surface of this unit.
– Burning objects (i.e. candles), as they may cause fire,
damage to this unit, and/or personal injury.
– Containers with liquid in them, as they may fall and liquid
may cause electrical shock to the user and/or damage to
this unit.
6Do not cover this unit with a newspaper, tablecloth, curtain,
etc. in order not to obstruct heat radiation. If the temperature
inside this unit rises, it may cause fire, damage to this unit,
and/or personal injury.
7Do not plug in this unit to a wall outlet until all connections
are complete.
8Do not operate this unit upside-down. It may overheat,
possibly causing damage.
9Do not use force on switches, knobs and/or cords.
10 When disconnecting the power cable from the wall outlet,
grasp the plug; do not pull the cable.
11 Do not clean this unit with chemical solvents; this might
damage the finish. Use a clean, dry cloth.
12 Only voltage specified on this unit must be used. Using this
unit with a higher voltage than specified is dangerous and may
cause fire, damage to this unit, and/or personal injury. Yamaha
will not be held responsible for any damage resulting from use
of this unit with a voltage other than specified.
13 To prevent damage by lightning, keep the power cord
disconnected from a wall outlet or the unit during a lightning
storm.
14 Do not attempt to modify or fix this unit. Contact qualified
Yamaha service personnel when any service is needed. The
cabinet should never be opened for any reasons.
15
When not planning to use this unit for long periods of time (i.e.
vacation), disconnect the AC power plug from the wall outlet.
16 Be sure to read the “Troubleshooting” section in the owner’s
manual on common operating errors before concluding that
this unit is faulty.
17 Before moving this unit, press Adownward to turn off this
unit and then disconnect the AC power plug from the AC wall
outlet.
18 Condensation will form when the surrounding temperature
changes suddenly. Disconnect the power cable from the
outlet, then leave this unit alone.
19 When using this unit for a long time, this unit may become
warm. Turn the system off, then leave this unit alone for
cooling.
20 Install this unit near the wall outlet and where the AC power
plug can be reached easily.
21 The batteries shall not be exposed to excessive heat such as
sunshine, fire or the like. When you dispose of batteries,
follow your regional regulations.
22 Excessive sound pressure from earphones and headphones
can cause hearing loss.
This label is required to be attached to a product of which the
temperature of the top cover may be hot during operation.
■For U.K. customers
If the socket outlets in the home are not suitable for the plug
supplied with this appliance, it should be cut off and an
appropriate 3 pin plug fitted. For details, refer to the instructions
described below.
The plug severed from the mains lead must be destroyed, as a
plug with bared flexible cord is hazardous if engaged in a live
socket outlet.
■Special Instructions for U.K. Model
Caution: Read this before operating your unit.
As long as this unit is connected to the AC wall outlet, it is not
disconnected from the AC power source even if you set this unit to
standby mode by A. In this state, this unit is designed to consume a
very small quantity of power.
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO
NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
IMPORTANT
THE WIRES IN MAINS LEAD ARE COLOURED IN
ACCORDANCE WITH THE FOLLOWING CODE:
Blue: NEUTRAL
Brown: LIVE
As the colours of the wires in the mains lead of this apparatus
may not correspond with the coloured markings identifying
the terminals in your plug, proceed as follows:
The wire which is coloured BLUE must be connected to the
terminal which is marked with the letter N or coloured
BLACK. The wire which is coloured BROWN must be
connected to the terminal which is marked with the letter L or
coloured RED.
Make sure that neither core is connected to the earth terminal
of the three pin plug.

1 En
PREPARATIONINTRODUCTION
BASIC
OPERATION
ADDITIONAL
INFORMATION
ADVANCED
OPERATION English
INTRODUCTION
What you can do with this unit ................................. 2
Sources that can be played back on this unit ................. 2
Devices that can control this unit................................... 3
Operations from your mobile device ............................. 3
Supplied accessories ................................................... 4
Controls and functions ............................................... 5
Front panel ..................................................................... 5
Front display .................................................................. 6
Rear panel ...................................................................... 7
Remote control............................................................... 8
Using the remote controls.............................................. 9
PREPARATION
Connections ............................................................... 10
Connecting speakers and source components.............. 10
Connecting the speakers .............................................. 11
Connecting the FM and AM antennas ......................... 12
Connecting to a network.............................................. 13
Connecting power cable .............................................. 13
Setup of your network devices .................................... 14
BASIC OPERATION
Playback .................................................................... 15
Playing a source........................................................... 15
Using the sleep timer ................................................... 16
Listening to FM/AM radio....................................... 17
FM/AM tuning............................................................. 17
Automatic preset tuning (FM stations only)................ 18
Manual tuning preset ................................................... 18
Recalling a preset station ............................................. 19
Clearing a preset station............................................... 19
Radio Data System tuning ........................................... 20
Using the Spotify service .......................................... 21
Playing back music stored on media servers
(PCs/NAS) ............................................................. 22
Setting the media sharing of music files...................... 22
Playback of PC music contents.................................... 23
Listening to Internet radio....................................... 25
Registering favorite Internet radio stations
(bookmarks)............................................................. 26
Playing back iPod/iTunes music via a network
(AirPlay) ................................................................ 27
Playback of iPod/iTunes music contents ..................... 27
Switching information on the front display ........... 29
ADVANCED OPERATION
Configuring playback settings for different
playback sources (Option menu) .........................30
Option menu items....................................................... 30
Configuring various functions (Setup menu) .........32
Setup menu items......................................................... 32
Network Setup ............................................................. 33
Tone Control................................................................ 34
Balance ........................................................................ 34
Max Volume ................................................................ 34
Initial Volume.............................................................. 34
DC OUT ...................................................................... 34
Configuring the system settings
(ADVANCED SETUP menu)...............................35
ADVANCED SETUP menu items .............................. 35
Restoring the default settings (INIT)........................... 35
Updating the firmware (UPDATE) ............................. 35
Checking the firmware version (VERSION)............... 35
Updating the unit’s firmware via the network.......36
ADDITIONAL INFORMATION
Troubleshooting.........................................................37
Error indications on the front display.....................41
Trademarks ...............................................................42
Specifications .............................................................43
Index...........................................................................44
(at the end of this manual)
Information about third party software licenses ... i
Contents
•yindicates a tip for your operation.
• This manual explains operations using the supplied remote control.
• This manual describes all the “iPod”, “iPhone” and “iPad” as the “iPod”. “iPod” refers to “iPod”, “iPhone” and “iPad”, unless
otherwise specified.

What you can do with this unit
2 En
This unit is a network receiver, on which you can enjoy playing back music files stored on your media server (PC or
NAS), audio contents on the Internet radio, Spotify, AirPlay devices (iPod/iTunes) by connecting the unit to your home
network (DLNA) and audio system on the same network.
* You need a commercially available Wi-Fi broadband router when you use an iPod/Android.
1Play back the Internet radio (p.25)
2Play back music files stored on your PC (p.22)
3Play back music files stored on your NAS
(p.22)
4Play back your iPod with AirPlay (p.27)
5Play back the Spotify service (p.21)
6Play back your external component (p.10)
7Listening to FM/AM radio (p.17)
y
For details on connecting the devices, see “Connections” (p.10).
What you can do with this unit
Sources that can be played back on this unit
FM/AMFM/AM
STANDBY/ON
VOLUME
RETURN
PUSH- ENTER
TUNINGPRESET FM/AM MEMORY
BASS TREBLE INPUT
FMMODE DISPLAY
SELECT
PHONES
SPEAKERS
AB
This unit (R-N301)
1Internet
Modem
Broadband router*
2PC
3NAS 4iPod (AirPlay)*
5iPod/Android (Spotify)*
6CD player etc.
7
INTRODUCTION

What you can do with this unit
3 En
INTRODUCTION English
* You need a commercially available Wi-Fi broadband router when you use a mobile device.
AControl this unit using your mobile devices (p.3).
BControl this unit using the remote control.
Once you install the app “NETWORK PLAYER CONTROLLER” in your mobile device, you can operate the unit with
the mobile device.
Features
• Power-on/off or other basic operation
• Changing the music source
• Selecting, playing back, and stopping songs
• Playing back songs stored in devices
For downloading the app or the latest information, access to the App Store or Google Play and search “NETWORK
PLAYER CONTROLLER.”
Devices that can control this unit
Operations from your mobile device
STANDBY/ON
VOLUME
RETURN
PUSH- ENTER
TUNINGPRESET FM/AM MEMORY
BASS TREBLE INPUT
FMMODE DISPLAY
SELECT
PHONES
SPEAKERS
AB
AB
Broadband router*
Mobile device*
(iPod, Android) Remote control

Supplied accessories
4 En
Check that the following accessories are supplied with the product.
■Notes on remote controls and batteries
• Do not spill water or other liquids on the remote control.
• Do not drop the remote control.
• Do not leave or store the remote control in the following conditions:
– places of high humidity, such as near a bath
– places of high temperatures, such as near a heater or stove
– places of extremely low temperatures
– dusty places
• Insert batteries according to the polarity markings (+ and -).
• Change all batteries if you notice the operation range of the remote control narrows.
• If the batteries run out, immediately remove them from the remote control to prevent an explosion or acid leak.
• If you find leaking batteries, discard the batteries immediately, taking care not to touch the leaked material. If the leaked material
comes into contact with your skin or gets into your eyes or mouth, rinse it away immediately and consult a doctor. Clean the battery
compartment thoroughly before installing new batteries.
• Do not use old batteries together with new ones. This may shorten the life of the new batteries or cause old batteries to leak.
• Do not use different types of batteries (such as alkaline and manganese batteries) together. Read the packaging carefully as these
different types of batteries may have the same shape and color.
• Before inserting new batteries, wipe the battery compartment clean.
• Keep the batteries in a location out of reach of children. Batteries can be dangerous if a child were to put in his or her mouth.
• If the batteries grow old, the effective operation range of the remote control decreases considerably. If this happens, replace the
batteries with new one as soon as possible.
• If you plan not to use the unit for a long period of time, remove the batteries from the unit. Otherwise, the batteries will wear out,
possibly resulting in a leakage of battery liquid that may damage the unit.
• Do not throw away batteries with general house waste. Dispose of them correctly in accordance with your local regulations.
Supplied accessories
SETUP
POP-UP MENU
AM
FM
MODE
LINE 1
COAXIAL OPTICAL NET
LINE 2 LINE 3
TUNER CD
PRESET
TUNING
DIMMER
SLEEP
BA
SPEAKERS
HOME NOW PLAYING
MUTE
OPTION
DISPLAY REPEAT SHUFFLE
VOLUME
RETURN
ENTER
Remote control FM antennaAM antenna Batteries (x2)
(AAA, R03, UM-4)

Controls and functions
5 En
INTRODUCTION English
1A(power)
Turns on/off (standby) the unit.
In standby mode, this unit consumes a small amount of power to
receive infrared signals from the remote control.
2PHONES jack
Outputs audio to your headphones for private listening.
3SPEAKERS A/B
Turns on or off the speaker set connected to the
SPEAKERS A and/or SPEAKERS B terminals on the rear
panel each time the corresponding button is pressed.
4DISPLAY
Selects the information displayed on the front display
(p.29).
5Remote control sensor
Receives infrared signals from the remote control.
6STANDBY/ON indicator
Lights up as follows:
Brightly lit: Power is on
Dimly lit: Standby mode
7FM MODE
Set the FM band reception mode to automatic stereo or
monaural (p.17).
8MEMORY
Stores the current FM/AM station as a preset when
TUNER is selected as the input source (p.18).
9FM/AM
Switch between FM and AM (p.17).
0Front display
Shows information about the operational status of this
unit.
APRESET j / i
Selects a preset FM/AM station when TUNER is selected
as the input source (p.19).
BTUNING jj / ii
Selects the tuning frequency when TUNER is selected as
the input source (p.17).
CBASS +/–
Increases or decreases the low frequency response. The
center position produces a flat response (p.16).
DTREBLE +/–
Increases or decreases the high frequency response. The
center position produces a flat response (p.16).
EINPUT l/ h
Selects the input source you want to listen to.
FSELECT/ENTER (jog dial)
Turn the dial to select a numeric value or setting, and press
the dial to confirm.
GRETURN
Returns to the previous indication of the front display.
HVOLUME control
Increases or decreases the sound output level.
Controls and functions
Front panel
STANDBY/ON
VOLUME
RETURN
PUSH - ENTER
TUNINGPRESET FM/AM MEMORY
BASS TREBLE INPUT
FM MODE DISPLAY
SELECT
PHONES
SPEAKERS
AB
HC D EFG
1234567
89:A B
Note

Controls and functions
6 En
1Information display
Displays the current status (such as input name sound
mode name).
You can switch the information that is displayed when you
press DISPLAY (p.29).
2STEREO
Lights up when the unit is receiving a stereo FM radio
signal.
3TUNED
Lights up when the unit is receiving an FM/AM radio
station signal.
4Speaker indicators
“SP A” lights up when the SPEAKERS A output is
enabled and “SP B” lights up when the SPEAKERS B
output is enabled.
5MUTE
Blinks when audio is muted.
6SLEEP
Lights up when the sleep timer is on.
y
You can change the brightness level of the front display by
pressing DIMMER on the remote control (p.8).
Front display
STEREO SP MUTE A
TUNED SP SLEEP B
142 3 5 6

Controls and functions
7 En
INTRODUCTION English
1ANTENNA terminals
For connecting to FM and AM antennas (p.12).
2DC OUT jack
For supplying power to a Yamaha AVaccessory. For
details, refer to the instruction manual of the AV
accessory.
3NETWORK jack
For connecting to a network (p.13).
4Power cable
For connecting to an AC wall outlet (p.13).
5OPTICAL jack
For connecting to audio components equipped with
optical digital output (p.10).
6COAXIAL jack
For connecting to audio components equipped with a
coaxial digital output (p.10).
7CD jacks
For connecting to a CD player (p.10).
8LINE 1-3 jacks
For connecting to analog audio components (p.10).
9SPEAKERS terminals
Used to connect speakers (p.11).
Rear panel
A
B
PB
12 3
REC
SPEAKERS
CD LINE
ANTENNA
FM AM
75Ω
DC OUT
5V 0.5A
NETWORK
DIGITAL
COAXIAL
OPTICAL
68 95
1234
7

Controls and functions
8 En
1Infrared signal transmitter
Sends infrared signals.
2SLEEP
Sets the sleep timer (p.16).
3DIMMER
Changes the brightness level of the front display.
Choose
brightness from 5 levels by pressing this key repeatedly.
4SPEAKERS A/B
Turns on and off the set of speakers connected to the SPEAKERS
A and/or SPEAKERS B terminals on the rear panel of this unit
when the corresponding key is pressed.
5Input selection keys
Select an input source for playback.
COAXIAL COAXIAL jack
OPTICAL OPTICAL jack
NET NETWORK jack (press repeatedly to select a
desired network source)
LINE 1-3 LINE 1-3 jacks
TUNER FM/AM tuner
CD CD jacks
6Radio keys
Operate the FM/AM radio (p.17).
MODE Switches between “Stereo” and “Mono” for
FM radio reception (p.17).
FM Switches to FM radio.
AM Switches to AM radio.
TUNING jj / ii Select the radio frequency.
PRESET j / iSelect a preset station.
7POP-UP MENU
This button is not available for this unit.
8Menu operation keys
Cursor keys Select a menu or a parameter.
(B/C/D/E)
ENTER Confirms a selected item.
RETURN Returns to the previous state.
9SETUP
Displays the “Setup” menu (p.32).
0VOLUME keys
Adjust the volume.
AOPTION
Displays the “Option” menu (p.30).
BDISPLAY
Switches information shown in the front display.
CA(power)
Turns on/off (standby) the unit.
DNOW PLAYING
Shows the playback information in the front display.
EHOME
Shows top-level menu in the front display.
FMUTE
Mutes the audio output.
GPlayback keys
Let you play back and perform other operations for network
sources.
HSHUFFLE
Switches shuffle modes.
IREPEAT
Switches repeat modes.
Remote control
SETUP
POP-UP MENU
AM
FM
MODE
LINE 1
COAXIAL OPTICAL NET
LINE 2 LINE 3
TUNER CD
PRESET
TUNING
DIMMER
SLEEP
BA
SPEAKERS
HOME NOW PLAYING
MUTE
OPTION
DISPLAY REPEAT SHUFFLE
VOLUME
RETURN
ENTER
1
2
C
E
F
H
I
D
3
4
5
6
8
7
9
:
G
B
A

Controls and functions
9 En
INTRODUCTION English
■Installing batteries
• Change all batteries if the operation range of the remote control
narrows.
• Before inserting new batteries, wipe the compartment clean.
■Operation range
The remote controls transmit a directional infrared beam.
Be sure to aim the remote controls directly at the remote
control sensor on the front panel of this unit.
Using the remote controls
Notes
2
13
30° 30°
Remote control
Approximately
6 m (20 ft)

10 En
PREPARATION
• Do not connect this unit or other components to the main power until all connections between components are complete.
• All connections must be correct: L (left) to L, R (right) to R, “+” to “+” and “–” to “–”. If the connections are faulty,
no sound will be heard from the speakers, and if the polarity of the speaker connections is incorrect, the sound will be
unnatural and lack bass. Refer to the owner’s manual for each of your components.
• Do not let bare speaker wires touch each other or any metal part of this unit. This could damage this unit and/or the speakers.
Connections

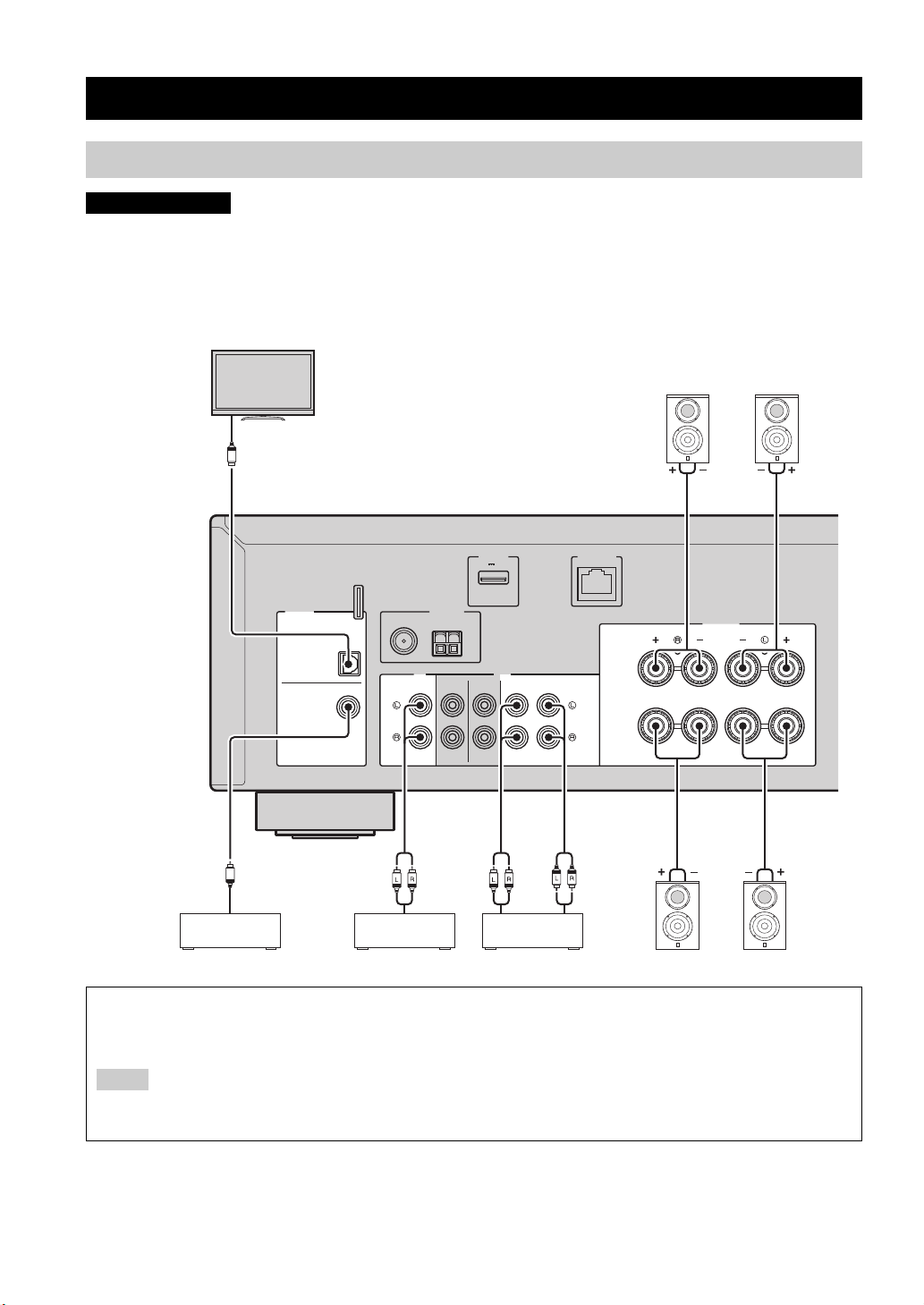

Connecting speakers and source components
CAUTION
Connecting recording devices
You can connect audio recording devices to the LINE 3 (REC) jacks. This jack outputs the selected input signals (from COAXIAL,
OPTICAL, LINE 1-2, TUNER and CD).
• Be sure to use the LINE 3 (REC) jacks only for connecting recording devices.
• If you select LINE 3 as the input source, the audio output of the LINE 3 (REC) jacks will be muted.
A
B
PB
12 3
REC
SPEAKERS
CD LINE
ANTENNA
FM AM
75Ω
DC OUT
5V 0.5A
NETWORK
DIGITAL
COAXIAL
OPTICAL
O
C
Audio
output
CD player
TV etc.
Speakers A
Audio output
(digital coaxial) Audio
input
Audio
output
Speakers B
CD recorder, etc.
Audio output
(digital optical)
BD/DVD player, etc.
Notes

11 En
Connections
PREPARATION English

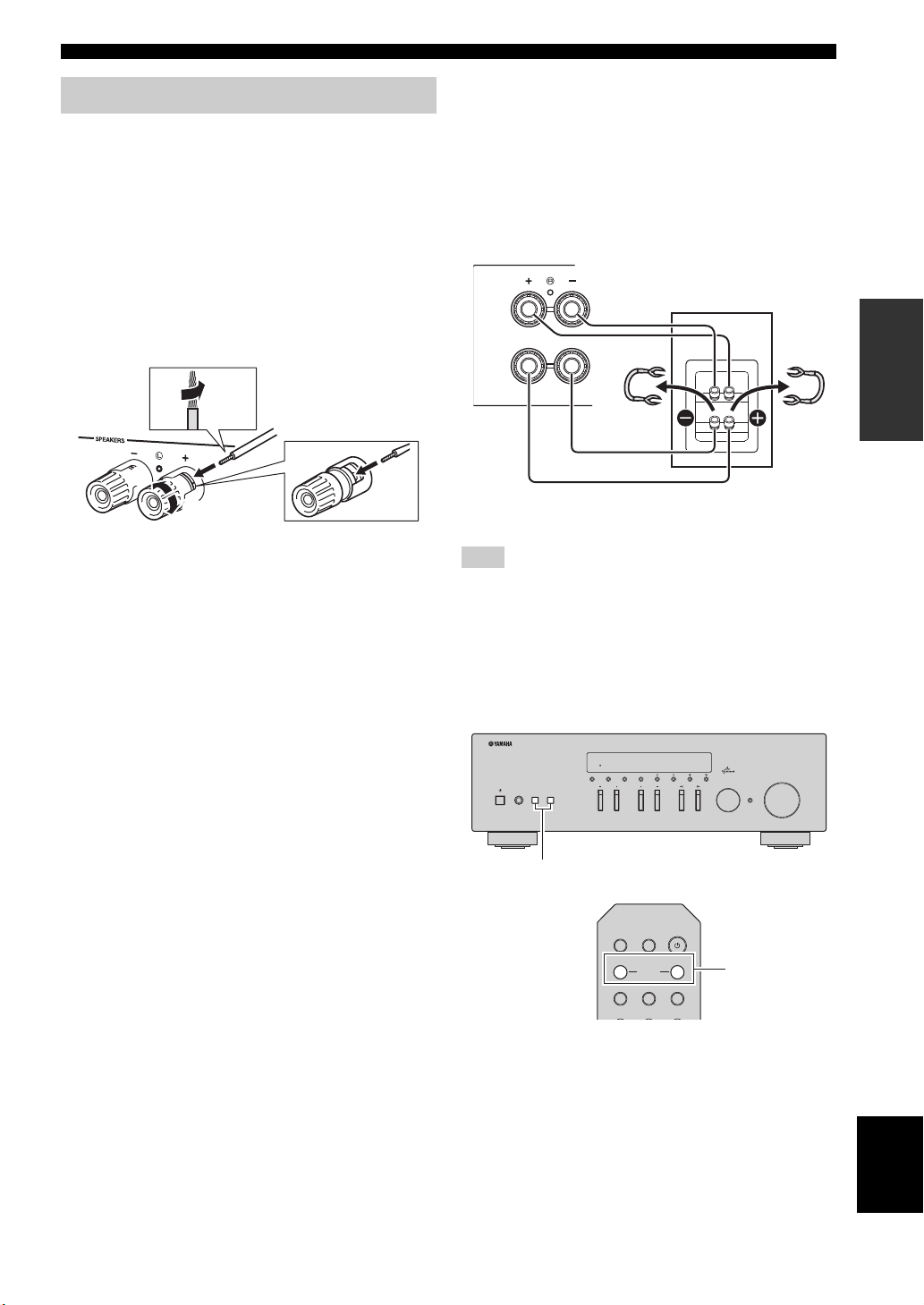

■Connecting speaker cables
Speaker cables have two wires. One is for connecting the
negative (-) terminal of the unit and the speaker, and the
other is for the positive (+) terminal. If the wires are
colored to prevent confusion, connect the black wire to the
negative and the other wire to the positive terminal.
a Remove approximately 10 mm (3/8”) of insulation from the ends of
the speaker cable and twist the bare wires of the cable firmly together.
bLoosen the speaker terminal.
cInsert the bare wires of the cable into the gap on the side (upper
right or bottom left) of the terminal.
dTighten the terminal.
■Bi-wire connection
Bi-wire connection separates the woofer from the
combined midrange and tweeter section. A bi-wire
compatible speaker has four binding post terminals. These
two sets of terminals allow the speaker to be split into two
independent sections. With these connections, the mid and
high frequency drivers are connected to one set of terminals
and the low frequency driver to another set of terminals.
Connect the other speaker to the other set of terminals in
the same way.
When making bi-wire connections, remove the shorting bridges
or cables on the speaker. Refer to the speakers’ instruction
manuals for more information.
y
To use the bi-wire connections, press SPEAKERS A and
SPEAKERS B on the front panel or on the remote control so that
both SP A and B light up on the front display.
Connecting the speakers
10 mm
(3/8")
aa
b
b
d
d
c
c
Note
A
B
SPE
A
This unit
Speaker
STANDBY/ON
VOLUME
RETURN
PUSH - ENTER
TUNINGPRESET FM/AM MEMORY
BASS TREBLE INPUT
FM MODE DISPLAY
SELECT
PHONES
SPEAKERS
AB
SPEAKERS A/B
SPEAKERS A/B
LINE 1
COAXIAL OPTICAL NET
LINE 2 LINE 3
DIMMER
SLEEP
BA
SPEAKERS

12 En
Connections
The antennas for receiving FM and AM broadcasts are included with this unit. In general, these antennas should provide
sufficient signal strength. Connect each antenna correctly to the designated terminals.
If you experience poor reception quality, install an outdoor antenna. Consult the nearest authorized Yamaha dealer or service center
about outdoor antennas.

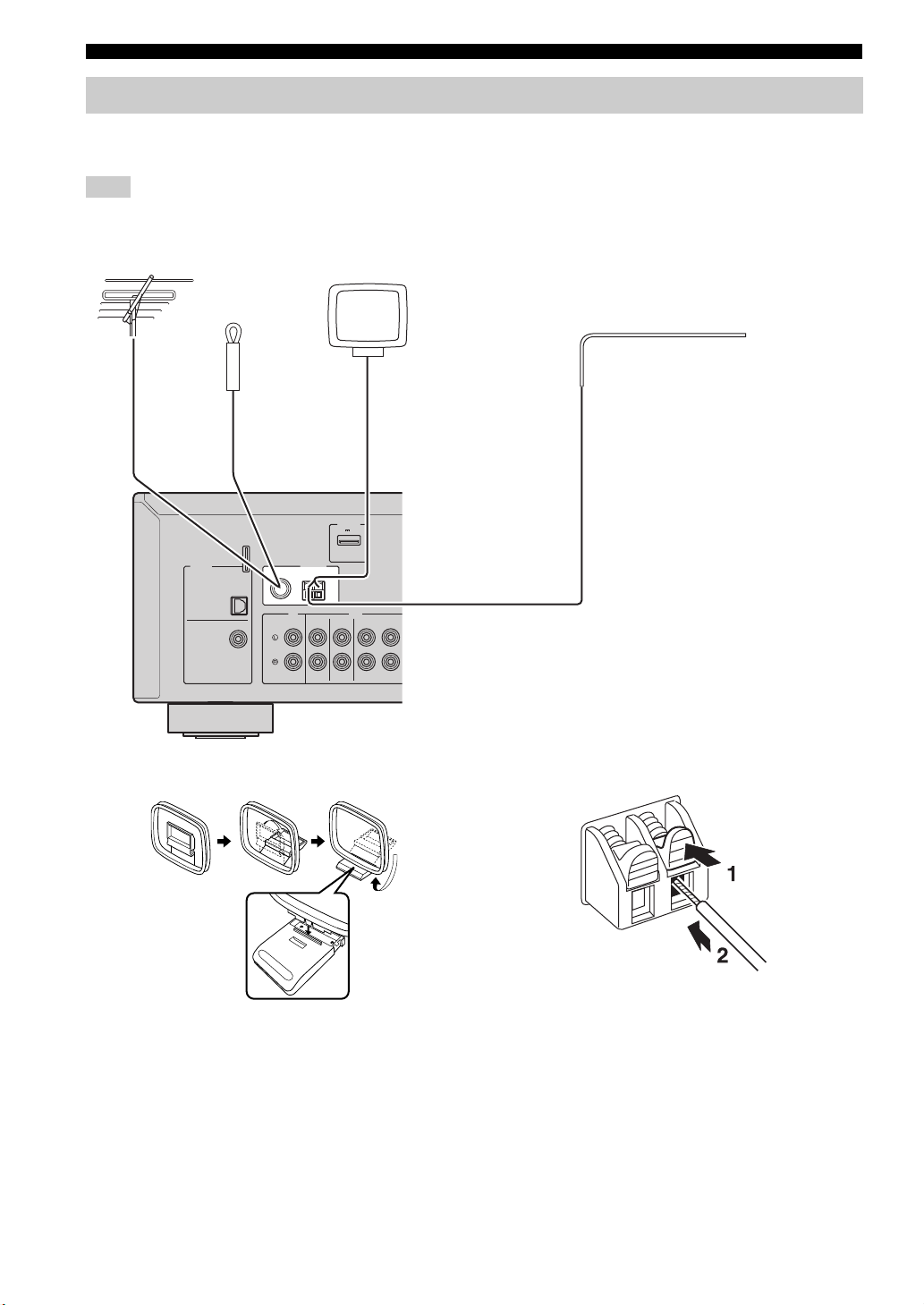

■Assembling the supplied AM antenna ■Connecting the wires of the AM antenna
Connecting the FM and AM antennas
Note
PB
12 3
REC
CD LINE
ANTENNA
FM AM
75Ω
DC OUT
5V 0.5A
DIGITAL
COAXIAL
OPTICAL
FM antenna
(included)
Outdoor AM antenna
Use 5 to 10 m of vinyl-covered wire
extended outdoors from a window.
Outdoor FM antenna
• The AM antenna should
always be connected, even if
an outdoor AM antenna is
connected to this unit.
• The AM antenna should be
placed away from this unit.
AM antenna
(included)

13 En
Connections
PREPARATION English
You can enjoy Internet radio or music files stored on media servers, such as PCs and Network Attached Storage (NAS),
on the unit.
Connect the unit to your router with a commercially-available STP network cable (CAT-5 or higher straight cable).
y
• If you are using a router that supports DHCP, you do not need to
configure any network settings for the unit, as the network
parameters (such as the IP address) will be assigned
automatically to it. You only need to configure the network
settings if your router does not support DHCP or if you want to
configure the network parameters manually (p.33).
• You can check whether the network parameters (such as IP
address) are properly assigned to the unit in “Information”
(p.33) in the “Setup” menu.
• Some security software installed on your PC or the firewall
settings of network devices (such as a router) may block the
access of the unit to the network devices or the Internet. In these
cases, configure the security software or firewall settings
appropriately.
• Each server must be connected to the same subnet as the unit.
• To use the service via the Internet, broadband connection is
strongly recommended.
After all the connections are complete, plug in the power
cable.
Connecting to a network
A
B
PB
12 3
REC
SPEAKERS
CD LINE
ANTENNA
FM AM
75Ω
DC OUT
5V 0.5A
NETWORK
DIGITAL
COAXIAL
OPTICAL
LAN
WAN
Network Attached Storage
(NAS)
Internet
Modem
Router
Network cable
PC
The unit (rear)
Mobile device
(such as iPhone)
Notes
Connecting power cable
To an AC wall outlet

14 En
Connections
Configure your devices connected to the network to play back music files stored on the devices, or configure your mobile
device to control this unit. Use the following configurations to suit your needs.
y
For details on Internet connection, please refer to the manual of your network devices.
❚If you want to play the music files stored on your PC
You need to configure the media sharing setting of your PC.
Configure the media sharing setting of music files on
Windows Media Player 12. For details on sharing setting,
please refer to “Setting the media sharing of music files”
(p.22).
y
You can operate from your PC using Windows Media Player. For
details, refer to Windows Media Player help.
❚If you want to play music files stored on your NAS
You need to configure the media sharing settings of your NAS.
Setup operations differ depending on your NAS. Refer to the
NAS manual.
y
• If you want to configure the network parameters manually, check
that you are using an IP address which is not used by other network
devices in your network.
• In case that you use DHCP and automatically obtain necessary
information for network, such as IP address. We recommend that
DHCP for the NAS normally be enabled.
❚If you want to play iPod/iTunes with AirPlay
Select this unit from your iPod or from iTunes (p.27).
Check that the router being accessed by the iPod/iTunes is
connected to the same network as this unit.
❚If you want to operate this unit with your mobile device
You need to download the dedicated application, and install it
(p.3).
y
• If you want to configure the network parameters manually, check
that you are using an IP address which is not used by other network
devices in your network.
• In case that you use DHCP and automatically obtain necessary
information for network, such as IP address. We recommend that
DHCP for the mobile device normally be enabled.
Setup of your network devices

15 En
BASIC
OPERATION English
BASIC OPERATION
1Press A(power) to turn on this unit.
2Press the INPUT l/ hselector on the front
panel (or press one of the input selection
keys on the remote control) to select the
input source you want to listen to.
3Press SPEAKERS A and/or SPEAKERS B on
the front panel or on the remote control to
select speakers A and/or speakers B.
When speaker set A or speaker set B are turned on,
SP A or SP B is displayed on the front display
accordingly (p.6).
• When one set of speakers is connected using bi-wire connections,
or when using two sets of speakers simultaneously (A and B),
make sure SP A and SP B are displayed on the front display.
• When listening with headphones, turn off the speakers.
4Play the source.
5Rotate the VOLUME control on the front
panel (or press VOLUME +/– on the remote
control) to adjust the sound output level.
y
• You can adjust the tonal quality by using the BASS, TREBLE,
controls on the front panel.
• You can adjust the speaker balance in the “Setup” menu (p.16).
6Press A(power) again to finish using this
unit and set it to standby mode.
Playback
Playing a source
Notes
STANDBY/ON
VOLUME
RETURN
PUSH - ENTER
TUNINGPRESET FM/AM MEMORY
BASS TREBLE INPUT
FM MODE DISPLAY
SELECT
PHONES
SPEAKERS
AB
A(power)
SPEAKERS A/B INPUT l/ hVOLUME
A
VOLUME
SPEAKERS
A/B
SETUP
MUTE
VOLUME
RETURN
AM
FM
MODE
LINE 1
COAXIAL OPTICAL NET
LINE 2 LINE 3
TUNER CD
PRESET
TUNING
DIMMER
SLEEP
BA
SPEAKERS
Input selection
keys
(power)

16 En
Playback
■Adjusting the BASS and TREBLE
controls
The BASS +/– and TREBLE +/– adjust high and low
frequency response.
When you adjust to “0”, produces a flat response.
BASS
Increases or decreases the low frequency response.
Control range: –10 to +10 (20 Hz)
TREBLE
Increases or decreases the high frequency response.
Control range: –10 to +10 (20 kHz)
y
BASS and TREBLE can be adjusted in the “Setup” menu (p.32).
■Adjusting the speaker balance
The sound output balance of the left and right speakers to
compensate for sound imbalance caused by speaker
locations or listening room conditions.
To adjust the speaker balance, perform the following
steps.
1Press SETUP on the remote control.
The “Setup” menu shown on the front display.
2 Press B / C to select “Balance” and press ENTER.
3Press D/Eto adjust speaker balance.
Control range: L+10 to R+10
4To exit from the “Setup” menu, press SETUP
again.
Use this feature to automatically set this unit to standby
mode after a certain amount of time. The sleep timer is
useful when you are going to sleep while this unit is
playing or recording a source.
The sleep timer can only be set with the remote control.
1Press SLEEP repeatedly to set the amount of
time before this unit is set to standby mode.
Each time you press SLEEP, the front display
changes as shown below.
The SLEEP indicator blinks while setting the amount
of time for the sleep timer.
If the sleep timer is set, the SLEEP indicator on the
front display lights up.
y
• To disable the sleep timer, select “Sleep Off”.
• The sleep timer setting can also be canceled by pressing
A(power) to set this unit to standby mode.
STANDBY/ON
VOLUME
RETURN
PUSH - ENTER
TUNINGPRESET FM/AM MEMORY
BASS TREBLE INPUT
FM MODE DISPLAY
SELECT
PHONES
SPEAKERS
AB
BASS
TREBLE
SETUP
POP-UP MENU HOME
NOW PLAYING
MUTE
VOLUME
RETURN
ENTER
SETUP
ENTER
Cursor keys
B/ C/ D/ E
SPA
¡Network¡Setup
Setup
SPA
¡L------------R›
Balance
Using the sleep timer
Note
MODE
LINE 1
COAXIAL OPTICAL NET
LINE 2 LINE 3
TUNER CD
DIMMER
SLEEP
BA
SPEAKERS
A
SLEEP
(power)
SPA
Sleep¡120min.
SLEEP
P
A
n.
S
LEEP
SLEEP

17 En
BASIC
OPERATION English
1Press TUNER to select “TUNER” as the input
source.
2Press FM or AM to select the reception band
(FM or AM).
3Press and hold TUNING jj / ii for more than
1 second to begin tuning.
Press ii to tune in to a higher frequency.
Press jj to tune in to a lower frequency.
The frequency of the received station is shown in the
front display.
If a broadcast is being received, “TUNED” indicator
on the front display will be lit. If a stereo broadcast is
being received, the “STEREO” indicator will also lit.
If the tuning search does not stop at the desired
station because the station signals are weak, use the
following keys to set a frequency.
y
When the signal reception for an FM radio station is unstable,
switching to monaural may improve it.
■Improving FM reception
If the signal from the station is weak and the sound quality
is not good, set the FM band reception mode to monaural
mode to improve reception.
1Press MODE repeatedly to select “Stereo”
(automatic stereo mode) or “Mono”
(monaural mode) when this unit is tuned in to
an FM radio station.
When Mono is selected, FM broadcasts will be heard
in monaural sound.
The STEREO indicator on the front panel lights up while
listening to a station in stereo mode.
Listening to FM/AM radio
FM/AM tuning
TUNING jj / ii
MODE
FM
AM
TUNER
POP-UP MENU
AM
FM
MODE
LINE 1
COAXIAL OPTICAL NET
LINE 2 LINE 3
TUNER CD
PRESET
TUNING
DIMMER
SLEEP
BA
SPEAKERS
HOME NOW PLAYING
STEREO SPA
TUNED
¡¡¡¡FM¡98.50MHz
Frequency
Note

18 En
Listening to FM/AM radio
You can use the automatic preset tuning function to
automatically register FM stations as presets. This
function enables this unit to automatically tune in to FM
stations that have a strong signal and store up to 40 of
those stations in order. You can then easily recall any
preset station by selecting its preset number.
• If a station is registered to a preset number that already has a
station registered to it, the previously registered station is
overwritten.
• If the station you want to store is weak in signal strength, try
using the manual preset tuning method.
y
• FM stations registered as presets using the automatic preset
registration feature will be heard in stereo.
• Only Radio Data System broadcasting stations are stored
automatically by the Auto Preset function.
1Press TUNER to select “TUNER” as the input
source.
2Press OPTION on the remote control.
The “Option” menu is displayed (p.30).
3Press B/ Cto select “Auto Preset”, and then
press ENTER.
This unit starts scanning the FM band about 5
seconds later from the lowest frequency upwards.
To begin scanning immediately, hold down the
ENTER key.
y
• Before scanning begins, you can specify the first preset number
to be used by pressing PRESET j/ ior cursor key (B/C) on the
remote control.
• To cancel scanning, press FM, AM or RETURN.
When scanning is complete, “FINISH” is displayed
and then the display returns to original state.
You can manually register up to 40 FM/AM stations
(40 total). You can then easily recall any preset station by
selecting its preset number.
■Registering a radio station manually
Select a radio station manually and register it to a preset
number.
1Follow “FM/AM tuning” (p.17) to tune into the
desired radio station.
2 Hold down MEMORY for more than 2 seconds.
The first time that you do register a station, the selected
radio station will be registered to the preset number
“01”. Thereafter, each radio station you select will be
registered to the next empty (unused) preset number
after the most recently registered number.
y
To select a preset number for registering, press MEMORY once
after tuning into the desired radio station, press PRESET j/ ito
select a preset number, and then press MEMORY again.
Automatic preset tuning
(FM stations only)
Notes
SETUP
POP-UP MENU
AM
FM
MODE
TUNER CD
PRESET
TUNING
HOME NOW PLAYING
MUTE
OPTION
VOLUME
RETURN
ENTER
PRESET j/ i
TUNER
RETURN
FM
AM
OPTION
ENTER
Cursor keys B / C
SPA
¡Auto¡Preset
Option
Manual tuning preset
SPA
¡01:FM¡87.50MHz
Ready
Preset number Frequency
STANDBY/ON
VOLUME
RETURN
PUSH - ENTER
TUNINGPRESET FM/AM MEMORY
BASS TREBLE INPUT
FM MODE DISPLAY
SELECT
PHONES
SPEAKERS
AB
MEMORY
PRESET j / i
STEREO SPA
TUNED
01¡:FM¡98.50MHz
¡98.50
Preset number
STEREO SPA
TUNED
02¡:Empty
¡98.50
“Empty” (not in use) or the frequency currently registered
