YANGZI YZ-S4 User manual

YZ-S4
Floor Sweeper
instruction manual
安 徽 扬 子 工 业 科 技 有 限 公 司
ANHUI YANGZI INDUSTRIAL TECHNOLOGY CO., LTD.

1
YZ-S4
Instruction Manual
YZ- S4 electric driving sweeper
Welcome to use yz-s4 electric driving sweeper, to provide you with satisfactory service
is our constant pursuit of Yangzi. The company specializes in the production of electric
driving sweeper, the equipment introduces foreign advanced technology, adopts
s u r f a c e m a i n t e n a n c e f r ee po w e r s upp l y , i n t e g r a t e s s u c t i o n a nd s w ee p i n g , h a s s t r o n g
cleaning ability, no pollution and no noise. Easy to operate, long continuous operation
time, convenient maintenance, absolute value for money. It can be applied to different
ground of factory, workshop, property community, school and so on.

2
CATALOG
1. Fuselageappearance
2. Technical parameters
3. Operating instructions
(1) Panel control
(2) Travel accelerator, brake, lift pedal
(3) Disassembly and installation of dustbin
(4) Charging
4. Daily maintenance and replacement of wearing parts
(1) Replacement of main brush
(2) Replacement of side brush
5.
Precautions
6.
Common phenomena andSolutions

3
YZ-S4
Instruction Manual

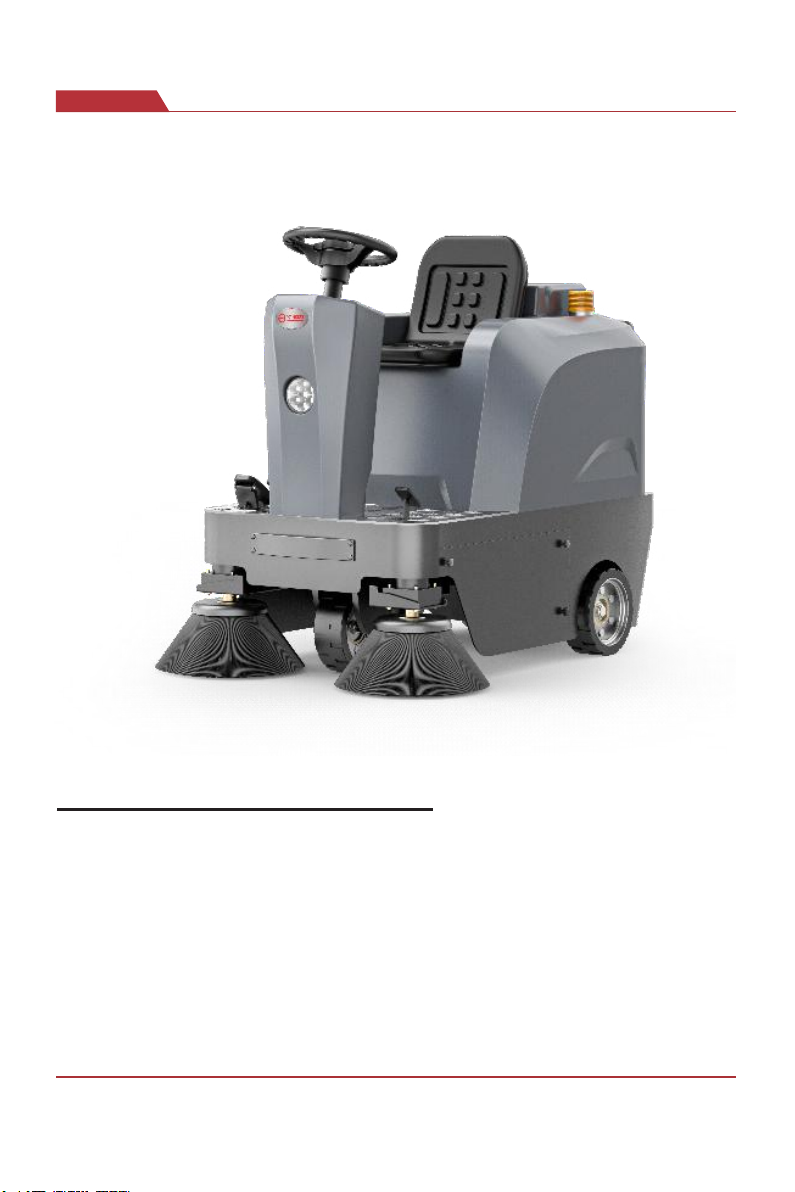

Part I fuselage appearance
3
1. Steering wheel and operation panel
2. Lighting
3. Side brush
4. Double disc brake
5. Dustbin
6.Main brush
1
2
7
4
6

4
Instruction Manual
YZ-S4
Part II technical parameters
PARAMETER
MODEL
DATA
Sweeping width
mm
1250
Side brush width
mm
2*220
working hours
h
2-2.5
Walking motor
W
700
Battery capacity
V/ah
48v/65ah
Total weight
Kg
396
Width of main brush
mm
490
work efficiency
m2/h
6000
Garbage capacity
L
80
Roller brush motor
W
700
Walking speed
Km/h
0-10
Product size
mm
1600*1250*1300

5
YZ-S4
Instruction Manual
Part III operating instructions

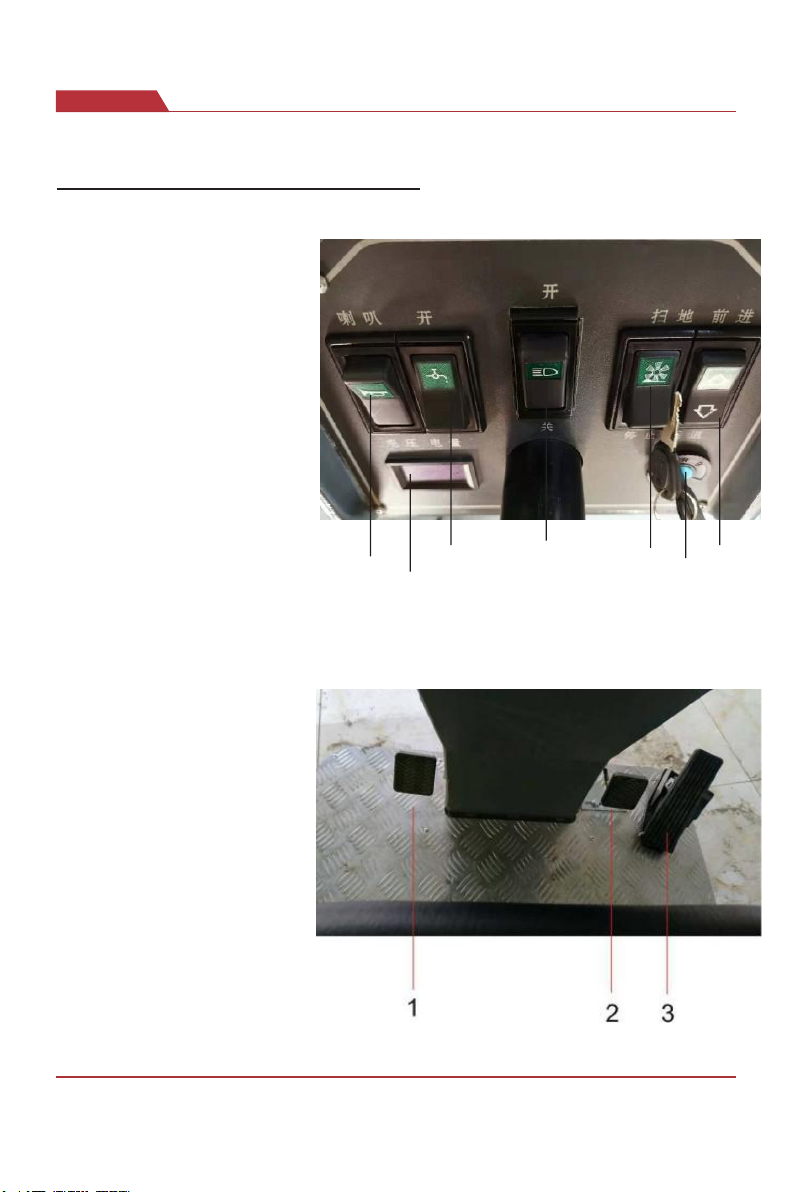

（1） Panel description
1. Power switch, turn on the
power to the right and turn
offthepowerto the left
2. Forward and backward
switch
3. Floor sweeping switch
4. Headlamp switch
5. Sprinkler switch
6. Horn switch
7. Voltage and power display
8. Dust shock function
54312
7
（2） Travel accelerator, brake, liftpedal
1. Lift the leather pedal and
step on the lifting pedal
when encountering a ridge
or a large object when
walking normally
2. Brake pedal
3. accelerator pedal
6

6
Instruction Manual
YZ-S4

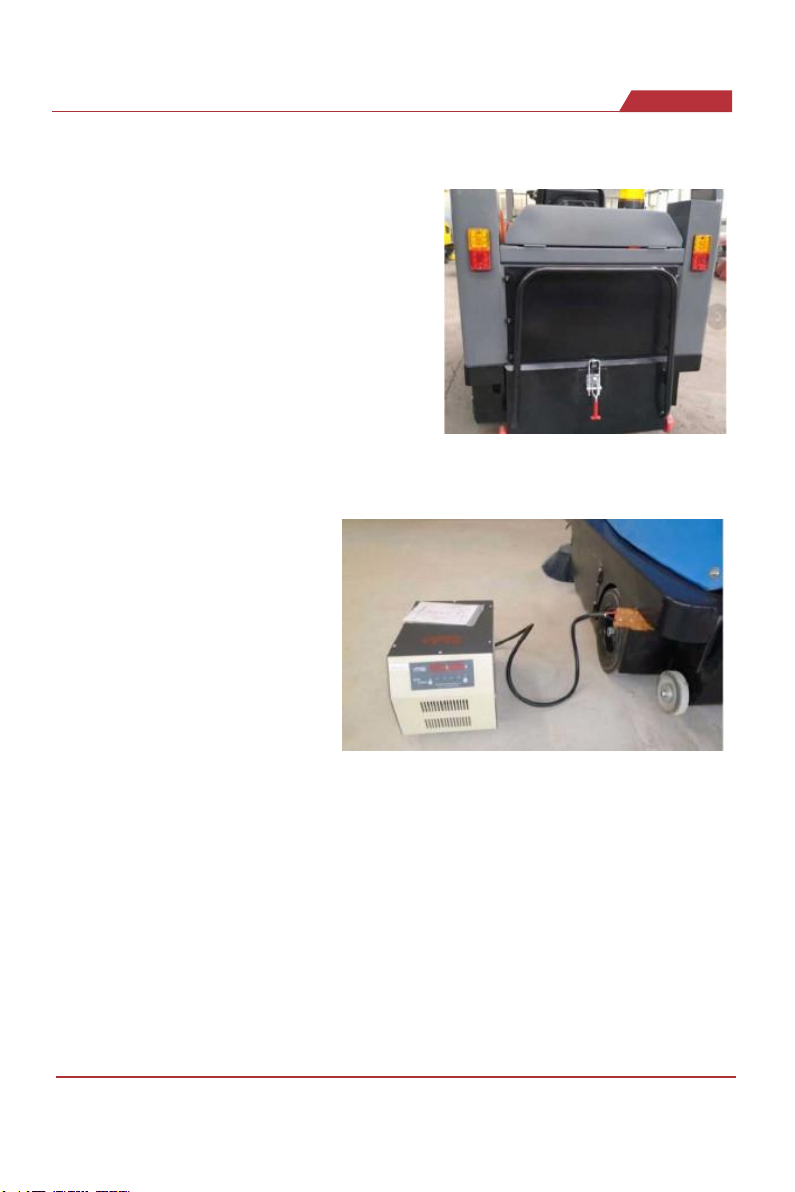

（3） Removal and installation of dustbin
I f i t is ne ce ss ar y to c le ar t he ga rb ag e, f ir st p ul l
th e b uc kle of t he dus tbi n u pw ard , a nd th en
pull the handle of the dustbin backward to
separate the dustbin from the sweeper. After
sliding the garbage, align the dustbin opening
to the correct position of the sweeper, push
i t f o r w a r d s l o w l y , a nd t h e n p r e ss t h e b u c k l e
down tightly to return the garbage can.
（4）
Charging
he charging socket is located on
the right rear side of the fuselage.
At the end of the operation, just
plug the charger socket into the
charging socket of the sweeper as
shown in the figure.

7
YZ-S4
Instruction Manual
Part IV daily maintenance and replacement of vulnerable
parts
1 5 4 3 2
1. Main brush
2. Fixingnut of mainbrush side baffle
3. Main brush side baffle
4. Main brush connecting plate
（2）Replacement of side brush
5. When thefixingnutofthemainbrush
connecting plate needs to be replaced
or cleaned, open the left door and screw
off the main brush connecting plate with
Glulam
When it is necessary to replace the side brush,
first put down the lifting rod of the side brush,
and then screw off the three bakelite nuts fixed
on the side brush to remove the side brush.
After changing the brush, screw on three
bakelite nuts to fix the side brush.

8
Instruction Manual
YZ-S4
PartV precautions
（1） It is forbidden to operate the sweeper by non
professionals
（2） It is strictly forbidden to clean the silk and
ribbon articles
（3） Deep discharge is strictly prohibited
（4） It is strictly forbidden to park on the slope
（5） Firmly cut off the power supply
（6） Do not use the sweeper in rainy days
（7） It is strictly forbidden to use the power
shortage. If the voltage is lower than 31.5v,
please charge it in time
Part VI common phenomena and treatment methods
1. The brake doesn't workwell
Adjustthe nuts ofthe steel wire ropeinside the rear tires onboth sides clockwise until
the braking effect of both sides is the same.
2. No way.
The related components include controller (inside and left side of distribution box),
fuse (the second one from top to bottom), two-way contactor (under fuse), accelerator
(where right foot is trampled), driving wheel (front wheel), battery, corresponding
wiring segment, connector and clue. Any one of the components damaged or poor
contactwillcause nowalking,anditcanberecovered byreplacing thedamagedparts.
3. No cleaning
As for the main components of sweeping, there are 2 side brush motors, 1 main brush
motor, 1 fan, 1 100A contactor (in the middle of the right side of the distribution
box), travel switch (located on the right side of the car body, inside the main brush
connecting plate, fixed on the right side board), main and side brush push rods, wire
rope, control switch button, etc. If the travel switch is damaged or the adjustment is not
in place, the main brush push rod is damaged, the wire rope is broken, and the control
switch button is burnt out, it will not be cleaned. Side brush motor, main brush motor
and fan motor are controlled by 100A contactor. If any one of them does not work, it is
motor fault. If they don't work, the reasons are as follows

9
YZ-S4
Instruction Manual
(1) If the button of sweeping switch fails, replace the switch.
(2) If the travel switch fails, adjust the main brush wire rope to make the
travel switch work; if the travel switch is damaged, replace it
(3) If 100A contactor is damaged, replace it.
4. No watering
Sprinklerfunction is mainlyrelated tocomponents, water tank, water pump, water
pipe, valve, nozzle, relay, switch and control circuit. Common problems are water tank
leakage, water pipe rupture, loose ligation, water nozzle blockage, water pump damage,
electrical circuit failure and so on. If any joint is found to have water leakage, loosen its
connecting section, and then wrap it with raw material belt and fix it tightly.
5. No charging
Check whether the charger connector is connected normally, whether the charger
works normally, and whether the display on the charger panel is in accordance with the
instructions. If the connector is not inserted properly, just plug it in. If you find other
abnormalities, such as fuse blown, charger does not show, please contact after-sales
service personnel in time.
6. Ash leakage
The main causes of ash leakage are as follows
(1) The air filter is not vibrated in time to cause blockage
(2)The sealant strip of the garbage can falls off or is partially damaged
(3)The fan is not working properly
(4) The front fender is damaged
(5) The main brush has filament ribbon winding or the installation direction is wrong
(6)The buckle of dustbin is loose or falling off
(7)The cleaning speed is too fast
If the above situation is found, please take corresponding measures according to each
7. The main brush and side brush cannot be lifted
Three push rods are used to control the lifting of mainbrush and variable brush. If
one or two of them do not work, it is judged that the push rod is damaged and can be
replaced; if three of them do not work at the same time. Check the circuit, it can be
judged that the button is damaged, and it can be replaced.

10
Instruction Manual
YZ-S4
8. Steering wheel failure
Under normal conditions, the main causes of steering wheel failure are:
(1) the chain above the front wheel is loose or broken, so replace the chain in time.
(2) If the connecting spline of steering wheel is loose, tighten the spline locking screw.
The spline is located above the chassis and at the bottom of the steering gear.
9. No dust
Check whether the vibration motor is damaged and whether the vibration dust chain
is loose or broken. If it is damaged, replace it. Check whether the relevant circuit and
switch button are normal. If damaged, replace it.

Warranty conditions:
Inspection Certificate
Warranty Card
Number：
Number：
Name
Tell
Mailing address
Purchase time
Bill
number
Product number
Fuselage
number
Replacement
parts
Date
Fault description:
1. Withinthedateof purchase,themotorisguaranteedfor oneyear(ifitismore than7 daysfromthedateof
purchase, no replacement, only warranty).
2. Before using the equipment, you must understand the instructions and safety instructions.
3. During the warranty period, the artificialdamage of warranty accessories will not be guaranteed.
4. During the warranty period, users who do not follow the operation instructions or dismantle and repair by
themselves will not be guaranteed. (if repair is needed, the cost of production will be charged)
5. The buyer shall take the invoice to the place designated by the seller for repair, or send the machine back to our
company for repair. (return freight, insurance paid by yourself)
