3D Polarization Modulator

YT-PS600C

for DLP digital cinema

Shenzhen Yantuo Electronics Co.,Ltd

------------------------------------------------------------------------------------------------------------------------------------------------------

http://yantuo.sell.ecer.com

Basic principles

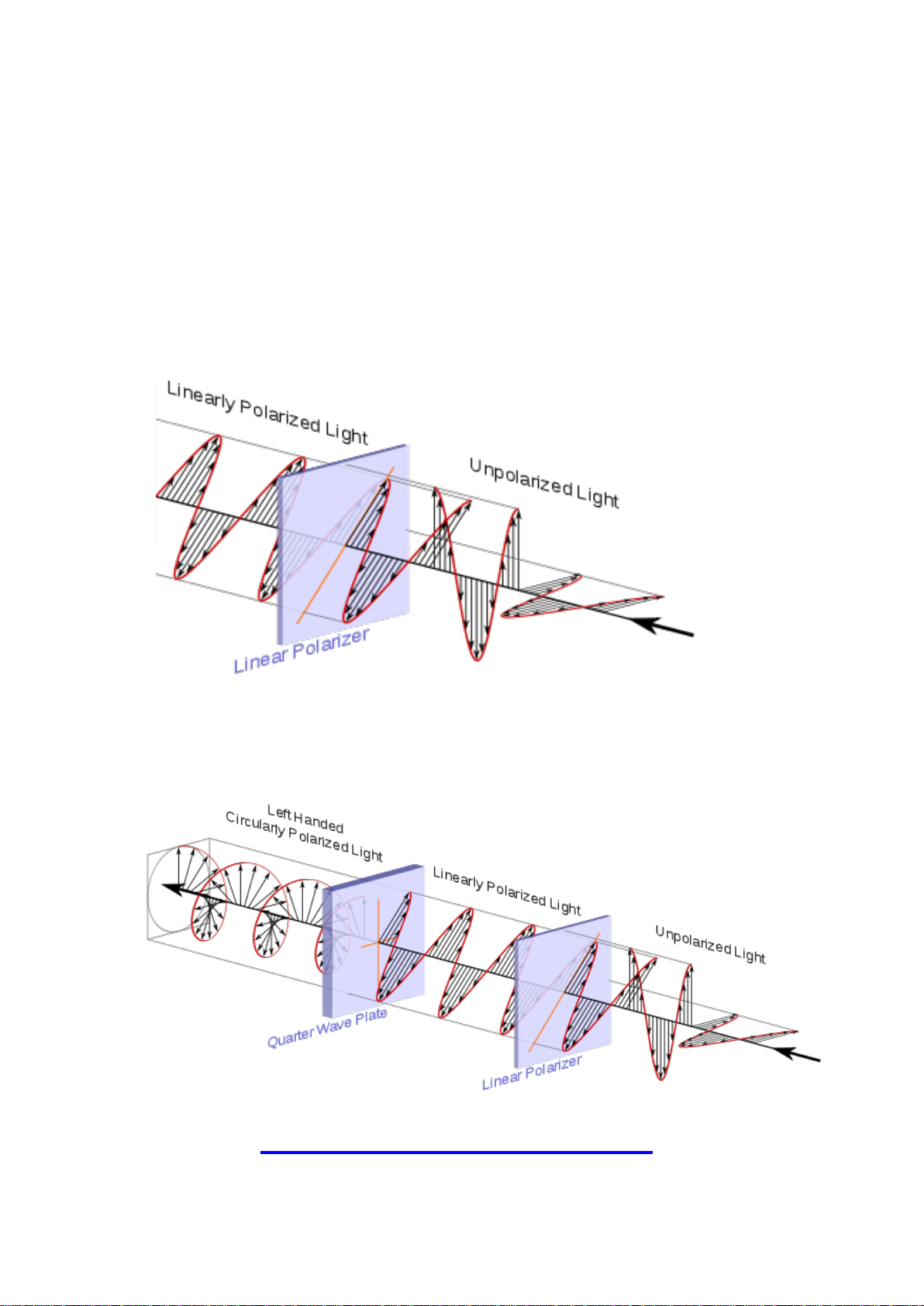

Illustrated linearly polarized light: Multiple directions of light (right).

After pass through a linear polarizer, leaving only the light in the same

direction as the polarizer polarities (left).

Illustrated circularly polarized light: Lights in multiple vibration

directions (right) pass through a linear polarizer and become linearly

polarized light (middle), and then pass through the waveplate to become

circularly polarized light (left).

Learn more(video)…..

Shenzhen Yantuo Electronics Co.,Ltd

------------------------------------------------------------------------------------------------------------------------------------------------------

http://yantuo.sell.ecer.com

3D Polarization Modulator is constructed from two specific

Liquid Crystal panels that are accurately bonded to ensure

effective polarization of the left and right mage from the

projector lens, 3D Polarization Modulator is perfectly matched

to the high quality cheaply polarized 3D glasses produced by

MASTERIMAGE 3D or RealD 3D.

Learn more(Demo video)…..

Shenzhen Yantuo Electronics Co.,Ltd

------------------------------------------------------------------------------------------------------------------------------------------------------

http://yantuo.sell.ecer.com

III

Shenzhen Yantuo Electronics Co.,Ltd

------------------------------------------------------------------------------------------------------------------------------------------------------

http://yantuo.sell.ecer.com

A.Technology has been a national patent.

B.Adopt standard industrial product design methods and innovative designs

can be both beautiful and durable.

C.The use of imported high light transmission rate,fast response of the

polarization filter and a highly stable electronic components,they can ensure

high reliability and excellent work and 3D shocking image quality.

D.Support NEC/Bacro/christie digital Cinema Projector .

E.Only a single projector, you can achieve the passive circular polarizer 3D.

F.Change between 2D and 3D is automatic TMS.

G.Apply to all 3D Digital Cinema.

Technical Specifications

1.Model:YT-PS600C;

2.Host material:aluminium alloy;

3.Size of 3D filter：130mm x 80mm (opening area);

4.Light transmittance：40%±1.5% ;

5.Optical efficiency：17%±1% ;

6.Ghost rate：<1% ;

7.Principles of Optics：circular polarizer;

8.Response speed of 3D filter：<150us;

9.Frame rate：80-600HZ ;

10.Maximum Screen Size：20m width;

11.Screen gain coefficient：2.2-3.0;

12.Screen polarization contrast：150:1;

13.exchange between 2D and 3D: automatic(Cinema TMS);

14. Support the largest brightness: <50000Lux;

15.Support projector: NEC/Bacro/Christie;

16.Sync port of projector:DB15/DB37;

17.Weight:2KG;

18.Outline Dimension:39CMX28CMX6CM;

19.Operating Temperature: 0-60 degree C.

Shenzhen Yantuo Electronics Co.,Ltd

------------------------------------------------------------------------------------------------------------------------------------------------------

http://yantuo.sell.ecer.com

Shenzhen Yantuo Electronics Co.,Ltd

------------------------------------------------------------------------------------------------------------------------------------------------------

http://yantuo.sell.ecer.com

YT-PS600C installation example

1.Use an electric drill with an M8 sleeve 2.Lock all the fittings as shown in the

to lock the drill screw into the iron figure, then go to 3rd step;

sheet and fix it;

3.Locked effect; 4.Use M3 screws to lock the Host onto

the motor shaft;

【Notice!】

In the 3rd step, when the shaft of the motor is inserted into the

corresponding hole position of the host, be sure to gently insert the

corresponding gap on the host. Do not use too much power (insert depth

is only 8 millimeters, do not be inserted through the host box!) In order

to avoid damage to the host!

Shenzhen Yantuo Electronics Co.,Ltd

------------------------------------------------------------------------------------------------------------------------------------------------------

http://yantuo.sell.ecer.com

VII

5. Lock all component effects (3D status position); 6.2D status position.

Product connection diagram

Shenzhen Yantuo Electronics Co.,Ltd

------------------------------------------------------------------------------------------------------------------------------------------------------

http://yantuo.sell.ecer.com

VIII

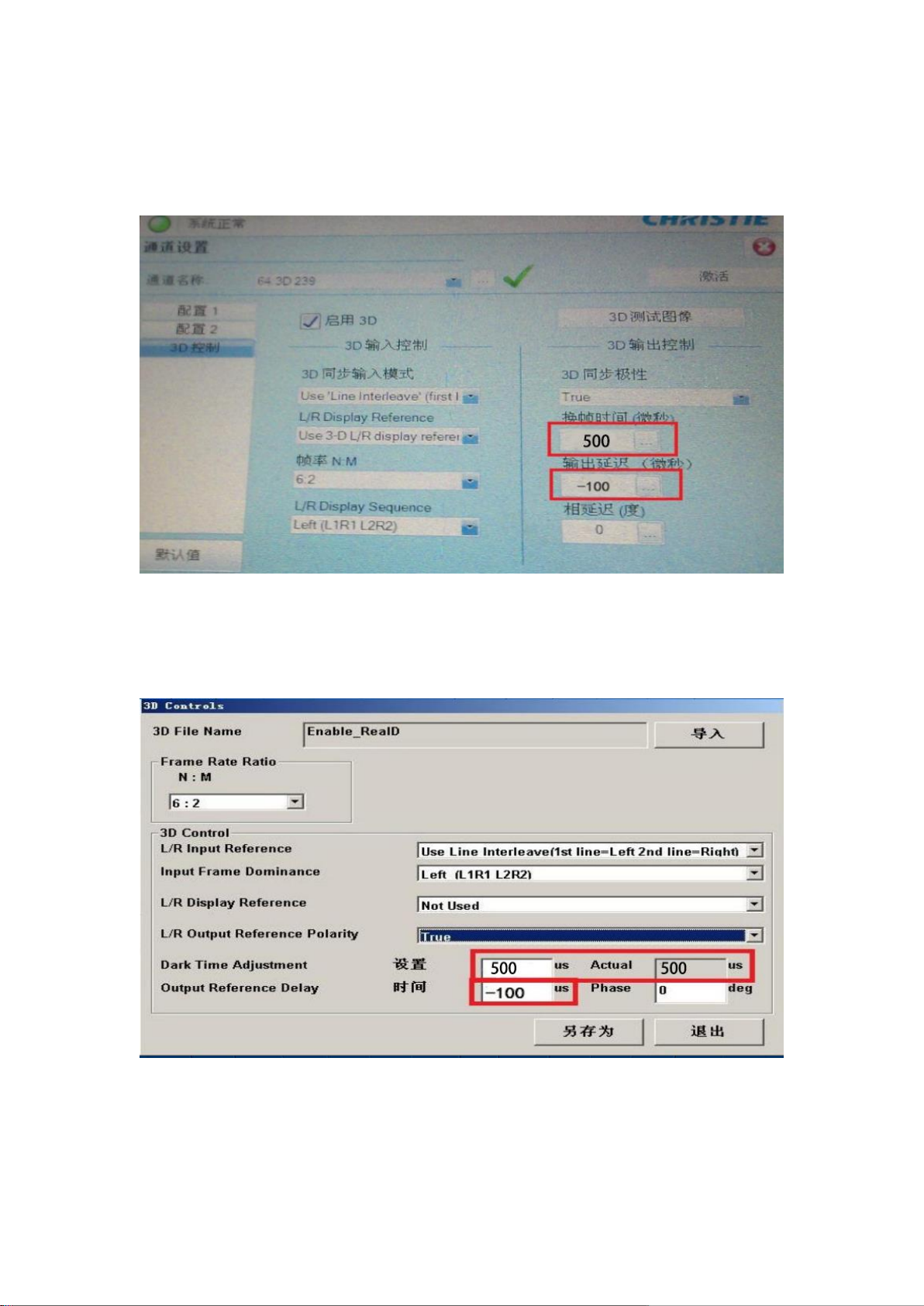

3D Parameter Setting of cinema projector

◎Bacro

Shenzhen Yantuo Electronics Co.,Ltd

------------------------------------------------------------------------------------------------------------------------------------------------------

http://yantuo.sell.ecer.com

◎Christie

◎NEC

Shenzhen Yantuo Electronics Co.,Ltd

------------------------------------------------------------------------------------------------------------------------------------------------------

http://yantuo.sell.ecer.com

Learn more……

Please contact us!!
