YANTOK YT-PS600H User manual
Shenzhen Yantuo Electronics Co.,Ltd
-------------------------------------------------------------------------------------------------------------------
http:// yantuo.sell.ecer.com
3D Polarization Modulator
YT-PS600H
for projector
Shenzhen Yantuo Electronics Co.,Ltd
-------------------------------------------------------------------------------------------------------------------
http:// yantuo.sell.ecer.com
I
Basic principles

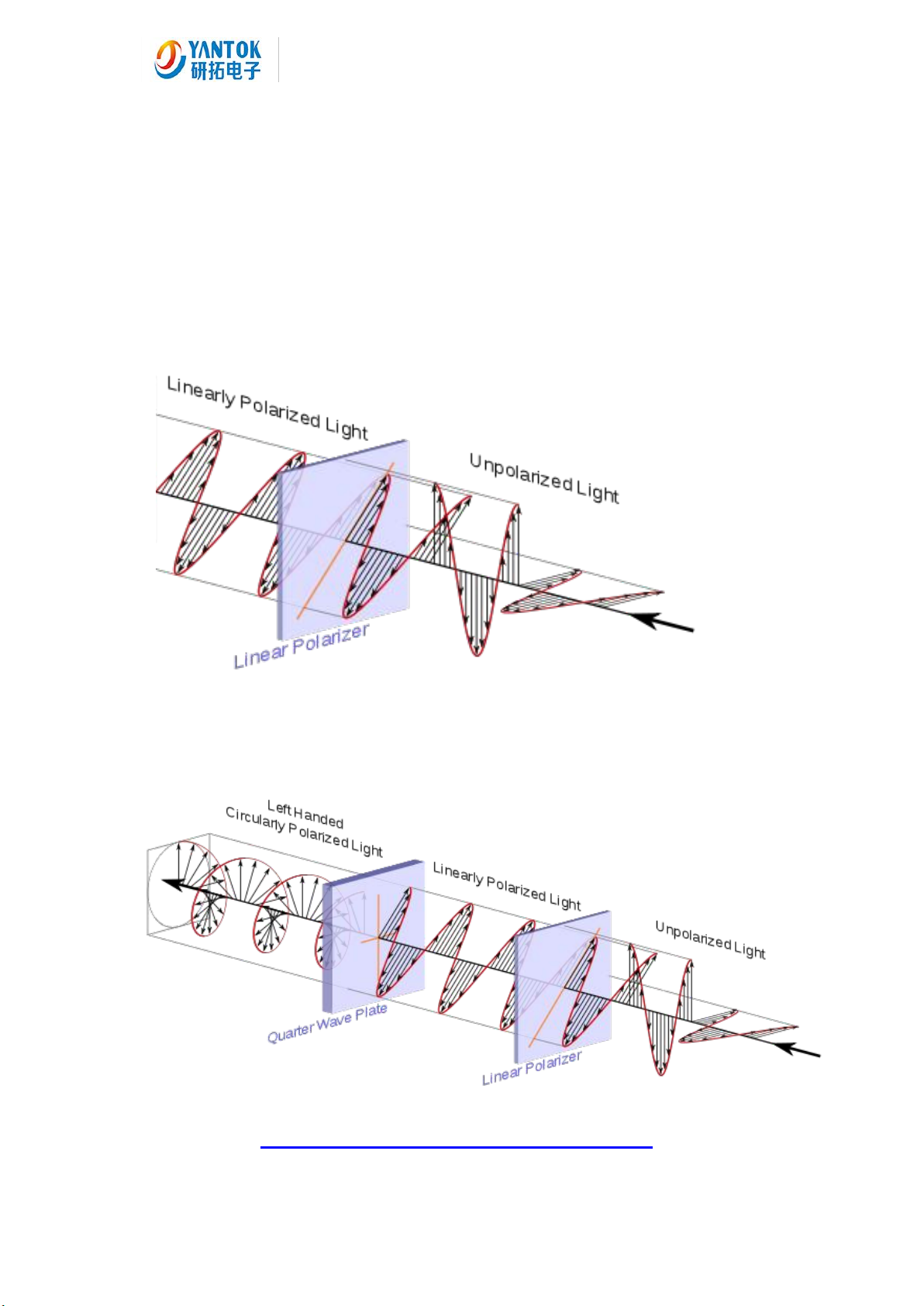

Illustrated linearly polarized light: Multiple directions of light (right).
After pass through a linear polarizer, leaving only the light in the same
direction as the polarizer polarities (left).
Illustrated circularly polarized light: Lights in multiple vibration
directions (right) pass through a linear polarizer and become linearly
polarized light (middle), and then pass through the waveplate to become
circularly polarized light (left).
Learn more(video)…..
Shenzhen Yantuo Electronics Co.,Ltd
-------------------------------------------------------------------------------------------------------------------
http:// yantuo.sell.ecer.com
II
3D Polarization Modulator is constructed from two specific
Liquid Crystal panels that are accurately bonded to ensure
effective polarization of the left and right mage from the
projector lens, 3D Polarization Modulator is perfectly matched
to the high quality cheaply polarized 3D glasses produced by
MASTERIMAGE 3D or RealD 3D.
Learn more(Demo video)…..

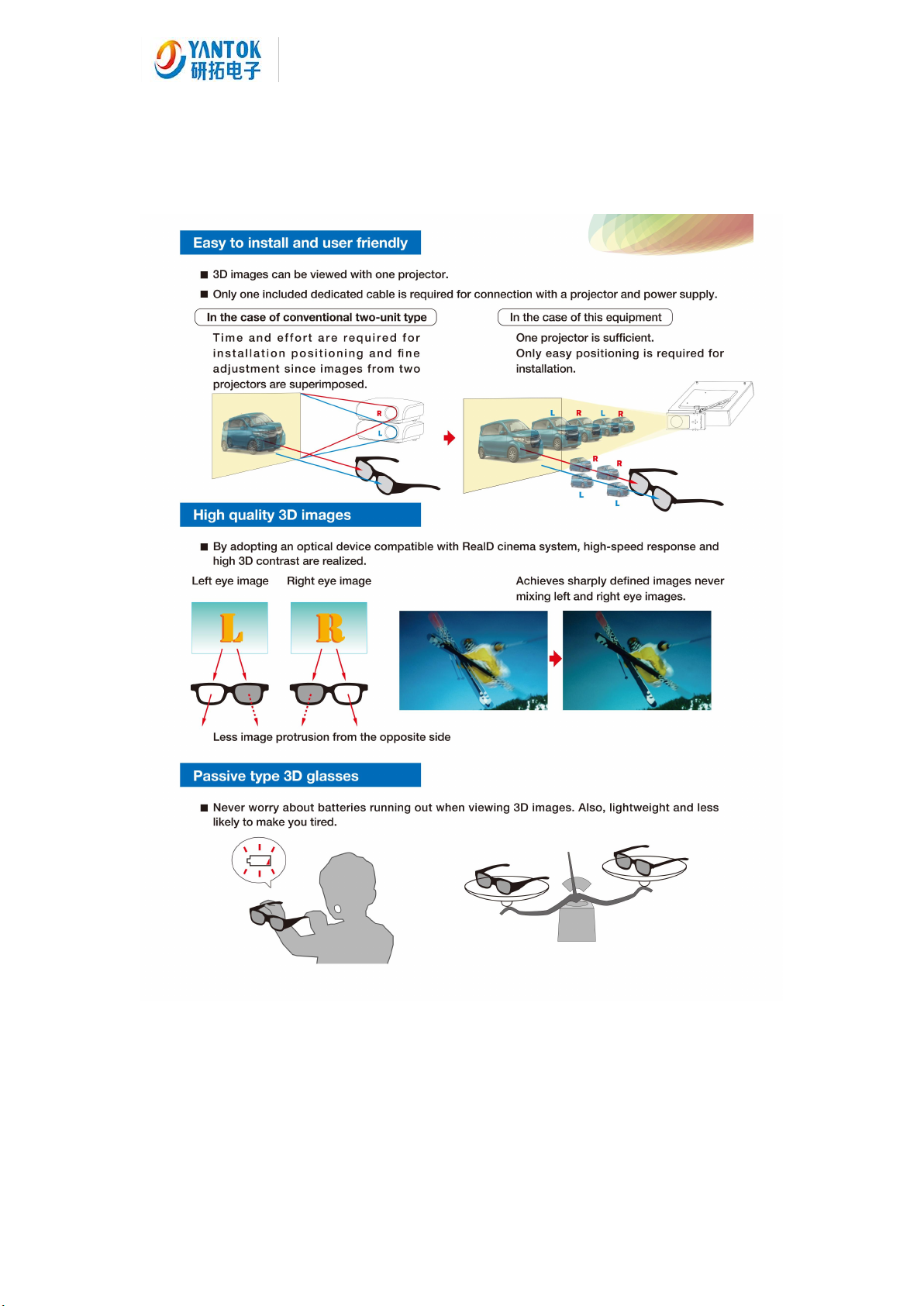

Features
Shenzhen Yantuo Electronics Co.,Ltd
-------------------------------------------------------------------------------------------------------------------
http:// yantuo.sell.ecer.com
III

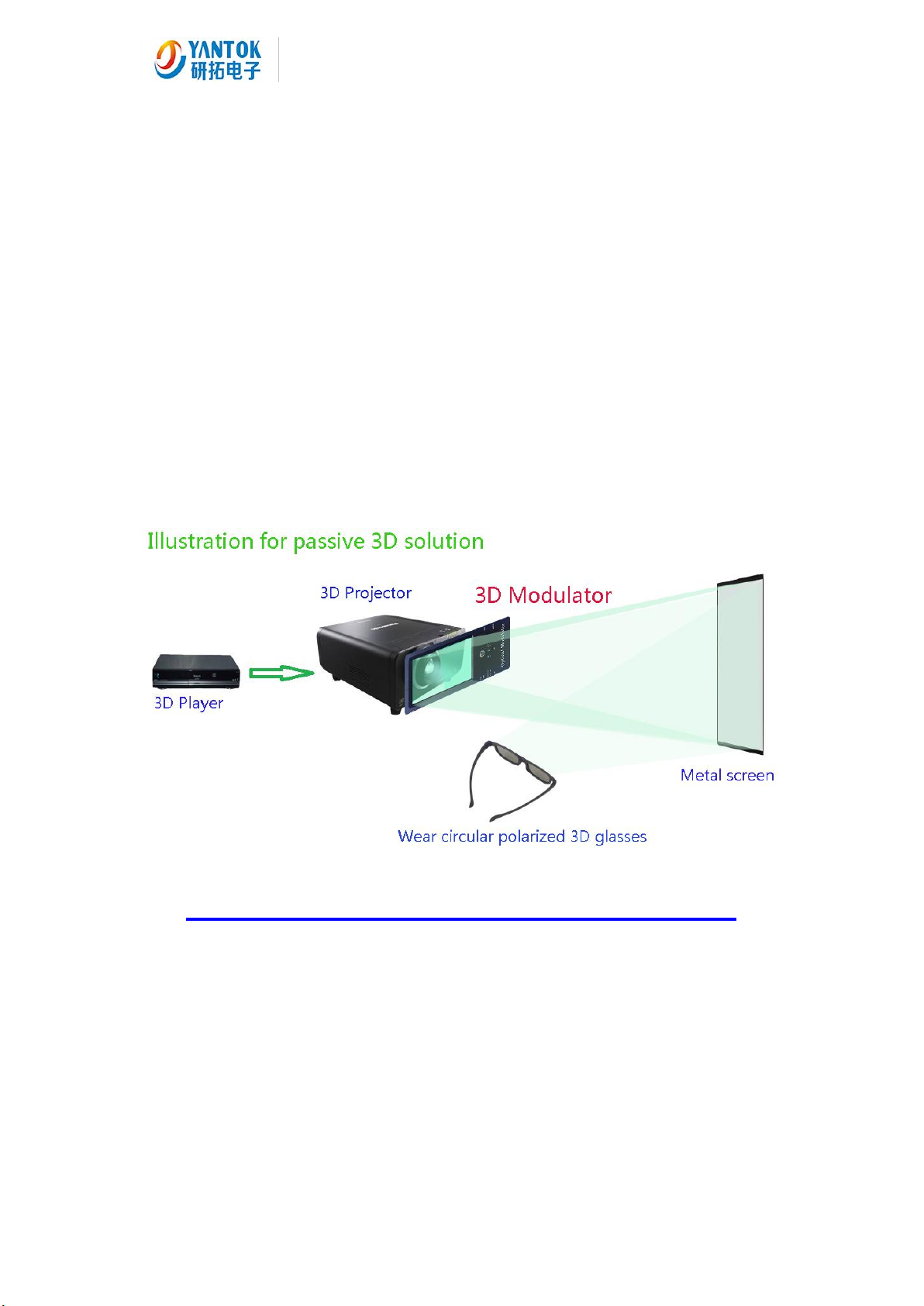

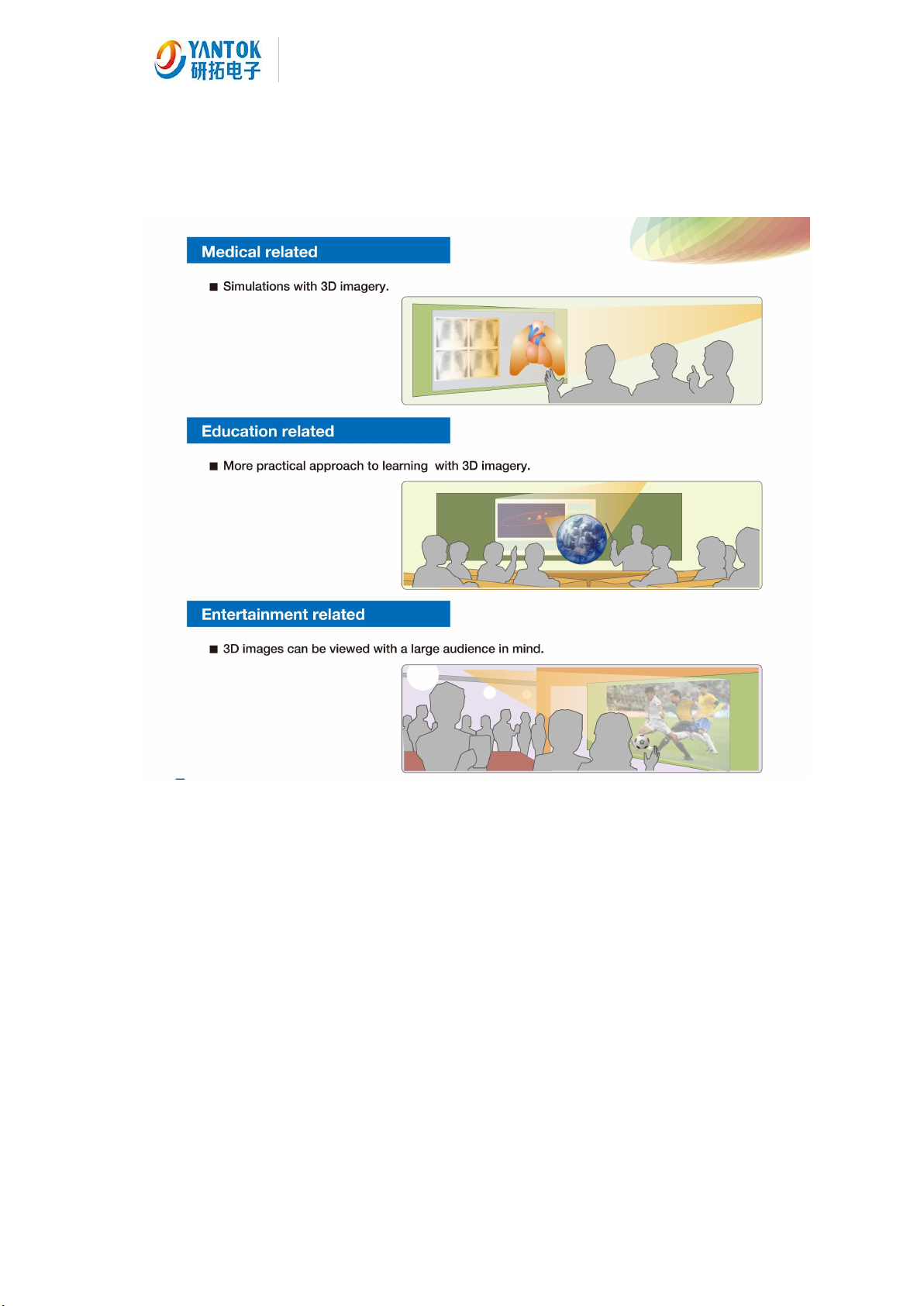

Applications
Shenzhen Yantuo Electronics Co.,Ltd
-------------------------------------------------------------------------------------------------------------------
http:// yantuo.sell.ecer.com
IV
Shenzhen Yantuo Electronics Co.,Ltd
-------------------------------------------------------------------------------------------------------------------
http:// yantuo.sell.ecer.com
V
A.Technology has been a national patent.
B.Adopt standard industrial product design methods and innovative designs
can be both beautiful and durable.
C.The use of imported high light transmission rate,fast response of the
polarization filter and a highly stable electronic components,they can ensure
high reliability and excellent work and 3D shocking image quality.
D.Support VESA/ BNC/DLP-Link 3D port .
E.Only a single projector, you can achieve the passive circular polarizer 3D.
F.Change between 2D and 3D is automatic(without remote control).
G.Apply to all DLP 3D projector.
Shenzhen Yantuo Electronics Co.,Ltd
-------------------------------------------------------------------------------------------------------------------
http:// yantuo.sell.ecer.com
VI
Technical Specifications
1.Model:YT-PS600H;
2.Host material:aluminium alloy;
3.Size of 3D filter：130mm x 80mm (opening area);
4.Light transmittance：40%±1.5% ;
5.Optical efficiency：17%±1% ;
6.Ghost rate：<1% ;
7.Principles of Optics：circular polarizer;
8.Response speed of 3D filter：<150us;
9.Frame rate：96HZ,100HZ,120HZ,144HZ ;
10.Maximum Screen Size：10m width;
11.Screen gain coefficient:1.8-3.0;
12.Screen polarization contrast:150:1;
13.Exchange between 2D and 3D: automatic((without remote control));
14. Support the largest brightness:<10000Lux;
15.Support projector: All DLP 3D projector;
16.Sync port of projector: VESA/ BNC/DLP-Link;
17.Weight:1.5KG;
18.Outline Dimension:39CMX28CMX6CM;
19.Operating Temperature: 0-60 degree C.
Shenzhen Yantuo Electronics Co.,Ltd
-------------------------------------------------------------------------------------------------------------------
http:// yantuo.sell.ecer.com
VII

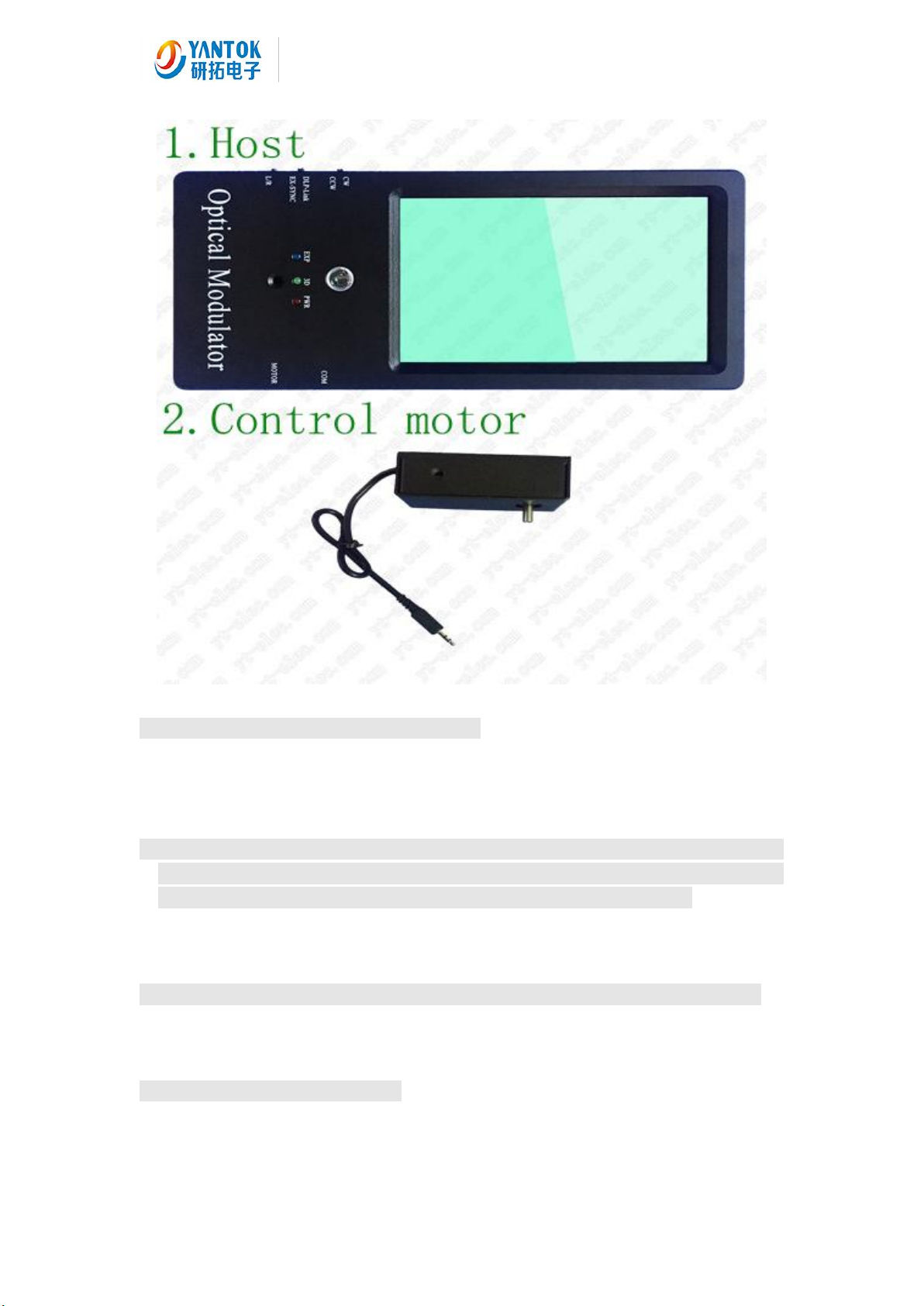

Shenzhen Yantuo Electronics Co.,Ltd
-------------------------------------------------------------------------------------------------------------------
http:// yantuo.sell.ecer.com
VIII

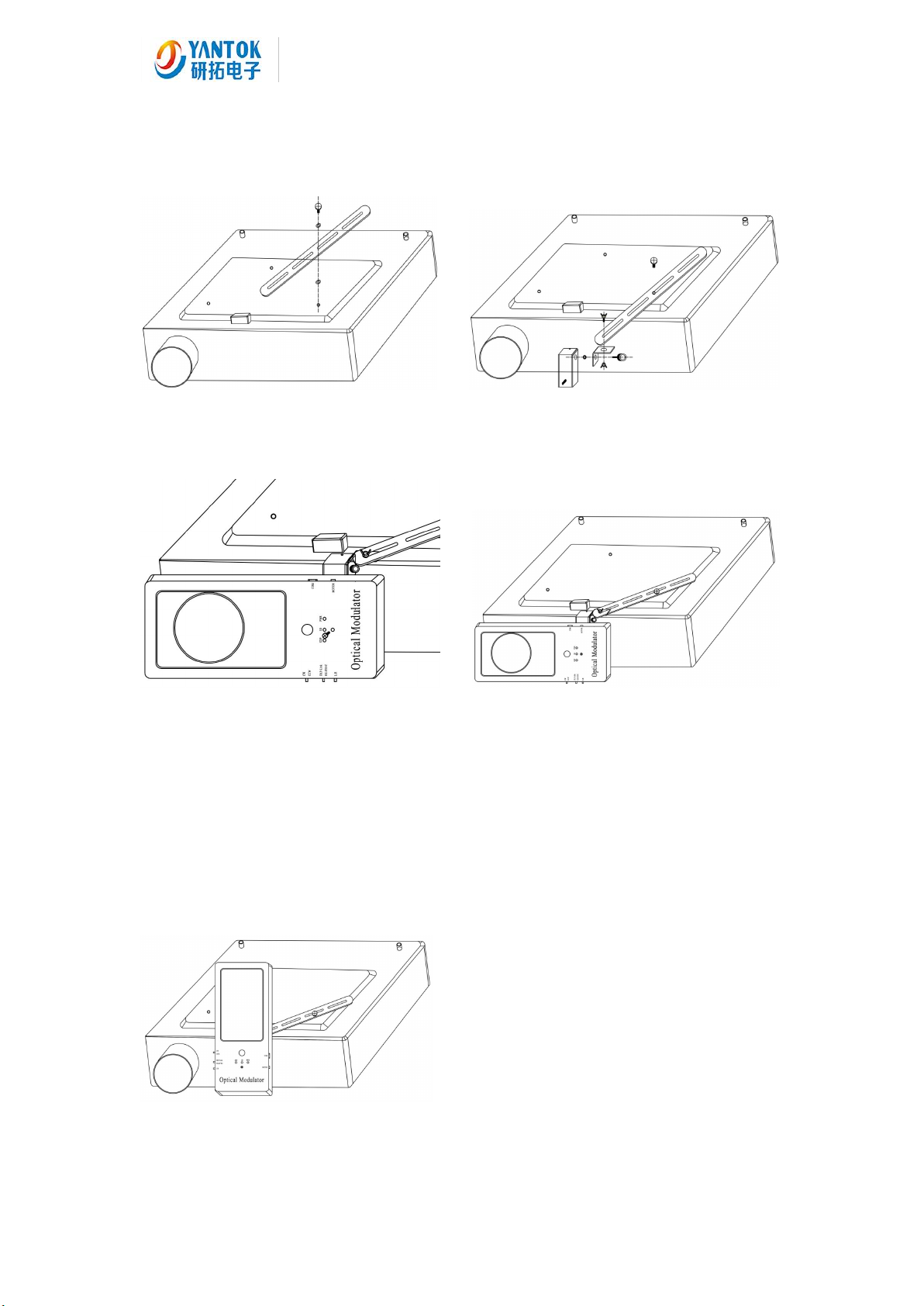

YT-PS600H installation example
1.The multi-function iron frame lock 2 .Lock the parts according to the
into the projector installation hole。 diagram。
3.Lock the host with M3 screw 4.After the installation of the
into the shaft of the motor。 whole effect。
【Notice!】
In the 3rd step, when the shaft of the motor is inserted into the
corresponding hole position of the host, be sure to gently insert the
corresponding gap on the host. Do not use too much power (insert depth
is only 8 millimeters, do not be inserted through the host box!) In order
to avoid damage to the host!
5. 2D status effect。
Shenzhen Yantuo Electronics Co.,Ltd
-------------------------------------------------------------------------------------------------------------------
http:// yantuo.sell.ecer.com
IX

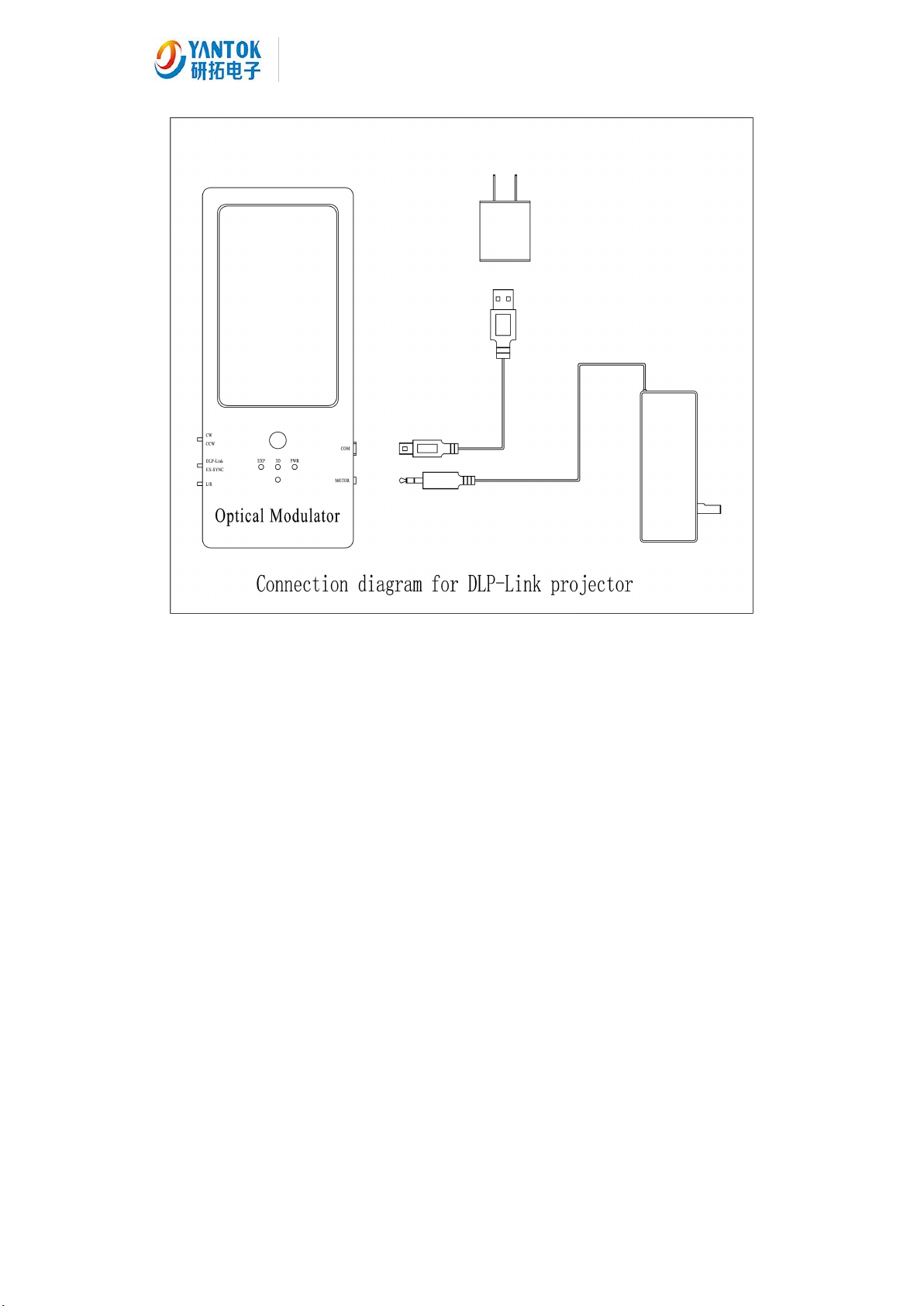

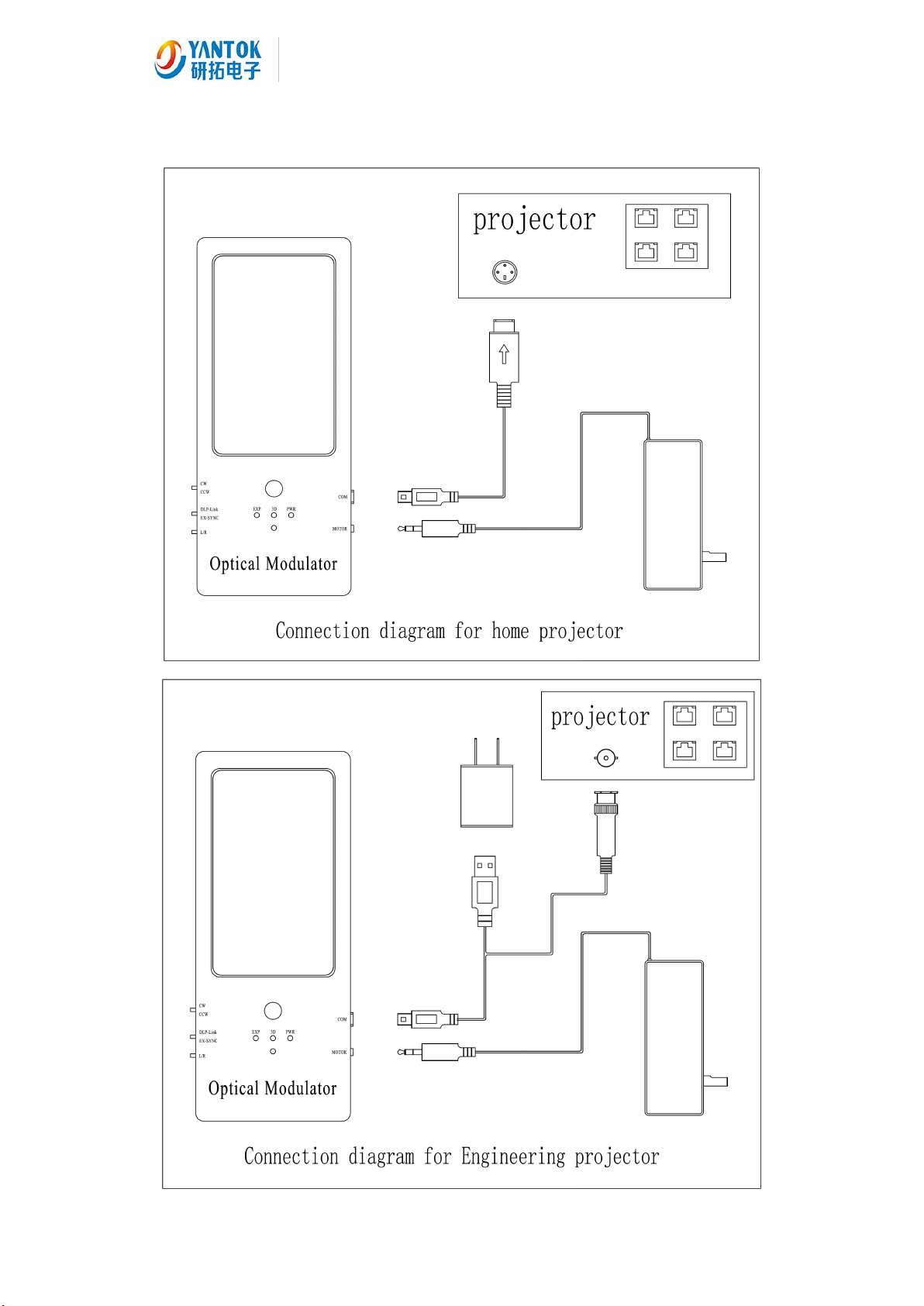

Product connection diagram
Shenzhen Yantuo Electronics Co.,Ltd
-------------------------------------------------------------------------------------------------------------------
http:// yantuo.sell.ecer.com

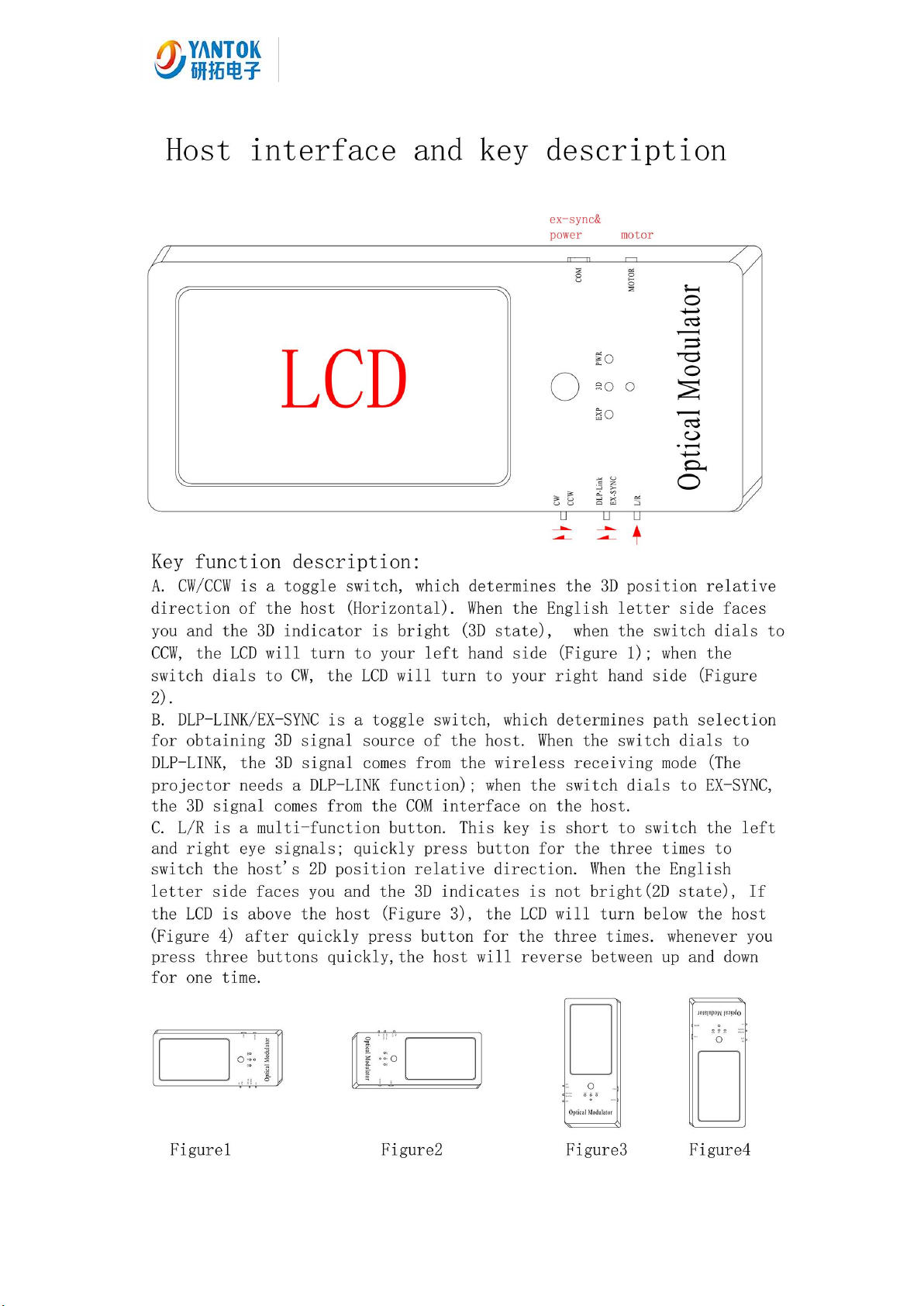

X
Shenzhen Yantuo Electronics Co.,Ltd
-------------------------------------------------------------------------------------------------------------------
http:// yantuo.sell.ecer.com
XI
Learn more……
Please contact us!!
Shenzhen Yantuo Electronics Co.,Ltd
Sales phone:+86 183 4429 7761（also WeChat）;
QQ：2382081008 ,493008571 ,3412998471;
Twitter: https://twitter.com/EnttyZeng ;
Email: mailto: info@yantok.com ;
Website:http://yantuo.sell.ecer.com ,http://www.yantok.com ;
Addr: No. 813 of Baohua Building,Fuyong
Street,Bao'an District,Shenzhen,CN
