Yardline STOCKTON 8' x 12' User manual

STOP!
STOP!
16753
&DOO8V)LUVW
'21275(7851726725(
For immediate help with assembly or product information
call our toll-free number:
1--800-844-9273
or email:
FXVWRPHUVHUYLFH#EDFN\DUGSURGXFWVOOFFRP
Our staff is ready to provide assistance.
April through October M - F 8:00 AM to 8:00 PM EST
Saturday 8:30 AM to 4:30 PM EST
November through March M - F 8:00 AM to 5:00 PM EST

(This page intentionally left blank.)

BEFORE YOU BEGIN
IMPORTANT! READ INSTRUCTIONS THOROUGHLY PRIOR TO BEGINNING ASSEMBLY.
- CUSTOMER SERVICE -
Call: 1-800-844-9273 email: [email protected]
• BUILDING RESTRICTIONS AND APPROVALS
Be sure to check local building department and homeowners association for specific restrictions and/ or
requirements before building
• ENGINEERED DRAWINGS
Contact our Customer Service Team if engineered drawings are needed to pull local permits.
• SURFACE PREPARATION
To ensure proper assembly you must build your shed on a level surface. Recommended methods and materials to
level your shed are listed on page 8
• CHECK ALL PARTS
Inventory all parts listed on pages 4-6. Contact our Customer Service Team if any parts are missing or damaged.
• ADDITIONAL MATERIALS
You will need additional materials to complete your shed. See page 3 for required and optional materials and
quantities.
11/5/2013
16753
Building 8' x 12'
(243,8 x 365,8 cm)
Customer Service
1-800-844-9273
1000 Ternes Drive
Monroe, MI 48162
A Backyard Products Company
ASSEMBLY MANUAL
Includes 8' x 12' Building and Floor Instructions
STOCKTON 8' x 12' (243,8 x 365,8 cm)
KEEP THIS MANUAL FOR FUTURE REFERENCE

FINISH
BEGIN
¸
722/6
Safety! Always use approved safety glasses during assembly.
OptionalRequired
+(/3)8/5(0,1'(56<0%2/6
Look for these symbols for helpful reminders throughout this manual.
25,(17/80%(5$1'75,0)25%(67$33($5$1&(
= Assistance Required; two or more people.
= Ensure squareness.
= Important required step or operation.
= Helpful assembly hint.
= Mark part with pencil.
= Beginning of steps for assembly or installation.
= You have finished the assembly or installation.
= Level
❑Gloves
❑Clamps
Framing lumber is graded for structural strength and not appearance. Exterior trim is graded for one good side.
Always install the material leaving the best edge and best surface visible. Please remember that these blemishes in no way
negatively affect the strength or integrity of our product. (See Fig. A, B, C.)
❑Safety Glasses
❑Tape Measure
❑Paint Tools
❑Ladder
❑Exterior rated
Wood Glue
❑Caulk Gun
❑Hammer
❑Level
❑Pencil
❑Phillips
Screwdriver
❑Drill / Driver
❑3/8" Drill Bit
❑#2 Philips Drive Bit
❑Tool Belt/
Nail Pouch
❑Chalk Line
❑Nail Gun
• Gun Nails
❑Square or
❑Shingle Blades
ABC
❑Utility Knife
2

COMPLETING YOUR SHED
You will need these additional materials:
OPTIONAL MATERIALS
FOUNDATION OR FLOOR MATERIALS
ADDITIONAL MATERIALS
DRIP EDGE ..................... 50 Feet #15 ROOFING FELT
To cover 155 Sq. Ft. of roof area.
1" GALVANIZED ROOFING NAILS.........1/4 Lb
For roofing felt.
REFER TO THE BACK OF THIS MANUAL AND THE MANUFACTURER’S INSTRUCTIONS FOR
INSTALLATION OF SHINGLES, DRIP EDGE AND FELT.
• This shed kit includes a complete wood floor system.
• It does not include ANY leveling materials.
• See the FLOOR LEVELING section on page 7 for recommended methods and suggested materials to properly level your
floor, as this will vary depending on your specific site.
3-TAB SHINGLES...........................................7 Bundles
PAINT FOR SIDING........................................2 Gallons
Use 100% acrylic latex exterior paint. (2) coats recommended.
CAULK............................................................3 Tubes
Use acrylic latex exterior caulk that is paintable.
1" GALVANIZED ROOFING NAILS.... 3 Lbs
For shingles.
PAINT FOR TRIM .............................1 Quart
Use 100% acrylic latex exterior paint.
WOOD GLUE ....................... Exterior Rated
IMPORTANT! The included floor has been designed for general use. Depending on your specific use you may want to construct a
heavy duty floor frame by adding additional floor joists (shown below as shaded). Below is a list of additional materials (not included).
x3
x12
2 x 4 x 8' (5,1 x 10,2 x 243,8 cm) Treated Lumber
Cut lumber to 2 x 4 x 93" (5,1 x 10,2 x 236,2 cm)
Treated Lumber
ea. 3" (7,6 cm) hot-dipped galvanized nails
Optional 12" (30,5 cm) spacing
REINFORCED WOOD FLOOR FRAME (OPTIONAL)
3

RS RS
WOOD SIZE CONVERSION CHART
Nominal Board Size Actual Size
PARTS IDENTIFICATION AND SIZES
FLOOR
DOOR
ROOFTRIM WALLS
Part identification is
stamped on some parts.
s#HEcKTHESELOCATIONSfor Part stamps
TREATEDLUMBERISSTAMPED

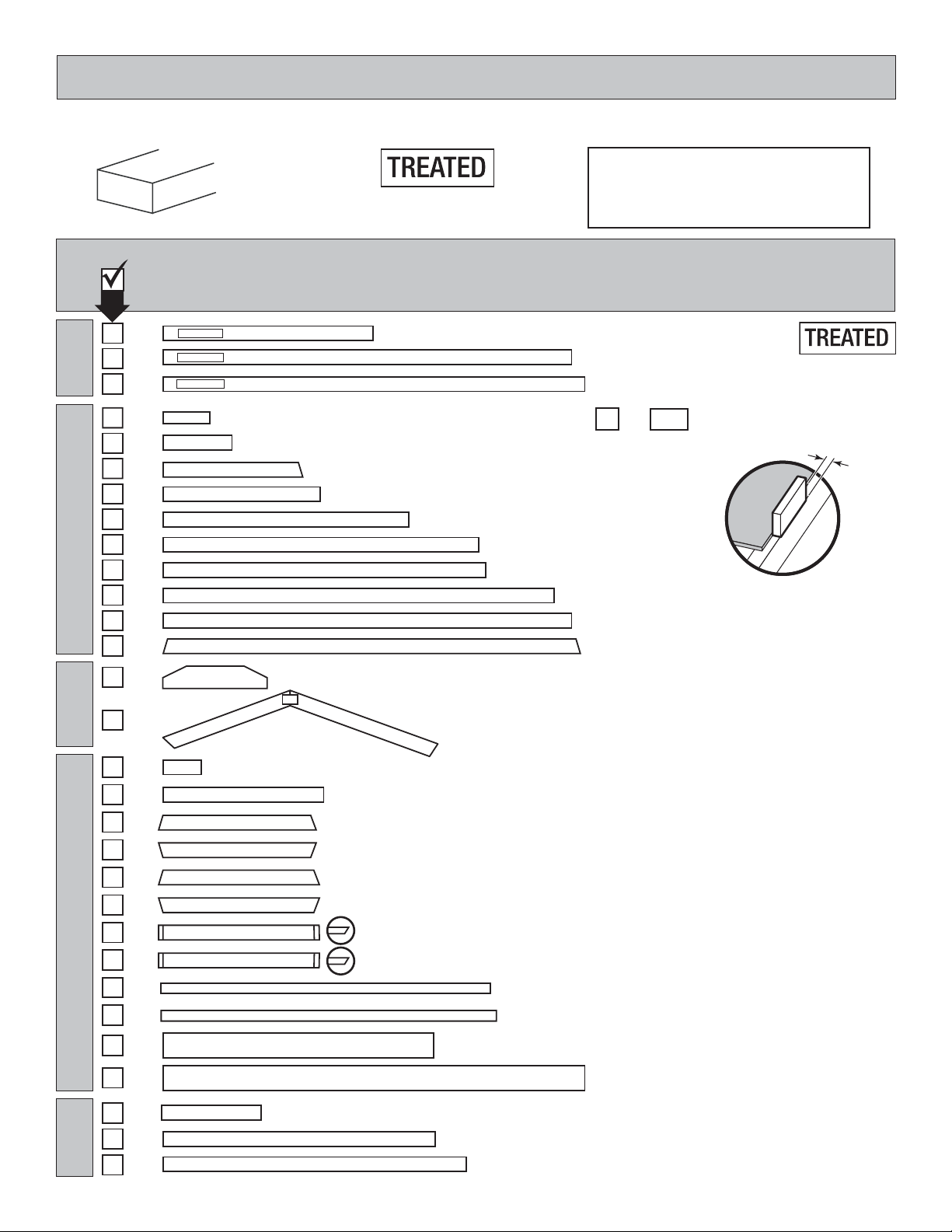

PARTS LIST
INVENTORY YOUR PAR43BEfore yOUBEGIN
WESUGGESTSOrTINGPArts BYTHECATEGOrYTHeYARELISTEDIN
TREATEDLUMBERISSTAMPED
TREATED
x10 2 x 4 x 93" (5,1 x 10,2 x 236,2 cm)
TREATED
x2 2 x 4 x 96" (5,1 x 10,2 x 243,8 cm)
TREATED
x2 2 x 4 x 48" (5,1 x 10,2 x 121,9 cm)
OO
x2 2 x 3 x 69" (5,1 x 7,6 x 175,3 cm)
x12 6 x 24" (15,2 x 61 cm) GUSSET
x4 3/8 x 1-3/4 x 76-1/2" (1 x 4,4 x 194,3 cm) SIDE CORNER TRIM
3/8 x 1-3/4 x75" (1 x 4,4 x 190,5 cm) FRONT CORNER TRIM
x4
x1 2 x 4 x 15-7/8" (5,1 x 10,2 x 40,3 cm)
CB
SL
x3 2 x 4 x 36" (5,1 x 10,2 x 91,4 cm)
QUA
x1 2 x 4 x 10-7/8" (5,1 x 10,2x 27,6 cm)
RRA
x2 2 x 4 x 32" (5,1 x 10,2x 81,3 cm)
TOA
x3 2 x 4 x 95" (5,1 x 10,2 x 241,3 cm)
AQA
x1 2 x 4 x 93" (5,1 x 10,2 x 236,2 cm)
SZ
x2 2 x 4 x 89" (5,1 x 10,2 x 226,1 cm)
QU
x1 2 x 4 x 56" (5,1 x 10,2 x 142,2 cm)
WR
x1 19/32 x 2-1/2 x 63" (1,5 x 6,4 x 160 cm)
x2 3/8 x 4-1/2 x 46" (1 x 11,4 x 116,8 cm)
x2 19/32 x 2-1/2 x 36-3/4" (1,5 x 6,4 x 93,3 cm)
WA
x2 19/32 x 2-1/2 x 9" (1,5 x 6,4 x 22,9 cm)
EY
x2 19/32 x 3-1/2 x 36-1/8" (1,5 x 6,4 x 93,3 cm)
ZIR
x2 19/32 x 3-1/2 x 36-15/16" (1,5 x 6,4 x 93,8 cm)
ZLR
x2 19/32 x 3-1/2 x 36-1/8" (1,5 x 6,4 x 93,3 cm)
ZIL
x2 19/32 x 3-1/2 x 36-15.16" (1,5 x 6,4 x 93,8 cm)
ZLL
x2 3/8 x 4-1/2 x 966" (1 x 11,4 x 243,8 cm)
TM
x23 2 x 4 x 72" (5,1 x 10,2 x 1 82,9 cm)
THA
x2 2 x 4 x 73-1/2" (5,1 x 10,2 x 236,2 cm)
3/4"
(1,9 cm)
1 x 3 x 5" (2,5 x 7,6 x 12,7 cm)
'AUGE"LOck for 3/4" (1,9 cm)
MEASUREMENT
x1 GAA
GI
x4 19/32 x 2-1/2 x 23" (1,5 x 6,4 x 58,4 cm) DOOR RAILS
1" x 4".................3/4" x 3-1/2" (1,9 x 8,9 cm)
2" x 4"..............1-1/2" x 3-1/2" (3,8 x 8,9 cm)
2" x 3"..............1-1/2" x 2-1/2" (3,8 x 6,3 cm)
1" x 3".................3/4" x 2-1/2" (1,9 x 6,3 cm)
x14 SUB-ASSEMBLED TRUSS
x2 2 x 4 x 36-1/8" (5,1 x 10,2x 93,3 cm)
SDA
x2 2 x 4 x 36-15/16 (5,1 x 10,2x 93,8 cm)
SCA
4

ROOF PANELS
FLOOR PANELS LOFT DECK
WALL PANEL & DOOR PARTS LIST
NOTE: Panel parts are not stamped with part identification.
Floor panels are 5/8" (1,6 cm) thick. Loft deck is 7/16" (1,1 cm) thick.
Roof panels are 7/16" (1,1 cm) thick.
7/16 x 35-7/8 x 48”
(1,1 x 81,1 x 121,9 cm)
7/16 x 23-7/8 x 48"
(1,1 x 60,6 x 121,9 cm)
7/16 x 11-7/8 x 24-11/16"
(1,1 x 30,2 x 75,2 cm)
x2
x4
5/8 x 48 x 84"
(1,6 x 121,9 x 213,4 cm)
7/16 x 48 x 84"
(1,1 x 121,9 x 213,4 cm)
x3 x1
x2
7/16 x 23-7/8 x 96”
(1,1 x 60,6 x 243,8 cm)
x2
7/16 x 11-7/8 x 96”
(1,1 x 30,2 x 243,8 cm)
x2
7/16 x 35-7/8 x 96”
(1,1 x 81,1 x 243,8 cm)
x2
x1
3/8 x 43-1/16 x 48"
(1 x 109,4 x 121,9 cm)
x1
3/8 x 43-1/16 x 48"
(1 x 109,4 x 121,9 cm)
x1
3/8 x 43-1/16 x 48"
(1 x 109,4 x 121,9 cm)
x1
3/8 x 43-1/16 x 48"
(1 x 109,4 x 121,9 cm)
x1
LEFT DOOR
x1
RIGHT DOOR
x1
3/8 x 48 x 76"
(1 x 121,9 x 193 cm)
x1
3/8 x 48 x 76"
(1 x 121,9 x 193 cm)
x8
3/8 x 48 x 76"
(1 x 121,9 x 193 cm)


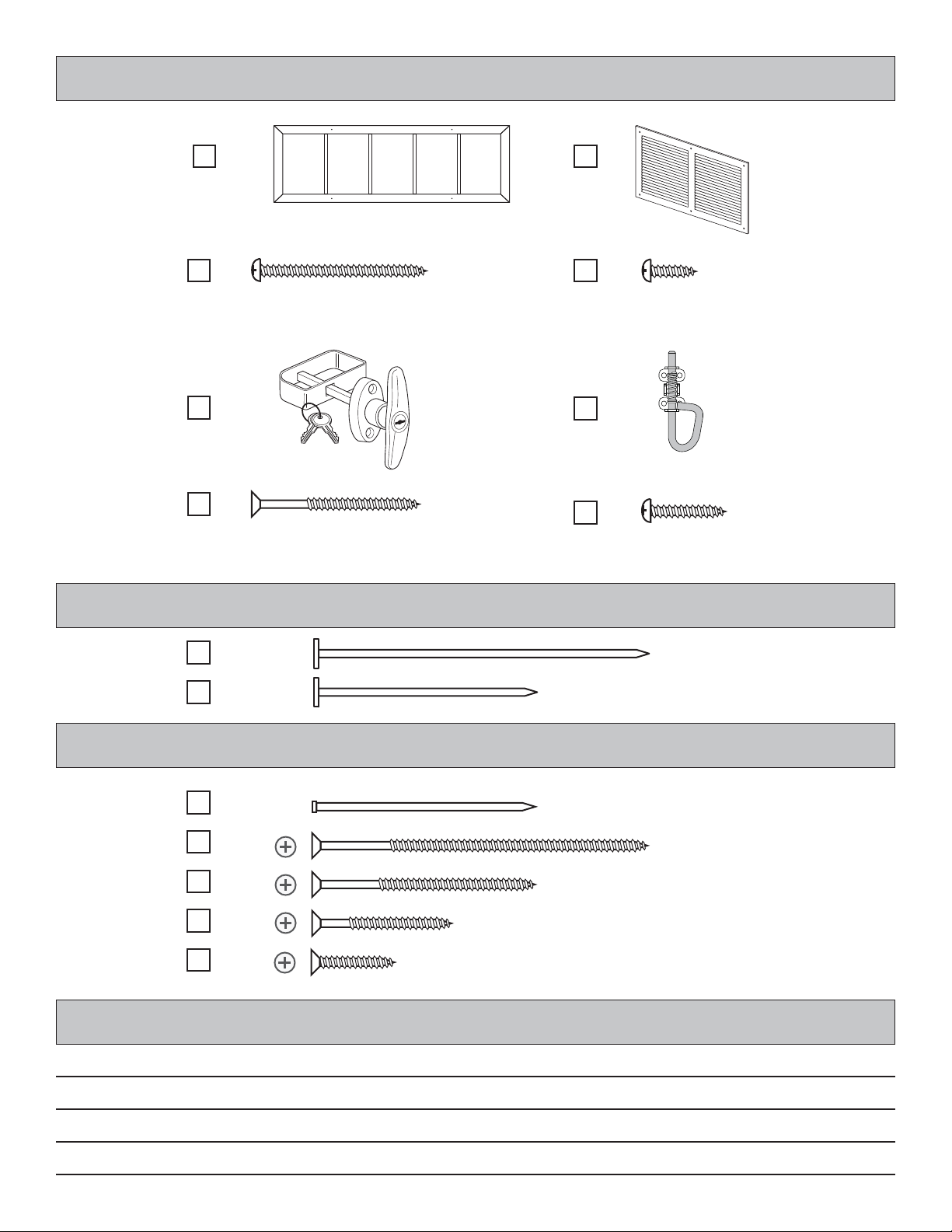

DOOR HARDWARE (Not actual size)
NAIL BOXES
FASTENER/HARDWARE BAG
2" (5,1 cm)
3" (7,6 cm)
x2 BOXES
x5 BOXES
x2
x12
1/2" (1,3 cm)
VENT
x1
x2
T-HANDLE
1-1/2" (3,8 cm)
x2
x8
3/4" (1,9 cm)
1-1/4" (3,2)
x 90
x 34
2" (5,1 cm)
3" (7,6 cm)
3/4" (1,9 cm)
x 125
x 10
x 56
2" (5,1 cm)
WINDOW
x1
9 x 31" (22,9 x 78,7 cm)
x8
1-1/2" (3,8 cm)
NOTES
6

There are multiple ways to level your floor frame. Our recommended leveling method is shown below.
Leveling materials are not included in this kit.
PREFERRED METHOD - 4x4 TREATED RUNNERS
Measurements to
centers of 4x4's.
s3" (7,6 cm) Screws
angled into 4x4.
s(2) at each point frame
sand 4x4 touch.
12"
(30,5 cm)
12"
(30,5 cm)
s,evel under 4x4 runners only.
s,OCATELeveling material 12" (30,5 cm) from ends of runners and no more than 48" (121,9 cm) apart.
s!SPHALTSHINGLESSHOULDBEUSEDBETween 4x4 runners and blocks or treated lumber. Never use
shingles in direct contact with ground.
sFor best results and aiding in water drainage use gravel under each concrete block.
LEVELING METHODS
sIf you are building your shed on a concrete foundation see the following page.
CONCRETE
MATERIAL REQUIRED
x2 4" x 4" x 12' (10,2 x 10,2 x 365,8 cm)
Treated Lumber
Fasteners for Frame to 4"x 4".
(3" (7,6 cm) Screws shown as one option.) Minimum (40) 3" (7,6 cm) screws / exterior grade.
Use only wood treated for ground contact and fasteners approved for use with treated wood.
Always support frame seams.
Leveling higher than 16" (40,3 cm) not recommended.
LEVELING MATERIALS
Gravel
2x4 Treated Lumber
Solid Masonry Blocks in 1", 2", 4" or 8" thickness
!SPHALT3HINGLES
8" Block8" Block
4" Block
Gravel
Gravel
4x4 Runner
Shingle
Shingle
Maximum between leveling
material locations.
48"
(121,9 cm)
12"
(30,5 cm)
12"
(30,5 cm)
2x4 Treated Lumber
2" Block
Level
Do not exceed 16"
(40,3 cm).


A
B
C
4"
(10,2 cm)
3-1/2"
(8,9 cm)
2" x 4" x 8' (5,1 x 10,2 x 243,8 cm)
Caulk
Requires:
x2
x2
x1
MUST be treated lumber.
MUST be treated lumber.
96" (243,8 cm)96" x 144 (243,8 cm 365,8) 89" (226,1 cm)8' x 12' (243,8 cm x 365,8 ) 144 " (365,8 cm)
AActual Size B CBuilding Size
CONCRETE FOUNDATION
Your kit contains all materials to construct a wooden floor. If you choose to install your kit
on a concrete slab refer to the diagram below.
s!TREATEDXXCMSILLPLATEISREQUIREDWHENINSTALLINGyour shed on concrete. Hint: Use treated lumber in
your kit or purchase full length treated lumber.
s5SEAHIGHQUALITYexterior grADECAULKBENEATHALLSILLPLATEs.
sFASTENXXCMSILLPLATESTOSLABUSINGAPPRoved concrete anchors (fasteners not included).
s#HEck local code for concrete fOUNDATIONREQUIREMENTs.
NOTES
Treated Sill Plate
Caulk between
sill plate and
concrete.
!LLow new concrete slabs to cure for at least seven (7) days.
2" x 4" x 12' (5,1 x 10,2 x 365,8 cm)
DOOR
8



First, secure
at ends with
one fastener.
Second, secure
at ends with
one fastener.
173-1/16"
(439,6 cm)
173-1/16"
(439,6 cm)
Fig. A
FINISH
5

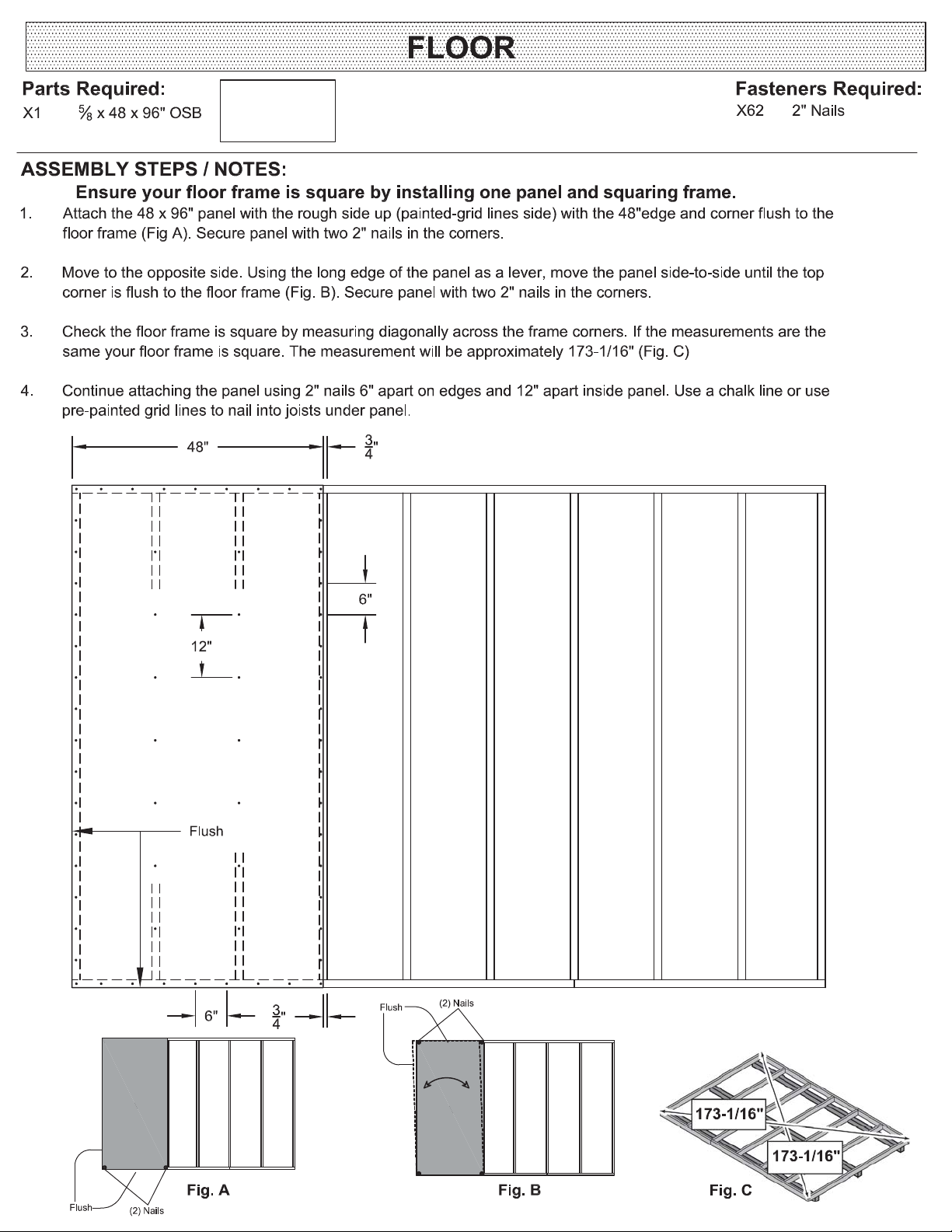

LEVEL AND SQUARE FLOOR FRAME
Before attaching floor decking, it is important to level and square the floor frame.
A level and square floor frame is required to correctly construct your shed.
BEGIN
¸1
2
3
4
Use level and check the frame is level before applying floor panels.
Check for frame squareness by measuring diagonally across corners. If the
measurements are the same, the frame is square. The diagonal measurement
will be approximately 173-1/16" (439,6 cm).
When the frame is level and square secure one side of frame to the 4x4 runners
using one fastener at ends of each runner. Move to the opposite end of the frame.
Secure the frame to 4x4 runners with one fastener at ends of each runner making
sure the frame remains square (Fig. A).
Once the floor frame is level and square fasten the frame to at each point the frame
contacts the 4x4 runners .
See page 7 for the preferred floor leveling method.

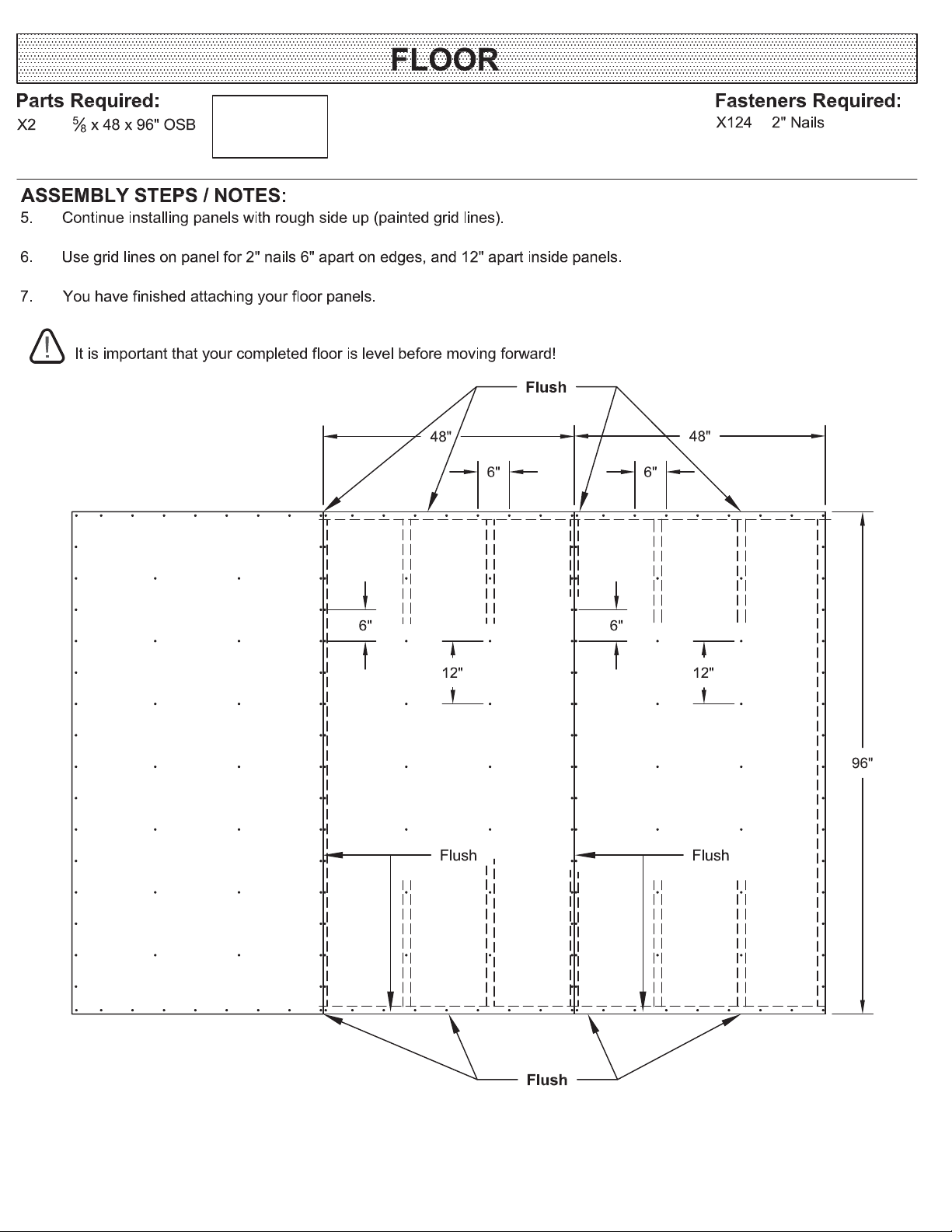

FLOOR FRAME
10



12

ROOD
DOOR
FRONTWALL
IMPORTANT!
Check the floor frame is level after installing floor panels. Re-level if needed.
s The floor should be used as a stable work surface for wall construction.
sOrganize your assembly procedure during the build process
to avoid over-handling of the walls.
HINT:
IMPORTANT!

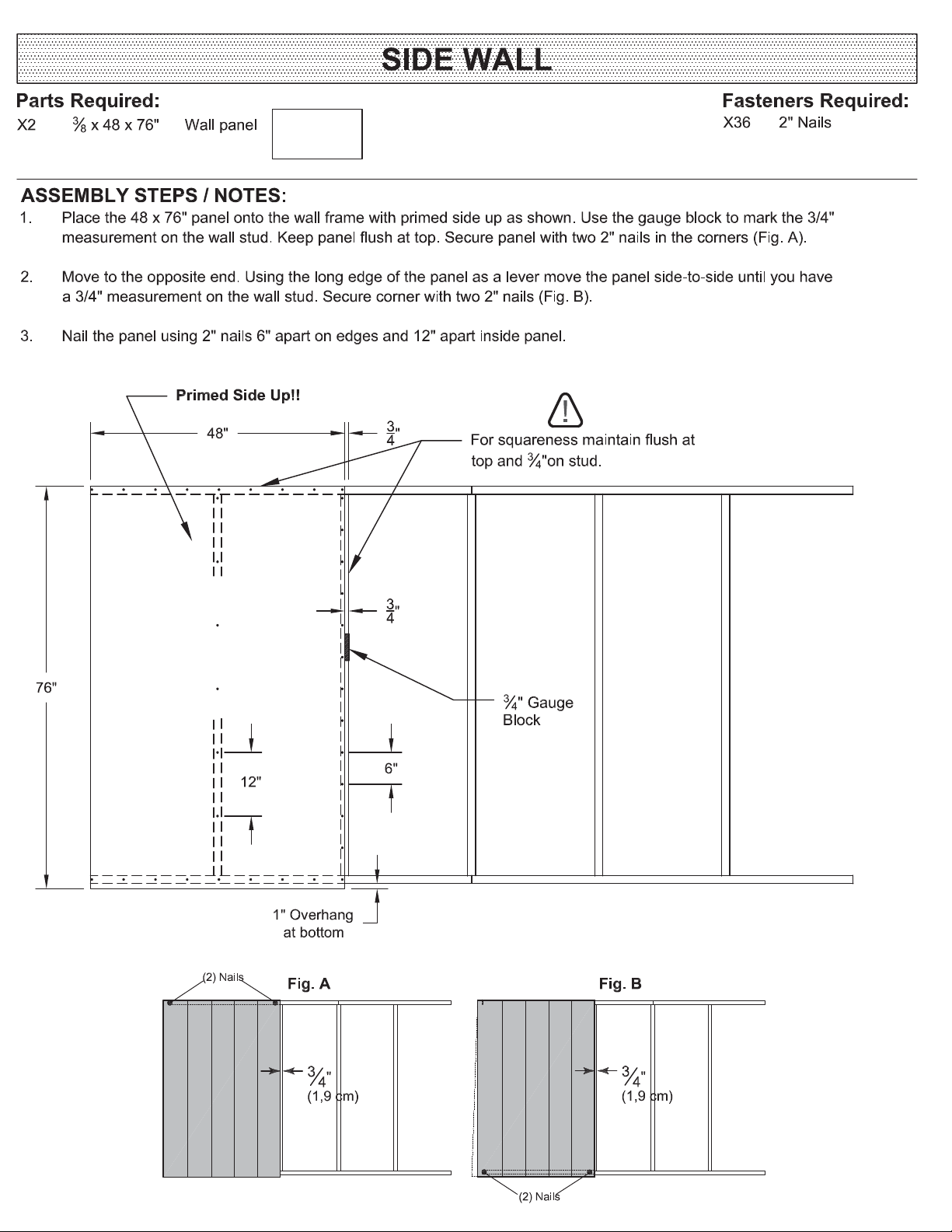

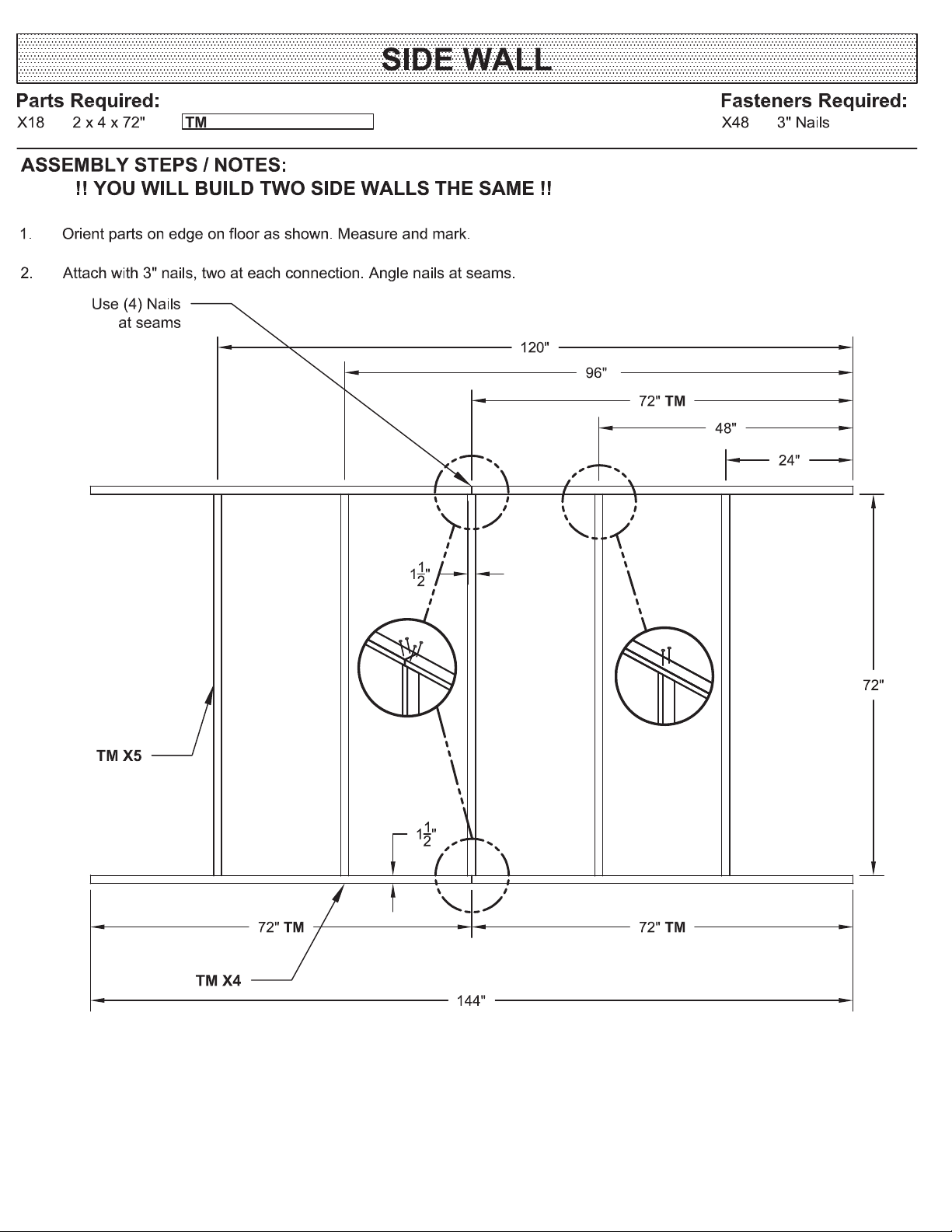

SIDEWALL
SIDEWALL

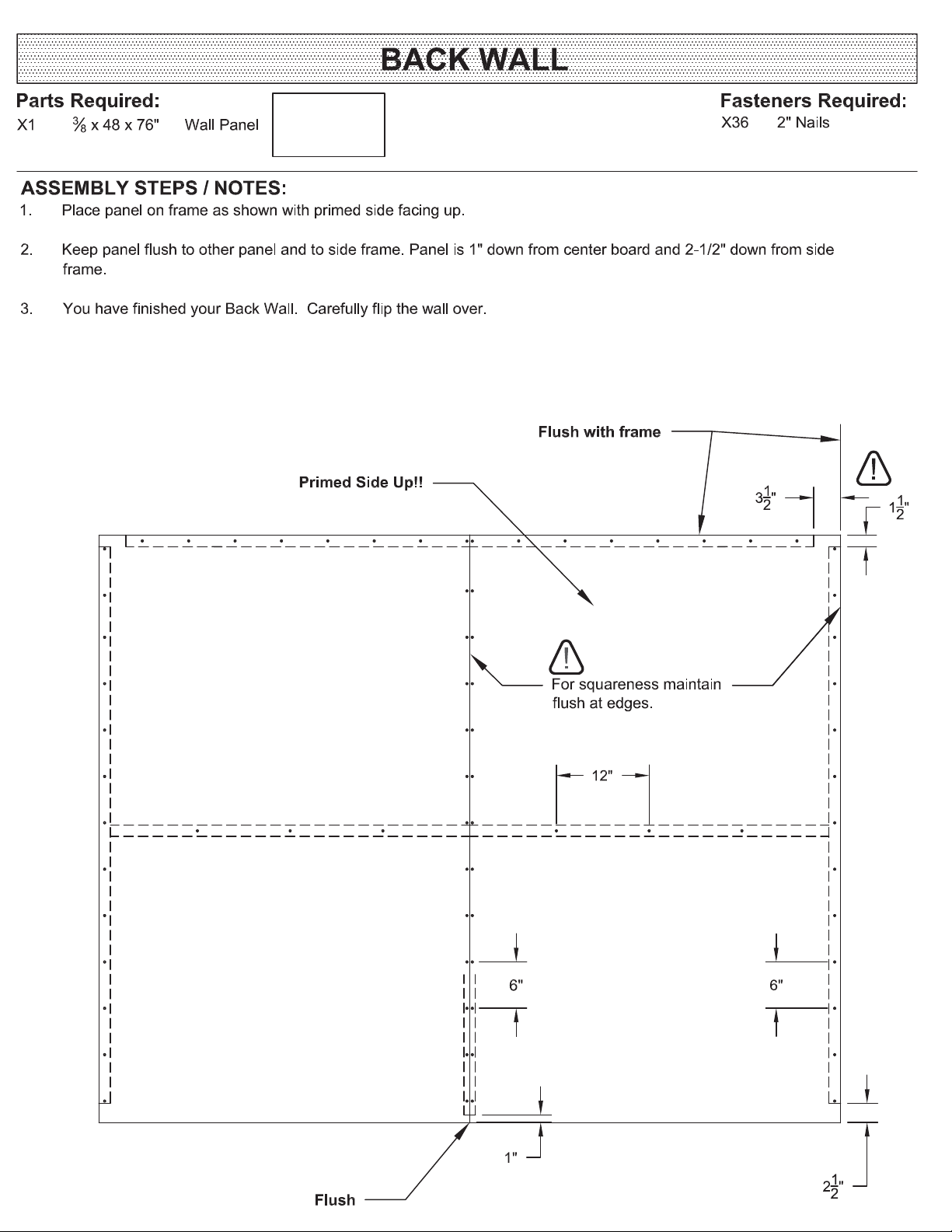

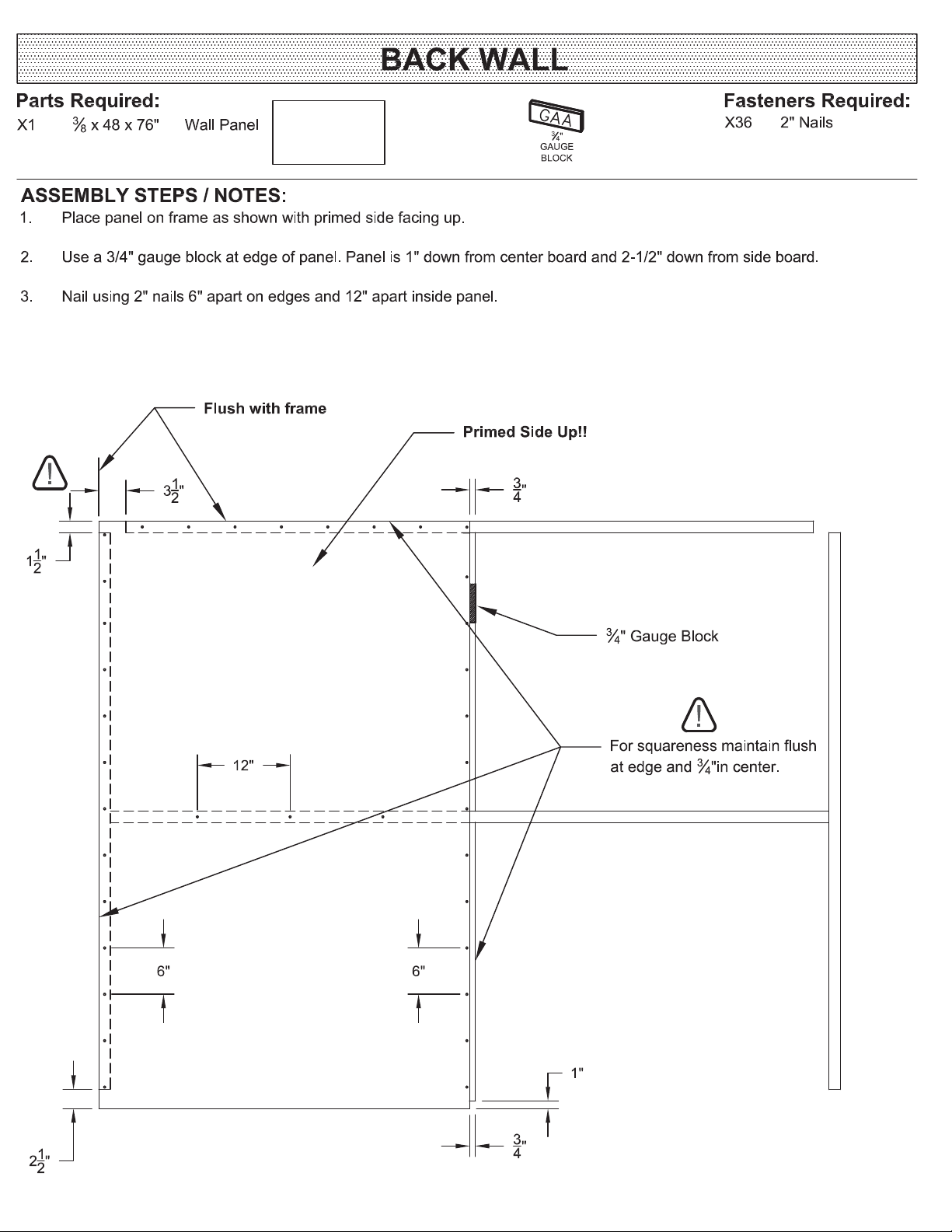

BACKWALL


14



16



18
