Yardline WESTMONT GABLE 12' x 16' User manual

16522
STOP!
STOP!
Call Us First!
DO NOT RETURN TO STORE.
For immediate help with assembly or product information
call our toll free number:
1-800-844-9273
or email:
[e-mail]
Our staff is ready to provide assistance
April through October M-F 8:00 AM to 4:30 PM EST
Saturday 8:30 AM to 4:30 PM EST
November through March M - F 8:00 AM to 5:00 PM EST

(This page intentionally left blank.)

01-18-2018
KEEP THIS MANUAL FOR FUTURE REFERENCE
ACTUAL FLOOR SIZE IS 144 x 192" (365,7 x 487,7 cm)
OPTIONAL:
DOOR LOCATED
ON EAVE WALL (toward right)
OPTIONAL:
DOOR LOCATED
ON GABLE WALL
OPTIONAL:
DOOR LOCATED
ON EAVE WALL (toward left)
16522
BEFORE YOU BEGIN
IMPORTANT!
READ INSTRUCTIONS THOROUGHLY PRIOR TO BEGINNING ASSEMBLY.
•BUILDINGRESTRICTIONSANDAPPROVALS
Be sure to check with local building department and homeowners association for specic restrictions and/or requirements before building.
.•ENGINEEREDDRAWINGS
Contact our Customer Service Team if engineered drawings are needed to pull local permits.
•SURFACEPREPARATION
To ensure proper assembly you must build your shed on a level surface. Recommended methods and materials to level your shed are
listed on page 7.
•CHECKALLPARTS
Inventory all parts listed on pages 4 - 6. Contact our Customer Service Team if any parts are missing or damaged.
•ADDITIONALMATERIALS
You will need additional materials to complete your shed. See page 3 for required and optional materials and quantities.
WESTMONT GABLE 12' x 16' (365,7 x 487,7 cm)
A Backyard Products Company
- CUSTOMER SERVICE -
Call: 1-800-844-9273 email: [email protected]

2
TOOLS
Safety! Always use approved safety glasses during assembly.
OptionalRequired
HELPFUL REMINDER SYMBOLS
Look for these symbols for helpful reminders throughout this manual.
ORIENT LUMBER AND TRIM FOR BEST APPEARANCE
= Assistance Required; two or more people.
= Ensure squareness.
= Important required step or operation.
= Helpful assembly hint.
= Mark part with pencil.
= Beginning of steps for assembly or installation.
= You have  nished the assembly or installation.
= Level
❑Gloves
Framing lumber is graded for structural strength and not appearance. Exterior trim is graded for one good side.
Always install the material leaving the best edge and best surface visible. Please remember that these blemishes in no way
negatively affect the strength or integrity of our product. (See Fig. A, B, C.)
A
❑Safety Glasses
❑Tape Measure
❑Paint Tools
❑Ladder
❑Caulk Gun
❑Hammer
❑Level
FINISH
BEGIN
❑Pencil
❑Phillips
Screwdriver ❑ Tool Belt/
Nail Pouch
❑Chalk Line
❑Nail Gun
• gun nails
❑Tin Snips
(for drip edge)
❑ Square or
❑Utility Knife
❑Shingle Blades
B C
❑ Drill / Driver
❑ 1/8" Drill Bit
❑#2 Philips Drive Bit
❑ 1/4" Drill Bit
❑ 5/16" Drill Bit
❑ 1/2" Drill Bit
❑Hand Saw

3
OPTIONAL MATERIALS
DRIP EDGE ..................... 70 Feet #15 ROOFING FELT
To cover 298 Sq. Ft. of roof area.
1"GALVANIZEDROOFINGNAILS.........1/4Lb
For roong felt.
REFER TO THE BACK OF THIS MANUAL AND THE MANUFACTURER’S INSTRUCTIONS FOR
INSTALLATION OF SHINGLES, DRIP EDGE AND FELT.
COMPLETING YOUR SHED
You will need these additional materials:
3-TAB SHINGLES ............................. 11 Bundles
PAINT FOR SIDING .......................... 3 Gallons
Use 100% acrylic latex exterior paint. (2) coats recommended.
CAULK ................................................. 5 Tubes
Use acrylic latex exterior caulk that is paintable.
1"GALVANIZEDROOFINGNAILS....3Lbs
For shingles.
PAINT FOR TRIM ........................... 2 Quarts
Use 100% acrylic latex exterior paint.
WOODGLUE.......................ExteriorRated

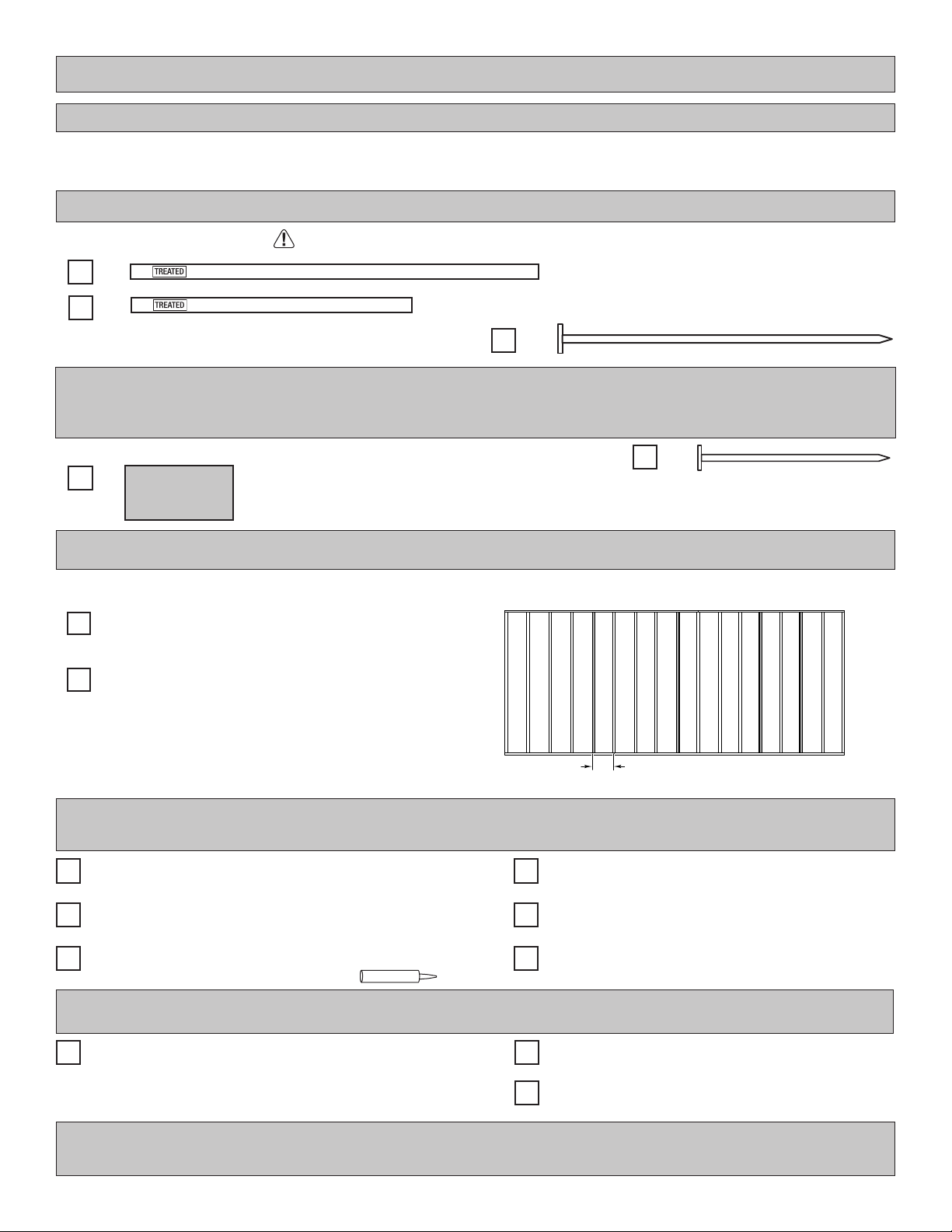

REINFORCED WOOD FLOOR FRAME (OPTIONAL)
WOOD FLOOR FRAME
IMPORTANT! The included oor has been designed for general use. Depending on your specic use you may want to construct a
heavy duty oor frame by adding additional oor joists (shown below as shaded). Below is a list of additional materials (not included):
x4
x16
2 x 4 x 12' (5 x 10 x 365,7 cm) Treated Lumber
Cut to (3) 2 x 4 x 141" (5 x 10 x 358,1 cm)
ea. 3" (7,6 cm) Hot Dipped Galvanized Nails
Optional 12" (30,5 cm) spacing
Standard 16" (40,7 cm) spacing
FOUNDATION OR FLOOR MATERIALS
ADDITIONAL MATERIALS
• This shed does not include any oor or leveling materials.
• See the FLOOR LEVELING section on page 7 for recommended methods and suggested materials to properly level your oor,
as this will vary depending on your specic site.
NOTE: Use a minimum of 5/8" (1,6 cm) Oriented Strand Board (OSB)
5/8" x 48" x96"
(1,6 x 121,9 x 243,8 cm)
x6
FLOOR PANELS
You will need oor panels and nails to complete your oor.
Floor panel sizes and quantities are shown below.
2" (5,1 cm)
x1
1 lb. of 2" (5,1 cm) Hot Dipped
GalvanizedBox-TypeNails
MATERIAL REQUIRED: Use only wood treated for ground contact and fasteners approved for use with treated wood.
x15 2 x 4 x 144" (5,1 x 10,2 x 304,8 cm)
HotDippedGalvanizedBox-TypeNails.
3" (7,6 cm)
x56
x1
2 x 4 x 96" (5,1 x 10,2 x 243,8 cm)
• Onesheetcutdowntomaketwo47-7/8x48"

WOODSIZECONVERSIONCHART
Nominal Board Size Actual Size
1" x 4".................3/4" x 3-1/2" (1,9 x 8,9 cm)
2" x 4"..............1-1/2" x 3-1/2" (3,8 x 8,9 cm)
2" x 3"..............1-1/2" x 2-1/2" (3,8 x 6,3 cm)
1" x 3".................3/4" x 2-1/2" (3,8 x 6,3 cm)
PARTS IDENTIFICATION AND SIZES
RS RS
Part identication
letters are stamped on some parts.
Check these locations for
part stamp.
WALLS
x4 2 x 4 x 92-1/2" (5,1 x 10,2 x 234,9 cm)
TJ
x31 2 x 4 x 80" (5,1 x 10,2 x 203,2 cm)
TK
x2 2 x 4 x 68-1/2" (5,1 x 10,2 x 174 cm)
YFA
x2 2 x 4 x 67" (5,1 x 10,2 x 170,2 cm)
AM
x1 7/16 x 3 x 67" (1,1 x 7,6 x 170,2 cm) OSB FILLER
x9 2 x 4 x 48" (5,1 x 10,2 x 121,9 cm)
SP
x4 2 x 4 x 44-1/2" (5,1 x 10,2 x 113 cm)
STL
PARTS LIST
INVENTORYYOURPARTSbeforeyoubegin.
We suggest sorting parts by the category they are listed in.
RAFTERS
TRIM
x3 2 x 4 x 8" (5,1 x 10,2 x 20,3 cm)
COA
x4 3/8 x 1-3/4 x 81-7/8" (1,0 x 4,4 x 208 cm)
x4 2 x 4 x 96" (5,1 x 10,2 x 243,8 cm)
TP
3/4"
(1,9 cm)
1 x 3 x 5" (2,5 x 7,6 x 12,7 cm) Gauge Block for 3/4" (1,9 cm) measurement
x1 GAA
DOOR
OO
x2 1-1/2 x 2-1/2 x 69" (3,8 x 6,3 x 175,3 cm)
4
x16 6 x 24" (15,2 x 61 cm) GUSSET
x18 2 x 4 x 88-11/16" (5,1 x 10,2 x 225,2 cm)
DNB
19/32 x 3 x 72" (1,5 x 7,6 x 183 cm)
x1 ZJ
1 x 4 x 84" (1,6 x 10,2 x 213,3 cm)
x2 WTA
x4 19/32 x 3 x 26-5/8" (1,5 x 7,6 x 67,6 cm)
AH
x4 3/8 x 7-7/8 x 86-3/4" (1 x 20 x 220,3 cm)
x2 3/8 x 5-7/8 x 47-7/8" (1 x 14,9 x 121,6 cm)
x4 3/8 x 5-7/8 x 72-3/4" (1 x 14,9 x 184,7 cm)
x2 3/8 x 4-3/4 x 88-1/4" (1 x 12,1 x 224,2 cm)
x2 3/8 x 4-3/4 x 88-1/4" (1 x 12,1 x 224,2 cm)
x4 3/8 x 4-3/4 x 80-5/8" (1 x 12,1 x 204,8 cm)
x2 3/8 x 4-3/4 x 47-7/8" (1 x 12,1 x 121,6 cm)
x20 2 x 4 x 4-7/8" (5,1 x 10,2 x 12,4 cm)
CLA
x8 2 x 4 x 88-11/16" (5,1 x 10,2 x 225,2 cm)
KFB
x4 3/8 x 1-3/4 x 82-1/2" (1,0 x 4,4 x 209,6 cm)
2 x 4 x 23-1/4" (5,1 x 10,2 x 59,0 cm)
UV
x4
x2Left
x2Right

PARTS LIST continued...
5
PANEL PARTS LIST
ROOF PANELS
SHELF AND LOFT
SHELF - LOFT
NOTE: Panel parts are not stamped.
NOTE: Panel parts are not stamped.
Roofpanelsare7/16"(1,1cm)thick.
8-5/8 x 88-5/8" (21,9 x 225,1 cm)
x4
40-5/8 x 96" (103,1 x 243,8 cm)
x2
2 x 3 x10-1/8" (5,1 x 7,6 x 25,7 cm)
AE
x7
1 x 4 x 48" (2,5 x 10,2 x 121,9 cm)
WJ
x1
1 x 4 x 96" (2,5 x 10,2 x 243,8 cm)
KP
x1
x4
2 x 4 x 96" (5,1 x 10,2 x 243,8 cm)
TP
2 x 4 x 48" (5,1 x 10,2 x 122 cm)
SP
x4
3/8 x 8 x 12-1/2" (1 x 20,3 x 31,8 cm)
x7
WALL PANEL & DOORS PARTS LIST
x113/8 x 48 x 84"
(1 x 121,9 x 213,4 cm) x1
RIGHT DOOR
x1
LEFT DOOR
x1
3/8 x 48 x 84"
(1 x 121,9 x 213,4 cm)
x1
3/8 x 48 x 84"
(1 x 121,9 x 213,4 cm)
x2 x2x2
x1
7/16 x 48" x 96" (1,1 x 121,9 x 243,8cm)
x2
48 x 96" (121,9 x 243,8 cm)
x4
48 x 47-7/8" (121,6 x 121,6 cm) x4
48 x 40-5/8"
(121,9 x 103,1cm)
7/16 x 11-7/8 x 47-7/8" (1,1 x 30,2 x 122 cm)
x3
7/16 x 40-5/8 x 48" (1,1 x 103,2 x 122 cm)
x1
3/8 x 23-7/8 x 84" (1 x 60,6 x 213,4 cm)
x2

x4 BOXES
x7 BOXES
x277
x92
x22
x64
x189
x54
x8
NAIL BOXES (not included)
VENT/ DOOR HARDWARE/ WINDOW

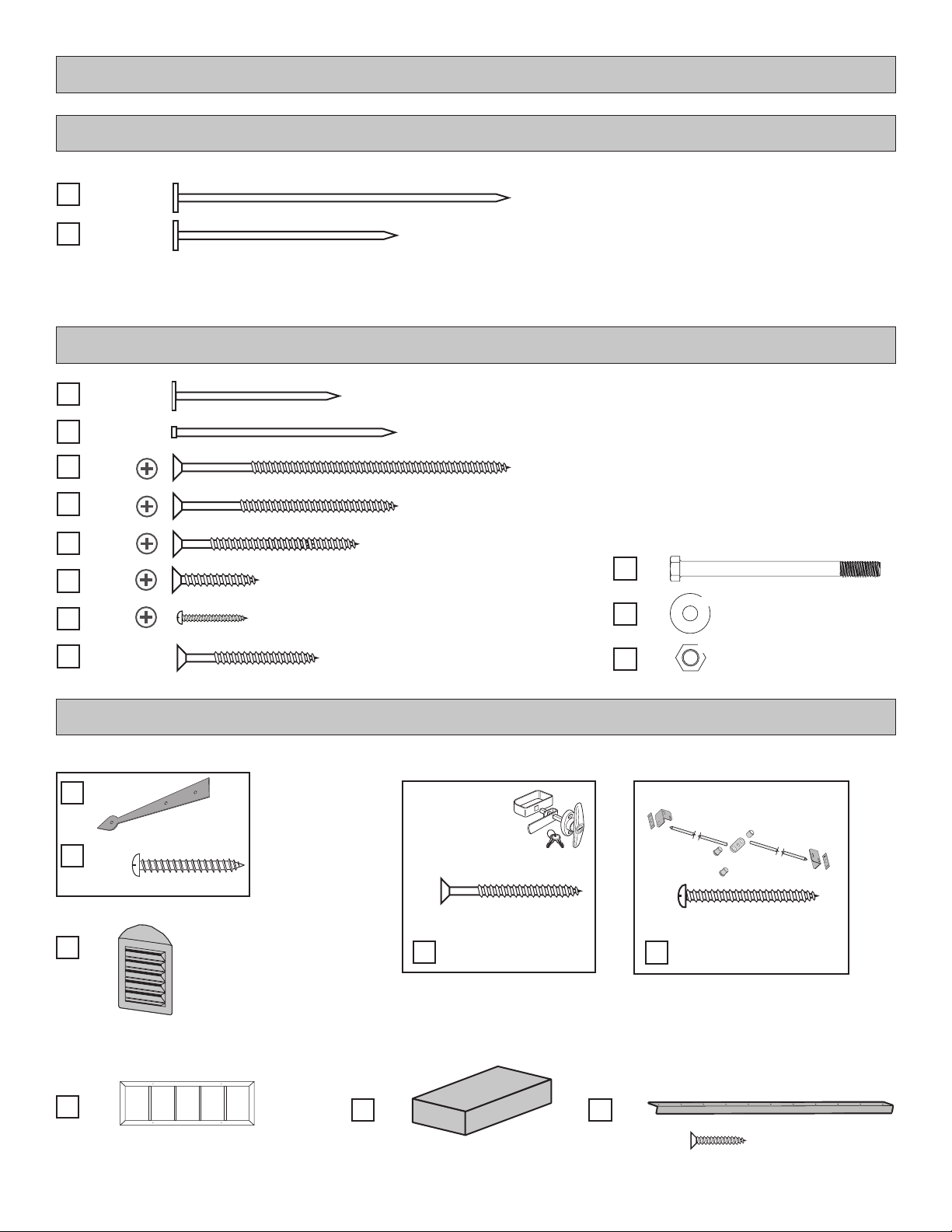

FASTENERS & HARDWARE
FASTENER/ HARDWARE BAG
x20
6
1-5/8" (4,1 cm)
2" (5,1 cm)
3" (7,6 cm)
3/4" (1,9 cm)
2" (5,0 cm)
3" (7,6 cm)
2" (5,1 cm)
1-1/2" (3,8 cm)
x2
1" (2,5 cm)
x2
x1 64" Metal Threshold
3/4" (1,9 cm) x11
Baggedseperately/specialcoating
x12
1" (2,5 cm)
x4
x4
x8
x4
3/8" x5-1/2" (1 cm x 14 cm)
3/8" (1 cm)
3/8" (1 cm)
HexBolt
FlatWasher
Lock Nut
(NOTACTUALSIZE)
x2
WindowKit
TransomWindow
x1
1-1/4”
x8
3-Point Door Locking Mechanism
x1
1-1/4”
x2
Handle (locking)
with Screws
1-1/4" (3,2 cm)

7
DOOR
DOOR
FLOOR LEVELING OPTIONS
There are multiple ways to level your oor frame. Our recommended leveling method is shown below.
Leveling materials are not included in this kit.
PREFERREDMETHOD-4x4TREATEDRUNNERS
• Level under 4x4 runners only.
• Locate leveling material 12" from ends of runners and no more than 48" apart.
• Asphalt shingles should be used between 4x4 runners and blocks or treated lumber. Never use
shingles in direct contact with ground.
• For best results and aiding in water drainage use gravel under each concrete block.
LEVELINGMETHODS
• If you are building your shed on a concrete foundation see the following page.
CONCRETE
MATERIAL REQUIRED
x4 4 x 4 x 12' (10 x 10 x 365,8 cm) Treated Lumber
FastenersforFrameto4x4.
(3" Screws shown as one option.) Minimum (78) 3" screws / exterior grade.
Use only wood treated for ground contact and fasteners approved for use with treated wood.
Always support frame seams.
Leveling higher than 16" not recommended.
LEVELINGMATERIALS
Gravel
2x4 Treated Lumber
Solid Masonry Blocks in 1", 2", 4" or 8" thickness
Asphalt Shingles
8" Block
4" Block
Gravel
Gravel
Do not exceed 16".
4x4 Runner
Shingle
Shingle
Maximum between leveling
material locations.
48"
12"
2x4 Treated Lumber
2" Block
Level
12"
Measurements to
centersof4x4's.
• 3" Screws angled into 4x4.
• (2) at each point frame
•and 4x4 touch.
12"
(30,5 cm)
12"
(30,5 cm)
• Cut one down to make three 48" pieces.

8
CONCRETE FOUNDATION
If you choose to install your kit on a concrete slab refer to the diagram below.
• A treated 2 x 4" (5,1 x 10,2 cm) sill plate is required when installing your shed on concrete.
Hint: Purchase full length treated lumber.
• Use a high quality exterior grade caulk beneath all sill plates.
• Fasten 2 x 4 (5,1 x 10,2 cm) sill plates to slab using approved concrete anchors (fasteners not included).
• Check local code for concrete foundation requirements.
NOTES
Allow new concrete slabs to cure for at least seven (7) days.
2 x 4 x 8' (5,1 x 10,2 x 243,8 cm)
2 x 4 x 12' (5,1 x 10,2 x 365,7 cm)
Caulk
Requires:
x1
x4
x2
MUST be treated lumber.
MUST be treated lumber.
144" (365,7 cm)
144"x192"(365,7x487,7cm) 185" (469,9 cm)
12'x16'(365,7x487,7cm) 192" (487,7 cm)
AActual Size B CBuilding Size
A
B
C
4"
(10,2 cm)
3-1/2"
(8,9 cm)
Treated Sill Plate
Caulk between sill
plate and concrete.
• Cut one down to make two 41" pieces.

9
x13
x2 3" (7,6 cm)
x56
2 x 4 x 141" (5,1 x 10,2 x 358,1 cm)
2 x 4 x 48" (5,1 x 10,2 x 121,9 cm)
PARTS REQUIRED:
Center
on marks
FLOOR FRAME
HINT:
For easier nailing
stand on frame.
2
1
Use two 3" nails at each mark.
Orient parts as shown on  at surface. Measure and mark.
BEGIN
You have  nished your  oor frame. Proceed to level and square frame.
FINISH
Flush
Flush
You will need to cut
2x4x144"boards
down to 141".
x2
2 x 4 x 144" (5,1 x 10,2 x 365,7 cm)
Look for
Stamp
TREATED
32"
(81,3 cm)
48"
(121,9 cm)
48"
(121,9 cm)
48"
(121,9 cm)
64"
(162,6 cm)
80"
(203,2 cm)
141"
(358,1 c m)
96"
(284,5 cm)
112"
(243,8 cm)
128"
(325,1 cm)
144"
(365,8 cm)
144"
(365,8 cm)
160"
(406,4 cm)
176"
(447 cm)
192"
(487,7 cm)
1-1/2"
(3,8 cm)
16"
(40,6 cm)
3" (7,6 cm)
Nails
3" (7,6 cm)
Nails

10
FINISH
LEVEL AND SQUARE FLOOR FRAME
Before attaching  oor decking, it is important to level and square the  oor frame.
A level and square  oor frame is required to correctly construct your shed.
BEGIN
2
3
4
1
Use level and check the frame is level before applying  oor panels.
Check for frame squareness by measuring diagonally across corners. If the measurements are the
same, the frame is square. The diagonal measurement will be approximately 240" (609,6 cm).
When the frame is level and square secure one side of frame to the 4x4 runners using one fastener at
ends of each runner. Move to the opposite end of the frame. Secure the frame to 4x4 runners with one
fastener at ends of each runner making sure the frame remains square (Fig. A).
Once the  oor frame is level and square fasten the frame to the 4x4 runners at each point the frame
contacts the 4x4 runners.
See page 7 for the preferred  oor leveling method.
First, secure
at ends with
one fastener.
Second, secure
at ends with
one fastener.
240"
(609,6 cm)
240"
(609,6 cm)
Fig. A
DOOR
DOOR

11
Move to the opposite side. Using the long edge of the panel as a lever, move the panel side-to-side until the top
corner is ush to the oor frame (Fig. B). Secure panel with two 2" nails in the corners.
2
BEGIN
1
3
4Continue attaching the panel using 2" nails 6" apart on edges and 12" apart inside panel.
Use a chalk line or use pre-painted grid lines to nail into joists under panel.
Ensureyouroorframeissquarebyinstallingonepanelandsquaringframe.
Fig. C
Check the oor frame is square by measuring diagonally across the frame corners. If the measurements are the
same your oor frame is square. The measurement will be approximately 240" (609,6 cm) (Fig. C).

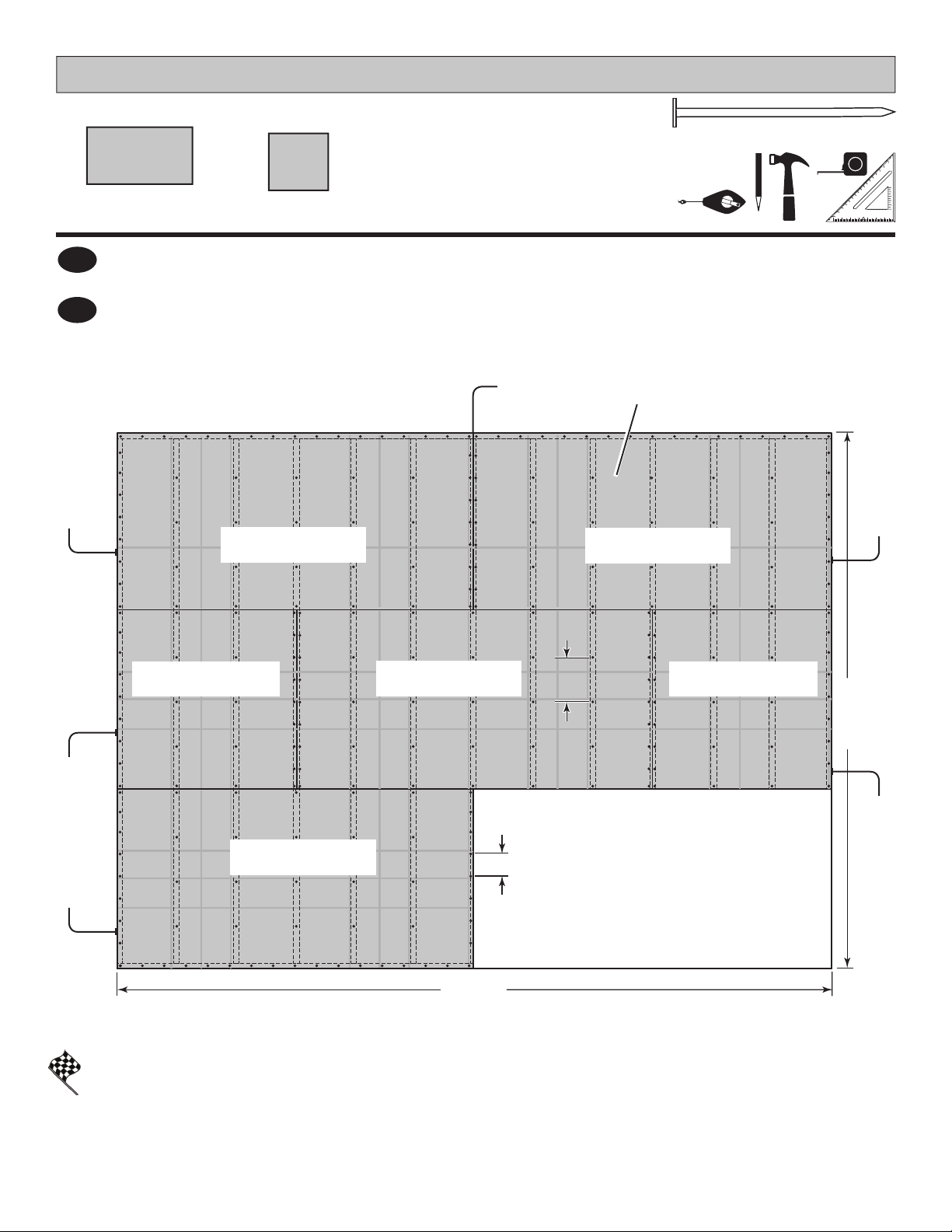

PARTS REQUIRED:
x1
5/8 x 48 x 96"
(1,6 x 121,9 x 243,8 cm)
x53 2" (5,1 cm)
FLOOR PANELS
240"
(609,6 cm)
240"
(609,6 cm)
Attach the 48 x 96" panel with the rough side up (painted-grid lines side) with the 48" edge and corner ush
to the oor frame (Fig A). Secure panel with two 2" nails in the corners.
Flush
(2)
Nails
96"
(243,8 cm)
192"
(487,7 cm)
6"
(15,2 cm)
12"
(30,5 cm)
Grid lines up
12"
(30,2 cm)
Flush
(2)
Nails
Fig. A
Flush
3/4"
(1,9 cm)
Fig. B

12
192"
(487,7 cm)
6"
(15,2 cm)
12"
(30,5 cm)
144"
(365,7 cm)
PARTS REQUIRED:
FINISH
You have  nished attaching your  oor panels.
Continue installing panels with rough side up (painted grid lines).
Use grid lines on panel for 2" nails 6" apart on edges, and 12" apart inside panels.
5
7
6
x4
5/8 x 48 x 96"
(1,6 x 122 x 243,8 cm)
x2
5/8 x 47-7/8 x 48"
(1,6 x 121,9 x 122 cm)
x258
2" (5,1 cm)
FLOOR PANELS
Grid lines up
5/8x48x96"
(1,6x122x243,8cm)
5/8x48x96"
(1,6x122x243,8cm)
5/8x48x96"
(1,6x122x243,8cm)
5/8x48x96"
(1,6x122x243,8cm)
5/8x47-7/8x48"
(1,6x121,9x122cm)
5/8x47-7/8x48"
(1,6x121,9x122cm)
Flush
Flush
Flush
Flush
Flush
Flush

13
GABLE END
WALL
GABLE END
WALL
EAVESIDEWALL
EAVESIDEWALL
Checkthattheoorframeislevelafterinstallingoorpanels.
Re-level if needed.
HINT:
IMPORTANT!
•Theoorshouldbeusedasastableworksurfaceforwallconstruction.
• Organizeyourassemblyprocedureduringthebuildprocess
to avoid over-handling of the walls.
(Your door location may vary.)

14
PARTS REQUIRED:
FINISH
You have  nished rafter jig. Proceed to assemble your rafters.

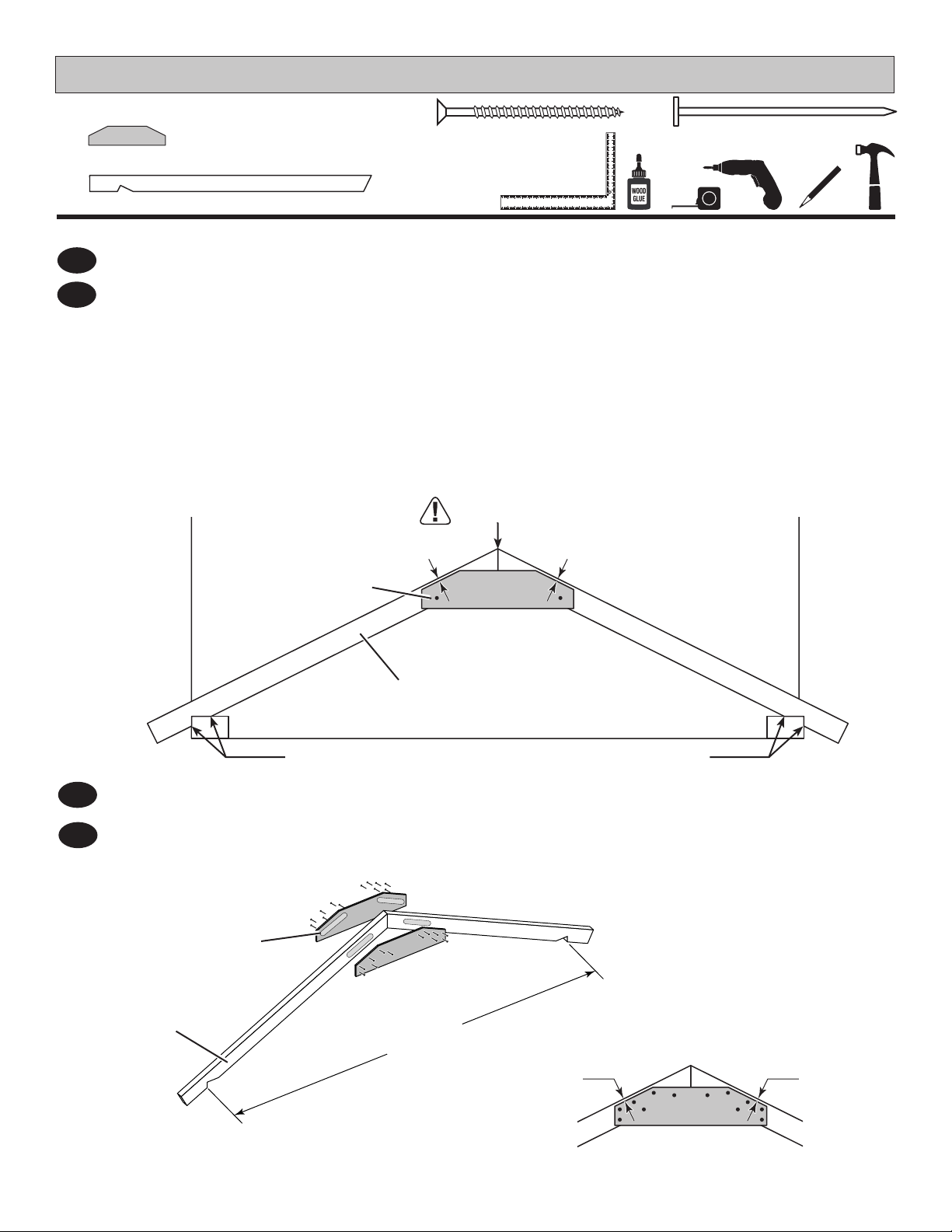

RAFTER ASSEMBLY
144-3/4"
(367,7 cm)
CLAx2
3" (7,6 cm)
x4
x2 CLA 2 x 4 x 4-7/8" (5,1 x 10,2 x 12,4 cm)
BEGIN
¸
1Secure one CLA  ush to the  oor deck using two 3" screws (Fig. A).
Measure over 144-3/4" and install a second CLA  ush to the  oor deck.
Secure using two 3" screws.
Fig. A
Itisveryimportanttoassembleyourraftersusingthefollowingmethodforanevenandatroof.
You will build a rafter jig using the  oor and two CLA parts as shown.
(2) 3" (7,6 cm)
Screws
in each CLA
AttachCLAon16'widesideofoor.
16'widesideofoor.
Flush Flush

15
PARTS REQUIRED: x154 2" (5,1 cm)
x14
1-5/8" (4,1 cm)
RAFTER ASSEMBLY
x14
6 x 24" (15,2 x 61 cm)
GUSSET
x14
2 x 4 x 88-11/16" (5,1 x 10,2 x 225,2 cm)
DNB
1/4" (1,9 cm)
GAP
1/4" (1,9 cm)
GAP
1/4" (1,9 cm)
GAP
1/4" (1,9 cm)
GAP
DNBx2
DNBx2
Fig. A
Fig. B
Fig. C
Glue where
gusset installs
KeepraftersrmlyagainstCLA at both ends when securing gusset.
Flush at tip
Repeat steps 1 through 3 to assemble six (6) more rafters.
Flip rafters over and attach a second gusset using glue and (12) 2" nails. No need to use jig for this gusset.
4
3
2 Keep DNB rm against outside CLA's as shown (Fig.A) and push rafters tight to the middle.
Rafters should touch at tips (Fig. A).
Apply glue to rafters where gusset will attach (Fig. B).
Place gusset onto rafters holding a 1/4" gap from edge (Fig. C).
Secure gusset using one 1-5/8" screw into each rafter.
HINT: These screws will help hold the measurements when you nail on gussets.
Use ten 2" nails to nish securing the gusset to the rafters to pattern shown in Fig. C.
BEGIN
¸
1Place two rafters DNB into the jig as shown.
1-5/8"(4,1cm)
Screw
144-3/4"
(367,6 cm)

16
PARTS REQUIRED: x20 2" (5,1 cm)
x4 1-5/8" (4,1 cm)
RAFTER ASSEMBLY
x2
6 x 24" (15,2 x 61 cm)
GUSSET
x4
2 x 4 x 75-1/4" (5,1 x 10,2 x 191,1 cm)
DNB
1/4" (1,9 cm)
GAP
1/4" (1,9 cm)
GAP
1/4" (1,9 cm)
GAP
1/4" (1,9 cm)
GAP
DNBx2
ECNx2
Fig. A
Fig. B
Fig. C
Glue where
gusset installs
KeepraftersrmlyagainstCLA at both ends when securing gusset.
You have  nished assembling your rafters.
Gable-end rafter assemblies only have one gusset.
Repeat steps 1 through 2 to assemble two more rafters with only one gusset.
Remove CLA's from  oor.
6
5
FINISH
1-5/8"(4,1cm)
Screw
144-3/4"
(367,7 cm)

17
PARTS REQUIRED:
3" (7,6 cm)

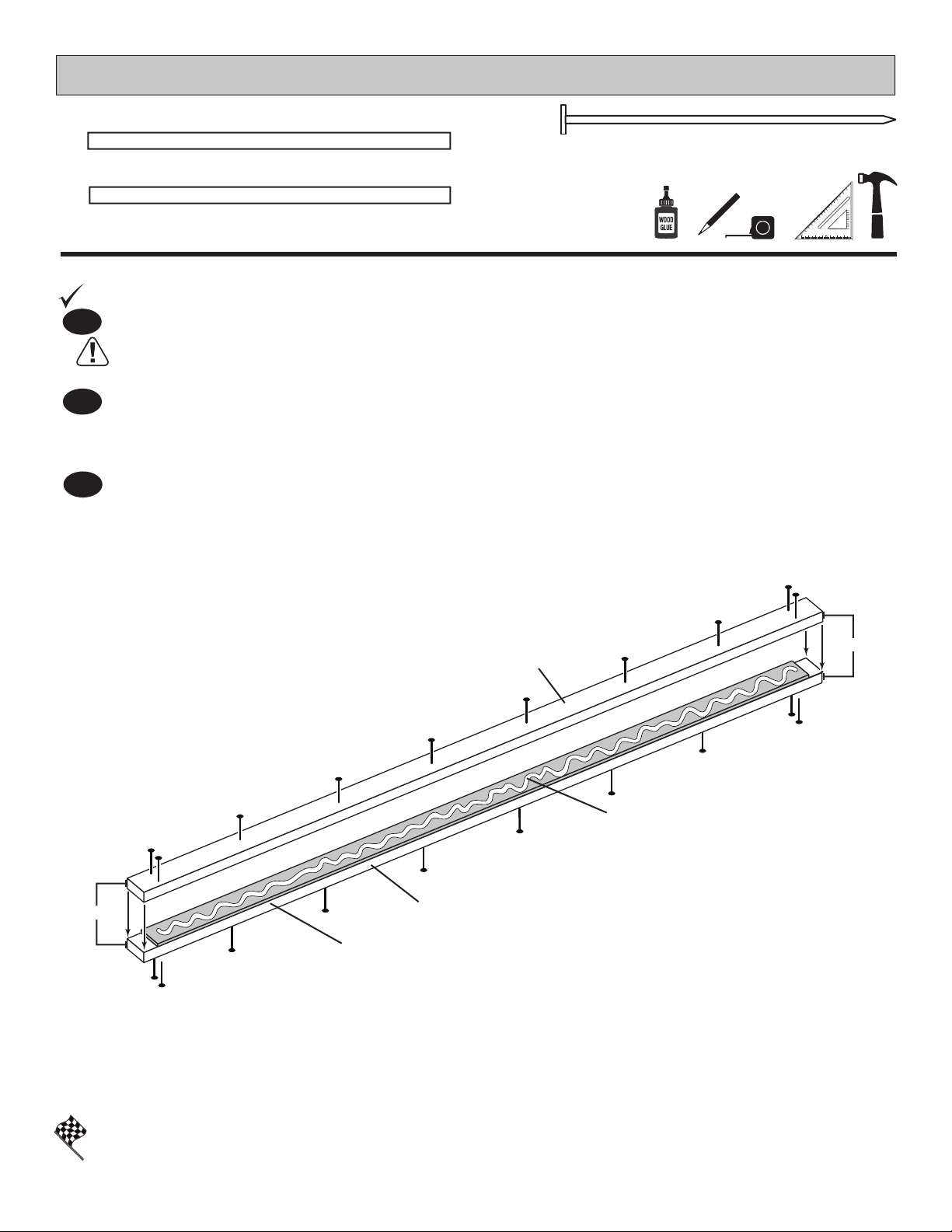

DOOR HEADER ASSEMBLY
x20
x1
7/16 x 3 x 67" (1,1 x 7,6 x 170,1 cm) OSB
x2
2 x 4 x 67" (5,1 x 10,2 x 170,1 cm)
AM
Center OSB on top of AM.
Glue both sides of OSB
Nail using 3" nails in the pattern shown.
Place another AM on top of OSB.
2
3
1
BEGIN
You have assembled your door header.
FINISH
1
OSB
AM
AM
Flip header assembly over and nail as shown on the other side.
Flush
Flush
Center and Glue
both sides

18
WINDOWLOCATIONOPTIONS:
GABLEENDWALLWITHDOOR:
IFYOUCHOOSETHEGABLEENDWALLFORDOORLOCATION
GO TO Page 27 TOBEGINBUILDINGYOURWALLS.
OPTIONAL:
DOOR LOCATED
ON GABLE END WALL
(two windows on eave wall)
OPTIONAL:
DOOR LOCATED
ON GABLE END WALL
(one window on each eave
wall)
YOUCANLOCATEYOURWINDOWSIN
ANYONEOFTHE24"(60,9CM)WALL
STUDCAVITYSPACES.
GO TO Page 75FORWINDOW
INSTALLATION
OPTIONAL:
DOOR LOCATED
ON EAVE SIDE WALL
(toward right)
EAVESIDEWALLWITHOFFSETDOORS:
IF YOU CHOOSE TO LOCATE THE DOOR TOWARD THE RIGHT/LEFT
GO TO Page 23TOBEGINBUILDINGYOURWALLS.
OPTIONAL:
DOOR LOCATED
ON EAVE SIDE WALL
(centered)
EAVESIDEWALLWITHDOORCENTER:
IF YOU CHOOSE TO LOCATE THE DOOR CENTERED
GO TO Page 19TOBEGINBUILDINGYOURWALLS.
CHOOSE YOUR DOOR LOCATION AT THIS TIME
ASYOUWILLASSEMBLEYOURDOORWALLFIRST.
LOFT
OPTIONAL:
DOOR LOCATED
ON EAVE SIDE WALL
(toward left)
STOP
NOTE: Install doors at opposite side of loft & shelf.
