Yarvik PDV109 User manual

1
Table of Contents
Contents
Table of Contents P1
Important Safety Instructions P2
Safety Precautions P3
Identification of Controls P4-P6
Main Unit P4
Remote control unit P5-P6
SETUP Menu Setting P7-P9
General Page P7
Audio Setup Page P7-P8
Video Setup Page P8
Preference Page P8-P9
Password Setup Page P9
Battery Specifications P10
Parameters and specifications P10

2
Important Safety Instructions
Warning: To reduce the risk of electric shock, do not remove the front or back cover. There are no user-
serviceable parts inside. Refer servicing to qualified personnel.
Warning: To prevent fire or electric shock hazard, do not expose the unit to rain or moisture.
Do not expose the adapter or portable DVD player to water (dripping or splashing). Objects filled with liquids, such
as vases, should not be placed on the unit.
Keep the portable DVD player away from direct sunlight and heat sources such as radiators or stoves.
Do not block the ventilation openings. Slots and openings on the unit are provided for ventilation. The openings
should never be blocked by placing your portable DVD player on a cushion, sofa or other similar surface.
Do not place the portable DVD on an unstable cart, stand, tripod, bracket or table. The unit may fall, resulting in
possible damage or injury.
Never place heavy or sharp objects on the LCD panel or frame.
Only use the AC adapter included with portable DVD player. Using any other adapter will void your warranty.
The plug of AC adapter is used as the disconnect device; the disconnect device must remain easily accessible.
Unplug the adapter from the outlet when the unit is not in use.
Dispose of batteries in an environmentally-responsible manner.
CAUTION: Danger of explosion if battery is installed incorrectly. Only use replacement batteries of the same or
equivalent type.
WARNING: The battery (battery or batteries or battery pack) shall not be exposed to excessive heat such as
sunshine, fire or the like.
WARNING: Excessive sound pressure from earphones or headphones can cause hearing loss.
WARNING: Only use attachments/accessories specified by the manufacturer. The portable DVD player is
powered by the AC adapter. The AC adapter is used as the disconnect device; the disconnect device must
remain easily accessible.
Caution: Danger of explosion if battery is installed incorrectly. Only use replacement batteries of the same or
equivalent type (lithium battery).
This marking indicates that this product should not be disposed with other household wastes throughout
the EU. To prevent possible harm to the environment or human health from uncontrolled waste
disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your
used device, please use the return and collection systems or contact the retailer where the product was
purchased. They can take this product for environmental safe recycling.

3
Safety Precautions
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Warning: This digital video disc player employs a laser system. Use of controls, adjustments, or the
performance of procedures other than those specified herein may result in hazardous radiation exposure.
Warning: To prevent direct exposure to the laser beam, do not open the enclosure. Visible laser radiation when
open.
Warning: Never stare directly into the laser beam.
Caution: Do not install this product in a confined space such as a bookcase or similar unit.
Warning: When the unit is used by a child, parents must make sure the child understands the entire contents of
the instruction book and ensure that the battery is used correctly at all times.
Warning: If the battery overheats, swells or ruptures, please stop using the battery and contact the service
centre to obtain a replacement.
Warning: Do not charge the battery in a location with insufficient ventilation such as on a mattress, sofa, cushion
or soft carpet.
Warning: We are not liable for damages resulting from incorrect use of the battery or failure to heed our warning
instruction label on the battery case.
Warning: The length of any USB cable connected to the USB port must not exceed 250 mm.
Notes on Copyrights:
It is forbidden by law to copy, broadcast, show, broadcast via cable, play in public, or rent copyrighted material
without permission.
This product features the copy protection function developed by Macrovision. Copy protection signals are
recorded on some discs. When recording and playing the pictures on these discs, picture noise will appear. This
product incorporates copyright protection technology that is protected by method claims of certain U.S. patents
and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this
copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and
other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or
disassembly is prohibited.
SERIAL NUMBER:
You can find the serial number on the back of the unit. This number is unique to this unit and not available to
others. You should record requested information here and retain this guide as a permanent record of your
purchase.
Model no. ______________________________
Serial no. ______________________________
Date of purchase _________________________
charge strong
impact over
heat
40°C

4

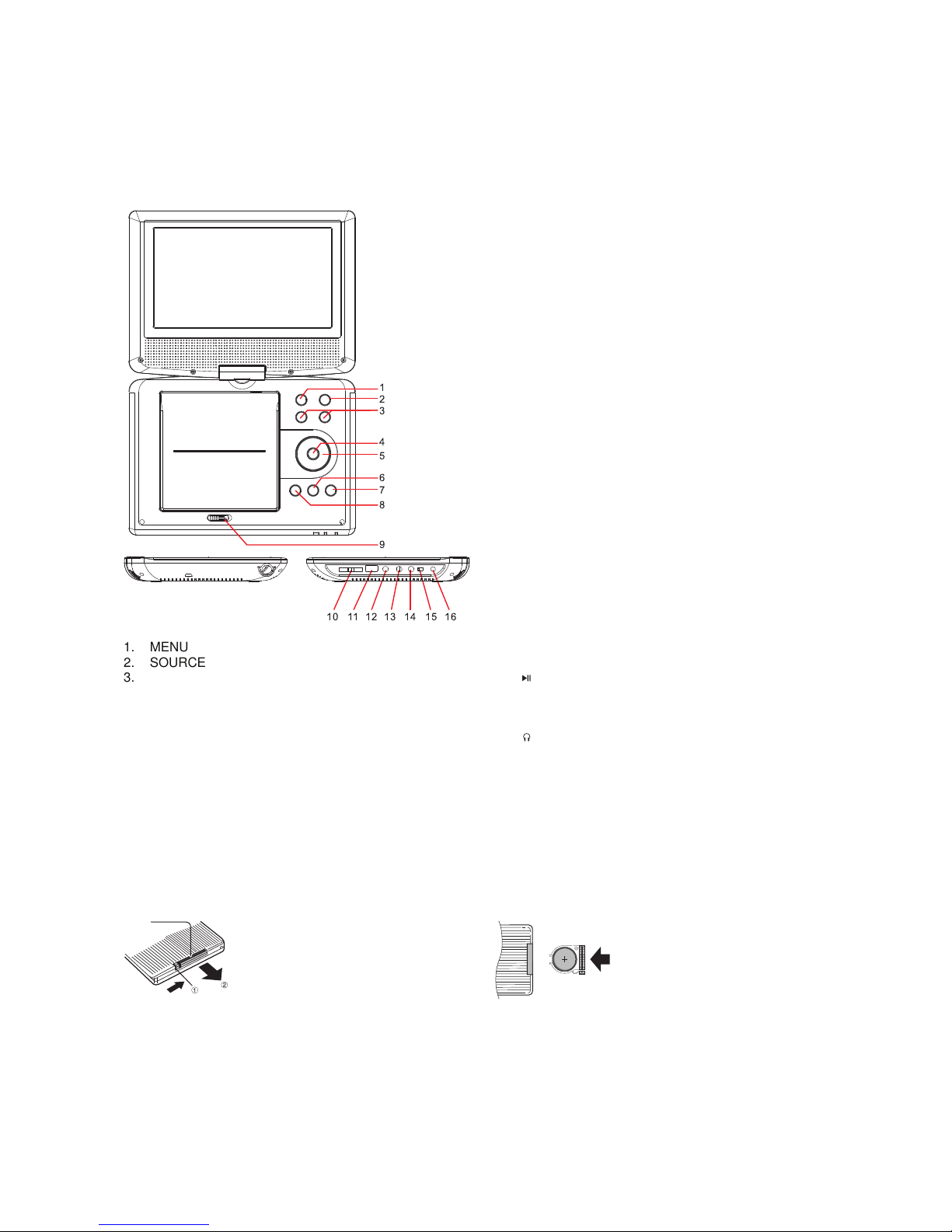

Identification of Controls
Main Unit
   ! " # $

!
"
'
%
#
$
&
1. MENU
2. SOURCE
3. VOL- / VOL+
4. OK (ENTER)
Confirms menu selection.
5. ŸźŻŹ (Left/right/up/down)
Select an item in the menu.
When playing VCD/DVD, if available:
Up: Fast forward
Down: Fast reverse
Left: Previous track
Right: Next track
6. STOP
7. SETUP
8. PLAY/ PAUSE
9. OPEN
10. SD/MMC/MS
11. USB
12. HEADPHONE SOCKET
13. AV OUT
14. COAXIAL
15. ON/OFF
16. DC IN 9-12V
Insert the battery
1. Open the battery door.
2. Insert battery.
NOTES:
Remove battery during storage or when you will not use the DVD player for a long time.
Hole

5
Identification of Controls

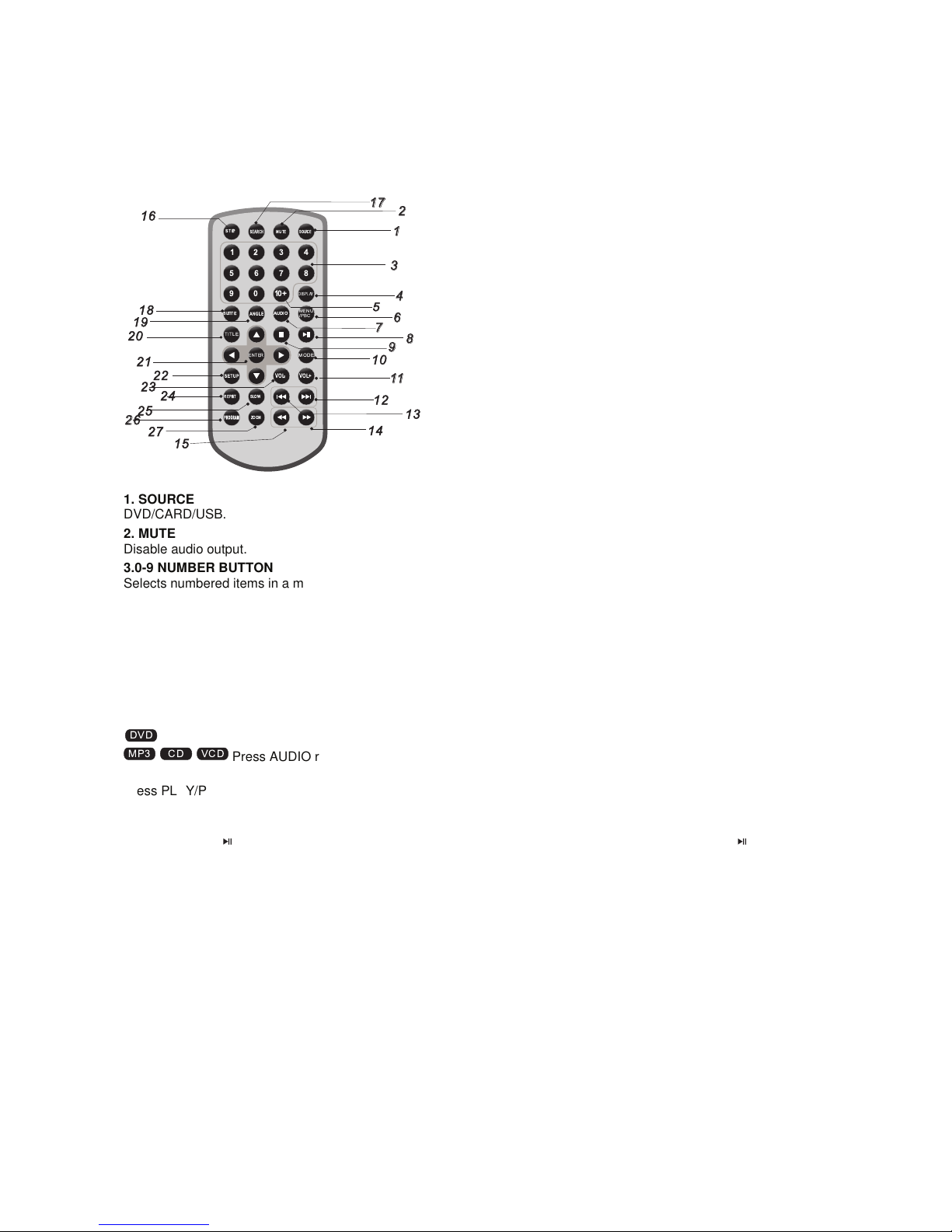

Remote control unit
12 34
5678
90
10+
REPEAT
TITLE
ENTER
MODE
SUBTITLE
AUDIO
MUTE
SOURCE
STEP
DISPLAY
MENU
/PBC
VOL+VOL-
SLOW
ZOOM
 %

!
"
#
$
%
&
'

1. SOURCE
DVD/CARD/USB.
2. MUTE
Disable audio output.
3.0-9 NUMBER BUTTON
Selects numbered items in a menu.
4. DISPLAY
To display the playtime and status information.
5. 10+ BUTTON
In order to select track 10 or greater, first press 10+. For example: to select track 12, first press 10+ and then press 2.
6. MENU/PBC
Return to DVD root menu (DVD).
PBC on/off switch (VCD).
7. AUDIO
,8,
Press AUDIO repeatedly during playback to hear a different audio language or audio track, if available.
MP3
+, 8+,
Press AUDIO repeatedly during playback to hear a different audio channels (left, right, mix, stereo).
8. PLAY/PAUSE
Press PLAY/PAUSE once to pause playback; pressing PLAY/PAUSE a second time will resume playback.
9. STOP
When this button is pressed once, the unit begins recording from the stop point. This is the point from which playback will
resume if PLAY ( ) is pressed again. However, if the STOP button is pressed again instead of the PLAY ( ) button,
there will be no resume function.
10. MODE
Set LCD parameter (adjust brightness, contrast, and saturation).
11. VOL+
Adjust volume.
12. Forward Skip
Go to next chapter/track.
13. Reverse Skip
Go to the beginning of the previous chapter/track.
14. 

BUTTON
Pressing the '' BUTTON allows you to skip ahead at five different speeds (X2->X4->X8->X16->X32->PLAY). Press the
PLAY button to resume normal playback.

6
Identification of Controls
Remote control unit
15. 

BUTTON
Pressing the '' BUTTON allows you to skip ahead at five different speeds (X2->X4->X8->X16->X32->PLAY). Press the
PLAY button to resume normal playback.
16. STEP
Step the motion in DVD mode.
17. SEARCH
Go to the desired time point, title or chapter in DVD mode.
18. SUBTITLE
Press SUBTITLE repeatedly during playback to cycle through the different subtitle languages.
19. ANGLE
,8,
: Pressing ANGLE will change the view angle on DVDs that support this feature.
20. TITLE
Return to the DVD title menu.
21. ENTER
Confirms menu selection.
22. SETUP
Displays or hides the setup menu.
23. VOL-
Adjust volume.
24. REPEAT
Press REPEAT during playback to select a desired repeat mode.
,8,
: You can select repeat chapter/title/off.
8+,
: You can select repeat single/all/off.
+,
MP3
: You can select repeat single/folder/off.
25. SLOW
Press Slow button repeatedly to enter slow playback, and cycle between different speeds. The speeds are
1/2,1/4,1/8,1/16, and normal.
26. PROGRAM
,8,
8+,
: The program function enables you to store your favourite tracks from the disc. Press the PROGRAM button
and the PROGRAM MENU will appear on screen. Now you can use the number keys to directly enter the titles, chapters
or track number and select PLAY. To resume normal playback, press PROGRAM and select the clear program option in
the program menu. Press PROGRAM again to exit the program menu.
27. ZOOM
,8,
8+,
: Use ZOOM to enlarge or shrink the video image.
1. Press ZOOM during playback or still playback to activate the Zoom function. The square frame appears briefly in the
bottom-right corner of the picture.
2. Each press of the ZOOM button changes the TV screen in the following sequence:
2X size ĺ3X size ĺ4X size ĺ1/2 size ĺ1/3 size ĺ1/4 size ĺnormal size
JPEG
: Use ZOOM to enlarge or shrink the picture.
1. Press 'ZOOM'.
2. Use '' to enlarge or '' to shrink the picture.
Use the ŸźŻŹ button to move through the zoomed picture.

7
SETUP Menu Setting
General Setup Page
Press the SETUP button to get the setup menu. Use the direction buttons ŸźŻŹ to select the preferred item.
After making the settings, press SETUP again to return to the normal display.
The following menu items can be changed:
GENERAL: Selects the GENERAL PAGE menu.
AUDIO: Selects the AUDIO PAGE menu.
VIDEO: Selects the VIDEO PAGE menu.
PREFERENCE: Selects the PREFERENCE PAGE menu.
PASSWORD: Selects the PASSWORD PAGE menu.
General Setup Page
- - GENERALSETUP PAGE - -
GOTO GENERAL SETUP PAGE
TV DISPLAY WIDE
ANGLE MARK ON
OSD LANGUAGE ENG
CLOSED CAPTIONS ON
SCREEN SAVER ON
4:3 PANSCAN
4:3 LETTERBOX
16:9
WIDE SQUEEZE
ON
O
ENGLISH
RENCH
GERMAN
ITALIAN
SPANISH
PORTUGUESE
ON
O
ON
O
TV DISPLAY: Selects the aspect ratio of the playback picture.
4:3 PANSCAN: If you have a normal TV and want both sides of the picture to be trimmed or formatted to fit your
TV screen.
4:3 LETTERBOX: If you have a normal TV. In this case, a wide picture will be displayed with black bands on the
upper and lower portions of the TV screen.
16:9: Wide screen display.
Wide Squeeze: Set screen mode to 4:3.
Angle Mark
Displays current angle setting information in the right hand corner of the TFT screen, if available on the disc.
OSD Language
You can select your own preferred language settings.
Closed Captions
Closed captions are data that are hidden in the video signal of some discs. Before you select this function, please
ensure that the disc contains closed captions information and your TV set also has this function.
Screen Saver
This function is used to turn the screen saver On or Off.
Audio Setup Page
Audio Setup Page
-- --
DOWNMINX STR
DOLBY DIGITAL
LT/RT
SPDIF/OFF
SPDIF/RAW
SPDIF/PCM
DUAL MONO
DYNAMIC
STR STR
L-MONO
R-MONO
MIX-MONO
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
FULL
OFF
-
- - - - AUDIO SETUP PAGE
GO TO AUDIO SETUP PAGE
DIGITAL OUTPUT RAW
STEREO

8
SETUP Menu Setting
Audio Setup Page
Downmix
This option allows you to set the stereo analogue output of your DVD player.
ĺLT/RT: Select this option if your DVD player is connected to a Dolby Pro Logic decoder.
ĺStereo: Select this option when the output only provides sound from the two front speakers.
Digital Output
This function is used to select the SPDIF output: SPDIF Off, SPDIF/RAW, SPDIF/PCM.
ĺSPDIF Off: Turns off the SPDIF output.
ĺSPDIF/RAW: If you have connected your DIGITAL AUDIO OUT to a multi-channel decoder/receiver.
ĺSPDIF/PCM: Only if your receiver is not capable of decoding multi-channel audio.
Dolby Digital
The options included in the Dolby Digital Setup are: 'Dual Mono' and 'Dynamic'.
Dual Mono
ĺStereo: Left mono sound will send output signals to left speaker and right mono sound will send output signals
to right speaker.
ĺL-Mono: Left mono sound will send output signals to left speaker and right speaker.
ĺR-Mono: Right mono sound will send output signals to left speaker and right speaker.
ĺMix-Mono: Left and right mixed mono sound will send output signals to left and right speakers.
Dynamic
Dynamic range compression.
Video Setup Page
Video Setup Page
- - VIDEO SETUP PAGE - -
GOTO VIDEO SETUP PAGE
SHARPNESS MID
BRIGHTNESS 00
CONTRAST 00
HUE 00
SATURATION 00
HIGH
MEDIUM
LOW
Sharpness, Brightness, Contrast, Hue, Saturation: adjust the video quality.
Preference Page
Preference Page
- - PREFERENCE SETUP PAGE - -
GOTO PREFERENCE PAGE
TV TYPE PAL
AUDIO ENG
SUBTITLE ENG
DISC MENU ENG
PARENTAL
DEFAULT
PAL
AUTO
NTSC
ENGLISH
FRENCH
GERMAN
ITALIAN
SPANISH
PORTUGUESE
OTHERS
1 KID SAF
2 G
3 PG
4 PG13
5 PGR
6 R
7 NC17
8 ADULT
RESET
ENGLISH
FRENCH
GERMAN
ITALIAN
SPANISH
PORTUGUESE
OTHERS
ENGLISH
FRENCH
GERMAN
ITALIAN
SPANISH
PORTUGUESE
OFF
OTHERS
TV Type
Select the colour system that corresponds to your TV and AV input. This DVD player is compatible with both
NTSC and PAL.

9
SETUP Menu Setting
Preference Page
PAL - Select this if connected to a PAL TV. It will convert the video signal from an NTSC disc and provide output
in PAL format.
NTSC - Select this if connected to an NTSC TV. It will convert the video signal from a PAL disc and provide
output in NTSC format.
Auto - Chang the video signal output automatic according to the playing disk format.
Audio: Selects a language for the audio (if available).
Subtitle: Selects a language for the subtitles (if available).
Disc Menu: Selects a language for disc menu (if available).
Parental
Some DVDs may have a parental level assigned to the complete disc or to certain scenes on the disc. This
feature lets you set a playback limitation level. The rating levels are from 1 to 8 and are country dependent. You
can prohibit the playing of certain discs that are not suitable for your children or have certain discs played with
alternative scenes.
Default: Back to the factory setting.
Password Setup Page
Password Setup Page
- - PASSWORD SETUP PAGE - -
GOTO PASSWORD SETUP PAGE
PASSWORD MODE ON
PASSWORD
ON
OFF
Password mode: Set password mode on/off. If set to off, you will not be required to enter a password to change
the parental level.
Password: Select the menu password change page.
OLD PASSWORD: Enter the OLD password, (Factory setting is 1369), and the cursor will automatically jump to
NEW PASSWORD.
NEW PASSWORD: Enter the NEW password. Enter 4 digits using the numeric buttons on the remote control,
and the cursor will automatically jump to CONFIRM PASSWORD.
CONFIRM PASSWORD: Confirm the NEW password by entering it again. If the confirmation is incorrect, the
cursor will stay in this column. After entering the correct new password again, the cursor will automatically jump to
OK.
OK: When cursor is on this button, press ENTER key to confirm the setting.
Note:
If the password has been changed, the parental and disc lock code will also be changed.
The default password (1369) is always active even when the password has been changed.

10
Parameters and specifications
Electronic specifications
Item Standard requirement
Power requirements : AC 100-240 V, 50/60 Hz
Dimensions (Approx.) : 250(L) x 191(W) x 42(H) mm
Power consumption : <10W
Weight (Approx.) : 0.9 kg
Operating humidity : 5% to 90%
Output
VIDEO OUT : 1 Vp-p (75)
AUDIO OUT : 1.2 Vrms (1 kHz, 0 dB)
Audio : Speaker: 1WX2, Headphones output
System
Laser : Semiconductor laser, wavelength 650 nm
Signal system : NTSC / PAL
Frequency response : 20 Hz to 20 kHz (1 dB)
Signal-to-noise ratio : more than 80 dB (ANALOG OUT connectors only)
Dynamic range : More than 85 dB (DVD/CD)
Accessories : Remote control, Car adapter, AC/DC adapter
Note: Design and specifications are subject to change without prior notice.
Battery specifications
Battery specifications
Battery specifications:
Output: 7.4 V
Charge/discharge time:
Standard charge time: 3h ~ 4h
Storage and operating conditions:
1. Storage conditions Temperature Humidity
6 months -20 °C ~ +45 °C 65±20%
1 week -20 °C ~ +65 °C 65±20%
2. Operating conditions Temperature Humidity
Standard charge 0 °C ~ +45 °C 65±20%
Standard discharge -20 °C ~ +65 °C 65±20%
