• Mount on the Rack
The rack in which the AVHub will be placed must be a 19-inch Rack compliant with IEC 60297�
The Package Contents do not include screws�
❶Install the mounting ears on both sides of the AVHub.
❷Push the AVHub into the rack, and then fix it to the rack with screws.

8
ENGLISH
6 Endpoint Connection
AVHub has two types of connection, you can choose to connect in VCS endpoint or USB endpoint
according to your needs�
• Connect to VCS Endpoint
Ethernet Cable
Ethernet Cable
VCM34
VCM34
VCM38
VCM38
Power Adapter
UVC84
UVC86
VC Hub/Phone port of VCS
MSpeaker II
Ethernet CableEthernet Cable

9ENGLISH
When you connect the UVC84/UVC86/MSpeaker II directly to the AVhub, the total number of connections
must be no more than 4 devices� If the total number of connections exceeds 4 devices, you need to connect
a PoE switch, and other interfaces can be connected to wired microphones�

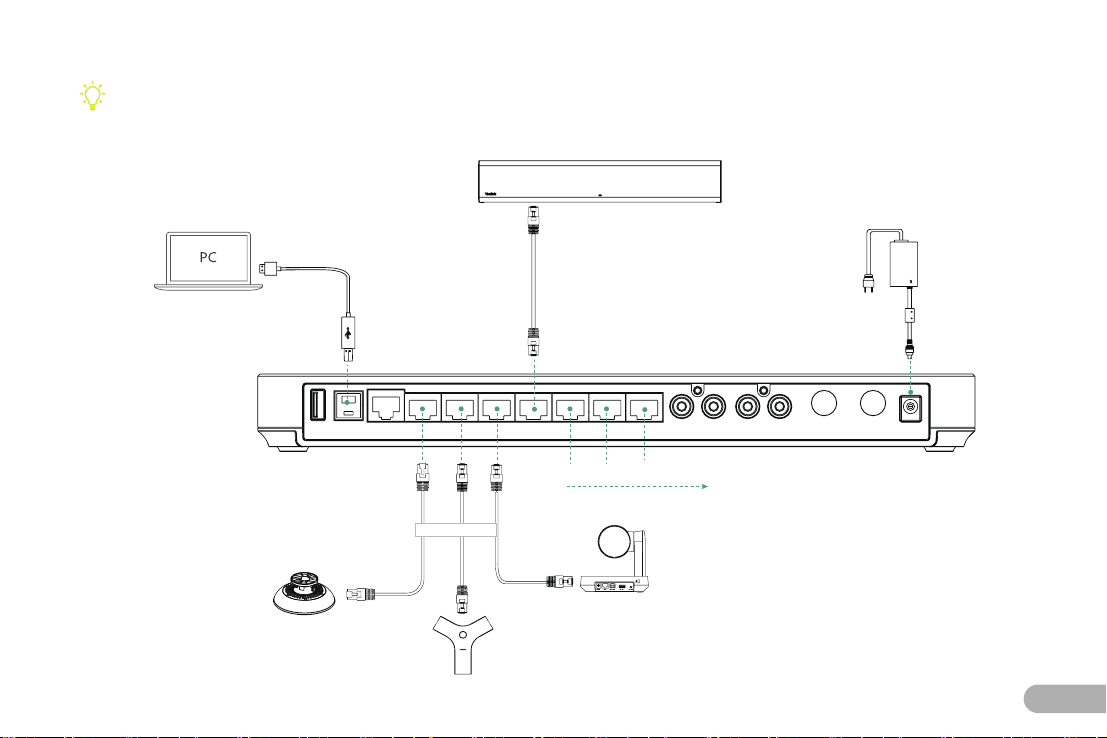

• Connect to MVC Endpoint
VCM34/VCM38/VCM36/MSpeaker II......
VCM34
VCM38
UVC84/UVC86
MSpeaker II
Power Adapter
Ethernet CableEthernet Cable

10
ENGLISH

• Connect to MVC Endpoint
VCM38
Power Adapter
VCM34/VCM38/VCM36/MSpeaker II......
VCM34/VCM36......
VCM38
UVC84
UVC86
If you need more VCH ports of AVHub, you can connect the AVHub via a PoE switch�
MSpeaker II
Ethernet CableEthernet Cable
