YISORA V110 User manual

USER
MANUAL
Cordless Stick Vacuum Cleaner
V111 / V112 / V115 / V116 / V117
Sentirsi libero di contattarci quando ne ha bisogno.
Siamo sempre qui per Lei.
N'hésitez pas à nous contacter à tout moment.
Nous sommes toujours à votre disposition.
No Dude en Ponerse en Contacto con Nosotros
Cuando Necesite. Siempre estamos aquí para usted.
Bei Bedarf können Sie sich gerne an uns wenden.
Wir sind jederzeit für Sie da.
Please feel free to contact us anytime you need.
We are always here for you.
E-Mail: [email protected]

Important Safety Instructions & Warnings
Warning
Product Schematic
Package Checklist
Assembly & Combinations
Ready to Use
How to Empty the Dust Cup
Charging
Storage
Daily Maintenance
Appendix
● Technical Parameters
● Troubleshooting
Warranty
------------------------- EN 01
----------------------------------------------------------------- EN 03
----------------------------------------------------- EN 04
----------------------------------------------------- EN 05
------------------------------------------ EN 07
----------------------------------------------------------- EN 08
----------------------------------------- EN 08
---------------------------------------------------------------- EN 09
------------------------------------------------------------------ EN 09
---------------------------------------------------- EN 10
--------------------------------------------------------------- EN 13
---------------------------------------------------------------- EN 14
Wichtige Sicherheitshinweise
Warnung
Produktübersicht
Packliste
Montage & Kombinationen
Das Gerät benutzen
Staubbehälter leeren
Laden
Aufbewahrung
Tägliche Pflege
Anhang
● Technische Daten
● Fehlerbehebung
Garantie
---------------------------------------- DE 15
---------------------------------------------------------------- DE 17
------------------------------------------------------- DE 18
---------------------------------------------------------------- DE 19
----------------------------------------- DE 21
--------------------------------------------------- DE 22
-------------------------------------------------- DE 22
------------------------------------------------------------------- DE 23
-------------------------------------------------------- DE 23
-------------------------------------------------------- DE 24
----------------------------------------------------------------- DE 27
----------------------------------------------------------------- DE 28

Instrucciones de Seguridad Importantes
Advertencia
Presentación de Producto
Lista de Piezas y Esquema del Producto
Montaje y combinación
Listo para usar
¿Cómo se Vacía la Taza de Polvo?
Cargar
Almacenamiento
Mantenimiento Diario
Anexo
● Parámetros Técnicos del Producto
● Solución de Problemas
Garantía
---------------------------- ES 57
------------------------------------------------------------- ES 59
--------------------------------------------- ES 60
---------------------------- ES 61
----------------------------------------------- ES 63
--------------------------------------------------------- ES 64
----------------------------------- ES 64
------------------------------------------------------------------- ES 65
------------------------------------------------------- ES 65
------------------------------------------------- ES 66
-------------------------------------------------------------------- ES 69
----------------------------------------------------------------- ES 70

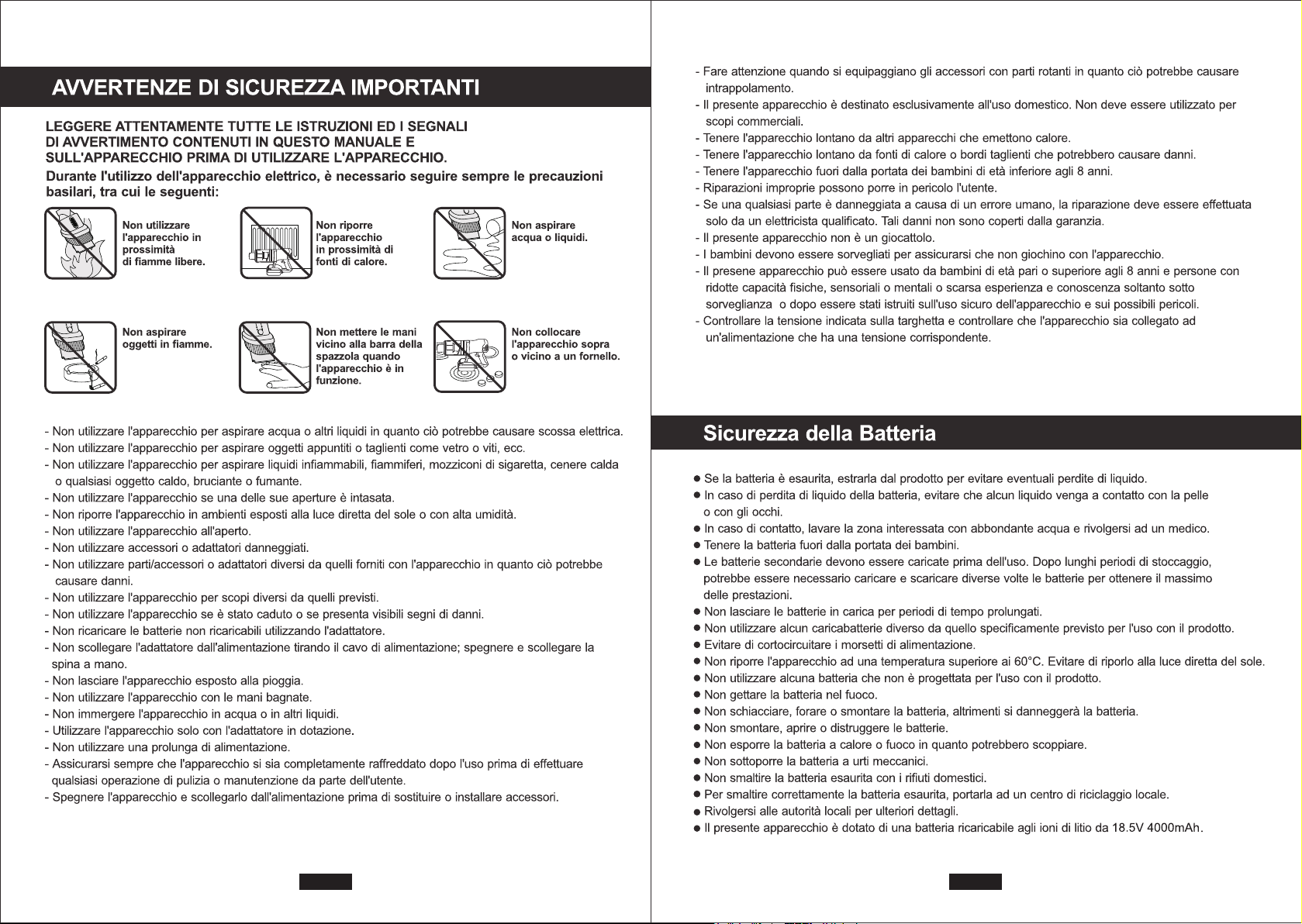

Avvertenze di Sicurezza Importanti
Attenzione
Panoramica del Prodotto
Lista di controllo del pacchetto
Assemblaggio e Combinazione
Istruzioni per l'Uso
Come svuotare la tazza di polvere
Ricarica
Stoccaggio
Manutenzione Quotidiana
Appendice
● Technische Parameter
● Risoluzione dei Problemi
Garanzia
---------------------------------- IT 29
--------------------------------------------------------------- IT 31
----------------------------------------------- IT 32
--------------------------------------- IT 33
--------------------------------------- IT 35
----------------------------------------------------- IT 36
------------------------------------ IT 36
------------------------------------------------------------------ IT 37
--------------------------------------------------------------- IT 37
--------------------------------------------- IT 38
--------------------------------------------------------------- IT 41
----------------------------------------------------------------- IT 42
Consignes de Sécurité Importantes
Avertissement
Présentation du Produit
Liste de contrôle de l'emballage
Assemblage et combinaison
Prêt à l'Emploi
Comment vider la boîte à poussière
Recharger
Stockage
Maintenance Quotidienne
Annexe
● Paramètre technique
● Dépannage
Garantie
--------------------------------- FR 43
---------------------------------------------------------- FR 45
----------------------------------------------- FR 46
------------------------------------- FR 47
----------------------------------------- FR 49
--------------------------------------------------------- FR 50
--------------------------------- FR 50
--------------------------------------------------------------- FR 51
---------------------------------------------------------------- FR 51
-------------------------------------------- FR 52
------------------------------------------------------------------ FR 55
----------------------------------------------------------------- FR 56

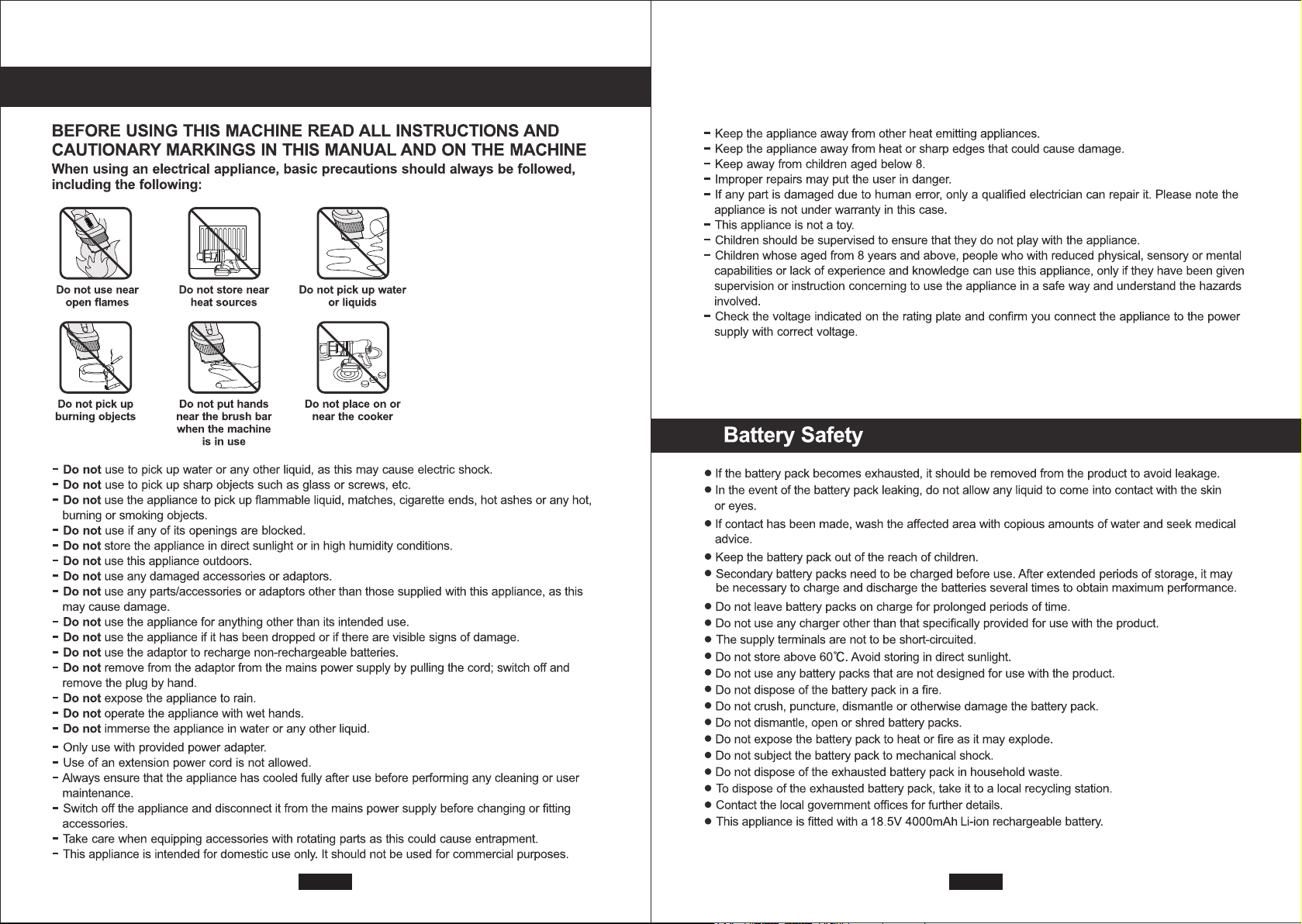

Important Safety Instructions & Warnings
EN - 01 EN - 02

EN - 03
Product Schematic
1. LED Display
2. Power Switch
3. Handle
4. Charging Port
5. Battery Pack
6. Battery Release Button
7. Main Motor
8. Main Motor Release Button
9. Dust Cup Open Button
10. Dust CupRelease Button
11. Retractable Metal Tube
12. Metal Tube ExtendingButton
13. Cleaner HeadRelease Button
14. MotorizedCleaner Head
15. LEDLights
a
b
c
d
e
LED Display
Battery Indicators
RollerBrush Alert Light
Filter Clog Alert Light
Power Mode Indicators
Power Mode Switch
a
b
c
d
e
EN - 04
LED Display
1
7
9
10
11
13
14
15
8
2 3
6
4
5
12

Package Checklist Motorized Cleaner Head:
Can be connected to the metal tube for daily cleaning on the
floororcarpet, or to the mainmotor for cleaning the trunk.
Wall Bracket:
The vacuum cleaner, long crevice and 2-in-1 brush are easy
to put into the wall bracket.
Long Crevice:
For corners and other hard-to-reachplaces; Canbe connected
to the metal tube to clean spider web on the ceilings.
2-in-1 Brush:
Can be switched into a brush ora wide crevice; Suitable for
fabric surface and corners.
Adapter:
For charging the device
Stiff RollerBrush:
Can be installed intothe cleanerhead; ideal for bothhard
floors orcarpets.
Soft RollerBrush:
Can be installed intothe cleanerhead; Perfect for hard floors,
performs better for removing fine dirt from wood floor.
Main Motor (with dust cup)
x1
Retractable Metal Tube x1
Battery Packx1 Power Adapter x1
Wall Bracket x1 Stiff RollerBrush x1
Long Crevice x1 2-in-1 Brush x1
User Manual x1User Guide x1
Motorized Cleaner Head x1
Soft Roller Brush x1
2-in-1 Cleaning Gadget x1
USER
MANUAL
Cordless Stick Vacuum Cleaner
USER
GUIDE
EN - 05 EN - 06
2-in-1Cleaning Gadget:
The blade end canbe used to cut off hair wrappingaround
roller brush, while the other brush endbe used toclean dirt
inside dustbin, strainerorcleanerhead.

Ready to Use
Afterassembly, the cordless vacuum is ready to work.
1. Press the power switch toturn on the vacuum.
2. Press the +/- button to switch among the three power modes.
High Medium Low
SuctionUp to 25Kpa Up to 15Kpa Up to 8Kpa
Runtime Up to 20 minutesUp to 35 minutesUp to 60 minutes
Runtime may vary in different situations. When vacuuming debris or particlesinlarge size,
it might decrease the runtime due to the heavy cleaning tasks.
How to Empty the Dust Cup?
When dust reaches the MAX labeled on the dust cup,please empty the dust cup
before going on.
ATTENTIONS:
·HOUSEHOLD USE ONLY.
·DO NOT use outdoors or on wet surfaces.
·DO NOT immerse in water.
Assembly & Combinations
Ensure a tight connection of the whole machine by a clear sound of click in each step.
If you want to disassemble the vacuum, just press the release buttonon each part.
If you want to connect it withotheraccessoriesand work in different situations,
please follow the COMBINATION instructionsbelow.
EN - 07 EN - 08
① ②
③
①
②
③
④
⑤
⑥

Daily Maintenance
In ordertoensure a maximum performance of the vacuum, it is strongly
recommended tomaintainit components regularly.
1. Turn off the vacuum before cleaning.
2. Wipe the surface witha clean cloth.
3. Be cautious not toget waterinto the inner part of the main motor.
*
Do not place the vacuum cleaner under direct sunlight or in wet place after
cleaning.
There will be alert on LED Display ifthe roller brush getstangled or stuck.
Please clean it in time.
1. Unlock the side lock on the bottom side ofthe cleaner head.
2. Remove the side coverand take out the roller brush.
3. Use the 2-in-1 cleaning gadget to clean it.
Clean Detachable RollerBrush:
Clean Non-electricity Partof the Main Motor:
Charging
Storage
The battery could be charged only when connected tothe main motor. And it is
suggested not to disassemble the battery from the mainmotor regularly.
Notes:
* The machine cannot be turned onduring charging.
*Charge the machine only withthe adapter provided by YISORA.
EN - 09 EN - 10
* It will take about 5 hours to fully charge the battery.

IMPORTANT
1. Please check and clean the Stainless Steel Strainer/HEPA regularly.
2. Please clean the filter in time if the suction performance decline.
3. Please replace the filter/HEPA if it is broken or it cannot maintain
the suction performance of the vacuum cleaner.
4. Please do not bend or squeeze the HEPA.
Filter Installation
1. Detach the main motor and dust cup, take out the HEPA in the main motor and the
filter component in the dust cup. Hold the strainer, rotate the filter holder, then take
out the sponge filter.
2. If they are too dirty, you could wash the strainer and the sponge with cool water, and
clean the HEPA with the cleaning brush.
3. Ensure the strainer and sponge are completely dry before refitting.
90°
03. Make sure the NOTCH on the filter
holder fits into the slot perfectly.
04. Make sure the strainer keeps vertical
to the dust cup cover.
05. Put the HEPA filter into the
main motor.
01. Put the sponge into the strainer. 02. Lock the strainer to the filter holder.
06. Connect the dust cup to the
main motor.

Q3. Weak suction power
A1. Dustbin, strainer or filteris full
ofdust.
A2. The strainer or filteris not installed.
A3. There isblockage.
A4. Rollerbrush is tangled by hair.
1. Clean the dustbin, strainer or filter,
replace the filterif necessary.
2. Install the strainerand filter.
3&4. Clean the roller andalso remove the side
covers of the rollerto remove the tangled
hair.
Q4. Abnormal motor sound
A1. There isblockage.
A2. Something wrong with the main
motororthe mini motorized
cleanerhead.
1. Remove the blockage.
2. Please contact us for after-sale service.
Q5.Battery cannot be charged
A1. Wrong adaptor is used.
A1. Connection between power cord
andbattery is loose.
1. Use the correct adaptor offered by YISORA.
2. Make sure the power cord is plugged tightly.
Appendix
Technical Parameters
(including all attachments ) (including mainmotor, battery pack,
motorized cleaner head, roller brush,
metal tube)
Troubleshooting
Q1. Machine stops working or doesn’t work
A1. Lowbattery or no battery power.
A2. There is blockage.
A3. Rollerbrush is tangled byhair.
1. Charge the battery.
2. Remove the blockage.
3. Clean the roller and also remove the side
covers ofthe rollerto remove the tangled
hair.
Q2. Rollerbrush stops spinning
A1. Rollerbrush is tangled byhair.
A2. Something wrong with the
metal tube.
1. Clean the rollerbrush and remove the hair.
2. Please contact us for after-sale service.
YISORA
EN - 13 EN - 14
If you have anymore questions or problems, please feel free to contact us via
E-mail ： [email protected]
265W
WARRANTY
NOTE: THIS WARRANTY TERM GIVES YOU SPECIFIC LEGAL RIGHTS,
AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE
TO STATE.
24-month Warranty & Lifetime Customer Support
Only apply to eligible purchases made directly from the YISORA authorized distributors.
Warranty coverage applies to the original owner and to the original product only and is
not transferable.
How to initiate a warranty claim
If your appliance operates improperly while in use under normal household conditions
within the warranty period, please contact our customer support [[email protected]]
to fill out the warranty form to initiate a warranty claim.
All rights are reserved by YISORA.
