DESCRIPTION
These packaged heat pumps are designed for outdoor instal-
lation. Only utility and duct connections are required at the
point of installation.
Field-installed electric heater accessories are available to
provide electric heat, if required.
STANDARD FEATURES / BENEFITS
OPERATING EFFICIENCY - All units provide high operating
efficienciesof10SEERorgreater, 3.0 COPorgreaterandupto
7.0 HSPF. All efficiencies exceed legislated minimum levels.
ON SITE FLEXIBILITY - All model sizes share a common,
compact design cabinet with a single footprint. The installer
has the flexibility of setting one curb or pad and placing the
proper tonnage unit on that curb after the internal load has
been determined. Field convertible duct connections from
side shot to down shot allows the installer to have greater
flexibility and needs to carry less inventory.
LOWER INSTALLATION COST - Installation time and costs
are reduced by easy power and control wiring connections.
The small base dimension means less space is required on
the ground or roof, plus, the installer can fit this unit between
the wheel wells of full size pick-up truck. All models are well
under 500 pounds.
All units are completely wired, charged with R-22 and tested
prior to shipment. Unique test stations using a new state of the
art computerized process system are used to insure product
quality. Refrigerant charge, and component part numbers are
verified via computers at manufacturing point. Vital run test sta-
tistics such as system pressure, motor currents, air velocity and
temperature and unit vibration are monitored and recorded by
the system to insure unit performance.
Equal size, side supply and return duct connections allows
easyhook-upofductstomatchlowcrawlspaceswithouttran-
sition pieces.
UTILITY CONNECTIONS MADE EASY - Electrical utility
knockoutsareprovidedthroughthebottomaswellastheside
ofthe unit. Utility connectionscan be made quicklyand with a
minimum amount of field labor. A field supplied and field in-
stalled electrical disconnect switch must be installed.
CONVERTIBLE AIRFLOW DESIGN - The bottom duct open-
ings are covered when they leave the factory ready to be used
forasidesupply/sidereturnapplication.Ifabottomsupply/bot-
tom return application is desired, you simply remove the two
panels from the bottom of the unit and place them in the side
supply / side return duct openings. No panel cutting is required
andnoaccessorypanelisnecessary.Convertibleairflowdesign
allows maximum field flexibility and minimum inventory.
CONDENSATEPAN-A non-corrosive,long-lasting,water-tight
panispositionedbelowtheevaporatorcoiltocollectanddrainall
condensate. Less collection of stagnate condensate will build-
up.Thecondensate panconformstoASHRAE62-89standards
(Ventilation for Acceptable Indoor Air Quality).
CONDENSATEDRAIN-Theheavyduty,
34
inchNPTIcopper
connection is more tolerable during installation and is more
durable over time. The connection is rigidly mounted to as-
sure proper fit and leak tight seal.
FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE
036-21311-003-A-0104
®
TECHNICALGUIDE
Champion Series
SINGLE PACKAGE
HEAT PUMPS
BHA018 THRU 060
1-1/2 THRU 5 NOMINAL TONS
10 SEER
®

DURABLE FINISH - With a heavy duty cabinet made of
powder-painted,galvanizedsteeltheneutralcolorblendsinto
surroundingareas.Thepoweredpaint,providesabetterpaint
tosteelbond,whichresistscorrosionandrustcreep.Thespe-
cial primer formulas and glossy earth tone finish insure less
fading when exposed to sunlight and offers a more attractive
on site appearance. This paint finish exceeds ASTM-B117
standardsfor 750hourssaltspray rating,thehighestinthein-
dustry.
FULL PERIMETER BASE RAILS - The easily removable
base rails provide a solid foundation for the entire unit and
protectsthe unit duringshipment.Therailsprovidefork liftac-
cessfromallsides,andriggingholesarealsoprovidedsothat
an overhead crane can be used to place the units on a roof.
Onapplicationswhentheunitisplacedonapad,thebasewill
keep the unit off the pad to deter corrosion. On applications
whereheightislimited,the
2
38
inchhighbaserailsmaybe re-
moved on location.
MOREATTRACTIVE APPEARANCE-Asinglepiece“Water
Shed”top cover containing a top discharge condenserfan ar-
rangement requires less square footage on installation and
providesawidervarietyof installations.Theonepiecedesign
adds greater water integrity. Rounded corners with water drip
edges add to the attractive appearance. The cabinet panels
have a non-fibrous insulation that reduces insulation fibers
into conditioned area.
TOP DISCHARGE - The top discharge condenser fan does
notdisruptneighboringareasanddoesnotdry-outvegetation
surroundingtheunit.Thewarmairfromthetopmountedfanis
blown up away from the structure and any landscaping. This
allows compact location on multi-unit applications.
OUTDOOR COIL GRILLE - A multi-piece totally enclosed,
rigidlymountedoutdoorcoilgrilleprovidesprotectionfromob-
jects and personal after installation and provides protection
during transit and installation.
LOWOPERATINGSOUNDLEVEL-Theupwardairflowcar-
ries the normal operating noise up and away from the living
area.Therigidtoppaneleffectivelyisolatesanymotorsound.
Isolator mounted compressor and the rippled fins of the con-
densercoilmufflethenormalfanmotorandcompressoroper-
atingsounds.Theuniqueformedbasepanalsoaidsinsound
alterations with it's “Super-Structure” design. This design
strategically places embossments in the pan for optimum
strength and rigidity.
FAN SYSTEM - Allmodelsoperateoverawiderangeofdesign
conditions with a 3-speed direct-drive fan motor. These units
easily match all types of applications and provides greater on
site flexibility to match comfort requirement.
SIMPLE CONTROL CIRCUIT - A low voltage printed circuit
boardcontainsalowvoltageterminalstrip.Theelectricalcon-
trolboxisnot locatedinthecompressorcompartment.Allwir-
ing internal to the unit is color/number coded.
CONTROLS - Reliable time-temperature defrost control pro-
vides defrost including field selectable time periods between
cycles(30, 60 and 90minutes). factory set at30 minutes. De-
frost control also provides an “X” terminal to provide a 24 volt
signal for room thermostat “LED” indication of unit lockout,
plus built in 5 minute anti-short cycle protection.
PROTECTEDCOMPRESSOR -Thecompressorisinternally
protected against high pressure and temperature. This is ac-
complished by the simultaneous operation of high pressure
relief valve and a temperature sensor which protect the com-
pressor if undesirable operating conditions occur.
EXCLUSIVE COIL DESIGN - Grooved copper tubes and en-
hanced aluminum fin construction improves heat transfer for
maximum efficiency and durability.
LOW MAINTENANCE - Long life, permanently lubricated
condenser and evaporator fan motor bearings need no an-
nualmaintenanceaddinggreater reliability to the unit. Blower
assembly can be easily removed for cleaning by the unique
“Slip Track” slide-out blower assembly.
SECURED SERVICE ACCESS PORTS - Protected, externally
mounted, re-usable service access ports are provided on both
the high and low lines for ease of evacuating and charging the
system.
EASY SERVICE ACCESS - Alarge,singlehinged panelcov-
ers the electrical controls and makes servicing easy. The
blowercompartmenthasanadditionallargepanelwithabuilt-
in handle tab. Removing this panel will allow the blower as-
sembly to slide-out for easy removal for maintenance and
ease of trouble shooting.
REPLACEMENT PARTS - The installer has no need to carry
an inventory of unique parts or needs special training to re-
placeanyofthe componentspartsfortheseunits.Allareeas-
ily obtained from Source 1 or other major part houses.
036-21311-003-A-0104
2 Unitary Products Group
STANDARD FEATURES and BENEFITS - continued

ECONOMIZER DOWN DISCHARGE / SUPPLY KIT - Modu-
lating integrated economizer provides simultaneous opera-
tion between the mechanical cooling and economizer
operation. Independent blade design insures proper control
and less than 1% leak rate. Includes hood and mesh bird
screen filter integrated into the hood, dry bulb sensor and re-
liefdamper.Separatefield accessoriesofsingleenthalpyand
dual enthalpy are also available.
SINGLE ENTHALPY SENSOR - Sensor replaces dry bulb
sensorstandardineconomizerkit.Providesimprovedecono-
mizeroperationbysensingthedrybulbtemperaturefromout-
doors plus the enthalpy content of the outdoor air.
DUALENTHALPYSENSOR-Additionalsensortosingleen-
thalpy sensor. Sensor senses both the return air temperature
dry bulb and humidity in conjunction with the single enthalpy
todeterminethemosteconomicalmix.SingleEnthalpy sen-
sor also required.
UPGRADE PRESSURE PACKAGE - Contains screw in type
High pressure, Low Pressure/Loss of Charge switch, freeze
protection switch and lockout relay. Switches are placed onto
existing schrader ports located in the unit by furnished adapt-
ers. When abnormal conditions are sensed through the pres-
sure switches, the unit will lock out preventing any further
operationuntilresetorproblemiscorrected.Packageagency
approved.
HAIL GUARD KIT - Kit contains protected grilles made of ex-
panded aluminum grilles with full perimeter
1
12
inch frame.
Sloped hoods are also included to assure maximum protec-
tion.
FILTER / FRAME KIT (Single Phase only) - Kit contains the
necessary hardware to field install return air filters into the
base unit. Pre-cut filter racks and appropriate cleanable stan-
dard size filters are shipped in one kit. (1" filter is supplied)
This kit is available for single phase horizontal or vertical duct
application only. Standard in all 3 Phase models.
MOTORIZED FRESH AIR DAMPER - Designed for duct
mounted side supply/return and unit mounted down sup-
ply/return applications. Damper capable of providing 0% thru
50% of outdoor air (field supplied). Closes on power loss, in-
cludes hood and screen assembly.
RECTANGLE TO ROUND ADAPTERS - Kit includes one sup-
ply and one return air rectangle to round duct adapter. Adapters
arepreformed and designed tofitover current duct openingson
the base unit. Transition is from 15" square to 14" round.
ROOF CURBS - NRCA approved curbs provide proper fit to
base unit for rooftop installations. Curbs are designed to be
assembled through hinge pins in each corner. Kit also pro-
videssealstripto assure awatertightseal.8and 14 inchhigh
roof curbs are available.
MANUAL OUTDOOR DAMPER -Provides 0% thru 50% out-
door air capability (field adjustable). Designed for duct
mounted side supply/return applications. Includes hood and
screen assembly.
WALL THERMOSTAT - The units are designed to operate
with 24-volt electronic and electro-mechanical thermostats.
All units can operate with single stage heat / single stage cool
thermostats - with or without the economizer.
TRANSFORMER KIT (Single Phase only) - Kit provides
necessaryhardwaretoprovidesinglephasemodelsfromfac-
tory furnished 40 VA transformer capability to 75 VA trans-
former capability.
ELECTRIC HEATERS - Each heater package provides easy
installation of electric heat strips. Slide in design with plug in
harness and agency approved. Heaters are available from
5.0 KW sizes and are designed for single and dual point con-
nections.
036-21311-003-A-0104
Unitary Products Group 3
FIELD-INSTALLED ACCESSORIES
TABLE OF CONTENTS
Description.........................................................................1
Features and Benefits .................................................1 & 2
Field-installed Accessories ................................................3
Ratings...............................................................................4
Physical Data.....................................................................4
Cooling Capacities - BHA018 ............................................5
Cooling Capacities - BHA024 ............................................6
Cooling Capacities - BHA030 ............................................7
Cooling Capacities - BHA036 ............................................8
Cooling Capacities - BHA042 ............................................9
Cooling Capacities - BHA048 ..........................................10
Cooling Capacities - BHA060...........................................11
Heating Capacities - BHA018 & 024................................12
Heating Capacities - BHA030 & 036................................13
Heating Capacities - BHA042 & 048................................14
Heating Capacities - BHA060..........................................15
Application Data...............................................................15
Additional Static Pressure Resistance .............................15
Side and Bottom Supply Air Blower Performance ...........16
Field Wiring Diagram .......................................................17
Electrical Data (basic unit)...............................................17
Electrical Data (cooling / electric heat).............................18
Unit Dimensions...............................................................20
Center of Gravity..............................................................21
Clearances.......................................................................21
Typical Applications .........................................................22
Roof Curb Dimensions.....................................................23
Roof Curb Application......................................................23
Typical Wiring Diagram (208/230-1-60) ...........................24
Typical Wiring Diagram (208/230-3-60) ...........................25
Typical Wiring Diagram (460-3-60 & 575-3-60) ...............26
Typical Wiring Diagram Notes..........................................27
Typical Wiring Diagram Legend.......................................27
Mechanical Specification .........................................28 & 29

036-21311-003-A-0104
4 Unitary Products Group
DIRECT DRIVE
CONDENSER
FAN MOTOR
HIGHLY EFFICIENT
ENHANCED COPPER
TUBE/ALUMINUM FIN
OUTDOOR COIL
LOW VOLTAGE
TERMINAL BLOCK
HIGH EFFICIENCY
COMPRESSOR
RIGIDLY
MOUNTED
BACK AND BOTTOM
RETURN AIR
AND SUPPLY AIR
DUCT OPENING
3-SPEED DIRECT DRIVE
BLOWER MOTOR WITH
SLIDE-OUT BLOWER ASSEMBLY
HIGH VOLTAGE
TERMINAL BLOCK
HIGHLY EFFICIENT ENHANCED
COPPER TUBE/ALUMINUM FIN
INDOOR COIL
HEAVY GAUGE
REMOVABLE
BASE RAILS
LONG LASTING
POWDER PAINT
FINISH EARTH
TONE COLOR
DECORATIVE
PROTECTIVE
COIL GUARD
RATINGS
PHYSICAL DATA
MODEL
BHA
COOLING
CAPACITY1
80 / 67-95°FHSPF1SOUND
RATING2
(dbels)
NET HEATING CAPACITY AVAILABLE ELECTRIC HEAT
NOMINAL CAPACITY KW
@ 47°F @ 17°F
MBH SEER MBH COP MBH COP SINGLE PHASE THREE PHASE
018 18.5 10.2 6.6 77 18.5 3.0 9.3 2.0 5.0, 7.5 N / A
024 23.8 11.0 7.0 75 23.8 3.0 12.1 2.0 5.0. 7.5. 10.0 N / A
030 29.8 10.2 7.0 79 29.0 3.0 14.7 2.0 5.0, 7.5, 10.0, 15.0 N / A
036 36.0 10.6 7.0 83 36.0 3.0 19.2 2.0 5.0, 7.5, 10.0, 15.0 10.0, 15.0
042 41.0 10.2 7.0 83 41.5 3.0 20.8 2.0 5.0, 7.5, 10.0, 15.0 10.0, 15.0
048 48.0 10.0 7.0 79 47.0 3.0 22.0 2.0 10.0, 15.0, 20.0, 25.0 10.0, 15.0, 20.0, 25.0
060 57.5 10.0 7.0 79 58.5 3.0 35.0 2.0 10.0, 15.0, 20.0, 25.0 10.0, 15.0, 20.0, 25.0
SEER = Seasonal Energy Efficiency Ratio - the total cooling output in BTU's during a normal annual usage period for cooling divided by the total electric power input in watt-hours during the
same period.
COP = Coefficient of Performance - the total heating capacity provided by the refrigeration system, including circulating fan heat but excluding supplementary resistance (BTU's per hour)
divided by the total electric input (watts) x 3.412.
HSPF = Heating Seasonal Performance Factor - the total heating output during a normal annual usage period for heating divided by the total electric power input during the same period.
(Based on Region IV minimum design heating requirement).
1Certified in accordance with the Unitary Small Equipment certification program, which is based on ARI Standard 210/240. 2Rated in accordance with ARI Standard 270.
MODELS BHA
018 024 030 036 042 048 060
INDOOR
BLOWER CENTRIFUGAL BLOWER (Dia. x Wd. in.) 9 X 6 10 X 8 10 X 8 10 x 8 11 X 10 11 X 10 11 X 10
FAN MOTOR HP (Three Speed)
121212343434
1
INDOOR
COIL
ROWS DEEP 2233333
FINS PER INCH 15 13 13 15 15 16 16
FACE AREA (Sq. Ft.) 4.38 4.38 4.38 4.38 4.38 5.62 5.62
OUTDOOR
FAN
PROPELLER DIA. (in.) 22 22 22 22 22 22 22
FAN MOTOR HP
14141414141414
NOM. CFM TOTAL 1,800 1.800 1,800 2,400 2,400 2,800 2,800
OUTDOOR
COIL
ROWS DEEP 1111111
FINS PER INCH 20 20 20 20 20 16 20
FACE AREA (Sq. Ft.) 8.3 11.7 11.7 11.7 11.7 16.4 16.4
CHARGE REFRIGERANT 22 (lbs./oz.) 4 / 12 5 / 12 7 / 8 5 / 5 5 / 5 9 / 0 10 / 0
FILTER FACE AREA (Sq. Ft. / Qty. / Size) 4.28 / 2 / 14" x 22"
COMPRESSOR HERMETIC Type, (Qty. = 1) Recip Recip Recip Recip Recip Scroll Scroll

036-21311-003-A-0104
Unitary Products Group 5
COOLING CAPACITIES -1-1/2 TON (BHA018)
Temperature of Air on
Outdoor Coil
Air On Indoor Coil
450 CFM 525 CFM 600 CFM 675 CFM 750 CFM
WB°FWB°FWB°FWB°FWB°F
72 67 62 57 72 67 62 57 72 67 62 57 72 67 62 57 72 67 62 57
85 °F
Net Cap
MBH 20.5 19.2 16.8 17.4 21.4 19.9 17.5 18.1 22.2 20.7 18.2 18.8 22.6 21.1 18.5 19.1 23.0 21.4 18.8 19.4
Total Power
Input kW 1.84 1.81 1.80 1.79 1.87 1.84 1.83 1.81 1.89 1.87 1.86 1.84 1.92 1.89 1.88 1.86 1.94 1.92 1.90 1.89
Sensible Capacity
MBH1
Entering Dry
Bulb,°F
86 11.9 14.9 16.8 17.4 13.2 16.6 17.5 18.1 14.6 18.2 18.2 18.8 15.6 19.4 18.5 19.1 16.7 20.7 18.8 19.4
83 10.6 13.6 16.0 16.4 11.7 15.0 17.1 17.6 12.8 16.4 18.2 18.8 13.6 17.4 18.5 19.1 14.4 18.4 18.8 19.4
80 9.3 12.3 14.8 15.1 10.2 13.5 16.2 16.5 11.1 14.7 17.6 18.0 11.6 15.4 18.2 18.7 12.2 16.2 18.8 19.4
77 8.0 11.1 13.5 13.8 8.7 12.0 14.7 15.0 9.3 12.9 15.8 16.2 9.6 13.5 16.2 16.7 10.0 14.0 16.6 17.2
74 6.7 9.8 12.2 12.5 7.1 10.5 13.1 13.5 7.6 11.2 14.1 14.5 7.6 11.5 14.2 14.7 7.7 11.7 14.3 15.0
71 - 8.5 10.9 11.3 - 9.0 11.6 12.0 - 9.4 12.3 12.7 - 9.5 12.2 12.7 - 9.5 12.1 12.7
68 - 7.2 9.6 10.0 - 7.5 10.1 10.5 - 7.7 10.6 11.0 - 7.5 10.2 10.7 - 7.3 9.9 10.5
95 °F
Net Cap
MBH 19.4 17.5 15.0 15.0 20.3 18.3 15.7 15.7 21.2 19.1 16.4 16.4 21.7 19.6 16.8 16.8 22.2 20.1 17.2 17.2
Total Power
Input kW 1.98 1.94 1.90 1.90 2.01 1.97 1.92 1.93 2.03 1.99 1.94 1.95 2.06 2.02 1.97 1.98 2.09 2.04 1.99 2.00
Sensible Capacity
MBH1
Entering Dry
Bulb,°F
86 11.4 14.2 15.0 15.0 12.8 15.8 15.7 15.7 14.2 17.5 16.4 16.4 15.5 18.8 16.8 16.8 16.7 20.1 17.2 17.2
83 10.1 12.9 14.8 14.8 11.3 14.3 15.6 15.6 12.5 15.8 16.4 16.4 13.5 17.0 16.8 16.8 14.5 18.3 17.2 17.2
80 8.9 11.6 13.6 13.6 9.8 12.8 15.0 15.0 10.7 14.0 16.4 16.4 11.5 15.0 16.8 16.8 12.2 16.0 17.2 17.2
77 7.6 10.3 12.3 12.3 8.3 11.3 13.4 13.5 9.0 12.3 14.6 14.6 9.5 13.0 14.8 14.8 10.0 13.8 14.9 15.0
74 6.3 9.0 11.0 11.0 6.7 9.8 11.9 11.9 7.2 10.5 12.9 12.9 7.5 11.0 12.8 12.8 7.8 11.6 12.7 12.7
71 - 7.7 9.7 9.7 - 8.3 10.4 10.4 - 8.8 11.1 11.1 - 9.0 10.8 10.8 - 9.3 10.5 10.5
68 - 6.5 8.4 8.4 - 6.7 8.9 8.9 - 7.0 9.4 9.4 - 7.0 8.8 8.8 - 7.1 8.2 8.3
105 °F
Net Cap
MBH 18.0 15.9 13.9 13.8 18.7 16.5 14.4 14.3 19.4 17.1 14.9 14.8 19.9 17.5 15.3 15.2 20.4 17.9 15.7 15.6
Total Power
Input KW 2.11 2.04 1.99 2.00 2.14 2.07 2.02 2.03 2.17 2.10 2.05 2.05 2.20 2.13 2.08 2.08 2.23 2.16 2.11 2.12
Sensible Capacity
MBH1
Entering Dry
Bulb,°F
86 10.9 13.4 13.9 13.8 12.3 14.8 14.4 14.3 13.6 16.3 14.9 14.8 14.9 17.1 15.3 15.2 16.2 17.9 15.7 15.6
83 9.6 12.1 13.6 13.5 10.7 13.5 14.3 14.2 11.9 14.9 14.9 14.8 12.9 16.0 15.3 15.2 13.9 17.0 15.7 15.6
80 8.3 10.9 12.3 12.2 9.2 12.0 13.6 13.5 10.1 13.2 14.9 14.8 10.9 14.2 15.3 15.2 11.7 15.2 15.7 15.6
77 7.0 9.6 11.0 10.9 7.7 10.5 12.1 12.0 8.4 11.4 13.2 13.1 8.9 12.2 13.3 13.2 9.5 13.0 13.4 13.3
74 5.8 8.3 9.7 9.7 6.2 9.0 10.6 10.5 6.6 9.7 11.4 11.3 6.9 10.2 11.3 11.2 7.2 10.8 11.2 11.1
71 - 7.0 8.5 8.4 - 7.5 9.1 9.0 - 7.9 9.7 9.6 - 8.2 9.3 9.2 - 8.5 9.0 8.9
68 - 5.7 7.2 7.1 - 6.0 7.6 7.5 - 6.2 7.9 7.8 - 6.2 7.3 7.2 - 6.3 6.7 6.6
115 °F
Net Cap
MBH 16.6 14.2 12.7 12.5 17.1 14.6 13.1 12.9 17.6 15.0 13.5 13.3 18.1 15.4 13.8 13.6 18.5 15.8 14.2 13.9
Total Power
Input kW 2.23 2.13 2.09 2.09 2.26 2.17 2.13 2.12 2.30 2.20 2.16 2.16 2.34 2.24 2.19 2.19 2.38 2.27 2.23 2.23
Sensible Capacity
MBH1
Entering Dry
Bulb,°F
86 10.4 12.7 12.7 12.5 11.7 13.9 13.1 12.9 13.0 15.0 13.5 13.3 14.3 15.4 13.8 13.6 15.6 15.8 14.2 13.9
83 9.1 11.4 12.4 12.2 10.2 12.8 12.9 12.7 11.3 14.1 13.5 13.3 12.3 14.9 13.8 13.6 13.4 15.8 14.2 13.9
80 7.8 10.1 11.1 10.9 8.7 11.3 12.3 12.1 9.5 12.4 13.5 13.3 10.3 13.4 13.8 13.6 11.1 14.5 14.2 13.9
77 6.5 8.9 9.8 9.6 7.1 9.7 10.8 10.6 7.8 10.6 11.8 11.5 8.3 11.4 11.8 11.6 8.9 12.2 11.9 11.7
74 5.2 7.6 8.5 8.3 5.6 8.2 9.3 9.1 6.0 8.9 10.0 9.8 6.3 9.4 9.9 9.6 6.7 10.0 9.7 9.5
71 - 6.3 7.2 7.0 - 6.7 7.7 7.5 - 7.1 8.3 8.0 - 7.4 7.9 7.6 - 7.8 7.5 7.2
68 - 5.0 5.9 5.8 - 5.2 6.2 6.0 - 5.4 6.5 6.3 - 5.4 5.9 5.6 - 5.5 5.2 5.0
125 °F
Net Cap
MBH 15.2 12.5 11.6 11.3 15.5 12.7 11.8 11.5 15.8 13.0 12.1 11.7 16.2 13.3 12.4 12.0 16.6 13.6 12.7 12.3
Total Power
Input kW 2.4 2.2 2.2 2.2 2.4 2.3 2.2 2.2 2.4 2.3 2.3 2.3 2.5 2.3 2.3 2.3 2.5 2.4 2.4 2.3
Sensible Capacity
MBH1
Entering Dry
Bulb,°F
86 9.8 12.0 11.6 11.3 11.1 12.9 11.8 11.5 12.4 13.8 12.1 11.7 13.7 13.7 12.4 12.0 15.0 13.6 12.7 12.3
83 8.6 10.7 11.1 10.8 9.6 12.0 11.6 11.3 10.7 13.3 12.1 11.7 11.7 13.9 12.4 12.0 12.8 14.5 12.7 12.3
80 7.3 9.4 9.8 9.6 8.1 10.5 10.9 10.6 8.9 11.6 12.1 11.7 9.8 12.6 12.4 12.0 10.6 13.7 12.7 12.3
77 6.0 8.1 8.5 8.3 6.6 9.0 9.4 9.1 7.2 9.8 10.3 10.0 7.8 10.6 10.4 10.0 8.3 11.4 10.4 10.1
74 4.7 6.8 7.3 7.0 5.1 7.4 7.9 7.6 5.4 8.1 8.6 8.2 5.8 8.6 8.4 8.0 6.1 9.2 8.2 7.8
71 - 5.6 6.0 5.7 - 5.9 6.4 6.1 - 6.3 6.8 6.5 - 6.6 6.4 6.0 - 7.0 6.0 5.6
68 - 4.3 4.7 4.4 - 4.4 4.9 4.6 - 4.6 5.1 4.7 - 4.6 4.4 4.1 - 4.7 3.7 3.4
1= These capacities are net capacities - indoor fan heat deducted.
ALL SENSIBLE CAPACITY

036-21311-003-A-0104
6 Unitary Products Group
COOLING CAPACITIES -2 TON (BHA024)
Temperature of Air on
Outdoor Coil
Air On Indoor Coil
600 CFM 700 CFM 800 CFM 900 CFM 1,000 CFM
WB°FWB°FWB°FWB°FWB°F
72 67 62 57 72 67 62 57 72 67 62 57 72 67 62 57 72 67 62 57
85 °F
Net Cap
MBH 25.3 23.1 20.8 20.8 26.4 24.1 21.7 21.6 27.4 25.0 22.5 22.5 28.1 25.6 23.1 23.0 28.7 26.2 23.6 23.5
Total Power
Input kW 2.21 2.18 2.14 2.12 2.26 2.23 2.18 2.16 2.30 2.27 2.22 2.20 2.33 2.30 2.25 2.22 2.35 2.32 2.27 2.25
Sensible Capacity
MBH1
Entering Dry
Bulb,°F
86 15.1 18.8 20.8 20.8 16.7 20.9 21.7 21.6 18.4 22.9 22.5 22.5 19.9 24.5 23.1 23.0 21.4 26.2 23.6 23.5
83 13.4 17.1 20.1 20.6 14.7 18.8 21.3 21.5 16.1 20.6 22.5 22.5 17.3 22.0 23.1 23.0 18.5 23.5 23.6 23.5
80 11.6 15.4 18.4 18.9 12.7 16.8 20.0 20.6 13.8 18.2 21.7 22.3 14.6 19.4 22.6 22.9 15.5 20.5 23.6 23.5
77 9.9 13.7 16.7 17.2 10.7 14.8 18.0 18.6 11.4 15.9 19.4 20.0 12.0 16.7 20.0 20.3 12.5 17.5 20.6 20.5
74 8.2 12.0 14.9 15.4 8.7 12.8 16.0 16.5 9.1 13.6 17.1 17.6 9.3 14.0 17.3 17.6 9.5 14.5 17.6 17.6
71 - 10.3 13.2 13.7 - 10.8 14.0 14.5 - 11.2 14.7 15.3 - 11.4 14.7 14.9 - 11.5 14.6 14.6
68 - 8.6 11.5 12.0 - 8.7 12.0 12.5 - 8.9 12.4 13.0 - 8.7 12.0 12.3 - 8.6 11.7 11.6
95 °F
Net Cap
MBH 24.3 21.6 19.3 19.3 25.2 22.4 20.0 20.0 26.0 23.2 20.6 20.7 26.5 23.6 21.0 21.1 26.9 24.0 21.4 21.4
Total Power
Input kW 2.37 2.32 2.26 2.24 2.42 2.37 2.31 2.29 2.47 2.42 2.36 2.34 2.50 2.44 2.38 2.36 2.53 2.47 2.40 2.39
Sensible Capacity
MBH1
Entering Dry
Bulb,°F
86 14.7 18.2 19.3 19.3 16.3 20.2 20.0 20.0 18.0 22.2 20.6 20.7 19.4 23.1 21.0 21.1 20.9 24.0 21.4 21.4
83 13.0 16.5 19.1 19.2 14.3 18.2 19.9 20.0 15.6 19.8 20.6 20.7 16.8 21.2 21.0 21.1 17.9 22.6 21.4 21.4
80 11.3 14.8 17.4 17.5 12.3 16.2 19.0 19.1 13.3 17.5 20.5 20.7 14.1 18.5 20.9 21.1 14.9 19.6 21.4 21.4
77 9.6 13.1 15.7 15.8 10.3 14.1 16.9 17.1 11.0 15.2 18.2 18.3 11.4 15.9 18.3 18.4 11.9 16.6 18.4 18.5
74 7.9 11.4 14.0 14.1 8.2 12.1 14.9 15.1 8.6 12.8 15.9 16.0 8.8 13.2 15.6 15.7 8.9 13.6 15.4 15.5
71 - 9.7 12.3 12.4 - 10.1 12.9 13.0 - 10.5 13.5 13.7 - 10.6 13.0 13.1 - 10.7 12.4 12.5
68 - 8.0 10.6 10.7 - 8.1 10.9 11.0 - 8.2 11.2 11.3 - 7.9 10.3 10.4 - 7.7 9.4 9.5
105 °F
Net Cap
MBH 22.2 19.5 17.9 17.9 23.0 20.2 18.5 18.4 23.7 20.8 19.1 19.0 24.1 21.2 19.4 19.4 24.6 21.6 19.8 19.8
Total Power
Input kW 2.53 2.45 2.41 2.39 2.58 2.51 2.46 2.44 2.64 2.56 2.51 2.49 2.67 2.59 2.54 2.52 2.70 2.62 2.57 2.54
Sensible Capacity
MBH1
Entering Dry
Bulb,°F
86 13.9 17.3 17.9 17.9 15.5 18.8 18.5 18.4 17.1 20.3 19.1 19.0 18.6 21.0 19.4 19.4 20.1 21.6 19.8 19.8
83 12.2 15.6 17.6 17.6 13.5 17.3 18.4 18.3 14.8 19.0 19.1 19.0 16.0 19.9 19.4 19.4 17.1 20.9 19.8 19.8
80 10.4 13.9 15.9 15.9 11.5 15.3 17.5 17.5 12.5 16.6 19.0 19.0 13.3 17.7 19.4 19.4 14.1 18.8 19.8 19.8
77 8.7 12.2 14.2 14.2 9.4 13.2 15.4 15.4 10.1 14.3 16.7 16.7 10.6 15.1 16.8 16.7 11.1 15.8 16.8 16.8
74 7.0 10.5 12.5 12.5 7.4 11.2 13.4 13.4 7.8 12.0 14.4 14.3 8.0 12.4 14.1 14.1 8.2 12.9 13.9 13.8
71 - 8.8 10.8 10.8 - 9.2 11.4 11.4 - 9.6 12.0 12.0 - 9.8 11.4 11.4 - 9.9 10.9 10.8
68 - 7.1 9.1 9.1 - 7.2 9.4 9.4 - 7.3 9.7 9.7 - 7.1 8.8 8.8 - 6.9 7.9 7.8
115 °F
Net Cap
MBH 20.2 17.4 16.6 16.4 20.8 17.9 17.0 16.9 21.3 18.4 17.5 17.3 21.8 18.8 17.9 17.7 22.3 19.2 18.3 18.1
Total Power
Input kW 2.69 2.59 2.56 2.53 2.75 2.64 2.61 2.58 2.80 2.70 2.67 2.64 2.84 2.73 2.70 2.67 2.87 2.77 2.73 2.70
Sensible Capacity
MBH1
Entering Dry
Bulb,°F
86 13.0 16.4 16.6 16.4 14.7 17.4 17.0 16.9 16.3 18.4 17.5 17.3 17.8 18.8 17.9 17.7 19.3 19.2 18.3 18.1
83 11.3 14.7 16.2 16.0 12.7 16.4 16.8 16.7 14.0 18.1 17.5 17.3 15.2 18.7 17.9 17.7 16.3 19.2 18.3 18.1
80 9.6 13.0 14.4 14.3 10.6 14.4 16.0 15.8 11.7 15.8 17.5 17.3 12.5 16.9 17.9 17.7 13.4 18.0 18.3 18.1
77 7.9 11.3 12.7 12.6 8.6 12.4 14.0 13.8 9.3 13.4 15.2 15.0 9.9 14.2 15.2 15.1 10.4 15.1 15.3 15.1
74 6.2 9.6 11.0 10.9 6.6 10.3 11.9 11.8 7.0 11.1 12.8 12.7 7.2 11.6 12.6 12.4 7.4 12.1 12.3 12.1
71 - 7.9 9.3 9.2 - 8.3 9.9 9.8 - 8.8 10.5 10.3 - 8.9 9.9 9.7 - 9.1 9.3 9.2
68 - 6.2 7.6 7.5 - 6.3 7.9 7.7 - 6.4 8.2 8.0 - 6.3 7.3 7.1 - 6.1 6.4 6.2
125 °F
Net Cap
MBH 18.1 15.4 15.2 14.9 18.5 15.7 15.6 15.3 19.0 16.1 16.0 15.7 19.4 16.5 16.3 16.0 19.9 16.9 16.7 16.4
Total Power
Input kW 2.8 2.7 2.7 2.7 2.9 2.8 2.8 2.7 3.0 2.8 2.8 2.8 3.0 2.9 2.9 2.8 3.0 2.9 2.9 2.9
Sensible Capacity
MBH1
Entering Dry
Bulb,°F
86 12.2 15.5 15.2 14.9 13.9 16.0 15.6 15.3 15.5 16.6 16.0 15.7 17.0 16.7 16.3 16.0 18.5 16.9 16.7 16.4
83 10.5 13.8 14.7 14.4 11.8 15.5 15.3 15.0 13.2 17.2 16.0 15.7 14.4 17.4 16.3 16.0 15.6 17.6 16.7 16.4
80 8.8 12.1 13.0 12.7 9.8 13.5 14.5 14.2 10.8 14.9 16.0 15.7 11.7 16.1 16.4 16.0 12.6 17.3 16.7 16.4
77 7.1 10.4 11.3 11.0 7.8 11.5 12.5 12.2 8.5 12.6 13.7 13.3 9.1 13.4 13.7 13.4 9.6 14.3 13.8 13.4
74 5.4 8.7 9.5 9.3 5.8 9.4 10.4 10.1 6.2 10.2 11.3 11.0 6.4 10.8 11.1 10.7 6.6 11.3 10.8 10.5
71 - 7.0 7.8 7.6 - 7.4 8.4 8.1 - 7.9 9.0 8.7 - 8.1 8.4 8.1 - 8.3 7.8 7.5
68 - 5.2 6.1 5.8 - 5.4 6.4 6.1 - 5.6 6.7 6.3 - 5.5 5.7 5.4 - 5.3 4.8 4.5
1= These capacities are net capacities - indoor fan heat deducted.
ALL SENSIBLE CAPACITY

Unitary Products Group 7
036-21311-003-A-0104
COOLING CAPACITIES -2-1/2 TON (BHA030)
Temperature of Air on
Outdoor Coil
Air On Indoor Coil
750 CFM 875 CFM 1,000 CFM 1,125 CFM 1,250 CFM
WB°FWB°FWB°FWB°FWB°F
72 67 62 57 72 67 62 57 72 67 62 57 72 67 62 57 72 67 62 57
85 °F
Net Cap
MBH 32.5 29.3 26.4 26.0 33.4 30.2 27.1 26.7 34.4 31.1 27.9 27.5 35.7 32.3 29.0 28.6 37.1 33.5 30.1 29.7
Total Power
Input kW 2.94 2.85 2.76 2.74 3.02 2.93 2.84 2.81 3.11 3.02 2.92 2.89 3.15 3.06 2.96 2.93 3.20 3.10 3.01 2.98
Sensible Capacity
MBH1
Entering Dry
Bulb,°F
86 19.5 23.9 26.4 26.0 21.4 26.2 27.1 26.7 23.4 28.4 27.9 27.5 25.7 31.0 29.0 28.6 28.1 33.5 30.1 29.7
83 17.4 21.8 25.7 26.0 18.9 23.6 26.8 26.7 20.4 25.5 27.9 27.5 22.4 28.0 29.0 28.6 24.4 30.4 30.1 29.7
80 15.2 19.6 23.5 23.9 16.4 21.1 25.3 25.7 17.5 22.6 27.1 27.5 19.1 24.6 28.6 28.6 20.7 26.7 30.1 29.7
77 13.1 17.5 21.4 21.7 13.9 18.6 22.8 23.2 14.6 19.7 24.2 24.6 15.8 21.3 25.3 25.3 16.9 22.9 26.4 26.0
74 10.9 15.4 19.2 19.6 11.3 16.1 20.2 20.6 11.7 16.8 21.2 21.7 12.5 18.0 22.0 22.0 13.2 19.2 22.7 22.2
71 - 13.2 17.1 17.5 - 13.5 17.7 18.1 - 13.9 18.3 18.8 - 14.7 18.6 18.6 - 15.5 19.0 18.5
68 - 11.1 15.0 15.3 - 11.0 15.2 15.6 - 10.9 15.4 15.8 - 11.3 15.3 15.3 - 11.8 15.2 14.8
95 °F
Net Cap
MBH 30.9 27.3 24.3 24.5 31.7 27.9 24.9 25.1 32.4 28.6 25.5 25.7 33.0 29.2 26.0 26.2 33.7 29.7 26.5 26.7
Total Power
Input kW 3.14 3.02 2.92 2.94 3.22 3.09 3.00 3.01 3.29 3.17 3.07 3.09 3.36 3.23 3.13 3.15 3.43 3.30 3.19 3.21
Sensible Capacity
MBH1
Entering Dry
Bulb,°F
86 18.4 23.0 24.3 24.5 20.3 25.3 24.9 25.1 22.2 27.5 25.5 25.7 24.2 28.6 26.0 26.2 26.2 29.7 26.5 26.7
83 16.3 20.9 24.2 24.3 17.8 22.7 24.9 25.0 19.3 24.6 25.5 25.7 20.9 26.6 26.0 26.2 22.5 28.5 26.5 26.7
80 14.2 18.7 22.0 22.2 15.3 20.2 23.8 23.9 16.4 21.7 25.5 25.7 17.6 23.3 26.0 26.2 18.8 24.8 26.5 26.7
77 12.0 16.6 19.9 20.1 12.8 17.7 21.3 21.4 13.5 18.8 22.6 22.8 14.3 19.9 22.7 22.9 15.1 21.1 22.8 22.9
74 9.9 14.5 17.8 17.9 10.2 15.2 18.7 18.9 10.6 15.9 19.7 19.9 11.0 16.6 19.4 19.5 11.3 17.4 19.0 19.2
71 - 12.3 15.6 15.8 - 12.6 16.2 16.4 - 12.9 16.8 17.0 - 13.3 16.1 16.2 - 13.6 15.3 15.5
68 - 10.2 13.5 13.6 - 10.1 13.7 13.8 - 10.0 13.9 14.0 - 10.0 12.7 12.9 - 9.9 11.6 11.8
105 °F
Net Cap
MBH 28.5 24.8 22.5 22.6 29.1 25.3 23.0 23.0 29.7 25.9 23.5 23.5 30.3 26.4 23.9 24.0 30.8 26.9 24.4 24.4
Total Power
Input kW 3.31 3.17 3.08 3.10 3.40 3.25 3.16 3.17 3.48 3.33 3.23 3.25 3.54 3.39 3.29 3.31 3.60 3.44 3.35 3.36
Sensible Capacity
MBH1
Entering Dry
Bulb,°F
86 17.6 21.9 22.5 22.6 19.5 23.6 23.0 23.0 21.5 25.3 23.5 23.5 23.5 26.1 23.9 24.0 25.5 26.9 24.4 24.4
83 15.5 19.8 22.2 22.3 17.0 21.7 22.8 22.9 18.5 23.5 23.5 23.5 20.1 24.9 23.9 24.0 21.7 26.3 24.4 24.4
80 13.4 17.6 20.1 20.1 14.5 19.1 21.8 21.8 15.6 20.6 23.5 23.5 16.8 22.2 23.9 24.0 18.0 23.8 24.4 24.4
77 11.2 15.5 17.9 18.0 12.0 16.6 19.2 19.3 12.7 17.7 20.6 20.6 13.5 18.9 20.6 20.6 14.3 20.0 20.6 20.7
74 9.1 13.4 15.8 15.8 9.4 14.1 16.7 16.8 9.8 14.8 17.6 17.7 10.2 15.6 17.3 17.3 10.6 16.3 16.9 17.0
71 - 11.2 13.7 13.7 - 11.6 14.2 14.2 - 11.9 14.7 14.8 - 12.2 14.0 14.0 - 12.6 13.2 13.2
68 - 9.1 11.5 11.6 - 9.0 11.7 11.7 - 9.0 11.8 11.9 - 8.9 10.6 10.7 - 8.9 9.5 9.5
115 °F
Net Cap
MBH 26.1 22.4 20.7 20.6 26.5 22.7 21.1 21.0 27.0 23.1 21.4 21.3 27.5 23.6 21.8 21.8 28.0 24.0 22.2 22.2
Total Power
Input kW 3.49 3.32 3.24 3.25 3.57 3.40 3.32 3.33 3.66 3.48 3.40 3.41 3.71 3.54 3.45 3.46 3.77 3.59 3.50 3.51
Sensible Capacity
MBH1
Entering Dry
Bulb,°F
86 16.8 20.8 20.7 20.6 18.7 22.0 21.1 21.0 20.7 23.1 21.4 21.3 22.7 23.6 21.8 21.8 24.7 24.0 22.2 22.2
83 14.7 18.7 20.2 20.2 16.2 20.6 20.8 20.8 17.8 22.5 21.4 21.3 19.4 23.2 21.8 21.8 20.9 24.0 22.2 22.2
80 12.5 16.5 18.1 18.0 13.7 18.1 19.8 19.7 14.8 19.6 21.4 21.3 16.0 21.1 21.8 21.8 17.2 22.7 22.2 22.2
77 10.4 14.4 16.0 15.9 11.2 15.5 17.2 17.2 11.9 16.7 18.5 18.4 12.7 17.8 18.5 18.4 13.5 19.0 18.5 18.4
74 8.3 12.3 13.8 13.8 8.6 13.0 14.7 14.6 9.0 13.7 15.6 15.5 9.4 14.5 15.2 15.1 9.8 15.3 14.8 14.7
71 - 10.1 11.7 11.6 - 10.5 12.2 12.1 - 10.8 12.7 12.6 - 11.2 11.9 11.8 - 11.5 11.1 11.0
68 - 8.0 9.6 9.5 - 7.9 9.6 9.6 - 7.9 9.7 9.7 - 7.9 8.5 8.5 - 7.8 7.3 7.3
125 °F
Net Cap
MBH 23.7 19.9 18.9 18.7 24.0 20.1 19.1 18.9 24.2 20.4 19.4 19.2 24.7 20.8 19.7 19.5 25.2 21.2 20.1 19.9
Total Power
Input kW 3.7 3.5 3.4 3.4 3.8 3.6 3.5 3.5 3.8 3.6 3.6 3.6 3.9 3.7 3.6 3.6 3.9 3.7 3.7 3.7
Sensible Capacity
MBH1
Entering Dry
Bulb,°F
86 16.0 19.7 18.9 18.7 17.9 20.3 19.1 18.9 19.9 20.9 19.4 19.2 21.9 21.1 19.7 19.5 23.9 21.2 20.1 19.9
83 13.9 17.6 18.3 18.1 15.4 19.5 18.8 18.6 17.0 21.4 19.4 19.2 18.6 21.6 19.7 19.5 20.2 21.7 20.1 19.9
80 11.7 15.5 16.1 16.0 12.9 17.0 17.7 17.6 14.0 18.5 19.4 19.2 15.2 20.1 19.7 19.5 16.4 21.7 20.1 19.9
77 9.6 13.3 14.0 13.8 10.4 14.5 15.2 15.0 11.1 15.6 16.4 16.2 11.9 16.8 16.4 16.2 12.7 17.9 16.4 16.2
74 7.5 11.2 11.9 11.7 7.8 11.9 12.7 12.5 8.2 12.7 13.5 13.3 8.6 13.4 13.1 12.9 9.0 14.2 12.6 12.4
71 - 9.0 9.7 9.6 - 9.4 10.2 10.0 - 9.8 10.6 10.4 - 10.1 9.8 9.6 - 10.5 8.9 8.7
68 - 6.9 7.6 7.4 - 6.9 7.6 7.5 - 6.8 7.7 7.5 - 6.8 6.4 6.2 - 6.8 5.2 5.0
1= These capacities are net capacities - indoor fan heat deducted.
ALL SENSIBLE CAPACITY

8 Unitary Products Group
036-21311-003-A-0104
COOLING CAPACITIES -3 TON (BHA036)
Temperature of Air on
Outdoor Coil
Air On Indoor Coil
900 CFM 1,050 CFM 1,200 CFM 1,350 CFM 1,500 CFM
WB°FWB°FWB°FWB°FWB°F
72 67 62 57 72 67 62 57 72 67 62 57 72 67 62 57 72 67 62 57
85 °F
Net Cap
MBH 37.1 33.9 30.2 29.4 39.8 36.4 32.4 31.5 42.5 38.9 34.6 33.7 44.4 40.6 36.1 35.2 46.3 42.3 37.7 36.6
Total Power
Input kW 3.62 3.49 3.41 3.40 3.67 3.54 3.46 3.45 3.72 3.59 3.51 3.49 3.78 3.65 3.57 3.55 3.84 3.71 3.62 3.61
Sensible Capacity
MBH1
Entering Dry
Bulb,°F
86 22.5 28.4 30.2 29.4 25.3 31.9 32.4 31.5 28.2 35.4 34.6 33.7 30.7 38.5 36.1 35.2 33.3 41.5 37.7 36.6
83 19.9 25.8 30.2 29.4 22.3 28.9 32.4 31.5 24.7 31.9 34.6 33.7 26.8 34.5 36.1 35.2 28.8 37.1 37.7 36.6
80 17.3 23.2 27.6 27.5 19.3 25.8 30.7 30.6 21.2 28.4 33.8 33.7 22.8 30.5 35.7 35.2 24.3 32.6 37.7 36.6
77 14.8 20.7 25.0 25.0 16.2 22.8 27.7 27.6 17.7 24.9 30.3 30.2 18.8 26.5 31.7 31.2 19.9 28.1 33.2 32.2
74 12.2 18.1 22.5 22.4 13.2 19.8 24.6 24.5 14.2 21.4 26.8 26.7 14.8 22.6 27.8 27.2 15.4 23.7 28.7 27.7
71 - 15.5 19.9 19.8 - 16.7 21.6 21.5 - 17.9 23.3 23.2 - 18.6 23.8 23.2 - 19.2 24.3 23.2
68 - 13.0 17.3 17.3 - 13.7 18.6 18.5 - 14.4 19.8 19.7 - 14.6 19.8 19.2 - 14.7 19.8 18.8
95 °F
Net Cap
MBH 36.3 31.3 27.5 26.9 38.8 33.5 29.4 28.8 41.4 35.7 31.4 30.7 43.1 37.2 32.7 32.0 44.9 38.7 34.1 33.3
Total Power
Input kW 3.84 3.70 3.62 3.62 3.88 3.75 3.67 3.66 3.93 3.80 3.71 3.71 4.00 3.86 3.77 3.77 4.06 3.92 3.83 3.83
Sensible Capacity
MBH1
Entering Dry
Bulb,°F
86 22.6 27.1 27.5 26.9 25.5 30.5 29.4 28.8 28.4 34.0 31.4 30.7 31.2 36.3 32.7 32.0 34.0 38.7 34.1 33.3
83 20.0 24.5 27.5 26.9 22.5 27.5 29.4 28.8 24.9 30.5 31.4 30.7 27.2 33.3 32.7 32.0 29.5 36.0 34.1 33.3
80 17.4 22.0 25.5 25.0 19.4 24.5 28.4 27.8 21.4 27.0 31.4 30.7 23.2 29.3 32.7 32.0 25.1 31.6 34.1 33.3
77 14.9 19.4 23.0 22.4 16.4 21.4 25.4 24.8 17.9 23.5 27.9 27.2 19.3 25.3 28.7 28.0 20.6 27.1 29.6 28.8
74 12.3 16.8 20.4 19.9 13.4 18.4 22.4 21.8 14.4 20.0 24.4 23.7 15.3 21.3 24.7 24.0 16.1 22.6 25.1 24.4
71 - 14.3 17.8 17.3 - 15.4 19.4 18.7 - 16.5 20.9 20.2 - 17.3 20.7 20.0 - 18.2 20.6 19.9
68 - 11.7 15.3 14.7 - 12.3 16.3 15.7 - 13.0 17.4 16.7 - 13.3 16.8 16.1 - 13.7 16.2 15.4
105 °F
Net Cap
MBH 32.4 27.9 25.1 23.7 34.8 29.9 27.0 25.5 37.1 32.0 28.8 27.2 38.7 33.3 30.0 28.3 40.2 34.6 31.2 29.5
Total Power
Input kW 4.06 3.90 3.85 3.84 4.10 3.95 3.89 3.89 4.15 3.99 3.94 3.93 4.22 4.06 4.00 4.00 4.29 4.13 4.07 4.07
Sensible Capacity
MBH1
Entering Dry
Bulb,°F
86 21.0 25.8 25.1 23.7 23.9 28.4 27.0 25.5 26.9 31.1 28.8 27.2 29.5 32.9 30.0 28.3 32.1 34.6 31.2 29.5
83 18.5 23.2 25.1 23.7 20.9 26.2 27.0 25.5 23.4 29.3 28.8 27.2 25.5 31.3 30.0 28.3 27.6 33.3 31.2 29.5
80 15.9 20.6 23.1 21.8 17.9 23.2 26.0 24.5 19.9 25.8 28.8 27.2 21.5 27.9 30.0 28.3 23.2 30.1 31.2 29.5
77 13.3 18.1 20.5 19.2 14.8 20.2 22.9 21.5 16.4 22.3 25.3 23.7 17.5 24.0 26.0 24.3 18.7 25.6 26.7 25.0
74 10.8 15.5 18.0 16.7 11.8 17.2 19.9 18.4 12.9 18.8 21.8 20.2 13.5 20.0 22.0 20.4 14.2 21.2 22.3 20.5
71 - 12.9 15.4 14.1 - 14.1 16.9 15.4 - 15.3 18.3 16.7 - 16.0 18.1 16.4 - 16.7 17.8 16.0
68 - 10.4 12.8 11.5 - 11.1 13.8 12.4 - 11.8 14.8 13.2 - 12.0 14.1 12.4 - 12.2 13.3 11.6
115 °F
Net Cap
MBH 28.5 24.5 22.8 20.5 30.7 26.4 24.5 22.1 32.9 28.3 26.3 23.7 34.3 29.4 27.3 24.7 35.6 30.5 28.4 25.6
Total Power
Input kW 4.27 4.10 4.07 4.07 4.32 4.14 4.12 4.12 4.37 4.19 4.16 4.16 4.44 4.26 4.23 4.23 4.52 4.33 4.30 4.30
Sensible Capacity
MBH1
Entering Dry
Bulb,°F
86 19.5 24.5 22.8 20.5 22.4 26.4 24.5 22.1 25.3 28.3 26.3 23.7 27.8 29.4 27.3 24.7 30.2 30.5 28.4 25.6
83 16.9 21.9 22.8 20.5 19.4 25.0 24.5 22.1 21.8 28.1 26.3 23.7 23.8 29.3 27.3 24.7 25.7 30.5 28.4 25.6
80 14.4 19.3 20.6 18.6 16.3 22.0 23.5 21.2 18.3 24.6 26.3 23.7 19.8 26.6 27.3 24.7 21.3 28.6 28.4 25.6
77 11.8 16.8 18.1 16.1 13.3 18.9 20.4 18.1 14.8 21.1 22.8 20.2 15.8 22.6 23.3 20.7 16.8 24.2 23.9 21.1
74 9.2 14.2 15.5 13.5 10.3 15.9 17.4 15.1 11.3 17.6 19.3 16.7 11.8 18.7 19.4 16.7 12.3 19.7 19.4 16.7
71 - 11.6 12.9 10.9 - 12.9 14.4 12.1 - 14.1 15.8 13.2 - 14.7 15.4 12.7 - 15.2 14.9 12.2
68 - 9.1 10.4 8.4 - 9.8 11.3 9.0 - 10.6 12.3 9.7 - 10.7 11.4 8.7 - 10.7 10.5 7.7
125 °F
Net Cap
MBH 24.7 21.1 20.4 17.4 26.7 22.8 22.1 18.8 28.7 24.5 23.7 20.2 29.8 25.5 24.6 21.0 30.9 26.4 25.5 21.7
Total Power
Input kW 4.5 4.3 4.3 4.3 4.5 4.3 4.3 4.3 4.6 4.4 4.4 4.4 4.7 4.5 4.5 4.5 4.7 4.5 4.5 4.5
Sensible Capacity
MBH1
Entering Dry
Bulb,°F
86 18.0 23.2 20.4 17.4 20.8 24.3 22.1 18.8 23.7 25.4 23.7 20.2 26.0 25.9 24.6 21.0 28.3 26.4 25.5 21.7
83 15.4 20.6 20.4 17.4 17.8 23.8 22.1 18.8 20.2 26.9 23.7 20.2 22.0 27.3 24.6 21.0 23.8 27.7 25.5 21.7
80 12.8 18.0 18.2 15.5 14.8 20.7 21.0 17.8 16.7 23.4 23.7 20.2 18.0 25.3 24.6 21.0 19.4 27.2 25.5 21.7
77 10.3 15.5 15.6 12.9 11.7 17.7 17.9 14.8 13.2 19.9 20.2 16.7 14.1 21.3 20.6 17.0 14.9 22.7 21.0 17.3
74 7.7 12.9 13.1 10.3 8.7 14.7 14.9 11.8 9.7 16.4 16.7 13.2 10.1 17.3 16.7 13.0 10.4 18.2 16.6 12.8
71 - 10.3 10.5 7.8 - 11.6 11.9 8.8 - 12.9 13.2 9.7 - 13.3 12.7 9.0 - 13.8 12.1 8.3
68 - 7.8 7.9 5.2 - 8.6 8.8 5.7 - 9.4 9.7 6.2 - 9.4 8.7 5.0 - 9.3 7.6 3.9
1= These capacities are net capacities - indoor fan heat deducted.
ALL SENSIBLE CAPACITY

Unitary Products Group 9
036-21311-003-A-0104
COOLING CAPACITIES -3-1/2 TON (BHA042)
Temperature of Air on
Outdoor Coil
Air On Indoor Coil
1,050 CFM 1,225 CFM 1,400 CFM 1,575 CFM 1,750 CFM
WB°FWB°FWB°FWB°FWB°F
72 67 62 57 72 67 62 57 72 67 62 57 72 67 62 57 72 67 62 57
85 °F
Net Cap
MBH 39.6 36.8 33.1 30.6 43.3 40.3 36.2 33.4 46.9 43.7 39.2 36.3 47.7 44.4 39.9 36.8 48.4 45.1 40.5 37.4
Total Power
Input kW 4.15 4.05 3.98 4.01 4.17 4.07 4.00 4.03 4.19 4.09 4.02 4.05 4.33 4.22 4.14 4.18 4.46 4.35 4.27 4.30
Sensible Capacity
MBH1
Entering Dry
Bulb,°F
86 24.9 30.8 33.1 30.6 28.4 35.0 36.2 33.4 31.9 39.3 39.2 36.3 34.4 42.2 39.9 36.8 37.0 45.1 40.5 37.4
83 21.9 27.8 32.7 30.6 24.9 31.5 36.0 33.4 27.8 35.2 39.2 36.3 29.8 37.6 39.9 36.8 31.8 40.0 40.5 37.4
80 18.9 24.8 29.7 28.9 21.3 28.0 33.5 32.6 23.8 31.1 37.3 36.3 25.1 33.0 38.9 36.8 26.5 34.8 40.5 37.4
77 15.9 21.8 26.7 25.9 17.8 24.4 30.0 29.0 19.7 27.0 33.2 32.2 20.5 28.3 34.3 32.2 21.3 29.6 35.3 32.2
74 12.9 18.8 23.8 22.9 14.3 20.9 26.5 25.5 15.6 23.0 29.2 28.1 15.9 23.7 29.6 27.5 16.1 24.3 30.1 27.0
71 - 15.8 20.8 19.9 - 17.3 22.9 22.0 - 18.9 25.1 24.0 - 19.0 25.0 22.9 - 19.1 24.9 21.8
68 - 12.8 17.8 16.9 - 13.8 19.4 18.4 - 14.8 21.0 19.9 - 14.4 20.3 18.2 - 13.9 19.6 16.5
95 °F
Net Cap
MBH 38.5 34.6 30.5 28.0 41.6 37.4 33.0 30.2 44.8 40.3 35.4 32.5 45.5 40.9 36.0 33.0 46.2 41.5 36.5 33.5
Total Power
Input kW 4.34 4.25 4.15 4.18 4.40 4.31 4.20 4.24 4.46 4.37 4.26 4.30 4.58 4.49 4.38 4.42 4.71 4.61 4.50 4.54
Sensible Capacity
MBH1
Entering Dry
Bulb,°F
86 24.6 30.7 30.5 28.0 27.6 34.3 33.0 30.2 30.6 38.0 35.4 32.5 33.1 39.7 36.0 33.0 35.6 41.5 36.5 33.5
83 21.6 27.7 30.5 28.0 24.0 30.8 33.0 30.2 26.5 33.9 35.4 32.5 28.4 36.2 36.0 33.0 30.4 38.6 36.5 33.5
80 18.6 24.7 29.4 26.9 20.5 27.2 32.4 29.7 22.4 29.8 35.4 32.5 23.8 31.6 36.0 33.0 25.2 33.4 36.5 33.5
77 15.6 21.7 26.4 23.9 17.0 23.7 28.9 26.2 18.4 25.7 31.4 28.4 19.1 27.0 31.3 28.4 19.9 28.2 31.3 28.3
74 12.6 18.7 23.4 21.0 13.4 20.2 25.3 22.7 14.3 21.6 27.3 24.4 14.5 22.3 26.7 23.7 14.7 23.0 26.1 23.1
71 - 15.7 20.4 18.0 - 16.6 21.8 19.1 - 17.5 23.2 20.3 - 17.7 22.0 19.1 - 17.8 20.9 17.9
68 - 12.7 17.4 15.0 - 13.1 18.3 15.6 - 13.5 19.1 16.2 - 13.0 17.4 14.4 - 12.5 15.7 12.7
105 °F
Net Cap
MBH 35.6 31.0 27.9 25.3 38.4 33.5 30.1 27.3 41.2 35.9 32.3 29.3 41.7 36.4 32.7 29.7 42.3 36.9 33.1 30.1
Total Power
Input kW 4.62 4.50 4.42 4.46 4.68 4.56 4.47 4.51 4.74 4.61 4.53 4.57 4.87 4.74 4.66 4.70 5.01 4.88 4.79 4.83
Sensible Capacity
MBH1
Entering Dry
Bulb,°F
86 23.4 29.0 27.9 25.3 26.5 31.9 30.1 27.3 29.6 34.8 32.3 29.3 32.0 35.8 32.7 29.7 34.4 36.9 33.1 30.1
83 20.4 26.0 27.9 25.3 23.0 29.2 30.1 27.3 25.5 32.3 32.3 29.3 27.3 33.9 32.7 29.7 29.2 35.5 33.1 30.1
80 17.4 23.0 26.3 23.9 19.4 25.6 29.3 26.6 21.4 28.2 32.3 29.3 22.7 29.9 32.7 29.7 24.0 31.6 33.1 30.1
77 14.4 20.0 23.3 20.9 15.9 22.1 25.8 23.1 17.3 24.2 28.2 25.2 18.0 25.3 28.1 25.1 18.7 26.4 27.9 24.9
74 11.5 17.0 20.3 17.9 12.3 18.6 22.2 19.5 13.2 20.1 24.1 21.1 13.4 20.6 23.4 20.4 13.5 21.2 22.7 19.7
71 - 14.1 17.4 14.9 - 15.0 18.7 16.0 - 16.0 20.0 17.1 - 16.0 18.8 15.8 - 16.0 17.5 14.5
68 - 11.1 14.4 11.9 - 11.5 15.1 12.5 - 11.9 15.9 13.0 - 11.3 14.1 11.1 - 10.8 12.3 9.2
115 °F
Net Cap
MBH 32.6 27.4 25.3 22.7 35.1 29.5 27.2 24.4 37.5 31.6 29.1 26.1 38.0 31.9 29.4 26.4 38.4 32.3 29.7 26.7
Total Power
Input kW 4.91 4.75 4.69 4.73 4.96 4.80 4.74 4.79 5.02 4.86 4.80 4.84 5.17 5.00 4.94 4.98 5.32 5.15 5.08 5.13
Sensible Capacity
MBH1
Entering Dry
Bulb,°F
86 22.3 27.4 25.3 22.7 25.4 29.5 27.2 24.4 28.5 31.6 29.1 26.1 30.8 31.9 29.4 26.4 33.2 32.3 29.7 26.7
83 19.3 24.4 25.3 22.7 21.9 27.6 27.2 24.4 24.4 30.8 29.1 26.1 26.2 31.5 29.4 26.4 28.0 32.3 29.7 26.7
80 16.3 21.4 23.3 20.9 18.3 24.1 26.2 23.5 20.3 26.7 29.1 26.1 21.5 28.3 29.4 26.4 22.7 29.9 29.7 26.7
77 13.3 18.4 20.3 17.9 14.8 20.5 22.7 20.0 16.3 22.6 25.0 22.0 16.9 23.6 24.8 21.7 17.5 24.6 24.5 21.5
74 10.3 15.4 17.3 14.9 11.2 17.0 19.1 16.4 12.2 18.5 20.9 17.9 12.2 19.0 20.1 17.1 12.3 19.4 19.3 16.3
71 - 12.4 14.3 11.9 - 13.4 15.6 12.9 - 14.5 16.8 13.9 - 14.3 15.5 12.4 - 14.2 14.1 11.0
68 - 9.4 11.3 8.9 - 9.9 12.0 9.4 - 10.4 12.8 9.8 - 9.7 10.8 7.8 - 9.0 8.9 5.8
125 °F
Net Cap
MBH 29.7 23.8 22.7 20.0 31.8 25.5 24.3 21.5 33.9 27.2 25.9 22.9 34.2 27.4 26.1 23.1 34.5 27.7 26.3 23.3
Total Power
Input kW 5.2 5.0 5.0 5.0 5.2 5.1 5.0 5.1 5.3 5.1 5.1 5.1 5.5 5.3 5.2 5.3 5.6 5.4 5.4 5.4
Sensible Capacity
MBH1
Entering Dry
Bulb,°F
86 21.1 25.7 22.7 20.0 24.3 27.1 24.3 21.5 27.5 28.4 25.9 22.9 29.7 28.0 26.1 23.1 32.0 27.7 26.3 23.3
83 18.1 22.7 22.7 20.0 20.8 26.0 24.3 21.5 23.4 29.3 25.9 22.9 25.1 29.2 26.1 23.1 26.7 29.1 26.3 23.3
80 15.2 19.8 20.3 17.9 17.2 22.5 23.1 20.4 19.3 25.2 25.9 22.9 20.4 26.6 26.1 23.1 21.5 28.1 26.3 23.3
77 12.2 16.8 17.3 14.9 13.7 18.9 19.6 16.9 15.2 21.1 21.8 18.8 15.8 22.0 21.5 18.4 16.3 22.9 21.1 18.0
74 9.2 13.8 14.3 11.9 10.2 15.4 16.0 13.3 11.1 17.0 17.8 14.7 11.1 17.3 16.8 13.8 11.1 17.6 15.9 12.8
71 - 10.8 11.3 8.9 - 11.8 12.5 9.8 - 12.9 13.7 10.7 - 12.7 12.2 9.1 - 12.4 10.7 7.6
68 - 7.8 8.3 5.9 - 8.3 8.9 6.2 - 8.8 9.6 6.6 - 8.0 7.5 4.5 - 7.2 5.5 2.4
1= These capacities are net capacities - indoor fan heat deducted.
ALL SENSIBLE CAPACITY

10 Unitary Products Group
036-21311-003-A-0104
COOLING CAPACITIES -4 TON (BHA048)
Temperature of Air on
Outdoor Coil
Air On Indoor Coil
1200 CFM 1400 CFM 1600 CFM 1800 CFM 2000 CFM
WB°FWB°FWB°FWB°FWB°F
72 67 62 57 72 67 62 57 72 67 62 57 72 67 62 57 72 67 62 57
85 °F
Net Cap
MBH 53.1 48.6 44.5 43.1 54.8 50.1 45.9 44.5 56.4 51.6 47.4 45.9 57.7 52.8 48.4 46.9 58.9 53.9 49.4 47.8
Total Power
Input KW 4.76 4.68 4.55 4.56 4.89 4.81 4.67 4.69 5.03 4.94 4.80 4.82 5.12 5.03 4.89 4.91 5.21 5.13 4.98 5.00
Sensible Capacity
MBH1
Entering Dry
Bulb,°F
86 31.3 38.8 44.5 43.1 34.7 42.8 45.9 44.5 38.1 46.8 47.4 45.9 41.5 50.3 48.4 46.9 44.9 53.9 49.4 47.8
83 27.9 35.4 41.7 41.9 30.7 38.8 44.5 43.9 33.4 42.2 47.4 45.9 36.2 45.6 48.4 46.9 39.0 49.1 49.4 47.8
80 24.5 32.0 38.3 38.5 26.6 34.7 41.6 41.8 28.7 37.5 44.9 45.2 30.9 40.3 47.1 46.5 33.0 43.1 49.4 47.8
77 21.1 28.5 34.8 35.1 22.6 30.7 37.5 37.8 24.1 32.8 40.2 40.5 25.6 35.0 41.8 41.2 27.1 37.1 43.4 41.9
74 17.6 25.1 31.4 31.7 18.5 26.6 33.5 33.8 19.4 28.2 35.6 35.9 20.2 29.7 36.5 35.9 21.1 31.2 37.5 35.9
71 - 21.7 28.0 28.2 - 22.6 29.4 29.7 - 23.5 30.9 31.2 - 24.4 31.2 30.6 - 25.2 31.5 30.0
68 - 18.3 24.6 24.8 - 18.6 25.4 25.7 - 18.8 26.2 26.5 - 19.0 25.9 25.3 - 19.2 25.5 24.0
95 °F
Net Cap
MBH 49.6 45.3 41.4 40.0 51.4 47.0 42.9 41.4 53.3 48.7 44.4 42.9 54.5 49.8 45.5 43.9 55.8 51.0 46.6 45.0
Total Power
Input KW 5.12 4.98 4.90 4.88 5.27 5.12 5.04 5.03 5.42 5.27 5.19 5.18 5.53 5.38 5.30 5.28 5.64 5.49 5.40 5.39
Sensible Capacity
MBH1
Entering Dry
Bulb,°F
86 29.4 36.9 41.4 40.0 32.8 41.1 42.9 41.4 36.3 45.3 44.4 42.9 39.7 48.2 45.5 43.9 43.1 51.0 46.6 45.0
83 25.9 33.5 38.8 38.8 28.8 37.1 41.6 40.8 31.6 40.6 44.4 42.9 34.4 44.1 45.5 43.9 37.1 47.6 46.6 45.0
80 22.5 30.1 35.3 35.3 24.7 33.0 38.8 38.8 26.9 36.0 42.3 42.3 29.1 38.8 44.4 43.6 31.2 41.6 46.6 45.0
77 19.1 26.6 31.9 31.9 20.7 29.0 34.8 34.8 22.3 31.3 37.6 37.6 23.8 33.5 39.1 38.3 25.2 35.7 40.6 39.0
74 15.7 23.2 28.5 28.5 16.6 24.9 30.7 30.7 17.6 26.6 33.0 33.0 18.4 28.2 33.8 33.0 19.3 29.7 34.6 33.0
71 - 19.8 25.1 25.1 - 20.9 26.7 26.7 - 22.0 28.3 28.3 - 22.9 28.5 27.7 - 23.7 28.7 27.1
68 - 16.4 21.7 21.7 - 16.8 22.6 22.7 - 17.3 23.6 23.6 - 17.5 23.2 22.4 - 17.8 22.7 21.1
105 °F
Net Cap
MBH 46.0 41.9 38.8 36.8 47.5 43.3 40.0 38.0 49.0 44.6 41.3 39.2 50.0 45.6 42.1 40.0 51.0 46.5 43.0 40.9
Total Power
Input KW 5.60 5.43 5.32 5.27 5.76 5.58 5.47 5.42 5.91 5.74 5.62 5.56 6.02 5.84 5.73 5.67 6.13 5.95 5.83 5.77
Sensible Capacity
MBH1
Entering Dry
Bulb,°F
86 28.3 35.7 38.8 36.8 31.6 39.3 40.0 38.0 34.9 43.0 41.3 39.2 38.2 44.7 42.1 40.0 41.4 46.5 43.0 40.9
83 24.8 32.3 36.9 36.0 27.5 35.7 39.1 37.6 30.2 39.1 41.3 39.2 32.8 42.0 42.1 40.0 35.4 44.8 43.0 40.9
80 21.4 28.9 33.4 32.6 23.5 31.7 36.7 35.8 25.6 34.5 39.9 38.9 27.5 37.1 41.5 39.9 29.5 39.7 43.0 40.9
77 18.0 25.4 30.0 29.2 19.5 27.6 32.6 31.7 20.9 29.8 35.3 34.2 22.2 31.8 36.2 34.6 23.5 33.7 37.0 34.9
74 14.6 22.0 26.6 25.7 15.4 23.6 28.6 27.7 16.2 25.1 30.6 29.6 16.9 26.4 30.8 29.3 17.5 27.8 31.1 28.9
71 - 18.6 23.2 22.3 - 19.5 24.6 23.6 - 20.5 25.9 24.9 - 21.1 25.5 23.9 - 21.8 25.1 23.0
68 - 15.2 19.8 18.9 - 15.5 20.5 19.6 - 15.8 21.3 20.3 - 15.8 20.2 18.6 - 15.8 19.2 17.0
115 °F
Net Cap
MBH 42.4 38.5 36.2 33.7 43.6 39.6 37.2 34.6 44.7 40.6 38.1 35.5 45.5 41.3 38.8 36.1 46.3 42.0 39.4 36.7
Total Power
Input KW 6.08 5.89 5.75 5.65 6.24 6.04 5.90 5.80 6.40 6.20 6.05 5.95 6.51 6.30 6.15 6.05 6.62 6.41 6.25 6.15
Sensible Capacity
MBH1
Entering Dry
Bulb,°F
86 27.2 34.5 36.2 33.7 30.4 37.6 37.2 34.6 33.5 40.6 38.1 35.5 36.6 41.3 38.8 36.1 39.7 42.0 39.4 36.7
83 23.8 31.1 35.0 33.3 26.3 34.4 36.5 34.4 28.9 37.6 38.1 35.5 31.3 39.8 38.8 36.1 33.7 42.0 39.4 36.7
80 20.3 27.7 31.5 29.8 22.3 30.3 34.6 32.7 24.2 32.9 37.6 35.5 26.0 35.4 38.5 36.1 27.8 37.8 39.4 36.7
77 16.9 24.2 28.1 26.4 18.2 26.3 30.5 28.6 19.5 28.3 32.9 30.9 20.7 30.0 33.2 30.8 21.8 31.8 33.5 30.8
74 13.5 20.8 24.7 23.0 14.2 22.2 26.5 24.6 14.9 23.6 28.2 26.2 15.4 24.7 27.9 25.5 15.8 25.9 27.5 24.8
71 - 17.4 21.3 19.6 - 18.2 22.4 20.5 - 19.0 23.6 21.5 - 19.4 22.6 20.2 - 19.9 21.6 18.9
68 - 14.0 17.9 16.1 - 14.1 18.4 16.5 - 14.3 18.9 16.9 - 14.1 17.2 14.9 - 13.9 15.6 12.9
125 °F
Net Cap
MBH 38.9 35.1 33.6 30.6 39.7 35.9 34.3 31.2 40.5 36.6 35.0 31.8 41.0 37.1 35.4 32.2 41.5 37.5 35.9 32.6
Total Power
Input KW 6.6 6.3 6.2 6.0 6.7 6.5 6.3 6.2 6.9 6.7 6.5 6.3 7.0 6.8 6.6 6.4 7.1 6.9 6.7 6.5
Sensible Capacity
MBH1
Entering Dry
Bulb,°F
86 26.1 33.3 33.6 30.6 29.1 35.8 34.3 31.2 32.2 36.6 35.0 31.8 35.1 37.1 35.4 32.2 38.0 37.5 35.9 32.6
83 22.7 29.9 33.1 30.5 25.1 33.0 34.0 31.2 27.5 36.1 35.0 31.8 29.7 37.1 35.4 32.2 32.0 37.5 35.9 32.6
80 19.2 26.5 29.6 27.1 21.0 29.0 32.4 29.6 22.8 31.4 35.0 31.8 24.4 33.6 35.4 32.2 26.0 35.9 35.9 32.6
77 15.8 23.1 26.2 23.7 17.0 24.9 28.4 25.6 18.2 26.8 30.5 27.5 19.1 28.3 30.2 27.1 20.1 29.9 29.9 26.7
74 12.4 19.6 22.8 20.2 12.9 20.9 24.3 21.5 13.5 22.1 25.9 22.8 13.8 23.0 24.9 21.8 14.1 23.9 24.0 20.7
71 - 16.2 19.4 16.8 - 16.8 20.3 17.5 - 17.4 21.2 18.1 - 17.7 19.6 16.4 - 18.0 18.0 14.7
68 - 12.8 16.0 13.4 - 12.8 16.2 13.4 - 12.8 16.5 13.5 - 12.4 14.3 11.1 - 12.0 12.0 8.8
1= These capacities are net capacities - indoor fan heat deducted.
ALL SENSIBLE CAPACITY

Unitary Products Group 11
036-21311-003-A-0104
COOLING CAPACITIES -5 TON (BHA060)
Temperature of Air on
Outdoor Coil
Air On Indoor Coil
1500 CFM 1750 CFM 2000 CFM 2100 CFM 2200 CFM
WB°FWB°FWB°FWB°FWB°F
72 67 62 57 72 67 62 57 72 67 62 57 72 67 62 57 72 67 62 57
85 °F
Net Cap
MBH 64.1 58.6 52.4 52.6 65.4 59.8 53.5 53.6 66.7 60.9 54.5 54.7 66.0 60.3 54.0 54.1 65.3 59.7 53.4 53.5
Total Power
Input KW 5.52 5.49 5.37 5.44 5.68 5.65 5.52 5.60 5.84 5.81 5.68 5.75 5.95 5.92 5.79 5.87 6.06 6.03 5.90 5.98
Sensible Capacity
MBH1
Entering Dry
Bulb,°F
86 37.2 47.6 52.4 52.6 41.0 52.3 53.5 53.6 44.9 57.0 54.5 54.7 46.0 58.3 54.0 54.1 47.1 59.5 53.4 53.5
83 32.9 43.4 50.7 41.3 36.0 47.3 52.6 53.0 39.0 51.2 54.5 54.7 39.8 52.1 54.0 54.1 40.5 53.0 53.4 53.5
80 28.6 39.1 46.4 47.1 30.9 42.2 50.1 50.9 33.2 45.4 53.9 54.7 33.6 45.9 53.6 54.1 34.0 46.4 53.4 53.5
77 24.3 34.8 42.1 42.8 25.9 37.2 45.1 45.8 27.4 39.6 48.0 48.8 27.4 39.7 47.4 47.9 27.4 39.8 46.8 47.0
74 20.0 30.5 37.8 38.5 20.8 32.1 40.0 40.8 21.5 33.7 42.2 43.0 21.2 33.5 41.2 41.7 20.8 33.3 40.3 40.4
71 - 26.2 33.6 34.2 - 27.1 35.0 35.7 - 27.9 36.4 37.2 - 27.3 35.0 35.5 - 26.7 33.7 33.8
68 - 22.0 29.3 30.0 - 22.0 29.9 30.6 - 22.1 30.5 31.3 - 21.1 28.8 29.3 - 20.2 27.2 27.3
95 °F
Net Cap
MBH 60.1 54.6 50.2 49.2 61.5 55.8 51.4 50.3 63.0 57.1 52.6 51.5 63.9 58.0 53.4 52.3 64.9 58.9 54.2 53.0
Total Power
Input KW 6.00 5.90 5.81 5.77 6.19 6.09 5.99 5.95 6.37 6.27 6.17 6.12 6.49 6.38 6.28 6.24 6.60 6.50 6.39 6.35
Sensible Capacity
MBH1
Entering Dry
Bulb,°F
86 35.5 46.0 50.2 49.2 39.5 51.1 51.4 50.3 43.6 56.1 52.6 51.5 45.1 57.5 53.4 52.3 46.6 58.9 54.2 53.0
83 31.2 41.8 48.6 47.7 34.5 46.0 50.6 49.6 37.8 50.3 52.6 51.5 38.9 51.7 53.4 52.3 40.0 53.2 54.2 53.0
80 26.9 37.5 44.3 43.4 29.4 41.0 48.4 47.4 31.9 44.5 52.6 51.5 32.7 45.5 53.4 52.3 33.5 46.6 54.2 53.0
77 22.6 33.2 40.0 39.1 24.4 35.9 43.4 42.4 26.1 38.6 46.7 45.6 26.5 39.3 47.2 46.1 26.9 40.1 47.6 46.5
74 18.4 28.9 35.8 34.8 19.3 30.9 38.3 37.3 20.3 32.8 40.9 39.8 20.3 33.2 41.0 39.9 20.4 33.5 41.1 39.9
71 - 24.6 31.5 30.6 - 25.8 33.3 32.3 - 27.0 35.1 34.0 - 27.0 34.8 33.7 - 27.0 34.5 33.4
68 - 20.4 27.2 26.3 - 20.7 28.2 27.2 - 21.1 29.2 28.2 - 20.8 28.6 27.5 - 20.4 27.9 26.8
105 °F
Net Cap
MBH 56.1 50.2 46.6 45.4 57.5 51.4 47.8 46.5 58.9 52.7 48.9 47.6 59.7 53.4 49.6 48.3 60.5 54.1 50.3 48.9
Total Power
Input KW 6.56 6.43 6.35 6.32 6.75 6.62 6.53 6.51 6.94 6.80 6.71 6.69 7.06 6.92 6.83 6.80 7.18 7.04 6.94 6.92
Sensible Capacity
MBH1
Entering Dry
Bulb,°F
86 34.5 44.3 46.6 45.4 38.4 48.2 47.8 46.5 42.3 52.2 48.9 47.6 43.7 53.1 49.6 48.3 45.1 54.1 50.3 48.9
83 30.3 40.0 45.7 44.6 33.4 44.1 47.3 46.1 36.5 48.1 48.9 47.6 37.5 49.3 49.6 48.3 38.5 50.6 50.3 48.9
80 26.0 35.8 41.5 40.4 28.3 39.0 45.2 44.0 30.7 42.2 48.9 47.6 31.3 43.1 49.6 48.3 32.0 44.0 50.3 48.9
77 21.7 31.5 37.2 36.1 23.3 33.9 40.1 38.9 24.8 36.4 43.1 41.8 25.1 36.9 43.4 42.1 25.4 37.4 43.7 42.4
74 17.4 27.2 32.9 31.8 18.2 28.9 35.1 33.9 19.0 30.6 37.3 36.0 18.9 30.7 37.2 35.9 18.8 30.9 37.2 35.8
71 - 22.9 28.6 27.5 - 23.8 30.0 28.8 - 24.7 31.5 30.2 - 24.5 31.0 29.7 - 24.3 30.6 29.3
68 - 18.7 24.3 23.2 - 18.8 25.0 23.8 - 18.9 25.6 24.3 - 18.3 24.8 23.5 - 17.8 24.0 22.7
115 °F
Net Cap
MBH 52.0 45.8 43.1 41.6 53.4 47.0 44.2 42.7 54.8 48.2 45.3 43.8 55.4 48.8 45.9 44.3 56.1 49.3 46.4 44.8
Total Power
Input KW 7.13 6.96 6.89 6.88 7.32 7.15 7.07 7.06 7.51 7.34 7.26 7.25 7.64 7.46 7.38 7.37 7.76 7.58 7.50 7.49
Sensible Capacity
MBH1
Entering Dry
Bulb,°F
86 33.6 42.6 43.1 41.6 37.3 45.4 44.2 42.7 41.1 48.2 45.3 43.8 42.3 48.8 45.9 44.3 43.5 49.3 46.4 44.8
83 29.3 38.3 42.9 41.6 32.3 42.1 44.1 42.7 35.2 45.8 45.3 43.8 36.1 46.9 45.9 44.3 37.0 47.9 46.4 44.8
80 25.0 34.1 38.6 37.3 27.2 37.0 42.0 40.6 29.4 40.0 45.3 43.8 29.9 40.7 45.9 44.3 30.4 41.4 46.4 44.8
77 20.8 29.8 34.3 33.0 22.2 32.0 36.9 35.5 23.6 34.2 39.5 38.0 23.7 34.5 39.7 38.1 23.9 34.8 39.8 38.3
74 16.5 25.5 30.0 28.8 17.1 26.9 31.9 30.5 17.7 28.3 33.7 32.2 17.5 28.3 33.5 31.9 17.3 28.3 33.3 31.7
71 - 21.2 25.8 24.5 - 21.9 26.8 25.4 - 22.5 27.8 26.3 - 22.1 27.3 25.7 - 21.7 26.7 25.2
68 - 16.9 21.5 20.2 - 16.8 21.7 20.3 - 16.7 22.0 20.5 - 15.9 21.1 19.6 - 15.2 20.2 18.6
125 °F
Net Cap
MBH 48.0 41.4 39.5 37.8 49.3 42.6 40.6 38.9 50.7 43.7 41.7 40.0 51.2 44.1 42.1 40.4 51.6 44.5 42.5 40.7
Total Power
Input KW 7.69 7.49 7.42 7.43 7.89 7.68 7.61 7.62 8.08 7.87 7.80 7.81 8.21 8.00 7.92 7.93 8.34 8.12 8.05 8.06
Sensible Capacity
MBH1
Entering Dry
Bulb,°F
86 32.7 40.9 39.5 37.8 36.2 42.6 40.6 38.9 39.8 43.7 41.7 40.0 40.9 44.1 42.1 40.4 42.0 44.5 42.5 40.7
83 28.4 36.6 39.5 37.8 31.2 40.1 40.6 38.9 34.0 43.6 41.7 40.0 34.7 44.1 42.1 40.4 35.5 44.5 42.5 40.7
80 24.1 32.3 35.7 34.3 26.1 35.1 38.7 37.1 28.2 37.8 41.7 40.0 28.5 38.3 42.1 40.4 28.9 38.8 42.5 40.7
77 19.8 28.1 31.4 30.0 21.1 30.0 33.7 32.1 22.3 31.9 35.9 34.2 22.3 32.1 35.9 34.2 22.3 32.2 35.9 34.2
74 15.5 23.8 27.2 25.7 16.0 25.0 28.6 27.0 16.5 26.1 30.0 28.3 16.1 25.9 29.7 28.0 15.8 25.6 29.4 27.6
71 - 19.5 22.9 21.4 - 19.9 23.6 22.0 - 20.3 24.2 22.5 - 19.7 23.5 21.8 - 19.1 22.8 21.1
68 - 15.2 18.6 17.1 - 14.8 18.5 16.9 - 14.5 18.4 16.7 - 13.5 17.3 15.6 - 12.5 16.3 14.5
1= These capacities are net capacities - indoor fan heat deducted.
ALL SENSIBLE CAPACITY

12 Unitary Products Group
036-21311-003-A-0104
HEATING CAPACITIES -1-1/2 TON (BHA018)
HEATING CAPACITIES -2 TON (BHA024)
CFM RETURN AIR CAP1OUTDOOR AIR TEMPERATURE, °F (72% RH)
°F&KW-100 102030405060
600
55 MBH 6.195 7.735 9.640 11.996 14.910 18.513 22.970 28.481
KW 1.227 1.380 1.532 1.685 1.837 1.989 2.142 2.294
70 MBH 4.898 6.438 8.343 10.699 13.613 17.216 21.673 27.184
KW 1.342 1.495 1.647 1.800 1.952 2.104 2.257 2.409
80 MBH 3.414 4.954 6.859 9.215 12.129 15.732 20.189 25.700
KW 1.402 1.555 1.707 1.860 2.012 2.164 2.317 2.469
800
55 MBH 7.803 9.343 11.248 13.604 16.518 20.121 24.578 30.089
KW 1.233 1.386 1.538 1.691 1.843 1.995 2.148 2.300
70 MBH 6.506 8.046 9.951 12.307 15.221 18.824 23.281 28.792
KW 1.348 1.501 1.653 1.806 1.958 2.110 2.263 2.415
80 MBH 5.022 6.562 8.467 10.823 13.737 17.340 21.797 27.308
KW 1.408 1.561 1.713 1.866 2.018 2.170 2.323 2.475
1,000
55 MBH 9.523 11.063 12.968 15.324 18.238 21.841 26.298 31.809
KW 1.253 1.406 1.558 1.711 1.863 2.015 2.168 2.320
70 MBH 8.226 9.766 11.671 14.027 16.941 20.544 25.001 30.512
KW 1.368 1.521 1.673 1.826 1.978 2.130 2.283 2.435
80 MBH 6.742 8.282 10.187 12.543 15.457 19.060 23.517 29.028
KW 1.428 1.581 1.733 1.886 2.038 2.190 2.343 2.495
1These capacities are net capacities - the indoor motor heat has been added. These power inputs are total power inputs - the indoor motor watts have been added.
CFM RETURN AIR CAP1OUTDOOR AIR TEMPERATURE, °F (72% RH)
°F&KW-100 102030405060
450
55 MBH 5.024 6.289 7.836 9.728 12.041 14.869 18.326 22.553
KW 1.062 1.160 1.257 1.354 1.451 1.548 1.645 1.742
70 MBH 4.297 5.562 7.109 9.001 11.314 14.142 17.599 21.826
KW 1.199 1.297 1.394 1.491 1.588 1.685 1.782 1.879
80 MBH 3.080 4.345 5.892 7.784 10.097 12.925 16.382 20.609
KW 1.261 1.359 1.456 1.553 1.650 1.747 1.844 1.941
600
55 MBH 6.412 7.677 9.224 11.116 13.429 16.257 19.714 23.941
KW 1.072 1.170 1.267 1.364 1.461 1.558 1.655 1.752
70 MBH 5.685 6.950 8.497 10.389 12.702 15.530 18.987 23.214
KW 1.209 1.307 1.404 1.501 1.598 1.695 1.792 1.889
80 MBH 4.468 5.733 7.280 9.172 11.485 14.313 17.770 21.997
KW 1.271 1.369 1.466 1.563 1.660 1.757 1.854 1.951
750
55 MBH 7.000 8.265 9.812 11.704 14.017 16.845 20.302 24.529
KW 1.066 1.164 1.261 1.358 1.455 1.552 1.649 1.746
70 MBH 6.273 7.538 9.085 10.977 13.290 16.118 19.575 23.802
KW 1.203 1.301 1.398 1.495 1.592 1.689 1.786 1.883
80 MBH 5.056 6.321 7.868 9.760 12.073 14.901 18.358 22.585
KW 1.265 1.363 1.460 1.557 1.654 1.751 1.848 1.945

Unitary Products Group 13
036-21311-003-A-0104
HEATING CAPACITIES -2-1/2 TON (BHA030)
HEATING CAPACITIES -3 TON (BHA036)
CFM RETURN AIR CAP1OUTDOOR AIR TEMPERATURE, °F (72% RH)
°F&KW-100 102030405060
900
55 MBH 9.144 11.465 14.209 17.452 21.284 25.814 31.167 37.494
KW 2.186 2.314 2.442 2.570 2.698 2.826 2.955 3.083
70 MBH 8.834 11.155 13.899 17.142 20.974 25.504 30.857 37.184
KW 2.451 2.579 2.707 2.835 2.963 3.091 3.220 3.348
80 MBH 7.285 9.606 12.35 15.593 19.425 23.955 29.308 35.635
KW 2.596 2.724 2.852 2.980 3.108 3.236 3.365 3.493
1,200
55 MBH 13.075 15.396 18.14 21.383 25.215 29.745 35.098 41.425
KW 2.156 2.284 2.412 2.540 2.668 2.796 2.925 3.053
70 MBH 12.765 15.086 17.83 21.073 24.905 29.435 34.788 41.115
KW 2.421 2.549 2.677 2.805 2.933 3.061 3.190 3.318
80 MBH 11.216 13.537 16.281 19.524 23.356 27.886 33.239 39.566
KW 2.566 2.694 2.822 2.950 3.078 3.206 3.335 3.463
1,500
55 MBH 15.343 17.664 20.408 23.651 27.483 32.013 37.366 43.693
KW 2.156 2.284 2.412 2.540 2.668 2.796 2.925 3.053
70 MBH 15.033 17.354 20.098 23.341 27.173 31.703 37.056 43.383
KW 2.421 2.549 2.677 2.805 2.933 3.061 3.190 3.318
80 MBH 13.484 15.805 18.549 21.792 25.624 30.154 35.507 41.834
KW 2.566 2.694 2.822 2.950 3.078 3.206 3.335 3.463
1These capacities are net capacities - the indoor motor heat has been added. These power inputs are total power inputs - the indoor motor watts have been added.
CFM RETURN AIR CAP1OUTDOOR AIR TEMPERATURE, °F (72% RH)
°F&KW-100 102030405060
750
55 MBH 8.239 10.151 12.469 15.280 18.687 22.817 27.824 33.893
KW 1.515 1.673 1.832 1.990 2.148 2.306 2.465 2.623
70 MBH 7.038 8.950 11.268 14.079 17.486 21.616 26.623 32.692
KW 1.690 1.848 2.007 2.165 2.323 2.481 2.640 2.798
80 MBH 5.302 7.214 9.532 12.343 15.750 19.880 24.887 30.956
KW 1.802 1.960 2.119 2.277 2.435 2.593 2.752 2.910
1,000
55 MBH 10.209 12.121 14.439 17.250 20.657 24.787 29.794 35.863
KW 1.530 1.688 1.847 2.005 2.163 2.321 2.480 2.638
70 MBH 9.008 10.920 13.238 16.049 19.456 23.586 28.593 34.662
KW 1.705 1.863 2.022 2.180 2.338 2.496 2.655 2.813
80 MBH 7.272 9.184 11.502 14.313 17.720 21.850 26.857 32.926
KW 1.817 1.975 2.134 2.292 2.450 2.608 2.767 2.925
1,250
55 MBH 11.402 13.314 15.632 18.443 21.850 25.980 30.987 37.056
KW 1.552 1.710 1.869 2.027 2.185 2.343 2.502 2.660
70 MBH 10.201 12.113 14.431 17.242 20.649 24.779 29.786 35.855
KW 1.727 1.885 2.044 2.202 2.360 2.518 2.677 2.835
80 MBH 8.465 10.377 12.695 15.506 18.913 23.043 28.050 34.119
KW 1.839 1.997 2.156 2.314 2.472 2.630 2.789 2.947

14 Unitary Products Group
036-21311-003-A-0104
HEATING CAPACITIES -3-1/2 TON (BHA042)
CFM RETURN AIR CAP1OUTDOOR AIR TEMPERATURE, °F (72% RH)
°F&KW-100 102030405060
1,050
55 MBH 9.904 12.549 15.725 19.537 24.114 29.608 36.204 44.121
KW 2.419 2.565 2.711 2.858 3.004 3.150 3.296 3.443
70 MBH 8.570 11.215 14.391 18.203 22.780 28.274 34.870 42.787
KW 2.700 2.846 2.992 3.139 3.285 3.431 3.577 3.724
80 MBH 6.102 8.747 11.923 15.735 20.312 25.806 32.402 40.319
KW 2.904 3.050 3.196 3.343 3.489 3.635 3.781 3.928
1,400
55 MBH 14.531 17.176 20.352 24.164 28.741 34.235 40.831 48.748
KW 2.415 2.561 2.707 2.854 3.000 3.146 3.292 3.439
70 MBH 13.197 15.842 19.018 22.830 27.407 32.901 39.497 47.414
KW 2.696 2.842 2.988 3.135 3.281 3.427 3.573 3.720
80 MBH 10.729 13.374 16.550 20.362 24.939 30.433 37.029 44.946
KW 2.900 3.046 3.192 3.339 3.485 3.631 3.777 3.924
1,750
55 MBH 15.133 17.778 20.954 24.766 29.343 34.837 41.433 49.350
KW 2.562 2.708 2.854 3.001 3.147 3.293 3.439 3.586
70 MBH 13.799 16.444 19.620 23.432 28.009 33.503 40.099 48.016
KW 2.843 2.989 3.135 3.282 3.428 3.574 3.720 3.867
80 MBH 11.331 13.976 17.152 20.964 25.541 31.035 37.631 45.548
KW 3.047 3.193 3.339 3.486 3.632 3.778 3.924 4.071
1These capacities are net capacities - the indoor motor heat has been added. These power inputs are total power inputs - the indoor motor watts have been added.
HEATING CAPACITIES -4 TON (BHA048)
CFM RETURN AIR CAP1OUTDOOR AIR TEMPERATURE, °F (72% RH)
°F&KW-100 102030405060
1,200
55 MBH 17.108 20.080 23.566 27.654 32.449 38.073 44.669 52.406
KW 3.178 3.283 3.388 3.493 3.598 3.702 3.807 3.912
70 MBH 15.640 18.612 22.098 26.186 30.981 36.605 43.201 50.938
KW 3.687 3.792 3.897 4.002 4.107 4.211 4.316 4.421
80 MBH 14.678 17.650 21.136 25.224 30.019 35.643 42.239 49.976
KW 3.982 4.087 4.192 4.297 4.402 4.506 4.611 4.716
1,600
55 MBH 18.660 21.632 25.118 29.206 34.001 39.625 46.221 53.958
KW 3.077 3.182 3.287 3.392 3.497 3.601 3.706 3.811
70 MBH 17.192 20.164 23.650 27.738 32.533 38.157 44.753 52.490
KW 3.586 3.691 3.796 3.901 4.006 4.110 4.215 4.320
80 MBH 16.230 19.202 22.688 26.776 31.571 37.195 43.791 51.528
KW 3.881 3.986 4.091 4.196 4.301 4.405 4.510 4.615
2,000
55 MBH 21.227 24.199 27.685 31.773 36.568 42.192 48.788 56.525
KW 3.138 3.243 3.348 3.453 3.558 3.662 3.767 3.872
70 MBH 19.759 22.731 26.217 30.305 35.100 40.724 47.320 55.057
KW 3.647 3.752 3.857 3.962 4.067 4.171 4.276 4.381
80 MBH 18.797 21.769 25.255 29.343 34.138 39.762 46.358 54.095
KW 3.942 4.047 4.152 4.257 4.362 4.466 4.571 4.676
1These capacities are net capacities - the indoor motor heat has been added. These power inputs are total power inputs - the indoor motor watts have been added.

Unitary Products Group 15
036-21311-003-A-0104
HEATING CAPACITIES -5 TON (BHA060)
CFM RETURN AIR CAP1OUTDOOR AIR TEMPERATURE, °F (72% RH)
°F&KW-100 102030405060
1,500
55 MBH 19.316 23.261 27.902 33.364 39.79 47.351 56.247 66.714
KW 3.57 3.829 4.088 4.347 4.606 4.865 5.124 5.383
70 MBH 18.491 22.436 27.077 32.539 38.965 46.526 55.422 65.889
KW 4.061 4.32 4.579 4.838 5.097 5.356 5.615 5.874
80 MBH 15.362 19.307 23.948 29.41 35.836 43.397 52.293 62.76
KW 4.358 4.617 4.876 5.135 5.394 5.653 5.912 6.171
2,000
55 MBH 23.164 27.109 31.75 37.212 43.638 51.199 60.095 70.562
KW 3.624 3.883 4.142 4.401 4.66 4.919 5.178 5.437
70 MBH 22.339 26.284 30.925 36.387 42.813 50.374 59.27 69.737
KW 4.115 4.374 4.633 4.892 5.151 5.41 5.669 5.928
80 MBH 19.21 23.155 27.796 33.258 39.684 47.245 56.141 66.608
KW 4.412 4.671 4.93 5.189 5.448 5.707 5.966 6.225
2,500
55 MBH 24.796 28.741 33.382 38.844 45.27 52.831 61.727 72.194
KW 3.754 4.013 4.272 4.531 4.79 5.049 5.308 5.567
70 MBH 23.971 27.916 32.557 38.019 44.445 52.006 60.902 71.369
KW 4.245 4.504 4.763 5.022 5.281 5.54 5.799 6.058
80 MBH 20.842 24.787 29.428 34.89 41.316 48.877 57.773 68.24
KW 4.542 4.801 5.06 5.319 5.578 5.837 6.096 6.355
APPLICATION DATA
MODEL BHA
018 024 030 036 042 048 060
MINIMUM AIR FLOW
(CFM) COOLING 450 600 750 900 1,050 1,200 1,500
HEATING 450 600 750 900 1,050 1,200 1,500
MAXIMUM AIR FLOW
(CFM) COOLING 750 1,000 1,250 1,500 1,750 2,000 2,500
HEATING 750 1,000 1,250 1,500 1,750 2,000 2,500
MINIMUM OPERATING TEMPERATURE IN COOLING MODE
(AMBIENT, °F) 45 45 45 45 45 45 45
MINIMUM MIXED AIR IN COOLING MODE
(RETURN AIR, DB°F/WB°F) 68 / 57 68 / 57 68 / 57 68 / 57 68 / 57 68 / 57 68 / 57
MINIMUM MIXED AIR IN HEATING MODE
(RETURN AIR, °F) 55 55 55 55 55 55 55
ADDITIONAL STATIC PRESSURE RESISTANCE
DESCRIPTION
RESISTANCE, IWG
CFM
500 600 700 800 900 1,000 1,100 1,200 1,300 1,400 1,500 1,600 1,700 1,800 1,900 2,000
Wet Indoor coil 0.01 0.01 0.01 0.02 0.02 0.03 0.03 0.04 0.04 0.04 0.04 0.04 0.05 0.05 0.06 0.07
Economizer 0.00 0.00 0.00 0.01 0.01 0.01 0.01 0.02 0.03 0.04 0.05 0.06 0.07 0.07 0.08 0.08
Filter/Frame Kit 0.01 0.02 0.02 0.02 0.02 0.02 0.03 0.03 0.03 0.03 0.04 0.05 0.05 0.06 0.06 0.07
Electric Heat 0.02 0.03 0.03 0.03 0.04 0.04 0.05 0.06 0.07 0.08 0.09 0.10 0.01 0.11 0.11 0.12
NOTE: 1. Deduct these resistance values from the available external static pressure shown in the respective Blower Performance Table.
2. The pressure thru the economizer is greater for 100% outdoor air then for 100% return air. If the resistance of the return air duct system is less then 0.25 IWG, the unit will deliver
less CFM during full economizer operation.

16 Unitary Products Group
036-21311-003-A-0104
SIDE AND BOTTOM SUPPLY AIR BLOWER PERFORMANCE
230/460/575 volts
208 volts
MODEL NO.
BHA MOTOR SPEED
EXTERNAL STATIC PRESSURE - IWG
.10 .20 .30 .40 .50 .60 .70 .80 .90 1.00 1.10
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
018 HI MED
LOW
-
-
741
-
-
226
-
-
686
-
-
212
-
-
632
-
-
198
-
690
577
-
231
185
689
659
453
374
210
165
593
487
-
361
188
-
497
-
-
347
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
024 HI MED
LOW
-
-
810
-
-
261
-
-
765
-
-
240
-
961
720
-
351
219
-
902
675
-
321
198
-
841
627
-
305
215
-
751
-
-
290
-
990
720
-
468
274
-
888
660
-
456
257
-
786
-
-
444
-
-
684
-
-
432
-
-
-
-
-
-
-
-
030 HI MED
LOW
-
1080
810
-
351
261
-
1021
766
-
341
240
-
961
-
-
331
-
-
902
-
-
321
-
1171
841
-
604
306
-
1080
781
-
486
280
-
980
-
-
468
-
-
888
-
-
456
-
-
786
-
-
444
-
-
-
-
-
-
-
-
-
-
-
-
-
-
036 HI MED
LOW
-
1465
1316
-
631
473
-
1395
1260
-
512
455
1440
1325
1204
608
492
438
1381
1255
1148
581
473
420
1273
1167
1069
656
446
396
1185
1079
990
530
419
372
1097
952
911
604
392
348
1004
-
-
480
-
-
912
-
-
456
-
-
-
-
-
-
-
-
-
-
-
-
-
-
042 HI MED
LOW
-
-
1679
-
-
867
-
1674
1612
-
614
646
1728
1590
1449
725
590
526
1633
1506
1377
697
567
504
1527
1400
1282
666
636
476
1422
1296
1188
636
602
447
1317
1190
1093
606
470
418
1205
1063
-
676
428
-
1094
-
-
547
-
-
-
-
-
-
-
-
-
-
-
-
-
-
048 HI MED
LOW
-
1694
1385
-
690
520
1982
1662
1349
870
673
510
1939
1629
1312
850
657
500
1897
1597
1276
830
640
490
1813
1542
1235
800
623
480
1728
1486
-
770
607
-
1644
1431
-
740
590
-
1559
1336
-
707
563
-
1474
1240
-
673
537
-
1389
-
-
640
-
-
-
-
-
-
-
-
060 HI MED
LOW
-
2339
1929
-
1170
940
-
2275
1877
-
1118
903
2450
2211
1824
1213
1067
867
2366
2147
1772
1165
1015
830
2282
2083
1720
1117
963
793
2198
2019
1667
1068
912
757
2114
1955
1615
1020
860
720
1989
1854
1586
993
824
706
1864
1753
1557
967
788
691
1739
1652
1528
940
752
677
-
-
-
-
-
-
NOTE: Above data includes allowances for a dry indoor coil and no filters. For additional pressure drops, refer to the “Additional Static Pressure Resistance” table.
MODEL NO.
BHA MOTOR SPEED
EXTERNAL STATIC PRESSURE - IWG
.10 .20 .30 .40 .50 .60 .70 .80 .90 1.00 1.10
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
018 HI MED
LOW
-
-
-
-
-
-
-
-
-
-
-
-
-
-
702
-
-
220
-
-
641
-
-
206
-
654
536
-
233
183
668
541
-
401
209
-
652
-
-
386
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
024 HI MED
LOW
-
-
900
-
-
290
-
-
850
-
-
287
-
-
800
-
-
243
-
-
760
-
-
220
-
935
697
-
338
238
-
867
843
-
322
183
-
800
-
-
304
-
987
733
-
507
286
-
873
867
-
493
268
-
760
-
-
480
-
-
-
-
-
-
-
-
030 HI MED
LOW
-
1200
900
-
390
280
-
1134
850
-
397
267
-
1068
800
-
368
243
-
1002
-
-
367
-
-
936
-
-
339
-
1200
897
-
640
322
-
1100
800
-
620
304
-
987
-
-
507
-
-
873
-
-
493
-
-
760
-
-
480
-
-
-
-
-
-
-
-
036 HI MED
LOW
-
-
1462
-
-
526
-
-
1400
-
-
506
-
1472
1337
-
647
486
-
1394
1275
-
626
467
1414
1297
1167
617
495
440
1317
1199
1100
688
465
414
1219
1102
1012
660
435
387
1116
985
-
533
397
-
1013
-
-
507
-
-
910
-
-
480
-
-
-
-
-
-
-
-
042 HI MED
LOW
-
-
-
-
-
-
-
-
1680
-
-
607
-
-
1608
-
-
584
-
1673
1630
-
830
660
1697
1566
1425
740
594
528
1580
1439
1320
706
558
496
1463
1322
1214
672
522
464
1339
1182
1050
640
476
420
1216
-
-
608
-
-
1092
-
-
576
-
-
-
-
-
-
-
-
048 HI MED
LOW
-
1876
1544
-
792
620
-
1829
1508
-
772
610
-
1783
1472
-
753
600
1947
1736
1436
882
733
590
1867
1668
1375
857
706
573
1786
1599
1313
832
680
557
1706
1531
1252
807
653
540
1637
1434
-
782
622
-
1569
1337
-
757
591
-
1500
1240
-
732
560
-
-
-
-
-
-
-
060 HI MED
LOW
-
-
2242
-
-
1090
-
2454
2201
-
1163
1053
-
2387
2161
-
1117
1017
2499
2320
2120
1290
1070
980
2391
2229
2041
1233
1023
927
2283
2137
1962
1177
977
873
2175
2046
1883
1120
930
820
2067
1950
1797
1080
887
787
1958
1854
1711
1040
843
753
1850
1758
1625
1000
800
720
-
-
-
-
-
-
NOTE: Above data includes allowances for a dry indoor coil and no filters. For additional pressure drops, refer to the “Additional Static Pressure Resistance” table.

Unitary Products Group 17
036-21311-003-A-0104
FIELD WIRING DIAGRAM
ELECTRICAL DATA (BASIC UNIT)
REFER TO ELECTRICAL DATA
TABLES TO SIZE THE DIS-
CONNECT
REFER TO ELECTRICAL DATA
TABLES TO SIZE THE DIS-
CONNECT
POWER WIRING
R
G
W
R
C
YY
W 2
C
W 1
O O
G
24 VOLT TRANSFORMER
UNIT TERMINAL STRIP
THERMOSTAT NOTE:
HEAT ANTICIPATOR
SHOULD BE SET AT 0.25
AMPS FOR ALL MODELS.
CAUTION: Label all wires prior to disconnection when servicing controls. Wiring errors can
causeimproperanddangerousoperation.Verifyproperoperationafterservicing.
PROGRAMMABLE
THERMOSTAT ONLY
** = Minimum wire size of 18 AWG
wire should be used for all field
installed 24 volt wire.
**
* = Only required on units with
supplemental electric heat.
*
CONTROL WIRING
MODEL
BHA POWER SUP- PLY
VOLTAGE
LIMITATIONS
1COMPRESSOR OUTDOOR
FAN
MOTOR,
FLA
SUPPLY
AIR
BLOWER
MOTOR,
FLA
MINIMUM
CIRCUIT
AMPACITY
MAX.
FUSE
SIZE,
AMPS
2
MAX.
HACR
BREAKER
SIZE,
AMPS
UNIT
POWER
FACTOR TRANSFORMER
SIZE (VA)
MIN. MAX. RLA LRA
018 208/230-1-60 187 253 9.0 48.0 1.1 2.6 14.9 20 20 .96 40
024 208/230-1-60 187 253 11.2 60.0 1.1 2.6 17.7 25 25 .96 40
030 208/230-1-60 187 253 12.0 73.0 1.1 2.6 18.7 25 25 .96 40
036 208/230-1-60 187 253 17.3 94.0 1.1 3.5 26.2 35 35 .96 40
042 208/230-1-60 187 253 20.5 120.0 1.1 3.5 30.2 40 40 .96 40
048 208/230-1-60 187 253 24.4 140.0 1.5 4.0 36.0 50 50 .96 40
060 208/230-1-60 187 253 28.9 165.0 1.5 7.0 44.6 60 60 .96 40
036 208/230-3-60 187 253 10.9 78.0 1.1 3.5 18.2 25 25 .96 75
042 208/230-3-60 187 253 14.1 110.0 1.1 3.5 22.2 30 30 .96 75
048 208/230-3-60 187 253 14.1 105.0 1.5 4.0 23.1 30 30 .96 75
060 208/230-3-60 187 253 16.0 125.0 1.5 7.0 28.5 40 40 .96 75
036 460-3-60 414 504 5.8 40.0 0.6 1.8 9.6 15 15 .96 75
042 460-3-60 414 504 7.1 54.0 0.6 1.8 11.2 15 15 .96 75
048 460-3-60 414 504 7.1 55.0 0.8 2.0 11.7 15 15 .96 75
060 460-3-60 414 504 8.0 67.0 0.8 3.5 14.3 20 20 .96 75
036 575-3-60 518 630 4.5 32.0 0.4 1.5 7.6 15 15 .96 75
042 575-3-60 518 630 5.8 44.0 0.4 1.5 9.1 15 15 .96 75
048 575-3-60 518 630 5.6 44.0 0.6 1.6 9.3 15 15 .96 75
060 575-3-60 518 630 6.4 50.0 0.6 2.8 11.4 15 15 .96 75
1= Rated in accordance with ARI Standard 110, utilization range “A”. 2= Dual element, time delay type.
ELECTRIC HEAT
CORRECTION
FACTORS
NOMINAL VOLTAGE VOLTAGE KW CAP. MULTI-
PLIER
240 208
230 .75 .92
480 460 .92
600 575 .92

18 Unitary Products Group
036-21311-003-A-0104
BHA
POWER
SUPPLY
COMPRESSOR OUTDOOR
FAN
MOTOR
FLA
SUPPLY
AIR
BLOWER
MOTOR,
FLA
ELECTRIC HEAT ACCESSORY MINIMUM
CIRCUIT
AMPACITY
MAX.
FUSE
SIZE 1
AMPS
MAX.
HACR 2
BREAKER
SIZE
MODEL
RLA LRA MODEL NO.
STAGE
KW TOTAL
AMPS
018 208/230-1-60 9.0 48.0 1.1 2.6 2NH04500506
2NH04500706 1 23.8/5.0 * 5.6/7.5 * 18.1/20.8 27.1/31.3 37.5/41.0 48.8/54.0 40/45 50/60 40/45 50/60
024 208/230-1-60 11.2 60.0 1.1 2.6 2NH04500506 2NH04500706
2NH04501006
1
2
2
3.8/5.0 *
5.6/7.5 *
7.5/10.0 *
18.1/20.8
27.1/31.3
36.1/41.7
40.7/44.2
52.0/57.2
63.3/70.2
45/50
60/60
70/80
45/50
60/60
70/80
030 208/230-1-60 14.7 73.0 1.1 2.6 2NH04500506
2NH04500706
2NH04501006
2NH04501506
1
2
2
2
3.8/5.0 *
5.6/7.5 *
7.5/10.0 *
11.3/15.0 *
18.1/20.8
27.3/31.3
36.1/41.7
54.2/62.5
44.7/48.2
56.0/61.2
67.3/74.2
89.8/100.3
50/50
60/70
70/80
90/110
50/50
60/70
70/80
90/110
14.7 73.0 1.1 2.6 2ND04501506 2 3.8/5.0 18.1/20.8 44.7/48.2 50/50 50/50
0.0 0.0 0.0 0.0 7.5/10.0 36.1/41.7 45.1/52.1 50/60 50/60
036 208/230-1-60 17.3 94.0 1.1 3.5 2NH04500506
2NH04500706
2NH04501006
2NH04501506
1
2
2
2
3.8/5.0 *
5.6/7.5 *
7.5/10.0 *
11.3/15.0 *
18.1/20.8
27.1/31.3
36.1/41.7
54.2/62.5
48.8/52.3
60.1/65.3
71.4/78.3
93.9/104.4
60/60
70/70
80/80
100/110
60/60
70/70
80/80
100/110
17.3 94.0 1.1 3.5 2ND04501506 2 3.8/5.0 18.1/20.8 48.8/52.3 60/60 60/60
0.0 0.0 0.0 0.0 7.5/10.0 36.1/41.7 45.1/52.1 50/60 50/60
042 208/230-1-60 20.5 120.0 1.1 3.5 2NH04500506
2NH04500706
2NH04501006
2NH04501506
1
2
2
2
3.8/5.0 *
5.6/7.5 *
7.5/10.0 *
11.3/15.0 *
18.1/20.8
27.1/31.3
36.1/41.7
54.2/62.5
52.8/56.3
64.1/69.3
75.4/82.3
97.9/108.4
60/70
70/80
80/90
100/110
60/70
70/80
80/90
100/110
20.5 120.0 1.1 3.5 2ND04501506 2 3.8/5.0 18.1/20.8 52.8/56.3 60/70 60/70
0.0 0.0 0.0 0.0 7.5/10.0 36.1/41.7 45.1/52.1 50/60 50/60
048 208/230-1-60 24.4 140.0 1.5 4.0 2NP04501006
2NP04501506
2NP04502006
2NX04502506
2
2
2
2
7.5/10.0 *
11.3/15.0 *
15.0/20.0 *
18.8/25.0 *
36.1/41.7
54.2/62.5
72.2/83.3
90.3/104.2
81.1/88.1
103.7/114.1
126.3/140.2
148.8/166.2
90/100
110/125
150/150
150/175
90/100
110/125
150/150
150/175
060 208/230-1-60 28.9 165.0 1.5 7.0 2NH04501006
2NH04501506
2NH04502006
2NH04502506
2
2
2
2
7.5/10.0 *
11.3/15.0 *
15.0/20.0 *
18.8/25.0 *
36.1/41.7
54.2/62.5
72.2/83.3
90.3/104.2
89.8/96.7
112.3/122.8
134.9/148.8
157.5/174.8
100/110
125/125
150/150
175/175
100/110
125/125
150/150
175/175
036 208/230-3-60 10.9 78.0 1.1 3.5 2NH04501025
2NH04501525 1 17.5/10.0 * 11.3/15.0 * 20.8/24.1 31.3/36.1 44.3/48.3 57.3/63.3 45/50 60/70 45/50 60/70
042 208/230-3-60 14.1 110.0 1.1 3.5 2NH04501025
2NH04501525 1 17.5/10.0 * 11.3/15.0 * 20.8/24.1 31.3/36.1 48.3/57.3 61.3/67.3 50/60 70/70 50/60 70/70
048 208/230-3-60 14.1 105.0 1.5 4.0 2NP04501025
2NP04501525
2NP04502025
2NH04502525
1
1
2
2
7.5/10.0 *
11.3/15.0 *
15.0/20.0 *
18.8/25.0 *
20.8/24.1
31.3/36.1
41.7/48.1
52.1/60.1
49.2/53.2
62.2/68.2
75.3/83.3
88.3/98.3
50/60
70/70
80/90
90/100
50/60
70/70
80/90
90/100
060 208/230-3-60 16.0 125.0 1.5 7.0 2NH04501025
2NH04501525
2NH04502025
2NH04502525
1
1
2
2
7.5/10.0 *
11.3/15.0 *
15.0/20.0 *
18.8/25.0 *
20.8/24.1
31.3/36.1
41.7/48.1
52.1/60.1
54.6/58.6
67.6/73.6
80.7/88.7
93.7/103.7
60/60
70/80
90/90
100/110
60/60
70/80
90/90
100/110
036 460-3-60 5.8 40.0 0.6 1.8 2NH04501046
2NH04501546 1 110.0 ** 15.0 ** 12.8 18.0 24.6 32.2 25 35 25 35
042 460-3-60 7.1 54.0 0.6 1.8 2NH04501046
2NH04501546 1 110.0 ** 15.0 ** 12.0 18.0 26.2 33.8 30 35 30 35
048 460-3-60 7.1 55.0 0.8 2.0 2NP04501046
2NH04501546
2NH04502046
2NH04502546
1
1
2
2
10.0 **
15.0 **
20.0 **
25.0 **
12.0
18.0
24.1
30.1
26.7
34.2
41.7
49.3
30
35
45
50
30
35
45
50
060 460-3-60 8.0 67.0 0.8 3.5 2NH04501046
2NH04501546
2NP04502046
2NP04502546
1
1
2
2
10.0 **
15.0 **
20.0 **
25.0 **
12.0
18.0
24.1
30.1
29.4
36.9
44.4
51.9
30
40
45
60
30
40
45
60
1= Dual element, time delay type. * = KW listed is for 240 volts, use table at top of page for 208 or 230 volts.
2= Standard circuit breakers may be used in Canada and on applications ** = KW listed is for 480 volts, use table at top of page for 460 volts.
over 60 amps where the heaters are separately fused. *** = KW listed is for 600 volts, use table at top of page for 575 volts.
ELECTRICAL DATA (HEAT PUMP / ELECTRIC HEAT)

Unitary Products Group 19
036-21311-003-A-0104
BHA
POWER
SUPPLY
COMPRESSOR OUT-
DOOR
FAN
MOTOR
FLA
SUPPLY
AIR
BLOWER
MOTOR,
FLA
ELECTRIC HEAT ACCESSORY MINIMUM
CIRCUIT
AMPAC-
ITY
MAX.
FUSE
SIZE 1
AMPS
MAX.
HACR2
BREAKER
SIZE
MODEL
RLA LRA MODEL NO.
STAGE
KW TOTAL
AMPS
036 575-3-60 4.5 32.0 0.4 1.5 2NH04501058
2NH04501558 1 110.0 *** 15.0 *** 9.6 14.4 19.6 25.6 20 30 20 30
042 575-3-60 5.8 44.0 0.4 1.5 2NH04501058
2NH04501558 1 110.0 *** 15.0 *** 9.6 14.4 21.1 27.2 25 30 25 30
048 575-3-60 5.6 44.0 0.6 1.6 2NH04501058
2NH04501558
2NH04502058
2NH04502558
1
1
2
2
10.0 ***
15.0 ***
20.0 ***
25.0 ***
9.6
14.4
19.2
24.1
21.3
27.3
33.3
39.3
25
30
35
40
25
30
35
40
060 575-3-60 6.4 50.0 0.6 2.8 2NH04501058
2NH04501558
2NP04502058
2NP04502558
1
1
2
2
10.0 ***
15.0 ***
20.0 ***
25.0 ***
9.6
14.4
19.2
24.1
23.4
29.5
35.5
41.5
25
30
40
45
25
30
40
45
1= Dual element, time delay type. * = KW listed is for 240 volts, use table at top of page for 208 or 230 volts.
2= Standard circuit breakers may be used in Canada and on applications ** = KW listed is for 480 volts, use table at top of page for 460 volts.
over60ampswheretheheatersareseparatelyfused. ***=KWlistedisfor600volts,usetableattopofpagefor575volts.
ELECTRIC HEAT
CORRECTION
FACTORS
NOMINAL VOLTAGE VOLTAGE KW CAP. MULTI-
PLIER
240 208
230 .75 .92
480 460 .92
600 575 .92
ELECTRICAL DATA (HEAT PUMP / ELECTRIC HEAT) (CONTINUED)

20 Unitary Products Group
036-21311-003-A-0104

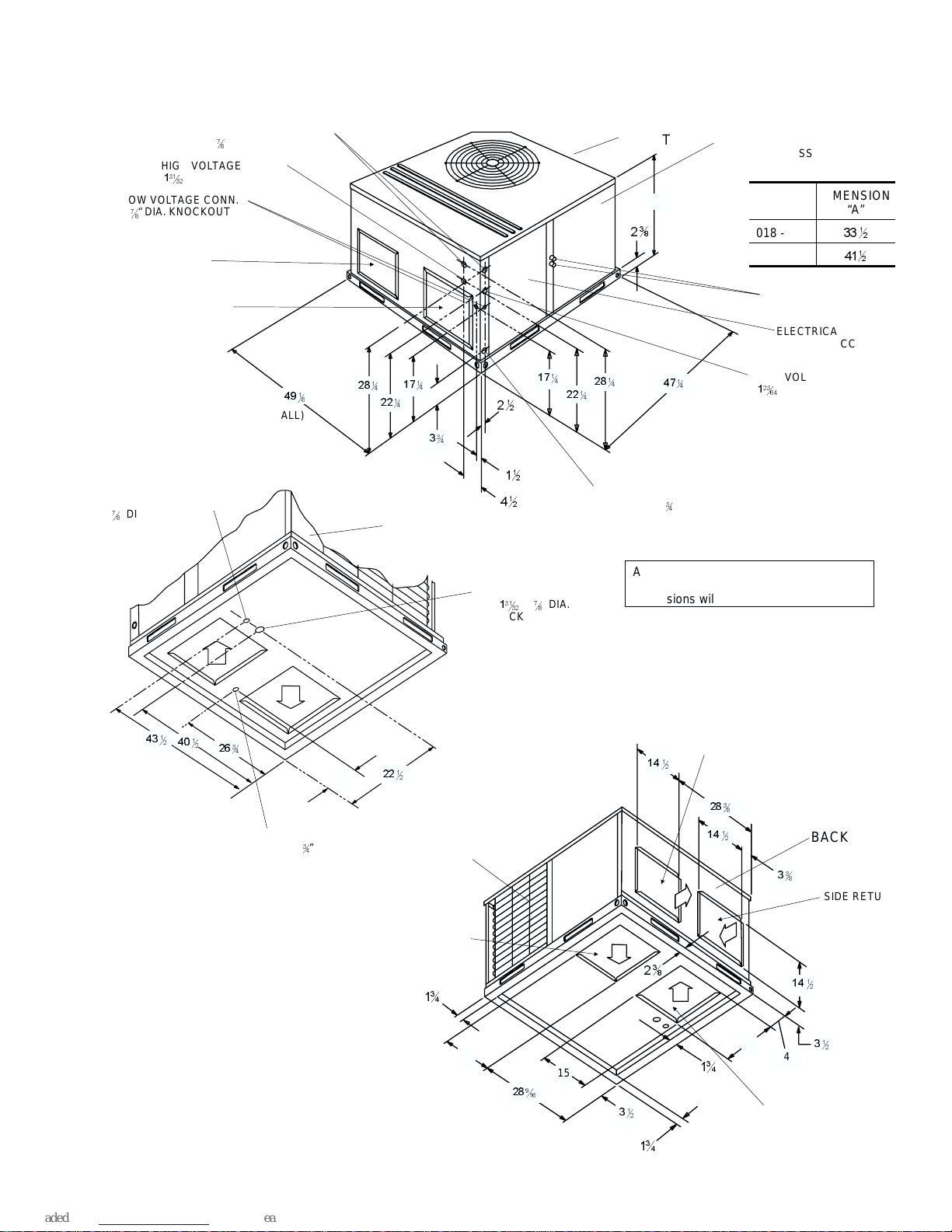

UNIT DIMENSIONS
CONDENSATE
DRAIN
34
“ NPTI
LOW VOLTAGE
CONN.
78
“ DIA. KNOCKOUT
HIGH VOLTAGE
CONN.
1
3132
“ x
78
" DIA.
KNOCKOUT
FRONT
6
22
12
43
12
40
12
26
34
OUTDOOR
COIL
15 4
BACK
SIDE RETURN
AIR OPENING
SIDE SUPPLY
AIR OPENING
BOTTOM RETURN
AIR OPENING
15
14
12
28
38
3
38
3
12
28
916
2
38
1
34
1
34
1
34
3
12
15
14
12
14
12
BOTTOM SUPPLY
AIR OPENING
2
38
3
34
47
14
LOW VOLTAGE CONN.
78
“ DIA. KNOCKOUT
HIGH VOLTAGE CONN.
1
3132
" DIA. KNOCKOUT
FRONT
ELECTRICAL/FILTER
SERVICE ACCESS
COMPARTMENT PANEL
(OVERALL)
(OVERALL)
4
12
1
12
2
12
All dimensions are in inches. They are
subject to change without notice. Certified
dimensions will be provided upon request.
UNIT CONDENSATE
CONNECTION
34
“ NPTI
(TRAP REQUIRED)
49
18
(OVERALL)
SIDE SUPPLY
AIR OPENING
SIDE RETURN
AIR OPENING
COMPRESSOR
SERVICE ACCESS
COMPARTMENT PANEL
22
14
17
14
22
14
17
14
HIGH VOLTAGE CONN.
1
2364
" DIA. KNOCKOUT
HIGH VOLTAGE CONN.
78
" DIA. KNOCKOUT
28
14
28
14
REFRIGERANT
CONNECTIONS
“A” UNIT SIZE DIMENSION
“A”
018 - 042
33
12
048 - 060
41
12
