YORKVILLE UNITY UCS1 User manual

➲1000-watt Horn Loaded Passive Subwoofer
➲15-inch Long Excursion 8-ohm Driver
➲Compact Size (11.1 cubic feet)
➲Solid 15mm 11-ply birch plywood cabinet
➲Heavy gauge perforated metal grille
➲Built in heavy duty casters and tiltback handle
➲Optional finish of black ultrathane paint (UCS1B)
➲Two-year unconditional warranty*
*Warrany valid in Canada and the United States only
Unity™UCS1
15-inch Compact Subwoofer
Unity™UCS1
Features:
Overview:
yorkville.com

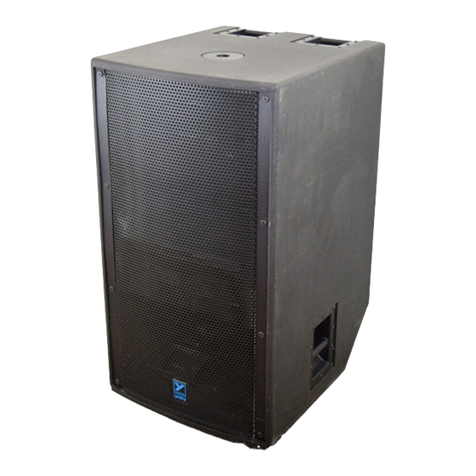

The UCS1 is the ideal passive subwoofer to use with the Unity™ U15 or U215
loudspeaker systems. This 1000-watt 8-ohm cabinet takes full advantage of its
horn-loaded design to deliver fierce bottom end from a surprisingly compact,
single 15-inch loaded passive subwoofer.
The performance UCS1 delivers from a box this manageable in size is the direct
result of outstanding loudspeaker cabinet design. Optimized horn flare geometry
careful attention to the front and rear internal chamber dimensions, as well as
the use of a high performance long excursion 15-inch driver gives the UCS1
surprising high output volume and extended bass response for a subwoofer
cabinet occupying only a total volume of just over 11 cubic feet.
The UCS1 is made with a solid 15mm 11-ply birch plywood cabinet construction
and has a heavy gauge perforated metal grill to protect the components.
Integrated wheels and bar handles make moving and stacking the UCS1 as easy
as it can possibly be for a subwoofer in this class.
The UCS1 comes in a black carpet covering to mate with the U15 and U215, or
is available in a black painted Ultrathane finish (UCS1B) for use with the
Ultrathane painted versions of the Unity™ loudspeakers. (U15B and U215B).
Unity™ UCS1 Specifications:
Model UCS1
SYSTEM TYPE Horn Loaded Subwoofer
ACTIVE OR PASSIVE Passive
PROGRAM POWER (Watts) 1000
NOMINAL IMPEDANCE (Ohms) 8
SENSITIVITY (dB @1Watt/1m) 102
MAX SPL (dB) 132
FREQUENCY RESPONSE (Hz +/- 3db) 37 - 150
LF DRIVER(s) 15 inch, Ceramic Magnet, 3 inch voicecoil
LF PROGRAM POWER (Watts) 1000
LF IMPEDANCE (Ohms) 8
INPUTS - 1/4" Jacks 2
INPUTS - Speakon 4-pin 2
OTHER CONTROLS / FEATURES Speakon™ connectors feature a configuration switch which allows
instant reversal of Speakon™ jack pinouts for easy single wire
hook-up using optional four wire Speakon™ cables.
CORNERS Black Steel
WHEELS 2 Rear
BAR HANDLES 2 Top, 2 Side
POLE MOUNT ADAPTER (1 3/8"-3.5cm) Yes - Top
ENCLOSURE MATERIALS 15mm (5/8inch) 11-ply Russian Birch
GRILLE Heavy gauge perforated metal
COVERING / FINISH Black Ozite (Carpet)
OPTIONAL COVERING / FINISHES Black Ultrathane Paint (UCS1B)
DIMENSIONS (DWH xbackW, inches) 26.25 x 19.25 x 41
DIMENSIONS (DWH xbackW, cm) 67 x 49 x 104
WEIGHT (lbs/kg) 118 / 44.5
Unity™ Series Overview
The Unity™ Series of loudspeakers is a radical loudspeaker cabinet design utilizing
the patented Unity™ Summation Aperture Horn Technology, which was invented by
loudspeaker designer Tom Danley and licensed from Sound Physics Labs Inc.
The Unity™ Series pushes the limits of modern state-of-the-art sound reinforcement technology,which features a radical new loudspeaker horn
design, arguably the first major evolution in horn technology in the last 60 years. Ultra clear reproduction through the high-mid band with extremely
linear frequency response has been achieved using the patented* Unity™ horn technology, licensed from Sound Physics Labs Inc. Unity™ horn tech-
nology combines a single 1" throat with a 1.75” diaphragm high frequency compression driver alongside three 5” ceramic magnet midrange drivers
on a single, highly efficient conical horn. This combines high and mid frequency energy in a single 60º x 60º conical horn that produces frequencies
from 300Hz to 20kHz. Patent holder Tom Danley explains it this way. "With a conical horn, one sees that at the compression driver exit, the expan-
sion rate is very rapid at high frequency cutoff, and since the expansion rate acts as a high pass filter, the low frequency energy does not couple to
the mouth. Move a few inches toward the mouth and one finds the expansion rate is much slower and suitable for low midrange, if only that was
where the driver was. All one has to do is obtain a mid driver, suitable for efficient horn loading in that frequency band and find the point in the flare
where the expansion rate is suitable for that frequency range and couple the sound in at that point. Because the compression driver and each mid
driver are less than 1/4 wavelength apart, their output combines fully and coherently, something which cannot happen if the driver were further than
about 1/3 wavelength apart."
*U.S. Patent # 6,411,718 B1
